NRF24L01 Remote Control for RC Car and Plane using Arduino

Controlling RC cars and planes wirelessly using Arduino has become an exciting and educational project for hobbyists and makers. With the help of the NRF24L01 wireless transceiver module, you can build your own custom remote control system that’s both reliable and cost-effective. This article will guide you through how to create an NRF24L01-based remote control for your RC car or plane using Arduino.

What is NRF24L01?

The NRF24L01 is a popular 2.4GHz transceiver module developed by Nordic Semiconductor. It is widely used for wireless communication between two or more Arduino boards due to its:

Long range (up to 100 meters with antenna)

• Long range (up to 100 meters with antenna)

Low power consumption

• Low power consumption

High data rate (up to 2 Mbps)

• High data rate (up to 2 Mbps)

SPI communication interface

• SPI communication interface

It’s a great alternative to expensive commercial RF modules for RC projects.

Components Required

To make this project work, you’ll need:

2 × Arduino boards (Uno/Nano/Pro Mini)

• 2 × Arduino boards (Uno/Nano/Pro Mini)

2 × NRF24L01 modules

• 2 × NRF24L01 modules

Joystick module or push buttons (for transmitter)

• Joystick module or push buttons (for transmitter)

Motor driver (L298N or similar for car)

• Motor driver (L298N or similar for car)

RC car chassis or a small plane

• RC car chassis or a small plane

Batteries and jumper wires

• Batteries and jumper wires

Project Overview

This system has two main parts:

Transmitter (Remote): Sends control signals using joystick or buttons.

• Transmitter (Remote): Sends control signals using joystick or buttons.

Receiver (Car/Plane): Receives signals and controls the motors accordingly.

• Receiver (Car/Plane): Receives signals and controls the motors accordingly.

Circuit Connections

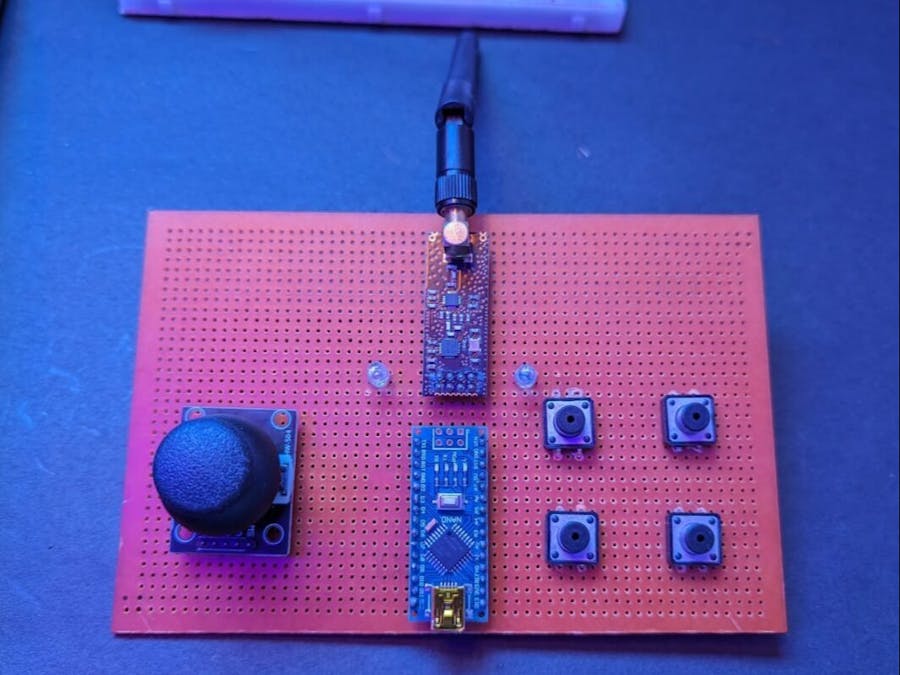

Transmitter Side (Arduino + NRF24L01 + Joystick):

NRF24L01:

VCC → 3.3V (Use a capacitor or adapter if needed)

• VCC → 3.3V (Use a capacitor or adapter if needed)

GND → GND

• GND → GND

CE → D9

• CE → D9

CSN → D10

• CSN → D10

SCK → D13

• SCK → D13

MOSI → D11

• MOSI → D11

MISO → D12

• MISO → D12
• NRF24L01:VCC → 3.3V (Use a capacitor or adapter if needed)GND → GNDCE → D9CSN → D10SCK → D13MOSI → D11MISO → D12

Joystick:

VRx → A0

• VRx → A0

VRy → A1

• VRy → A1

SW → D2 (optional)

• SW → D2 (optional)
• Joystick:VRx → A0VRy → A1SW → D2 (optional)

Receiver Side (Arduino + NRF24L01 + Motor Driver):

NRF24L01 is connected the same as on the transmitter side.

• NRF24L01 is connected the same as on the transmitter side.

Connect motor driver's inputs to Arduino pins and outputs to the motors.

• Connect motor driver's inputs to Arduino pins and outputs to the motors.

How It Works

The joystick reads analog values and sends them via NRF24L01 from the transmitter.

• The joystick reads analog values and sends them via NRF24L01 from the transmitter.

The receiver Arduino reads these values and drives the motors based on direction and speed.

• The receiver Arduino reads these values and drives the motors based on direction and speed.

This wireless communication is fast and can control both RC cars and planes smoothly.

• This wireless communication is fast and can control both RC cars and planes smoothly.

Sample Transmitter Code Snippet

cpp

CopyEdit

#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

RF24 radio(9, 10);
const byte address[6] = "00001";
int data[2]; // X and Y values from joystick

void setup() {
radio.begin();
radio.openWritingPipe(address);
radio.setPALevel(RF24_PA_HIGH);
radio.stopListening();
}

void loop() {
data[0] = analogRead(A0); // X-axis
data[1] = analogRead(A1); // Y-axis
radio.write(&data, sizeof(data));
delay(10);
}

cpp

CopyEdit
#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

RF24 radio(9, 10);
const byte address[6] = "00001";
int data[2]; // X and Y values from joystick

void setup() {
  radio.begin();
  radio.openWritingPipe(address);
  radio.setPALevel(RF24_PA_HIGH);
  radio.stopListening();
}

void loop() {
  data[0] = analogRead(A0); // X-axis
  data[1] = analogRead(A1); // Y-axis
  radio.write(&data, sizeof(data));
  delay(10);
}

The receiver code will read these values and convert them to motor control signals.

Applications

Wireless RC cars

• Wireless RC cars

Drones or remote planes

• Drones or remote planes

Wireless robotics projects

• Wireless robotics projects

Home automation control systems

• Home automation control systems

Conclusion

Building an NRF24L01-based remote control system for an RC car or plane is a rewarding and practical project. It introduces you to wireless communication, sensor interfacing, and motor control. Whether you’re an electronics hobbyist or a student, this project helps you understand how real-world wireless systems function.
