Are you fascinated by synchronized light displays that dance to your favorite tunes? Want to create an engaging visual experience with LEDs that respond to music? In this article, we'll guide you through building a simple yet impressive music reactive LED setup using Arduino.

Introduction

Music reactive LEDs are a popular project among electronics enthusiasts and musicians alike. They add a dynamic visual element to performances, parties, or even personal projects. Using an Arduino microcontroller, along with some LEDs and audio sensors, you can create a system where lights change intensity, color, or pattern based on the music playing.

What You'll Need

• Arduino Uno (or compatible microcontroller)
• Electret Microphone Sound Sensor (or audio input module)
• LEDs (WS2812B strips or individual LEDs)
• Resistors (220Ω for data line, if using )
• Breadboard and jumper wires
• Power supply suitable for your LED setup
• Optional: Potentiometer for sensitivity adjustment

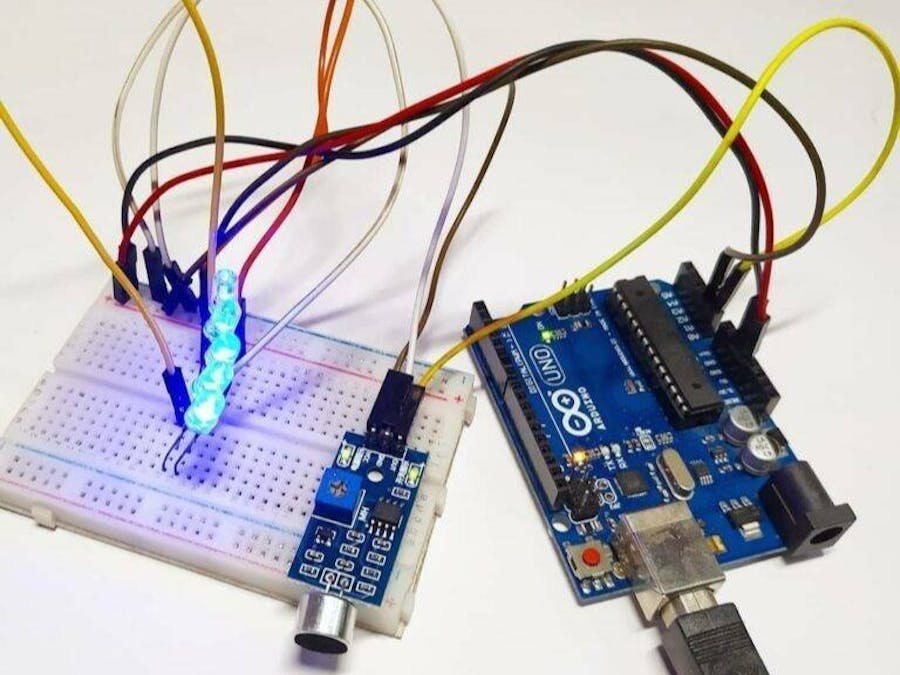

Building the Circuit

Connect the Microphone Sensor:

• VCC to 5V on Arduino
• GND to GND
• Analog output pin to an input pin (e.g., A0)
• Connect the Microphone Sensor:VCC to 5V on ArduinoGND to GNDAnalog output pin to an an input pin (e.g., A0)

Connect the LEDs:

• Data input of LED strip to a digital pin (e.g., D6)
• Power and GND appropriately connected
• Include a resistor (220Ω) between Arduino and data line to prevent voltage spikes
• Connect the LEDs:Data input of LED strip to a digital pin (e.g., D6)Power and GND appropriately connectedInclude a resistor (220Ω) between Arduino and data line to prevent voltage spikes

Power the LEDs:

• Use a dedicated power supply if you have many LEDs
• Connect the ground of power supply to Arduino GND
• Power the LEDs:Use a dedicated power supply if you have many LEDsConnect the ground of power supply to Arduino GND

Programming the Arduino

Here's a simple example sketch to get you started:

CopyRun#include <Adafruit_NeoPixel.h>

#define PIN 6
#define NUM_LEDS 30
#define MIC A0

Adafruit_NeoPixel strip(NUM_LEDS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();
  strip.show();
  Serial.begin(9600);
}

void loop() {
  int sensorValue = analogRead(MIC);
  int brightness = map(sensorValue, 0, 1023, 0, 255);

  // Set LED color based on music intensity
  for (int i = 0; i < NUM_LEDS; i++) {
    strip.setPixelColor(i, strip.Color(brightness, 0, 255 - brightness));
  }
  strip.show();

  Serial.println(sensorValue);
  delay(50);
}

This code reads the microphone input, maps it to a brightness value, and updates the LED strip color accordingly.

Customization Ideas

• Color Effects: Change colors based on frequency analysis for more advanced projects.
• Patterns: Create different lighting patterns that react to specific beats or bass.
• Sensitivity Control: Use a potentiometer to adjust the microphone sensitivity in real-time.

Conclusion

Creating a music reactive LED system with Arduino is an accessible and rewarding project. It combines audio processing with visual effects, perfect for enhancing your musical performances or home decor. Experiment with different sensors, LEDs, and code modifications to make your setup unique and even more responsive.

Ready to Light Up Your Music?Start building your own music reactive LED project today and bring your music to life with mesmerizing visual effects!
