Overview & Objective The article teaches how to implement smooth LED fading on an Arduino Mega using PWM (Pulse Width Modulation). It’s a beginner‑friendly guide guiding through both hardware setup and sketch programming, illustrating how to create soft transitions in LED brightness using analog output capabilities of the Mega

Why Use Arduino Mega? While fading LEDs is possible on smaller boards like the Uno, the Mega offers more PWM‑capable pins. This makes it ideal for multi‑LED projects, where you may need numerous fade‑control channels for lighting installations, visual effects, mood lighting, or status indicators.

Requirements

Arduino Mega board

• Arduino Mega board

One or more LEDs

• One or more LEDs

Suitable resistors (220 Ω to 1 kΩ)

• Suitable resistors (220 Ω to 1 kΩ)

Jumper wires and breadboard

• Jumper wires and breadboard

USB cable to upload code and power the board

• USB cable to upload code and power the board

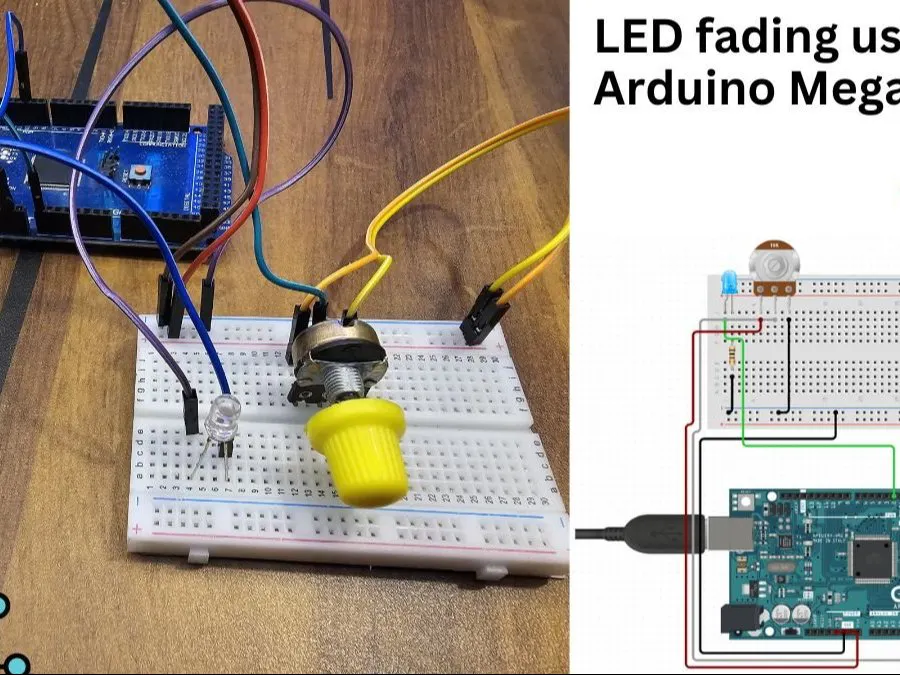

Wiring Setup Each LED is wired to one of the Mega’s PWM pins (e.g., 2, 3, 4, etc.). The other LED lead (cathode) connects to ground through a resistor. The article provides clear wiring diagrams demonstrating how to connect the LED‑resistor pair to PWM pins, ensuring current limitation and proper orientation.

PWM & Fading Concept PWM simulates analog voltage by rapidly toggling a digital pin between HIGH and LOW. Varying the duty cycle controls LED brightness:

0% duty cycle (always OFF) = LED off

• 0% duty cycle (always OFF) = LED off

100% duty cycle (always ON) = LED fully bright

• 100% duty cycle (always ON) = LED fully bright

Intermediate cycle values create perceptually smoother dimming.

• Intermediate cycle values create perceptually smoother dimming.

This tutorial shows fading by gradually increasing and decreasing the duty cycle with controlled delays, resulting in a pulsing brightness effect.

Arduino Sketch Structure

Variable declaration

cpp

CopyEdit

int ledPin = 9; // PWM-capable pin
int brightness = 0; // starts at off
int fadeAmount = 5; // step increment

cpp

CopyEdit
int ledPin = 9;            // PWM-capable pin
int brightness = 0;        // starts at off
int fadeAmount = 5;        // step increment

• Variable declarationcppCopyEditint ledPin = 9; // PWM-capable pin
int brightness = 0; // starts at off
int fadeAmount = 5; // step increment


Setup block

cpp

CopyEdit

void setup() {
pinMode(ledPin, OUTPUT);
}

cpp

CopyEdit
void setup() {
  pinMode(ledPin, OUTPUT);
}

• Setup blockcppCopyEditvoid setup() {
pinMode(ledPin, OUTPUT);
}


Loop with fading logic

cpp

CopyEdit

void loop() {
analogWrite(ledPin, brightness);
brightness += fadeAmount;
if (brightness <= 0 || brightness >= 255) {
fadeAmount = -fadeAmount;
}
delay(30); // adjust fade smoothness
}

cpp

CopyEdit
void loop() {
  analogWrite(ledPin, brightness);
  brightness += fadeAmount;
  if (brightness <= 0 || brightness >= 255) {
    fadeAmount = -fadeAmount;
  }
  delay(30); // adjust fade smoothness
}

The loop writes brightness values from 0 to 255, then reverses the fade direction.

• The loop writes brightness values from 0 to 255, then reverses the fade direction.

fadeAmount controls fade speed; lower values = slower fade.

• fadeAmount controls fade speed; lower values = slower fade.

delay() determines smoothness; small delays give casual fade, larger ones make it slower.

• delay() determines smoothness; small delays give casual fade, larger ones make it slower.
• Loop with fading logiccppCopyEditvoid loop() {
analogWrite(ledPin, brightness);
brightness += fadeAmount;
if (brightness <= 0 || brightness >= 255) {
fadeAmount = -fadeAmount;
}
delay(30); // adjust fade smoothness
}

The loop writes brightness values from 0 to 255, then reverses the fade direction.fadeAmount controls fade speed; lower values = slower fade.delay() determines smoothness; small delays give casual fade, larger ones make it slower.

Expanding the Project

Multiple LEDs: Repeat the logic for different pins to create independent fades or color‑cycling effects.

• Multiple LEDs: Repeat the logic for different pins to create independent fades or color‑cycling effects.

Adjustable fade parameters: Add variables or user input to modify speed or brightness range.

• Adjustable fade parameters: Add variables or user input to modify speed or brightness range.

Interactivity: Combine with buttons, sensors, or potentiometers to change fade behavior dynamically.

• Interactivity: Combine with buttons, sensors, or potentiometers to change fade behavior dynamically.

Advanced lighting patterns: Use arrays and loops to sequentially fade several LEDs, creating chasing or breathing LED sequences.

• Advanced lighting patterns: Use arrays and loops to sequentially fade several LEDs, creating chasing or breathing LED sequences.

Tips & Improvements

The guide notes that fixed delay() calls can block other code. For more responsive systems, use millis(), non‑blocking timing functions to blend fading with other operations.

• The guide notes that fixed delay() calls can block other code. For more responsive systems, use millis(), non‑blocking timing functions to blend fading with other operations.

Choose resistor values to ensure safe current — typical LED current is ~10–20 mA.

• Choose resistor values to ensure safe current — typical LED current is ~10–20 mA.

You can apply the technique in automation, ambient lighting, custom displays, theater props, or wearable tech thanks to the Mega’s large PWM pin count.

• You can apply the technique in automation, ambient lighting, custom displays, theater props, or wearable tech thanks to the Mega’s large PWM pin count.

Conclusion tutorial gives a clear, concise, and practical walkthrough for implementing LED fading via PWM on an Arduino Mega. The project illustrates the essence of PWM control, simple code logic for smooth transitions, and practical wiring fundamentals. With only an LED, resistor, and a few lines of code, beginners can easily craft visually pleasing lighting effects. Plus, the flexibility of the Mega opens up room for creative expansion into more advanced interactive projects.
