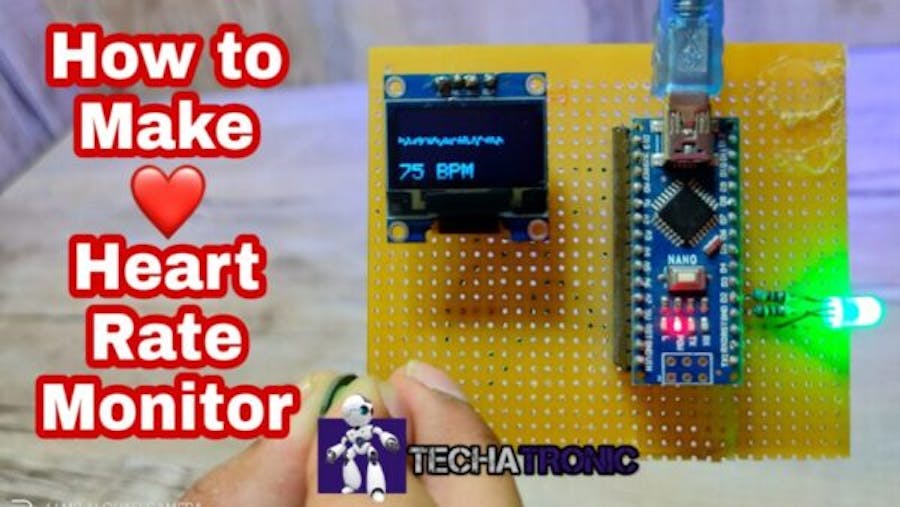

Hey guys, In this article, we are making a new project that is a heart rate monitor system using Arduino. For measuring the heartbeat we are using a pulse rate sensor module. You just have to put your fingertip on the heartbeat sensor and then the system will calculate your heartbeat automatically. There is an OLED display that is connected to the Arduino and you will see the graphical representation as well as the numeric value of the heartbeat. For more information about this project visit the original post of this project also bookmark TECHATRONIC.COM as all my further projects and tutorials will be pre-uploaded there. You will see the heartbeat rate in the standard unit that is BPM. This project is very useful in daily life and it is cheap to make it as compare to the original pulse monitor machine.
There is a pulse rate sensor module in our project which plays an important role in calculating the heartbeat rate. Hold the sensor between your fingers or you can also put your finger on it so that the sensor can take the readings. After it, the Arduino does all the processing and calculation and sends the final output signals to the OLED display. The OLED display is much better than other displays because it has more pixels than other ordinary display modules. Finally, you can see the BPM values on the display with a graphical representation of the values. The values keep updating continuously till you remove your finger from the sensor.
Components Required for Heart Rate Monitor- Pulse Rate sensor module
- Arduino Nano
- Zero PCB
- OLED 128X64
- Berg Strips
Schematic Diagram for Heart Rate Monitor
This is the circuit diagram for the pulse rate monitor system. There is a detailed diagram also given below.
We hope that you like this project and thanks for reading.
HAPPY LEARNING!
