Introduction of Arduino Clock Project

Hey geeks, welcome back to Techatronic. We are sure that you all have seen analog clocks near you all which tells us time but from these clocks, a machine cant read the time.

Interfacing DS1307 RTC Module with Arduino – A Complete Guide

Timekeeping is essential for many electronics projects, especially those that require event scheduling, logging data, or tracking real-time events. The DS1307 Real-Time Clock (RTC) module is a popular choice for such applications. It allows your Arduino projects to keep track of the current time even when the main power is turned off, thanks to its onboard battery backup system.

What is the DS1307 RTC Module?

The DS1307 is an I²C-based real-time clock module that maintains accurate time, including seconds, minutes, hours, day, date, month, and year. It has a built-in 32.768 kHz crystal oscillator and a backup battery that ensures timekeeping even when the main power is disconnected. This makes it an ideal component for data logging systems, alarms, clocks, or any time-dependent device.

Components Required

To interface the DS1307 RTC module with an Arduino board, you will need:

Arduino UNO or any compatible board

• Arduino UNO or any compatible board

DS1307 RTC Module

• DS1307 RTC Module

Breadboard and jumper wires

• Breadboard and jumper wires

Optional: 16x2 LCD with I²C interface for displaying the time

• Optional: 16x2 LCD with I²C interface for displaying the time

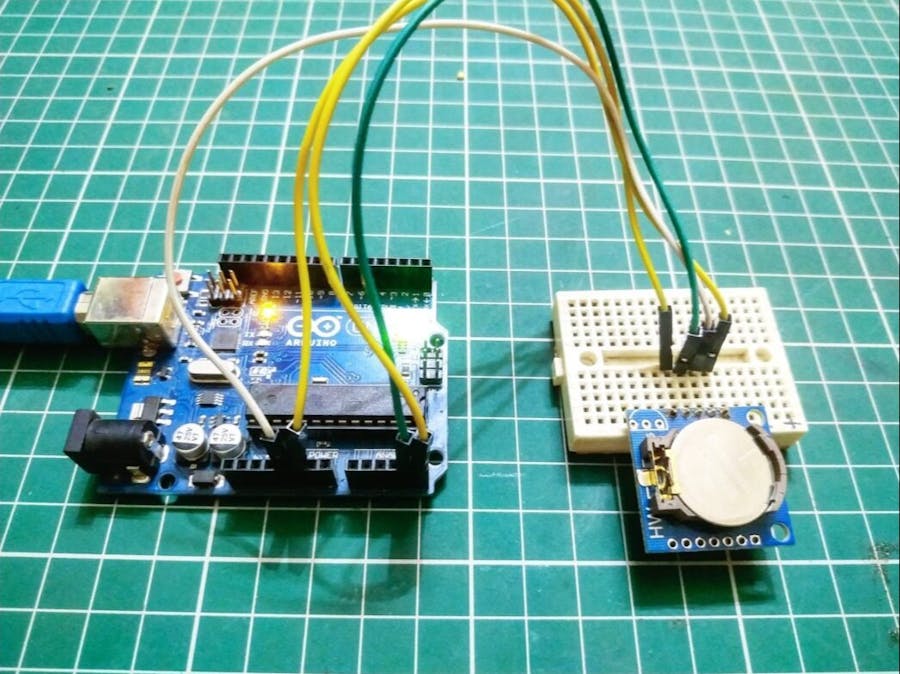

Circuit Connection

The DS1307 uses I²C communication, which means it requires only two wires to communicate with the Arduino—SDA and SCL. On the Arduino UNO:

Connect SDA of the module to A4

• Connect SDA of the module to A4

Connect SCL of the module to A5

• Connect SCL of the module to A5

Connect VCC to 5V

• Connect VCC to 5V

Connect GND to Ground

• Connect GND to Ground

Make sure your module includes the CR2032 battery for backup functionality.

Arduino Code Overview

To program the DS1307 module, you’ll need the RTClib library by Adafruit. This library simplifies communication with the module and provides easy-to-use functions to set and read the current time.

The code first initializes the RTC and checks if it's running. If it's the first time setup, you can set the time using rtc.adjust(). After that, you can continuously read the current time and date using rtc.now(), and then print or display it on an LCD or Serial Monitor.

Here’s a simplified example of what the loop might look like:

cpp

CopyEdit

DateTime now = rtc.now();
Serial.print(now.hour());
Serial.print(':');
Serial.print(now.minute());
Serial.print(':');
Serial.println(now.second());

cpp

CopyEdit
DateTime now = rtc.now();
Serial.print(now.hour());
Serial.print(':');
Serial.print(now.minute());
Serial.print(':');
Serial.println(now.second());

Applications of DS1307 RTC

Digital Clocks

• Digital Clocks

Timers and Alarms

• Timers and Alarms

Data Loggers (Temperature, Humidity, etc.)

• Data Loggers (Temperature, Humidity, etc.)

Attendance or Access Control Systems

• Attendance or Access Control Systems

Automation Projects

• Automation Projects

Conclusion

Using the DS1307 RTC module with Arduino is a great way to add reliable timekeeping to your electronics projects. It’s easy to set up, works with just a few connections, and continues tracking time even during power loss. Whether you’re building a smart alarm system or a data logger, this module offers the essential functionality to keep your project on time.
