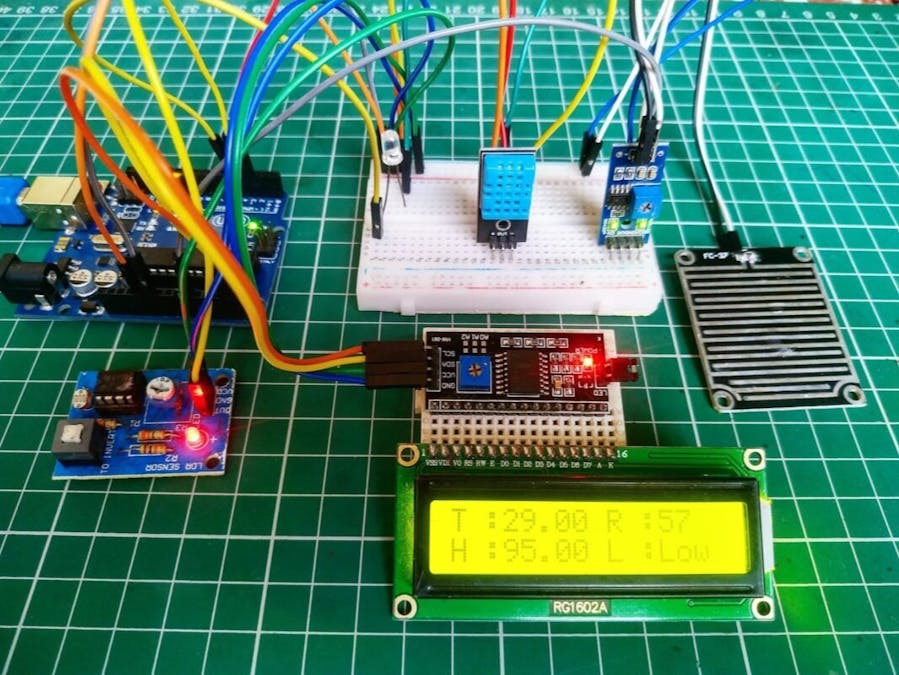

Building an Arduino Weather Station with DHT11 Sensor

In recent years, DIY electronics projects have gained immense popularity, especially among hobbyists and students interested in weather monitoring and environmental data collection. One such project is the Arduino-based weather station utilizing the DHT11 sensor, which is simple, affordable, and effective for measuring basic weather parameters like temperature and humidity.

Introduction to Arduino and DHT11 Sensor

Arduino is an open-source microcontroller platform widely used for various DIY projects due to its ease of use and versatility. The DHT11 sensor is a basic, low-cost digital sensor capable of measuring temperature (0-50°C) and relative humidity (20-80%) with reasonable accuracy. It communicates with the Arduino via a single digital pin, making it straightforward to interface.

Components Needed

To build a basic weather station, you need the following components:

• Arduino Uno (or any compatible board)
• DHT11 Temperature and Humidity Sensor
• Breadboard and jumper wires
• 10kΩ resistor (for DHT11 data pin pull-up)
• Optional: LCD display to show data

Working Principle

The DHT11 sensor captures environmental data and sends it digitally to the Arduino. The microcontroller then processes this data and can display it on an LCD or send it to a computer via serial communication. This setup allows users to monitor weather conditions in real-time, making it useful for weather stations, greenhouse monitoring, or educational purposes.

Connecting the Components

The DHT11 sensor has three or four pins: VCC, Data, GND, and sometimes NC (not connected). Typically, you connect:

• VCC to 5V on Arduino
• GND to ground
• Data to a digital pin (e.g., pin 2) with a 10kΩ pull-up resistor between VCC and Data pin

If using an LCD display, additional connections are needed, but for simplicity, serial output is often used.

Programming the Arduino

To read data from the DHT11 sensor, you can use the DHT sensor library, which simplifies the process. Here is a basic example of Arduino code:

CopyRun#include <DHT.h>

#define DHTPIN 2     // Digital pin connected to the DHT sensor
#define DHTTYPE DHT11   // DHT 11

DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);
  dht.begin();
}

void loop() {
  delay(2000); // Wait a few seconds between measurements

  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print("%  ");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println("°C");
}

This code initializes the sensor, reads the temperature and humidity every two seconds, and outputs the data via serial monitor.

Applications and Enhancements

A simple Arduino weather station can be expanded with additional sensors like barometers, wind speed sensors, or rain gauges for comprehensive weather monitoring. Data can also be logged onto SD cards or sent via Wi-Fi modules like the ESP8266 for remote monitoring.

Conclusion

Creating an Arduino weather station with the DHT11 sensor is an excellent beginner project that combines hardware and software skills. It provides real-time environmental data and can serve as a foundation for more complex weather monitoring systems. With minimal components and straightforward programming, hobbyists can easily build and customize their weather stations for educational, personal, or research purposes.
