Arduino Music Player Using Piezo Buzzer

Arduino Music Player Using Piezo Buzzer

Project Overview

The core idea is to use the tone() function in the Arduino IDE to generate a square wave of a specific frequency on a digital pin. This signal is sent to a Piezo Buzzer, which vibrates at that frequency to produce a musical note. By playing a sequence of these notes for specific durations, you can create a recognizable song.

Components Required

According to the article, you will need:

Arduino Uno (or any other Arduino board like Nano, Mega)

• Arduino Uno (or any other Arduino board like Nano, Mega)

Piezo Buzzer (or a small speaker)

• Piezo Buzzer (or a small speaker)

Breadboard

• Breadboard

Jumper Wires (Male-to-Male)

• Jumper Wires (Male-to-Male)

Resistor (e.g., 100 ohms, optional but recommended to protect the Arduino pin)

• Resistor (e.g., 100 ohms, optional but recommended to protect the Arduino pin)

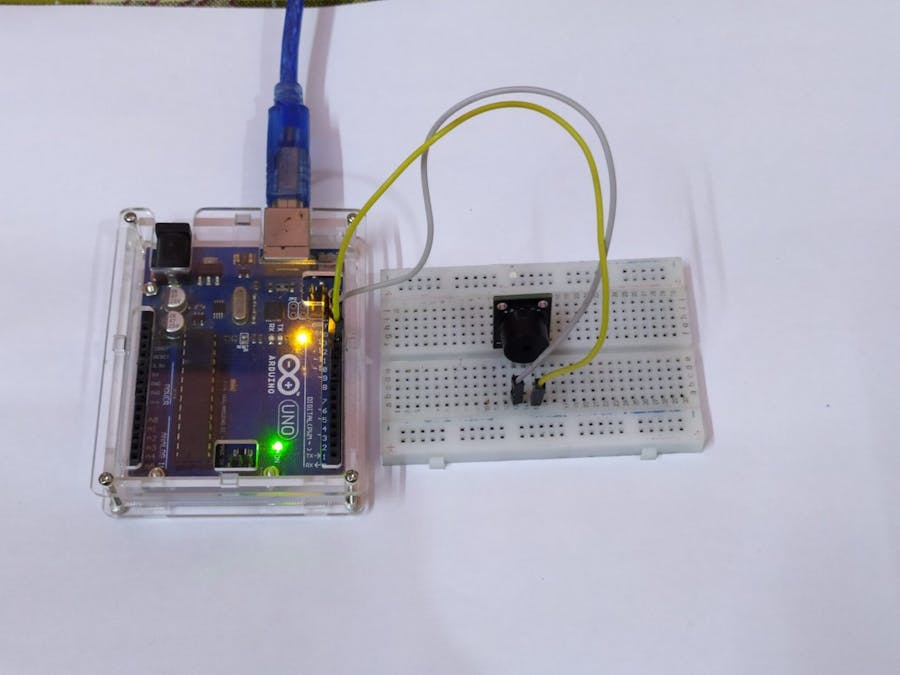

Circuit Diagram & Connection

The circuit is very simple.

Connect the positive leg (longer lead) of the piezo buzzer to Arduino Digital Pin 8 through a resistor (e.g., 100Ω).

• Connect the positive leg (longer lead) of the piezo buzzer to Arduino Digital Pin 8 through a resistor (e.g., 100Ω).

Connect the negative leg (shorter lead) of the buzzer directly to the Arduino GND (Ground) pin.

• Connect the negative leg (shorter lead) of the buzzer directly to the Arduino GND (Ground) pin.

Why the resistor? It slightly limits the current flowing to the buzzer, protecting both the Arduino pin and the buzzer from potential overload, though the project will often work without it.

How the Code Works (The Core Logic)

The code from the website relies on two main concepts:

Frequencies for Notes: Each musical note corresponds to a specific sound frequency (measured in Hertz, Hz). For example:

Note C4 (Middle C) = 262 Hz

• Note C4 (Middle C) = 262 Hz

Note D4 = 294 Hz

• Note D4 = 294 Hz

Note E4 = 330 Hz

• Note E4 = 330 Hz

...and so on. The code defines these frequencies as an array.

• ...and so on. The code defines these frequencies as an array.
• Frequencies for Notes: Each musical note corresponds to a specific sound frequency (measured in Hertz, Hz). For example:Note C4 (Middle C) = 262 HzNote D4 = 294 HzNote E4 = 330 Hz...and so on. The code defines these frequencies as an array.

The tone() and noTone() Functions:

tone(pin, frequency, duration): This function tells the Arduino to generate a sound on the specified pin at the given frequency for the specified duration in milliseconds.

• tone(pin, frequency, duration): This function tells the Arduino to generate a sound on the specified pin at the given frequency for the specified duration in milliseconds.

noTone(pin): This function stops the sound generation on the specified pin. It's good practice to use it between notes to ensure they don't run into each other.

• noTone(pin): This function stops the sound generation on the specified pin. It's good practice to use it between notes to ensure they don't run into each other.
• The tone() and noTone() Functions:tone(pin, frequency, duration): This function tells the Arduino to generate a sound on the specified pin at the given frequency for the specified duration in milliseconds.noTone(pin): This function stops the sound generation on the specified pin. It's good practice to use it between notes to ensure they don't run into each other.

The program logic is as follows:

Define an array of the frequencies for the notes in your melody.

• Define an array of the frequencies for the notes in your melody.

Define another array for the duration of each corresponding note (e.g., a quarter note, eighth note).

• Define another array for the duration of each corresponding note (e.g., a quarter note, eighth note).

In the loop(), iterate through these arrays, playing each note for its specified duration using the tone() function, followed by a short pause.

• In the loop(), iterate through these arrays, playing each note for its specified duration using the tone() function, followed by a short pause.

Example Code Snippet (Based on the Article)

Here is a simplified version of the code structure used on the website. This example plays "Twinkle Twinkle Little Star".

cpp

// Define the pin for the buzzer
int speakerPin = 8;

// Notes and their frequencies (in Hz)
int c4 = 262, d4 = 294, e4 = 330, f4 = 349, g4 = 392, a4 = 440, b4 = 494;

// Array of the melody notes
int melody[] = {c4, c4, g4, g4, a4, a4, g4, f4, f4, e4, e4, d4, d4, c4};

// Array of note durations: 4 = quarter note, 2 = half note, etc.
int noteDurations[] = {4, 4, 4, 4, 4, 4, 2, 4, 4, 4, 4, 4, 4, 2};

void setup() {
  // Nothing to set up here for this simple example
}

void loop() {
  // Iterate over the notes of the melody
  for (int thisNote = 0; thisNote < 14; thisNote++) {

    // Calculate the note duration in milliseconds (1000ms / note type)
    int noteDuration = 1000 / noteDurations[thisNote];

    // Play the note on the speaker pin
    tone(speakerPin, melody[thisNote], noteDuration);

    // To distinguish between notes, add a short delay (pauseBetweenNotes)
    // A common rule is to use 1.3 times the note duration
    int pauseBetweenNotes = noteDuration * 1.3;
    delay(pauseBetweenNotes);

    // Stop the tone playing
    noTone(speakerPin);
  }

  delay(1000); // Wait a second before restarting the song
}

Advantages and Limitations

Advantages

Limitations

Very Low Cost

Sound Quality is Poor (monophonic, square wave)

Excellent for Learning

Can only play one note at a time

Simple Circuit & Code

Limited volume and frequency range

Demonstrates core concepts like tone(), arrays, and loops.

Not suitable for complex music or polyphonic sounds.

How to Improve This Project

The basic project is just the starting point. Here are ways to make it more advanced:

Add a Button: Modify the code to start playing the melody only when a push button is pressed.

• Add a Button: Modify the code to start playing the melody only when a push button is pressed.

Add a Potentiometer: Use a potentiometer to control the tempo (speed) of the music by changing the delay() values.

• Add a Potentiometer: Use a potentiometer to control the tempo (speed) of the music by changing the delay() values.

Play Multiple Songs: Add another button to cycle through different songs stored in different arrays.

• Play Multiple Songs: Add another button to cycle through different songs stored in different arrays.

Use a Better Speaker: For slightly better volume and sound quality, you can use a small 8-ohm speaker (still with a resistor).

• Use a Better Speaker: For slightly better volume and sound quality, you can use a small 8-ohm speaker (still with a resistor).

Use a Library: For more complex music, use a dedicated library like the pitches.h library, which contains a full list of note frequencies, making it easier to write sheet music directly into the code.

• Use a Library: For more complex music, use a dedicated library like the pitches.h library, which contains a full list of note frequencies, making it easier to write sheet music directly into the code.

Conclusion

The Arduino Music Player using a Piezo Buzzer is a perfect beginner project. It successfully teaches fundamental programming concepts (functions, arrays, loops) and basic electronics in a fun and engaging way. While the sound output is simple, the sense of accomplishment from making the Arduino "sing" a familiar tune is a great motivator for learning more.
