Project Overview

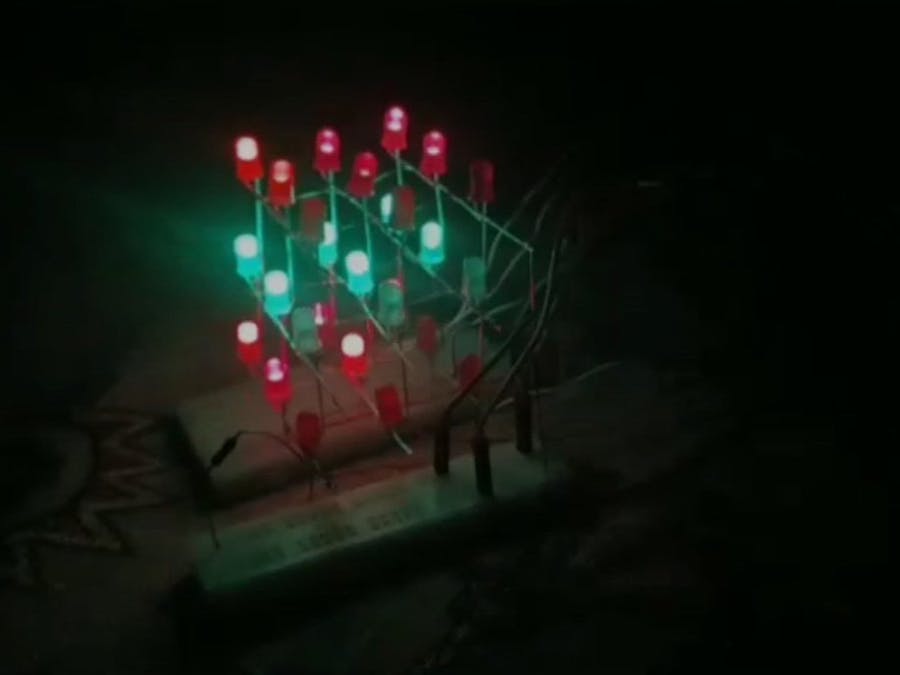

The core idea is to arrange 27 LEDs in a 3x3x3 grid. The cube is structured in layers (levels) and columns. By using a technique called Persistence of Vision (POV) or multiplexing, the Arduino can control all 27 LEDs using only 12 digital pins (9 for columns + 3 for layers) by lighting up one entire layer at a time, but doing it so quickly that our eyes perceive all layers as being on simultaneously.

Components Required

According to the article, you will need:

Arduino Uno (or Nano, Mega)

• Arduino Uno (or Nano, Mega)

LEDs (27 pieces, all one color or a mix)

• LEDs (27 pieces, all one color or a mix)

Breadboard

• Breadboard

Jumper Wires (a lot of them!)

• Jumper Wires (a lot of them!)

Resistors (9 pieces, 220Ω or 330Ω)

• Resistors (9 pieces, 220Ω or 330Ω)

Cardboard (or a template) for building the cube frame

• Cardboard (or a template) for building the cube frame

Soldering Iron & Solder (Essential for this project)

• Soldering Iron & Solder (Essential for this project)
• The Construction Process (The Most Critical Part)

Building the physical cube is 80% of the challenge. The article breaks it down into clear steps:

Creating the Template: Create a 3x3 grid pattern on a piece of cardboard. This will be your jig for aligning the LEDs.

• Creating the Template: Create a 3x3 grid pattern on a piece of cardboard. This will be your jig for aligning the LEDs.

Building the Layers (Levels):

Place 9 LEDs into the 3x3 holes in the template.

• Place 9 LEDs into the 3x3 holes in the template.

Bend the CATHODES (short leg, flat side) of all LEDs to the side. Solder them all together to form a common ground plane for the entire layer.

• Bend the CATHODES (short leg, flat side) of all LEDs to the side. Solder them all together to form a common ground plane for the entire layer.

The ANODES (long leg) should point straight up. These will be the individual positive connections for each LED in the layer.

• The ANODES (long leg) should point straight up. These will be the individual positive connections for each LED in the layer.

Repeat this process to create three identical layers.

• Repeat this process to create three identical layers.
• Building the Layers (Levels):Place 9 LEDs into the 3x3 holes in the template.Bend the CATHODES (short leg, flat side) of all LEDs to the side. Solder them all together to form a common ground plane for the entire layer.The ANODES (long leg) should point straight up. These will be the individual positive connections for each LED in the layer.Repeat this process to create three identical layers.

Stacking the Layers:

Stack the three layers on top of each other, ensuring the columns of anodes are aligned.

• Stack the three layers on top of each other, ensuring the columns of anodes are aligned.

Solder the Anodes vertically: Solder the anode of the bottom LED to the anode of the LED directly above it in the middle layer, and then to the top LED. This creates 9 vertical columns.

• Solder the Anodes vertically: Solder the anode of the bottom LED to the anode of the LED directly above it in the middle layer, and then to the top LED. This creates 9 vertical columns.
• Stacking the Layers:Stack the three layers on top of each other, ensuring the columns of anodes are aligned.Solder the Anodes vertically: Solder the anode of the bottom LED to the anode of the LED directly above it in the middle layer, and then to the top LED. This creates 9 vertical columns.

Final Structure: After soldering, you will have a cube with:

3 Layer Pins (Common Cathode): One for each horizontal layer (all the "ground" planes).

• 3 Layer Pins (Common Cathode): One for each horizontal layer (all the "ground" planes).

9 Column Pins (Anode): One for each vertical column of 3 LEDs.

• 9 Column Pins (Anode): One for each vertical column of 3 LEDs.
• Final Structure: After soldering, you will have a cube with:3 Layer Pins (Common Cathode): One for each horizontal layer (all the "ground" planes).9 Column Pins (Anode): One for each vertical column of 3 LEDs.
• Circuit Diagram & Connection

The connections follow the cube's logical structure:

Layer Control (Cathodes, connected to GND via Arduino):

Layer 1 (Bottom) → Arduino Digital Pin 2

• Layer 1 (Bottom) → Arduino Digital Pin 2

Layer 2 (Middle) → Arduino Digital Pin 3

• Layer 2 (Middle) → Arduino Digital Pin 3

Layer 3 (Top) → Arduino Digital Pin 4

• Layer 3 (Top) → Arduino Digital Pin 4
• Layer Control (Cathodes, connected to GND via Arduino):Layer 1 (Bottom) → Arduino Digital Pin 2Layer 2 (Middle) → Arduino Digital Pin 3Layer 3 (Top) → Arduino Digital Pin 4

Column Control (Anodes, connected to +5V via a resistor):

Column 1 → through a 220Ω resistor → Arduino Digital Pin 5

• Column 1 → through a 220Ω resistor → Arduino Digital Pin 5

Column 2 → through a 220Ω resistor → Arduino Digital Pin 6

• Column 2 → through a 220Ω resistor → Arduino Digital Pin 6

... and so on, up to...

• ... and so on, up to...

Column 9 → through a 220Ω resistor → Arduino Digital Pin 13

• Column 9 → through a 220Ω resistor → Arduino Digital Pin 13
• Column Control (Anodes, connected to +5V via a resistor):Column 1 → through a 220Ω resistor → Arduino Digital Pin 5Column 2 → through a 220Ω resistor → Arduino Digital Pin 6... and so on, up to...Column 9 → through a 220Ω resistor → Arduino Digital Pin 13

Why this works (Multiplexing): To light a specific LED, you must:

Set its Column Pin to HIGH (provide positive voltage).

• Set its Column Pin to HIGH (provide positive voltage).

Set its Layer Pin to LOW (complete the circuit to ground).The Arduino cycles through each layer so quickly (turning one layer on at a time) that your eyes blend the rapidly changing images into a stable 3D pattern.

• Set its Layer Pin to LOW (complete the circuit to ground).The Arduino cycles through each layer so quickly (turning one layer on at a time) that your eyes blend the rapidly changing images into a stable 3D pattern.

How the Code Works (The Core Logic)

The code creates animations by defining which LEDs are on in each "frame" of the animation.

Pin Definitions: The code defines arrays for the layer pins and the column pins.

• Pin Definitions: The code defines arrays for the layer pins and the column pins.

setup() Function: It sets all the layer and column pins as OUTPUTs.

• setup() Function: It sets all the layer and column pins as OUTPUTs.

The Main Loop & Animations:

The core of the program is a function that displays one "frame" of the animation.

• The core of the program is a function that displays one "frame" of the animation.

A frame is an array that specifies the state (ON/OFF) of all 9 columns for each of the 3 layers.

• A frame is an array that specifies the state (ON/OFF) of all 9 columns for each of the 3 layers.

The displayFrame() function works like this:

• The displayFrame() function works like this:
• The Main Loop & Animations:The core of the program is a function that displays one "frame" of the animation.A frame is an array that specifies the state (ON/OFF) of all 9 columns for each of the 3 layers.The displayFrame() function works like this:
• void displayFrame(unsigned long frame[3]) {

for (int layer = 0; layer < 3; layer++) {

// Turn all layers OFF first to prevent ghosting

digitalWrite(layerPins[0], HIGH);

digitalWrite(layerPins[1], HIGH);

digitalWrite(layerPins[2], HIGH);

// For the current layer, set each column based on the frame data

for (int col = 0; col < 9; col++) {

boolean state = bitRead(frame[layer], col);

digitalWrite(columnPins[col], state);

}

// Turn ON the current layer (LOW activates it because it's the cathode)

digitalWrite(layerPins[layer], LOW);

delay(5); // Display this layer for a short time

}

}Different animation sequences (like a spinning plane, a snake, etc.) are created by defining a series of these frames and looping through them.

• Different animation sequences (like a spinning plane, a snake, etc.) are created by defining a series of these frames and looping through them.
• Different animation sequences (like a spinning plane, a snake, etc.) are created by defining a series of these frames and looping through them.

Example Animation Code Snippet (Conceptual)

The code would define frames using binary or hexadecimal numbers to represent which LEDs are on.

// Example: Frame where all LEDs in the bottom layer are ON

unsigned long frameAllBottom[3] = {

0b111111111, // Layer 1: All 9 columns ON

0b000000000, // Layer 2: All OFF

0b000000000 // Layer 3: All OFF

};

// Example: Frame for a vertical line in the center column

unsigned long frameVerticalLine[3] = {

0b000010000, // Layer 1: Only center column ON

0b000010000, // Layer 2: Only center column ON

0b000010000 // Layer 3: Only center column ON

};

void loop() {

displayFrame(frameAllBottom);

delay(500);

displayFrame(frameVerticalLine);

delay(500);

}

Advantages and Challenges

Advantages

Challenges

Visually Stunning: A very impressive and professional-looking project.

Complex Soldering: Requires precise and neat soldering. Cold solder joints are a common issue.

Excellent Learning: Teaches 3D multiplexing, Persistence of Vision, and advanced programming logic.

Time-Consuming Construction: Building the cube frame and soldering takes significant time and patience.

Foundation for Larger Cubes: The principles learned here apply directly to building larger 4x4x4 or 8x8x8 cubes.

Debugging is Difficult: If one LED doesn't light, finding the faulty connection in the 3D structure can be hard.

Highly Customizable: You can program any pattern or animation you can imagine.

Fragile Structure: The cube can be physically fragile if not built carefully.

Troubleshooting Tips

LED Not Lighting:

Check Polarity: Ensure you soldered cathodes and anodes correctly during construction.

• Check Polarity: Ensure you soldered cathodes and anodes correctly during construction.

Test LEDs: Before soldering, test every LED with a coin battery or multimeter.

• Test LEDs: Before soldering, test every LED with a coin battery or multimeter.

Check Solder Joints: Look for cold solder joints or accidental bridges between pins.

• Check Solder Joints: Look for cold solder joints or accidental bridges between pins.
• LED Not Lighting:Check Polarity: Ensure you soldered cathodes and anodes correctly during construction.Test LEDs: Before soldering, test every LED with a coin battery or multimeter.Check Solder Joints: Look for cold solder joints or accidental bridges between pins.

Entire Layer/Column Not Working:

Check Wiring: Verify the connection from the Arduino pin to the cube.

• Check Wiring: Verify the connection from the Arduino pin to the cube.

Check Resistors: Ensure the current-limiting resistors for the columns are soldered correctly.

• Check Resistors: Ensure the current-limiting resistors for the columns are soldered correctly.
• Entire Layer/Column Not Working:Check Wiring: Verify the connection from the Arduino pin to the cube.Check Resistors: Ensure the current-limiting resistors for the columns are soldered correctly.

Ghosting (LEDs dimly lighting when they shouldn't):

This is a common multiplexing issue. The code should ensure all layers are turned OFF (HIGH for cathode layers) before setting the column states for the next layer.

• This is a common multiplexing issue. The code should ensure all layers are turned OFF (HIGH for cathode layers) before setting the column states for the next layer.
• Ghosting (LEDs dimly lighting when they shouldn't):This is a common multiplexing issue. The code should ensure all layers are turned OFF (HIGH for cathode layers) before setting the column states for the next layer.

Conclusion

The 3x3x3 LED Cube is a quintessential Arduino project that perfectly blends hardware craftsmanship with software creativity. While the construction phase is challenging and requires patience and good soldering skills, the end result is a mesmerizing display that serves as a fantastic demonstration of your skills. It provides a deep, hands-on understanding of how multiplexing works and is a gateway to more complex display projects.
