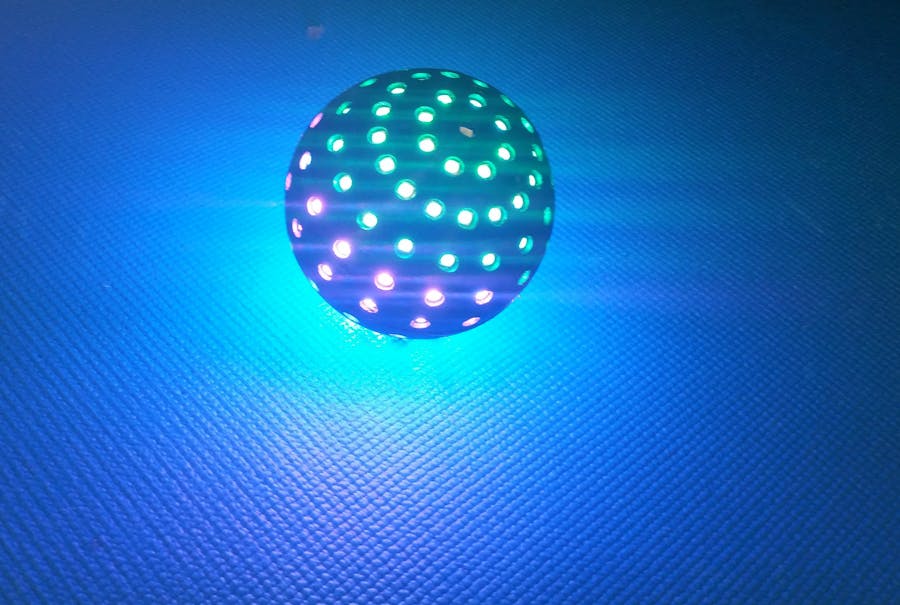

Build this unique, cool interactive free-standing LED sphere with multiple sensors that can be used to provide a fun platform for further development - interaction, lighting or games.
The unit is 3D-printed and uses an Arduino board, gyro board, audio mic sensors controlling 130 independently controlled colored LEDs. There are two buttons for adding effects and menus for this unique gadget - the possibilities for effects can be endless.
The current code provided uses the gyro output to change the color based on the rotation or attitude of the sphere which gives a unique effect as seen in the YouTube clip. I am progressively releasing example effects over the next few days that can be accessed through menus and displayed on the LED Gyro Sphere.
Step 1: Gather the Materials- 1 x Teensy3.6 - Do not apply more than 3.3V to any signal pin.
- MPU 6050 6 axis controller
- WS2812 LEDs x 130 (Purchased in bulk from Ali Express)
- Access to a 3D printer
- Micro Slide Switch
- 2 x 6mm SPST Micro Tactile Switch
- Microphone Input Sound Module Freetronics
- 4400mha USB Rechargeable Power Bank
- USB Cable - suitable to be modified
- Single core hookup wire
- Hot glue gun
- 15cmx5cm vero board
Circuit Enhancements
Initially, I used an Arduino Nano for the build however as the size of the code grew with new features which resulted in three issues - Power supply limitations, Speed & Memory issues. Therefore I have reworked the circuit to use a Teensy3.6, which features a 32 bit 180 MHz ARM Cortex-M4 processor with a floating point unit. Apart from the performance improvements, all of the digital and analog pins are 3.3 volts. The teensy has a voltage regulator on board on the Vin pin, however, care must be taken as all other pins operate at 3.3v and are easily damaged. The SCL and SDA serial lines require pull-up resistors to operate correctly so these have been added. Additionally, the Teensy3.6 has an analog ground pin which means that there is less audio interference likely to occur. This enabled very stable and low noise audio detection. The Freetronics Microphone unit proved very sensitive and stable for audio detection LED effects.
Step 2: 3D Print CaseThe sphere is 110mm in diameter with a wall thickness of approx 3mm using Black PLA filament. There are 130 LEDs to connect in the unit so it was more practical to print the unit in four components to make it easier to access the inside of the sphere with a soldering iron.
The files can be found on Thingiverse here
I used a Robo C2 printer which performed well for the print. By splitting the build into 4 units and printing two small pieces at the same time reduces the print time significantly.
Step 3: Build the LED ArrayPreparing the Case for Assembly
Once the case has been printed in four pieces remove all excess plastic. This can be done using a pair of pliers and side cutters. I did use a lot of 3D model supports, so this will take some time and should be done carefully so as not to damage the case.
Tip: Use a Hot Glue Gun tip to melt some of the rough edges off on the inside of the case to reduce the effort involved and make it easier to smooth.
My LEDs needed a 7mm Diameter Hole to be able to fit snuggly into the case. Test one of your LEDs fit correctly and use a 7mm Drill Bit to clean out any excess plastic.
Fix the LEDs into the Case
Starting at the bottom of the case push an LED into position. Use a blob of hot glue to hold into place and move onto the next hole. Ensure that the 5v contacts oriented in vertically and in a consistent manner as per the photographs.
Once one section is complete go over the LEDs again and put another blob of Hot Glue on the other side of the hole inside the unit so that at least two blobs of glue fasten each LED. Take care not to get the glue on the electrical contacts of LED. However, the Glue will burn off with the soldering iron if there is some spillage.
Preparing the LEDs
Once the LEDs are in place then using your soldering iron gently "Tin" each of the contacts on the LED with solder. This makes soldering the wires onto the contacts the process much easier. This is a very delicate touch with the soldering iron, simultaneously adding a touch of solder to the tip of your soldering iron and then moving away. TOO MUCH HEAT WILL DAMAGE THE LEDs - so be careful.
Connecting the LEDs
The LEDs are connected together using single core bell telephone hookup wire. This may look daunting however when done methodically is actually not too difficult.
Start by stripping the insulation off the hookup wire and build a pile of 25cm lengths.
Starting at the top of the section run a wire along the 5v contacts of one circular row of LEDs. Solder the end onto the contacts then bend the wire into position in an arc across all other contacts. Systematically tin the wire at each intersection point prior to attempting to solder to the LED. Then gently touch the iron on the wire and contact with some solder. Practice makes perfect - and you're about to get a lot of practice!!
Once complete repeat for the earth connection.
For the Data connection its the same process, however, I found that the best way is to solder one wire across both contacts on each LED (given they are in the centre) and then once complete come back with a sharp pair of side cutters and cut out the section of wire between each Input/Output contact on each LED. This speeds up the process considerably and is perfectly safe to do.
Joining the Layers
This is done as per the photographs in a pattern that ensures the LEDs travel around the Sphere sequentially. Carefully connect earth, Positive and Data In and Out contacts to each layer. then apply lots of glue to insulate and avoid movement.
At the completion of each section of LEDs I recommend you load the test code into an Arduino Nano and run to ensure all LEDs are working. The test pattern will light up all LEDs sequentially and will identify any issues.
Step 4: Building and Testing the CircuitA small piece of Vero board has been used to mount the Teensy3.6 on the top side of the power bank.
The Vero Board requires tracks to be cut under the Teensy Board so carefully do this as per diagram.
Helpful tip - When working with Vero Board use a 10mm diameter drill bit and twist manually by hand to remove enough track to ensure a good break. It's important to have a close look when done to ensure a fine connection of copper track or debris is not left in place.
The relatively simple wiring diagram in the Circuit Diagram shows the connection points on the board. The lions share of the effort is in the wiring of the LEDs which requires careful attention on polarity.
A Power Bank was added to the center of the unit with careful cutouts for charging. Hot glue was used for mounting all components.
For best results place the MPU6050 on top of the Teensy Board by gluing a piece of cardboard to the top of the CPU and then the MPU 5060 on top of this. The board should be in a horizontal position as per photo.
Teensyduino is a software add-on for the Arduino software. The instructions for loading Teensyduino can be found here and using the Arduino IDE.
Test programs have been included for each part of the build so you can check your LEDs are working.
The latest version of code includes 9 different effects accessible through the two buttons which increment and decrement through the menu.
Once tested then combine the units and the load the code provided.
Fitting the unit together requires careful alignment of the top and bottom units and clearance of any hot glue or excess plastic.
Operation
Power is applied by use of the slide switch. Menu push buttons are used to select up to 9 different effects as follows
1. Gyro Color - Rotating sphere will change color of all LEDs
2. Gyro Puzzle - Three Bands of color set by X, Y, Z axis control of the Gyro. The objective is to rotate the ball until all bands are the same color.
3. Sound Meter - All LEDs (Great next to a Blue Tooth Speaker!!)
4. Sound Meter - Single VU Meter with 130 LEDs spiraling down
5. Dot Snakes Sound - 4 snakes run around sphere and change speed with sound
6. Dot on Top - Gyro keeps color dot on top of the sphere when sphere rolled on floor
7. Colorwash - Beautiful effect of all colors cycled through on sphere
8. Dot Snakes - 4 snakes run around sphere at constant speed
9. Gyrosnake - Sound changes color as LEDs spiral downward
Get creative and develop your own effects. Now go and enjoy your LED Gyro Sphere!
LED Gyro Sphere
C/C++A unique, cool interactive LED Sphere using a Gyro and Sound sensors create a colorful fun interactive gadget.
/* LED Gyro Sphere Teesy - TechKiwiGadgets Feb 2018
*
* V5 - Major Update of Hardware and Capability
* Addition of Teensy 3.6
* Upgrade Power Pack to 4400mha
* Reposition Gyro to ensure aligned to horizontal access when stationary
*/
/* ============================================
I2Cdev device library code is placed under the MIT license
Copyright (c) 2012 Jeff Rowberg
Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in
all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
===============================================
*/
#include <Audio.h>
#include <SPI.h>
#include <SD.h>
#include <SerialFlash.h>
// GUItool: begin automatically generated code
AudioInputAnalog adc1; //xy=164,95
AudioAnalyzePeak peak1; //xy=317,123
AudioConnection patchCord1(adc1, peak1);
//**********************************************************
// MPU-6050 Short Example Sketch
// By Arduino User JohnChi
// August 17, 2014
// Public Domain
#include<Wire.h>
const int MPU_addr=0x68; // I2C address of the MPU-6050
int16_t AcX,AcY,AcZ,Tmp,GyX,GyY,GyZ;
// WS2182 LED Driver Library Setup *************************************************************************
#include "FastLED.h"
// How many leds in your strip?
#define NUM_LEDS 130 // Note: First LED is address 0
#define DATA_PIN 33 // Note: Teensy D33 used to control LED chain
#define FASTLED_ALLOW_INTERRUPTS 0
int t1 = 20; // Delay in Milliseconds for startup routine
// Define the array of leds
CRGB leds[NUM_LEDS];
// Smoothing Variables for LPF
const float alpha = 0.98;
int smoothedX = 17000;
int smoothedY = 1000;
int smoothedZ = 10;
int gX = 57; // Pointer for Menu 5 option first LED on Xaxis in centre
int gY = 0; // Pointer for Menu 5 option
int i = 0; // Spiral variable
int xb;
int yb;
int zb;
int mic = 0; // Mic value read from A12
int soundthreshold = 20; // Minimum level threshold for fisr LED
int monoPeak = 0; // Measure of Peak input Audio
int td = 120; // Sound delay variable
int tsr = 224; // Sound delay variable
int sr1 = 300; // Delay in SoundRing
int srctr = 0; // Soundring counter
int srs = 200; // Sound Ring Delay
int nctr = 9; // Count down digits to zero
int Znum; // color digits
int clr4;
int clr5;
int clr6;
#define DC_OFFSET 0 // DC offset in mic signal
int Xdiff = 0; // Used to track the difference between baselib=ne Gyro and current readings
int Ydiff = 0;
int Zdiff = 0;
int osX = 18000; // This is Gyro Offset
int osY = 18000; // This is Gyro Offset
int osZ = 18000; // This is Gyro Offset range of -17700 to 15200 therefore normalised to 32900 range by adding 17700
float josX = 0.014; // Used to convert Gyro outputs to number below 255
float josY = 0.014; // Used to convert Gyro outputs to number below 255
float josZ = 0.014; // Used to convert Gyro outputs to number below 255
int Xcol = 0; // Final Gyro Color value
int Ycol = 0; // Final Gyro Color value
int Zcol = 0; // Final Gyro Color value
int Xvar = 0; // Variation from baseline
int Yvar = 0; // Variation from baseline
int Zvar = 0; // Variation from baseline
/*
8. X Plane unit of change 1093.75
8. Y Plane unit of change 1750
8. Z Plane unit of change 1750
*/
int Xinc = 1094; // Incremental value for each LED transition
int Yinc = 1750; // Incremental value for each LED transition
int Zinc = 1750; // Incremental value for each LED transition
int Xnormalise;
int Ynormalise;
int Znormalise;
// Menu Selection
int menu = 1; // Random Dot Pattern
int direct; // Temp direction variable
int g = 0; // Scratch variable
int d1 = 50; // Delay for LED effects
int d2 = 2000; // Delay for LED effects
int d4 = 500; // Delay for LED effects
int d5 = 200; // Delay for LED effects
int d6 = 2000; // Delay for LED effects
boolean cal = false; // Callibrate delay
/* Dot Snakes Array int dot[4][5] = { // Setup Location for 4 Dot Snakes 4 dots long
* Dot Arrays track location of a item
Dot number identifier for each Dot
0. LED Position = 0-129
1. Current Direction = 0-7
2. Prev Position = 0-129
3. Prev Prev Position= 1-129
0 = Up
1 = Up Right
2 = Right
3 = Down Right
4 = Down
5 = Down Left
6 = Left
7 = Up Left
*/
int dot[4][5] = { // Setup Location for 4 Dot Snakes 4 dots long
{5 , 5, 18, 34, 50},
{1 , 5, 10, 26, 42},
{126 , 0, 117, 101, 85},
{122 , 0, 108, 92, 76}
};
int dt = 0; // Setup Location for dot on top
// Setup array for Sound bar graph
/* Dot Arrays track location of a item
Dot number identifier for each Dot
0. LED Position = 0-129
1. Current Direction = 0-7
2. Prev Position = 0-129
3. Prev Prev Position= 1-129
0 = Up
1 = Up Right
2 = Right
3 = Down Right
4 = Down
5 = Down Left
6 = Left
7 = Up Left
*/
int sb[10] = {0, 1, 9, 25, 41, 57, 73, 89}; // Used for Sound Effect
int scntr = 0; // Counts the incremetal change around the sound effect (16 locations)
/* ************************************************************************
* The pixel Array carries the Coordinates of each LED in sequential order
LED Position
0 = Up
1 = Up Right
2 = Right
3 = Down Right
4 = Down
5 = Down Left
6 = Left
7 = Up Left
8 = LED Row Number
9 = LED Row Position Number
10 - X Axis Gyro Ref
11 - Y Axis Gyro Ref
12 - Z Axis Gyro Ref
****************************************************************************
*/
const int pixel[130][13] = {
{ 5 , 6 , 7 , 8 , 1 , 2 , 3 , 4 , 1 , 1 , 17668 , 18042 , 26 },
{ 0 , 7 , 8 , 9 , 10 , 11 , 2 , 3 , 2 , 1 , 13593 , 19330 , 945 },
{ 0 , 8 , 1 , 11 , 12 , 13 , 3 , 4 , 2 , 2 , 12765 , 14870 , 1500 },
{ 0 , 1 , 2 , 13 , 14 , 15 , 4 , 5 , 2 , 3 , 16290 , 12859 , 1015 },
{ 0 , 2 , 3 , 15 , 16 , 17 , 5 , 6 , 2 , 4 , 19352 , 12049 , 1121 },
{ 0 , 3 , 4 , 17 , 18 , 19 , 6 , 7 , 2 , 5 , 21402 , 15641 , 303 },
{ 0 , 4 , 5 , 19 , 20 , 21 , 7 , 8 , 2 , 6 , 22739 , 17763 , 390 },
{ 0 , 5 , 6 , 21 , 22 , 23 , 8 , 1 , 2 , 7 , 20164 , 20767 , 218 },
{ 0 , 6 , 7 , 23 , 24 , 9 , 1 , 2 , 2 , 8 , 16480 , 21065 , 399 },
{ 1 , 8 , 24 , 40 , 25 , 26 , 10 , 1 , 3 , 1 , 11649 , 22517 , 2345 },
{ 1 , 8 , 9 , 25 , 26 , 27 , 11 , 2 , 3 , 2 , 9928 , 18712 , 2667 },
{ 2 , 1 , 10 , 26 , 27 , 28 , 12 , 2 , 3 , 3 , 8984 , 15608 , 3558 },
{ 2 , 1 , 11 , 27 , 28 , 29 , 13 , 3 , 3 , 4 , 10660 , 11850 , 3618 },
{ 3 , 2 , 12 , 28 , 29 , 30 , 14 , 3 , 3 , 5 , 13153 , 9570 , 3496 },
{ 3 , 2 , 13 , 29 , 30 , 31 , 15 , 4 , 3 , 6 , 15628 , 7918 , 3836 },
{ 4 , 3 , 14 , 30 , 31 , 32 , 16 , 4 , 3 , 7 , 19982 , 7107 , 4119 },
{ 4 , 3 , 15 , 31 , 32 , 33 , 17 , 5 , 3 , 8 , 23846 , 8620 , 3852 },
{ 5 , 4 , 16 , 32 , 33 , 34 , 18 , 5 , 3 , 9 , 25987 , 10631 , 3521 },
{ 5 , 4 , 17 , 33 , 34 , 35 , 19 , 6 , 3 , 10 , 28716 , 13866 , 3929 },
{ 6 , 5 , 18 , 34 , 35 , 36 , 20 , 6 , 3 , 11 , 29138 , 18636 , 3572 },
{ 6 , 5 , 19 , 35 , 36 , 37 , 21 , 7 , 3 , 12 , 27845 , 22257 , 3311 },
{ 7 , 6 , 20 , 36 , 37 , 38 , 22 , 7 , 3 , 13 , 25448 , 24727 , 2888 },
{ 7 , 6 , 21 , 37 , 38 , 39 , 23 , 8 , 3 , 14 , 22405 , 27379 , 3368 },
{ 8 , 7 , 22 , 38 , 39 , 40 , 24 , 8 , 3 , 15 , 17686 , 27918 , 3383 },
{ 8 , 7 , 23 , 39 , 40 , 25 , 25 , 1 , 3 , 16 , 14693 , 26495 , 2947 },
{ 9 , 24 , 40 , 56 , 41 , 42 , 26 , 10 , 4 , 1 , 7984 , 26491 , 7655 },
{ 10 , 9 , 25 , 41 , 42 , 43 , 27 , 11 , 4 , 2 , 5486 , 21616 , 8131 },
{ 11 , 10 , 26 , 42 , 43 , 44 , 28 , 12 , 4 , 3 , 4951 , 16152 , 8431 },
{ 12 , 11 , 27 , 43 , 44 , 45 , 29 , 13 , 4 , 4 , 6181 , 10996 , 9020 },
{ 13 , 12 , 28 , 44 , 45 , 46 , 30 , 14 , 4 , 5 , 10314 , 6130 , 9348 },
{ 14 , 13 , 29 , 45 , 46 , 47 , 31 , 15 , 4 , 6 , 15265 , 3892 , 9042 },
{ 15 , 14 , 30 , 46 , 47 , 48 , 32 , 16 , 4 , 7 , 20306 , 3185 , 9537 },
{ 16 , 15 , 31 , 47 , 48 , 49 , 33 , 17 , 4 , 8 , 24925 , 5285 , 8163 },
{ 17 , 16 , 32 , 48 , 49 , 50 , 34 , 18 , 4 , 9 , 29639 , 9193 , 7858 },
{ 18 , 17 , 33 , 49 , 50 , 51 , 35 , 19 , 4 , 10 , 30917 , 14042 , 6045 },
{ 19 , 18 , 34 , 50 , 51 , 52 , 36 , 20 , 4 , 11 , 32324 , 18572 , 7309 },
{ 20 , 19 , 35 , 51 , 52 , 53 , 37 , 21 , 4 , 12 , 30890 , 23910 , 6993 },
{ 21 , 20 , 36 , 52 , 53 , 54 , 38 , 22 , 4 , 13 , 27434 , 28469 , 7035 },
{ 22 , 21 , 37 , 53 , 54 , 55 , 39 , 23 , 4 , 14 , 22328 , 30706 , 6511 },
{ 23 , 22 , 38 , 54 , 55 , 56 , 40 , 24 , 4 , 15 , 16781 , 30311 , 5820 },
{ 24 , 23 , 39 , 55 , 56 , 41 , 25 , 9 , 4 , 16 , 12755 , 28610 , 5479 },
{ 25 , 40 , 56 , 72 , 57 , 58 , 42 , 26 , 5 , 1 , 7799 , 28586 , 10753 },
{ 26 , 25 , 41 , 57 , 58 , 59 , 43 , 27 , 5 , 2 , 4003 , 21932 , 11245 },
{ 27 , 26 , 42 , 58 , 59 , 60 , 44 , 28 , 5 , 3 , 3408 , 17574 , 11295 },
{ 28 , 27 , 43 , 59 , 60 , 61 , 45 , 29 , 5 , 4 , 5198 , 11321 , 10979 },
{ 29 , 28 , 44 , 60 , 61 , 62 , 46 , 30 , 5 , 5 , 8799 , 5897 , 12116 },
{ 30 , 29 , 45 , 61 , 62 , 63 , 47 , 31 , 5 , 6 , 12895 , 3152 , 13187 },
{ 31 , 30 , 46 , 62 , 63 , 64 , 48 , 32 , 5 , 7 , 20472 , 2534 , 11456 },
{ 32 , 31 , 47 , 63 , 64 , 65 , 49 , 33 , 5 , 8 , 26325 , 4099 , 11774 },
{ 33 , 32 , 48 , 64 , 65 , 66 , 50 , 34 , 5 , 9 , 30549 , 8117 , 10717 },
{ 34 , 33 , 49 , 65 , 66 , 67 , 51 , 35 , 5 , 10 , 33015 , 12909 , 9971 },
{ 35 , 34 , 50 , 66 , 67 , 68 , 52 , 36 , 5 , 11 , 34328 , 19320 , 11192 },
{ 36 , 35 , 51 , 67 , 68 , 69 , 53 , 37 , 5 , 12 , 32750 , 24373 , 10762 },
{ 37 , 36 , 52 , 68 , 69 , 70 , 54 , 38 , 5 , 13 , 29723 , 28479 , 10794 },
{ 38 , 37 , 53 , 69 , 70 , 71 , 55 , 39 , 5 , 14 , 24231 , 32195 , 10756 },
{ 39 , 38 , 54 , 70 , 71 , 72 , 56 , 40 , 5 , 15 , 17745 , 33361 , 11558 },
{ 40 , 39 , 55 , 71 , 72 , 57 , 41 , 25 , 5 , 16 , 12228 , 31904 , 12098 },
{ 41 , 56 , 72 , 88 , 73 , 74 , 58 , 42 , 6 , 1 , 6691 , 28206 , 14789 },
{ 42 , 41 , 57 , 73 , 74 , 75 , 59 , 43 , 6 , 2 , 3615 , 23581 , 15638 },
{ 43 , 42 , 58 , 74 , 75 , 76 , 60 , 44 , 6 , 3 , 3043 , 17960 , 16378 },
{ 44 , 43 , 59 , 75 , 76 , 77 , 61 , 45 , 6 , 4 , 4318 , 12204 , 15523 },
{ 45 , 44 , 60 , 76 , 77 , 78 , 62 , 46 , 6 , 5 , 6727 , 7996 , 15721 },
{ 46 , 45 , 61 , 77 , 78 , 79 , 63 , 47 , 6 , 6 , 11867 , 3456 , 15325 },
{ 47 , 46 , 62 , 78 , 79 , 80 , 64 , 48 , 6 , 7 , 17541 , 2218 , 15737 },
{ 48 , 47 , 63 , 79 , 80 , 81 , 65 , 49 , 6 , 8 , 24905 , 3359 , 16112 },
{ 49 , 48 , 64 , 80 , 81 , 82 , 66 , 50 , 6 , 9 , 30165 , 6733 , 14977 },
{ 50 , 49 , 65 , 81 , 82 , 83 , 67 , 51 , 6 , 10 , 34142 , 13037 , 15350 },
{ 51 , 50 , 66 , 82 , 83 , 84 , 68 , 52 , 6 , 11 , 34749 , 18118 , 14834 },
{ 52 , 51 , 67 , 83 , 84 , 85 , 69 , 53 , 6 , 12 , 33417 , 24448 , 14899 },
{ 53 , 52 , 68 , 84 , 85 , 86 , 70 , 54 , 6 , 13 , 29458 , 30060 , 14355 },
{ 54 , 53 , 69 , 85 , 86 , 87 , 71 , 55 , 6 , 14 , 25152 , 32749 , 14340 },
{ 55 , 54 , 70 , 86 , 87 , 88 , 72 , 56 , 6 , 15 , 17874 , 33799 , 14465 },
{ 56 , 55 , 71 , 87 , 88 , 73 , 57 , 41 , 6 , 16 , 12293 , 32446 , 14952 },
{ 57 , 72 , 88 , 104 , 89 , 90 , 74 , 58 , 7 , 1 , 5086 , 25927 , 19638 },
{ 58 , 57 , 73 , 89 , 90 , 91 , 75 , 59 , 7 , 2 , 3880 , 22322 , 19960 },
{ 59 , 58 , 74 , 90 , 91 , 92 , 76 , 60 , 7 , 3 , 3236 , 15215 , 19354 },
{ 60 , 59 , 75 , 91 , 92 , 93 , 77 , 61 , 7 , 4 , 6407 , 8345 , 19193 },
{ 61 , 60 , 76 , 92 , 93 , 94 , 78 , 62 , 7 , 5 , 12490 , 4134 , 21831 },
{ 62 , 61 , 77 , 93 , 94 , 95 , 79 , 63 , 7 , 6 , 21073 , 2166 , 19120 },
{ 63 , 62 , 78 , 94 , 95 , 96 , 80 , 64 , 7 , 7 , 26857 , 4681 , 20849 },
{ 64 , 63 , 79 , 95 , 96 , 97 , 81 , 65 , 7 , 8 , 30594 , 7112 , 19188 },
{ 65 , 64 , 80 , 96 , 97 , 98 , 82 , 66 , 7 , 9 , 34260 , 13248 , 19078 },
{ 66 , 65 , 81 , 97 , 98 , 99 , 83 , 67 , 7 , 10 , 34359 , 22135 , 19412 },
{ 67 , 66 , 82 , 98 , 99 , 100 , 84 , 68 , 7 , 11 , 31790 , 27246 , 20214 },
{ 68 , 67 , 83 , 99 , 100 , 101 , 85 , 69 , 7 , 12 , 30688 , 27752 , 21846 },
{ 69 , 68 , 84 , 100 , 101 , 102 , 86 , 70 , 7 , 13 , 23430 , 33203 , 20115 },
{ 70 , 69 , 85 , 101 , 102 , 103 , 87 , 71 , 7 , 14 , 16897 , 34111 , 18241 },
{ 71 , 70 , 86 , 102 , 103 , 104 , 88 , 72 , 7 , 15 , 10035 , 31373 , 18584 },
{ 72 , 71 , 87 , 103 , 104 , 89 , 73 , 57 , 7 , 16 , 7134 , 28538 , 20044 },
{ 73 , 88 , 104 , 120 , 105 , 106 , 90 , 74 , 8 , 1 , 7873 , 26821 , 24225 },
{ 74 , 73 , 89 , 105 , 106 , 107 , 91 , 75 , 8 , 2 , 5306 , 22175 , 23077 },
{ 75 , 74 , 90 , 106 , 107 , 108 , 92 , 76 , 8 , 3 , 6201 , 16463 , 25588 },
{ 76 , 75 , 91 , 107 , 108 , 109 , 93 , 77 , 8 , 4 , 8490 , 13819 , 27891 },
{ 77 , 76 , 92 , 108 , 109 , 110 , 94 , 78 , 8 , 5 , 14794 , 5323 , 25643 },
{ 78 , 77 , 93 , 109 , 110 , 111 , 95 , 79 , 8 , 6 , 18490 , 5394 , 26483 },
{ 79 , 78 , 94 , 110 , 111 , 112 , 96 , 80 , 8 , 7 , 23016 , 6832 , 27352 },
{ 80 , 79 , 95 , 111 , 112 , 113 , 97 , 81 , 8 , 8 , 29410 , 9423 , 25387 },
{ 81 , 80 , 96 , 112 , 113 , 114 , 98 , 82 , 8 , 9 , 31652 , 13833 , 25081 },
{ 82 , 81 , 97 , 113 , 114 , 115 , 99 , 83 , 8 , 10 , 32588 , 19987 , 24888 },
{ 83 , 82 , 98 , 114 , 115 , 116 , 100 , 84 , 8 , 11 , 30446 , 26981 , 23327 },
{ 84 , 83 , 99 , 115 , 116 , 117 , 101 , 85 , 8 , 12 , 23286 , 31892 , 23080 },
{ 85 , 84 , 100 , 116 , 117 , 118 , 102 , 86 , 8 , 13 , 15759 , 31983 , 23686 },
{ 86 , 85 , 101 , 117 , 118 , 119 , 103 , 87 , 8 , 14 , 11992 , 30739 , 23612 },
{ 87 , 86 , 102 , 118 , 119 , 120 , 104 , 88 , 8 , 15 , 7613 , 28001 , 22028 },
{ 88 , 87 , 103 , 119 , 120 , 105 , 89 , 73 , 8 , 16 , 5508 , 18301 , 25441 },
{ 89 , 104 , 120 , 128 , 128 , 121 , 106 , 90 , 9 , 1 , 10407 , 17869 , 30098 },
{ 90 , 89 , 105 , 128 , 121 , 122 , 107 , 91 , 9 , 2 , 11177 , 16045 , 30448 },
{ 91 , 90 , 106 , 121 , 121 , 122 , 108 , 92 , 9 , 3 , 12933 , 12240 , 30229 },
{ 92 , 91 , 107 , 121 , 122 , 123 , 109 , 93 , 9 , 4 , 15426 , 10243 , 29959 },
{ 93 , 92 , 108 , 122 , 122 , 123 , 110 , 94 , 9 , 5 , 18541 , 9647 , 29972 },
{ 94 , 93 , 109 , 122 , 123 , 124 , 111 , 95 , 9 , 6 , 21995 , 11101 , 30517 },
{ 95 , 94 , 110 , 123 , 123 , 124 , 112 , 96 , 9 , 7 , 24772 , 13965 , 30775 },
{ 96 , 95 , 111 , 123 , 124 , 125 , 113 , 97 , 9 , 8 , 26122 , 17802 , 30895 },
{ 97 , 96 , 112 , 124 , 124 , 125 , 114 , 98 , 9 , 9 , 27284 , 20536 , 30144 },
{ 98 , 97 , 113 , 124 , 125 , 126 , 115 , 99 , 9 , 10 , 25751 , 23164 , 30278 },
{ 99 , 98 , 114 , 125 , 125 , 126 , 116 , 100 , 9 , 11 , 24160 , 23624 , 30835 },
{ 100 , 99 , 115 , 125 , 126 , 127 , 117 , 101 , 9 , 12 , 22398 , 25482 , 30374 },
{ 101 , 100 , 116 , 126 , 126 , 127 , 118 , 102 , 9 , 13 , 18869 , 26657 , 29832 },
{ 102 , 101 , 117 , 126 , 127 , 128 , 119 , 103 , 9 , 14 , 16163 , 26034 , 29940 },
{ 103 , 102 , 118 , 127 , 127 , 128 , 120 , 104 , 9 , 15 , 12348 , 23941 , 29748 },
{ 104 , 103 , 119 , 127 , 128 , 121 , 105 , 89 , 9 , 16 , 10088 , 24052 , 28396 },
{ 106 , 105 , 128 , 127 , 129 , 123 , 122 , 107 , 10 , 1 , 14631 , 20420 , 31622 },
{ 108 , 107 , 121 , 128 , 129 , 124 , 123 , 109 , 10 , 2 , 17492 , 18135 , 32370 },
{ 110 , 109 , 122 , 121 , 129 , 125 , 124 , 111 , 10 , 3 , 23254 , 15567 , 31552 },
{ 112 , 111 , 123 , 122 , 129 , 126 , 125 , 113 , 10 , 4 , 25852 , 18745 , 30702 },
{ 114 , 113 , 124 , 123 , 129 , 127 , 126 , 115 , 10 , 5 , 24787 , 21138 , 30845 },
{ 116 , 115 , 125 , 124 , 129 , 128 , 127 , 117 , 10 , 6 , 23662 , 24538 , 30109 },
{ 118 , 117 , 126 , 125 , 129 , 121 , 128 , 119 , 10 , 7 , 21269 , 25859 , 30134 },
{ 120 , 119 , 127 , 126 , 129 , 122 , 121 , 105 , 10 , 8 , 17778 , 25113 , 30673 },
{ 121 , 128 , 127 , 126 , 125 , 124 , 123 , 122 , 11 , 1 , 20604 , 19047 , 32659 }
};
elapsedMillis fps;
void setup(){
AudioMemory(4);
Wire.begin();
Wire.beginTransmission(MPU_addr);
Wire.write(0x6B); // PWR_MGMT_1 register
Wire.write(0); // set to zero (wakes up the MPU-6050)
Wire.endTransmission(true);
Serial.begin(115200);
// WS2182 LED Driver Setup
LEDS.addLeds<WS2812,DATA_PIN,GRB>(leds,NUM_LEDS).setCorrection( TypicalLEDStrip ); // Default if RGB for this however may vary dependent on LED manufacturer
LEDS.setBrightness(5); //Set brightness of LEDs here
// limit my draw to 1A at 5v of power draw
FastLED.setMaxPowerInVoltsAndMilliamps(5,100);
FastLED.setDither(0); // Turns of Auto Dithering function to remove flicker
// Setup Input Mode and Select Push Buttons
pinMode(34,INPUT_PULLUP); // Mode Button
pinMode(35,INPUT_PULLUP); // Mode Button
// Clear LEDs
for (int g = 0; g < 10; g++) {
leds[g] = CRGB::Black;
FastLED.show();
}
clearsphere(); // Clear any LEDs left over from reset
}
void loop(){
buttoncheck(); // Check for user input
Wire.beginTransmission(MPU_addr);
Wire.write(0x3B); // starting with register 0x3B (GYRO_XOUT_H)
Wire.endTransmission(false);
Wire.requestFrom(MPU_addr,6,true); // request a total of 6 registers
/*
AcX=Wire.read()<<8|Wire.read(); // 0x3B (ACCEL_XOUT_H) & 0x3C (ACCEL_XOUT_L)
AcY=Wire.read()<<8|Wire.read(); // 0x3D (ACCEL_YOUT_H) & 0x3E (ACCEL_YOUT_L)
AcZ=Wire.read()<<8|Wire.read(); // 0x3F (ACCEL_ZOUT_H) & 0x40 (ACCEL_ZOUT_L)
Tmp=Wire.read()<<8|Wire.read(); // 0x41 (TEMP_OUT_H) & 0x42 (TEMP_OUT_L)
GyX=Wire.read()<<8|Wire.read(); // 0x43 (GYRO_XOUT_H) & 0x44 (GYRO_XOUT_L)
GyY=Wire.read()<<8|Wire.read(); // 0x45 (GYRO_YOUT_H) & 0x46 (GYRO_YOUT_L)
GyZ=Wire.read()<<8|Wire.read(); // 0x47 (GYRO_ZOUT_H) & 0x48 (GYRO_ZOUT_L)
*/
GyX=Wire.read()<<8|Wire.read(); // 0x43 (GYRO_XOUT_H) & 0x44 (GYRO_XOUT_L)
GyY=Wire.read()<<8|Wire.read(); // 0x45 (GYRO_YOUT_H) & 0x46 (GYRO_YOUT_L)
GyZ=Wire.read()<<8|Wire.read(); // 0x47 (GYRO_ZOUT_H) & 0x48 (GYRO_ZOUT_L)
// Apply Low Pass Filter to signal to smooth output from MPU 6050
smoothedX = (alpha * smoothedX) + ( (1 - alpha) * GyX);
smoothedY = (alpha * smoothedY) + ( (1 - alpha) * GyY);
smoothedZ = (alpha * smoothedZ) + ( (1 - alpha) * GyZ);
// Apply filter to MIC output
mic = abs(analogRead(A12)-DC_OFFSET);
// Calculate final Gyro Colors for XYZ to RGB
if (abs(smoothedX)*josX < 256) {
Xcol = abs(smoothedX)*josX;
} else {
Xcol = 20;
}
if (abs(smoothedY)*josY < 256) {
Ycol = abs(smoothedY)*josY;
} else {
Ycol = 20;
}
if (abs(smoothedZ)*josZ < 256) {
Zcol = abs(smoothedZ)*josZ;
} else {
Zcol = 20;
}
// Znum = abs(GyX)*josX; // color for digits
Znum = 160; // Number for Blue
/* At last a stable Audio input circuit !! A2 connected to 0.1uf and SP1 on freetronics Mic
if (fps > 24) {
if (peak1.available()) {
fps = 0;
int monoPeak = peak1.read() * 10.0;
Serial.print("|");
for (int cnt=0; cnt<monoPeak; cnt++) {
Serial.print(">");
}
Serial.println();
}
}
*/
/*
Serial.print("AcX = "); Serial.print(AcX);
Serial.print(" | AcY = "); Serial.print(AcY);
Serial.print(" | AcZ = "); Serial.print(AcZ);
Serial.print(" | Tmp = "); Serial.print(Tmp/340.00+36.53); //equation for temperature in degrees C from datasheet
Serial.print(" | GyX = "); Serial.print(GyX);
Serial.print(" | GyY = "); Serial.print(GyY);
Serial.print(" | GyZ = "); Serial.println(GyZ);
Serial.print(" . Xcol ");
Serial.print(abs(smoothedX)*josX);
Serial.print(" . Ycol ");
Serial.print(abs(smoothedY)*josY);
Serial.print(" . Zcol. ");
Serial.println(abs(smoothedZ)*josZ);
Serial.print(" . Xb ");
Serial.print(xb);
Serial.print(" . sX ");
Serial.print(abs(smoothedX));
Serial.print(" . gX. ");
Serial.print(dt);
Serial.print(" . Yb. ");
Serial.print(yb);
Serial.print(" . sY ");
Serial.print(abs(smoothedY));
Serial.print(" . gY ");
Serial.print(dt);
Serial.print(" . Zb . ");
Serial.print(zb);
Serial.print(" . sZ ");
Serial.print(abs(smoothedZ));
Serial.print(" . gZ ");
Serial.println(dt);
Serial.print(" . Mic . ");
Serial.print(mic);
Serial.print(" . SMic . ");
Serial.print(smoothmic);
Serial.print(" . . ");
Serial.print(soundot[0]);
Serial.print(" . . ");
Serial.print(soundot[1]);
Serial.print(" . . ");
Serial.print(soundot[2]);
Serial.print(" . . ");
Serial.println(soundot[3]);
*/
// delay(20);
Serial.println(monoPeak);
if (menu == 1) {
GyroSpirallights(); // All LEDs change color with Gyro attitude
}
if (menu == 2 ) {
Game1(); // Game 1 three bands of LEDs change color with Gyro attitude
}
if (menu == 3 ) {
SoundRingStep(); // Sound activated Rings of Color
}
if (menu == 4 ) {
SoundEffect7(); // Sound Meter - LED VU Meter using 130 LEDs
}
if (menu == 5 ) {
DotSnakesSlow(); // Sound Slows LED Snakes down sphere
}
if (menu == 6 ) {
Colorwash(); // Cool display of all colors in spectrum for th sphere using LED rows
}
if (menu == 7 ) {
GyroSnake(); // Sound Slows LED Snakes down sphere
}
if (menu == 8 ) {
DotSnakes(); // LED Snakes down sphere
}
if (menu == 9 ) {
DotOnTop(); // Single Dot Circle on the top of the sphere that stays on top using Gyro
}
}
void testLEDs130() { // For testing Display End to End
for (int g = 0; g < 130; g++) {
leds[g] = CRGB::Blue;
FastLED.show();
delay(t1);
if (g>2) { leds[g-2] = CRGB::Black;}
delay(t1);
FastLED.show();
}
leds[128] = CRGB::Black;
leds[129] = CRGB::Black;
FastLED.show();
for (int g = 0; g < 130; g++) {
leds[g] = CRGB::Red;
FastLED.show();
delay(t1);
if (g>2) { leds[g-2] = CRGB::Black;}
delay(t1);
FastLED.show();
}
leds[128] = CRGB::Black;
leds[129] = CRGB::Black;
FastLED.show();
for (int g = 0; g < 130; g++) {
leds[g] = CRGB::Green;
FastLED.show();
delay(t1);
if (g>2) { leds[g-2] = CRGB::Black;}
delay(t1);
FastLED.show();
}
leds[128] = CRGB::Black;
leds[129] = CRGB::Black;
FastLED.show();
for (int g = 0; g < 130; g++) {
leds[g] = CRGB::HotPink;
FastLED.show();
delay(t1);
if (g>2) { leds[g-2] = CRGB::Black;}
delay(t1);
FastLED.show();
}
leds[128] = CRGB::Black;
leds[129] = CRGB::Black;
FastLED.show();
}
//********************************************
// GyroSpirallights
// *******************************************
void GyroSpirallights() { // GyroLED Snakes down sphere
if (cal == false) { // Display the menu Item
one();
cal = true;
}
//fill_solid( &(leds[0]), 130 /*number of leds*/, CHSV( Xcol, 255, 255) );
// fill_rainbow( &(leds[0]), 130 /*led count*/, 5 /*starting hue*/);
fill_solid( &(leds[0]), 1, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[1]), 8 , CHSV( Xcol, 255, 255) );
fill_solid( &(leds[9]), 16 , CHSV( Xcol, 255, 255) );
fill_solid( &(leds[25]), 16, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[41]), 16 , CHSV( Xcol, 255, 255) );
fill_solid( &(leds[57]), 16 , CHSV( Xcol, 255, 255) );
fill_solid( &(leds[73]), 16, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[89]), 16 , CHSV( Xcol, 255, 255) );
fill_solid( &(leds[105]), 16 , CHSV( Xcol, 255, 255) );
fill_solid( &(leds[121]), 8, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[129]), 1 , CHSV( Xcol, 255, 255) );
FastLED.show();
// Serial.println(Xcol);
}
//********************************************
// Game1
// *******************************************
void Game1() { // GyroLED Snakes down sphere
if (cal == false) { // Display the menu Item
two();
cal = true;
}
// Three Bands
fill_solid( &(leds[0]), 41, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[41]), 48 , CHSV( Ycol, 255, 255) );
fill_solid( &(leds[89]), 41 , CHSV( Zcol, 255, 255) );
FastLED.show();
// Serial.println(Xcol);
}
//********************************************
// Game2
// *******************************************
void Game2() { // GyroLED Snakes down sphere
/* Three Bands
fill_solid( &(leds[0]), 41, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[41]), 48 , CHSV( Ycol, 255, 255) );
fill_solid( &(leds[89]), 41 , CHSV( Zcol, 255, 255) );
*/
// 11 Bands of color
fill_solid( &(leds[0]), 1, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[1]), 8 , CHSV( Ycol, 255, 255) );
fill_solid( &(leds[9]), 16 , CHSV( Zcol, 255, 255) );
fill_solid( &(leds[25]), 16, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[41]), 16 , CHSV( Ycol, 255, 255) );
fill_solid( &(leds[57]), 16 , CHSV( Zcol, 255, 255) );
fill_solid( &(leds[73]), 16, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[89]), 16 , CHSV( Ycol, 255, 255) );
fill_solid( &(leds[105]), 16 , CHSV( Zcol, 255, 255) );
fill_solid( &(leds[121]), 8, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[129]), 1 , CHSV( Ycol, 255, 255) );
FastLED.show();
// Serial.println(Xcol);
}
//********************************************
// Spirallights
// *******************************************
void Spirallights() { // GyroLED Snakes down sphere
if ( i < 10 ) {
// leds[map(mic,10,250,0,9)].setRGB( (random(255)), (random(255)), (random(255)));
leds[map(mic,10,1023,0,9)] = CRGB::Blue;
FastLED.show();
delay(20);
leds[i] = CRGB::Black;
FastLED.show();
i++;
} else {
i = 0;
}
}
//********************************************
// SoundVU
// *******************************************
void SoundVU() { // At last a stable Audio input circuit !! A2 connected to 0.1uf and SP1 on freetronics Mic
// Blank all LEDs
fill_solid( &(leds[0]), 130 /*number of leds*/, CHSV( 0, 0, 0) );
/*
* // initialize the pixel matrix by setting all LED Anodes and Cathodes to LOW:
for (int x = 0; x < 13; x++) {
for (int y = 0; y < 13; y++) {
pixels[x][y] = LOW;
}
}
*/
// This works. Suggest writing in a circler around sphere then deleting each column
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * 180.0)-3);
if (monoPeak >129) { monoPeak = 129;}
Serial.println(monoPeak);
for (int cnt=0; cnt<monoPeak; cnt++) {
if (cnt < 50) { leds[cnt] = CRGB::Blue; }
else
if (cnt < 80) { leds[cnt] = CRGB::Green; }
else {
leds[cnt] = CRGB::Red; }
// leds[cnt].setRGB( (random(255)), (random(255)), (random(255)));
FastLED.show();
}
}
}
}
void buttoncheck() { // Debounce Button Check of Digital Pins 34 and 35 used to navigate menu of effects
// Increment Menu
if((digitalRead(34) == LOW ) && (digitalRead(35) == HIGH)){ // Check that one button pushed only
delay(150); // Debounce by waiting then checking again
if((digitalRead(34) == LOW) && (digitalRead(35) == HIGH)){
// Now confirmed legitimate request increment menu variable
if (menu < 10 ) {
menu++;
clearsphere(); // Clear the entire LED Array to Black
cal = false;
g = 0;
i = 0;
}
}
delay(150);
}
// Decrement Menu
if((digitalRead(35) == LOW) && (digitalRead(34) == HIGH)){ // Check that one button pushed only
delay(150); // Debounce by waiting then checking again
if((digitalRead(35) == LOW) && (digitalRead(34) == HIGH)){
// Now confirmed legitimate request increment menu variable
if (menu > 1 ) {
menu--;
clearsphere(); // Clear the entire LED Array to Black
cal = false;
g = 0;
i = 0;
}
}
delay(150);
}
// Serial.println(menu); // Temporarily print menu output for testing
}
void clearsphere() { // Clear the entire LED array to black
// for (int h = 0; h < 130; h++) {
// leds[h] = CRGB::Black;
fill_solid( &(leds[0]), 130 /*number of leds*/, CHSV( 0, 0, 0) );
FastLED.show();
// }
}
//********************************************
// GyroSnakes
// *******************************************
void GyroSnake() { // GyroLED Snakes down sphere
if (cal == false) { // Display the menu Item
seven();
cal = true;
}
if ( i < 140 ) {
if ( i < 130 ) {
leds[i].setRGB( (Xcol), (Ycol), (Zcol));
}
delay(d1);
if (i>9) {
leds[i-10] = CRGB::Black;
}
FastLED.show();
i++;
} else {
i = 0;
}
}
void nine() {
leds[33] = CHSV( Znum, 255, 255);
leds[34] = CHSV( Znum, 255, 255);
leds[35] = CHSV( Znum, 255, 255);
leds[49] = CHSV( Znum, 255, 255);
leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
leds[66] = CHSV( Znum, 255, 255);
leds[67] = CHSV( Znum, 255, 255);
// leds[83] = CHSV( Znum, 255, 255);
leds[81] = CHSV( Znum, 255, 255);
leds[99] = CHSV( Znum, 255, 255);
leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
void eight() {
leds[33] = CHSV( Znum, 255, 255);
leds[34] = CHSV( Znum, 255, 255);
leds[35] = CHSV( Znum, 255, 255);
leds[49] = CHSV( Znum, 255, 255);
leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
leds[66] = CHSV( Znum, 255, 255);
leds[67] = CHSV( Znum, 255, 255);
leds[83] = CHSV( Znum, 255, 255);
leds[81] = CHSV( Znum, 255, 255);
leds[99] = CHSV( Znum, 255, 255);
leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
void seven() {
leds[33] = CHSV( Znum, 255, 255);
leds[34] = CHSV( Znum, 255, 255);
leds[35] = CHSV( Znum, 255, 255);
leds[49] = CHSV( Znum, 255, 255);
// leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
// leds[66] = CHSV( Znum, 255, 255);
// leds[67] = CHSV( Znum, 255, 255);
// leds[83] = CHSV( Znum, 255, 255);
leds[81] = CHSV( Znum, 255, 255);
// leds[99] = CHSV( Znum, 255, 255);
// leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
void six() {
leds[33] = CHSV( Znum, 255, 255);
leds[34] = CHSV( Znum, 255, 255);
leds[35] = CHSV( Znum, 255, 255);
// leds[49] = CHSV( Znum, 255, 255);
leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
leds[66] = CHSV( Znum, 255, 255);
leds[67] = CHSV( Znum, 255, 255);
leds[83] = CHSV( Znum, 255, 255);
leds[81] = CHSV( Znum, 255, 255);
leds[99] = CHSV( Znum, 255, 255);
leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
void five() {
leds[33] = CHSV( Znum, 255, 255);
leds[34] = CHSV( Znum, 255, 255);
leds[35] = CHSV( Znum, 255, 255);
// leds[49] = CHSV( Znum, 255, 255);
leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
leds[66] = CHSV( Znum, 255, 255);
leds[67] = CHSV( Znum, 255, 255);
// leds[83] = CHSV( Znum, 255, 255);
leds[81] = CHSV( Znum, 255, 255);
leds[99] = CHSV( Znum, 255, 255);
leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
void four() {
leds[33] = CHSV( Znum, 255, 255);
// leds[34] = CHSV( Znum, 255, 255);
leds[35] = CHSV( Znum, 255, 255);
leds[49] = CHSV( Znum, 255, 255);
leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
leds[66] = CHSV( Znum, 255, 255);
leds[67] = CHSV( Znum, 255, 255);
// leds[83] = CHSV( Znum, 255, 255);
leds[81] = CHSV( Znum, 255, 255);
// leds[99] = CHSV( Znum, 255, 255);
// leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
void three() {
leds[33] = CHSV( Znum, 255, 255);
leds[34] = CHSV( Znum, 255, 255);
leds[35] = CHSV( Znum, 255, 255);
leds[49] = CHSV( Znum, 255, 255);
// leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
leds[66] = CHSV( Znum, 255, 255);
leds[67] = CHSV( Znum, 255, 255);
// leds[83] = CHSV( Znum, 255, 255);
leds[81] = CHSV( Znum, 255, 255);
leds[99] = CHSV( Znum, 255, 255);
leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
void two() {
leds[33] = CHSV( Znum, 255, 255);
leds[34] = CHSV( Znum, 255, 255);
leds[35] = CHSV( Znum, 255, 255);
leds[49] = CHSV( Znum, 255, 255);
// leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
leds[66] = CHSV( Znum, 255, 255);
leds[67] = CHSV( Znum, 255, 255);
leds[83] = CHSV( Znum, 255, 255);
// leds[81] = CHSV( Znum, 255, 255);
leds[99] = CHSV( Znum, 255, 255);
leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
void one() {
leds[33] = CHSV( Znum, 255, 255);
// leds[34] = CHSV( Znum, 255, 255);
// leds[35] = CHSV( Znum, 255, 255);
leds[49] = CHSV( Znum, 255, 255);
// leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
// leds[66] = CHSV( Znum, 255, 255);
// leds[67] = CHSV( Znum, 255, 255);
// leds[83] = CHSV( Znum, 255, 255);
leds[81] = CHSV( Znum, 255, 255);
// leds[99] = CHSV( Znum, 255, 255);
// leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
void zero() {
leds[33] = CHSV( Znum, 255, 255);
leds[34] = CHSV( Znum, 255, 255);
leds[35] = CHSV( Znum, 255, 255);
leds[49] = CHSV( Znum, 255, 255);
leds[51] = CHSV( Znum, 255, 255);
leds[65] = CHSV( Znum, 255, 255);
// leds[66] = CHSV( Znum, 255, 255);
leds[67] = CHSV( Znum, 255, 255);
leds[83] = CHSV( Znum, 255, 255);
leds[81] = CHSV( Znum, 255, 255);
leds[99] = CHSV( Znum, 255, 255);
leds[98] = CHSV( Znum, 255, 255);
leds[97] = CHSV( Znum, 255, 255);
FastLED.show();
delay(d6);
leds[33] = CRGB::Black;
leds[34] = CRGB::Black;
leds[35] = CRGB::Black;
leds[49] = CRGB::Black;
leds[51] = CRGB::Black;
leds[65] = CRGB::Black;
leds[66] = CRGB::Black;
leds[67] = CRGB::Black;
leds[83] = CRGB::Black;
leds[81] = CRGB::Black;
leds[99] = CRGB::Black;
leds[98] = CRGB::Black;
leds[97] = CRGB::Black;
FastLED.show();
}
//********************************************
// Dotsnakes
// *******************************************
void DotSnakes() {
if (cal == false) { // Display the menu Item
eight();
cal = true;
}
//Clear all current LEDs
leds[dot[0][0]] = CRGB::Black; // Turn off current LED position
leds[dot[0][2]] = CRGB::Black; // Turn off current LED position
leds[dot[0][3]] = CRGB::Black; // Turn off current LED position
leds[dot[0][4]] = CRGB::Black; // Turn off current LED position
leds[dot[1][0]] = CRGB::Black; // Turn off current LED position
leds[dot[1][2]] = CRGB::Black; // Turn off current LED position
leds[dot[1][3]] = CRGB::Black; // Turn off current LED position
leds[dot[1][4]] = CRGB::Black; // Turn off current LED position
leds[dot[2][0]] = CRGB::Black; // Turn off current LED position
leds[dot[2][2]] = CRGB::Black; // Turn off current LED position
leds[dot[2][3]] = CRGB::Black; // Turn off current LED position
leds[dot[2][4]] = CRGB::Black; // Turn off current LED position
leds[dot[3][0]] = CRGB::Black; // Turn off current LED position
leds[dot[3][2]] = CRGB::Black; // Turn off current LED position
leds[dot[3][3]] = CRGB::Black; // Turn off current LED position
leds[dot[3][4]] = CRGB::Black; // Turn off current LED position
FastLED.show();
// Dot 0 **********************************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[0][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[0][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[0][4] = dot[0][3]; // Store prevprev into prevprevprev location
dot[0][3] = dot[0][2]; // Store prev into prevprev location
dot[0][2] = dot[0][0]; // Store current into prev location
dot[0][0]= pixel[dot[0][0]][dot[0][1]]; // Use function to read data back from array in Progam Memory
// Dot 1**********************************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[1][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[1][1] = direct; // Modify lead dot position and store value in array
// Update position of data based on new direction before displaying
dot[1][4] = dot[1][3]; // Store prevprev into prevprevprev location
dot[1][3] = dot[1][2]; // Store prev into prevprev location
dot[1][2] = dot[1][0]; // Store current into prev location
dot[1][0]= pixel[dot[1][0]][dot[1][1]]; // Use function to read data back from array in Progam Memory
// Dot 2 *****************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[2][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[2][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[2][4] = dot[2][3]; // Store prevprev into prevprevprev location
dot[2][3] = dot[2][2]; // Store prev into prevprev location
dot[2][2] = dot[2][0]; // Store current into prev location
dot[2][0]= pixel[dot[2][0]][dot[2][1]]; // Use pgm_read_byte function to read data back from array in Progam Memory
// Dot 3 *****************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[3][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[3][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[3][4] = dot[3][3]; // Store prevprev into prevprevprev location
dot[3][3] = dot[3][2]; // Store prev into prevprev location
dot[3][2] = dot[3][0]; // Store current into prev location
dot[3][0]= pixel[dot[3][0]][dot[3][1]]; // Use pgm_read_byte function to read data back from array in Progam Memory
// delay(100);
leds[dot[0][0]] = CRGB::Blue;
leds[dot[0][2]] = CRGB::Blue;
leds[dot[0][3]] = CRGB::Blue;
leds[dot[0][4]] = CRGB::Blue;
leds[dot[1][0]] = CRGB::Red;
leds[dot[1][2]] = CRGB::Red;
leds[dot[1][3]] = CRGB::Red;
leds[dot[1][4]] = CRGB::Red;
leds[dot[2][0]] = CRGB::Green;
leds[dot[2][2]] = CRGB::Green;
leds[dot[2][3]] = CRGB::Green;
leds[dot[2][4]] = CRGB::Green;
leds[dot[3][0]] = CRGB::Purple;
leds[dot[3][2]] = CRGB::Purple;
leds[dot[3][3]] = CRGB::Purple;
leds[dot[3][4]] = CRGB::Purple;
FastLED.show();
delay(10);
}
//********************************************
// SoundEffect1
// *******************************************
void SoundEffect1() { // At last a stable Audio input circuit !! Teensy A2 connected to 4.7uf and SP1 on freetronics Mic. Also Analog Ground used with Mic
// Use the Ampliyude of the Mic input to set the Delay to slow down dotsnakes effect
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * 100.0));
}
}
//Clear all current LEDs
leds[dot[0][0]] = CRGB::Black; // Turn off current LED position
leds[dot[0][2]] = CRGB::Black; // Turn off current LED position
leds[dot[0][3]] = CRGB::Black; // Turn off current LED position
leds[dot[0][4]] = CRGB::Black; // Turn off current LED position
leds[dot[1][0]] = CRGB::Black; // Turn off current LED position
leds[dot[1][2]] = CRGB::Black; // Turn off current LED position
leds[dot[1][3]] = CRGB::Black; // Turn off current LED position
leds[dot[1][4]] = CRGB::Black; // Turn off current LED position
leds[dot[2][0]] = CRGB::Black; // Turn off current LED position
leds[dot[2][2]] = CRGB::Black; // Turn off current LED position
leds[dot[2][3]] = CRGB::Black; // Turn off current LED position
leds[dot[2][4]] = CRGB::Black; // Turn off current LED position
leds[dot[3][0]] = CRGB::Black; // Turn off current LED position
leds[dot[3][2]] = CRGB::Black; // Turn off current LED position
leds[dot[3][3]] = CRGB::Black; // Turn off current LED position
leds[dot[3][4]] = CRGB::Black; // Turn off current LED position
FastLED.show();
// Dot 0 **********************************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[0][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[0][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[0][4] = dot[0][3]; // Store prevprev into prevprevprev location
dot[0][3] = dot[0][2]; // Store prev into prevprev location
dot[0][2] = dot[0][0]; // Store current into prev location
dot[0][0]= pixel[dot[0][0]][dot[0][1]]; // Use function to read data back from array in Progam Memory
// Dot 1**********************************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[1][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[1][1] = direct; // Modify lead dot position and store value in array
// Update position of data based on new direction before displaying
dot[1][4] = dot[1][3]; // Store prevprev into prevprevprev location
dot[1][3] = dot[1][2]; // Store prev into prevprev location
dot[1][2] = dot[1][0]; // Store current into prev location
dot[1][0]= pixel[dot[1][0]][dot[1][1]]; // Use function to read data back from array in Progam Memory
// Dot 2 *****************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[2][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[2][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[2][4] = dot[2][3]; // Store prevprev into prevprevprev location
dot[2][3] = dot[2][2]; // Store prev into prevprev location
dot[2][2] = dot[2][0]; // Store current into prev location
dot[2][0]= pixel[dot[2][0]][dot[2][1]]; // Use pgm_read_byte function to read data back from array in Progam Memory
// Dot 3 *****************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[3][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[3][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[3][4] = dot[3][3]; // Store prevprev into prevprevprev location
dot[3][3] = dot[3][2]; // Store prev into prevprev location
dot[3][2] = dot[3][0]; // Store current into prev location
dot[3][0]= pixel[dot[3][0]][dot[3][1]]; // Use pgm_read_byte function to read data back from array in Progam Memory
// delay(100);
leds[dot[0][0]] = CRGB::Blue;
leds[dot[0][2]] = CRGB::Blue;
leds[dot[0][3]] = CRGB::Blue;
leds[dot[0][4]] = CRGB::Blue;
leds[dot[1][0]] = CRGB::Red;
leds[dot[1][2]] = CRGB::Red;
leds[dot[1][3]] = CRGB::Red;
leds[dot[1][4]] = CRGB::Red;
leds[dot[2][0]] = CRGB::Green;
leds[dot[2][2]] = CRGB::Green;
leds[dot[2][3]] = CRGB::Green;
leds[dot[2][4]] = CRGB::Green;
leds[dot[3][0]] = CRGB::Purple;
leds[dot[3][2]] = CRGB::Purple;
leds[dot[3][3]] = CRGB::Purple;
leds[dot[3][4]] = CRGB::Purple;
FastLED.show();
delay(monoPeak);
}
//********************************************
// SoundEffect 3
// *******************************************
void SoundEffect3() { // At last a stable Audio input circuit !! Teensy A2 connected to 4.7uf and SP1 on freetronics Mic. Also Analog Ground used with Mic
// Use the Ampliyude of the Mic input to set the VU Display which is a Bar graph cicling the Shpere
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * 10000.0));
if (monoPeak >10000 ) {
monoPeak = 10000;
}
}
}
// *********
/*
0 = Up
1 = Up Right
2 = Right
3 = Down Right
4 = Down
5 = Down Left
6 = Left
7 = Up Left
led, peakv
int soundot[5] = { 73 , 73, 88, 87, 86};
*/
// Determine the Location of the new dot position based on the Analogue input value and the 5 rings of LEDs where 1st is baseline
// smoothmic is the smooothed Mic output from A2 which has a range of 0 - 1025 in value
// Suggested ranges are 0 < 10, 1 < 30, etc
if (monoPeak >= 10000) { // Highest level of sound (read adjacent dot 4x)
// 11 Bands of color
fill_solid( &(leds[0]), 1, CRGB( 255, 0, 0) );
fill_solid( &(leds[1]), 8 , CRGB( 255, 0, 0) );
fill_solid( &(leds[9]), 16 , CRGB::Red);
fill_solid( &(leds[25]), 16, CRGB::Green);
fill_solid( &(leds[41]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[57]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[73]), 16, CRGB( 0, 0, 255) );
fill_solid( &(leds[89]), 16 , CRGB( 0, 0, 255) );
//fill_solid( &(leds[105]), 16 , CRGB( 0, 0, 255) );
} else
if (monoPeak >= 8000 ) { // 2nd Highest level of sound
fill_solid( &(leds[1]), 8 , CRGB( 255, 0, 0) );
fill_solid( &(leds[9]), 16 , CRGB::Red);
fill_solid( &(leds[25]), 16, CRGB::Green);
fill_solid( &(leds[41]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[57]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[73]), 16, CRGB( 0, 0, 255) );
fill_solid( &(leds[89]), 16 , CRGB( 0, 0, 255) );
//fill_solid( &(leds[105]), 16 , CRGB( 0, 0, 255) );
} else
if (monoPeak >= 6000 ) { // 2nd Highest level of sound
fill_solid( &(leds[9]), 16 , CRGB::Red);
fill_solid( &(leds[25]), 16, CRGB::Green);
fill_solid( &(leds[41]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[57]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[73]), 16, CRGB( 0, 0, 255) );
fill_solid( &(leds[89]), 16 , CRGB( 0, 0, 255) );
//fill_solid( &(leds[105]), 16 , CRGB( 0, 0, 255) );
} else
if (monoPeak >= 5000 ) { // 2nd Highest level of sound
fill_solid( &(leds[25]), 16, CRGB::Green);
fill_solid( &(leds[41]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[57]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[73]), 16, CRGB( 0, 0, 255) );
fill_solid( &(leds[89]), 16 , CRGB( 0, 0, 255) );
//fill_solid( &(leds[105]), 16 , CRGB( 0, 0, 255) );
} else
if (monoPeak >= 4000 ) { // 2nd Highest level of sound
fill_solid( &(leds[41]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[57]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[73]), 16, CRGB( 0, 0, 255) );
fill_solid( &(leds[89]), 16 , CRGB( 0, 0, 255) );
//fill_solid( &(leds[105]), 16 , CRGB( 0, 0, 255) );
} else
if (monoPeak >= 3000 ) { // 3rd Highest level of sound
fill_solid( &(leds[57]), 16 , CRGB( 0, 255, 0) );
fill_solid( &(leds[73]), 16, CRGB( 0, 0, 255) );
fill_solid( &(leds[89]), 16 , CRGB( 0, 0, 255) );
//fill_solid( &(leds[105]), 16 , CRGB( 0, 0, 255) );
} else
if (monoPeak >= 2000 ) { // 3rd Highest level of sound
fill_solid( &(leds[73]), 16, CRGB( 0, 0, 255) );
fill_solid( &(leds[89]), 16 , CRGB( 0, 0, 255) );
} else
if (monoPeak >= 1000 ) { // 3rd Highest level of sound
fill_solid( &(leds[89]), 16 , CRGB( 0, 0, 255) );
}
FastLED.show();
delay(1);
// Clear Sphere
fadeToBlackBy( leds, 25, 15);
fadeToBlackBy( leds, 41, 15);
fadeToBlackBy( leds, 57, 15);
fadeToBlackBy( leds, 73, 15);
fadeToBlackBy( leds, 89, 15);
// FastLED.show();
}
//********************************************
// Color Wash
// *******************************************
void Colorwash() { // GyroLED Snakes down sphere
if (cal == false) { // Display the menu Item
six();
cal = true;
}
/* Three Bands
fill_solid( &(leds[0]), 41, CHSV( Xcol, 255, 255) );
fill_solid( &(leds[41]), 48 , CHSV( Ycol, 255, 255) );
fill_solid( &(leds[89]), 41 , CHSV( Zcol, 255, 255) );
*/
int aw[11]; //
for (int uw = 0; uw < 256; uw++) {
aw[0] = uw + 22;
aw[1] = uw + 44;
aw[2] = uw + 66;
aw[3] = uw + 88;
aw[4] = uw + 110;
aw[5] = uw + 132;
aw[6] = uw + 154;
aw[7] = uw + 176;
aw[8] = uw + 196;
aw[9] = uw + 218;
aw[10] = uw + 240;
if (aw[1] > 256) { aw[1] = aw[1] - 255; }
if (aw[2] > 256) { aw[2] = aw[2] - 255; }
if (aw[3] > 256) { aw[3] = aw[3] - 255; }
if (aw[4] > 256) { aw[4] = aw[4] - 255; }
if (aw[5] > 256) { aw[5] = aw[5] - 255; }
if (aw[6] > 256) { aw[6] = aw[6] - 255; }
if (aw[7] > 256) { aw[7] = aw[7] - 255; }
if (aw[8] > 256) { aw[8] = aw[8] - 255; }
if (aw[9] > 256) { aw[9] = aw[9] - 255; }
if (aw[10] > 256) { aw[10] = aw[10] - 255; }
// 11 Bands of color
fill_solid( &(leds[0]), 1, CHSV( aw[0], 255, 255) );
fill_solid( &(leds[1]), 8 , CHSV( aw[1], 255, 255) );
fill_solid( &(leds[9]), 16 , CHSV( aw[2], 255, 255) );
fill_solid( &(leds[25]), 16, CHSV( aw[3], 255, 255) );
fill_solid( &(leds[41]), 16 , CHSV( aw[4], 255, 255) );
fill_solid( &(leds[57]), 16 , CHSV( aw[5], 255, 255) );
fill_solid( &(leds[73]), 16, CHSV( aw[6], 255, 255) );
fill_solid( &(leds[89]), 16 , CHSV( aw[7], 255, 255) );
fill_solid( &(leds[105]), 16 , CHSV( aw[8], 255, 255) );
fill_solid( &(leds[121]), 8, CHSV( aw[9], 255, 255) );
fill_solid( &(leds[129]), 1 , CHSV( aw[10], 255, 255) );
FastLED.show();
delay(1);
// Serial.println(Xcol);
}
}
//********************************************
// DotOnTop
// *******************************************
void DotOnTop() { // LED stays in top of sphere
// Callibrate with 5 second count down
if (cal == false) { // Delay count down timer to let MPU 6050 stabilize
nine();
cal = true;
// get a baseline of X,Y,Z coordinates from smoothing algorithm
xb = smoothedX; // At rest baseline value
yb = smoothedY; // At rest baseline value
zb = smoothedZ; // At rest baseline value
// Normalise Baseline
xb = xb + 18100;
yb = yb + 18100;
zb = zb + 18100;
}
// Normalise Smoothed Values
Xnormalise = smoothedX + 18100;
Ynormalise = smoothedY + 18100;
Znormalise = smoothedZ + 18100;
// Display dot on top of ball
// leds[dt] = CRGB::Blue;
// FastLED.show();
// Identify from Array new position of the Dot
int tolerance = 2000;// X,Y,Z must meet this criteria to turn on LED
int gc=0; // Points to LED to be tested
boolean gf = false; // Flag to indicate coordinate found no need to search further
// Temp calc variables
int tX = 0;
int tY = 0;
int tZ = 0;
while ( (gc<130) && (gf == false)) { // For LEDS on top of Sphere
// Read in Data from Array and Test Against Gyro Coordinates
tX = pixel[gc][10];
tY = pixel[gc][11];
tZ = pixel[gc][12];
if ( (Xnormalise < (tX+tolerance)) && (Xnormalise > (tX-tolerance))) {
if ( (Ynormalise < (tY+tolerance)) && (Ynormalise > (tY-tolerance))) {
if ( (Znormalise < (tZ+tolerance)) && (Znormalise > (tZ-tolerance))) {
// Set pointer to new LED and display it
dt = gc;
gf = true; // Set flag to exit While Loop
leds[dt] = CRGB::Red;
leds[pixel[dt][0]] = CRGB::Blue;
leds[pixel[dt][1]] = CRGB::Blue;
leds[pixel[dt][2]] = CRGB::Blue;
leds[pixel[dt][3]] = CRGB::Blue;
leds[pixel[dt][4]] = CRGB::Blue;
leds[pixel[dt][5]] = CRGB::Blue;
leds[pixel[dt][6]] = CRGB::Blue;
leds[pixel[dt][7]] = CRGB::Blue;
FastLED.show();
leds[dt] = CRGB::Black;
leds[pixel[dt][0]] = CRGB::Black;
leds[pixel[dt][1]] = CRGB::Black;
leds[pixel[dt][2]] = CRGB::Black;
leds[pixel[dt][3]] = CRGB::Black;
leds[pixel[dt][4]] = CRGB::Black;
leds[pixel[dt][5]] = CRGB::Black;
leds[pixel[dt][6]] = CRGB::Black;
leds[pixel[dt][7]] = CRGB::Black;
FastLED.show();
}
}
}
// leds[i].setRGB( (Xcol), (Ycol), (Zcol));
//Increment counter
gc++;
}
}
//********************************************
// SoundEffect 4
// *******************************************
void SoundEffect4() { // At last a stable Audio input circuit !! Teensy A2 connected to 4.7uf and SP1 on freetronics Mic. Also Analog Ground used with Mic
// Use the Ampliyude of the Mic input to set the VU Display which is a Bar graph circling the Shpere
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * 10000.0));
if (monoPeak >10000 ) {
monoPeak = 10000;
}
}
}
// *********
/*
0 = Up
1 = Up Right
2 = Right
3 = Down Right
4 = Down
5 = Down Left
6 = Left
7 = Up Left
led, peakv
int soundot[5] = { 73 , 73, 88, 87, 86};
int sb[10] = {0, 1, 9, 25, 41, 57, 73, 89}; // Used for Sound Effect
int scntr = 0; // Counts the incremetal change around the sound effect (16 locations)
*/
// 6 Bands of color
if (monoPeak >= 10000) { // Highest level of sound (read adjacent dot 4x)
leds[sb[2] + scntr] = CRGB::Red;
leds[sb[3] + scntr] = CRGB::Red;
leds[sb[4] + scntr] = CRGB::Green;
leds[sb[5] + scntr] = CRGB::Green;
leds[sb[6] + scntr] = CRGB::Blue;
leds[sb[7] + scntr] = CRGB::Blue;
} else
if (monoPeak >= 8000 ) { // 2nd Highest level of sound
// leds[sb[2] + scntr] = CRGB::Red;
leds[sb[3] + scntr] = CRGB::Red;
leds[sb[4] + scntr] = CRGB::Green;
leds[sb[5] + scntr] = CRGB::Green;
leds[sb[6] + scntr] = CRGB::Blue;
leds[sb[7] + scntr] = CRGB::Blue;
} else
if (monoPeak >= 6500 ) { // 2nd Highest level of sound
// leds[sb[2] + scntr] = CRGB::Red;
// leds[sb[3] + scntr] = CRGB::Red;
leds[sb[4] + scntr] = CRGB::Green;
leds[sb[5] + scntr] = CRGB::Green;
leds[sb[6] + scntr] = CRGB::Blue;
leds[sb[7] + scntr] = CRGB::Blue;
} else
if (monoPeak >= 5000 ) { // 2nd Highest level of sound
// leds[sb[2] + scntr] = CRGB::Red;
// leds[sb[3] + scntr] = CRGB::Red;
// leds[sb[4] + scntr] = CRGB::Green;
leds[sb[5] + scntr] = CRGB::Green;
leds[sb[6] + scntr] = CRGB::Blue;
leds[sb[7] + scntr] = CRGB::Blue;
} else
if (monoPeak >= 2000 ) { // 2nd Highest level of sound
// leds[sb[2] + scntr] = CRGB::Red;
// leds[sb[3] + scntr] = CRGB::Red;
// leds[sb[4] + scntr] = CRGB::Green;
// leds[sb[5] + scntr] = CRGB::Green;
leds[sb[6] + scntr] = CRGB::Blue;
leds[sb[7] + scntr] = CRGB::Blue;
} else
if (monoPeak >= 1000 ) { // 3rd Highest level of sound
// leds[sb[2] + scntr] = CRGB::Red;
// leds[sb[3] + scntr] = CRGB::Red;
// leds[sb[4] + scntr] = CRGB::Green;
// leds[sb[5] + scntr] = CRGB::Green;
// leds[sb[6] + scntr] = CRGB::Blue;
leds[sb[7] + scntr] = CRGB::Blue;
}
FastLED.show();
// delay(100);
// Increment LED Counter
scntr++;
if (scntr == 6 ) {
// Fade all LEDs to Black
fadeToBlackBy( leds, 25, 15);
fadeToBlackBy( leds, 41, 15);
fadeToBlackBy( leds, 57, 15);
fadeToBlackBy( leds, 73, 15);
fadeToBlackBy( leds, 89, 15);
} else
if (scntr == 12 ) {
// Fade all LEDs to Black
fadeToBlackBy( leds, 25, 15);
fadeToBlackBy( leds, 41, 15);
fadeToBlackBy( leds, 57, 15);
fadeToBlackBy( leds, 73, 15);
fadeToBlackBy( leds, 89, 15);
} else
if (scntr > 15 ) {
scntr = 0; // Reset Counter
// Fade all LEDs to Black
fadeToBlackBy( leds, 25, 15);
fadeToBlackBy( leds, 41, 15);
fadeToBlackBy( leds, 57, 15);
fadeToBlackBy( leds, 73, 15);
fadeToBlackBy( leds, 89, 15);
}
}
void BouncingBalls(byte red, byte green, byte blue, int BallCount) {
float Gravity = -9.81;
int StartHeight = 1;
float Height[BallCount];
float ImpactVelocityStart = sqrt( -2 * Gravity * StartHeight );
float ImpactVelocity[BallCount];
float TimeSinceLastBounce[BallCount];
int Position[BallCount];
long ClockTimeSinceLastBounce[BallCount];
float Dampening[BallCount];
for (int i = 0 ; i < BallCount ; i++) {
ClockTimeSinceLastBounce[i] = millis();
Height[i] = StartHeight;
Position[i] = 0;
ImpactVelocity[i] = ImpactVelocityStart;
TimeSinceLastBounce[i] = 0;
Dampening[i] = 0.90 - float(i)/pow(BallCount,2);
}
while (menu == 8) {
for (int i = 0 ; i < BallCount ; i++) {
TimeSinceLastBounce[i] = millis() - ClockTimeSinceLastBounce[i];
Height[i] = 0.5 * Gravity * pow( TimeSinceLastBounce[i]/1000 , 2.0 ) + ImpactVelocity[i] * TimeSinceLastBounce[i]/1000;
if ( Height[i] < 0 ) {
Height[i] = 0;
ImpactVelocity[i] = Dampening[i] * ImpactVelocity[i];
ClockTimeSinceLastBounce[i] = millis();
if ( ImpactVelocity[i] < 0.01 ) {
ImpactVelocity[i] = ImpactVelocityStart;
}
}
Position[i] = round( Height[i] * (NUM_LEDS - 1) / StartHeight);
}
for (int i = 0 ; i < BallCount ; i++) {
leds[Position[i]].setRGB( random(255),random(255),random(255));
FastLED.show();
}
fadeToBlackBy( leds, 130, 5);
}
}
//********************************************
// SoundEffect 6
// *******************************************
void SoundEffect6() { // At last a stable Audio input circuit !! Teensy A2 connected to 4.7uf and SP1 on freetronics Mic. Also Analog Ground used with Mic
clr4 = random(255);
clr5 = random(255);
clr6 = random(255);
// Use the Ampliyude of the Mic input to set the VU Display which is a Bar graph circling the Shpere
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * 139.0)) - 9; // Remove noise level of 9
if (monoPeak >129 ) {
monoPeak = 129;
}
}
}
fill_solid( &(leds[0]), monoPeak, CRGB( clr4, clr5, clr6 ) );
FastLED.show();
delay(5);
fadeToBlackBy( leds, 130, 5);
FastLED.show();
Serial.println(monoPeak);
}
//********************************************
// SoundEffect 7
// *******************************************
void SoundEffect7() { // At last a stable Audio input circuit !! Teensy A2 connected to 4.7uf and SP1 on freetronics Mic. Also Analog Ground used with Mic
if (cal == false) { // Display the menu Item
four();
cal = true;
}
clr6 = random(3);
// Use the Amplitude of the Mic input to set the VU Display which is a Bar graph circling the Shpere
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * 139.0)) - 9; // Remove noise level of 9
if (monoPeak >129 ) {
monoPeak = 129;
}
}
}
if (clr6 == 0 ) {
fill_solid( &(leds[0]), monoPeak , CRGB::Blue);
} else
if (clr6 == 1 ) {
fill_solid( &(leds[0]), monoPeak , CRGB::Green);
} else
if (clr6 == 2 ) {
fill_solid( &(leds[0]), monoPeak , CRGB::Red);
}
// fill_solid( &(leds[0]), monoPeak, CRGB( clr4, clr5, clr6 ) );
FastLED.show();
delay(3);
fadeToBlackBy( leds, 130, 10);
FastLED.show();
}
//********************************************
// DotSnakesSlow
// *******************************************
void DotSnakesSlow() {
if (cal == false) { // Display the menu Item
five();
cal = true;
}
// Use the Amplitude of the Mic input to set the delay for the DotSnakes
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * td)); // Remove noise level
if (monoPeak >td ) {
monoPeak = td;
}
}
}
//Clear all current LEDs
leds[dot[0][0]] = CRGB::Black; // Turn off current LED position
leds[dot[0][2]] = CRGB::Black; // Turn off current LED position
leds[dot[0][3]] = CRGB::Black; // Turn off current LED position
leds[dot[0][4]] = CRGB::Black; // Turn off current LED position
leds[dot[1][0]] = CRGB::Black; // Turn off current LED position
leds[dot[1][2]] = CRGB::Black; // Turn off current LED position
leds[dot[1][3]] = CRGB::Black; // Turn off current LED position
leds[dot[1][4]] = CRGB::Black; // Turn off current LED position
leds[dot[2][0]] = CRGB::Black; // Turn off current LED position
leds[dot[2][2]] = CRGB::Black; // Turn off current LED position
leds[dot[2][3]] = CRGB::Black; // Turn off current LED position
leds[dot[2][4]] = CRGB::Black; // Turn off current LED position
leds[dot[3][0]] = CRGB::Black; // Turn off current LED position
leds[dot[3][2]] = CRGB::Black; // Turn off current LED position
leds[dot[3][3]] = CRGB::Black; // Turn off current LED position
leds[dot[3][4]] = CRGB::Black; // Turn off current LED position
FastLED.show();
//if (monoPeak > 1) { // No sound blank ball
// Dot 0 **********************************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[0][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[0][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[0][4] = dot[0][3]; // Store prevprev into prevprevprev location
dot[0][3] = dot[0][2]; // Store prev into prevprev location
dot[0][2] = dot[0][0]; // Store current into prev location
dot[0][0]= pixel[dot[0][0]][dot[0][1]]; // Use function to read data back from array in Progam Memory
// Dot 1**********************************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[1][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[1][1] = direct; // Modify lead dot position and store value in array
// Update position of data based on new direction before displaying
dot[1][4] = dot[1][3]; // Store prevprev into prevprevprev location
dot[1][3] = dot[1][2]; // Store prev into prevprev location
dot[1][2] = dot[1][0]; // Store current into prev location
dot[1][0]= pixel[dot[1][0]][dot[1][1]]; // Use function to read data back from array in Progam Memory
// Dot 2 *****************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[2][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[2][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[2][4] = dot[2][3]; // Store prevprev into prevprevprev location
dot[2][3] = dot[2][2]; // Store prev into prevprev location
dot[2][2] = dot[2][0]; // Store current into prev location
dot[2][0]= pixel[dot[2][0]][dot[2][1]]; // Use pgm_read_byte function to read data back from array in Progam Memory
// Dot 3 *****************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[3][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[3][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[3][4] = dot[3][3]; // Store prevprev into prevprevprev location
dot[3][3] = dot[3][2]; // Store prev into prevprev location
dot[3][2] = dot[3][0]; // Store current into prev location
dot[3][0]= pixel[dot[3][0]][dot[3][1]]; // Use pgm_read_byte function to read data back from array in Progam Memory
// delay(100);
leds[dot[0][0]] = CRGB::Blue;
leds[dot[0][2]] = CRGB::Blue;
leds[dot[0][3]] = CRGB::Blue;
leds[dot[0][4]] = CRGB::Blue;
leds[dot[1][0]] = CRGB::Red;
leds[dot[1][2]] = CRGB::Red;
leds[dot[1][3]] = CRGB::Red;
leds[dot[1][4]] = CRGB::Red;
leds[dot[2][0]] = CRGB::Green;
leds[dot[2][2]] = CRGB::Green;
leds[dot[2][3]] = CRGB::Green;
leds[dot[2][4]] = CRGB::Green;
leds[dot[3][0]] = CRGB::Purple;
leds[dot[3][2]] = CRGB::Purple;
leds[dot[3][3]] = CRGB::Purple;
leds[dot[3][4]] = CRGB::Purple;
FastLED.show();
// Serial.println(monoPeak);
delay(monoPeak*2);
//}
}
//********************************************
// SoundRing
// *******************************************
void SoundRing() { // GyroLED Snakes down sphere
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * tsr)); // Remove noise level
if (monoPeak >tsr ) {
monoPeak = tsr;
}
}
}
// Step Through Layers from top to bottom ring on ball and speed up with louder music
srctr++; // Increment counter
if ( srctr > 10 ) {
srctr = 0; // Reset Counter to top ring on ball
}
if (monoPeak > 10 ) {
// 11 Bands of color
// fill_solid( &(leds[0]), 130, CHSV( monoPeak, 0, 0) );// First blank all LEDs
if (srctr == 0) {
fill_solid( &(leds[0]), 1, CHSV( 224-monoPeak, 255, 255) );
} else
if (srctr == 1) {
fill_solid( &(leds[1]), 8 , CHSV( 224-monoPeak, 255, 255) );
}else
if (srctr == 2) {
fill_solid( &(leds[9]), 16 , CHSV( 224-monoPeak, 255, 255) );
}else
if (srctr == 3) {
fill_solid( &(leds[25]), 16, CHSV( 224-monoPeak, 255, 255) );
}else
if (srctr == 4) {
fill_solid( &(leds[41]), 16 , CHSV( 224-monoPeak, 255, 255) );
}else
if (srctr == 5) {
fill_solid( &(leds[57]), 16 , CHSV( 224-monoPeak, 255, 255) );
}else
if (srctr == 6) {
fill_solid( &(leds[73]), 16, CHSV( 224-monoPeak, 255, 255) );
}else
if (srctr == 7) {
fill_solid( &(leds[89]), 16 , CHSV( 224-monoPeak, 255, 255) );
}else
if (srctr == 8) {
fill_solid( &(leds[105]), 16 , CHSV( 224-monoPeak, 255, 255) );
}else
if (srctr == 9) {
fill_solid( &(leds[121]), 8, CHSV( 224-monoPeak, 255, 255) );
}else
if (srctr == 10) {
fill_solid( &(leds[129]), 1 , CHSV( 224-monoPeak, 255, 255) );
}
FastLED.show();
} else {
fadeToBlackBy( leds, 130, 8);
FastLED.show();
}
// Serial.println(monoPeak);
}
//********************************************
// SoundRingStep
// *******************************************
void SoundRingStep() { // GyroLED Snakes down sphere
if (cal == false) { // Display the menu Item
three();
cal = true;
}
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * 160)); // Remove noise level
if (monoPeak >160 ) {
monoPeak = 160;
}
}
}
srs = 10;
// Step Through Layers from top to bottom ring on ball and speed up with louder music
srctr++; // Increment counter
if ( srctr > 10 ) {
srctr = 0; // Reset Counter to top ring on ball
}
if (monoPeak >10 ) {
// 11 Bands of color
// fill_solid( &(leds[0]), 130, CHSV( monoPeak, 0, 0) );// First blank all LEDs
if (srctr == 0) {
fill_solid( &(leds[0]), 1, CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[0]), 1, CHSV( 0, 0, 0) );
} else
if (srctr == 1) {
fill_solid( &(leds[1]), 8 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[1]), 8, CHSV( 0, 0, 0) );
}else
if (srctr == 2) {
fill_solid( &(leds[9]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[9]), 16, CHSV( 0, 0, 0) );
}else
if (srctr == 3) {
fill_solid( &(leds[25]), 16, CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[25]), 16, CHSV( 0, 0, 0) );
}else
if (srctr == 4) {
fill_solid( &(leds[41]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[41]), 16, CHSV( 0, 0, 0) );
}else
if (srctr == 5) {
fill_solid( &(leds[57]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[57]), 16, CHSV( 0, 0, 0) );
}else
if (srctr == 6) {
fill_solid( &(leds[73]), 16, CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[73]), 16, CHSV( 0, 0, 0) );
}else
if (srctr == 7) {
fill_solid( &(leds[89]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[89]), 16, CHSV( 0, 0, 0) );
}else
if (srctr == 8) {
fill_solid( &(leds[105]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[105]), 16, CHSV( 0, 0, 0) );
}else
if (srctr == 9) {
fill_solid( &(leds[121]), 8, CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[121]), 8, CHSV( 0, 0, 0) );
}else
if (srctr == 10) {
fill_solid( &(leds[129]), 1 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
}
}else {
fadeToBlackBy( leds, 130, 2);
FastLED.show();
}
// Serial.println(monoPeak);
}
//********************************************
// SoundRingStepBar
// *******************************************
void SoundRingStepBar() { // GyroLED Snakes down sphere
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * 160)); // TThis limits spectrum from Red to Blue which us reversed below for Bar effect
if (monoPeak >160 ) {
monoPeak = 160;
}
}
}
srs = 0; // Sets minimum delay between each ring being left on
// Step Through Layers from top to bottom ring on ball and speed up with louder music
if (monoPeak >10 ) {
// 11 Bands of color
// fill_solid( &(leds[0]), 130, CHSV( monoPeak, 0, 0) );// First blank all LEDs
if (monoPeak > 10) {
fill_solid( &(leds[0]), 1, CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[0]), 1, CHSV( 0, 0, 0) );
} else
if (monoPeak > 35) {
fill_solid( &(leds[1]), 8 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[1]), 8, CHSV( 0, 0, 0) );
} else
if (monoPeak > 55) {
fill_solid( &(leds[9]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[9]), 16, CHSV( 0, 0, 0) );
} else
if (monoPeak > 75) {
fill_solid( &(leds[25]), 16, CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[25]), 16, CHSV( 0, 0, 0) );
} else
if (monoPeak > 95) {
fill_solid( &(leds[41]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[41]), 16, CHSV( 0, 0, 0) );
} else
if (monoPeak > 115) {
fill_solid( &(leds[57]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[57]), 16, CHSV( 0, 0, 0) );
} else
if (monoPeak > 125) {
fill_solid( &(leds[73]), 16, CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[73]), 16, CHSV( 0, 0, 0) );
} else
if (monoPeak > 135) {
fill_solid( &(leds[89]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[89]), 16, CHSV( 0, 0, 0) );
} else
if (monoPeak > 145) {
fill_solid( &(leds[105]), 16 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[105]), 16, CHSV( 0, 0, 0) );
} else
if (monoPeak > 150) {
fill_solid( &(leds[121]), 8, CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
// fill_solid( &(leds[121]), 8, CHSV( 0, 0, 0) );
} else
if (monoPeak > 155) {
fill_solid( &(leds[129]), 1 , CHSV( 160-monoPeak, 255, 255) );
FastLED.show();
delay(srs);
}
}else {
fadeToBlackBy( leds, 130, 2);
FastLED.show();
}
// Serial.println(monoPeak);
}
//********************************************
// DotOnTopSound
// *******************************************
void DotOnTopSound() { // Sound Bubble stays in top of sphere
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * 160)); // TThis limits spectrum from Red to Blue which us reversed below for Bar effect
if (monoPeak >160 ) {
monoPeak = 160;
}
}
}
// Normalise Smoothed Values
Xnormalise = smoothedX + 18100;
Ynormalise = smoothedY + 18100;
Znormalise = smoothedZ + 18100;
// Display dot on top of ball
// leds[dt] = CRGB::Blue;
// FastLED.show();
// Identify from Array new position of the Dot
int tolerance = 2000;// X,Y,Z must meet this criteria to turn on LED
int gc=0; // Points to LED to be tested
boolean gf = false; // Flag to indicate coordinate found no need to search further
// Temp calc variables
int tX = 0;
int tY = 0;
int tZ = 0;
while ( (gc<130) && (gf == false)) { // For LEDS on top of Sphere
// Read in Data from Array and Test Against Gyro Coordinates
tX = pixel[gc][10];
tY = pixel[gc][11];
tZ = pixel[gc][12];
if ( (Xnormalise < (tX+tolerance)) && (Xnormalise > (tX-tolerance))) {
if ( (Ynormalise < (tY+tolerance)) && (Ynormalise > (tY-tolerance))) {
if ( (Znormalise < (tZ+tolerance)) && (Znormalise > (tZ-tolerance))) {
// Set pointer to new LED and display it
dt = gc;
gf = true; // Set flag to exit While Loop
leds[dt] = CRGB::Green;
/*
* LED Position
0 = Up
1 = Up Right
2 = Right
3 = Down Right
4 = Down
5 = Down Left
6 = Left
7 = Up Left
*
*/
if (monoPeak > 50) {
leds[pixel[dt][0]] = CRGB::Red;
leds[pixel[dt][1]] = CRGB::Red;
leds[pixel[dt][2]] = CRGB::Red;
leds[pixel[dt][3]] = CRGB::Red;
leds[pixel[dt][4]] = CRGB::Red;
leds[pixel[dt][5]] = CRGB::Red;
leds[pixel[dt][6]] = CRGB::Red;
leds[pixel[dt][7]] = CRGB::Red;
}
if (monoPeak > 140) {
leds[pixel[pixel[dt][0]][0]] = CRGB::Blue;
leds[pixel[pixel[dt][1]][0]] = CRGB::Blue;
leds[pixel[pixel[dt][1]][2]] = CRGB::Blue;
leds[pixel[pixel[dt][2]][2]] = CRGB::Blue;
leds[pixel[pixel[dt][3]][2]] = CRGB::Blue;
leds[pixel[pixel[dt][3]][4]] = CRGB::Blue;
leds[pixel[pixel[dt][4]][4]] = CRGB::Blue;
leds[pixel[pixel[dt][5]][4]] = CRGB::Blue;
leds[pixel[pixel[dt][5]][6]] = CRGB::Blue;
leds[pixel[pixel[dt][6]][6]] = CRGB::Blue;
leds[pixel[pixel[dt][7]][0]] = CRGB::Blue;
leds[pixel[pixel[dt][7]][6]] = CRGB::Blue;
}
FastLED.show();
delay(10);
leds[dt] = CRGB::Black;
leds[pixel[dt][0]] = CRGB::Black;
leds[pixel[dt][1]] = CRGB::Black;
leds[pixel[dt][2]] = CRGB::Black;
leds[pixel[dt][3]] = CRGB::Black;
leds[pixel[dt][4]] = CRGB::Black;
leds[pixel[dt][5]] = CRGB::Black;
leds[pixel[dt][6]] = CRGB::Black;
leds[pixel[dt][7]] = CRGB::Black;
leds[pixel[pixel[dt][0]][0]] = CRGB::Black;
leds[pixel[pixel[dt][1]][0]] = CRGB::Black;
leds[pixel[pixel[dt][1]][2]] = CRGB::Black;
leds[pixel[pixel[dt][2]][2]] = CRGB::Black;
leds[pixel[pixel[dt][3]][2]] = CRGB::Black;
leds[pixel[pixel[dt][3]][4]] = CRGB::Black;
leds[pixel[pixel[dt][4]][4]] = CRGB::Black;
leds[pixel[pixel[dt][5]][4]] = CRGB::Black;
leds[pixel[pixel[dt][5]][6]] = CRGB::Black;
leds[pixel[pixel[dt][6]][6]] = CRGB::Black;
leds[pixel[pixel[dt][7]][0]] = CRGB::Black;
leds[pixel[pixel[dt][7]][6]] = CRGB::Black;
FastLED.show();
}
}
}
// leds[i].setRGB( (Xcol), (Ycol), (Zcol));
//Increment counter
gc++;
}
}
//********************************************
// Counter
// *******************************************
void Counter() { // LED stays in top of sphere
if (nctr == 9) {
nine();
} else
if (nctr == 8) {
eight();
} else
if (nctr == 7) {
seven();
} else
if (nctr == 6) {
six();
} else
if (nctr == 5) {
five();
} else
if (nctr == 4) {
four();
} else
if (nctr == 3) {
three();
} else
if (nctr == 2) {
two();
} else
if (nctr == 1) {
one();
} else
if (nctr == 0) {
zero();
}
nctr--;
if (nctr < 0) {
nctr = 9;
}
}
//********************************************
// DotsnakesSpeed
// *******************************************
void DotSnakesSpeed() {
// Use the Amplitude of the Mic input to set the delay for the DotSnakes
if (fps > 24) {
if (peak1.available()) {
fps = 0;
monoPeak = abs((peak1.read() * td)); // Remove noise level
if (monoPeak >td ) {
monoPeak = td;
}
}
}
//Clear all current LEDs
leds[dot[0][0]] = CRGB::Black; // Turn off current LED position
leds[dot[0][2]] = CRGB::Black; // Turn off current LED position
leds[dot[0][3]] = CRGB::Black; // Turn off current LED position
leds[dot[0][4]] = CRGB::Black; // Turn off current LED position
leds[dot[1][0]] = CRGB::Black; // Turn off current LED position
leds[dot[1][2]] = CRGB::Black; // Turn off current LED position
leds[dot[1][3]] = CRGB::Black; // Turn off current LED position
leds[dot[1][4]] = CRGB::Black; // Turn off current LED position
leds[dot[2][0]] = CRGB::Black; // Turn off current LED position
leds[dot[2][2]] = CRGB::Black; // Turn off current LED position
leds[dot[2][3]] = CRGB::Black; // Turn off current LED position
leds[dot[2][4]] = CRGB::Black; // Turn off current LED position
leds[dot[3][0]] = CRGB::Black; // Turn off current LED position
leds[dot[3][2]] = CRGB::Black; // Turn off current LED position
leds[dot[3][3]] = CRGB::Black; // Turn off current LED position
leds[dot[3][4]] = CRGB::Black; // Turn off current LED position
FastLED.show();
//if (monoPeak > 1) { // No sound blank ball
// Dot 0 **********************************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[0][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[0][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[0][4] = dot[0][3]; // Store prevprev into prevprevprev location
dot[0][3] = dot[0][2]; // Store prev into prevprev location
dot[0][2] = dot[0][0]; // Store current into prev location
dot[0][0]= pixel[dot[0][0]][dot[0][1]]; // Use function to read data back from array in Progam Memory
// Dot 1**********************************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[1][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[1][1] = direct; // Modify lead dot position and store value in array
// Update position of data based on new direction before displaying
dot[1][4] = dot[1][3]; // Store prevprev into prevprevprev location
dot[1][3] = dot[1][2]; // Store prev into prevprev location
dot[1][2] = dot[1][0]; // Store current into prev location
dot[1][0]= pixel[dot[1][0]][dot[1][1]]; // Use function to read data back from array in Progam Memory
// Dot 2 *****************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[2][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[2][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[2][4] = dot[2][3]; // Store prevprev into prevprevprev location
dot[2][3] = dot[2][2]; // Store prev into prevprev location
dot[2][2] = dot[2][0]; // Store current into prev location
dot[2][0]= pixel[dot[2][0]][dot[2][1]]; // Use pgm_read_byte function to read data back from array in Progam Memory
// Dot 3 *****************************************
// Randomly change direction of Dot
direct = random8(8); // Randomly determine new direction
// Check not going backwards
while ((abs(dot[3][1] - direct)) == 4){
direct = random8(8); // Randomly determine new direction
}
dot[3][1] = direct; // Store value in array
// Update position of data based on new direction before displaying
dot[3][4] = dot[3][3]; // Store prevprev into prevprevprev location
dot[3][3] = dot[3][2]; // Store prev into prevprev location
dot[3][2] = dot[3][0]; // Store current into prev location
dot[3][0]= pixel[dot[3][0]][dot[3][1]]; // Use pgm_read_byte function to read data back from array in Progam Memory
// delay(100);
leds[dot[0][0]] = CRGB::Blue;
leds[dot[0][2]] = CRGB::Blue;
leds[dot[0][3]] = CRGB::Blue;
leds[dot[0][4]] = CRGB::Blue;
leds[dot[1][0]] = CRGB::Red;
leds[dot[1][2]] = CRGB::Red;
leds[dot[1][3]] = CRGB::Red;
leds[dot[1][4]] = CRGB::Red;
leds[dot[2][0]] = CRGB::Green;
leds[dot[2][2]] = CRGB::Green;
leds[dot[2][3]] = CRGB::Green;
leds[dot[2][4]] = CRGB::Green;
leds[dot[3][0]] = CRGB::Purple;
leds[dot[3][2]] = CRGB::Purple;
leds[dot[3][3]] = CRGB::Purple;
leds[dot[3][4]] = CRGB::Purple;
FastLED.show();
// Serial.println(monoPeak);
delay(240 - monoPeak*2);
//}
}
TechKiwiGadgets
2 projects • 28 followers
I love the challenge of building unique things. My goal is to make technology fun. Passionate user of Design Thinking.
Comments
