ESP8266 + GeoLocation + Dweet.io + FreeBoard.io + Google API

Ever wanted to find your geolocation without GPS/GSM module? If yes, then this project is for you. Here we just use ESP board to do the job.

BeginnerWork in progress2 hours4,022
ESP8266 + GeoLocation + Dweet.io + FreeBoard.io + Google API

Things used in this project

Hardware components

Wemos D1 Mini
Espressif Wemos D1 Mini
×1

Software apps and online services

Arduino IDE
Arduino IDE
Please make sure ArduinoJson and ESP8266WiFi libraries are downloaded to compile the code.

Story

Read more

Schematics

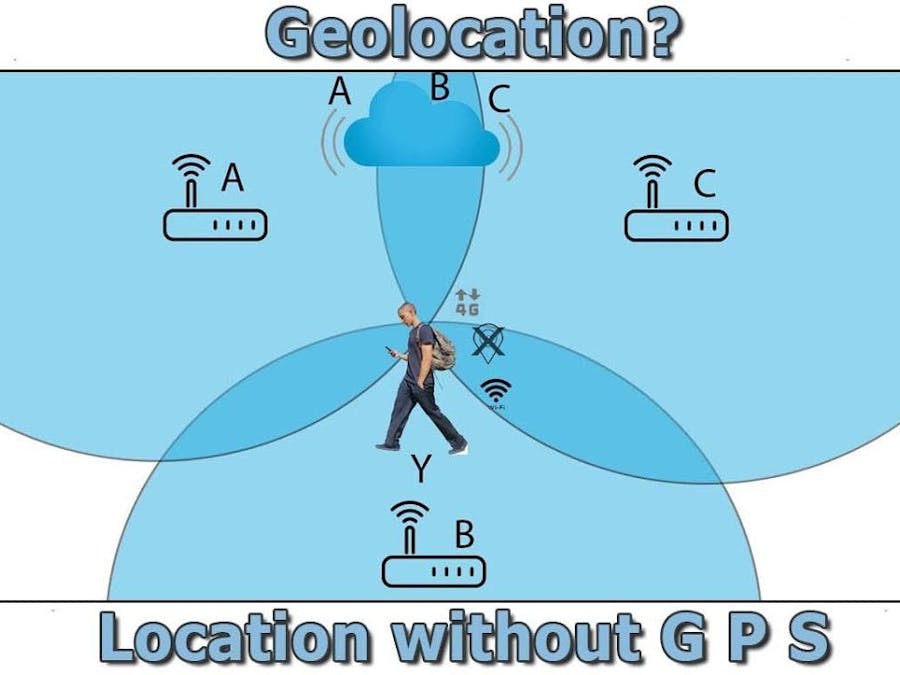

Cover page

Code

Code base

Arduino
1. How to Get your own key - Google GeoLocation API key

Login to your google account -> Top Right corner of below page -> "Get a Key" -> Click to get it

https://developers.google.com/maps/documentation/geocoding/intro

2. Dweet.io does not need any account or sign up just pass data as needed

3. FreeBoard.io -> Needs sign up
Create a dashboard -> Select Dweet.io Data Source -> Add Google Map widget -> Select fields Latitude and Longitude and that's it. Once the Arduino sample running successfully you should see the device location here.
/*********************************************************************
  This is the code for Fetching your location from Google Geolocation API

  This code is provided by
  techiesms
*********************************************************************/

#include <ESP8266HTTPClient.h>
#include <ArduinoJson.h>
#include "ESP8266WiFi.h"

char myssid[] = "SunShineLabz";         // your network SSID (name)
char mypass[] = "scienceprojects";          // your network password


//Credentials for Google GeoLocation API...
const char* Host = "www.googleapis.com";
String thisPage = "/geolocation/v1/geolocate?key=";
String key = "AIzaSyBHqoRnGvcJjT3c08_htHvCLBTGxxxxxxx"; // Get your own key

// Crdential for Dweetio API
const char* HostDweetURL = "www.dweet.io";

int status = WL_IDLE_STATUS;
String jsonString = "{\n";

double latitude    = 0.0;
double longitude   = 0.0;
double accuracy    = 0.0;
int more_text = 1; // set to 1 for more debug output

void setup()   {
  Serial.begin(9600);

  Serial.println("Start");
  // Set WiFi to station mode and disconnect from an AP if it was previously connected
  WiFi.mode(WIFI_STA);
  WiFi.disconnect();
  delay(100);
  Serial.println("Setup done");
  // We start by connecting to a WiFi network
  Serial.print("Connecting to ");
  Serial.println(myssid);
  WiFi.begin(myssid, mypass);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println(".");
}

void loop() {

  char bssid[6];
  DynamicJsonBuffer jsonBuffer;
  Serial.println("scan start");
  // WiFi.scanNetworks will return the number of networks found
  int n = WiFi.scanNetworks();
  Serial.println("scan done");
  if (n == 0)
    Serial.println("no networks found");
  else
  {
    Serial.print(n);
    Serial.println(" networks found...");

    if (more_text) {
      // Print out the formatted json...
      Serial.println("{");
      Serial.println("\"homeMobileCountryCode\": 234,");  // this is a real UK MCC
      Serial.println("\"homeMobileNetworkCode\": 27,");   // and a real UK MNC
      Serial.println("\"radioType\": \"gsm\",");          // for gsm
      Serial.println("\"carrier\": \"Vodafone\",");       // associated with Vodafone
      //Serial.println("\"cellTowers\": [");                // I'm not reporting any cell towers
      //Serial.println("],");
      Serial.println("\"wifiAccessPoints\": [");
      for (int i = 0; i < n; ++i)
      {
        Serial.println("{");
        Serial.print("\"macAddress\" : \"");
        Serial.print(WiFi.BSSIDstr(i));
        Serial.println("\",");
        Serial.print("\"signalStrength\": ");
        Serial.println(WiFi.RSSI(i));
        if (i < n - 1)
        {
          Serial.println("},");
        }
        else
        {
          Serial.println("}");
        }
      }
      Serial.println("]");
      Serial.println("}");
    }
    Serial.println(" ");
  }
  // now build the jsonString...
  jsonString = "{\n";
  jsonString += "\"homeMobileCountryCode\": 234,\n"; // this is a real UK MCC
  jsonString += "\"homeMobileNetworkCode\": 27,\n";  // and a real UK MNC
  jsonString += "\"radioType\": \"gsm\",\n";         // for gsm
  jsonString += "\"carrier\": \"Vodafone\",\n";      // associated with Vodafone
  jsonString += "\"wifiAccessPoints\": [\n";
  for (int j = 0; j < n; ++j)
  {
    jsonString += "{\n";
    jsonString += "\"macAddress\" : \"";
    jsonString += (WiFi.BSSIDstr(j));
    jsonString += "\",\n";
    jsonString += "\"signalStrength\": ";
    jsonString += WiFi.RSSI(j);
    jsonString += "\n";
    if (j < n - 1)
    {
      jsonString += "},\n";
    }
    else
    {
      jsonString += "}\n";
    }
  }
  jsonString += ("]\n");
  jsonString += ("}\n");
  //--------------------------------------------------------------------

  Serial.println("");

  WiFiClientSecure client;

  //Connect to the client and make the api call
  Serial.print("Requesting URL: ");
  Serial.println("https://" + (String)Host + thisPage + key);
  Serial.println(" ");
  if (client.connect(Host, 443)) {
    Serial.println("Connected");
    client.println("POST " + thisPage + key + " HTTP/1.1");
    client.println("Host: " + (String)Host);
    client.println("Connection: close");
    client.println("Content-Type: application/json");
    client.println("User-Agent: Arduino/1.0");
    client.print("Content-Length: ");
    client.println(jsonString.length());
    client.println();
    client.print(jsonString);
    delay(500);
  }

  //Read and parse all the lines of the reply from server
  while (client.available()) {
    String line = client.readStringUntil('\r');
    if (more_text) {
      Serial.print(line);
    }
    JsonObject& root = jsonBuffer.parseObject(line);
    if (root.success()) {
      latitude    = root["location"]["lat"];
      longitude   = root["location"]["lng"];
      accuracy   = root["accuracy"];
    }
  }

  Serial.print("Latitude = ");
  Serial.println(latitude, 6);
  Serial.print("Longitude = ");
  Serial.println(longitude, 6);
  Serial.print("Accuracy = ");
  Serial.println(accuracy);

  String posturl =  "/dweet/for/DeviceLocator?Latitude=" + String(latitude) + "&Longitude=" + String(longitude);

  //Connect to the dweet.io client and make the api call
  Serial.print("Requesting URL Dweet: ");
  Serial.println("https://" + (String)HostDweetURL + posturl);
  Serial.println(" ");
  if (client.connect(HostDweetURL, 443)) {
    Serial.println("Connected to dweet");
    client.println("POST " + posturl + " HTTP/1.1");
    client.println("Host: " + (String)HostDweetURL );
    client.println("Connection: close");
    client.println("Content-Type: application/json");
    client.println("User-Agent: Arduino/1.0");
    client.print("Content-Length: ");
    client.println(jsonString.length());
    client.println();
    client.print(jsonString);
    delay(500);
  }

  Serial.println("closing connection");
  Serial.println();
  client.stop();

  delay(2500);


}
