SoundTouch 🔊 Nerf 🔫 Target 🎯

Create your own Nerf target! If you don't like the music played on the SoundTouch, just hit the target! 🎯

BeginnerFull instructions provided911

Things used in this project

Hardware components

Arduino Yun

LED (generic)

Adafruit Fast Vibration Sensor Switch

Software apps and online services

Arduino IDE

Story

Description

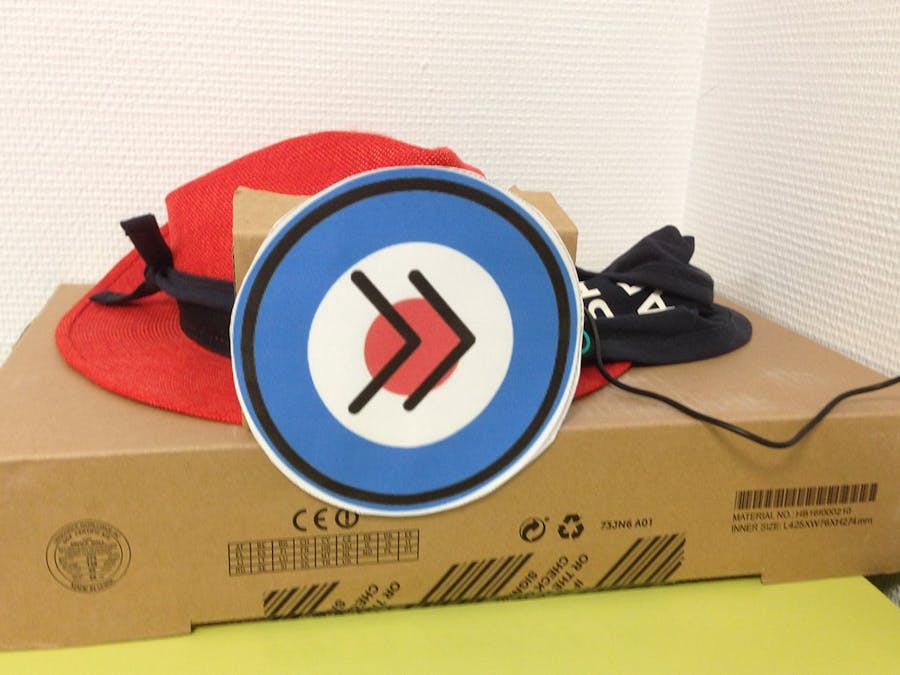

Create your own Nerf target! If you don't like the music played on the SoundTouch, just hit the target 🎯and the code will send a next music event ⏭️.

If you hit the target, the blue LED will turn on 💡and you need to wait 30 seconds before switching to the next song. When the blue LED turns off, you can 🔫 shoot again.

Contribute? https://github.com/T3kstiil3/soundtouch-nerf-target

Follow Me on Twitter 🦄

Configuration

Edit the Soundtouch IP in your code :

//edit with your soundtouch ip
const String soundtouchIP = "10.0.10.166";

1 / 6

Code

soundtouch-nerf-target.ino

/*
 * Soundtouch Nerf Next target !!!
 * https://github.com/T3kstiil3/soundtouch-nerf-target
 *  Aurélien Loyer :D
 */

#include <Bridge.h>
#include <Console.h>
#include <HttpClient.h>
#include <YunServer.h>
#include <YunClient.h>

YunServer server;

const int statusLED = 13;
const int switchTilt = 2;
int val = 0;

const int port = 8090;
// edit with your soundtouch ip
const String soundtouchIP = "10.0.10.166";
const String url = "http://" + soundtouchIP + ":8090/key";
const String data = "<?xml version='1.0' encoding='UTF-8' ?><key state='release' sender='Gabbo'>NEXT_TRACK</key>";
const String curlcommand = "curl -H 'Content-Type: application/xml' -X POST -d \"<?xml version='1.0' encoding='UTF-8' ?><key state='press' sender='Gabbo'>NEXT_TRACK</key>\" http://" + soundtouchIP + ":8090/key";

void setup() {
  Serial.begin(9600);

  pinMode (statusLED,OUTPUT);
  pinMode (switchTilt,INPUT);

  Bridge.begin();
  server.listenOnLocalhost();
  server.begin();
}

void loop()
{

  YunClient client = server.accept();

  val = digitalRead(switchTilt);
  if (val == HIGH){
    digitalWrite(statusLED,HIGH);
    nextTrack();
    delay(30000); // 30 secondes avant le prochain changement !
  }
  else {
    digitalWrite(statusLED,LOW);
  }

  //Process Client Requests
  if (client) {
    process(client);
    client.stop();
  }

  delay(15);
}

void nextTrack() {
  Process p;
  p.runShellCommand(curlcommand);
}

void process(YunClient client) {
  String command = client.readStringUntil('\r');
}
