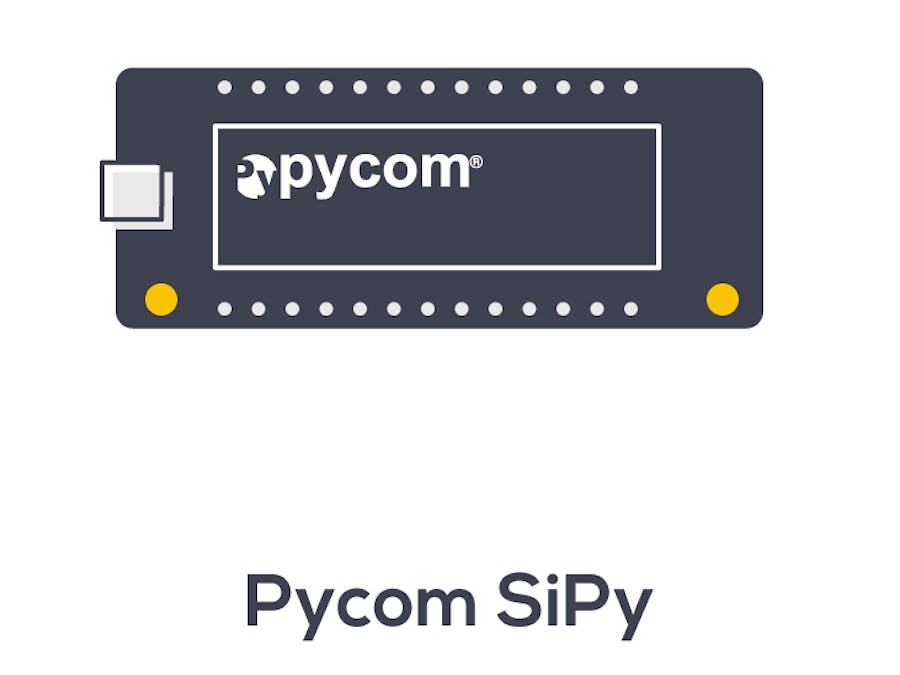

Publish Any Event to Wia Using Your Pycom SiPy

Setup Your Development Environment

We'll be using Atom as our development environment. You can download the latest version from here. Once you've got it setup, install the Pymakr plugin. Follow the steps in this tutorial to get it setup.

**Ensure your external antenna is connected before attempting to send Sigfox messages. If you do not do this, you can risk damaging your dev board

Connect to the Board

There are two ways to connect your board to your computer. You can do so either via the USB port on the Expansion Board or Pysense/Pytrack boards (more on that here).

Alternatively you can communicate with the board via a USB to TTL cable. Connect the following pins:

Get Device Name

Once you've got it connected to your computer, get the name of your device using one of the following steps:

Linux and Mac OS X

• Open a terminal window and run the command ls /dev/tty*

• Look for a device with the name that begins with /dev/tty e.g. /dev/tty.usbmodemPy343431 on MAC or /dev/ttyUSB0/dev/ttyACM0 on Linux.

Windows

• Download and install the FTDI drivers from here

• Open the Windows start menu and search for 'Device Manager'

• The COM port for the Pycom device will be listed as 'USB Serial Device' or something similar

• Keep note of the COM port (e.g. COM4)

Note: For Linux, you may need to run the following commands and logoff and on again to add permissions to upload a sketch to the board

• Shell

sudo usermod -a -G tty ${USER}sudo usermod -a -G dialout  ${USER}

Setup Your Project

• Create a new folder for your project

• In Atom, go to File > New Window to open a new window

• Add your newly created folder by clicking File > Add Project Folder and navigating to it

• If the Pymakr plugin is not open at the bottom of your Atom window, click on the arrow on the right hand side to open it

• Select Settings > Project Settings. In the address field replace the value with the device name from the step above e.g. /dev/tty.usbmodemPy343431 (/Mac OS X), /dev/ttyACM0 (LInux), COM3 (Windows) then save the file

Retrieve your Device ID and PAC number

Note: To ensure the device has been provisioned with Device ID and PAC number, please update to the latest firmware.

To retrieve your devices:

• Create a new file, name it boot.py

• Copy and paste the code named boot.py

Upload and Run the code

NOTE - Ensure your external antenna is connected before attempting to run the code. If you do not do this, you can risk damaging your device!

• Go to Packages > Pymakr > Toggle Pycom Console

• Click Upload in the Pymakr plugin at the bottom of your window in Atom and send the code to your Pycom board

• Click Run to run your code on the board

Registering with Sigfox

In order to send a Sigfox message, the device needs to register with the Sigfox Backend. Navigate here to find the list of Sigfox enabled development kits.

Choose the Sigfox operator that represents your country.

• Add the Device ID and PAC number obtained from the code earlier and place them into the corresponding fields below

• Click next to register your device

Sending Your First Sigfox Message

• In Atom, right click on your project and click New File. Enter sigfox_message.py as the filename

• Copy and paste the code named sigfox_message.py below into the file

• Click Upload in the Pymakr plugin at the bottom of your window in Atom and send the code to your Pycom board

• Click Run to run your code on the board

View your message in the Sigfox dashboard

• Go to the Sigfox dashboard, found here

• On your Sigfox account, click on the Device tab, click on your Device ID and click Messages

Connecting Sigfox with Wia

First, Sigfox must be integrated with Wia to see your Sigfox messages in Wia.The tutorial can be accessed here

Receiving the message on Wia

If the callback has been properly setup between Sigfox and Wia, the message should also be displayed in Wia

• Go to your Space that has your Sigfox integration

• Click on Device that matches the Sigfox device on the Sigfox website

• Click on the events tab and the Sigfox messages should be displayed

Note: If your board gets stuck with the message "Uploading project (main folder)...", try updating the firmware. For the development board click here. For additional firmware for the Pysense/Pytrack board click here.
