Minimizing the Arduino: "Really Bare Board Arduino"

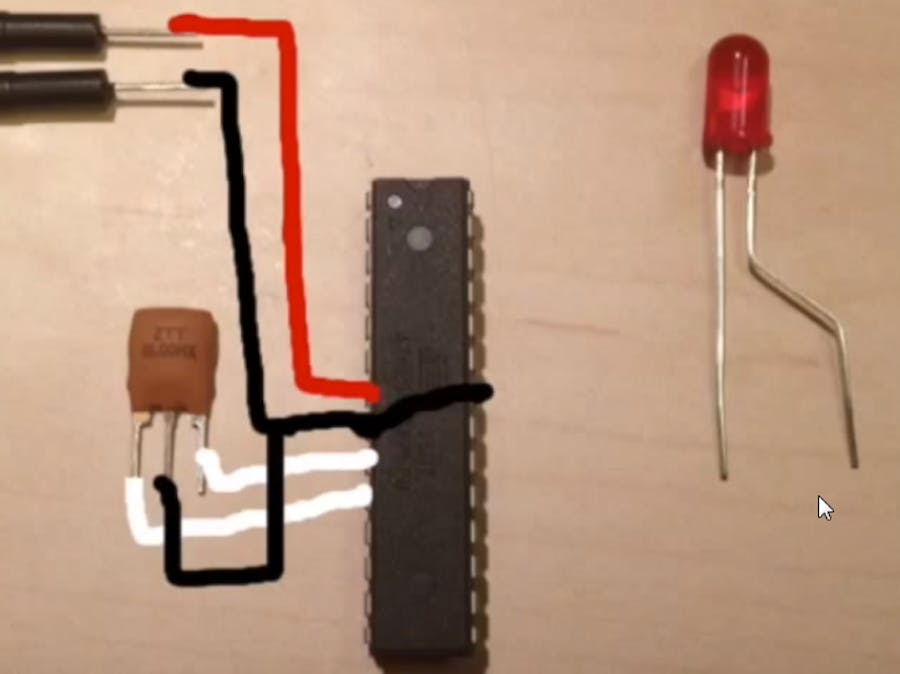

In this (quite short) video tutorial I will explain how to shrink the Arduino down to just an ATMega328 and a 16MHz resonator. You will end up with a Really Bare Board Arduino (RBB) that will easily fit in most projects. The resonator used ZTT 16MHz has the capacitors built in and therefore no capacitors is necessary in this design. To prove that it works we attach a LED to pin 13 so the pre-programmed blink sketch runs, and shows that it is actually working. This is the second episode of the YouTube "series" Anything Arduino.

• Link to the ATMega328 - Arduino Cheat sheet: http://www.duinos.net/files/2013/atmega328w.png

• More information on the ZTT Resonator: http://www.duinos.net/show/?id=147
