1.The simplest method:
For the font_aVlxr6zdsl.h library: open a new tab named: font_aVlxr6zdsl.h at the top on the three small dots at the top right.
2.For Windows:
Download the Arduuino IDE from https://www.arduino.cc/en/software in zip format, once the download is complete: go to the directory: arduino-ide_2.2.1_Windows_64bit>resources and paste: font_aVlxr6zdsl.h and all your .ino files.
3.For Linux:
Zip your file: font_aVlxr6zdsl.h and import it into arduino IDE.
// IMPORTANT: LCDWIKI_SPI LIBRARY MUST BE SPECIFICALLY
// CONFIGURED FOR EITHER THE TFT SHIELD OR THE BREAKOUT BOARD.

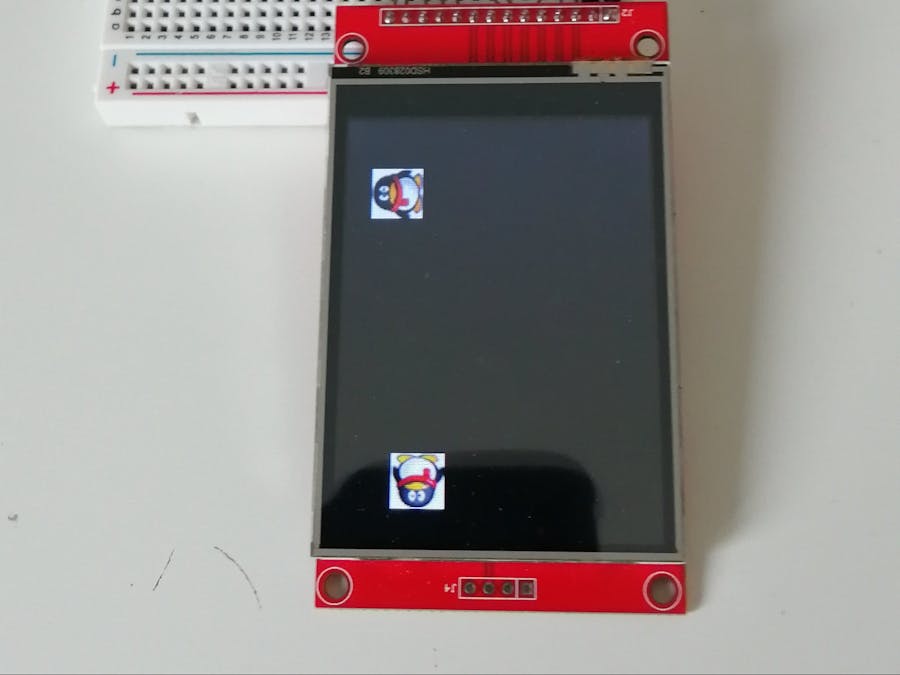

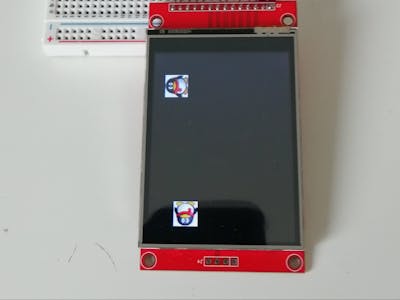

//This program is a demo of how to display scroll
//when using the BREAKOUT BOARD only and using these hardware spi lines to the LCD,
//the SDA pin and SCK pin is defined by the system and can't be modified.
//if you don't need to control the LED pin,you can set it to 3.3V and set the pin definition to -1.
//other pins can be defined by youself,for example
//pin usage as follow:
// CS DC/RS RESET SDI/MOSI SDO/MISO SCK LED VCC GND
//Arduino Uno A5 A3 A4 11 12 13 A0 5V/3.3V GND
//Remember to set the pins to suit your display module!
/***********************************************************************************
* @attention
*
* THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS
* WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE
* TIME. AS A RESULT, QD electronic SHALL NOT BE HELD LIABLE FOR ANY
* DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING
* FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE
* CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.
**********************************************************************************/
#include <LCDWIKI_GUI.h> //Core graphics library
#include <LCDWIKI_SPI.h> //Hardware-specific library
#include "font.h"//Font.h is here: https://www.hackster.io/Arduino-good/multi-penguin-display-on-an-ili9341-876dda#cad or /home/%username%/Download/font_aVlxr6zdsl.h
//et pour les français: /home/*Prénom*/Téléchargements/font_aVlxr6zdsl.h
//paramters define
#define MODEL ILI9341
#define CS A5
#define CD A3
#define RST A4
#define MOSI 11
#define MISO 12
#define SCK 13
#define LED A0 //if you don't need to control the LED pin,you should set it to -1 and set it to 3.3V
//the definiens of software spi mode as follow:
//if the IC model is known or the modules is unreadable,you can use this constructed function
LCDWIKI_SPI my_lcd(MODEL,CS,CD,MISO,MOSI,RST,SCK,LED); //model,cs,dc,miso,mosi,reset,sck,led
//if the IC model is not known and the modules is readable,you can use this constructed function
//LCDWIKI_SPI my_lcd(240,320,CS,CD,MISO,MOSI,RST,SCK,LED); //width,height,cs,dc,miso,mosi,reset,sck,led
#define BLACK 0x0000
#define BLUE 0x001F
#define RED 0xF800
#define GREEN 0x07E0
#define CYAN 0x07FF
#define MAGENTA 0xF81F
#define YELLOW 0xFFE0
#define WHITE 0xFFFF
void show_pic(void)
{
int i;
my_lcd.Set_Addr_Window(my_lcd.Get_Display_Width()-40-40, 20, my_lcd.Get_Display_Width()-40-1, 59);
my_lcd.Push_Any_Color(penguin_pic, 1600, 1, 1);
}
void setup()
{
my_lcd.Init_LCD();
my_lcd.Fill_Screen(BLACK);
}
void loop()
{
uint16_t max_scroll,rotation,i,n;
my_lcd.Set_Rotation(0);
uint16_t scrollbuf[my_lcd.Get_Display_Height()];
delay(500);
for(rotation = 0;rotation<4;rotation++)
{
my_lcd.Set_Rotation(rotation);
delay(1000);
show_pic();
delay(1000);
for(n=0;n<32;n++)
{
}
if(my_lcd.Get_Rotation()&1)
{
max_scroll = my_lcd.Get_Display_Width();
}
else
{
max_scroll = my_lcd.Get_Display_Height();
}
for(i=1;i<=max_scroll;i++)
{
my_lcd.Vert_Scroll(0, max_scroll, i);
delay(10);
}
my_lcd.Vert_Scroll(0, max_scroll, 0);
for(i=1;i<=max_scroll;i++)
{
my_lcd.Vert_Scroll(0, max_scroll, 0-i);
delay(10);
}
delay(1000);
my_lcd.Vert_Scroll(0, max_scroll, 0);
if(!(rotation&1))
{
for(i=1;i<=64;i++)
{
my_lcd.Vert_Scroll(48, 64, i);
delay(20);
}
delay(1000);
my_lcd.Vert_Scroll(0, max_scroll, 0);
}
delay(3000);
}
my_lcd.Fill_Screen(BLACK);
}
#ifndef __FONT_H
#define __FONT_H
#ifdef __AVR__
#include <avr/pgmspace.h>
#elif defined(ESP8266)
#include <pgmspace.h>
#else
#define PROGMEM
#endif
const unsigned char penguin_pic[] PROGMEM = { /* 0X00,0X10,0X28,0X00,0X28,0X00,0X01,0X1B, */
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XF7, 0X7D, 0XEF,
0XBA, 0XD6, 0XB6, 0XB5, 0XF3, 0X9C, 0XB2, 0X94, 0XB3, 0X9C, 0XB2, 0X94, 0X34, 0XA5, 0XF7, 0XBD,
0XFB, 0XDE, 0X7D, 0XEF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XF7, 0XFB, 0XDE, 0XF3, 0X9C, 0XCB, 0X5A,
0XC7, 0X39, 0X04, 0X21, 0X82, 0X10, 0X42, 0X10, 0X42, 0X10, 0X41, 0X08, 0X83, 0X18, 0X45, 0X29,
0XC7, 0X39, 0X0C, 0X63, 0X75, 0XAD, 0X3C, 0XE7, 0XBE, 0XF7, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X3C, 0XE7, 0XB2, 0X94, 0X08, 0X42, 0XC3, 0X18, 0X82, 0X10,
0X04, 0X21, 0X45, 0X29, 0X86, 0X31, 0X86, 0X31, 0X86, 0X31, 0X86, 0X31, 0X45, 0X29, 0X04, 0X21,
0X82, 0X10, 0X41, 0X08, 0XC3, 0X18, 0X08, 0X42, 0XF3, 0X9C, 0X3C, 0XE7, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFB, 0XDE, 0X0C, 0X63, 0XC3, 0X18, 0XC3, 0X18, 0X45, 0X29, 0XC7, 0X39,
0X08, 0X42, 0X08, 0X42, 0X08, 0X42, 0X08, 0X42, 0X08, 0X42, 0X08, 0X42, 0XC7, 0X39, 0XC7, 0X39,
0X86, 0X31, 0X86, 0X31, 0X04, 0X21, 0X41, 0X08, 0X82, 0X10, 0XCB, 0X5A, 0XBA, 0XD6, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFB, 0XDE, 0XCB, 0X5A, 0X82, 0X10, 0X45, 0X29, 0XC7, 0X39, 0X08, 0X42, 0X08, 0X42,
0X09, 0X4A, 0X49, 0X4A, 0X49, 0X4A, 0X49, 0X4A, 0X49, 0X4A, 0X49, 0X4A, 0X08, 0X42, 0XC7, 0X39,
0XC7, 0X39, 0XC7, 0X39, 0X86, 0X31, 0X45, 0X29, 0X83, 0X18, 0X00, 0X00, 0XC8, 0X41, 0X38, 0XC6,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0X7D, 0XEF, 0X8E, 0X73, 0X82, 0X10, 0X45, 0X29, 0XC7, 0X39, 0X08, 0X42, 0X09, 0X4A, 0X8A, 0X52,
0X30, 0X84, 0XCF, 0X7B, 0X8A, 0X52, 0X49, 0X4A, 0X4A, 0X52, 0X49, 0X4A, 0XCB, 0X5A, 0XCF, 0X7B,
0X0C, 0X63, 0X08, 0X42, 0XC7, 0X39, 0X86, 0X31, 0X45, 0X29, 0XC3, 0X18, 0X00, 0X00, 0X49, 0X4A,
0XBA, 0XD6, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XF3, 0X9C, 0XC3, 0X18, 0X04, 0X21, 0XC7, 0X39, 0X08, 0X42, 0X49, 0X4A, 0X49, 0X4A, 0X72, 0X94,
0X7D, 0XEF, 0X7D, 0XEF, 0XB2, 0X94, 0X4A, 0X52, 0X49, 0X4A, 0X8A, 0X52, 0X75, 0XAD, 0XBE, 0XF7,
0XBA, 0XD6, 0X4D, 0X6B, 0XC7, 0X39, 0XC7, 0X39, 0X86, 0X31, 0X45, 0X29, 0XC3, 0X18, 0X41, 0X08,
0XCF, 0X7B, 0X7C, 0XE7, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBA, 0XD6,
0X08, 0X42, 0X82, 0X10, 0XC7, 0X39, 0X08, 0X42, 0X49, 0X4A, 0X49, 0X4A, 0X8E, 0X73, 0XFB, 0XDE,
0XFF, 0XFF, 0XBE, 0XF7, 0XBA, 0XD6, 0X8E, 0X73, 0X08, 0X42, 0X30, 0X84, 0X3C, 0XE7, 0X7D, 0XEF,
0XFF, 0XFF, 0XB6, 0XB5, 0X49, 0X4A, 0XC7, 0X39, 0X86, 0X31, 0X45, 0X29, 0X04, 0X21, 0X41, 0X08,
0X45, 0X29, 0XB6, 0XB5, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XF7, 0X71, 0X8C,
0X41, 0X08, 0X45, 0X29, 0X08, 0X42, 0X49, 0X4A, 0X49, 0X4A, 0X4A, 0X52, 0XB2, 0X94, 0XBE, 0XF7,
0XBE, 0XF7, 0XB2, 0X94, 0XCF, 0X7B, 0XCF, 0X7B, 0X49, 0X4A, 0XB6, 0XB5, 0XF3, 0X9C, 0X0C, 0X63,
0X38, 0XC6, 0XBA, 0XD6, 0X0C, 0X63, 0X87, 0X39, 0XC7, 0X39, 0X86, 0X31, 0X45, 0X29, 0XC3, 0X18,
0X41, 0X08, 0X30, 0X84, 0X7D, 0XEF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X3C, 0XE7, 0XCB, 0X5A,
0X41, 0X08, 0XC7, 0X39, 0X08, 0X42, 0X49, 0X4A, 0X4A, 0X52, 0X8A, 0X52, 0XF3, 0X9C, 0XFF, 0XFF,
0X7D, 0XEF, 0XC7, 0X39, 0XC3, 0X18, 0X0C, 0X63, 0XCB, 0X5A, 0XB6, 0XB5, 0XB2, 0X94, 0XCB, 0X5A,
0X75, 0XAD, 0XFA, 0XD6, 0X4D, 0X6B, 0X87, 0X39, 0XC7, 0X39, 0X86, 0X31, 0X45, 0X29, 0X04, 0X21,
0X41, 0X08, 0X8A, 0X52, 0X79, 0XCE, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X38, 0XC6, 0X86, 0X31,
0X04, 0X21, 0XC8, 0X41, 0X49, 0X4A, 0X49, 0X4A, 0X4A, 0X52, 0X49, 0X4A, 0XB1, 0X8C, 0XBE, 0XF7,
0XBE, 0XF7, 0XB2, 0X94, 0XCF, 0X7B, 0XCF, 0X7B, 0X49, 0X4A, 0X74, 0XA5, 0X7D, 0XEF, 0X7C, 0XE7,
0XBE, 0XF7, 0X79, 0XCE, 0X0C, 0X63, 0XC7, 0X39, 0XC7, 0X39, 0X86, 0X31, 0X45, 0X29, 0X04, 0X21,
0X82, 0X10, 0X45, 0X29, 0X75, 0XAD, 0XBE, 0XF7, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X34, 0XA5, 0X82, 0X10,
0X86, 0X31, 0X08, 0X42, 0X49, 0X4A, 0X49, 0X4A, 0X8A, 0X52, 0X49, 0X4A, 0X4D, 0X6B, 0XBA, 0XD6,
0XFF, 0XFF, 0XFF, 0XFF, 0X79, 0XCE, 0X0D, 0X63, 0XC7, 0X39, 0XCF, 0X7B, 0X7D, 0XEF, 0XFF, 0XFF,
0XFF, 0XFF, 0X75, 0XAD, 0X08, 0X42, 0X86, 0X31, 0XC7, 0X39, 0X86, 0X31, 0X45, 0X29, 0X45, 0X29,
0XC3, 0X18, 0XC3, 0X18, 0XB2, 0X94, 0X7D, 0XEF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XF7, 0XB2, 0X8C, 0X41, 0X08,
0XC7, 0X39, 0X08, 0X42, 0X49, 0X4A, 0X49, 0X4A, 0X8A, 0X52, 0X8A, 0X52, 0X4A, 0X4A, 0XD0, 0X7B,
0X7A, 0XC6, 0X7B, 0XBE, 0X90, 0X6B, 0XC9, 0X39, 0X88, 0X31, 0XC9, 0X39, 0XB3, 0X84, 0XBB, 0XC6,
0XF8, 0XB5, 0XCC, 0X5A, 0X86, 0X31, 0XC7, 0X39, 0XC7, 0X39, 0X86, 0X31, 0X45, 0X29, 0X45, 0X29,
0XC4, 0X20, 0X41, 0X08, 0X30, 0X84, 0X3C, 0XE7, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X3C, 0XE7, 0X8A, 0X4A, 0XC3, 0X10,
0XC7, 0X39, 0X08, 0X42, 0X49, 0X4A, 0X49, 0X4A, 0X4A, 0X4A, 0X4A, 0X42, 0X09, 0X3A, 0X08, 0X4A,
0X09, 0X6B, 0X49, 0X7B, 0XC6, 0X7A, 0X05, 0X83, 0X46, 0X83, 0XC5, 0X7A, 0XC6, 0X72, 0X09, 0X7B,
0X48, 0X5A, 0X87, 0X31, 0X88, 0X21, 0X88, 0X29, 0X86, 0X31, 0X86, 0X31, 0X45, 0X29, 0X45, 0X29,
0X04, 0X21, 0X41, 0X08, 0X4A, 0X4A, 0XBA, 0XD6, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XF7, 0XC5, 0X82, 0X50, 0X05, 0X41,
0XC7, 0X29, 0X08, 0X42, 0X49, 0X4A, 0X4A, 0X42, 0X49, 0X4A, 0X09, 0X7B, 0X88, 0X9B, 0XC6, 0XB3,
0X21, 0XD4, 0XA0, 0XDC, 0XE1, 0XE4, 0X61, 0XED, 0X61, 0XED, 0X21, 0XED, 0XA0, 0XE4, 0X20, 0XDC,
0X80, 0XCB, 0X43, 0XAB, 0XC4, 0X82, 0X06, 0X5A, 0X47, 0X21, 0X46, 0X29, 0X45, 0X29, 0X04, 0X29,
0X04, 0X19, 0X82, 0X10, 0X82, 0X18, 0XF3, 0X9C, 0X7D, 0XEF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X7D, 0XEF, 0X4D, 0X93, 0X00, 0XA0, 0X82, 0XB8,
0XC7, 0X31, 0X09, 0X32, 0X49, 0X4A, 0X86, 0X7A, 0X43, 0XC3, 0X6B, 0XED, 0XF4, 0XF6, 0XEB, 0XFD,
0X20, 0XFD, 0X20, 0XFD, 0X60, 0XFD, 0XA0, 0XFD, 0XA0, 0XFD, 0X60, 0XFD, 0X60, 0XFD, 0X20, 0XFD,
0XE0, 0XFC, 0XA0, 0XFC, 0X60, 0XF4, 0XC1, 0XDB, 0X83, 0X9A, 0XC5, 0X49, 0X45, 0X29, 0X04, 0X19,
0XC4, 0X20, 0X82, 0X38, 0X00, 0X50, 0XCB, 0X6A, 0XBA, 0XD6, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFB, 0XEE, 0X04, 0XA1, 0X00, 0XC0, 0X00, 0XF0,
0XC3, 0XA0, 0XC8, 0X41, 0X49, 0X42, 0X05, 0X9B, 0X20, 0XFC, 0XA4, 0XFC, 0X69, 0XFD, 0XE8, 0XFD,
0X63, 0XFD, 0X20, 0XFD, 0X60, 0XFD, 0X60, 0XFD, 0X60, 0XFD, 0X20, 0XFD, 0X20, 0XFD, 0XE0, 0XFC,
0XE0, 0XFC, 0XA0, 0XFC, 0X60, 0XFC, 0X20, 0XFC, 0X41, 0XD3, 0XC5, 0X49, 0X45, 0X19, 0XC4, 0X38,
0X82, 0X68, 0X41, 0X88, 0X00, 0X70, 0X49, 0X5A, 0X79, 0XCE, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFB, 0XF6, 0X82, 0XC0, 0X00, 0XD0, 0X86, 0XC1,
0X46, 0XF1, 0X41, 0XC8, 0X45, 0X79, 0X89, 0X52, 0X88, 0X62, 0X86, 0X6A, 0XC6, 0X7A, 0XC4, 0XBB,
0XE1, 0XFC, 0X60, 0XFD, 0X60, 0XFD, 0XA0, 0XFD, 0XA0, 0XFD, 0X60, 0XFD, 0X60, 0XFD, 0XE0, 0XFC,
0X60, 0XE4, 0X03, 0X93, 0X84, 0X72, 0X44, 0X6A, 0XC5, 0X41, 0X45, 0X29, 0XC3, 0X58, 0X41, 0XA8,
0X40, 0X98, 0X00, 0XB0, 0X00, 0X60, 0X0C, 0X6B, 0X79, 0XCE, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X7D, 0XEF, 0XCE, 0X83, 0X82, 0X88, 0X00, 0XF8, 0XC4, 0XD8,
0X0C, 0XF3, 0X8A, 0XFA, 0X82, 0XE8, 0X82, 0XB0, 0X45, 0X69, 0XC7, 0X51, 0X08, 0X42, 0X08, 0X3A,
0X86, 0X5A, 0X83, 0X9B, 0XA2, 0XBC, 0X22, 0XCD, 0X21, 0XCD, 0XA1, 0XC4, 0X22, 0XB4, 0XC4, 0X7A,
0X06, 0X3A, 0X86, 0X29, 0X45, 0X29, 0X05, 0X31, 0XC4, 0X50, 0X41, 0X90, 0X00, 0XC0, 0X00, 0XA8,
0X00, 0XA0, 0X00, 0XA8, 0X00, 0X30, 0X4A, 0X4A, 0XBA, 0XD6, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0X7D, 0XEF, 0X8E, 0X73, 0XC3, 0X18, 0X05, 0X39, 0X82, 0XA8, 0X00, 0XF8,
0XC3, 0XF8, 0X4D, 0XFB, 0X4D, 0XFB, 0XC7, 0XF9, 0XC3, 0XF0, 0X82, 0XD8, 0XC3, 0XB0, 0X04, 0X81,
0X45, 0X61, 0X46, 0X51, 0X86, 0X49, 0X86, 0X49, 0X46, 0X41, 0X45, 0X41, 0X45, 0X41, 0X45, 0X41,
0X05, 0X49, 0X04, 0X61, 0X82, 0X90, 0X41, 0XB0, 0X00, 0XD0, 0X00, 0XC8, 0X00, 0XA8, 0X00, 0XA8,
0X00, 0XB8, 0X41, 0X58, 0X82, 0X10, 0X82, 0X10, 0XB2, 0X94, 0XBE, 0XF7, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XBE, 0XF7, 0XCF, 0X7B, 0X82, 0X10, 0X04, 0X21, 0X86, 0X29, 0X86, 0X41, 0X04, 0X99,
0X40, 0XE8, 0X41, 0XF8, 0X86, 0XF9, 0XCB, 0XFA, 0X49, 0XFA, 0X82, 0XF8, 0X00, 0XF8, 0X00, 0XF0,
0X00, 0XE8, 0X41, 0XD8, 0X41, 0XD0, 0X41, 0XC0, 0X41, 0XC0, 0X41, 0XC0, 0X41, 0XC0, 0X41, 0XC8,
0X00, 0XD0, 0X00, 0XE0, 0X00, 0XE0, 0X00, 0XD8, 0X00, 0XD0, 0X00, 0XB8, 0X00, 0XA8, 0X41, 0X88,
0X82, 0X48, 0X82, 0X10, 0X82, 0X10, 0X00, 0X00, 0X45, 0X29, 0X79, 0XCE, 0XFF, 0XFF, 0XFF, 0XFF,
0XBE, 0XF7, 0XF3, 0X9C, 0X82, 0X10, 0XC3, 0X18, 0X45, 0X29, 0X86, 0X31, 0XC7, 0X31, 0X30, 0X7C,
0XF3, 0XDC, 0X86, 0XE1, 0X00, 0XF0, 0X00, 0XF8, 0X41, 0XF8, 0X41, 0XF8, 0X00, 0XF8, 0X00, 0XF8,
0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8,
0X00, 0XE8, 0X00, 0XE0, 0X00, 0XE0, 0X00, 0XD8, 0X00, 0XC8, 0X41, 0XA0, 0X8A, 0X9A, 0X0C, 0X63,
0X04, 0X11, 0X82, 0X10, 0X82, 0X10, 0X41, 0X08, 0X00, 0X00, 0X4D, 0X6B, 0X7D, 0XEF, 0XFF, 0XFF,
0XFB, 0XDE, 0X08, 0X42, 0X42, 0X10, 0X45, 0X29, 0X86, 0X31, 0X86, 0X31, 0X49, 0X4A, 0X38, 0XBE,
0XFF, 0XFF, 0X38, 0XD6, 0X86, 0XA9, 0X00, 0XC8, 0X00, 0XE0, 0X00, 0XF0, 0X00, 0XF8, 0X00, 0XF8,
0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF8, 0X00, 0XF0, 0X00, 0XF0,
0X00, 0XE8, 0X00, 0XE0, 0X00, 0XD0, 0XC3, 0X98, 0X8A, 0X8A, 0XB2, 0XA4, 0XBA, 0XC6, 0XF7, 0XB5,
0X08, 0X42, 0X41, 0X08, 0X82, 0X10, 0X41, 0X08, 0X00, 0X00, 0X45, 0X29, 0XF7, 0XBD, 0XFF, 0XFF,
0X71, 0X8C, 0X41, 0X08, 0X04, 0X21, 0X45, 0X29, 0X86, 0X31, 0X86, 0X31, 0X0C, 0X63, 0X3C, 0XE7,
0XFF, 0XFF, 0X79, 0XD6, 0X46, 0XB9, 0X00, 0XE0, 0X42, 0XC8, 0X82, 0XA8, 0X82, 0XB0, 0X41, 0XD8,
0X82, 0XE8, 0X82, 0XF0, 0X41, 0XE8, 0X41, 0XE8, 0X41, 0XE8, 0X41, 0XF0, 0X41, 0XE8, 0X41, 0XD8,
0X04, 0XC1, 0X08, 0X92, 0X4D, 0X8B, 0X34, 0XA5, 0XFB, 0XC6, 0XFB, 0XD6, 0XBA, 0XCE, 0X3C, 0XE7,
0X30, 0X84, 0XC3, 0X18, 0X41, 0X08, 0X41, 0X08, 0X00, 0X00, 0X41, 0X08, 0XCF, 0X7B, 0X7D, 0XEF,
0X49, 0X4A, 0X00, 0X00, 0X04, 0X21, 0X45, 0X29, 0X46, 0X31, 0X86, 0X31, 0X30, 0X84, 0XFF, 0XFF,
0XFF, 0XF7, 0XF7, 0XDD, 0X09, 0XDA, 0X83, 0XF8, 0X01, 0XF0, 0X42, 0XC0, 0X82, 0X98, 0X49, 0X9A,
0XF3, 0XB4, 0XF3, 0XCC, 0X71, 0XBC, 0X8E, 0XBB, 0X8E, 0XBB, 0X30, 0XBC, 0X71, 0XBC, 0XF3, 0XBC,
0XB6, 0XBD, 0XFB, 0XCE, 0XBE, 0XE7, 0X7D, 0XE7, 0X3B, 0XDF, 0XBA, 0XD6, 0X79, 0XCE, 0XFB, 0XDE,
0X75, 0XAD, 0X86, 0X31, 0X41, 0X08, 0X41, 0X08, 0X00, 0X00, 0X00, 0X00, 0X49, 0X4A, 0XFB, 0XDE,
0X04, 0X21, 0X41, 0X08, 0X04, 0X21, 0X45, 0X29, 0X45, 0X29, 0X87, 0X39, 0XB2, 0X94, 0XFF, 0XFF,
0XBE, 0XF7, 0X34, 0XDD, 0X0C, 0XEB, 0X09, 0XFA, 0X00, 0XF0, 0X01, 0XD8, 0X00, 0XD8, 0X8B, 0XD2,
0X7D, 0XE7, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XBE, 0XFF, 0X7D, 0XEF, 0XFB, 0XDE, 0XFB, 0XDE, 0XBA, 0XD6, 0X79, 0XCE, 0XBA, 0XD6,
0X78, 0XC6, 0XC7, 0X39, 0X00, 0X00, 0X41, 0X08, 0X00, 0X00, 0X00, 0X00, 0XC7, 0X39, 0X79, 0XCE,
0X00, 0X00, 0X82, 0X10, 0XC3, 0X18, 0X04, 0X21, 0X05, 0X29, 0X86, 0X31, 0XB3, 0X9C, 0XFF, 0XFF,
0XFF, 0XF7, 0X75, 0XDD, 0XC7, 0XE9, 0XC7, 0XF9, 0X01, 0XF8, 0X01, 0XF0, 0X00, 0XE8, 0X49, 0XE2,
0XFB, 0XEE, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XBE, 0XF7, 0X7D, 0XEF, 0XFB, 0XDE, 0XFB, 0XDE, 0XBA, 0XD6, 0X79, 0XCE, 0XBA, 0XD6,
0XB9, 0XCE, 0X08, 0X42, 0X00, 0X00, 0X00, 0X00, 0X00, 0X00, 0X00, 0X00, 0XC7, 0X39, 0X38, 0XC6,
0X00, 0X00, 0X82, 0X10, 0X82, 0X10, 0X04, 0X21, 0X04, 0X21, 0X45, 0X29, 0X30, 0X84, 0XFF, 0XFF,
0XFF, 0XFF, 0X38, 0XDE, 0XC4, 0XD0, 0X00, 0XF0, 0X01, 0XF8, 0X00, 0XF8, 0X00, 0XF0, 0X08, 0XD2,
0XFB, 0XE6, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XBE, 0XF7, 0X7D, 0XEF, 0XFB, 0XDE, 0XBA, 0XD6, 0X79, 0XCE, 0X79, 0XCE, 0XBA, 0XD6,
0X79, 0XCE, 0XC7, 0X39, 0X41, 0X08, 0X00, 0X00, 0X00, 0X00, 0X00, 0X00, 0X86, 0X31, 0X38, 0XC6,
0X00, 0X00, 0X00, 0X00, 0XC3, 0X18, 0XCB, 0X5A, 0X86, 0X31, 0XC3, 0X18, 0XCB, 0X5A, 0X7D, 0XEF,
0XFF, 0XFF, 0X7D, 0XEF, 0XCF, 0XBB, 0XC3, 0XB0, 0X41, 0XD0, 0X41, 0XD0, 0X82, 0XB8, 0X4D, 0XB3,
0X7D, 0XE7, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XBE, 0XF7, 0XBE, 0XF7, 0X3D, 0XEF, 0XFB, 0XDE, 0XBA, 0XD6, 0X79, 0XCE, 0X79, 0XCE, 0XFA, 0XD6,
0XF7, 0XBD, 0X04, 0X21, 0X86, 0X31, 0X04, 0X21, 0X00, 0X00, 0X00, 0X00, 0X86, 0X31, 0X38, 0XC6,
0X86, 0X31, 0XC3, 0X18, 0XCB, 0X5A, 0X75, 0XAD, 0XCF, 0X7B, 0X41, 0X08, 0X86, 0X31, 0XF7, 0XBD,
0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XEF, 0X74, 0XB5, 0X30, 0X9C, 0X30, 0X9C, 0X72, 0XA4, 0XBB, 0XD6,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XBE, 0XF7, 0X7D, 0XEF, 0X3C, 0XE7, 0XFB, 0XDE, 0XBA, 0XD6, 0X79, 0XCE, 0X79, 0XCE, 0X3C, 0XE7,
0X71, 0X8C, 0X81, 0X08, 0X0C, 0X63, 0XCF, 0X7B, 0X82, 0X10, 0X00, 0X00, 0X8A, 0X52, 0X38, 0XC6,
0X75, 0XAD, 0X71, 0X8C, 0XB6, 0XB5, 0X3C, 0XE7, 0XFB, 0XDE, 0XC7, 0X39, 0X00, 0X00, 0XCF, 0X73,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XF7,
0X7D, 0XEF, 0X7D, 0XEF, 0X3B, 0XDF, 0XFA, 0XD6, 0X79, 0XCE, 0X79, 0XCE, 0XFB, 0XDE, 0XB9, 0XCE,
0XC7, 0X39, 0XC4, 0X20, 0X71, 0X8C, 0XBA, 0XD6, 0X71, 0X8C, 0XCB, 0X5A, 0XB2, 0X94, 0XBA, 0XD6,
0XFF, 0XFF, 0X7D, 0XEF, 0X7D, 0XEF, 0XFF, 0XFF, 0XFF, 0XFF, 0XB6, 0XB5, 0X46, 0X29, 0X05, 0X19,
0X75, 0XA5, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XF7,
0X7D, 0XEF, 0X3C, 0XE7, 0XFB, 0XDE, 0XBA, 0XD6, 0X79, 0XCE, 0XBA, 0XD6, 0XFC, 0XDE, 0X4E, 0X63,
0X42, 0X08, 0X0C, 0X63, 0XF7, 0XBD, 0XBE, 0XF7, 0XFF, 0XFF, 0XFB, 0XDE, 0XFB, 0XDE, 0XBE, 0XF7,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XF4, 0X9C, 0X04, 0X21,
0X05, 0X21, 0XB6, 0XA5, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XF7, 0XBE, 0XF7, 0X7D, 0XEF,
0X3C, 0XE7, 0XFB, 0XDE, 0XBA, 0XD6, 0X79, 0XCE, 0XFB, 0XDE, 0XBB, 0XD6, 0XD1, 0X73, 0X83, 0X18,
0X86, 0X39, 0X34, 0X9D, 0XBD, 0XEF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XFF, 0X35, 0XD6, 0XEB, 0XCC, 0X43, 0XB3,
0X40, 0X51, 0X05, 0X19, 0XF5, 0X8C, 0XBE, 0XEF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBE, 0XF7, 0XBE, 0XF7, 0X7D, 0XEF, 0X7D, 0XEF, 0X3C, 0XE7,
0XFB, 0XDE, 0XBA, 0XDE, 0XBA, 0XD6, 0X3C, 0XDF, 0X3A, 0XBE, 0X4F, 0X63, 0X82, 0X49, 0X40, 0XA3,
0X23, 0XB4, 0XCC, 0X83, 0X3A, 0XBE, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XBF, 0XF7, 0XB5, 0XBD, 0X82, 0X92, 0X20, 0XF4, 0XA0, 0XFC,
0X60, 0XE4, 0X40, 0X82, 0X84, 0X41, 0X8F, 0X6B, 0X77, 0XAD, 0X3D, 0XE7, 0XFF, 0XFF, 0XFF, 0XFF,
0XFE, 0XFF, 0XBE, 0XF7, 0XBE, 0XF7, 0XBE, 0XF7, 0X7D, 0XEF, 0X7D, 0XEF, 0X3C, 0XE7, 0XFB, 0XDE,
0XFB, 0XDE, 0X3D, 0XE7, 0XBB, 0XCE, 0X36, 0X9D, 0X0B, 0X6B, 0X41, 0X6A, 0X60, 0XC4, 0X20, 0XFE,
0X60, 0XF5, 0X00, 0X8B, 0XC7, 0X6A, 0X38, 0XC6, 0XBE, 0XF7, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X7D, 0XEF, 0X4B, 0X7B, 0X80, 0XB2, 0XA0, 0XFC, 0XA0, 0XFC,
0XE0, 0XFC, 0XE0, 0XFC, 0XC0, 0XCB, 0XC1, 0X8A, 0X45, 0X62, 0X4D, 0X6B, 0XB3, 0X94, 0XF7, 0XBD,
0X3D, 0XDF, 0XFF, 0XF7, 0XFF, 0XFF, 0XBE, 0XF7, 0X7D, 0XEF, 0X7D, 0XEF, 0X7D, 0XE7, 0X3D, 0XDF,
0XBA, 0XC6, 0X75, 0XA5, 0X8D, 0X7B, 0X84, 0X7A, 0X40, 0XB3, 0XE0, 0XEC, 0XE0, 0XFD, 0XE0, 0XFD,
0X60, 0XF5, 0X20, 0XE5, 0XA0, 0XD4, 0X0A, 0X6B, 0XFB, 0XDE, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X7D, 0XEF, 0XCC, 0X93, 0X40, 0XEB, 0X60, 0XFC, 0XA0, 0XFC,
0XE0, 0XFC, 0X20, 0XFD, 0X60, 0XFD, 0X20, 0XF5, 0XA0, 0XD4, 0XC0, 0XBB, 0X42, 0X9B, 0X45, 0X8B,
0X6B, 0X9C, 0XAE, 0X9C, 0X71, 0X8C, 0XB3, 0X94, 0X33, 0X9D, 0X34, 0XA5, 0XF2, 0XA4, 0XF0, 0XB4,
0XCA, 0X9B, 0X04, 0X9B, 0X40, 0XBB, 0X20, 0XE4, 0X20, 0XFD, 0XA0, 0XFD, 0XA0, 0XFD, 0XE0, 0XFD,
0XE0, 0XFD, 0XE0, 0XFD, 0X20, 0XC4, 0X88, 0X5A, 0X38, 0XBE, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X78, 0XD6, 0X46, 0XAB, 0X40, 0XDB, 0X20, 0XF4,
0X60, 0XFC, 0XA0, 0XFC, 0XE0, 0XFC, 0X60, 0XFD, 0XA0, 0XFD, 0X60, 0XFD, 0X20, 0XF5, 0XA0, 0XDC,
0XC0, 0XB3, 0XC0, 0X51, 0X86, 0X29, 0X0D, 0X63, 0X8F, 0X7B, 0X0D, 0X5B, 0XC7, 0X41, 0X01, 0X82,
0X00, 0XC3, 0XC0, 0XE3, 0X60, 0XFC, 0XA0, 0XFC, 0XE0, 0XFC, 0XE0, 0XFC, 0X60, 0XF5, 0X60, 0XF5,
0X20, 0XE5, 0X80, 0X9B, 0X86, 0X62, 0X30, 0X84, 0X79, 0XCE, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X38, 0XC6, 0X2D, 0X9C, 0X05, 0X93,
0X43, 0XA3, 0X82, 0XB3, 0XC2, 0XBB, 0XC2, 0XBB, 0X22, 0XB4, 0X82, 0XA3, 0X42, 0X93, 0XC3, 0X7A,
0X85, 0X62, 0X0B, 0X63, 0X71, 0X84, 0XB6, 0XB5, 0X79, 0XCE, 0X79, 0XC6, 0XB5, 0XAD, 0X70, 0X94,
0X4A, 0X8B, 0X06, 0X83, 0X04, 0X93, 0X04, 0X9B, 0X43, 0X9B, 0X43, 0X9B, 0X43, 0X93, 0X04, 0X83,
0X08, 0X73, 0X8D, 0X73, 0XB3, 0X94, 0X79, 0XCE, 0X7D, 0XEF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X3C, 0XDF, 0X38, 0XBE,
0X75, 0XB5, 0X33, 0XA5, 0X33, 0XA5, 0XF3, 0X9C, 0XF3, 0X9C, 0XF3, 0X9C, 0XF3, 0X94, 0XF3, 0X9C,
0X35, 0XA5, 0XF8, 0XBD, 0XFB, 0XDE, 0XBE, 0XF7, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0X7E, 0XEF,
0XBB, 0XD6, 0XF8, 0XBD, 0XB6, 0XAD, 0X75, 0XAD, 0X34, 0XA5, 0X33, 0X9D, 0X34, 0X9D, 0X35, 0XA5,
0XB7, 0XAD, 0X79, 0XC6, 0X3C, 0XE7, 0XBE, 0XF7, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF, 0XFF,
};
typedef struct
{
unsigned char Index[2];
char Msk[32];
}typFNT_GB16;
const typFNT_GB16 tfont16[] PROGMEM =
{
#if 0
"",0x00,0x00,0x00,0x00,0x12,0x3C,0x0B,0xC8,0x02,0x20,0x01,0x10,0x22,0x40,0x00,0x58,
0x0B,0xE0,0x10,0xE0,0x11,0x50,0x31,0x58,0x26,0x4E,0x00,0x40,0x00,0x40,0x00,0x00,/*"",0*/
"",0x00,0x00,0x00,0x08,0x10,0x04,0x08,0x04,0x08,0x08,0x09,0x28,0x0D,0x28,0x19,0x28,
0x09,0x24,0x0D,0x24,0x11,0x24,0x21,0x24,0x02,0x04,0x00,0x04,0x00,0x00,0x00,0x00,/*"",1*/
"",0x00,0x00,0x01,0x00,0x01,0x80,0x00,0x1C,0x7F,0xE0,0x01,0x00,0x01,0xF0,0x0F,0x10,
0x09,0x10,0x09,0x10,0x09,0x30,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,/*"",2*/
"",0x00,0x00,0x00,0x00,0x01,0x00,0x01,0x00,0x02,0x80,0x02,0x40,0x04,0x20,0x08,0x58,
0x17,0x8E,0x21,0x00,0x07,0xC0,0x01,0x00,0x01,0x00,0x0F,0xF8,0x10,0x00,0x00,0x00,/*"",3*/
"",0x00,0x00,0x00,0x00,0x00,0x30,0x00,0x20,0x0E,0x20,0x00,0x3C,0x01,0xE4,0x7E,0x24,
0x08,0x44,0x12,0x44,0x1D,0x88,0x30,0x88,0x01,0x08,0x02,0x30,0x04,0x00,0x00,0x00,/*"",4*/
"",0x00,0x00,0x00,0x00,0x03,0x00,0x02,0x00,0x02,0x70,0x3F,0xB0,0x12,0x30,0x17,0xA0,
0x1A,0x20,0x13,0xC0,0x0E,0x00,0x02,0x04,0x02,0x04,0x01,0xFC,0x00,0x00,0x00,0x00,/*"",5*/
"",0x00,0x00,0x00,0x00,0x00,0xE0,0x0F,0x20,0x00,0x40,0x01,0x80,0x00,0x9C,0x0F,0xE0,
0x30,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x04,0x80,0x03,0x00,0x00,0x00,/*"",6*/
"",0x00,0x00,0x08,0x00,0x04,0x20,0x04,0x20,0x08,0x38,0x06,0xE0,0x38,0x40,0x0A,0x50,
0x05,0xF0,0x19,0x10,0x68,0xE0,0x08,0x20,0x08,0x50,0x0B,0x8E,0x00,0x00,0x00,0x00,/*"",7*/
"",0x00,0x00,0x00,0x00,0x03,0x00,0x01,0x30,0x02,0x00,0x02,0x60,0x0F,0x80,0x03,0x00,
0x06,0x80,0x0A,0x40,0x12,0x30,0x22,0x1C,0x42,0x00,0x02,0x00,0x00,0x00,0x00,0x00,/*"",8*/
"",0x00,0x00,0x01,0x80,0x01,0x00,0x01,0x1C,0x3F,0xE0,0x02,0x00,0x02,0x60,0x07,0xA0,
0x0A,0x20,0x13,0xA0,0x22,0x20,0x03,0x20,0x04,0x20,0x04,0x20,0x00,0x20,0x00,0x00,/*"",9*/
"",0x00,0x00,0x00,0x00,0x00,0x30,0x3D,0xD0,0x29,0x20,0x29,0xE0,0x29,0x20,0x25,0xE8,
0x3C,0x90,0x21,0x60,0x21,0x30,0x21,0x5C,0x21,0x8C,0x21,0x80,0x01,0x00,0x00,0x00,/*"",10*/
"",0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x80,0x00,0x40,0x04,0x40,0x04,0x20,0x08,0x10,
0x11,0x1C,0x11,0x00,0x62,0x00,0x02,0x20,0x07,0xE0,0x0C,0x30,0x00,0x00,0x00,0x00,/*"",11*/
"",0x00,0x00,0x00,0x00,0x00,0x78,0x03,0x88,0x00,0x08,0x0F,0x88,0x00,0x08,0x01,0x88,
0x1E,0x88,0x08,0x88,0x09,0x88,0x0E,0x08,0x00,0x08,0x00,0x38,0x00,0x10,0x00,0x00,/*"",12*/
#endif
"",0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x40,0x00,0x80,0x1C,0xB8,0x25,0x50,0x28,0x80,
0x18,0x80,0x08,0x80,0x14,0xC0,0x14,0xA0,0x21,0x10,0x02,0x18,0x00,0x04,0x00,0x00,/*"",13*/
"",0x00,0x00,0x00,0x00,0x00,0xC0,0x18,0x80,0x09,0x1C,0x02,0x68,0x02,0x48,0x3A,0xC8,
0x13,0x48,0x12,0x40,0x08,0x40,0x78,0x40,0x07,0x40,0x00,0xFE,0x00,0x10,0x00,0x00,/*"",14*/
"",0x00,0x00,0x00,0x00,0x04,0x80,0x08,0x98,0x09,0x68,0x1A,0x50,0x29,0x50,0x0A,0x48,
0x0A,0x40,0x08,0x40,0x11,0x8E,0x14,0x82,0x14,0x10,0x23,0x98,0x00,0x60,0x00,0x00,/*"",15*/
#if 0
{0x01,0x00,0x01,0x00,0x02,0x80,0x04,0x40,0x08,0x20,0x10,0x10,0x2F,0xE8,0xC1,0x06},
{0x01,0x00,0x01,0x00,0x1F,0xF0,0x01,0x00,0x01,0x00,0x01,0x00,0x7F,0xFC,0x00,0x00},/*"",3*/
{0x00,0x40,0x00,0x40,0x7C,0x40,0x00,0x40,0x01,0xFC,0x00,0x44,0xFE,0x44,0x20,0x44},
{0x20,0x44,0x20,0x84,0x48,0x84,0x44,0x84,0xFD,0x04,0x45,0x04,0x02,0x28,0x04,0x10},/*"",4*/
{0x01,0x00,0x01,0x00,0x01,0x00,0x3F,0xF8,0x21,0x08,0x21,0x08,0x21,0x08,0x3F,0xF8},
{0x21,0x08,0x21,0x08,0x21,0x08,0x3F,0xF8,0x21,0x0A,0x01,0x02,0x01,0x02,0x00,0xFE},/*"",5*/
{0x00,0x00,0x7F,0xF8,0x00,0x10,0x00,0x20,0x00,0x40,0x01,0x80,0x01,0x00,0xFF,0xFE},
{0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x05,0x00,0x02,0x00},/*"",6*/
{0x10,0x20,0x10,0x20,0x10,0x20,0x13,0xFE,0xFC,0x20,0x10,0x20,0x10,0x20,0x15,0xFC},
{0x18,0x84,0x30,0x88,0xD0,0x48,0x10,0x50,0x10,0x20,0x10,0x50,0x51,0x88,0x26,0x06},/*"",7*/
{0x01,0x00,0x01,0x20,0x01,0x10,0x01,0x10,0x7F,0xFC,0x03,0x80,0x05,0x40,0x05,0x40},
{0x09,0x20,0x11,0x10,0x21,0x08,0x41,0x04,0x81,0x02,0x01,0x00,0x01,0x00,0x01,0x00},/*"",8*/
{0x02,0x00,0x02,0x00,0xFF,0xFE,0x04,0x00,0x04,0x00,0x0F,0xF0,0x08,0x10,0x18,0x10},
{0x2F,0xF0,0x48,0x10,0x88,0x10,0x0F,0xF0,0x08,0x10,0x08,0x10,0x08,0x50,0x08,0x20},/*"",9*/
{0x00,0x00,0x7B,0xF8,0x4A,0x08,0x52,0x08,0x53,0xF8,0x62,0x08,0x52,0x08,0x4B,0xF8},
{0x4A,0x44,0x4A,0x48,0x6A,0x30,0x52,0x20,0x42,0x10,0x42,0x88,0x43,0x06,0x42,0x00},/*"",10*/
{0x00,0x80,0x04,0x80,0x04,0x80,0x08,0x40,0x08,0x40,0x10,0x20,0x20,0x10,0x42,0x08},
{0x82,0x06,0x04,0x00,0x04,0x40,0x08,0x20,0x10,0x20,0x3F,0xF0,0x10,0x10,0x00,0x00},/*"",11*/
{0x00,0x00,0x3F,0xF8,0x00,0x08,0x00,0x08,0x7F,0xE8,0x00,0x08,0x00,0x08,0x1F,0x88},
{0x10,0x88,0x10,0x88,0x10,0x88,0x10,0x88,0x1F,0x88,0x10,0x88,0x00,0x28,0x00,0x10},/*"",12*/
{0x00,0x80,0x00,0x80,0xFC,0x80,0x04,0xFC,0x05,0x04,0x49,0x08,0x2A,0x40,0x14,0x40},
{0x10,0x40,0x28,0xA0,0x24,0xA0,0x45,0x10,0x81,0x10,0x02,0x08,0x04,0x04,0x08,0x02},/*"",13*/
{0x00,0x00,0x20,0x80,0x13,0x3C,0x12,0x24,0x02,0x24,0x02,0x24,0xF2,0x24,0x12,0x24},
{0x12,0x24,0x12,0xB4,0x13,0x28,0x12,0x20,0x10,0x20,0x28,0x20,0x47,0xFE,0x00,0x00},/*"",14*/
{0x09,0x00,0x09,0x00,0x11,0xFC,0x32,0x04,0x54,0x48,0x99,0x50,0x11,0x48,0x12,0x44},
{0x14,0x44,0x11,0x40,0x10,0x80,0x02,0x00,0x51,0x04,0x51,0x12,0x90,0x12,0x0F,0xF0},/*"",15*/
#endif
#if 0
"",0x00,0x00,0x27,0xFC,0x14,0x04,0x14,0xA4,0x81,0x10,0x42,0x08,0x40,0x40,0x10,0x40,
0x17,0xFC,0x20,0x40,0xE0,0xE0,0x21,0x50,0x22,0x48,0x2C,0x46,0x20,0x40,0x00,0x40,/*0*/
"",0x11,0x04,0x11,0x24,0x11,0x24,0x11,0x24,0x11,0x24,0xFD,0x24,0x11,0x24,0x11,0x24,
0x11,0x24,0x11,0x24,0x11,0x24,0x1D,0x24,0xE1,0x24,0x42,0x24,0x02,0x04,0x04,0x04,/*1*/
"",0x02,0x00,0x01,0x00,0x00,0x00,0x7F,0xFC,0x01,0x00,0x01,0x00,0x01,0x00,0x3F,0xF8,
0x21,0x08,0x21,0x08,0x21,0x08,0x21,0x08,0x21,0x28,0x21,0x10,0x01,0x00,0x01,0x00,/*2*/
"",0x00,0x00,0x00,0x00,0x01,0x80,0x02,0x40,0x04,0x30,0x18,0x08,0x60,0x06,0x1F,0xF9,
0x01,0x00,0x01,0x00,0x01,0x00,0x3F,0xF8,0x01,0x00,0x01,0x00,0x01,0x00,0x7F,0xFE,/*0*/
"",0x00,0x00,0x00,0x00,0x00,0x20,0x3E,0x20,0x00,0x7C,0x00,0x22,0x00,0x22,0x7F,0x22,
0x10,0x22,0x10,0x22,0x12,0x22,0x12,0x22,0x22,0x42,0x23,0x42,0x3D,0x82,0x00,0x9C,/*1*/
"",0x00,0x00,0x01,0x00,0x01,0x00,0x1F,0xF0,0x61,0x0C,0x41,0x04,0x41,0x04,0x7F,0xFC,
0x41,0x04,0x41,0x04,0x41,0x04,0x7F,0xFC,0x01,0x00,0x01,0x02,0x01,0x02,0x01,0xFC,/*2*/
"",0x00,0x00,0x00,0x00,0x3F,0xF8,0x00,0x10,0x00,0x60,0x00,0x80,0x01,0x00,0x00,0x80,
0x7F,0xFE,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x20,0x18,0x40,0x07,0x80,/*3*/
"",0x10,0x20,0x10,0x20,0x10,0x20,0x13,0xFE,0xFC,0x20,0x10,0x20,0x10,0x20,0x15,0xFC,0x18,0x84,0x30,0x88,0xD0,0x48,0x10,0x50,0x10,0x20,0x10,0x50,0x51,0x88,0x26,0x06,
"",0x01,0x00,0x01,0x20,0x01,0x10,0x01,0x10,0x7F,0xFC,0x03,0x80,0x05,0x40,0x05,0x40,0x09,0x20,0x11,0x10,0x21,0x08,0x41,0x04,0x81,0x02,0x01,0x00,0x01,0x00,0x01,0x00,
"",0x02,0x00,0x02,0x00,0xFF,0xFE,0x04,0x00,0x04,0x00,0x0F,0xF0,0x08,0x10,0x18,0x10,0x2F,0xF0,0x48,0x10,0x88,0x10,0x0F,0xF0,0x08,0x10,0x08,0x10,0x08,0x50,0x08,0x20,
"",0x00,0x00,0x7B,0xF8,0x4A,0x08,0x52,0x08,0x53,0xF8,0x62,0x08,0x52,0x08,0x4B,0xF8,0x4A,0x44,0x4A,0x48,0x6A,0x30,0x52,0x20,0x42,0x10,0x42,0x88,0x43,0x06,0x42,0x00,
"",0x00,0x80,0x04,0x80,0x04,0x80,0x08,0x40,0x08,0x40,0x10,0x20,0x20,0x10,0x42,0x08,0x82,0x06,0x04,0x00,0x04,0x40,0x08,0x20,0x10,0x20,0x3F,0xF0,0x10,0x10,0x00,0x00,
"",0x00,0x00,0x3F,0xF8,0x00,0x08,0x00,0x08,0x7F,0xE8,0x00,0x08,0x00,0x08,0x1F,0x88,0x10,0x88,0x10,0x88,0x10,0x88,0x10,0x88,0x1F,0x88,0x10,0x88,0x00,0x28,0x00,0x10,
"",0x00,0x80,0x00,0x80,0xFC,0x80,0x04,0xFC,0x05,0x04,0x49,0x08,0x2A,0x40,0x14,0x40,0x10,0x40,0x28,0xA0,0x24,0xA0,0x45,0x10,0x81,0x10,0x02,0x08,0x04,0x04,0x08,0x02,
"",0x00,0x00,0x20,0x80,0x13,0x3C,0x12,0x24,0x02,0x24,0x02,0x24,0xF2,0x24,0x12,0x24,0x12,0x24,0x12,0xB4,0x13,0x28,0x12,0x20,0x10,0x20,0x28,0x20,0x47,0xFE,0x00,0x00,
"",0x09,0x00,0x09,0x00,0x11,0xFC,0x32,0x04,0x54,0x48,0x99,0x50,0x11,0x48,0x12,0x44,0x14,0x44,0x11,0x40,0x10,0x80,0x02,0x00,0x51,0x04,0x51,0x12,0x90,0x12,0x0F,0xF0,
"",0x00,0x00,0x00,0x20,0x10,0x20,0x13,0xFE,0x20,0x20,0x26,0x24,0x4A,0x24,0x7A,0x24,
0x12,0x24,0x22,0x24,0x23,0xFC,0x7C,0x20,0x00,0x22,0x04,0x22,0x78,0x22,0x00,0x3C,/*0*/
"",0x00,0x00,0x00,0x00,0x04,0x00,0x0F,0xF0,0x10,0x20,0x20,0x20,0x7F,0xFC,0x20,0x84,
0x20,0x84,0x20,0x84,0x20,0x84,0x3F,0xF8,0x20,0x00,0x20,0x02,0x20,0x02,0x1F,0xFE,/*1*/
"",0x00,0x00,0x00,0x00,0x20,0x40,0x23,0xFE,0x20,0x40,0x79,0xFC,0x22,0x04,0x23,0xFC,
0x22,0x04,0x23,0xFC,0x22,0x04,0x23,0xFC,0x3A,0x04,0x65,0xFA,0x01,0x98,0x02,0x04,/*2*/
"",0x00,0x00,0x01,0x00,0x01,0x00,0x7F,0xFE,0x02,0x20,0x04,0x10,0x04,0x08,0x08,0x04,
0x3F,0xFC,0x04,0x42,0x04,0x40,0x04,0x40,0x04,0x42,0x08,0x42,0x10,0x42,0x60,0x7E,/*3*/
"",0x00,0x00,0x00,0x00,0x20,0x7E,0x3E,0x80,0x48,0x80,0x48,0x80,0x48,0xFE,0x48,0x82,
0x7F,0x82,0x08,0x82,0x0C,0x82,0x14,0xFA,0x12,0x84,0x22,0x80,0x21,0x80,0x40,0xFE,/*6*/
"",0x00,0x00,0x00,0x00,0x7F,0x84,0x22,0x08,0x22,0x30,0x22,0xC0,0x22,0x02,0x22,0x04,
0x7F,0xC8,0x22,0x30,0x22,0xC2,0x22,0x02,0x22,0x04,0x22,0x08,0x22,0x30,0x40,0x40,/*7*/
"",0x00,0x00,0x00,0x00,0x7F,0xFE,0x00,0x00,0x0F,0xF0,0x11,0x10,0x11,0x10,0x11,0x10,
0x51,0x12,0x5F,0xF2,0x51,0x12,0x51,0x12,0x51,0x12,0x4F,0xF2,0x40,0x02,0x7F,0xFC,/*8*/
"",0x00,0x00,0x00,0x00,0x7F,0xFE,0x47,0xE2,0x48,0x12,0x48,0x12,0x47,0xE2,0x4F,0xF2,
0x50,0x12,0x50,0x12,0x51,0x12,0x51,0x12,0x42,0x92,0x44,0x72,0x58,0x0A,0x3F,0xFC,/*9*/
"",0x00,0x00,0x00,0x00,0x3F,0xFE,0x44,0x02,0x47,0xF2,0x4C,0x22,0x53,0x62,0x40,0x82,
0x43,0x62,0x5E,0x1A,0x41,0x82,0x40,0x62,0x43,0x02,0x40,0xC2,0x40,0x22,0x3F,0xFC,/*0*/
"",0x00,0x00,0x00,0x40,0x20,0x40,0x20,0x40,0x20,0x40,0x3F,0xFE,0x20,0x00,0x20,0x00,
0x20,0x00,0x3F,0xE0,0x20,0x10,0x20,0x10,0x20,0x10,0x20,0x10,0x40,0x10,0x40,0x10,/*1*/
"",0x00,0x00,0x00,0x00,0x3F,0xFC,0x20,0x04,0x20,0x04,0x3F,0xFC,0x20,0x04,0x20,0x04,
0x1F,0xF8,0x24,0x44,0x14,0x48,0x14,0x48,0x14,0x48,0x0C,0x50,0x04,0x40,0x7F,0xFE,/*2*/
"",0x00,0x00,0x00,0x00,0x3F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFE,0x00,0x80,
0x08,0x90,0x08,0x88,0x10,0x88,0x10,0x84,0x20,0x84,0x20,0x82,0x40,0x82,0x07,0x80,/*3*/
"",0x00,0x00,0x00,0x20,0x08,0x20,0x7F,0xFE,0x00,0x20,0x00,0x78,0x3F,0x88,0x11,0x08,
0x08,0x90,0x09,0x20,0x7F,0xFE,0x01,0x80,0x03,0x40,0x0D,0x30,0x31,0x0C,0x40,0x02,/*4*/
"",0x00,0x00,0x00,0x10,0x08,0x10,0x04,0x20,0x3F,0xF8,0x21,0x04,0x21,0x04,0x3F,0xFC,
0x21,0x04,0x21,0x04,0x3F,0xF8,0x01,0x00,0x7F,0xFE,0x01,0x00,0x01,0x00,0x01,0x00,/*5*/
"",0x00,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x3F,0xFC,0x21,0x04,0x21,0x04,0x21,0x04,
0x21,0x04,0x21,0x04,0x21,0x04,0x3F,0xFC,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,/*0*/
"",0x00,0x00,0x00,0x00,0x08,0x20,0x7F,0xFE,0x08,0x20,0x09,0x20,0x01,0x00,0x3F,0xF8,
0x21,0x08,0x21,0x08,0x21,0x08,0x1F,0xF4,0x01,0x40,0x02,0x20,0x0C,0x10,0x70,0x0E,/*1*/
"",0x00,0x00,0x01,0x00,0x01,0x00,0x00,0x80,0x3F,0x7C,0x08,0x10,0x08,0x10,0x04,0x10,
0x04,0x20,0x02,0x20,0x02,0x40,0x01,0x80,0x01,0x80,0x02,0x60,0x1C,0x18,0xE0,0x06,/*2*/
"",0x00,0x00,0x00,0x00,0x10,0x20,0x11,0xFE,0x22,0x02,0x22,0x02,0x49,0xFC,0x58,0x00,
0x30,0x00,0x13,0xFE,0x25,0x28,0x79,0x24,0x01,0x24,0x0D,0x24,0x72,0x22,0x02,0xA2,/*4*/
"",0x00,0x00,0x00,0x00,0x01,0x80,0x02,0x40,0x04,0x30,0x18,0x08,0x60,0x06,0x1F,0xF8,
0x00,0x00,0x1F,0xF8,0x20,0x04,0x20,0x04,0x20,0x04,0x20,0x04,0x20,0x04,0x1F,0xF8,/*5*/
"",0x00,0x00,0x01,0x00,0x01,0x00,0x7F,0xFE,0x00,0x00,0x3F,0xF8,0x20,0x08,0x3F,0xF8,
0x3F,0xF8,0x40,0x06,0x47,0xC2,0x48,0x24,0x08,0x20,0x08,0x22,0x10,0x22,0x60,0x3E,/*0*/
"",0x00,0x00,0x00,0x00,0x00,0x80,0x3F,0xFE,0x44,0x10,0x5F,0xFC,0x44,0x10,0x44,0x10,
0x43,0xF0,0x40,0x00,0x5F,0xF8,0x44,0x08,0x42,0x30,0x41,0xC0,0x43,0x60,0xBC,0x1E,/*1*/
"",0x00,0x00,0x00,0x00,0x67,0xC2,0x14,0x52,0x05,0x52,0x05,0x52,0xC5,0x52,0x25,0x52,
0x05,0x52,0x05,0x52,0x15,0x52,0x17,0x52,0x22,0x82,0x22,0x42,0x44,0x42,0x48,0x3E,/*2*/
"",0x00,0x00,0x00,0x00,0x20,0x14,0x10,0x14,0x17,0xFE,0x00,0x12,0x00,0x10,0x60,0x10,
0x13,0xF0,0x10,0x90,0x10,0x90,0x10,0x90,0x14,0x92,0x14,0xEA,0x1F,0x0A,0x00,0x06,/*3*/
"",0x00,0x00,0x00,0x00,0x19,0xFE,0x72,0x02,0x12,0x02,0x12,0x02,0x7D,0xFC,0x18,0x00,
0x1B,0xFE,0x34,0x20,0x50,0x20,0x53,0xFE,0x10,0x20,0x10,0x20,0x10,0x20,0x13,0xFE,/*8*/
"",0x00,0x00,0x00,0x00,0x00,0x80,0x3F,0xFE,0x40,0x00,0x47,0xFC,0x42,0x08,0x41,0x30,
0x40,0xC0,0x5F,0xFE,0x40,0x42,0x40,0x42,0x40,0x44,0x40,0x48,0x40,0x40,0x44,0x40,/*9*/
"",0x00,0x00,0x00,0x00,0x23,0xFE,0x12,0x22,0x02,0xFA,0x02,0x22,0xE2,0x22,0x12,0xFE,
0x12,0x72,0x12,0x8A,0x12,0x8A,0x12,0x8A,0x16,0xBA,0x1A,0x42,0x12,0x02,0x04,0x0E,/*0*/
"",0x00,0x00,0x01,0x00,0x01,0x04,0x11,0x08,0x09,0x08,0x09,0x10,0x09,0x20,0x7F,0xFE,
0x04,0x40,0x04,0x40,0x04,0x40,0x04,0x40,0x08,0x42,0x08,0x42,0x10,0x42,0x60,0x7C,/*1*/
"",0x00,0x00,0x00,0x00,0x48,0xFE,0x49,0x00,0x49,0x00,0x49,0x00,0x7E,0xFE,0x41,0x82,
0x41,0x44,0x79,0x44,0x45,0x28,0x45,0x28,0x45,0x10,0x45,0x28,0x46,0x44,0x03,0x82,/*10*/
"",0x00,0x00,0x10,0x00,0x10,0x00,0x13,0xFC,0x7D,0x04,0x11,0x04,0x19,0x04,0x18,0x84,
0x34,0x88,0x50,0x48,0x50,0x50,0x10,0x20,0x10,0x50,0x10,0x88,0x13,0x04,0x14,0x02,/*11*/
"",0x00,0x00,0x00,0x00,0x3F,0x7C,0x20,0x40,0x20,0x40,0x3E,0x40,0x22,0x7E,0x22,0x44,
0x22,0x44,0x22,0x44,0x3E,0x84,0x20,0x84,0x20,0x84,0x40,0x84,0x41,0x04,0x42,0x04,/*12*/
#endif
};
typedef struct
{
unsigned char Index[2];
char Msk[72];
}typFNT_GB24;
const typFNT_GB24 tfont24[] PROGMEM =
{
#if 0
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x06,0x7F,0x38,0x02,
0x40,0x20,0x00,0xC1,0x00,0x00,0xD8,0xC0,0x00,0x10,0x40,0x38,0x26,0x00,0x18,0x46,
0x00,0x00,0x02,0xE0,0x00,0x1F,0x80,0x02,0x66,0x00,0x04,0x0B,0x00,0x04,0x1A,0x80,
0x0C,0x12,0xC0,0x18,0x26,0x70,0x18,0xC6,0x3C,0x09,0x06,0x00,0x00,0x04,0x00,0x00,
0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",0*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x00,0x00,0x18,0x06,0x00,0x10,0x02,
0x00,0x10,0x02,0x00,0x10,0x02,0x19,0x10,0x02,0x19,0x10,0x02,0x19,0x10,0x07,0x99,
0x10,0x02,0x19,0x10,0x02,0x19,0x10,0x02,0x59,0x10,0x03,0x99,0x10,0x06,0x11,0x10,
0x38,0x11,0x10,0x10,0x11,0x10,0x00,0x20,0x10,0x00,0x40,0x10,0x00,0x00,0x10,0x00,
0x00,0x10,0x00,0x00,0x10,0x00,0x00,0x00,/*"",1*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x00,0x18,0x00,0x00,0x08,0x00,0x00,
0x01,0xF8,0x01,0xFF,0xC0,0x3E,0x10,0x00,0x00,0x10,0x00,0x00,0x13,0xC0,0x03,0xFC,
0xC0,0x02,0x10,0xC0,0x02,0x10,0xC0,0x02,0x10,0xC0,0x02,0x10,0xC0,0x02,0x13,0xC0,
0x02,0x10,0x80,0x00,0x10,0x00,0x00,0x10,0x00,0x00,0x10,0x00,0x00,0x10,0x00,0x00,
0x10,0x00,0x00,0x10,0x00,0x00,0x00,0x00,/*"",2*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x00,0x00,0x30,0x00,0x00,
0x30,0x00,0x00,0x68,0x00,0x00,0x44,0x00,0x00,0xC2,0x00,0x01,0x81,0x80,0x01,0x01,
0xC0,0x02,0x0E,0xF0,0x04,0xF8,0x3E,0x18,0x10,0x00,0x20,0x10,0x00,0x00,0x3E,0x00,
0x00,0xD0,0x00,0x00,0x10,0x00,0x00,0x10,0x00,0x00,0x17,0xE0,0x0F,0xFC,0xF0,0x04,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",3*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x01,0xC0,0x00,0x00,0x80,0x00,
0x00,0x80,0x01,0xE1,0x80,0x03,0x01,0x90,0x00,0x01,0xFC,0x00,0x07,0x08,0x01,0xF1,
0x08,0x7E,0x03,0x18,0x03,0x02,0x18,0x02,0x42,0x18,0x04,0x66,0x10,0x05,0xB4,0x10,
0x0E,0x14,0x10,0x08,0x08,0x30,0x00,0x18,0x20,0x00,0x31,0xE0,0x00,0x60,0xC0,0x00,
0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,/*"",4*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x00,0x60,0x00,0x00,0x60,0x00,0x00,
0x20,0x00,0x00,0x21,0x80,0x00,0x7F,0xC0,0x0F,0xA0,0xC0,0x0C,0x20,0xC0,0x04,0x3D,
0x80,0x05,0xF1,0x80,0x04,0x21,0x00,0x04,0x21,0x00,0x04,0xFE,0x00,0x03,0x60,0x00,
0x00,0x60,0x00,0x00,0x20,0x10,0x00,0x20,0x08,0x00,0x30,0x18,0x00,0x1F,0xF8,0x00,
0x03,0x80,0x00,0x00,0x00,0x00,0x00,0x00,/*"",5*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x79,0x80,0x01,
0xC3,0x80,0x00,0x06,0x00,0x00,0x04,0x00,0x00,0x38,0x00,0x00,0x18,0x18,0x00,0x0F,
0xFC,0x0F,0xF8,0x00,0x38,0x0C,0x00,0x00,0x0C,0x00,0x00,0x0C,0x00,0x00,0x0C,0x00,
0x00,0x0C,0x00,0x00,0x0C,0x00,0x00,0x0C,0x00,0x00,0x0C,0x00,0x00,0xF8,0x00,0x00,
0x38,0x00,0x00,0x10,0x00,0x00,0x00,0x00,/*"",6*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x00,0x01,0x83,0x80,0x01,0x01,0x00,0x01,
0x01,0x00,0x01,0x01,0x20,0x01,0x03,0xE0,0x01,0xDF,0x00,0x1F,0x01,0x00,0x01,0x03,
0x00,0x01,0x42,0xC0,0x01,0x8F,0xC0,0x03,0x00,0xC0,0x0D,0x18,0xC0,0x39,0x04,0x80,
0x31,0x03,0x80,0x01,0x01,0x00,0x01,0x06,0xC0,0x07,0x1C,0x70,0x03,0x20,0x3E,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",7*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x00,0x70,0x00,0x00,0x21,0x80,0x00,
0x20,0xC0,0x00,0x20,0x00,0x00,0x20,0x00,0x00,0x2F,0x80,0x00,0xFC,0x00,0x0F,0xE0,
0x00,0x00,0xF0,0x00,0x00,0xA8,0x00,0x01,0xA4,0x00,0x03,0x23,0x00,0x06,0x23,0x80,
0x0C,0x21,0xE0,0x18,0x20,0xFC,0x20,0x20,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x00,
0x20,0x00,0x00,0x20,0x00,0x00,0x00,0x00,/*"",8*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x10,0x00,0x00,
0x11,0xFC,0x03,0xFE,0x00,0x0C,0x20,0x00,0x00,0x60,0x00,0x00,0x43,0x00,0x00,0xFD,
0x80,0x01,0xC1,0x80,0x01,0x41,0x80,0x02,0x7D,0x80,0x04,0x41,0x80,0x08,0x41,0x80,
0x30,0x7D,0x80,0x00,0x41,0x80,0x00,0x41,0x80,0x00,0xC1,0x80,0x00,0x85,0x80,0x00,
0x83,0x80,0x00,0x01,0x00,0x00,0x00,0x00,/*"",9*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0x03,0x9E,0xC0,0x1D,
0x90,0xC0,0x11,0x10,0x80,0x12,0x1E,0x80,0x12,0x10,0x80,0x12,0x10,0x80,0x11,0x17,
0x00,0x19,0x18,0x60,0x1F,0x98,0xC0,0x18,0x15,0x80,0x18,0x13,0x00,0x18,0x11,0x80,
0x18,0x10,0xE0,0x18,0x12,0x78,0x18,0x14,0x3C,0x18,0x1C,0x00,0x10,0x38,0x00,0x00,
0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",10*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x00,0x08,0x00,0x00,
0x04,0x00,0x00,0x04,0x00,0x01,0x82,0x00,0x01,0x83,0x00,0x01,0x81,0x80,0x03,0x00,
0xC0,0x03,0x00,0xE0,0x06,0x20,0x78,0x04,0x30,0x3E,0x08,0x30,0x00,0x10,0x20,0x00,
0x60,0x42,0x00,0x00,0x41,0x00,0x00,0x9F,0x80,0x03,0xE1,0x80,0x03,0x00,0x80,0x00,
0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,/*"",11*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xE0,0x01,0xFC,0x70,0x00,
0x00,0x30,0x00,0x00,0x20,0x00,0x1C,0x20,0x03,0xF0,0x20,0x00,0x00,0x20,0x00,0x00,
0x20,0x00,0x3C,0x20,0x07,0xCC,0x20,0x06,0x0C,0x20,0x02,0x08,0x20,0x02,0x08,0x20,
0x03,0xF0,0x20,0x00,0x00,0x20,0x00,0x00,0x20,0x00,0x02,0x60,0x00,0x01,0xE0,0x00,
0x00,0xE0,0x00,0x00,0xC0,0x00,0x00,0x00,/*"",12*/
#endif
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x06,0x00,0x00,0x06,0x00,0x00,
0x04,0x00,0x00,0x04,0x00,0x01,0x8C,0x40,0x3F,0x89,0xF0,0x01,0x96,0x60,0x01,0x20,
0x40,0x09,0x0C,0x00,0x0D,0x04,0x00,0x07,0x04,0x00,0x03,0x0C,0x00,0x07,0x8E,0x00,
0x05,0x89,0x00,0x08,0x89,0x00,0x10,0x10,0x80,0x20,0x20,0xE0,0x00,0x40,0x78,0x00,
0x00,0x3C,0x00,0x00,0x00,0x00,0x00,0x00,/*"",13*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x0C,0x0E,0x00,0x06,
0x08,0x00,0x02,0x10,0x70,0x00,0x63,0x90,0x00,0x21,0x10,0x00,0x21,0x10,0x06,0x21,
0x30,0x1E,0x2D,0xB0,0x04,0x31,0x60,0x04,0x71,0x20,0x06,0x61,0x00,0x02,0x03,0x00,
0x02,0x03,0x00,0x7F,0x02,0x00,0x00,0xE2,0x00,0x00,0x1E,0x00,0x00,0x07,0xFC,0x00,
0x01,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,/*"",14*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x00,0x01,0x84,0x00,0x01,0x0C,0x00,0x03,
0x09,0xF0,0x02,0x16,0x38,0x06,0x24,0x40,0x09,0x42,0x00,0x11,0x02,0x00,0x21,0x22,
0x70,0x01,0x22,0x30,0x03,0x22,0x10,0x02,0x06,0x00,0x02,0x02,0x00,0x00,0x18,0x3C,
0x04,0x0C,0x0C,0x04,0x84,0x04,0x0C,0x80,0x80,0x08,0x60,0x60,0x08,0x3F,0xF0,0x00,
0x0F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,/*"",15*/
#if 0
"",0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x00,0x08,0x00,0x08,0x0C,0x7F,0xFC,0x04,
0x40,0x10,0x01,0xC8,0xA0,0x02,0x18,0x60,0x42,0x30,0x18,0x32,0x23,0x18,0x12,0xC3,
0x00,0x14,0x03,0x00,0x04,0x03,0x0C,0x04,0x7F,0xF0,0x08,0x0F,0x80,0x08,0x0B,0x40,
0x78,0x13,0x60,0x18,0x33,0x20,0x18,0x63,0x18,0x18,0x83,0x1C,0x19,0x03,0x08,0x18,
0x03,0x00,0x00,0x03,0x00,0x00,0x00,0x00,/*0*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x10,0x0C,0x04,0x18,0x0C,0x04,0x10,0x8C,0x04,
0x10,0x8C,0x04,0x10,0x8C,0x04,0x10,0x8C,0x04,0xD0,0x8C,0x3F,0x10,0x8C,0x04,0x10,
0x8C,0x04,0x10,0x8C,0x04,0x10,0x8C,0x04,0x10,0x8C,0x04,0x10,0x8C,0x04,0x10,0x8C,
0x05,0xF0,0x8C,0x0E,0x20,0x8C,0x78,0x20,0x8C,0x20,0x40,0x8C,0x00,0x80,0x8C,0x01,
0x00,0x0C,0x02,0x00,0x0C,0x00,0x00,0x00,/*1*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x00,0x00,0x18,0x00,0x00,0x18,0x08,0x00,
0x00,0x1C,0x1F,0xFF,0xE0,0x00,0x18,0x00,0x00,0x18,0x20,0x07,0xFF,0xF0,0x04,0x18,
0x20,0x04,0x18,0x20,0x04,0x18,0x20,0x04,0x18,0x20,0x04,0x18,0x20,0x04,0x18,0x20,
0x04,0x18,0x20,0x04,0x18,0x20,0x04,0x18,0x20,0x04,0x18,0xE0,0x04,0x18,0x40,0x00,
0x18,0x00,0x00,0x18,0x00,0x00,0x00,0x00,/*2*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,
0x18,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x3F,0xFF,0xFE,0x30,0x18,0x06,0x30,0x18,
0x06,0x30,0x18,0x06,0x30,0x18,0x06,0x30,0x18,0x06,0x3F,0xFF,0xFE,0x30,0x18,0x06,
0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*0*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x00,0x1C,0x00,0x00,
0x06,0x00,0xFF,0xFF,0xFF,0x06,0x00,0x30,0x06,0x00,0x30,0x03,0x00,0x60,0x03,0x00,
0x60,0x01,0x80,0xC0,0x00,0xC1,0x80,0x00,0xE3,0x00,0x00,0x36,0x00,0x00,0x1C,0x00,
0x00,0x77,0x00,0x03,0xC1,0xE0,0x1E,0x00,0x3C,0x60,0x00,0x07,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*1*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x03,0x21,
0xFF,0x33,0x39,0x83,0x33,0x11,0x83,0x33,0x01,0x9B,0x33,0xC1,0x9B,0x33,0x71,0x9B,
0x33,0x19,0x9B,0x33,0x01,0x9B,0x33,0x01,0x9B,0x33,0x11,0x9B,0x33,0x19,0xB3,0x33,
0x30,0x30,0x33,0x30,0x6C,0x03,0x30,0xC6,0x03,0x63,0x83,0x03,0x2E,0x01,0xBE,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*2*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0xD8,0x30,
0x00,0xCE,0x18,0x00,0xC2,0x1C,0x00,0xC0,0x01,0xFF,0xFF,0x00,0x00,0xC0,0xF8,0x00,
0xC0,0x18,0x00,0xC0,0x19,0xFF,0xC0,0x18,0x18,0x40,0x18,0x18,0x60,0x19,0x18,0x60,
0x1B,0x18,0x61,0x1E,0x18,0x31,0x1C,0x1F,0xB1,0x39,0xF0,0x19,0x10,0x00,0x0F,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*3*/
#endif
};
typedef struct
{
unsigned char Index[2];
char Msk[128];
}typFNT_GB32;
//
const typFNT_GB32 tfont32[] PROGMEM =
{
#if 0
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x03,0xE0,0x03,0x84,0x7C,0xF0,0x01,0xCF,0x80,0xE0,0x00,0xCC,0x00,0x80,
0x00,0x18,0x08,0x00,0x00,0x19,0x8F,0x00,0x00,0x11,0xC7,0x00,0x10,0x03,0x01,0x00,
0x1C,0x06,0x60,0x00,0x0C,0x04,0x30,0x00,0x04,0x00,0x30,0x00,0x00,0x00,0x37,0xC0,
0x00,0x00,0xFF,0x00,0x00,0x9F,0xF0,0x00,0x00,0x80,0x78,0x00,0x01,0x00,0xEC,0x00,
0x01,0x01,0xA6,0x00,0x03,0x03,0x23,0x00,0x06,0x02,0x23,0x80,0x0E,0x06,0x21,0xE0,
0x0E,0x08,0x20,0xF8,0x04,0x30,0x20,0x78,0x04,0x40,0x60,0x00,0x00,0x00,0x60,0x00,
0x00,0x00,0x60,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",0*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,
0x00,0x00,0x00,0x70,0x01,0x80,0x00,0x60,0x01,0xC0,0x00,0x60,0x00,0xC0,0x00,0x60,
0x00,0xC0,0x00,0x60,0x00,0xC3,0x18,0x60,0x00,0xC1,0x8C,0x60,0x00,0xC1,0x8C,0x60,
0x00,0xC1,0x8C,0x60,0x00,0xF9,0x8C,0x60,0x07,0xE1,0x8C,0x60,0x00,0x81,0x8C,0x60,
0x00,0x81,0x8C,0x60,0x00,0x81,0x8C,0x60,0x00,0x99,0x8C,0x60,0x00,0xE1,0x8C,0x60,
0x01,0xC1,0x8C,0x60,0x0F,0x01,0x0C,0x60,0x1C,0x03,0x0C,0x60,0x08,0x03,0x00,0x60,
0x00,0x06,0x00,0x60,0x00,0x04,0x00,0x60,0x00,0x08,0x00,0x60,0x00,0x00,0x00,0x60,
0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",1*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x07,0x80,0x00,
0x00,0x03,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x60,0x00,0x00,0x3F,0xF8,
0x00,0x3F,0xFF,0xF0,0x1F,0xFD,0x80,0x00,0x08,0x01,0x80,0x00,0x00,0x01,0x80,0x00,
0x00,0x01,0x9E,0x00,0x00,0x87,0xE7,0x80,0x00,0xF9,0x03,0x00,0x00,0xC1,0x03,0x00,
0x00,0xC1,0x03,0x00,0x00,0xC1,0x03,0x00,0x00,0xC1,0x03,0x00,0x00,0xC1,0x13,0x00,
0x00,0xC1,0x1F,0x00,0x00,0x81,0x0E,0x00,0x00,0x81,0x06,0x00,0x00,0x01,0x00,0x00,
0x00,0x01,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x01,0x00,0x00,
0x00,0x01,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,/*"",2*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,
0x00,0x03,0x00,0x00,0x00,0x03,0x80,0x00,0x00,0x07,0x00,0x00,0x00,0x07,0x00,0x00,
0x00,0x06,0x80,0x00,0x00,0x0C,0x40,0x00,0x00,0x1C,0x20,0x00,0x00,0x18,0x18,0x00,
0x00,0x30,0x1C,0x00,0x00,0x60,0x0F,0x00,0x00,0xE0,0x07,0x80,0x01,0xC1,0xF3,0xE0,
0x03,0x3F,0xC1,0xFC,0x06,0x03,0x00,0x00,0x0C,0x03,0x00,0x00,0x10,0x03,0x00,0x00,
0x00,0x03,0xF8,0x00,0x00,0x3F,0xC0,0x00,0x00,0x03,0x00,0x00,0x00,0x03,0x00,0x00,
0x00,0x03,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x0F,0xFF,0xC0,0x07,0xFE,0x00,0xE0,
0x03,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",3*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,
0x00,0x00,0x06,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x06,0x00,
0x00,0x3E,0x04,0x00,0x03,0xF8,0x0C,0x00,0x00,0x00,0x0C,0xF0,0x00,0x00,0x0F,0xF8,
0x00,0x00,0x7C,0x38,0x00,0x1F,0x08,0x30,0x03,0xF8,0x18,0x30,0x3F,0xC0,0x18,0x30,
0x00,0xE0,0x18,0x30,0x00,0xC0,0x30,0x20,0x00,0x8C,0x30,0x20,0x01,0x06,0x30,0x60,
0x03,0x3E,0x60,0x60,0x07,0xC3,0x60,0x60,0x07,0x00,0xC0,0x60,0x06,0x00,0xC0,0xC0,
0x00,0x01,0x80,0xC0,0x00,0x03,0x0D,0xC0,0x00,0x06,0x07,0x80,0x00,0x0C,0x03,0x00,
0x00,0x10,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",4*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,
0x00,0x0E,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x06,0x00,0x00,
0x00,0x06,0x0C,0x00,0x00,0x07,0xFF,0x00,0x07,0xFE,0x07,0x80,0x07,0x84,0x07,0x00,
0x02,0x04,0x06,0x00,0x03,0x04,0x06,0x00,0x03,0x1F,0xCE,0x00,0x03,0x7C,0x0C,0x00,
0x01,0x04,0x0C,0x00,0x01,0x04,0x08,0x00,0x01,0x04,0x78,0x00,0x01,0xFF,0xF0,0x00,
0x01,0x84,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x04,0x00,0x20,
0x00,0x06,0x00,0x20,0x00,0x06,0x00,0x30,0x00,0x03,0x80,0xF0,0x00,0x01,0xFF,0xE0,
0x00,0x00,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",5*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x38,0x00,0x00,0x01,0xFE,0x00,0x00,0xFE,0x1E,0x00,0x00,0x70,0x1C,0x00,
0x00,0x00,0x30,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x40,0x00,0x00,0x03,0x80,0x00,
0x00,0x01,0x80,0x00,0x00,0x01,0x8F,0xF8,0x00,0x07,0xFF,0xF8,0x0F,0xFF,0xC0,0x00,
0x1F,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,
0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,
0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x01,0xC0,0x00,0x00,0x1F,0xC0,0x00,
0x00,0x0F,0x80,0x00,0x00,0x03,0x80,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,/*"",6*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x18,0x00,
0x00,0x70,0x1C,0x00,0x00,0x60,0x1C,0x00,0x00,0x60,0x0C,0x00,0x00,0x60,0x08,0x00,
0x00,0x60,0x08,0x00,0x00,0x60,0x0F,0xC0,0x00,0x60,0x7F,0x00,0x00,0xF9,0xF8,0x00,
0x0F,0xE0,0x18,0x00,0x00,0x60,0x18,0x00,0x00,0x60,0x18,0x00,0x00,0x68,0x1F,0x00,
0x00,0x70,0x7F,0x80,0x00,0x63,0xC3,0x00,0x01,0xE0,0x03,0x00,0x03,0x61,0x82,0x00,
0x1E,0x60,0x66,0x00,0x3C,0x60,0x36,0x00,0x18,0x60,0x1C,0x00,0x00,0x60,0x1C,0x00,
0x00,0x60,0x3F,0x00,0x00,0x60,0xE3,0x80,0x01,0xE3,0xC1,0xF0,0x00,0xE4,0x00,0xFE,
0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",7*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x00,
0x00,0x0E,0x00,0x00,0x00,0x06,0x1C,0x00,0x00,0x06,0x0E,0x00,0x00,0x06,0x03,0x00,
0x00,0x06,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x06,0x18,0x00,0x00,0x07,0xFC,0x00,
0x00,0x1F,0xE0,0x00,0x03,0xFE,0x00,0x00,0x00,0x0E,0x00,0x00,0x00,0x1F,0x00,0x00,
0x00,0x17,0x80,0x00,0x00,0x36,0xC0,0x00,0x00,0x66,0x70,0x00,0x00,0xC6,0x38,0x00,
0x01,0x86,0x1C,0x00,0x03,0x06,0x0F,0x00,0x06,0x06,0x07,0xE0,0x0C,0x06,0x03,0xFC,
0x10,0x06,0x00,0x00,0x20,0x06,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x06,0x00,0x00,
0x00,0x06,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",8*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x01,0xC0,0x00,
0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x03,0x00,0x60,0x00,0x03,0x3F,0xF8,
0x00,0x3F,0xF8,0x00,0x0F,0xE6,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x0C,0x00,0x00,
0x00,0x0C,0x18,0x00,0x00,0x1D,0xFE,0x00,0x00,0x3E,0x0E,0x00,0x00,0x3C,0x0C,0x00,
0x00,0x6C,0x0C,0x00,0x00,0xCD,0xEC,0x00,0x01,0x8F,0x0C,0x00,0x03,0x08,0x0C,0x00,
0x06,0x08,0x04,0x00,0x08,0x08,0x64,0x00,0x10,0x0F,0xC4,0x00,0x00,0x08,0x04,0x00,
0x00,0x18,0x06,0x00,0x00,0x18,0x06,0x00,0x00,0x18,0x06,0x00,0x00,0x10,0x2E,0x00,
0x00,0x10,0x1C,0x00,0x00,0x00,0x1C,0x00,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,/*"",9*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0F,0x00,0x00,0x60,0x3F,0x80,0x01,0xF3,0xC7,0x00,0x0E,0x71,0x06,0x00,
0x0C,0x61,0x06,0x00,0x0C,0x41,0x36,0x00,0x04,0xC1,0xC6,0x00,0x04,0xC1,0x04,0x00,
0x04,0x41,0x04,0x00,0x04,0x41,0x1C,0x00,0x04,0x61,0xF5,0x80,0x05,0xE1,0x01,0xC0,
0x04,0xF1,0xC3,0x80,0x04,0x31,0x66,0x00,0x04,0x01,0x3C,0x00,0x04,0x01,0x18,0x00,
0x04,0x01,0x0E,0x00,0x04,0x01,0x07,0x00,0x0C,0x01,0x03,0xC0,0x0C,0x01,0x11,0xF0,
0x0C,0x01,0x20,0xFC,0x0C,0x03,0xC0,0x00,0x0C,0x03,0xC0,0x00,0x0C,0x03,0x80,0x00,
0x00,0x03,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",10*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x03,0x00,0x00,0x00,0x01,0x80,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x40,0x00,
0x00,0x00,0x20,0x00,0x00,0x20,0x30,0x00,0x00,0x38,0x18,0x00,0x00,0x30,0x18,0x00,
0x00,0x70,0x0C,0x00,0x00,0x60,0x06,0x00,0x00,0xE0,0x07,0x00,0x00,0xC0,0x03,0xC0,
0x01,0x80,0x03,0xE0,0x03,0x03,0x01,0xFC,0x03,0x03,0x80,0x7C,0x06,0x07,0x00,0x00,
0x08,0x06,0x00,0x00,0x10,0x0C,0x10,0x00,0x00,0x08,0x18,0x00,0x00,0x18,0x0C,0x00,
0x00,0x30,0xFE,0x00,0x00,0x7F,0x8E,0x00,0x00,0xF8,0x06,0x00,0x00,0xE0,0x06,0x00,
0x00,0x80,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",11*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1F,0x80,0x00,0x03,0xFF,0xC0,0x00,0x3F,0x01,0xE0,0x00,0x00,0x00,0xC0,
0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x1F,0xC0,0xC0,0x00,0x7F,0x00,0xC0,
0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x80,0xC0,0x00,0x0F,0xE0,0xC0,
0x03,0xF0,0xE0,0xC0,0x01,0x80,0xC0,0xC0,0x01,0x80,0xC0,0xC0,0x00,0x80,0xC0,0xC0,
0x00,0x80,0xC0,0xC0,0x00,0xDF,0xC0,0xC0,0x00,0xE0,0x00,0xC0,0x00,0x40,0x00,0xC0,
0x00,0x00,0x01,0xC0,0x00,0x00,0x01,0xC0,0x00,0x00,0x09,0x80,0x00,0x00,0x07,0x80,
0x00,0x00,0x07,0x80,0x00,0x00,0x03,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,/*"",12*/
#endif
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x00,
0x00,0x00,0x38,0x00,0x00,0x00,0x30,0x00,0x00,0x00,0x30,0x00,0x00,0x00,0x60,0x00,
0x00,0x00,0x60,0x00,0x00,0x00,0xC0,0x00,0x00,0xF0,0xC3,0x80,0x1F,0xF0,0x9F,0xE0,
0x00,0x31,0xE1,0xC0,0x00,0x21,0x03,0x00,0x08,0x62,0x02,0x00,0x04,0x60,0xE0,0x00,
0x03,0x60,0x60,0x00,0x01,0xC0,0x60,0x00,0x01,0xC0,0x60,0x00,0x00,0xE0,0x60,0x00,
0x01,0xF0,0xF0,0x00,0x01,0x30,0xD0,0x00,0x03,0x30,0x88,0x00,0x06,0x11,0x8C,0x00,
0x0C,0x01,0x06,0x00,0x18,0x03,0x07,0x00,0x20,0x06,0x03,0xC0,0x00,0x08,0x03,0xF0,
0x00,0x30,0x01,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",13*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x60,0x00,0x00,0x00,0x70,0x00,0x03,0x80,0xE0,0x00,0x01,0xC1,0x80,0x00,
0x00,0xC3,0x01,0xE0,0x00,0x1E,0x1E,0x60,0x00,0x0C,0x18,0x60,0x00,0x06,0x18,0x60,
0x00,0x06,0x08,0x40,0x01,0x86,0x08,0x40,0x07,0xC6,0x48,0x40,0x0D,0x86,0x8B,0xC0,
0x01,0x07,0x89,0xC0,0x01,0x07,0x18,0x80,0x01,0x0E,0x18,0x00,0x01,0x8E,0x18,0x00,
0x00,0x84,0x18,0x00,0x00,0x80,0x18,0x00,0x0F,0x80,0x18,0x00,0x3C,0xF0,0x18,0x00,
0x00,0x1E,0x00,0x00,0x00,0x07,0xC0,0x00,0x00,0x00,0xFF,0xFC,0x00,0x00,0x3F,0xF8,
0x00,0x00,0x0F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",14*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x00,0x30,0x70,0x00,
0x00,0x30,0x60,0x00,0x00,0x30,0x60,0x00,0x00,0x60,0xC0,0x80,0x00,0xC1,0x9F,0xE0,
0x00,0xC1,0xE0,0xF0,0x01,0xC2,0x01,0x80,0x03,0x44,0x31,0x00,0x02,0x48,0x30,0x00,
0x04,0x40,0x10,0x00,0x08,0x42,0x13,0x80,0x00,0x46,0x11,0xC0,0x00,0x46,0x10,0xE0,
0x00,0xC4,0x30,0x60,0x00,0xC0,0xF0,0x00,0x00,0xC0,0x70,0x00,0x00,0x40,0x30,0xC0,
0x00,0x03,0x80,0xF8,0x01,0x01,0xC0,0x3C,0x01,0x20,0xC0,0x1C,0x03,0x20,0x40,0x04,
0x03,0x10,0x02,0x00,0x06,0x08,0x01,0x00,0x06,0x0E,0x01,0x80,0x04,0x07,0xFF,0xE0,
0x00,0x01,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"",15*/
#if 0
"",0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0xC0,0x00,
0x00,0x01,0xC0,0xC0,0x00,0x01,0x07,0xC0,0x00,0x01,0xFF,0x00,0x02,0x1F,0xFE,0x00,
0x07,0xF0,0x1C,0x00,0x07,0xC0,0x70,0x00,0x0F,0x00,0xE0,0x00,0x0E,0x03,0xF0,0x00,
0x1C,0x0F,0xF0,0x00,0x3C,0x0F,0x70,0x00,0x3C,0x00,0xE0,0x00,0x18,0x00,0xC0,0x00,
0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x20,0x00,
0x00,0x00,0x37,0x00,0x00,0x01,0xFF,0x00,0x00,0x7F,0xF8,0x00,0x07,0xF8,0x30,0x00,
0x1F,0x80,0x30,0x00,0x00,0x80,0x30,0x00,0x00,0xC0,0x30,0x00,0x00,0x60,0x60,0x00,
0x00,0x18,0xE0,0x00,0x00,0x0F,0xC0,0x00,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x00,/*0*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xE0,
0x00,0x20,0x01,0xB8,0x00,0x70,0x3F,0xF8,0x00,0x61,0xFF,0xC0,0x00,0xC3,0x03,0x00,
0x01,0xC6,0x06,0x00,0x03,0x8C,0x06,0x00,0x03,0x08,0x0C,0x00,0x06,0x08,0x0C,0x00,
0x0E,0x18,0x18,0x3F,0x1E,0x10,0x1B,0xF3,0x1F,0x90,0x3F,0x07,0x00,0x80,0x3C,0x1C,
0x01,0x90,0x70,0x7C,0x01,0x90,0x60,0xFE,0x01,0xA0,0xC3,0xF8,0x01,0xA0,0x0F,0xD8,
0x03,0xA0,0x08,0x18,0x03,0x60,0x00,0x18,0x03,0x40,0x00,0x18,0x03,0xC0,0x00,0x18,
0x03,0x80,0x00,0x18,0x03,0x00,0x00,0x18,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x10,
0x00,0x00,0x00,0x30,0x00,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*1*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x02,0x0C,0x10,0x08,0x07,0x1F,0xF8,0x04,0x03,0xBF,0xF0,0x02,0x01,0xBC,0x30,0x03,
0x03,0xEC,0x30,0x03,0x01,0x5C,0x60,0x03,0x00,0xD8,0x60,0x03,0x00,0xD8,0x60,0x03,
0x80,0x98,0x62,0x03,0x61,0xB8,0x43,0x07,0x71,0xB1,0x43,0x06,0x31,0x32,0x43,0x06,
0x33,0x76,0xC3,0x06,0x3A,0x64,0xC7,0x06,0x3E,0xEC,0xC0,0x06,0x3E,0x78,0xC0,0x06,
0x3C,0x30,0x40,0x06,0x7C,0x70,0x00,0x06,0x78,0xE0,0x60,0x06,0x7B,0xFF,0xF0,0x06,
0xF7,0xC0,0x00,0x06,0xE4,0x00,0x00,0x06,0x40,0x00,0x00,0x06,0x00,0x00,0x00,0x06,
0x00,0x00,0x00,0x7C,0x00,0x00,0x8F,0xF0,0x00,0x00,0x7C,0x00,0x00,0x00,0x00,0x00,/*2*/
"",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x00,
0x00,0x00,0x7F,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0xC0,
0x00,0x00,0x00,0xCE,0x03,0x80,0x00,0xCF,0xFF,0xC0,0x00,0xDD,0x41,0x80,0x0F,0xFE,
0x00,0x07,0xFF,0xFC,0x00,0x0C,0x00,0xF0,0x00,0x18,0x0F,0xC0,0x3E,0x19,0xFF,0x40,
0xF3,0x11,0xBC,0x60,0x83,0x30,0x7F,0xE0,0x03,0xB1,0xFE,0x20,0x03,0x33,0x80,0x20,
0x03,0x70,0x00,0x30,0x03,0x60,0x00,0x10,0x03,0x60,0x00,0x18,0x07,0xC0,0x00,0x0C,
0x07,0xC0,0x00,0x04,0x07,0x80,0x00,0x02,0x01,0x00,0x00,0x03,0x00,0x00,0x00,0x01,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*3*/
#endif
};
#endif
Comments
