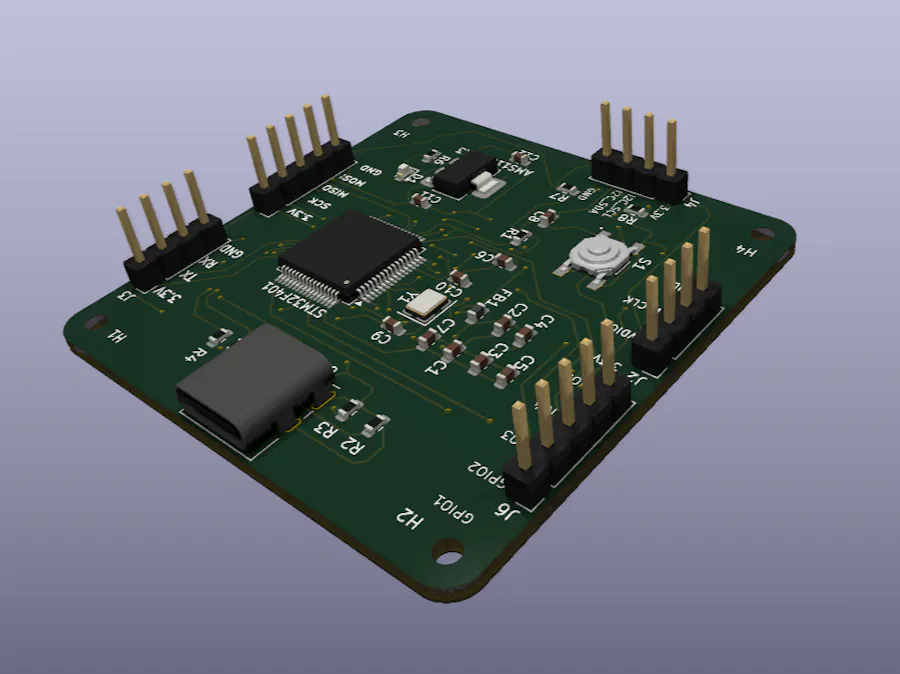

STM32F401 Custom Breakout PCB

GETTING STARTED

I designed this STM32F401 breakout board to gain practical experience in microcontroller hardware design and PCB development. Instead of using commercially available development boards, I wanted to understand how a microcontroller system is designed from scratch, including power supply design, clock circuitry, reset circuitry, USB connections, and interface breakout pins.

Before starting the design, I studied the STM32F401RCT6 datasheet and reference schematics to understand the required support components and hardware connections. I also explored USB Type-C implementation, voltage regulation, crystal oscillator connections, and SWD programming interfaces.

KiCad was used for both schematic design and PCB layout design.

DESIGN

The STM32F401 breakout board was designed as a compact 2-layer PCB using KiCad, with careful attention given to component placement, routing organization, and power distribution. The design includes a USB Type-C power input, AMS1117-3.3V regulator, crystal oscillator circuit, reset circuitry, and multiple communication interfaces such as UART, SPI, I2C, and SWD. Ground planes were used to improve stability and reduce noise, while decoupling capacitors were placed close to the STM32F401 microcontroller power pins for reliable operation. The PCB layout was organized to maintain clean signal routing and easy access to GPIO breakout headers, making the board suitable for embedded development and prototyping applications. The PCB layout was designed with organized routing and proper separation of power and signal traces. Mounting holes were also added for mechanical support and easier integration into embedded projects.

Schematic

The complete schematic was designed in KiCad and organized into functional sections including power supply, USB Type-C interface, STM32 microcontroller circuitry, reset circuitry, crystal oscillator section, and communication headers. The schematic design was verified carefully to ensure correct connectivity and proper implementation of the STM32F401 support circuitry before proceeding to PCB layout design.

The design includes:

• STM32F401RCT6 microcontroller
• USB Type-C connector
• AMS1117-3.3V regulator
• Crystal oscillator circuit
• Reset switch
• Decoupling capacitors
• UART, SPI, I2C, and GPIO breakout headers
• SWD programming interface

The schematic was verified using ERC checks before moving to PCB layout design.

Circuit Connections and Working

The STM32F401 breakout board is designed around the STM32F401RCT6 microcontroller and includes all the essential support circuitry required for stable operation and external interfacing.

Power Supply Section

The board receives power through a USB Type-C connector. The VBUS line from the USB connector is connected to the AMS1117-3.3V voltage regulator, which converts the input voltage into a stable 3.3V supply required by the STM32 microcontroller. Input and output capacitors are placed around the regulator to reduce voltage fluctuations and improve power stability. Multiple decoupling capacitors are also connected near the VDD pins of the microcontroller to filter noise and ensure reliable operation.

USB Type-C Connections

The USB Type-C connector is mainly used for power input. CC resistors are connected to the CC pins of the Type-C connector to enable proper USB Type-C power detection.

The D+ and D− lines are also routed from the connector for USB communication support.

STM32F401 Microcontroller Section

The STM32F401RCT6 acts as the main processing unit of the board. The microcontroller pins are connected to multiple external headers to provide easy access to GPIO and communication interfaces.

The design includes:

• UART interface pins for serial communication
• SPI interface pins for peripheral communication
• I2C interface pins for sensor and module interfacing
• SWDIO and SWCLK pins for programming and debugging
• GPIO breakout pins for general-purpose applications

Clock Circuit

An external crystal oscillator is connected to the OSC_IN and OSC_OUT pins of the STM32 microcontroller. The crystal provides a stable clock source required for accurate timing and communication functions.

Load capacitors are connected to the crystal oscillator circuit to ensure stable oscillation.

Reset Circuit

A push-button reset switch is connected to the NRST pin of the STM32 microcontroller. Pressing the button resets the microcontroller and restarts program execution.

Working Principle

When power is supplied through the USB Type-C connector, the AMS1117 regulator generates a stable 3.3V output for the entire circuit. The STM32F401 microcontroller then starts operating using the external crystal oscillator clock source.

The breakout headers allow external devices, sensors, and modules to communicate with the microcontroller using UART, SPI, I2C, or GPIO interfaces. The SWD interface can be used for firmware programming and debugging using an external programmer such as ST-Link.

Footprint

The footprints for the STM32F401 breakout board were selected carefully based on the datasheet specifications of each component to ensure accurate PCB layout implementation and manufacturing compatibility. Special attention was given to the STM32F401 LQFP package footprint, USB Type-C connector footprint, AMS1117 voltage regulator footprint, crystal oscillator footprint, and SMD passive components. Proper pad dimensions, spacing, and alignment were maintained to support reliable routing and future PCB assembly. Standard KiCad library footprints were used for most components to maintain consistency and design reliability.

The PCB design files generated from KiCad include multiple fabrication layers required for PCB manufacturing and assembly. These files contain the copper layers, solder mask layers, paste layers, silkscreen layers, adhesive layers, and board outline information for the 2-layer STM32F401 breakout board.

The front copper (F_Cu) and back copper (B_Cu) layers contain the electrical routing connections of the PCB. The solder mask layers (F_Mask and B_Mask) define the exposed copper areas for soldering, while the silkscreen layers (F_Silkscreen and B_Silkscreen) contain component labels, pin markings, and board information.

Paste layers (F_Paste and B_Paste) are used during solder paste application for SMD assembly, and adhesive layers define adhesive placement information for manufacturing processes. The Edge_Cuts layer defines the physical board outline and dimensions of the PCB.

These fabrication files were generated successfully after completing the PCB layout and design verification checks, making the design ready for PCB manufacturing.

BOM (Bill of Materials)

A complete Bill of Materials (BOM) was generated from KiCad after finalizing the schematic and PCB layout. The BOM includes all required components along with their values, package types, and reference designators.

The selected components were chosen based on availability, compatibility, and design requirements for compact and reliable PCB implementation.

RESULT

The project was successfully completed at the PCB design stage, including schematic design, footprint assignment, PCB layout, routing, and generation of manufacturing files.

The final design provides:

• USB Type-C power input
• Stable 3.3V regulation
• Multiple communication interfaces
• Compact breakout board design

This project significantly improved my understanding of STM32 hardware design and PCB development workflow.

CONCLUSION

Designing this STM32F401 breakout board was a valuable hands-on learning experience in embedded hardware and PCB design.

Through this project, I gained practical experience in:

• Microcontroller support circuitry
• PCB routing techniques
• Power supply design
• USB Type-C integration
• Interface breakout design
• Design verification using KiCad

In the future, I plan to further improve the board by fabricating and testing the hardware and adding additional onboard debugging and protection features.
