Published October 29, 2020 © LGPL

Smart Home Project Idea with SIM 800L Module

Make home automation project with sim800l

AdvancedFull instructions provided5,515

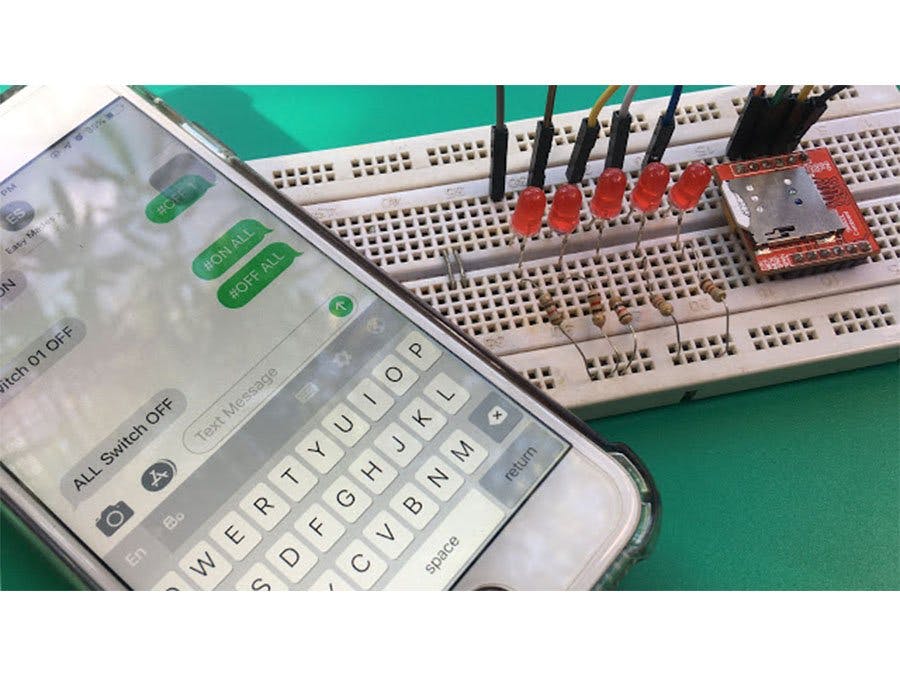

Smart Home Project Idea with SIM 800L Module

Things used in this project

Hardware components

Arduino UNO

5 mm LED: Red

Resistor 100 ohm

Itead Gboard Pro 800 SIM800 GSM / GPRS Module 3.3v ATmega2560 Mainboard For Arduino Starter

Hand tools and fabrication machines

Soldering iron (generic)

Solder Wire, Lead Free

Digilent Mastech MS8217 Autorange Digital Multimeter

Story

When the technology is developed the smart home concept came to the picture as a way of simplifying the day to day activities. Even though the technology is interesting, the investment in such high-tech equipment is difficult for most of us. It is one side highly cost and you may need more technology and to do more research works.Therefore, it is more suitable to use low-cost DIY projects to fulfill the requirement. I am not going to cover all the areas of the Smart Home concept, but this would be more fun and use us to improve our knowledge as well as in the practice.This project is mainly built on the SIM 800 L GPRS/GSM module. This module can be used with a SIM card. All the code related to SIM 800L module can be downloaded from the link below.

You must insert the sim card to the correct Direction as shown in the sim card slot.The SIM 800L module is controlled by the Arduino programme. I have used ATMEGA 328p chip to control the module.

The Circuit Diagram as follow.

If you need more details about the project, you can watch the following video.

Power supply for testing

SIM 800L Wiring in details

THE BEST POWER SUPPLY FOR SIM 800For testing purposes, you can give the power to the module from the 5 volt pin of the arduino. But if you give separate power you have to regulate the voltage t 4.7 volt and it will be more efficient if you use the following module with 2A current.

OUTPUTS IN Different WAYS.I have used 5 output and LEDs are connected to testing purposes. But if you want to connect any other equipment, you can use the following circuit instead of the LEDs.Connection through a RELAYIf you connect a relay like this instead of LEDs, you can control most of devices even 230v requirements as well. Read the circuit well and understand the wiring.

Connection through an optocoupler

Connection through a MOSFET

You can change the codes to the following modifications1. Store the ON/OFF situation into the memory: Even the power is disconnected, the settings will be restored to the last situation2.Allow to send codes from any phoneand reply to a specific phone or to the same phone3.Allow to send codes from specific phoneand reply to a specific phone or to the same phone

DownloadLibraries:https://bit.ly/3n4wKrL

Code

Codes

#include <SoftwareSerial.h>
#include <Sim800l_EM.h>
Sim800l Sim800l;
unsigned long bauds = 9600;

String SMScontain; // SMS contain only
String SMSsender; // SMS sender's Name
String text; // Detail SMS
String ReadTXT ="Test" ;
int NUMSMS; //SMS storage
long MSGlen;
uint8_t SMS_QTY;
String dt;
uint8_t index=1;
bool error;
String ReadMsg;
int Switch_1 = 4;// Out Put Pins
int Switch_2 = 5;// Out Put Pins
int Switch_3 = 6;// Out Put Pins
int Switch_4 = 7;// Out Put Pins
int Switch_5 = 8;// Out Put Pins


void setup(){
  Serial.begin(bauds);
pinMode(Switch_1,OUTPUT);
pinMode(Switch_2,OUTPUT);
pinMode(Switch_3,OUTPUT);
pinMode(Switch_4,OUTPUT);
pinMode(Switch_5,OUTPUT);


  Sim800l.begin();
  delay(5000);
  Serial.print("Ready to Work");
}


void loop(){
//-------------------------------------------------------------
// Get SMS storage amount -------------------------------------
//-------------------------------------------------------------
Sim800l.AT();
delay(500);
//Serial.read();

int NUMSMS = Sim800l.getCountsms();
//SMScontain = Sim800l.readMSG(8);
//delay(500);
Serial.println(NUMSMS);
if (NUMSMS !=0 ){

//-------------------------------------------------------------

  SMScontain = Sim800l.readMSG(index); // Filter SMS contain
  SMScontain.trim();
  text = SMScontain;
  delay(1000);
  ReadTXT = text;

//-----------------------------------------------
 //===============================================
   if (text.length() > 0){ // GET SENDER NUMBER
 //===============================================

    SMSsender = Sim800l.getNumberSms(index);
    SMSsender =SMSsender.substring(0,12);
    SMSsender.trim();
    //Serial.println(SMSsender.length() );
    //Serial.println(text);
    Sim800l.delAllSms();
 //  SMSsender = "+12345678910" // If you want to get fead back to a perticular number
//-----------------------------------------------
// FILTER MSG CONTAIN----------------------------
//-----------------------------------------------

if (SMScontain.length() > 0){
Serial.print("SMSsender: ");
Serial.println(SMSsender);
Serial.print("SMS : ");
Serial.println(SMScontain);
}
//----------------------------------------------

}  //===============================================

} // END ------------------------------------>


//*************************************************
//ON OFF by SMS Switch 1----------------------------------
//*************************************************

if (SMScontain == "ON 1"){
digitalWrite(Switch_1,HIGH);
error=Sim800l.sendSms(SMSsender,"Switch 01 ON"); // Active if you want a feadback
delay(500);}
else if (SMScontain == "OFF 1"){
digitalWrite(Switch_1,LOW);
error=Sim800l.sendSms(SMSsender,"Switch 01 OFF"); // Active if you want a feadback
delay(500);}
//*************************************************
//*************************************************
//ON OFF by SMS Switch 2----------------------------------
//*************************************************

if (SMScontain == "ON 2"){
digitalWrite(Switch_2,HIGH);
error=Sim800l.sendSms(SMSsender,"Switch 02 ON"); // Active if you want a feadback
delay(500);}
else if (SMScontain == "OFF 2"){
digitalWrite(Switch_2,LOW);
error=Sim800l.sendSms(SMSsender,"Switch 02 OFF"); // Active if you want a feadback
delay(500);}
//*************************************************

//*************************************************
//ON OFF by SMS Switch 3----------------------------------
//*************************************************

if (SMScontain == "ON 3"){
digitalWrite(Switch_3,HIGH);
error=Sim800l.sendSms(SMSsender,"Switch 03 ON"); // Active if you want a feadback
delay(500);}
else if (SMScontain == "OFF 3"){
digitalWrite(Switch_3,LOW);
error=Sim800l.sendSms(SMSsender,"Switch 03 OFF"); // Active if you want a feadback
delay(500);}
//*************************************************

//*************************************************
//ON OFF by SMS Switch 4----------------------------------
//*************************************************

if (SMScontain == "ON 4"){
digitalWrite(Switch_4,HIGH);
error=Sim800l.sendSms(SMSsender,"Switch 04 ON"); // Active if you want a feadback
delay(500);}
else if (SMScontain == "OFF 4"){
digitalWrite(Switch_4,LOW);
error=Sim800l.sendSms(SMSsender,"Switch 04 OFF"); // Active if you want a feadback
delay(500);}
//*************************************************


//*************************************************
//ON OFF by SMS Switch 5----------------------------------
//*************************************************

if (SMScontain == "ON 5"){
digitalWrite(Switch_5,HIGH);//error=Sim800l.sendSms(SMSsender,"Switch 05 ON"); // Active if you want a feadback
delay(500);}
else if (SMScontain == "OFF 5"){
digitalWrite(Switch_5,LOW);
error=Sim800l.sendSms(SMSsender,"Switch 05 OFF"); // Active if you want a feadback
delay(500);}
//*************************************************

//*************************************************
//ON OFF by SMS all----------------------------------
//*************************************************

if (SMScontain == "ON ALL"){
digitalWrite(Switch_1,HIGH);
digitalWrite(Switch_2,HIGH);
digitalWrite(Switch_3,HIGH);
digitalWrite(Switch_4,HIGH);
digitalWrite(Switch_5,HIGH);
error=Sim800l.sendSms(SMSsender,"ALL Switch ON"); // Active if you want a feadback
delay(500);}
else if (SMScontain == "OFF ALL"){
digitalWrite(Switch_1,LOW);
digitalWrite(Switch_2,LOW);
digitalWrite(Switch_3,LOW);
digitalWrite(Switch_4,LOW);
digitalWrite(Switch_5,LOW);
error=Sim800l.sendSms(SMSsender,"ALL Switch OFF"); // Active if you want a feadback
delay(500);}
//*************************************************

//Clear Data
SMSsender ="";
SMScontain="";
text="";
if (NUMSMS >1){
Sim800l.delAllSms();}

} //END Void Loop
