Arduino Mega Chess

Chess processor with GUI dedicated for Arduino Mega.

IntermediateShowcase (no instructions)21,987

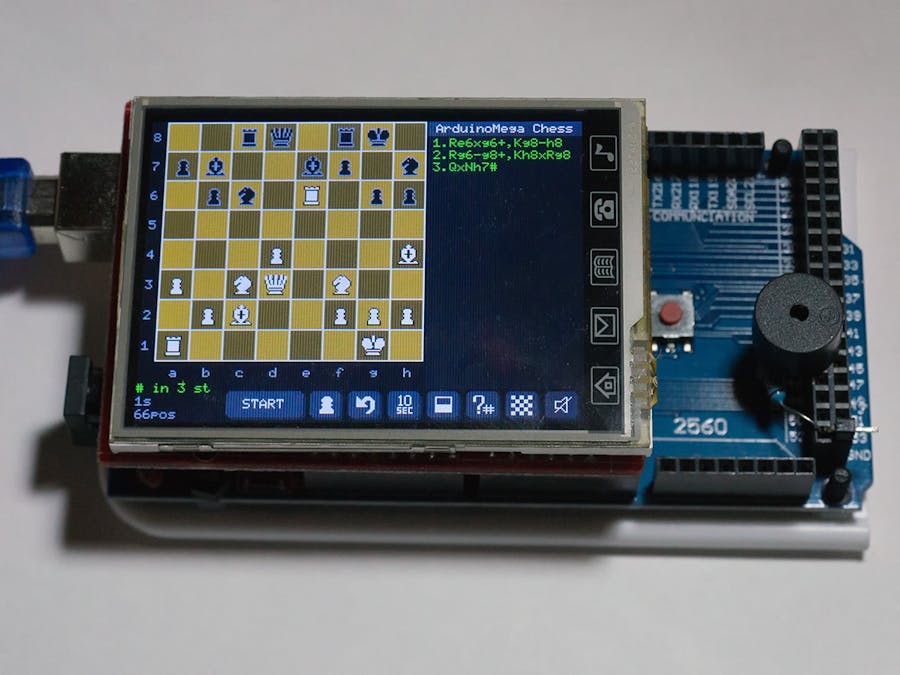

Arduino Mega Chess

Things used in this project

Hardware components

Arduino Mega 2560 & Genuino Mega 2560
Arduino Mega 2560 & Genuino Mega 2560
×1
2.8" TFT LCD Touch Screen Expansion Shield w/ Touch Pen for Arduino
×1
Buzzer
Buzzer
×1
Resistor 100 ohm
Resistor 100 ohm
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

Buzzer connection scheme

About schematic - display with touchscreen just plugged into arduino slot. Buzzer connected to the digital pin d44 with its plus clemme, and opposite to the ground through 100 Om resistor.
Arduinomega chess cheme yd60a9cuh8

Code

ArduinoMega Chess 1.0

Arduino
//ArduinoMega Chess 1.0
//Sergey Urusov, ususovsv@gmail.com

#include <Adafruit_TFTLCD.h>
#include <stdint.h>
#include "TouchScreen.h"
#include <avr/pgmspace.h>
#include <EEPROM.h>


uint16_t BLACK,BLUE,RED,GREEN,CYAN,MAGENTA,YELLOW,WHITE,GRAY,DARK,GRAY2,BLACKF,WHITEF;
Adafruit_TFTLCD tft;
#define YP A1  // must be an analog pin, use "An" notation!
#define XM A2  // must be an analog pin, use "An" notation!
#define YM 7   // can be a digital pin
#define XP 6   // can be a digital pin
TouchScreen ts = TouchScreen(XP, YP, XM, YM, 350);
int touchx,touchy,touchx0,touchy0,ntouch;
unsigned long lasttouch;
#define MINPRESSURE 10
#define MAXPRESSURE 1000
const int PinBuzz = 44;
int cycle=0; //
const char fp=1;
const char fn=2;
const char fb=3;
const char fr=4;
const char fq=5;
const char fk=6;
const int fig_weight[]={0,100,320,330,500,900,0};
const char fig_symb[]="  NBRQK";
unsigned long count;
boolean rotate=false;
const char polezero[8][8] PROGMEM={
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             };
const char polestart[8][8] PROGMEM={
             {-fr,-fn,-fb,-fq,-fk,-fb,-fn,-fr},
             {-fp,-fp,-fp,-fp,-fp,-fp,-fp,-fp},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             { fp, fp, fp, fp, fp, fp, fp, fp},
             { fr, fn, fb, fq, fk, fb, fn, fr},
             };

char pole[8][8]={ //  3
             {-fr,-fn,-fb,-fq,-fk,-fb,-fn,-fr},
             {-fp,-fp,-fp,-fp,-fp,-fp,-fp,-fp},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             { fp, fp, fp, fp, fp, fp, fp, fp},
             { fr, fn, fb, fq, fk, fb, fn, fr},
             };

char pole0[8][8];  //
char poledisp[8][8]; //
char polechoice[7]; //
boolean w00,w000,b00,b000;
char blinkstep;
typedef struct {
  char fig1, fig2; //
  char x1,y1,x2,y2; //
  char check; //
  char type; //  1-  ,2- ,3- ,4-5-6-7-  ,,,
  int weight; // ,
} step_type;
const int MAXSTEPS=500; //.
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
int MINDEPTH; //.
int MAXDEPTH; //.
int LIMDEPTH; //.
const char MAXCUTS=10; //.. -  - (10-  ,  20)
boolean TRACE=0;
boolean checkmatesearch=0; //
boolean solving=false;
boolean choice=false;
boolean sound=0;
int cur_step=1; //  , 1....
int limit=0; //  , 0-6;
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
const long limits[7]={10,30,60,180,600,1800,100000};
//                     0  1  2   3   4    5      6
step_type steps[MAXSTEPS]; //
step_type cuts[MAXCUTS]; //  -
step_type lastbest;
int lastscore;
int minbeta,maxalpha;
int startweight;
int cur_level; //   ()
int start_var; //   , 1....
int cur_var; //  , 1....
int cur_choice; //
boolean check_on_table; //
boolean isstatus;
char WKJ=0,WKI=0,BKJ=0,BKI=0; //
boolean endspiel=false; //
char progress; //   0-100
boolean only_action=false; // -
unsigned long starttime,limittime,quitime=0;
boolean drag;
const uint8_t fig[6][32] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x3,  0xC0, 0x7,  0xE0, 0x7,  0xE0, 0x3,  0xC0, 0x3,  0xC0,
0x7,  0xE0, 0x3,  0xC0, 0x3,  0xC0, 0x7,  0xE0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0x0,  0x0}, //
{0x0, 0x0,  0x3,  0x40, 0x7,  0xE0, 0xF,  0xF0, 0x1F, 0xF8, 0x3F, 0xFC, 0x39, 0xFC, 0x33, 0xFC,
0x7,  0xFC, 0xF,  0xF8, 0xF,  0xF0, 0x7,  0xE0, 0x3,  0xC0, 0x7,  0xE0, 0x1F, 0xF8, 0x0,  0x0},  //
{0x1, 0x80, 0x3,  0xC0, 0x1,  0x80, 0xF,  0xF0, 0x1F, 0xF8, 0x1F, 0xF8, 0x1F, 0xF8, 0x1F, 0xF8,
0x1F, 0xF8, 0x1F, 0xF8, 0xF,  0xF0, 0x7,  0xE0, 0x3,  0xC0, 0x31, 0x8C, 0x7F, 0xFE, 0x0,  0x0}, //
{0x0, 0x0,  0x19, 0x98, 0x1F, 0xF8, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0,
0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0x1F, 0xF8, 0x1F, 0xF8, 0x0,  0x0}, //
{0x19, 0x98, 0xD9, 0x9B, 0xD9, 0x9B, 0xD9, 0x9B, 0x6D, 0xB6, 0x6D, 0xB6, 0x6D, 0xB6, 0x35, 0xAC,
0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x1F, 0xF8, 0xF,  0xF0, 0xF,  0xF0, 0x1F, 0xF8, 0x0,  0x0}, //
{0x1, 0x80, 0x1,  0x80, 0x79, 0x9E, 0x7D, 0xBE, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0x7F, 0xFE, 0x3F, 0xFC, 0x3F, 0xFC, 0x1F, 0xF8, 0xF,  0xF0, 0xF,  0xF0, 0x1F, 0xF8, 0x0,  0x0}  //
};
const uint8_t fig_cont[6][32] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x3,  0xC0, 0x4,  0x20, 0x8,  0x10, 0x8,  0x10, 0x4,  0x20, 0x4,  0x20,
0x8,  0x10, 0x4,  0x20, 0x4,  0x20, 0x8,  0x10, 0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x1F, 0xF8}, //
{0x3, 0x40, 0x4,  0xA0, 0x8,  0x10, 0x12, 0x8,  0x20, 0x4,  0x40, 0x2,  0x46, 0x2,  0x4C, 0x2,
0x38, 0x2,  0x10, 0x4,  0x10, 0x8,  0x8,  0x10, 0x4,  0x20, 0x18, 0x18, 0x20, 0x4,  0x3F, 0xFC},  //
{0x2, 0x40, 0x4,  0x20, 0x6,  0x60, 0x10, 0x8,  0x21, 0x84, 0x21, 0x84, 0x21, 0x84, 0x27, 0xE4,
0x21, 0x84, 0x21, 0x84, 0x11, 0x88, 0x8,  0x10, 0x34, 0x2C, 0x4E, 0x72, 0x80, 0x1,  0xFF, 0xFF}, //
{0x39, 0x9C, 0x26, 0x64, 0x20, 0x4,  0x1F, 0xF8, 0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x10, 0x8,
0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x1F, 0xF8, 0x20, 0x4,  0x20, 0x4,  0x3F, 0xFC}, //
{0x22, 0x24, 0x22, 0x24, 0x22, 0x24, 0x26, 0x64, 0x92, 0x49, 0x92, 0x49, 0x92, 0x49, 0x4A, 0x52,
0x40, 0x2,  0x40, 0x2,  0x5F, 0xFA, 0x20, 0x4,  0x1F, 0xF8, 0x10, 0x8,  0x20, 0x4,  0x3F, 0xFC}, //
{0x2, 0x40, 0x7A, 0x5E, 0x86, 0x61, 0x82, 0x41, 0x2,  0x40, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80,
0x80, 0x81, 0x41, 0x82, 0x5F, 0xFA, 0x20, 0x4,  0x1F, 0xF8, 0x10, 0x8,  0x20, 0x4,  0x3F, 0xFC}  //
};

const uint8_t issound[2][32] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x32, 0x0,  0x54, 0x0,  0x98, 0x1F, 0x10, 0x10, 0x30, 0x10, 0x50,
0x10, 0x90, 0x11, 0x10, 0x1F, 0x10, 0x4,  0x90, 0x8,  0x50, 0x10, 0x30, 0x0,  0x0,  0x0,  0x0},
{0x0, 0x0,  0x0,  0x0,  0x0,  0x30, 0x0,  0x50, 0x0,  0x90, 0x1F, 0x10, 0x10, 0x10, 0x10, 0x10,
0x10, 0x10, 0x10, 0x10, 0x1F, 0x10, 0x0,  0x90, 0x0,  0x50, 0x0,  0x30, 0x0,  0x0,  0x0,  0x0}
};
const uint8_t iswb[2][32] PROGMEM={
{0x0,  0x0,  0x0,  0x0,  0x3,  0xC0, 0x4,  0x20, 0x8,  0x10, 0x8,  0x10, 0x4,  0x20, 0x4,  0x20,
0x8,  0x10, 0x4,  0x20, 0x4,  0x20, 0x8,  0x10, 0x10, 0x8,  0x10, 0x8,  0x1F, 0xF8, 0x0,  0x0},
{0x0,  0x0,  0x0,  0x0,  0x3,  0xC0, 0x7,  0xE0, 0xF,  0xF0, 0xF,  0xF0, 0x7,  0xE0, 0x7,  0xE0,
0xF,  0xF0, 0x7,  0xE0, 0x7,  0xE0, 0xF,  0xF0, 0x1F, 0xF8, 0x1F, 0xF8, 0x1F, 0xF8, 0x0,  0x0}
};
const uint8_t iscm[2][32] PROGMEM={
{0x0, 0x0,  0x7,  0xE0, 0xC,  0x30, 0xC,  0x30, 0xC,  0x30, 0xC,  0x30, 0x0,  0x30, 0x0,  0x60,
0x0,  0xC0, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x0,  0x0,  0x1,  0x80, 0x1,  0x80, 0x0,  0x0},
{0x0,  0x0,  0x3F, 0x0,  0x61, 0x80, 0x61, 0x80, 0x61, 0x80, 0x61, 0x80, 0x1,  0x80, 0x3,  0x0,
0x6,  0x24, 0xC,  0x24, 0xC,  0xFF, 0xC,  0x24, 0x0,  0xFF, 0xC,  0x24, 0xC,  0x24, 0x0,  0x0}
};
const uint8_t islimit[7][32] PROGMEM={
{0x0, 0x0,  0x4,  0x70, 0xC,  0x88, 0x4,  0x88, 0x4,  0x88, 0x4,  0x88, 0x4,  0x88, 0x4,  0x88,
0xE,  0x70, 0x0,  0x0,  0x1D, 0xDC, 0x11, 0x10, 0x1D, 0xD0, 0x5,  0x10, 0x1D, 0xDC, 0x0,  0x0},
{0x0, 0x0,  0xC,  0x70, 0x12, 0x88, 0x2,  0x88, 0xC,  0x88, 0x2,  0x88, 0x2,  0x88, 0x12, 0x88,
0xC,  0x70, 0x0,  0x0,  0x1D, 0xDC, 0x11, 0x10, 0x1D, 0xD0, 0x5,  0x10, 0x1D, 0xDC, 0x0,  0x0},
{0x0, 0x0,  0x1,  0x80, 0x3,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80,
0x3,  0xC0, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0x3,  0xC0, 0x6,  0x60, 0x0,  0x60, 0x1,  0xC0, 0x0,  0x60, 0x6,  0x60, 0x6,  0x60,
0x3,  0xC0, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0xC,  0x78, 0x1C, 0xCC, 0xC,  0xCC, 0xC,  0xCC, 0xC,  0xCC, 0xC,  0xCC, 0xC,  0xCC,
0x1E, 0x78, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0x1C, 0x78, 0x36, 0xCC, 0x6,  0xCC, 0x1C, 0xCC, 0x6,  0xCC, 0x36, 0xCC, 0x36, 0xCC,
0x1C, 0x78, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x3C, 0x3C, 0x7E, 0x7E, 0x63, 0xC6, 0x61, 0x86,
0x63, 0xC6, 0x66, 0x66, 0x3C, 0x3C, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0}
};
const uint8_t isdesc[2][32] PROGMEM={
{0x0,  0x0,  0xE3, 0x8E, 0xE3, 0x8E, 0xE3, 0x8E, 0x1C, 0x70, 0x1C, 0x70, 0x1C, 0x70, 0xE3, 0x8E,
0xE3, 0x8E, 0xE3, 0x8E, 0x1C, 0x70, 0x1C, 0x70, 0x1C, 0x70, 0xE3, 0x8E, 0xE3, 0x8E, 0xE3, 0x8E},
{0x0,  0x0,  0x0,  0x4,  0x0,  0xE,  0x0,  0xE,  0x0,  0x1C, 0x0,  0x1C, 0x0,  0x38, 0x0,  0x30,
0x30, 0x70, 0x78, 0xE0, 0x3C, 0xC0, 0x1F, 0xC0, 0xF,  0x80, 0x7,  0x0,  0x2,  0x0,  0x0,  0x0}

};
const uint8_t isback[32] PROGMEM={
0x0,  0x0,  0x0,  0x0,  0x20, 0xF0, 0x31, 0xF8, 0x3B, 0xFC, 0x3F, 0x8E, 0x3F, 0xE,  0x3F, 0xE,
0x3F, 0x8E, 0x3F, 0xCE, 0x0,  0xE,  0x0,  0xE,  0x0,  0x1C, 0x0,  0x38, 0x0,  0x70, 0x0,  0x0
};
const uint8_t issave[32] PROGMEM={
0x1,  0x80, 0x3,  0xC0, 0x7,  0xE0, 0x7,  0xE0, 0x3,  0xC0, 0x3F, 0xFC, 0x23, 0xC4, 0x23, 0xC4,
0x23, 0xC4, 0x23, 0xC4, 0x23, 0xC4, 0x23, 0xC4, 0x20, 0x4,  0x20, 0x4,  0x3F, 0xFC, 0x0,  0x0
};
const uint8_t isload[32] PROGMEM={
0x0,  0x0,  0x3,  0xC0, 0x3,  0xC0, 0x3,  0xC0, 0x3,  0xC0, 0x3F, 0xFC, 0x23, 0xC4, 0x23, 0xC4,
0x23, 0xC4, 0x27, 0xE4, 0x27, 0xE4, 0x23, 0xC4, 0x21, 0x84, 0x20, 0x4,  0x3F, 0xFC, 0x0,  0x0
};
const uint8_t isempty[32] PROGMEM={
0xFF,  0xFF, 0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,
0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0xFF, 0xFF
};
const uint8_t isinit[32] PROGMEM={
0xFF,  0xFF, 0x80, 0x1,  0x80, 0x1,  0xFF, 0xFF, 0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,
0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF
};
const uint8_t isplay[32] PROGMEM={
0x0,  0x0,  0x3,  0xC0, 0x3,  0xC0, 0x3,  0xC0, 0x1,  0x80, 0x23, 0xF8, 0x17, 0xC8, 0xB,  0xC8,
0x3,  0xC0, 0x3,  0xC0, 0x2,  0x40, 0x4,  0x40, 0x4,  0x38, 0x4,  0x8,  0xC,  0x0,  0x0,  0x0
};
const uint8_t isrotate[2][32] PROGMEM={
{0x0,  0x0,  0x0,  0x0,  0x3F, 0xFC, 0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,
0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x0,  0x0,  0x0,  0x0},
{0x0, 0x0,  0x0,  0x0,  0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC,
0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x3F, 0xFC, 0x0,  0x0,  0x0,  0x0}
};

const int pos[7][8][8] PROGMEM={
 {{  0,  0,  0,  0,  0,  0,  0,  0}, //
  {100,100,100,100,100,100,100,100},  //{ 50, 50, 50, 50, 50, 50, 50, 50},
  { 20, 30, 40, 50, 50, 40, 30, 20},  //{ 10, 10, 20, 30, 30, 20, 10, 10},
  {  5,  5, 10, 25, 25, 10,  5,  5},
  {  0,  0,  0, 20, 20,  0,  0,  0},
  {  5, -5,-10,  0,  0,-10, -5,  5},
  {  5, 10, 10,-20,-20, 10, 10,  5},  //{  5, 10, 10,-20,-20, 10, 10,  5},
  {  0,  0,  0,  0,  0,  0,  0,  0}},

 {{-50,-40,-30,-30,-30,-30,-40,-50}, //
  {-40,-20,  0,  0,  0,  0,-20,-40},
  {-30,  0, 10, 15, 15, 10,  0,-30},
  {-30,  5, 15, 20, 20, 15,  5,-30},
  {-30,  0, 15, 20, 20, 15,  0,-30},
  {-30,  5, 10, 15, 15, 10,  5,-30},
  {-40,-20,  0,  5,  5,  0,-20,-40},
  {-50,-40,-30,-30,-30,-30,-40,-50}},

 {{-20,-10,-10,-10,-10,-10,-10,-20}, //
  {-10,  0,  0,  0,  0,  0,  0,-10},
  {-10,  0,  5, 10, 10,  5,  0,-10},
  {-10,  5,  5, 10, 10,  5,  5,-10},
  {-10,  0, 10, 10, 10, 10,  0,-10},
  {-10, 10, 10, 10, 10, 10, 10,-10},
  {-10,  5,  0,  0,  0,  0,  5,-10},
  {-20,-10,-10,-10,-10,-10,-10,-20}},

 {{  0,  0,  0,  0,  0,  0,  0,  0}, //
  {  5, 10, 10, 10, 10, 10, 10,  5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  {  0,  0,  0,  5,  5,  0,  0,  0}},

 {{-20,-10,-10, -5, -5,-10,-10,-20}, //
  {-10,  0,  0,  0,  0,  0,  0,-10},
  {-10,  0,  5,  5,  5,  5,  0,-10},
  { -5,  0,  5,  5,  5,  5,  0, -5},
  {  0,  0,  5,  5,  5,  5,  0, -5},
  {-10,  5,  5,  5,  5,  5,  0,-10},
  {-10,  0,  5,  0,  0,  0,  0,-10},
  {-20,-10,-10, -5, -5,-10,-10,-20}},

 {{-30,-40,-40,-50,-50,-40,-40,-30}, //
  {-30,-40,-40,-50,-50,-40,-40,-30},
  {-30,-40,-40,-50,-50,-40,-40,-30},
  {-30,-40,-40,-50,-50,-40,-40,-30},
  {-20,-30,-30,-40,-40,-30,-30,-20},
  {-10,-20,-20,-20,-20,-20,-20,-10},
  { 10, 10,-10,-10,-10,-10, 10, 10},  //{ 20, 20,  0,  0,  0,  0, 20, 20},
  { 10, 40, 30,  0,  0,  0, 50, 10}}, //{ 20, 30, 10,  0,  0, 10, 30, 20}},

 {{-50,-40,-30,-20,-20,-30,-40,-50}, //
  {-30,-20,-10,  0,  0,-10,-20,-30},
  {-30,-10, 20, 30, 30, 20,-10,-30},
  {-30,-10, 30, 40, 40, 30,-10,-30},
  {-30,-10, 30, 40, 40, 30,-10,-30},
  {-30,-10, 20, 30, 30, 20,-10,-30},
  {-30,-30,  0,  0,  0,  0,-30,-30},
  {-50,-30,-30,-30,-30,-30,-30,-50}}
};

//******
class Button {
public:
int bx,by,bw,bh,bshift;
String bs;
const uint8_t* bp;
 Button(int x,int y,int w,int h,String s,const uint8_t* p, int shift);
 void Show(int shift);
 void Show(String s);
 void Hide();
 boolean IsPressed(int xc, int yc);
private:
boolean active;
 void ishow(uint16_t textcolor,uint16_t backcolor);
};
Button::Button(int x,int y,int w,int h,String s,const uint8_t* p=NULL, int shift=0) {
  bx=x; by=y; bw=w; bh=h; bs=s; bp=p; bshift=shift;
};
void Button::Show(int shift=0) {
 bshift=shift;
 active=true;
 ishow(WHITE,DARK);
};
void Button::Show(String s) {
 bs=s;
 active=true;
 ishow(WHITE,DARK);
};
void Button::Hide() {
 active=false;
 ishow(GRAY,DARK);
};
boolean Button::IsPressed(int xc, int yc) {
  if (active&&abs(bx+bw/2-xc)<bw/2&&abs(by+bh/2-yc)<bh/2) {
    ishow(WHITE,GRAY);
    touchx=0; touchy=0;
    return true;
  }
  return false;
};
void Button::ishow(uint16_t textcolor,uint16_t backcolor) {
  tft.fillRoundRect(bx+2,by+2,bw,bh,3,GRAY2);
  tft.fillRoundRect(bx,by,bw,bh,3,backcolor);
  tft.setTextColor(textcolor);
  tft.setTextSize(1);
  tft.setCursor(bx+(bw-bs.length()*6)/2,by+(bh-8)/2);
  if (bp!=NULL) {
   tft.drawBitmap(1+bx+(bw-16)/2, by+(bh-16)/2, bp+bshift*32, 16, 16,textcolor);
  }
  else  tft.print(bs);
}
Button BAction(65, 216, 55, 20, "START");
Button BBW(125, 216, 22, 20, "",&iswb[0][0]);
Button BBack(152, 216, 23, 20, "",&isback[0]);
Button BInit(152, 216, 23, 20, "",&isinit[0]);
Button BLimit(180, 216, 23, 20, "",&islimit[0][0]);
Button BEmpty(180, 216, 23, 20, "",&isempty[0]);
Button BRotate(208, 216, 23, 20, "",&isrotate[0][0]);
Button BPlay(208, 216, 23, 20, "",&isplay[0]);
Button BCM(236, 216, 23, 20, "",&iscm[0][0]);
Button BSave(236, 216, 23, 20, "",&issave[0]);
Button BDesc(264, 216, 23, 20, "",&isdesc[0][0]);
Button BSound(292, 216, 23, 20, "",&issound[0][0]);
Button BLoad(292, 216, 23, 20, "",&isload[0]);
//******
//**********************************
void drawBitmap(int16_t x, int16_t y,
            const uint8_t *bitmap, int16_t w, int16_t h,
            uint16_t color) {
  int16_t i, j, byteWidth = (w + 7) / 8;
  for(j=0; j<h; j++) {
    for(i=0; i<w; i++ ) {
      if(pgm_read_byte(bitmap + j * byteWidth + i / 8) & (128 >> (i & 7))) {
        tft.drawPixel(x+i, y+j, color);
      }
    }
  }
}
//****************************
void deletebuttons() {
  tft.fillRect(0,215,320,30,BLACK);
}

//****************************
void clearstatus() {
  tft.fillRect(0,210,60,30,BLACK);
  tft.drawFastHLine(5,210,200,BLACK);
  tft.drawFastHLine(5,212,200,BLACK);
}
//****************************
void setup() {
  Serial.begin(57600);
  Serial.println(F("Start"));
  pinMode(13, OUTPUT);
  tft.reset();
  tft.begin(tft.readID());
  tft.setRotation(1);
  definecolors();
  beep(100);
  for (int i=0;i<MAXSTEPS;i++) {
    steps[i].x1=0; steps[i].y1=0;
    steps[i].x2=0; steps[i].y2=0;
    steps[i].fig1=0; steps[i].fig2=0;
    steps[i].check=0;
    steps[i].type=0;
    steps[i].weight=0;
  }
  initboard();
}
//****************************
void initboard() {
  for (int i=0;i<8;i++)
   for (int j=0;j<8;j++) poledisp[j][i]=-100; //
  tft.fillScreen(BLACK);
  tft.setTextColor(GRAY);
  tft.setTextSize(1);
  for (int j=1;j<9;j++) {
   tft.setCursor(2,j*24-15);
   if (rotate) tft.print(j); else tft.print(9-j);
  }
  for (byte i=1;i<9;i++) {
   tft.setCursor(i*24-1,198);
   if (rotate) tft.print(char(96+9-i)); else tft.print(char(96+i));
  }
  initscreen();
}
//****************************
void initscreen() {
 show_board();
 show_steps();
 BAction.Show("START");
 BBW.Show(cur_step%2);
 if (cur_step>1) BBack.Show(); else BBack.Hide();
 BSave.Hide();
 BLoad.Hide();
 BInit.Hide();
 BBack.Show();
 BLimit.Show();
 BPlay.Hide();
 BRotate.Show(rotate);
 BEmpty.Hide();
 BLimit.Show(limit);
 BCM.Show(checkmatesearch);
 BDesc.Show(choice);
 BSound.Show(sound);
}
//****************************
void loop() {
  gui();
  if (solving) {
    int len=70;
    if (!sound) len=2;
    for (int i=1;i<4;i++) { tone(44,400+300*i,len); delay(70); }
    lastscore=solve_step();
    float tim=float(millis()-starttime)/1000;
    for (int i=3;i>=1;i--) { tone(44,400+300*i,len); delay(70); }
    if (!checkmatesearch&&lastscore>-9000&&lastscore!=8999) {
      movestep(cur_step);
      cur_step++; steps[cur_step].fig1=0;
    }
    initscreen();
    animate_step(cur_step-1,false);
    clearstatus();
    if (lastscore>9000) {
      tft.setTextSize(1);
      tft.setTextColor(GREEN);
      tft.setCursor(0,210);
      if (lastscore<9999) {
       tft.print("# in ");
       tft.print((9999-lastscore)/2+1); tft.print(F(" st"));
      } else tft.print("Checkmate");
    } else if (lastscore<-9000) {
      tft.setTextSize(1);
      tft.setTextColor(RED);
      tft.setCursor(0,210);
      tft.print("GIVE UP!");
      show_steps();
    } else if (lastscore==8999) { //Draw
      tft.setTextSize(1);
      tft.setTextColor(YELLOW);
      tft.setCursor(0,210);
      tft.print("Draw");
    }
    tft.setTextSize(1);
    tft.setTextColor(GRAY);
    tft.setCursor(0,220);
    tft.print(tim,0);
    tft.print("s ");
    if (abs(lastscore)<5000) {
     tft.print(lastscore);
    }
    tft.setCursor(0,230);
    tft.print(count);
    tft.print("pos");
    Serial.print(F("Positions estimated=")); Serial.println(count);
    Serial.print(F("Time=")); Serial.print(tim,1); Serial.println("s");
  }
  delay(10);


}

//**********************************
void load_choice() {
  for (int i=0;i<7;i++)
   if (cur_step%2==1) polechoice[i]=i; else polechoice[i]=-i;
}
//**********************************
void show_choice() {
uint16_t color,color_cont;
  for (int i=0;i<7;i++) {
    color=BLACKF;
    if (i%2==0) color=WHITEF;
    tft.fillRect(260,i*25+35,25,25,color);
    color=DARK;
    if (i==cur_choice) color=WHITE;
    tft.drawRect(260,i*25+35,25,25,color);
    color=BLACK; color_cont=GRAY;
    if (polechoice[i]>0) { color=WHITE; color_cont=BLACK; }
    if (polechoice[i]!=0) {
     drawBitmap(264, i*25+39,&fig[abs(polechoice[i])-1][0], 16, 16,color);
     drawBitmap(264, i*25+39,&fig_cont[abs(polechoice[i])-1][0], 16, 16,color_cont);
    }
  }
}
//**********************************
void animate_step(int nstep, boolean hide) {
 if (!hide&&nstep-1>0&&steps[nstep-1].fig1!=0) animate_step(nstep-1,true);
 if (nstep-1<1||steps[nstep].fig1==0) return;
 int j=steps[nstep].x1;
 int dj=steps[nstep].x2-steps[nstep].x1;
 int i=steps[nstep].y1;
 int di=steps[nstep].y2-steps[nstep].y1;
 di=di/abs(di); dj=dj/abs(dj);
 if (hide) show_fig(i,j);
 while (j!=steps[nstep].x2||i!=steps[nstep].y2) {
  show_fig(i,j);
  if (!hide)
   if (!rotate) tft.drawRect(i*24+13,j*24+1,23,23,WHITE);
    else tft.drawRect((7-i)*24+13,(7-j)*24+1,23,23,WHITE);
  int mj=0;
  if (j!=steps[nstep].x2) { j+=dj; mj=1; }
  if (abs(steps[nstep].fig1)==fn&&mj==1) continue;
  if (i!=steps[nstep].y2) i+=di;
 }
 show_fig(i,j);
 if (!hide)
  if (!rotate) tft.drawRect(i*24+13,j*24+1,23,23,WHITE);
   else tft.drawRect((7-i)*24+13,(7-j)*24+1,23,23,WHITE);
}
//**********************************
boolean load_usb() {
char s='x',i=0,j=0;  boolean load=false;
  Serial.println(F("Wait for FEN position"));
  for (int i=0;i<8;i++)
      for (int j=0;j<8;j++) {
        pole0[j][i]=pole[j][i];
        pole[j][i]=(char)pgm_read_byte(&polezero[j][i]);
      }
  while (s!=' ') {
    s=Serial.read();
    if (i>7) { i=0; j++; }
    if (!getpole(j,i)) break;
    switch (s) {
    case '/': i=0; break;
    case 'p': pole[j][i]=-fp; i++; break;
    case 'P': pole[j][i]=fp; i++; break;
    case 'n': pole[j][i]=-fn; i++; break;
    case 'N': pole[j][i]=fn; i++; break;
    case 'b': pole[j][i]=-fb; i++; break;
    case 'B': pole[j][i]=fb; i++; break;
    case 'r': pole[j][i]=-fr; i++; break;
    case 'R': pole[j][i]=fr; i++; break;
    case 'q': pole[j][i]=-fq; i++; break;
    case 'Q': pole[j][i]=fq; i++; break;
    case 'k': pole[j][i]=-fk; i++; break;
    case 'K': pole[j][i]=fk; i++; break;
    case '1': i++; break;
    case '2': i+=2; break;
    case '3': i+=3; break;
    case '4': i+=4; break;
    case '5': i+=5; break;
    case '6': i+=6; break;
    case '7': i+=7; break;
    case '8': i=0; j++; break;
    case ' ': break;
    }
    delay(20);
    if (i+j>0&&Serial.available()==0) break;
  }
  s=0;
  if (Serial.available()>0) s=Serial.read();
  while (Serial.available()>0) Serial.read();
  if (s=='w'||s==0) { cur_step=1; load=true; }
   else if (s=='b') { cur_step=2; load=true; }
     else load=false;
  if (load) {
     steps[1].fig1=0; steps[2].fig1=0;
     Serial.println(F("Position loaded"));
  } else {
    for (int i=0;i<8;i++)
      for (int j=0;j<8;j++)
        pole[j][i]=pole0[j][i];
  }
  return load;
}
//**********************************
void play() {
 BAction.Show("STOP");
 BSave.Hide();
 BBW.Hide();
 BLoad.Hide();
 BInit.Hide();
 BPlay.Hide();
 BEmpty.Hide();
 BDesc.Hide();
 clearstatus();
 for (int i=cur_step-1;i>0;i--) {
  if (steps[i].fig1!=0) backstep(i);
 }
 show_board();
 show_steps();
 boolean st=false;
 unsigned long tim=millis();
 int i=1;
 while (i<cur_step) {
  if (steps[i].fig1!=0) movestep(i);
  digitalWrite(13, HIGH);
  TSPoint p = ts.getPoint();
  digitalWrite(13, LOW);
  pinMode(XM, OUTPUT);
  pinMode(YP, OUTPUT);
  int x=388-p.y/2.4;
  int y=p.x/3.2-50;
  if (p.z>MINPRESSURE&&p.z<MAXPRESSURE)
    if (BAction.IsPressed(x,y)) { st=true; BAction.Show(); }
  if (millis()-tim>2000||st) {
    tim=millis();
    i++;
    show_board();
    beep(20);
  }
 }
 choice=0;
 beep(200);
 kingpositions();
 clearstatus();
 initscreen();
}
//**********************************
void gui() {
  digitalWrite(13, HIGH);
  TSPoint p = ts.getPoint();
  digitalWrite(13, LOW);
  // if sharing pins, you'll need to fix the directions of the touchscreen pins
  pinMode(XM, OUTPUT);
  pinMode(YP, OUTPUT);
  int x=388-p.y/2.4;
  int y=p.x/3.2-50;
  if (((abs(x-touchx)>5||abs(y-touchy)>5)||drag)&&p.z>MINPRESSURE&&p.z<MAXPRESSURE) {
    touchx=x;
    touchy=y;
    if (solving) {
      if (BAction.IsPressed(x,y)) { //
        beep(100);
        solving=false;
        BAction.Show("stopping");
        BAction.Hide();
        return;
      }
    } else { //not solve
      if (BAction.IsPressed(x,y)) { //
       if (!choice) {
        delay(100);
        solving=true;
        BAction.Show();
        animate_step(cur_step-1,true);
        return;
       } else { //   USB
        delay(100);
        BAction.Hide();
        BSave.Hide();
        BBW.Hide();
        BLoad.Hide();
        BInit.Hide();
        BPlay.Hide();
        BEmpty.Hide();
        BDesc.Hide();
        show_steps();
        choice=0;
        if (!load_usb()) return;
        beep(200);
        kingpositions();
        clearstatus();
        initscreen();
       }
      } else if (BBW.IsPressed(x,y)) {   //-
       beep(100);
       if (cur_step==1) cur_step=2;
        else if (cur_step==2) cur_step=1;
         else if (cur_step%2==0) cur_step--; else cur_step++;
       BBW.Show(cur_step%2);
       if (choice) { load_choice(); show_choice(); }
       return;
      } else if (cur_step>1&&BBack.IsPressed(x,y)) {  //
       beep(100);
       cur_step--;
       animate_step(cur_step,true);
       lastscore=0;
       backstep(cur_step);
       steps[cur_step].fig1=0;
       show_board();
       show_steps();
       if (cur_step>1) BBack.Show(); else BBack.Hide();
       BBW.Show(cur_step%2);
       clearstatus();
       return;
      } else if (BLimit.IsPressed(x,y)) {    //
       beep(100);
       limit++; if (limit>6) limit=0;
       BLimit.Show(limit);
       return;
      } else if (BCM.IsPressed(x,y)) {   //
       beep(100);
       checkmatesearch=!checkmatesearch;
       BCM.Show(checkmatesearch);
       if (!checkmatesearch) steps[cur_step].fig1=0;
       lastscore=0;
       show_steps();
       return;
      } else if (BRotate.IsPressed(x,y)) {   //
       beep(100);
       rotate=!rotate;
       BRotate.Show(rotate);
       initboard();
       return;
      } else if (BSound.IsPressed(x,y)) {   //
       if (sound==1) { beep(100); sound=0; } else { sound=1; beep(200); }
       BSound.Show(sound);
       return;
      } else if (BDesc.IsPressed(x,y)) {  //
       beep(100);
       if (!choice) {
        choice=1;
        cur_choice=1;
        load_choice();
        show_choice();
        BAction.Show("USB(FEN)");
        BBack.Hide();
        BInit.Show();
        BSave.Show();
        BLimit.Hide();
        BEmpty.Show();
        BRotate.Hide();
        BPlay.Show();
        BCM.Hide();
        BSound.Hide();
        BSave.Show();
        BLoad.Show();
       } else {
        choice=0;
        lastscore=0;
        clearstatus();
        kingpositions();
        initscreen();
       }
       BDesc.Show(choice);
       return;
      } else if (BInit.IsPressed(x,y)) {  //
        beep(200);
        cur_step=1;
        steps[1].fig1=0;
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) pole[j][i]=(char)pgm_read_byte(&polestart[j][i]);
        choice=0;
        kingpositions();
        clearstatus();
        initscreen();
      } else if (BEmpty.IsPressed(x,y)) {  //
        beep(200);
        cur_step=1;
        clearstatus();
        steps[1].fig1=0; steps[2].fig1=0;
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) pole[j][i]=(char)pgm_read_byte(&polezero[j][i]);
        BEmpty.Show();
        show_board();
      } else if (BSave.IsPressed(x,y)) {
        beep(100);
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) EEPROM.write(i*8+j,pole[j][i]);
        EEPROM.put(64,cur_step);
        EEPROM.put(66,limit);
        for (int i=1;i<cur_step;i++) {
          EEPROM.put(66+i*10,steps[i]);
        }
        BSave.Show();
      } else if (BLoad.IsPressed(x,y)) {
        beep(200);
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) pole[j][i]=EEPROM.read(i*8+j);
        EEPROM.get(64,cur_step);
        if (cur_step<0||cur_step>400) cur_step=1;
        EEPROM.get(66,limit);
        if (limit<0||limit>6) limit=2;
        for (int i=1;i<cur_step;i++) {
          EEPROM.get(66+i*10,steps[i]);
        }
        steps[0].fig1=0;
        steps[cur_step].fig1=0;
        choice=0;
        kingpositions();
        clearstatus();
        initscreen();
      } else if (BPlay.IsPressed(x,y)) {    //
       beep(100);
       BPlay.Show();
       play();
       return;
      }
      if (!choice&&ntouch==0) {
       touchx0=touchx;
       touchy0=touchy;
       char x1=touchy0/24;
       char y1=(touchx0-10)/24;
       if (rotate) { x1=7-x1; y1=7-y1; }
       if (getpole(y1,x1)&&(cur_step%2==1&&pole[x1][y1]>0||cur_step%2==0&&pole[x1][y1]<0)) {
        char p=pole[x1][y1];
        drag=true;
        pole[x1][y1]=0;
        show_fig(y1,x1);
        pole[x1][y1]=p;
       } else drag=false;
      }
      ntouch++;
      if (drag&&ntouch>1) {
          uint16_t buf[256];
          int x1=touchy0/24;
          int y1=(touchx0-10)/24;
          if (rotate) { x1=7-x1; y1=7-y1; }
          if (abs(pole[x1][y1])>0&&(cur_step%2==1&&pole[x1][y1]>0||cur_step%2==0&&pole[x1][y1]<0)) {
          for (int i=0;i<16;i++)
            for (int j=0;j<16;j++) buf[i*16+j]=tft.readPixel(touchx-8+i,touchy-8+j);
          buf[0]=tft.readPixel(touchx-8,touchy-8);
          uint16_t color,color_cont;
          color=BLACK; color_cont=GRAY;
          if (pole[x1][y1]>0) { color=WHITE; color_cont=BLACK; }
          drawBitmap(touchx-8, touchy-8,&fig[abs(pole[x1][y1])-1][0], 16, 16,color);
          drawBitmap(touchx-8, touchy-8,&fig_cont[abs(pole[x1][y1])-1][0], 16, 16,color_cont);
          delay(30);
          for (int i=0;i<16;i++)
            for (int j=0;j<16;j++) tft.drawPixel(touchx-8+i,touchy-8+j,buf[i*16+j]);
          }
      } else if (choice) {
        int x1=touchy/24;
        int y1=(touchx-10)/24;
        if (rotate) { x1=7-x1; y1=7-y1; }
        if (touchy+touchx!=0&&choice&&getpole(y1,x1)) {
         pole[x1][y1]=polechoice[cur_choice];
         show_board();
        }
        if (touchx>=260&&touchx<=285&&touchy>=35&&touchy<=210) {
         cur_choice=(touchy-35)/25;
         show_choice();
        }
      }
      lasttouch=millis();
    } //not solve
    if (!drag) { beep(10); ntouch=0; animate_step(cur_step-1,true); }
  } else { //touching
    if (!solving&&!choice&&drag!=0&&ntouch>0&&p.z<MINPRESSURE&&millis()-lasttouch>300) { //drag
     char x1=touchy0/24;
     char y1=(touchx0-10)/24;
     char x2=touchy/24;
     char y2=(touchx-10)/24;
     if (rotate) { x1=7-x1; y1=7-y1; x2=7-x2; y2=7-y2; }
     if (getpole(y1,x1)) show_fig(y1,x1);
     if (getpole(y1,x1)&&getpole(y2,x2)) {
       start_var=cur_step+1;
       only_action=false;
       load_variants(cur_step);
       for (int i=cur_step+1;i<cur_step+cur_var+1;i++)
        if (steps[i].x1==x1&&steps[i].y1==y1&&steps[i].x2==x2&&steps[i].y2==y2) {
         steps[cur_step]=steps[i];
         movestep(cur_step); cur_step++; steps[cur_step].fig1=0;
         int len=100;
         if (!sound) len=2;
         for (int i=2;i>=1;i--) { tone(44,400+300*i,len); delay(100); }
         initscreen();
         animate_step(cur_step-1,false);
         break;
        }
     } else {
      beep(10);
     }
     ntouch=0;
     drag=false;
    }
  }
  if (millis()-quitime>1000) {
    if (isstatus) show_status();
    quitime=millis();
  }


}
//**********************************
void show_status() {
   int tim=(millis()-starttime)/1000;
   int cur=200000*tim/(limittime-starttime);
   if (cur>200) { cur=200; solving=false; }
   tft.drawFastHLine(5,210,cur,GRAY);
   tft.drawFastHLine(5,212,progress*2,GRAY);
   int m=tim/60;
   int s=tim%60;
   tft.setTextWrap(1);
   tft.setTextColor(GRAY);
   tft.setTextSize(1);
   tft.fillRect(0,220,60,10,BLACK);
   tft.setCursor(2,220);
   if (m>0) { tft.print(m); tft.print(":"); }
   if (s>0) {
    if (s<10&&m>0) tft.print("0");
    tft.print(s);
   } else if (m>0) tft.print("00"); else tft.print("0");
   tft.setCursor(36,220);
   tft.print(cur_level);

   tft.setCursor(2,230);
   if (cur_step%2==1) tft.setTextColor(WHITE); else tft.setTextColor(GRAY);
   if (lastbest.fig1!=steps[0].fig1||lastbest.x1!=steps[0].x1||lastbest.y1!=steps[0].y1||
       lastbest.x2!=steps[0].x2||lastbest.y2!=steps[0].y2) {
     beep(10);
     lastbest=steps[0];
     tft.fillRect(0,230,50,10,BLACK);
     tft.setCursor(2,230);
     tft.print(str_step(0));
     blinkstep=0;
   }
   if (steps[0].fig1!=0&&blinkstep==0&&tim>5) {
    char poleb[8][8];
    for (int i=0;i<8;i++)
     for (int j=0;j<8;j++) { poleb[j][i]=pole[j][i]; pole[j][i]=pole0[j][i]; }
    movestep(0);
    show_board();
    delay(100);
    backstep(0);
    show_board();
    for (int i=0;i<8;i++)
     for (int j=0;j<8;j++) pole[j][i]=poleb[j][i];
    kingpositions();
   }
   blinkstep++;
   if (blinkstep>2) blinkstep=0;
}
//****************************
void beep(int leng) {
  analogWrite(PinBuzz, 20);
  delay(2);
  if (!sound) analogWrite(PinBuzz, 0);
  delay(leng);
  analogWrite(PinBuzz, 0);
}
//****************************
void definecolors() {
 BLACK  =0x0000;
 BLUE   =0x07FF;  //0x001F;
 RED    =0xF800;
 GREEN  =0x07E0;
 CYAN   =0x07FF;
 MAGENTA=0xF81F;
 YELLOW =0xFFE0;
 WHITE  =0xFFFF;
 GRAY   =0x7BEF;
 DARK   =getColor(32,32,32);
 GRAY2   =getColor(16,16,16);
 BLACKF  =getColor(94,58,0);
 WHITEF  =getColor(180,114,0);
}
//****************************
uint16_t getColor(uint8_t red, uint8_t green, uint8_t blue)
{
  red   >>= 3;
  green >>= 2;
  blue  >>= 3;
  return (red << 11) | (green << 5) | blue;
}
//****************************
void show_fig(int i,int j) {
uint16_t color,color_cont;
   color=BLACKF;
   if ((i+j+2)%2==0) color=WHITEF;
   int jj=j, ii=i;
   if (rotate) { jj=7-j; ii=7-i; }
   tft.fillRect(ii*24+12,jj*24,25,25,color);
   tft.drawRect(ii*24+12,jj*24,25,25,WHITE);
   color=BLACK; color_cont=GRAY;
   if (pole[j][i]>0) { color=WHITE; color_cont=BLACK; }
   if (pole[j][i]!=0) {
    drawBitmap(ii*24+17, jj*24+5,&fig[abs(pole[j][i])-1][0], 16, 16,color);
    drawBitmap(ii*24+17, jj*24+5,&fig_cont[abs(pole[j][i])-1][0], 16, 16,color_cont);
   }
}
//****************************
void show_board() {
 for (int i=0;i<8;i++)
  for (int j=0;j<8;j++) {
    if (poledisp[j][i]!=pole[j][i]) show_fig(i,j);
    poledisp[j][i]=pole[j][i];
  }
}
//****************************
String str_step(int i) {
  String s="";
   if (steps[i].fig1==0) return s;
   if (steps[i].type==2) s="0-0";
    else if (steps[i].type==3) s="0-0-0";
   else  {
    if (abs(steps[i].fig1)>1) s=fig_symb[abs(steps[i].fig1)];
    if (abs(steps[i].fig1<5)) {
     s=s+char(97+steps[i].y1);
     s=s+String(8-steps[i].x1);
     if (steps[i].fig2==0) s=s+"-";
...

This file has been truncated, please download it to see its full contents.

ArduinoMega Chess 1.0 MCUFRIEND 320x480

Arduino
Sketch updated to touchscreen MCUFRIEND 320x480 pixels.
//ArduinoMega Chess 1.0  (MCUFRIEND 320x480 version)
//Sergey Urusov, ususovsv@gmail.com

#include <UTFTGLUE.h>
#include <stdint.h>
#include "TouchScreen.h"
#include <avr/pgmspace.h>
#include <EEPROM.h>

uint16_t BLACK,BLUE,RED,GREEN,CYAN,MAGENTA,YELLOW,WHITE,GRAY,DARK,GRAY2,BLACKF,WHITEF;
MCUFRIEND_kbv tft;

int XP = 6, YP = A1, XM = A2, YM = 7;
TouchScreen ts(XP, YP, XM, YM, 300);
TSPoint tp;

int touchx,touchy,touchx0,touchy0,ntouch;
unsigned long lasttouch;
#define MINPRESSURE 10
#define MAXPRESSURE 1000
const int PinBuzz = 44;
int cycle=0; //
const char fp=1;
const char fn=2;
const char fb=3;
const char fr=4;
const char fq=5;
const char fk=6;
const int fig_weight[]={0,100,320,330,500,900,0};
const char fig_symb[]="  NBRQK";
unsigned long count;
boolean rotate=false;
const char polezero[8][8] PROGMEM={
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             };
const char polestart[8][8] PROGMEM={
             {-fr,-fn,-fb,-fq,-fk,-fb,-fn,-fr},
             {-fp,-fp,-fp,-fp,-fp,-fp,-fp,-fp},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             { fp, fp, fp, fp, fp, fp, fp, fp},
             { fr, fn, fb, fq, fk, fb, fn, fr},
             };

char pole[8][8]={ //  3
             {-fr,-fn,-fb,-fq,-fk,-fb,-fn,-fr},
             {-fp,-fp,-fp,-fp,-fp,-fp,-fp,-fp},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             { fp, fp, fp, fp, fp, fp, fp, fp},
             { fr, fn, fb, fq, fk, fb, fn, fr},
             };

char pole0[8][8];  //
char poledisp[8][8]; //
char polechoice[7]; //
boolean w00,w000,b00,b000;
char blinkstep;
typedef struct {
  char fig1, fig2; //
  char x1,y1,x2,y2; //
  char check; //
  char type; //  1-  ,2- ,3- ,4-5-6-7-  ,,,
  int weight; // ,
} step_type;
const int MAXSTEPS=500; //.
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
int MINDEPTH; //.
int MAXDEPTH; //.
int LIMDEPTH; //.
const char MAXCUTS=10; //.. -  - (10-  ,  20)
boolean TRACE=0;
boolean checkmatesearch=0; //
boolean solving=false;
boolean choice=false;
boolean sound=0;
int cur_step=1; //  , 1....
int limit=0; //  , 0-6;
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
const long limits[7]={10,30,60,180,600,1800,100000};
//                     0  1  2   3   4    5      6
step_type steps[MAXSTEPS]; //
step_type cuts[MAXCUTS]; //  -
step_type lastbest;
int lastscore;
int minbeta,maxalpha;
int startweight;
int cur_level; //   ()
int start_var; //   , 1....
int cur_var; //  , 1....
int cur_choice; //
boolean check_on_table; //
boolean isstatus;
char WKJ=0,WKI=0,BKJ=0,BKI=0; //
boolean endspiel=false; //
char progress; //   0-100
boolean only_action=false; // -
unsigned long starttime,limittime,quitime=0;
boolean drag;
const uint8_t fig[6][32] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x3,  0xC0, 0x7,  0xE0, 0x7,  0xE0, 0x3,  0xC0, 0x3,  0xC0,
0x7,  0xE0, 0x3,  0xC0, 0x3,  0xC0, 0x7,  0xE0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0x0,  0x0}, //
{0x0, 0x0,  0x3,  0x40, 0x7,  0xE0, 0xF,  0xF0, 0x1F, 0xF8, 0x3F, 0xFC, 0x39, 0xFC, 0x33, 0xFC,
0x7,  0xFC, 0xF,  0xF8, 0xF,  0xF0, 0x7,  0xE0, 0x3,  0xC0, 0x7,  0xE0, 0x1F, 0xF8, 0x0,  0x0},  //
{0x1, 0x80, 0x3,  0xC0, 0x1,  0x80, 0xF,  0xF0, 0x1F, 0xF8, 0x1F, 0xF8, 0x1F, 0xF8, 0x1F, 0xF8,
0x1F, 0xF8, 0x1F, 0xF8, 0xF,  0xF0, 0x7,  0xE0, 0x3,  0xC0, 0x31, 0x8C, 0x7F, 0xFE, 0x0,  0x0}, //
{0x0, 0x0,  0x19, 0x98, 0x1F, 0xF8, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0,
0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0x1F, 0xF8, 0x1F, 0xF8, 0x0,  0x0}, //
{0x19, 0x98, 0xD9, 0x9B, 0xD9, 0x9B, 0xD9, 0x9B, 0x6D, 0xB6, 0x6D, 0xB6, 0x6D, 0xB6, 0x35, 0xAC,
0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x1F, 0xF8, 0xF,  0xF0, 0xF,  0xF0, 0x1F, 0xF8, 0x0,  0x0}, //
{0x1, 0x80, 0x1,  0x80, 0x79, 0x9E, 0x7D, 0xBE, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0x7F, 0xFE, 0x3F, 0xFC, 0x3F, 0xFC, 0x1F, 0xF8, 0xF,  0xF0, 0xF,  0xF0, 0x1F, 0xF8, 0x0,  0x0}  //
};
const uint8_t fig_cont[6][32] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x3,  0xC0, 0x4,  0x20, 0x8,  0x10, 0x8,  0x10, 0x4,  0x20, 0x4,  0x20,
0x8,  0x10, 0x4,  0x20, 0x4,  0x20, 0x8,  0x10, 0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x1F, 0xF8}, //
{0x3, 0x40, 0x4,  0xA0, 0x8,  0x10, 0x12, 0x8,  0x20, 0x4,  0x40, 0x2,  0x46, 0x2,  0x4C, 0x2,
0x38, 0x2,  0x10, 0x4,  0x10, 0x8,  0x8,  0x10, 0x4,  0x20, 0x18, 0x18, 0x20, 0x4,  0x3F, 0xFC},  //
{0x2, 0x40, 0x4,  0x20, 0x6,  0x60, 0x10, 0x8,  0x21, 0x84, 0x21, 0x84, 0x21, 0x84, 0x27, 0xE4,
0x21, 0x84, 0x21, 0x84, 0x11, 0x88, 0x8,  0x10, 0x34, 0x2C, 0x4E, 0x72, 0x80, 0x1,  0xFF, 0xFF}, //
{0x39, 0x9C, 0x26, 0x64, 0x20, 0x4,  0x1F, 0xF8, 0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x10, 0x8,
0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x1F, 0xF8, 0x20, 0x4,  0x20, 0x4,  0x3F, 0xFC}, //
{0x22, 0x24, 0x22, 0x24, 0x22, 0x24, 0x26, 0x64, 0x92, 0x49, 0x92, 0x49, 0x92, 0x49, 0x4A, 0x52,
0x40, 0x2,  0x40, 0x2,  0x5F, 0xFA, 0x20, 0x4,  0x1F, 0xF8, 0x10, 0x8,  0x20, 0x4,  0x3F, 0xFC}, //
{0x2, 0x40, 0x7A, 0x5E, 0x86, 0x61, 0x82, 0x41, 0x2,  0x40, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80,
0x80, 0x81, 0x41, 0x82, 0x5F, 0xFA, 0x20, 0x4,  0x1F, 0xF8, 0x10, 0x8,  0x20, 0x4,  0x3F, 0xFC}  //
};

const uint8_t fig24[6][72] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x1E, 0x0,  0x0,  0x3F, 0x0,  0x80, 0x7F, 0x0,  0x80, 0x7F, 0x0,
0x80, 0x7F, 0x0,  0x0,  0x3F, 0x0,  0x0,  0x1C, 0x0,  0x0,  0x1C, 0x0,  0x80, 0xFF, 0x0,  0x80, 0xFF, 0x0,  0x0,  0x1C, 0x0,  0x0,  0x1C, 0x0,
0x0,  0x3E, 0x0,  0x0,  0x7F, 0x0,  0x80, 0xFF, 0x0,  0xC0, 0xFF, 0x1,  0xE0, 0xFF, 0x3,  0xE0, 0xFF, 0x3,  0xE0, 0xFF, 0x3,  0x0,  0x0,  0x0
}, //pawn
{0x0, 0x0,  0x0,  0x0,  0x6E, 0x0,  0x0,  0xFF, 0x0,  0x80, 0xFF, 0x1,  0x80, 0xFF, 0x3,  0xC0, 0xFF, 0x7,  0xE0, 0xFF, 0xF,  0xE0, 0xF9, 0xF,
0xF0, 0xF8, 0xF,  0xF0, 0xF8, 0xF,  0x60, 0xFC, 0xF,  0x0,  0xFE, 0xF,  0x0,  0xFF, 0xF,  0x0,  0xFF, 0x7,  0x0,  0xFF, 0x3,  0x0,  0xFF, 0x1,
0x0,  0xFE, 0x0,  0x0,  0x7C, 0x0,  0x0,  0x38, 0x0,  0x0,  0x38, 0x0,  0x0,  0x7C, 0x0,  0xF0, 0xFF, 0xF,  0xF0, 0xFF, 0xF,  0x0,  0x0,  0x0
}, //knight
{0x0, 0x0,  0x0,  0x0,  0x3C, 0x0,  0x0,  0x7E, 0x0,  0x0,  0x7E, 0x0,  0x0,  0x3C, 0x0,  0x0,  0x18, 0x0,  0x80, 0xFF, 0x1,  0xC0, 0xFF, 0x3,
0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,
0xE0, 0xFF, 0x7,  0xC0, 0xFF, 0x3,  0x80, 0xFF, 0x1,  0x0,  0xFF, 0x0,  0x8,  0x7E, 0x10, 0x1C, 0x3C, 0x38, 0xFE, 0xFF, 0x7F, 0x0,  0x0,  0x0
}, //bishop
{0x0, 0x0,  0x0,  0xF0, 0x3C, 0xF,  0xF0, 0x3C, 0xF,  0xF0, 0xFF, 0xF,  0xE0, 0xFF, 0x7,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,
0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,
0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xE0, 0xFF, 0x7,  0xF0, 0xFF, 0xF,  0xF0, 0xFF, 0xF,  0x0,  0x0,  0x0
}, //rook
{0x0, 0x0,  0x0,  0xEE, 0xBD, 0x77, 0xEE, 0xBD, 0x77, 0xC6, 0x18, 0x63, 0xC6, 0x18, 0x63, 0xC6, 0x18, 0x63, 0xCC, 0x18, 0x33, 0xCC, 0x18, 0x33,
0xCC, 0x18, 0x33, 0xCC, 0x18, 0x33, 0xCC, 0x18, 0x33, 0x98, 0x99, 0x19, 0x98, 0x99, 0x19, 0x98, 0x99, 0x19, 0x98, 0x99, 0x19, 0x98, 0x99, 0x19,
0x30, 0xFF, 0xC,  0xB0, 0xFF, 0xD,  0xF0, 0xFF, 0xF,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xF0, 0xFF, 0xF,  0xF0, 0xFF, 0xF,  0x0,  0x0,  0x0
}, //queen
{0x0, 0x0,  0x0,  0x0,  0x18, 0x0,  0xF0, 0x18, 0xF,  0xF8, 0x99, 0x1F, 0xFC, 0xDB, 0x3F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F,
0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x3F, 0xFC, 0xFF, 0x1F, 0xF8, 0xFF, 0x1F,
0xF0, 0xFF, 0xF,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xC0, 0xFF, 0x3,  0xE0, 0xFF, 0x7,  0xF0, 0xFF, 0xF,  0xF0, 0xFF, 0xF,  0x0,  0x0,  0x0
} //king
};

const uint8_t fig24_cont[6][72] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x1C, 0x0,  0x0,  0x22, 0x0,  0x0,  0x41, 0x0,  0x80, 0x80, 0x0,  0x80, 0x80, 0x0,
0x80, 0x80, 0x0,  0x0,  0x41, 0x0,  0x0,  0x22, 0x0,  0xC0, 0xE3, 0x1,  0x40, 0x0,  0x1,  0x40, 0x0,  0x1,  0xC0, 0xE3, 0x1,  0x0,  0x22, 0x0,
0x0,  0x41, 0x0,  0x80, 0x80, 0x0,  0x40, 0x0,  0x1,  0x20, 0x0,  0x2,  0x10, 0x0,  0x4,  0x10, 0x0,  0x4,  0x10, 0x0,  0x4,  0xF0, 0xFF, 0x7
}, //pawn
{0x0, 0x6E, 0x0,  0x0,  0x91, 0x0,  0x80, 0x0,  0x1,  0x40, 0x2,  0x2,  0x40, 0x0,  0x4,  0x20, 0x0,  0x8,  0x10, 0x0,  0x10, 0x10, 0x6,  0x10,
0x8,  0x5,  0x10, 0x8,  0x5,  0x10, 0x90, 0x2,  0x10, 0x60, 0x1,  0x10, 0x80, 0x0,  0x10, 0x80, 0x0,  0x8,  0x80, 0x0,  0x4,  0x80, 0x0,  0x2,
0x0,  0x1,  0x1,  0x0,  0x82, 0x0,  0x0,  0x44, 0x0,  0x0,  0x44, 0x0,  0xF8, 0x83, 0x1F, 0x8,  0x0,  0x10, 0x8,  0x0,  0x10, 0xF8, 0xFF, 0x1F
}, //knight
{0x0, 0x3C, 0x0,  0x0,  0x42, 0x0,  0x0,  0x81, 0x0,  0x0,  0x81, 0x0,  0x0,  0x42, 0x0,  0x80, 0xE7, 0x1,  0x40, 0x0,  0x2,  0x20, 0x18, 0x4,
0x10, 0x18, 0x8,  0x10, 0x18, 0x8,  0x10, 0x18, 0x8,  0x90, 0xFF, 0x9,  0x90, 0xFF, 0x9,  0x10, 0x18, 0x8,  0x10, 0x18, 0x8,  0x10, 0x18, 0x8,
0x10, 0x18, 0x8,  0x20, 0x18, 0x4,  0x40, 0x18, 0x2,  0x88, 0x0,  0x11, 0x14, 0x81, 0x28, 0xE2, 0xC3, 0x47, 0x1,  0x0,  0x80, 0xFF, 0xFF, 0xFF
}, //bishop
{0xF8, 0x7E, 0x1F, 0x8,  0xC3, 0x10, 0x8,  0xC3, 0x10, 0x8,  0x0,  0x10, 0x10, 0x0,  0x8,  0xE0, 0xFF, 0x7,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,
0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,
0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0xE0, 0xFF, 0x7,  0x10, 0x0,  0x8,  0x8,  0x0,  0x10, 0x8,  0x0,  0x10, 0xF8, 0xFF, 0x1F
}, //rook
{0xEF, 0xBD, 0xF7, 0x11, 0x42, 0x88, 0x11, 0x42, 0x88, 0x29, 0xA5, 0x94, 0x29, 0xA5, 0x94, 0x29, 0xA5, 0x94, 0x32, 0xA5, 0x4C, 0x32, 0xA5, 0x4C,
0x32, 0xA5, 0x4C, 0x32, 0xA5, 0x4C, 0x32, 0xA5, 0x4C, 0x64, 0x66, 0x26, 0x64, 0x66, 0x26, 0x64, 0x66, 0x26, 0x64, 0x66, 0x26, 0x64, 0x66, 0x26,
0xC8, 0x0,  0x13, 0x48, 0x0,  0x12, 0x8,  0x0,  0x10, 0x10, 0x0,  0x8,  0xF0, 0xFF, 0xF,  0x8,  0x0,  0x10, 0x8,  0x0,  0x10, 0xF8, 0xFF, 0x1F
}, //queen
{0x0, 0x18, 0x0,  0xF0, 0x24, 0xF,  0x8,  0xA5, 0x10, 0x4,  0x66, 0x20, 0x2,  0x24, 0x40, 0x1,  0x24, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x80,
0x1,  0x18, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x40, 0x2,  0x18, 0x20, 0x4,  0x18, 0x20,
0xE8, 0xFF, 0x17, 0x10, 0x0,  0x8,  0x10, 0x0,  0x8,  0x20, 0x0,  0x4,  0xF0, 0xFF, 0xF,  0x8,  0x0,  0x10, 0x8,  0x0,  0x10, 0xF8, 0xFF, 0x1F
} //king
};


const uint8_t issound[2][32] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x32, 0x0,  0x54, 0x0,  0x98, 0x1F, 0x10, 0x10, 0x30, 0x10, 0x50,
0x10, 0x90, 0x11, 0x10, 0x1F, 0x10, 0x4,  0x90, 0x8,  0x50, 0x10, 0x30, 0x0,  0x0,  0x0,  0x0},
{0x0, 0x0,  0x0,  0x0,  0x0,  0x30, 0x0,  0x50, 0x0,  0x90, 0x1F, 0x10, 0x10, 0x10, 0x10, 0x10,
0x10, 0x10, 0x10, 0x10, 0x1F, 0x10, 0x0,  0x90, 0x0,  0x50, 0x0,  0x30, 0x0,  0x0,  0x0,  0x0}
};
const uint8_t iswb[2][32] PROGMEM={
{0x0,  0x0,  0x0,  0x0,  0x3,  0xC0, 0x4,  0x20, 0x8,  0x10, 0x8,  0x10, 0x4,  0x20, 0x4,  0x20,
0x8,  0x10, 0x4,  0x20, 0x4,  0x20, 0x8,  0x10, 0x10, 0x8,  0x10, 0x8,  0x1F, 0xF8, 0x0,  0x0},
{0x0,  0x0,  0x0,  0x0,  0x3,  0xC0, 0x7,  0xE0, 0xF,  0xF0, 0xF,  0xF0, 0x7,  0xE0, 0x7,  0xE0,
0xF,  0xF0, 0x7,  0xE0, 0x7,  0xE0, 0xF,  0xF0, 0x1F, 0xF8, 0x1F, 0xF8, 0x1F, 0xF8, 0x0,  0x0}
};
const uint8_t iscm[2][32] PROGMEM={
{0x0, 0x0,  0x7,  0xE0, 0xC,  0x30, 0xC,  0x30, 0xC,  0x30, 0xC,  0x30, 0x0,  0x30, 0x0,  0x60,
0x0,  0xC0, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x0,  0x0,  0x1,  0x80, 0x1,  0x80, 0x0,  0x0},
{0x0,  0x0,  0x3F, 0x0,  0x61, 0x80, 0x61, 0x80, 0x61, 0x80, 0x61, 0x80, 0x1,  0x80, 0x3,  0x0,
0x6,  0x24, 0xC,  0x24, 0xC,  0xFF, 0xC,  0x24, 0x0,  0xFF, 0xC,  0x24, 0xC,  0x24, 0x0,  0x0}
};
const uint8_t islimit[7][32] PROGMEM={
{0x0, 0x0,  0x4,  0x70, 0xC,  0x88, 0x4,  0x88, 0x4,  0x88, 0x4,  0x88, 0x4,  0x88, 0x4,  0x88,
0xE,  0x70, 0x0,  0x0,  0x1D, 0xDC, 0x11, 0x10, 0x1D, 0xD0, 0x5,  0x10, 0x1D, 0xDC, 0x0,  0x0},
{0x0, 0x0,  0xC,  0x70, 0x12, 0x88, 0x2,  0x88, 0xC,  0x88, 0x2,  0x88, 0x2,  0x88, 0x12, 0x88,
0xC,  0x70, 0x0,  0x0,  0x1D, 0xDC, 0x11, 0x10, 0x1D, 0xD0, 0x5,  0x10, 0x1D, 0xDC, 0x0,  0x0},
{0x0, 0x0,  0x1,  0x80, 0x3,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80,
0x3,  0xC0, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0x3,  0xC0, 0x6,  0x60, 0x0,  0x60, 0x1,  0xC0, 0x0,  0x60, 0x6,  0x60, 0x6,  0x60,
0x3,  0xC0, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0xC,  0x78, 0x1C, 0xCC, 0xC,  0xCC, 0xC,  0xCC, 0xC,  0xCC, 0xC,  0xCC, 0xC,  0xCC,
0x1E, 0x78, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0x1C, 0x78, 0x36, 0xCC, 0x6,  0xCC, 0x1C, 0xCC, 0x6,  0xCC, 0x36, 0xCC, 0x36, 0xCC,
0x1C, 0x78, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x3C, 0x3C, 0x7E, 0x7E, 0x63, 0xC6, 0x61, 0x86,
0x63, 0xC6, 0x66, 0x66, 0x3C, 0x3C, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0}
};
const uint8_t isdesc[2][32] PROGMEM={
{0x0,  0x0,  0xE3, 0x8E, 0xE3, 0x8E, 0xE3, 0x8E, 0x1C, 0x70, 0x1C, 0x70, 0x1C, 0x70, 0xE3, 0x8E,
0xE3, 0x8E, 0xE3, 0x8E, 0x1C, 0x70, 0x1C, 0x70, 0x1C, 0x70, 0xE3, 0x8E, 0xE3, 0x8E, 0xE3, 0x8E},
{0x0,  0x0,  0x0,  0x4,  0x0,  0xE,  0x0,  0xE,  0x0,  0x1C, 0x0,  0x1C, 0x0,  0x38, 0x0,  0x30,
0x30, 0x70, 0x78, 0xE0, 0x3C, 0xC0, 0x1F, 0xC0, 0xF,  0x80, 0x7,  0x0,  0x2,  0x0,  0x0,  0x0}

};
const uint8_t isback[32] PROGMEM={
0x0,  0x0,  0x0,  0x0,  0x20, 0xF0, 0x31, 0xF8, 0x3B, 0xFC, 0x3F, 0x8E, 0x3F, 0xE,  0x3F, 0xE,
0x3F, 0x8E, 0x3F, 0xCE, 0x0,  0xE,  0x0,  0xE,  0x0,  0x1C, 0x0,  0x38, 0x0,  0x70, 0x0,  0x0
};
const uint8_t issave[32] PROGMEM={
0x1,  0x80, 0x3,  0xC0, 0x7,  0xE0, 0x7,  0xE0, 0x3,  0xC0, 0x3F, 0xFC, 0x23, 0xC4, 0x23, 0xC4,
0x23, 0xC4, 0x23, 0xC4, 0x23, 0xC4, 0x23, 0xC4, 0x20, 0x4,  0x20, 0x4,  0x3F, 0xFC, 0x0,  0x0
};
const uint8_t isload[32] PROGMEM={
0x0,  0x0,  0x3,  0xC0, 0x3,  0xC0, 0x3,  0xC0, 0x3,  0xC0, 0x3F, 0xFC, 0x23, 0xC4, 0x23, 0xC4,
0x23, 0xC4, 0x27, 0xE4, 0x27, 0xE4, 0x23, 0xC4, 0x21, 0x84, 0x20, 0x4,  0x3F, 0xFC, 0x0,  0x0
};
const uint8_t isempty[32] PROGMEM={
0xFF,  0xFF, 0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,
0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0xFF, 0xFF
};
const uint8_t isinit[32] PROGMEM={
0xFF,  0xFF, 0x80, 0x1,  0x80, 0x1,  0xFF, 0xFF, 0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,
0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF
};
const uint8_t isplay[32] PROGMEM={
0x0,  0x0,  0x3,  0xC0, 0x3,  0xC0, 0x3,  0xC0, 0x1,  0x80, 0x23, 0xF8, 0x17, 0xC8, 0xB,  0xC8,
0x3,  0xC0, 0x3,  0xC0, 0x2,  0x40, 0x4,  0x40, 0x4,  0x38, 0x4,  0x8,  0xC,  0x0,  0x0,  0x0
};
const uint8_t isrotate[2][32] PROGMEM={
{0x0,  0x0,  0x0,  0x0,  0x3F, 0xFC, 0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,
0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x0,  0x0,  0x0,  0x0},
{0x0, 0x0,  0x0,  0x0,  0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC,
0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x3F, 0xFC, 0x0,  0x0,  0x0,  0x0}
};

const int pos[7][8][8] PROGMEM={
 {{  0,  0,  0,  0,  0,  0,  0,  0}, //
  {100,100,100,100,100,100,100,100},  //{ 50, 50, 50, 50, 50, 50, 50, 50},
  { 20, 30, 40, 50, 50, 40, 30, 20},  //{ 10, 10, 20, 30, 30, 20, 10, 10},
  {  5,  5, 10, 25, 25, 10,  5,  5},
  {  0,  0,  0, 20, 20,  0,  0,  0},
  {  5, -5,-10,  0,  0,-10, -5,  5},
  {  5, 10, 10,-20,-20, 10, 10,  5},  //{  5, 10, 10,-20,-20, 10, 10,  5},
  {  0,  0,  0,  0,  0,  0,  0,  0}},

 {{-50,-40,-30,-30,-30,-30,-40,-50}, //
  {-40,-20,  0,  0,  0,  0,-20,-40},
  {-30,  0, 10, 15, 15, 10,  0,-30},
  {-30,  5, 15, 20, 20, 15,  5,-30},
  {-30,  0, 15, 20, 20, 15,  0,-30},
  {-30,  5, 10, 15, 15, 10,  5,-30},
  {-40,-20,  0,  5,  5,  0,-20,-40},
  {-50,-40,-30,-30,-30,-30,-40,-50}},

 {{-20,-10,-10,-10,-10,-10,-10,-20}, //
  {-10,  0,  0,  0,  0,  0,  0,-10},
  {-10,  0,  5, 10, 10,  5,  0,-10},
  {-10,  5,  5, 10, 10,  5,  5,-10},
  {-10,  0, 10, 10, 10, 10,  0,-10},
  {-10, 10, 10, 10, 10, 10, 10,-10},
  {-10,  5,  0,  0,  0,  0,  5,-10},
  {-20,-10,-10,-10,-10,-10,-10,-20}},

 {{  0,  0,  0,  0,  0,  0,  0,  0}, //
  {  5, 10, 10, 10, 10, 10, 10,  5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  {  0,  0,  0,  5,  5,  0,  0,  0}},

 {{-20,-10,-10, -5, -5,-10,-10,-20}, //
  {-10,  0,  0,  0,  0,  0,  0,-10},
  {-10,  0,  5,  5,  5,  5,  0,-10},
  { -5,  0,  5,  5,  5,  5,  0, -5},
  {  0,  0,  5,  5,  5,  5,  0, -5},
  {-10,  5,  5,  5,  5,  5,  0,-10},
  {-10,  0,  5,  0,  0,  0,  0,-10},
  {-20,-10,-10, -5, -5,-10,-10,-20}},

 {{-30,-40,-40,-50,-50,-40,-40,-30}, //
  {-30,-40,-40,-50,-50,-40,-40,-30},
  {-30,-40,-40,-50,-50,-40,-40,-30},
  {-30,-40,-40,-50,-50,-40,-40,-30},
  {-20,-30,-30,-40,-40,-30,-30,-20},
  {-10,-20,-20,-20,-20,-20,-20,-10},
  { 10, 10,-10,-10,-10,-10, 10, 10},  //{ 20, 20,  0,  0,  0,  0, 20, 20},
  { 10, 40, 30,  0,  0,  0, 50, 10}}, //{ 20, 30, 10,  0,  0, 10, 30, 20}},

 {{-50,-40,-30,-20,-20,-30,-40,-50}, //
  {-30,-20,-10,  0,  0,-10,-20,-30},
  {-30,-10, 20, 30, 30, 20,-10,-30},
  {-30,-10, 30, 40, 40, 30,-10,-30},
  {-30,-10, 30, 40, 40, 30,-10,-30},
  {-30,-10, 20, 30, 30, 20,-10,-30},
  {-30,-30,  0,  0,  0,  0,-30,-30},
  {-50,-30,-30,-30,-30,-30,-30,-50}}
};

//******
class Button {
public:
int bx,by,bw,bh,bshift;
String bs;
const uint8_t* bp;
 Button(int x,int y,int w,int h,String s,const uint8_t* p, int shift);
 void Show(int shift);
 void Show(String s);
 void Hide();
 boolean IsPressed(int xc, int yc);
private:
boolean active;
 void ishow(uint16_t textcolor,uint16_t backcolor);
};
Button::Button(int x,int y,int w,int h,String s,const uint8_t* p=NULL, int shift=0) {
  bx=x; by=y; bw=w; bh=h; bs=s; bp=p; bshift=shift;
};
void Button::Show(int shift=0) {
 bshift=shift;
 active=true;
 ishow(WHITE,DARK);
};
void Button::Show(String s) {
 bs=s;
 active=true;
 ishow(WHITE,DARK);
};
void Button::Hide() {
 active=false;
 ishow(GRAY,DARK);
};
boolean Button::IsPressed(int xc, int yc) {
  if (active&&abs(bx+bw/2-xc)<bw/2&&abs(by+bh/2-yc)<bh/2) {
    ishow(WHITE,GRAY);
    touchx=0; touchy=0;
    return true;
  }
  return false;
};
void Button::ishow(uint16_t textcolor,uint16_t backcolor) {
  tft.fillRoundRect(bx+2,by+2,bw,bh,3,GRAY2);
  tft.fillRoundRect(bx,by,bw,bh,3,backcolor);
  tft.setTextColor(textcolor);
  tft.setTextSize(1);
  tft.setCursor(bx+(bw-bs.length()*6)/2,by+(bh-8)/2);
  if (bp!=NULL) {
   tft.drawBitmap(1+bx+(bw-16)/2, by+(bh-16)/2, bp+bshift*32, 16, 16,textcolor);
  }
  else  tft.print(bs);
}
Button BAction(320, 285, 70, 30, "START");
Button BBW(402, 285, 30, 30, "",&iswb[0][0]);
Button BBack(444, 285, 30, 30, "",&isback[0]);
Button BInit(444, 285, 30, 30, "",&isinit[0]);
Button BLimit(320, 245, 26, 30, "",&islimit[0][0]);
Button BEmpty(320, 245, 26, 30, "",&isempty[0]);
Button BRotate(352, 245, 26, 30, "",&isrotate[0][0]);
Button BPlay(352, 245, 26, 30, "",&isplay[0]);
Button BCM(384, 245, 26, 30, "",&iscm[0][0]);
Button BSave(384, 245, 26, 30, "",&issave[0]);
Button BDesc(416, 245, 26, 30, "",&isdesc[0][0]);
Button BSound(448, 245, 26, 30, "",&issound[0][0]);
Button BLoad(448, 245, 26, 30, "",&isload[0]);
//**********************************
void drawBitmap(int16_t x, int16_t y,
            const uint8_t *bitmap, int16_t w, int16_t h,
            uint16_t color) {
  int16_t i, j, byteWidth = (w + 7) / 8;
  for(j=0; j<h; j++) {
    for(i=0; i<w; i++ ) {
        if(pgm_read_byte(bitmap + j * byteWidth + i / 8) & (1 << (i % 8))) {
        tft.drawPixel(x+i, y+j, color);
      }
    }
  }
}
//****************************
void deletebuttons() {
  tft.fillRect(320,245,160,75,BLACK);
}

//****************************
void clearstatus() {
  tft.fillRect(320,225,160,20,BLACK);
  tft.drawFastHLine(10,312,300,BLACK);
  tft.drawFastHLine(10,315,300,BLACK);
}
//****************************
void setup() {
  Serial.begin(57600);
  Serial.println(F("Start"));
  pinMode(13, OUTPUT);
  tft.reset();
  tft.begin(tft.readID());
  tft.setRotation(1);
  definecolors();
  beep(100);
  for (int i=0;i<MAXSTEPS;i++) {
    steps[i].x1=0; steps[i].y1=0;
    steps[i].x2=0; steps[i].y2=0;
    steps[i].fig1=0; steps[i].fig2=0;
    steps[i].check=0;
    steps[i].type=0;
    steps[i].weight=0;
  }
  initboard();
}
//****************************
void initboard() {
  for (int i=0;i<8;i++)
   for (int j=0;j<8;j++) poledisp[j][i]=-100; //
  tft.fillScreen(BLACK);
  tft.setTextColor(GRAY);
  tft.setTextSize(1);
  for (int j=1;j<9;j++) {
   tft.setCursor(2,j*37-20);
   if (rotate) tft.print(j); else tft.print(9-j);
  }
  for (byte i=1;i<9;i++) {
   tft.setCursor(i*37-8,300);
   if (rotate) tft.print(char(96+9-i)); else tft.print(char(96+i));
  }
  initscreen();
}
//****************************
void initscreen() {
 show_board();
 show_steps();
 BAction.Show("START");
 BBW.Show(cur_step%2);
 if (cur_step>1) BBack.Show(); else BBack.Hide();
 BSave.Hide();
 BLoad.Hide();
 BInit.Hide();
 BBack.Show();
 BLimit.Show();
 BPlay.Hide();
 BRotate.Show(rotate);
 BEmpty.Hide();
 BLimit.Show(limit);
 BCM.Show(checkmatesearch);
 BDesc.Show(choice);
 BSound.Show(sound);
}
//****************************
void loop() {
  gui();
  if (solving) {
    int len=70;
    if (!sound) len=2;
    for (int i=1;i<4;i++) { tone(44,400+300*i,len); delay(70); }
    lastscore=solve_step();
    float tim=float(millis()-starttime)/1000;
    for (int i=3;i>=1;i--) { tone(44,400+300*i,len); delay(70); }
    if (!checkmatesearch&&lastscore>-9000&&lastscore!=8999) {
      movestep(cur_step);
      cur_step++; steps[cur_step].fig1=0;
    }
    initscreen();
    animate_step(cur_step-1,false);
    clearstatus();
    if (lastscore>9000) {
      tft.setTextSize(1);
      tft.setTextColor(GREEN);
      tft.setCursor(322,230);
      if (lastscore<9999) {
       tft.print("# in ");
       tft.print((9999-lastscore)/2+1); tft.print(F(" st"));
      } else tft.print("Checkmate");
    } else if (lastscore<-9000) {
      tft.setTextSize(1);
      tft.setTextColor(RED);
      tft.setCursor(322,230);
      tft.print("GIVE UP!");
      show_steps();
    } else if (lastscore==8999) { //Draw
      tft.setTextSize(1);
      tft.setTextColor(YELLOW);
      tft.setCursor(322,230);
      tft.print("Draw");
    }
    tft.setTextSize(1);
    tft.setTextColor(GRAY);
    tft.setCursor(322,230);
    tft.print(tim,0);
    tft.print("s ");
    if (abs(lastscore)<5000) {
     tft.print("=");
     tft.print(lastscore);
    }
    tft.setCursor(390,230);
    tft.print(count);
    tft.print(" pos");
    Serial.print(F("Positions estimated=")); Serial.println(count);
    Serial.print(F("Time=")); Serial.print(tim,1); Serial.println("s");
  }
  delay(10);


}

//**********************************
void load_choice() {
  for (int i=0;i<7;i++)
   if (cur_step%2==1) polechoice[i]=i; else polechoice[i]=-i;
}
//**********************************
void show_choice() {
uint16_t color,color_cont;
  for (int i=0;i<7;i++) {
    color=BLACKF;
    if (i%2==0) color=WHITEF;
    tft.fillRect(416,i*25+35,25,25,color);
    color=DARK;
    if (i==cur_choice) color=WHITE;
    tft.drawRect(416,i*25+35,25,25,color);
    color=BLACK; color_cont=GRAY;
    if (polechoice[i]>0) { color=WHITE; color_cont=BLACK; }
    if (polechoice[i]!=0) {
     tft.drawBitmap(420, i*25+39,&fig[abs(polechoice[i])-1][0], 16, 16,color);
     tft.drawBitmap(420, i*25+39,&fig_cont[abs(polechoice[i])-1][0], 16, 16,color_cont);
    }
  }
}
//**********************************
void animate_step(int nstep, boolean hide) {
 if (!hide&&nstep-1>0&&steps[nstep-1].fig1!=0) animate_step(nstep-1,true);
 if (nstep-1<1||steps[nstep].fig1==0) return;
 int j=steps[nstep].x1;
 int dj=steps[nstep].x2-steps[nstep].x1;
 int i=steps[nstep].y1;
 int di=steps[nstep].y2-steps[nstep].y1;
 di=di/abs(di); dj=dj/abs(dj);
 if (hide) show_fig(i,j);
 while (j!=steps[nstep].x2||i!=steps[nstep].y2) {
  show_fig(i,j);
  if (!hide)
   if (!rotate) tft.drawRect(i*37+13,j*37+1,36,36,WHITE);
    else tft.drawRect((7-i)*37+13,(7-j)*37+1,36,36,WHITE);
  int mj=0;
  if (j!=steps[nstep].x2) { j+=dj; mj=1; }
  if (abs(steps[nstep].fig1)==fn&&mj==1) continue;
  if (i!=steps[nstep].y2) i+=di;
 }
 show_fig(i,j);
 if (!hide)
  if (!rotate) tft.drawRect(i*37+13,j*37+1,36,36,WHITE);
   else tft.drawRect((7-i)*37+13,(7-j)*37+1,36,36,WHITE);
}
//**********************************
boolean load_usb() {
char s='x',i=0,j=0;  boolean load=false;
  Serial.println(F("Wait for FEN position"));
  for (int i=0;i<8;i++)
      for (int j=0;j<8;j++) {
        pole0[j][i]=pole[j][i];
        pole[j][i]=(char)pgm_read_byte(&polezero[j][i]);
      }
  while (s!=' ') {
    s=Serial.read();
    if (i>7) { i=0; j++; }
    if (!getpole(j,i)) break;
    switch (s) {
    case '/': i=0; break;
    case 'p': pole[j][i]=-fp; i++; break;
    case 'P': pole[j][i]=fp; i++; break;
    case 'n': pole[j][i]=-fn; i++; break;
    case 'N': pole[j][i]=fn; i++; break;
    case 'b': pole[j][i]=-fb; i++; break;
    case 'B': pole[j][i]=fb; i++; break;
    case 'r': pole[j][i]=-fr; i++; break;
    case 'R': pole[j][i]=fr; i++; break;
    case 'q': pole[j][i]=-fq; i++; break;
    case 'Q': pole[j][i]=fq; i++; break;
    case 'k': pole[j][i]=-fk; i++; break;
    case 'K': pole[j][i]=fk; i++; break;
    case '1': i++; break;
    case '2': i+=2; break;
    case '3': i+=3; break;
    case '4': i+=4; break;
    case '5': i+=5; break;
    case '6': i+=6; break;
    case '7': i+=7; break;
    case '8': i=0; j++; break;
    case ' ': break;
    }
    delay(20);
    if (i+j>0&&Serial.available()==0) break;
  }
  s=0;
  if (Serial.available()>0) s=Serial.read();
  while (Serial.available()>0) Serial.read();
  if (s=='w'||s==0) { cur_step=1; load=true; }
   else if (s=='b') { cur_step=2; load=true; }
     else load=false;
  if (load) {
     steps[1].fig1=0; steps[2].fig1=0;
     Serial.println(F("Position loaded"));
  } else {
    for (int i=0;i<8;i++)
      for (int j=0;j<8;j++)
        pole[j][i]=pole0[j][i];
  }
  return load;
}
//**********************************
void play() {
 BAction.Show("STOP");
 BSave.Hide();
 BBW.Hide();
 BLoad.Hide();
 BInit.Hide();
 BPlay.Hide();
 BEmpty.Hide();
 BDesc.Hide();
 clearstatus();
 for (int i=cur_step-1;i>0;i--) {
  if (steps[i].fig1!=0) backstep(i);
 }
 show_board();
 show_steps();
 boolean st=false;
 unsigned long tim=millis();
 int i=1;
 while (i<cur_step) {
  if (steps[i].fig1!=0) movestep(i);
  digitalWrite(13, HIGH);
  TSPoint p = ts.getPoint();
  digitalWrite(13, LOW);
  pinMode(XM, OUTPUT);
  pinMode(YP, OUTPUT);
  int x=map(p.y,980,110,0,479);
  int y=map(p.x,145,902,0,319);
  if (p.z>MINPRESSURE&&p.z<MAXPRESSURE)
    if (BAction.IsPressed(x,y)) { st=true; BAction.Show(); }
  if (millis()-tim>2000||st) {
    tim=millis();
    i++;
    show_board();
    beep(20);
  }
 }
 choice=0;
 beep(200);
 kingpositions();
 clearstatus();
 initscreen();
}
//**********************************
void gui() {
  digitalWrite(13, HIGH);
  TSPoint p = ts.getPoint();
  digitalWrite(13, LOW);
  // if sharing pins, you'll need to fix the directions of the touchscreen pins
  pinMode(XM, OUTPUT);
  pinMode(YP, OUTPUT);
  int x=map(p.y,980,110,0,479);
  int y=map(p.x,145,902,0,319);

  if (((abs(x-touchx)>5||abs(y-touchy)>5)||drag)&&p.z>MINPRESSURE&&p.z<MAXPRESSURE) {
  //  tft.drawPixel(x,y,CYAN);
  //  Serial.println(x);
  //  Serial.println(y);
    touchx=x;
    touchy=y;
    if (solving) {
      if (BAction.IsPressed(x,y)) { //
        beep(100);
        solving=false;
        BAction.Show("stopping");
        BAction.Hide();
        return;
      }
    } else { //not solve
      if (BAction.IsPressed(x,y)) { //
       if (!choice) {
        delay(100);
        solving=true;
        BAction.Show();
        animate_step(cur_step-1,true);
        return;
       } else { //   USB
        delay(100);
        BAction.Hide();
        BSave.Hide();
        BBW.Hide();
        BLoad.Hide();
        BInit.Hide();
        BPlay.Hide();
        BEmpty.Hide();
        BDesc.Hide();
        show_steps();
        choice=0;
        if (!load_usb()) return;
        beep(200);
        kingpositions();
        clearstatus();
        initscreen();
       }
      } else if (BBW.IsPressed(x,y)) {   //-
       beep(100);
       if (cur_step==1) cur_step=2;
        else if (cur_step==2) cur_step=1;
         else if (cur_step%2==0) cur_step--; else cur_step++;
       BBW.Show(cur_step%2);
       if (choice) { load_choice(); show_choice(); }
       return;
      } else if (cur_step>1&&BBack.IsPressed(x,y)) {  //
       beep(100);
       cur_step--;
       animate_step(cur_step,true);
       lastscore=0;
       backstep(cur_step);
       steps[cur_step].fig1=0;
       show_board();
       show_steps();
       if (cur_step>1) BBack.Show(); else BBack.Hide();
       BBW.Show(cur_step%2);
       clearstatus();
       return;
      } else if (BLimit.IsPressed(x,y)) {    //
       beep(100);
       limit++; if (limit>6) limit=0;
       BLimit.Show(limit);
       return;
      } else if (BCM.IsPressed(x,y)) {   //
       beep(100);
       checkmatesearch=!checkmatesearch;
       BCM.Show(checkmatesearch);
       if (!checkmatesearch) steps[cur_step].fig1=0;
       lastscore=0;
       show_steps();
       return;
      } else if (BRotate.IsPressed(x,y)) {   //
       beep(100);
       rotate=!rotate;
       BRotate.Show(rotate);
       initboard();
       return;
      } else if (BSound.IsPressed(x,y)) {   //
       if (sound==1) { beep(100); sound=0; } else { sound=1; beep(200); }
       BSound.Show(sound);
       return;
      } else if (BDesc.IsPressed(x,y)) {  //
       beep(100);
       if (!choice) {
        choice=1;
        cur_choice=1;
        load_choice();
        show_choice();
        BAction.Show("USB(FEN)");
        BBack.Hide();
        BInit.Show();
        BSave.Show();
        BLimit.Hide();
        BEmpty.Show();
        BRotate.Hide();
        BPlay.Show();
        BCM.Hide();
        BSound.Hide();
        BSave.Show();
        BLoad.Show();
       } else {
        choice=0;
        lastscore=0;
        clearstatus();
        kingpositions();
        initscreen();
       }
       BDesc.Show(choice);
       return;
      } else if (BInit.IsPressed(x,y)) {  //
        beep(200);
        cur_step=1;
        steps[1].fig1=0;
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) pole[j][i]=(char)pgm_read_byte(&polestart[j][i]);
        choice=0;
        kingpositions();
        clearstatus();
        initscreen();
      } else if (BEmpty.IsPressed(x,y)) {  //
        beep(200);
        cur_step=1;
        clearstatus();
        steps[1].fig1=0; steps[2].fig1=0;
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) pole[j][i]=(char)pgm_read_byte(&polezero[j][i]);
        BEmpty.Show();
        show_board();
      } else if (BSave.IsPressed(x,y)) {
        beep(100);
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) EEPROM.write(i*8+j,pole[j][i]);
        EEPROM.put(64,cur_step);
        EEPROM.put(66,limit);
        for (int i=1;i<cur_step;i++) {
          EEPROM.put(66+i*10,steps[i]);
        }
        BSave.Show();
      } else if (BLoad.IsPressed(x,y)) {
        beep(200);
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) pole[j][i]=EEPROM.read(i*8+j);
        EEPROM.get(64,cur_step);
        if (cur_step<0||cur_step>400) cur_step=1;
        EEPROM.get(66,limit);
        if (limit<0||limit>6) limit=2;
        for (int i=1;i<cur_step;i++) {
          EEPROM.get(66+i*10,steps[i]);
        }
        steps[0].fig1=0;
        steps[cur_step].fig1=0;
        choice=0;
        kingpositions();
        clearstatus();
        initscreen();
      } else if (BPlay.IsPressed(x,y)) {    //
       beep(100);
       BPlay.Show();
       play();
       return;
      }
      if (!choice&&ntouch==0) {
       touchx0=touchx;
       touchy0=touchy;
       char x1=touchy0/37;
       char y1=(touchx0-10)/37;
       if (rotate) { x1=7-x1; y1=7-y1; }
       if (getpole(y1,x1)&&(cur_step%2==1&&pole[x1][y1]>0||cur_step%2==0&&pole[x1][y1]<0)) {
        char p=pole[x1][y1];
        drag=true;
        pole[x1][y1]=0;
        show_fig(y1,x1);
        pole[x1][y1]=p;
       } else drag=false;
      }
      ntouch++;
      if (drag&&ntouch>1) {
          uint16_t buf[256];
          int x1=touchy0/37;
          int y1=(touchx0-10)/37;
          if (rotate) { x1=7-x1; y1=7-y1; }
          if (abs(pole[x1][y1])>0&&(cur_step%2==1&&pole[x1][y1]>0||cur_step%2==0&&pole[x1][y1]<0)) {
          for (int i=0;i<16;i++)
            for (int j=0;j<16;j++) buf[i*16+j]=tft.readPixel(touchx-8+i,touchy-8+j);
          buf[0]=tft.readPixel(touchx-8,touchy-8);
          uint16_t color,color_cont;
          color=BLACK; color_cont=GRAY;
          if (pole[x1][y1]>0) { color=WHITE; color_cont=BLACK; }
          tft.drawBitmap(touchx-8, touchy-8,&fig[abs(pole[x1][y1])-1][0], 16, 16,color);
          tft.drawBitmap(touchx-8, touchy-8,&fig_cont[abs(pole[x1][y1])-1][0], 16, 16,color_cont);
          delay(30);
          for (int i=0;i<16;i++)
            for (int j=0;j<16;j++) tft.drawPixel(touchx-8+i,touchy-8+j,buf[i*16+j]);
          }
      } else if (choice) {
        int x1=touchy/37;
        int y1=(touchx-10)/37;
        if (rotate) { x1=7-x1; y1=7-y1; }
        if (touchy+touchx!=0&&choice&&getpole(y1,x1)) {
         pole[x1][y1]=polechoice[cur_choice];
         show_board();
        }
        if (touchx>=416&&touchx<=441&&touchy>=35&&touchy<=210) {
         cur_choice=(touchy-35)/25;
         show_choice();
        }
      }
      lasttouch=millis();
    } //not solve
    if (!drag) { beep(10); ntouch=0; animate_step(cur_step-1,true); }
  } else { //touching
    if (!solving&&!choice&&drag!=0&&ntouch>0&&p.z<MINPRESSURE&&millis()-lasttouch>300) { //drag
     char x1=touchy0/37;
     char y1=(touchx0-10)/37;
     char x2=touchy/37;
     char y2=(touchx-10)/37;
     if (rotate) { x1=7-x1; y1=7-y1; x2=7-x2; y2=7-y2; }
     if (getpole(y1,x1)) show_fig(y1,x1);
     if (getpole(y1,x1)&&getpole(y2,x2)) {
       start_var=cur_step+1;
       only_action=false;
       load_variants(cur_step);
       for (int i=cur_step+1;i<cur_step+cur_var+1;i++)
        if (steps[i].x1==x1&&steps[i].y1==y1&&steps[i].x2==x2&&steps[i].y2==y2) {
         steps[cur_step]=steps[i];
         movestep(cur_step); cur_step++; steps[cur_step].fig1=0;
         int len=100;
         if (!sound) len=2;
         for (int i=2;i>=1;i--) { tone(44,400+300*i,len); delay(100); }
         initscreen();
         animate_step(cur_step-1,false);
         break;
        }
     } else {
      beep(10);
     }
     ntouch=0;
     drag=false;
    }
  }
  if (millis()-quitime>1000) {
    if (isstatus) show_status();
    quitime=millis();
  }


}
//**********************************
void show_status() {
   int tim=(millis()-starttime)/1000;
   int cur=300000*tim/(limittime-starttime);
   if (cur>300) { cur=300; solving=false; }
   tft.drawFastHLine(10,312,cur,GRAY);
   tft.drawFastHLine(10,315,progress*2,GRAY);
   int m=tim/60;
   int s=tim%60;
   tft.setTextWrap(1);
   tft.setTextColor(GRAY);
   tft.setTextSize(1);
   tft.fillRect(320,225,50,20,BLACK);
   tft.setCursor(322,230);
   if (m>0) { tft.print(m); tft.print(":"); }
   if (s>0) {
    if (s<10&&m>0) tft.print("0");
    tft.print(s);
   } else if (m>0) tft.print("00"); else tft.print("0");
   tft.setCursor(350,230);
   tft.print(cur_level);

   tft.setCursor(370,230);
   if (cur_step%2==1) tft.setTextColor(WHITE); else tft.setTextColor(GRAY);
   if (lastbest.fig1!=steps[0].fig1||lastbest.x1!=steps[0].x1||lastbest.y1!=steps[0].y1||
       lastbest.x2!=steps[0].x2||lastbest.y2!=steps[0].y2) {
     beep(10);
     lastbest=steps[0];
     tft.fillRect(370,230,50,10,BLACK);
     tft.setCursor(370,230);
     tft.print(str_step(0));
     blinkstep=0;
   }
   if (steps[0].fig1!=0&&blinkstep==0&&tim>5) {
    char poleb[8][8];
    for (int i=0;i<8;i++)
     for (int j=0;j<8;j++) { poleb[j][i]=pole[j][i]; pole[j][i]=pole0[j][i]; }
    movestep(0);
    show_board();
    delay(100);
    backstep(0);
    show_board();
    for (int i=0;i<8;i++)
     for (int j=0;j<8;j++) pole[j][i]=poleb[j][i];
    kingpositions();
   }
   blinkstep++;
   if (blinkstep>2) blinkstep=0;
}
//****************************
void beep(int leng) {
  analogWrite(PinBuzz, 20);
  delay(2);
  if (!sound) analogWrite(PinBuzz, 0);
  delay(leng);
  analogWrite(PinBuzz, 0);
}
//****************************
void definecolors() {
...

This file has been truncated, please download it to see its full contents.

ArduinoMegaChess_DUE

Arduino
Sketch updated to Arduino DUE with ILI9486/XPT2046 320x480 pixels touchscreen.
//ArduinoMega Chess 1.0  (DUE 320x480 version)
//Sergey Urusov, ususovsv@gmail.com

#include <TFT_HX8357_Due.h> // Hardware-specific library
#include <stdint.h>
#include <URTouch.h>
#include <avr/pgmspace.h>
#include <Streaming.h>
#include <DueFlashStorage.h>

uint16_t BLACK,BLUE,RED,GREEN,CYAN,MAGENTA,YELLOW,WHITE,GRAY,DARK,GRAY2,BLACKF,WHITEF;

TFT_HX8357_Due tft = TFT_HX8357_Due();

URTouch  myTouch( 6, 5, 4, 3, 2);

DueFlashStorage dueFlashStorage;

int touchx,touchy,touchx0,touchy0,ntouch;
unsigned long lasttouch;
#define MINPRESSURE 10
#define MAXPRESSURE 1000
const int PinBuzz = 12;
int cycle=0; //
const signed char fp=1;
const signed char fn=2;
const signed char fb=3;
const signed char fr=4;
const signed char fq=5;
const signed char fk=6;
const int fig_weight[]={0,100,320,330,500,900,0};
const char fig_symb[]="  NBRQK";
unsigned long count;
boolean rotate=false;
const signed char polezero[8][8] PROGMEM={
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             };
const signed char polestart[8][8] PROGMEM={
             {-fr,-fn,-fb,-fq,-fk,-fb,-fn,-fr},
             {-fp,-fp,-fp,-fp,-fp,-fp,-fp,-fp},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             { fp, fp, fp, fp, fp, fp, fp, fp},
             { fr, fn, fb, fq, fk, fb, fn, fr},
             };

signed char pole[8][8]={ //  3
             {-fr,-fn,-fb,-fq,-fk,-fb,-fn,-fr},
             {-fp,-fp,-fp,-fp,-fp,-fp,-fp,-fp},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             {  0,  0,  0,  0,  0,  0,  0,  0},
             { fp, fp, fp, fp, fp, fp, fp, fp},
             { fr, fn, fb, fq, fk, fb, fn, fr},
             };

signed char pole0[8][8];  //
signed char poledisp[8][8]; //
signed char polechoice[7]; //
boolean w00,w000,b00,b000;
signed char blinkstep;
typedef struct {
  signed char fig1, fig2; //
  signed char x1,y1,x2,y2; //
  signed char check; //
  signed char type; //  1-  ,2- ,3- ,4-5-6-7-  ,,,
  int weight; // ,
} step_type;
const int MAXSTEPS=1000; //.
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
int MINDEPTH; //.
int MAXDEPTH; //.
int LIMDEPTH; //.
const signed char MAXCUTS=10; //.. -  - (10-  ,  20)
boolean TRACE=0;
boolean checkmatesearch=0; //
boolean solving=false;
boolean choice=false;
boolean sound=1;
short cur_step=1; //  , 1....
short limit=0; //  , 0-7;
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
const int limits[8]={3,10,30,60,180,600,1800,100000};
//                   0  1  2  3   4   5    6      7
step_type steps[MAXSTEPS]; //
step_type cuts[MAXCUTS]; //  -
step_type lastbest;
int lastscore;
int minbeta,maxalpha;
int startweight;
int cur_level; //   ()
int start_var; //   , 1....
int cur_var; //  , 1....
int cur_choice; //
boolean check_on_table; //
boolean isstatus;
signed char WKJ=0,WKI=0,BKJ=0,BKI=0; //
boolean endspiel=false; //
signed char progress; //   0-100
boolean only_action=false; // -
unsigned long starttime,limittime,quitime=0;
boolean drag;
signed char movedfig=0;
const uint8_t fig[6][32] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x3,  0xC0, 0x7,  0xE0, 0x7,  0xE0, 0x3,  0xC0, 0x3,  0xC0,
0x7,  0xE0, 0x3,  0xC0, 0x3,  0xC0, 0x7,  0xE0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0x0,  0x0}, //
{0x0, 0x0,  0x3,  0x40, 0x7,  0xE0, 0xF,  0xF0, 0x1F, 0xF8, 0x3F, 0xFC, 0x39, 0xFC, 0x33, 0xFC,
0x7,  0xFC, 0xF,  0xF8, 0xF,  0xF0, 0x7,  0xE0, 0x3,  0xC0, 0x7,  0xE0, 0x1F, 0xF8, 0x0,  0x0},  //
{0x1, 0x80, 0x3,  0xC0, 0x1,  0x80, 0xF,  0xF0, 0x1F, 0xF8, 0x1F, 0xF8, 0x1F, 0xF8, 0x1F, 0xF8,
0x1F, 0xF8, 0x1F, 0xF8, 0xF,  0xF0, 0x7,  0xE0, 0x3,  0xC0, 0x31, 0x8C, 0x7F, 0xFE, 0x0,  0x0}, //
{0x0, 0x0,  0x19, 0x98, 0x1F, 0xF8, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0,
0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0xF,  0xF0, 0x1F, 0xF8, 0x1F, 0xF8, 0x0,  0x0}, //
{0x19, 0x98, 0xD9, 0x9B, 0xD9, 0x9B, 0xD9, 0x9B, 0x6D, 0xB6, 0x6D, 0xB6, 0x6D, 0xB6, 0x35, 0xAC,
0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x1F, 0xF8, 0xF,  0xF0, 0xF,  0xF0, 0x1F, 0xF8, 0x0,  0x0}, //
{0x1, 0x80, 0x1,  0x80, 0x79, 0x9E, 0x7D, 0xBE, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0x7F, 0xFE, 0x3F, 0xFC, 0x3F, 0xFC, 0x1F, 0xF8, 0xF,  0xF0, 0xF,  0xF0, 0x1F, 0xF8, 0x0,  0x0}  //
};
const uint8_t fig_cont[6][32] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x3,  0xC0, 0x4,  0x20, 0x8,  0x10, 0x8,  0x10, 0x4,  0x20, 0x4,  0x20,
0x8,  0x10, 0x4,  0x20, 0x4,  0x20, 0x8,  0x10, 0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x1F, 0xF8}, //
{0x3, 0x40, 0x4,  0xA0, 0x8,  0x10, 0x12, 0x8,  0x20, 0x4,  0x40, 0x2,  0x46, 0x2,  0x4C, 0x2,
0x38, 0x2,  0x10, 0x4,  0x10, 0x8,  0x8,  0x10, 0x4,  0x20, 0x18, 0x18, 0x20, 0x4,  0x3F, 0xFC},  //
{0x2, 0x40, 0x4,  0x20, 0x6,  0x60, 0x10, 0x8,  0x21, 0x84, 0x21, 0x84, 0x21, 0x84, 0x27, 0xE4,
0x21, 0x84, 0x21, 0x84, 0x11, 0x88, 0x8,  0x10, 0x34, 0x2C, 0x4E, 0x72, 0x80, 0x1,  0xFF, 0xFF}, //
{0x39, 0x9C, 0x26, 0x64, 0x20, 0x4,  0x1F, 0xF8, 0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x10, 0x8,
0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x10, 0x8,  0x1F, 0xF8, 0x20, 0x4,  0x20, 0x4,  0x3F, 0xFC}, //
{0x22, 0x24, 0x22, 0x24, 0x22, 0x24, 0x26, 0x64, 0x92, 0x49, 0x92, 0x49, 0x92, 0x49, 0x4A, 0x52,
0x40, 0x2,  0x40, 0x2,  0x5F, 0xFA, 0x20, 0x4,  0x1F, 0xF8, 0x10, 0x8,  0x20, 0x4,  0x3F, 0xFC}, //
{0x2, 0x40, 0x7A, 0x5E, 0x86, 0x61, 0x82, 0x41, 0x2,  0x40, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80,
0x80, 0x81, 0x41, 0x82, 0x5F, 0xFA, 0x20, 0x4,  0x1F, 0xF8, 0x10, 0x8,  0x20, 0x4,  0x3F, 0xFC}  //
};

const uint8_t fig24[6][72] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x1E, 0x0,  0x0,  0x3F, 0x0,  0x80, 0x7F, 0x0,  0x80, 0x7F, 0x0,
0x80, 0x7F, 0x0,  0x0,  0x3F, 0x0,  0x0,  0x1C, 0x0,  0x0,  0x1C, 0x0,  0x80, 0xFF, 0x0,  0x80, 0xFF, 0x0,  0x0,  0x1C, 0x0,  0x0,  0x1C, 0x0,
0x0,  0x3E, 0x0,  0x0,  0x7F, 0x0,  0x80, 0xFF, 0x0,  0xC0, 0xFF, 0x1,  0xE0, 0xFF, 0x3,  0xE0, 0xFF, 0x3,  0xE0, 0xFF, 0x3,  0x0,  0x0,  0x0
}, //pawn
{0x0, 0x0,  0x0,  0x0,  0x6E, 0x0,  0x0,  0xFF, 0x0,  0x80, 0xFF, 0x1,  0x80, 0xFF, 0x3,  0xC0, 0xFF, 0x7,  0xE0, 0xFF, 0xF,  0xE0, 0xF9, 0xF,
0xF0, 0xF8, 0xF,  0xF0, 0xF8, 0xF,  0x60, 0xFC, 0xF,  0x0,  0xFE, 0xF,  0x0,  0xFF, 0xF,  0x0,  0xFF, 0x7,  0x0,  0xFF, 0x3,  0x0,  0xFF, 0x1,
0x0,  0xFE, 0x0,  0x0,  0x7C, 0x0,  0x0,  0x38, 0x0,  0x0,  0x38, 0x0,  0x0,  0x7C, 0x0,  0xF0, 0xFF, 0xF,  0xF0, 0xFF, 0xF,  0x0,  0x0,  0x0
}, //knight
{0x0, 0x0,  0x0,  0x0,  0x3C, 0x0,  0x0,  0x7E, 0x0,  0x0,  0x7E, 0x0,  0x0,  0x3C, 0x0,  0x0,  0x18, 0x0,  0x80, 0xFF, 0x1,  0xC0, 0xFF, 0x3,
0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,
0xE0, 0xFF, 0x7,  0xC0, 0xFF, 0x3,  0x80, 0xFF, 0x1,  0x0,  0xFF, 0x0,  0x8,  0x7E, 0x10, 0x1C, 0x3C, 0x38, 0xFE, 0xFF, 0x7F, 0x0,  0x0,  0x0
}, //bishop
{0x0, 0x0,  0x0,  0xF0, 0x3C, 0xF,  0xF0, 0x3C, 0xF,  0xF0, 0xFF, 0xF,  0xE0, 0xFF, 0x7,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,
0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,
0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xC0, 0xFF, 0x3,  0xE0, 0xFF, 0x7,  0xF0, 0xFF, 0xF,  0xF0, 0xFF, 0xF,  0x0,  0x0,  0x0
}, //rook
{0x0, 0x0,  0x0,  0xEE, 0xBD, 0x77, 0xEE, 0xBD, 0x77, 0xC6, 0x18, 0x63, 0xC6, 0x18, 0x63, 0xC6, 0x18, 0x63, 0xCC, 0x18, 0x33, 0xCC, 0x18, 0x33,
0xCC, 0x18, 0x33, 0xCC, 0x18, 0x33, 0xCC, 0x18, 0x33, 0x98, 0x99, 0x19, 0x98, 0x99, 0x19, 0x98, 0x99, 0x19, 0x98, 0x99, 0x19, 0x98, 0x99, 0x19,
0x30, 0xFF, 0xC,  0xB0, 0xFF, 0xD,  0xF0, 0xFF, 0xF,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xF0, 0xFF, 0xF,  0xF0, 0xFF, 0xF,  0x0,  0x0,  0x0
}, //queen
{0x0, 0x0,  0x0,  0x0,  0x18, 0x0,  0xF0, 0x18, 0xF,  0xF8, 0x99, 0x1F, 0xFC, 0xDB, 0x3F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F,
0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x7F, 0xFE, 0xFF, 0x3F, 0xFC, 0xFF, 0x1F, 0xF8, 0xFF, 0x1F,
0xF0, 0xFF, 0xF,  0xE0, 0xFF, 0x7,  0xE0, 0xFF, 0x7,  0xC0, 0xFF, 0x3,  0xE0, 0xFF, 0x7,  0xF0, 0xFF, 0xF,  0xF0, 0xFF, 0xF,  0x0,  0x0,  0x0
} //king
};

const uint8_t fig24_cont[6][72] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x1C, 0x0,  0x0,  0x22, 0x0,  0x0,  0x41, 0x0,  0x80, 0x80, 0x0,  0x80, 0x80, 0x0,
0x80, 0x80, 0x0,  0x0,  0x41, 0x0,  0x0,  0x22, 0x0,  0xC0, 0xE3, 0x1,  0x40, 0x0,  0x1,  0x40, 0x0,  0x1,  0xC0, 0xE3, 0x1,  0x0,  0x22, 0x0,
0x0,  0x41, 0x0,  0x80, 0x80, 0x0,  0x40, 0x0,  0x1,  0x20, 0x0,  0x2,  0x10, 0x0,  0x4,  0x10, 0x0,  0x4,  0x10, 0x0,  0x4,  0xF0, 0xFF, 0x7
}, //pawn
{0x0, 0x6E, 0x0,  0x0,  0x91, 0x0,  0x80, 0x0,  0x1,  0x40, 0x2,  0x2,  0x40, 0x0,  0x4,  0x20, 0x0,  0x8,  0x10, 0x0,  0x10, 0x10, 0x6,  0x10,
0x8,  0x5,  0x10, 0x8,  0x5,  0x10, 0x90, 0x2,  0x10, 0x60, 0x1,  0x10, 0x80, 0x0,  0x10, 0x80, 0x0,  0x8,  0x80, 0x0,  0x4,  0x80, 0x0,  0x2,
0x0,  0x1,  0x1,  0x0,  0x82, 0x0,  0x0,  0x44, 0x0,  0x0,  0x44, 0x0,  0xF8, 0x83, 0x1F, 0x8,  0x0,  0x10, 0x8,  0x0,  0x10, 0xF8, 0xFF, 0x1F
}, //knight
{0x0, 0x3C, 0x0,  0x0,  0x42, 0x0,  0x0,  0x81, 0x0,  0x0,  0x81, 0x0,  0x0,  0x42, 0x0,  0x80, 0xE7, 0x1,  0x40, 0x0,  0x2,  0x20, 0x18, 0x4,
0x10, 0x18, 0x8,  0x10, 0x18, 0x8,  0x10, 0x18, 0x8,  0x90, 0xFF, 0x9,  0x90, 0xFF, 0x9,  0x10, 0x18, 0x8,  0x10, 0x18, 0x8,  0x10, 0x18, 0x8,
0x10, 0x18, 0x8,  0x20, 0x18, 0x4,  0x40, 0x18, 0x2,  0x88, 0x0,  0x11, 0x14, 0x81, 0x28, 0xE2, 0xC3, 0x47, 0x1,  0x0,  0x80, 0xFF, 0xFF, 0xFF
}, //bishop
{0xF8, 0x7E, 0x1F, 0x8,  0xC3, 0x10, 0x8,  0xC3, 0x10, 0x8,  0x0,  0x10, 0x10, 0x0,  0x8,  0xE0, 0xFF, 0x7,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,
0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,
0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0x20, 0x0,  0x4,  0xE0, 0xFF, 0x7,  0x10, 0x0,  0x8,  0x8,  0x0,  0x10, 0x8,  0x0,  0x10, 0xF8, 0xFF, 0x1F
}, //rook
{0xEF, 0xBD, 0xF7, 0x11, 0x42, 0x88, 0x11, 0x42, 0x88, 0x29, 0xA5, 0x94, 0x29, 0xA5, 0x94, 0x29, 0xA5, 0x94, 0x32, 0xA5, 0x4C, 0x32, 0xA5, 0x4C,
0x32, 0xA5, 0x4C, 0x32, 0xA5, 0x4C, 0x32, 0xA5, 0x4C, 0x64, 0x66, 0x26, 0x64, 0x66, 0x26, 0x64, 0x66, 0x26, 0x64, 0x66, 0x26, 0x64, 0x66, 0x26,
0xC8, 0x0,  0x13, 0x48, 0x0,  0x12, 0x8,  0x0,  0x10, 0x10, 0x0,  0x8,  0xF0, 0xFF, 0xF,  0x8,  0x0,  0x10, 0x8,  0x0,  0x10, 0xF8, 0xFF, 0x1F
}, //queen
{0x0, 0x18, 0x0,  0xF0, 0x24, 0xF,  0x8,  0xA5, 0x10, 0x4,  0x66, 0x20, 0x2,  0x24, 0x40, 0x1,  0x24, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x80,
0x1,  0x18, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x80, 0x1,  0x18, 0x40, 0x2,  0x18, 0x20, 0x4,  0x18, 0x20,
0xE8, 0xFF, 0x17, 0x10, 0x0,  0x8,  0x10, 0x0,  0x8,  0x20, 0x0,  0x4,  0xF0, 0xFF, 0xF,  0x8,  0x0,  0x10, 0x8,  0x0,  0x10, 0xF8, 0xFF, 0x1F
} //king
};


const uint8_t issound[2][32] PROGMEM={
{0x0, 0x0,  0x0,  0x0,  0x0,  0x32, 0x0,  0x54, 0x0,  0x98, 0x1F, 0x10, 0x10, 0x30, 0x10, 0x50,
0x10, 0x90, 0x11, 0x10, 0x1F, 0x10, 0x4,  0x90, 0x8,  0x50, 0x10, 0x30, 0x0,  0x0,  0x0,  0x0},
{0x0, 0x0,  0x0,  0x0,  0x0,  0x30, 0x0,  0x50, 0x0,  0x90, 0x1F, 0x10, 0x10, 0x10, 0x10, 0x10,
0x10, 0x10, 0x10, 0x10, 0x1F, 0x10, 0x0,  0x90, 0x0,  0x50, 0x0,  0x30, 0x0,  0x0,  0x0,  0x0}
};
const uint8_t iswb[2][32] PROGMEM={
{0x0,  0x0,  0x0,  0x0,  0x3,  0xC0, 0x4,  0x20, 0x8,  0x10, 0x8,  0x10, 0x4,  0x20, 0x4,  0x20,
0x8,  0x10, 0x4,  0x20, 0x4,  0x20, 0x8,  0x10, 0x10, 0x8,  0x10, 0x8,  0x1F, 0xF8, 0x0,  0x0},
{0x0,  0x0,  0x0,  0x0,  0x3,  0xC0, 0x7,  0xE0, 0xF,  0xF0, 0xF,  0xF0, 0x7,  0xE0, 0x7,  0xE0,
0xF,  0xF0, 0x7,  0xE0, 0x7,  0xE0, 0xF,  0xF0, 0x1F, 0xF8, 0x1F, 0xF8, 0x1F, 0xF8, 0x0,  0x0}
};
const uint8_t iscm[2][32] PROGMEM={
{0x0, 0x0,  0x7,  0xE0, 0xC,  0x30, 0xC,  0x30, 0xC,  0x30, 0xC,  0x30, 0x0,  0x30, 0x0,  0x60,
0x0,  0xC0, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x0,  0x0,  0x1,  0x80, 0x1,  0x80, 0x0,  0x0},
{0x0,  0x0,  0x3F, 0x0,  0x61, 0x80, 0x61, 0x80, 0x61, 0x80, 0x61, 0x80, 0x1,  0x80, 0x3,  0x0,
0x6,  0x24, 0xC,  0x24, 0xC,  0xFF, 0xC,  0x24, 0x0,  0xFF, 0xC,  0x24, 0xC,  0x24, 0x0,  0x0}
};
const uint8_t islimit[8][32] PROGMEM={
{0x0, 0x0,  0x3,  0xC0, 0x6,  0x60, 0x0,  0x60, 0x1,  0xC0, 0x0,  0x60, 0x6,  0x60, 0x6,  0x60,
0x3,  0xC0, 0x0,  0x0,  0x1D, 0xDC, 0x11, 0x10, 0x1D, 0xD0, 0x5,  0x10, 0x1D, 0xDC, 0x0,  0x0},
{0x0, 0x0,  0x4,  0x70, 0xC,  0x88, 0x4,  0x88, 0x4,  0x88, 0x4,  0x88, 0x4,  0x88, 0x4,  0x88,
0xE,  0x70, 0x0,  0x0,  0x1D, 0xDC, 0x11, 0x10, 0x1D, 0xD0, 0x5,  0x10, 0x1D, 0xDC, 0x0,  0x0},
{0x0, 0x0,  0xC,  0x70, 0x12, 0x88, 0x2,  0x88, 0xC,  0x88, 0x2,  0x88, 0x2,  0x88, 0x12, 0x88,
0xC,  0x70, 0x0,  0x0,  0x1D, 0xDC, 0x11, 0x10, 0x1D, 0xD0, 0x5,  0x10, 0x1D, 0xDC, 0x0,  0x0},
{0x0, 0x0,  0x1,  0x80, 0x3,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80,
0x3,  0xC0, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0x3,  0xC0, 0x6,  0x60, 0x0,  0x60, 0x1,  0xC0, 0x0,  0x60, 0x6,  0x60, 0x6,  0x60,
0x3,  0xC0, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0xC,  0x78, 0x1C, 0xCC, 0xC,  0xCC, 0xC,  0xCC, 0xC,  0xCC, 0xC,  0xCC, 0xC,  0xCC,
0x1E, 0x78, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0x1C, 0x78, 0x36, 0xCC, 0x6,  0xCC, 0x1C, 0xCC, 0x6,  0xCC, 0x36, 0xCC, 0x36, 0xCC,
0x1C, 0x78, 0x0,  0x0,  0x22, 0xA4, 0x36, 0xA4, 0x2A, 0xB4, 0x22, 0xAC, 0x22, 0xA4, 0x0,  0x0},
{0x0, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x3C, 0x3C, 0x7E, 0x7E, 0x63, 0xC6, 0x61, 0x86,
0x63, 0xC6, 0x66, 0x66, 0x3C, 0x3C, 0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0,  0x0}
};
const uint8_t isdesc[2][32] PROGMEM={
{0x0,  0x0,  0xE3, 0x8E, 0xE3, 0x8E, 0xE3, 0x8E, 0x1C, 0x70, 0x1C, 0x70, 0x1C, 0x70, 0xE3, 0x8E,
0xE3, 0x8E, 0xE3, 0x8E, 0x1C, 0x70, 0x1C, 0x70, 0x1C, 0x70, 0xE3, 0x8E, 0xE3, 0x8E, 0xE3, 0x8E},
{0x0,  0x0,  0x0,  0x4,  0x0,  0xE,  0x0,  0xE,  0x0,  0x1C, 0x0,  0x1C, 0x0,  0x38, 0x0,  0x30,
0x30, 0x70, 0x78, 0xE0, 0x3C, 0xC0, 0x1F, 0xC0, 0xF,  0x80, 0x7,  0x0,  0x2,  0x0,  0x0,  0x0}

};
const uint8_t isback[32] PROGMEM={
0x0,  0x0,  0x0,  0x0,  0x20, 0xF0, 0x31, 0xF8, 0x3B, 0xFC, 0x3F, 0x8E, 0x3F, 0xE,  0x3F, 0xE,
0x3F, 0x8E, 0x3F, 0xCE, 0x0,  0xE,  0x0,  0xE,  0x0,  0x1C, 0x0,  0x38, 0x0,  0x70, 0x0,  0x0
};
const uint8_t issave[32] PROGMEM={
0x1,  0x80, 0x3,  0xC0, 0x7,  0xE0, 0x7,  0xE0, 0x3,  0xC0, 0x3F, 0xFC, 0x23, 0xC4, 0x23, 0xC4,
0x23, 0xC4, 0x23, 0xC4, 0x23, 0xC4, 0x23, 0xC4, 0x20, 0x4,  0x20, 0x4,  0x3F, 0xFC, 0x0,  0x0
};
const uint8_t isload[32] PROGMEM={
0x0,  0x0,  0x3,  0xC0, 0x3,  0xC0, 0x3,  0xC0, 0x3,  0xC0, 0x3F, 0xFC, 0x23, 0xC4, 0x23, 0xC4,
0x23, 0xC4, 0x27, 0xE4, 0x27, 0xE4, 0x23, 0xC4, 0x21, 0x84, 0x20, 0x4,  0x3F, 0xFC, 0x0,  0x0
};
const uint8_t isempty[32] PROGMEM={
0xFF,  0xFF, 0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,
0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0xFF, 0xFF
};
const uint8_t isinit[32] PROGMEM={
0xFF,  0xFF, 0x80, 0x1,  0x80, 0x1,  0xFF, 0xFF, 0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,
0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0x80, 0x1,  0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF
};
const uint8_t isplay[32] PROGMEM={
0x0,  0x0,  0x3,  0xC0, 0x3,  0xC0, 0x3,  0xC0, 0x1,  0x80, 0x23, 0xF8, 0x17, 0xC8, 0xB,  0xC8,
0x3,  0xC0, 0x3,  0xC0, 0x2,  0x40, 0x4,  0x40, 0x4,  0x38, 0x4,  0x8,  0xC,  0x0,  0x0,  0x0
};
const uint8_t isrotate[2][32] PROGMEM={
{0x0,  0x0,  0x0,  0x0,  0x3F, 0xFC, 0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,
0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x0,  0x0,  0x0,  0x0},
{0x0, 0x0,  0x0,  0x0,  0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC, 0x3F, 0xFC,
0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x20, 0x4,  0x3F, 0xFC, 0x0,  0x0,  0x0,  0x0}
};

const int pos[7][8][8] PROGMEM={
 {{  0,  0,  0,  0,  0,  0,  0,  0}, //
  {100,100,100,100,100,100,100,100},  //{ 50, 50, 50, 50, 50, 50, 50, 50},
  { 20, 30, 40, 50, 50, 40, 30, 20},  //{ 10, 10, 20, 30, 30, 20, 10, 10},
  {  5,  5, 10, 25, 25, 10,  5,  5},
  {  0,  0,  0, 20, 20,  0,  0,  0},
  {  5, -5,-10,  0,  0,-10, -5,  5},
  {  5, 10, 10,-20,-20, 10, 10,  5},  //{  5, 10, 10,-20,-20, 10, 10,  5},
  {  0,  0,  0,  0,  0,  0,  0,  0}},

 {{-50,-40,-30,-30,-30,-30,-40,-50}, //
  {-40,-20,  0,  0,  0,  0,-20,-40},
  {-30,  0, 10, 15, 15, 10,  0,-30},
  {-30,  5, 15, 20, 20, 15,  5,-30},
  {-30,  0, 15, 20, 20, 15,  0,-30},
  {-30,  5, 10, 15, 15, 10,  5,-30},
  {-40,-20,  0,  5,  5,  0,-20,-40},
  {-50,-40,-30,-30,-30,-30,-40,-50}},

 {{-20,-10,-10,-10,-10,-10,-10,-20}, //
  {-10,  0,  0,  0,  0,  0,  0,-10},
  {-10,  0,  5, 10, 10,  5,  0,-10},
  {-10,  5,  5, 10, 10,  5,  5,-10},
  {-10,  0, 10, 10, 10, 10,  0,-10},
  {-10, 10, 10, 10, 10, 10, 10,-10},
  {-10,  5,  0,  0,  0,  0,  5,-10},
  {-20,-10,-10,-10,-10,-10,-10,-20}},

 {{  0,  0,  0,  0,  0,  0,  0,  0}, //
  {  5, 10, 10, 10, 10, 10, 10,  5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  { -5,  0,  0,  0,  0,  0,  0, -5},
  {  0,  0,  0,  5,  5,  0,  0,  0}},

 {{-20,-10,-10, -5, -5,-10,-10,-20}, //
  {-10,  0,  0,  0,  0,  0,  0,-10},
  {-10,  0,  5,  5,  5,  5,  0,-10},
  { -5,  0,  5,  5,  5,  5,  0, -5},
  {  0,  0,  5,  5,  5,  5,  0, -5},
  {-10,  5,  5,  5,  5,  5,  0,-10},
  {-10,  0,  5,  0,  0,  0,  0,-10},
  {-20,-10,-10, -5, -5,-10,-10,-20}},

 {{-30,-40,-40,-50,-50,-40,-40,-30}, //
  {-30,-40,-40,-50,-50,-40,-40,-30},
  {-30,-40,-40,-50,-50,-40,-40,-30},
  {-30,-40,-40,-50,-50,-40,-40,-30},
  {-20,-30,-30,-40,-40,-30,-30,-20},
  {-10,-20,-20,-20,-20,-20,-20,-10},
  { 10, 10,-10,-10,-10,-10, 10, 10},  //{ 20, 20,  0,  0,  0,  0, 20, 20},
  { 10, 40, 30,  0,  0,  0, 50, 10}}, //{ 20, 30, 10,  0,  0, 10, 30, 20}},

 {{-50,-40,-30,-20,-20,-30,-40,-50}, //
  {-30,-20,-10,  0,  0,-10,-20,-30},
  {-30,-10, 20, 30, 30, 20,-10,-30},
  {-30,-10, 30, 40, 40, 30,-10,-30},
  {-30,-10, 30, 40, 40, 30,-10,-30},
  {-30,-10, 20, 30, 30, 20,-10,-30},
  {-30,-30,  0,  0,  0,  0,-30,-30},
  {-50,-30,-30,-30,-30,-30,-30,-50}}
};

volatile static int32_t toggles;                    // number of ups/downs in a tone burst

void tone(int toneFreq,int32_t duration){                        // duration in ms
  const uint32_t rcVal = VARIANT_MCK/256/toneFreq;  // target value for counter, before it resets (= 82 for 4kHz)
  toggles = 2*toneFreq*duration/1000;               // calculate no of waveform edges (rises/falls) for the tone burst
  setupTC(TC1,0,TC3_IRQn,toneFreq);                 // Start Timer/Counter 1, channel 0, interrupt, frequency
  }

void setupTC(Tc *tc, uint32_t channel, IRQn_Type irq, uint32_t freq){
  pmc_set_writeprotect(false);                       // disable write protection of timer registers
  pmc_enable_periph_clk((uint32_t) irq);             // enable clock / interrupt
  TC_Configure(tc, channel,
               TC_CMR_TCCLKS_TIMER_CLOCK4 |          // TIMER_CLOCK4: MCK/128=656,250Hz. 16 bits so 656,250/65,536=~10Hz/bit
               TC_CMR_WAVE |                         // Waveform mode
               TC_CMR_WAVSEL_UP_RC );                // Counter running up and reset when = Register C value (rcVal)
  const uint32_t rcVal = VARIANT_MCK/256/freq;       // target value for counter, before it resets
  TC_SetRC(tc, channel, rcVal);
  TC_Start(tc, channel);
  (*tc).TC_CHANNEL[channel].TC_IER =  TC_IER_CPCS;   // IER: CPCS bit enables RC compare interrupt when set
  (*tc).TC_CHANNEL[channel].TC_IDR = ~TC_IER_CPCS;   // IDR: clear CPCS bit = don't disable RC compare interrupt
  NVIC_EnableIRQ(irq);                               // Enable TC3_IRQn in the Nested Vector Interrupt Controller)
  }

void TC3_Handler(void){                              // timer ISR  TC1 ch 0
  TC_GetStatus(TC1,0);
  if (toggles != 0){
    digitalWrite(PinBuzz,!digitalRead(PinBuzz));     // invert the pin state (i.e toggle)
    if (toggles > 0) toggles--;
    }
  }

 void noTone(){
  TC_Stop(TC1,0);                               // stop timer
  digitalWrite(PinBuzz,LOW);                         // no signal on pin
 }

//******
class Button {
public:
int bx,by,bw,bh,bshift;
String bs;
const uint8_t* bp;
 Button(int x,int y,int w,int h,String s,const uint8_t* p, int shift);
 void Show(int shift);
 void Show(String s);
 void Hide();
 boolean IsPressed(int xc, int yc);
private:
boolean active;
 void ishow(uint16_t textcolor,uint16_t backcolor);
};
Button::Button(int x,int y,int w,int h,String s,const uint8_t* p=NULL, int shift=0) {
  bx=x; by=y; bw=w; bh=h; bs=s; bp=p; bshift=shift;
};
void Button::Show(int shift=0) {
 bshift=shift;
 active=true;
 ishow(WHITE,DARK);
};
void Button::Show(String s) {
 bs=s;
 active=true;
 ishow(WHITE,DARK);
};
void Button::Hide() {
 active=false;
 ishow(GRAY,DARK);
};
boolean Button::IsPressed(int xc, int yc) {
  if (active&&abs(bx+bw/2-xc)<bw/2&&abs(by+bh/2-yc)<bh/2) {
    ishow(WHITE,GRAY);
    touchx=0; touchy=0;
    return true;
  }
  return false;
};
void Button::ishow(uint16_t textcolor,uint16_t backcolor) {
  tft.fillRoundRect(bx+2,by+2,bw,bh,3,GRAY2);
  tft.fillRoundRect(bx,by,bw,bh,3,backcolor);
  tft.setTextColor(textcolor);
  tft.setTextSize(1);
  tft.setCursor(bx+(bw-bs.length()*6)/2,by+(bh-8)/2);
  if (bp!=NULL) {
   tft.drawBitmap(1+bx+(bw-16)/2, by+(bh-16)/2, bp+bshift*32, 16, 16,textcolor);
  }
  else  tft.print(bs);
}
Button BAction(320, 285, 70, 30, "START");
Button BBW(402, 285, 30, 30, "",&iswb[0][0]);
Button BBack(444, 285, 30, 30, "",&isback[0]);
Button BInit(444, 285, 30, 30, "",&isinit[0]);
Button BLimit(320, 245, 26, 30, "",&islimit[0][0]);
Button BEmpty(320, 245, 26, 30, "",&isempty[0]);
Button BRotate(352, 245, 26, 30, "",&isrotate[0][0]);
Button BPlay(352, 245, 26, 30, "",&isplay[0]);
Button BCM(384, 245, 26, 30, "",&iscm[0][0]);
Button BSave(384, 245, 26, 30, "",&issave[0]);
Button BDesc(416, 245, 26, 30, "",&isdesc[0][0]);
Button BSound(448, 245, 26, 30, "",&issound[0][0]);
Button BLoad(448, 245, 26, 30, "",&isload[0]);

union byte2_t {
         uint8_t b[2];
         struct {
          short s;
         };
        };

byte2_t byte2;
//**********************************
void drawBitmap(int16_t x, int16_t y,
            const uint8_t *bitmap, int16_t w, int16_t h,
            uint16_t color) {
  int16_t i, j, byteWidth = (w + 7) / 8;
  //if (color!=pixelfg) tft.fgColor(color);
  for(j=0; j<h; j++) {
    for(i=0; i<w; i++ ) {
        if(pgm_read_byte(bitmap + j * byteWidth + i / 8) & (1 << (i % 8))) {
        tft.drawPixel(x+i, y+j, color);
      }
    }
  }
}
//****************************
void deletebuttons() {
  tft.fillRect(320,245,160,75,BLACK);
}

//****************************
void clearstatus() {
  tft.fillRect(320,225,160,20,BLACK);
  tft.drawFastHLine(10,312,300,BLACK);
  tft.drawFastHLine(10,315,300,BLACK);
}
//****************************
void setup() {
  Serial.begin(57600);
  Serial.println(F("Start"));
  pinMode(13, OUTPUT);
  tft.init();
  tft.setRotation(1);
  myTouch.InitTouch();
  definecolors();
  beep(100);
  for (int i=0;i<MAXSTEPS;i++) {
    steps[i].x1=0; steps[i].y1=0;
    steps[i].x2=0; steps[i].y2=0;
    steps[i].fig1=0; steps[i].fig2=0;
    steps[i].check=0;
    steps[i].type=0;
    steps[i].weight=0;
  }
  initboard();
}
//****************************
void initboard() {
  for (int i=0;i<8;i++)
   for (int j=0;j<8;j++) poledisp[j][i]=-100; //
  tft.fillScreen(BLACK);
  tft.setTextColor(GRAY);
  tft.setTextSize(1);
  for (int j=1;j<9;j++) {
   tft.setCursor(2,j*37-20);
   if (rotate) tft.print(j); else tft.print(9-j);
  }
  for (byte i=1;i<9;i++) {
   tft.setCursor(i*37-8,300);
   if (rotate) tft.print(char(96+9-i)); else tft.print(char(96+i));
  }
  initscreen();
}
//****************************
void initscreen() {
 show_board();
 show_steps();
 BAction.Show("START");
 BBW.Show(cur_step%2);
 if (cur_step>1) BBack.Show(); else BBack.Hide();
 BSave.Hide();
 BLoad.Hide();
 BInit.Hide();
 BBack.Show();
 BLimit.Show();
 BPlay.Hide();
 BRotate.Show(rotate);
 BEmpty.Hide();
 BLimit.Show(limit);
 BCM.Show(checkmatesearch);
 BDesc.Show(choice);
 BSound.Show(sound);
}
//****************************
void loop() {
  gui();
  if (solving) {
    int len=70;
    if (!sound) len=2;
    for (int i=1;i<4;i++) {
      tone(400+300*i,len);
      delay(70); }
    lastscore=solve_step();
    float tim=float(millis()-starttime)/1000;
    for (int i=3;i>=1;i--) {
       tone(400+300*i,len);
     delay(70); }
    if (!checkmatesearch&&lastscore>-9000&&lastscore!=8999) {
      movestep(cur_step);
      cur_step++; steps[cur_step].fig1=0;
    }
    initscreen();
    animate_step(cur_step-1,false);
    clearstatus();
    if (lastscore>9000) {
      tft.setTextSize(1);
      tft.setTextColor(GREEN);
      tft.setCursor(322,230);
      if (lastscore<9999) {
       tft.print("# in ");
       tft.print((9999-lastscore)/2+1); tft.print(F(" st"));
      } else tft.print("Checkmate");
    } else if (lastscore<-9000) {
      tft.setTextSize(1);
      tft.setTextColor(RED);
      tft.setCursor(322,230);
      tft.print("GIVE UP!");
      show_steps();
    } else if (lastscore==8999) { //Draw
      tft.setTextSize(1);
      tft.setTextColor(YELLOW);
      tft.setCursor(322,230);
      tft.print("Draw");
    }
    tft.setTextSize(1);
    tft.setTextColor(GRAY);
    tft.setCursor(322,230);
    tft.print(tim,0);
    tft.print("s ");
    if (abs(lastscore)<5000) {
     tft.print("=");
     tft.print(lastscore);
    }
    tft.setCursor(390,230);
    tft.print(count);
    tft.print(" pos");
    Serial.print(F("Positions estimated=")); Serial.println(count);
    Serial.print(F("Time=")); Serial.print(tim,1); Serial.println("s");
  }
  delay(10);


}

//**********************************
void load_choice() {
  for (int i=0;i<7;i++)
   if (cur_step%2==1) polechoice[i]=i; else polechoice[i]=-i;
}
//**********************************
void show_choice() {
uint16_t color,color_cont;
  for (int i=0;i<7;i++) {
    color=BLACKF;
    if (i%2==0) color=WHITEF;
    tft.fillRect(416,i*25+35,25,25,color);
    color=DARK;
    if (i==cur_choice) color=WHITE;
    tft.drawRect(416,i*25+35,25,25,color);
    color=BLACK; color_cont=GRAY;
    if (polechoice[i]>0) { color=WHITE; color_cont=BLACK; }
    if (polechoice[i]!=0) {
     tft.drawBitmap(420, i*25+39,&fig[abs(polechoice[i])-1][0], 16, 16,color);
     tft.drawBitmap(420, i*25+39,&fig_cont[abs(polechoice[i])-1][0], 16, 16,color_cont);
    }
  }
}
//**********************************
void animate_step(int nstep, boolean hide) {
 if (!hide&&nstep-1>0&&steps[nstep-1].fig1!=0) animate_step(nstep-1,true);
 if (nstep-1<1||steps[nstep].fig1==0) return;
 int j=steps[nstep].x1;
 int dj=steps[nstep].x2-steps[nstep].x1;
 int i=steps[nstep].y1;
 int di=steps[nstep].y2-steps[nstep].y1;
 di=di/abs(di); dj=dj/abs(dj);
 if (hide) show_fig(i,j);
 while (j!=steps[nstep].x2||i!=steps[nstep].y2) {
  show_fig(i,j);
  if (!hide)
   if (!rotate) tft.drawRect(i*37+13,j*37+1,36,36,WHITE);
    else tft.drawRect((7-i)*37+13,(7-j)*37+1,36,36,WHITE);
  int mj=0;
  if (j!=steps[nstep].x2) { j+=dj; mj=1; }
  if (abs(steps[nstep].fig1)==fn&&mj==1) continue;
  if (i!=steps[nstep].y2) i+=di;
 }
 show_fig(i,j);
 if (!hide)
  if (!rotate) tft.drawRect(i*37+13,j*37+1,36,36,WHITE);
   else tft.drawRect((7-i)*37+13,(7-j)*37+1,36,36,WHITE);
}
//**********************************
boolean load_usb() {
signed char s='x',i=0,j=0;  boolean load=false;
  Serial.println(F("Wait for FEN position"));
  for (int i=0;i<8;i++)
      for (int j=0;j<8;j++) {
        pole0[j][i]=pole[j][i];
        pole[j][i]=(signed char)pgm_read_byte(&polezero[j][i]);
      }
  while (s!=' ') {
    s=Serial.read();
    if (i>7) { i=0; j++; }
    if (!getpole(j,i)) break;
    switch (s) {
    case '/': i=0; break;
    case 'p': pole[j][i]=-fp; i++; break;
    case 'P': pole[j][i]=fp; i++; break;
    case 'n': pole[j][i]=-fn; i++; break;
    case 'N': pole[j][i]=fn; i++; break;
    case 'b': pole[j][i]=-fb; i++; break;
    case 'B': pole[j][i]=fb; i++; break;
    case 'r': pole[j][i]=-fr; i++; break;
    case 'R': pole[j][i]=fr; i++; break;
    case 'q': pole[j][i]=-fq; i++; break;
    case 'Q': pole[j][i]=fq; i++; break;
    case 'k': pole[j][i]=-fk; i++; break;
    case 'K': pole[j][i]=fk; i++; break;
    case '1': i++; break;
    case '2': i+=2; break;
    case '3': i+=3; break;
    case '4': i+=4; break;
    case '5': i+=5; break;
    case '6': i+=6; break;
    case '7': i+=7; break;
    case '8': i=0; j++; break;
    case ' ': break;
    }
    delay(20);
    if (i+j>0&&Serial.available()==0) break;
  }
  s=0;
  if (Serial.available()>0) s=Serial.read();
  while (Serial.available()>0) Serial.read();
  if (s=='w'||s==0) { cur_step=1; load=true; }
   else if (s=='b') { cur_step=2; load=true; }
     else load=false;
  if (load) {
     steps[1].fig1=0; steps[2].fig1=0;
     Serial.println(F("Position loaded"));
  } else {
    for (int i=0;i<8;i++)
      for (int j=0;j<8;j++)
        pole[j][i]=pole0[j][i];
  }
  return load;
}
//**********************************
void play() {
 BAction.Show("STOP");
 BSave.Hide();
 BBW.Hide();
 BLoad.Hide();
 BInit.Hide();
 BPlay.Hide();
 BEmpty.Hide();
 BDesc.Hide();
 clearstatus();
 for (int i=cur_step-1;i>0;i--) {
  if (steps[i].fig1!=0) backstep(i);
 }
 show_board();
 show_steps();
 boolean st=false;
 unsigned long tim=millis();
 int i=1;
 while (i<cur_step) {
  if (steps[i].fig1!=0) movestep(i);
  myTouch.calibrateRead();
  int x=map(myTouch.TP_X,3850,250,0,479);
  int y=map(myTouch.TP_Y,280,3850,0,319);
  if (myTouch.TP_X!=0&&myTouch.TP_Y!=4095)
    if (BAction.IsPressed(x,y)) { st=true; BAction.Show(); }
  if (millis()-tim>2000||st) {
    tim=millis();
    i++;
    show_board();
    beep(20);
  }
 }
 choice=0;
 beep(200);
 kingpositions();
 clearstatus();
 initscreen();
}
//**********************************
void gui() {
  myTouch.calibrateRead();
  int x=map(myTouch.TP_X,3850,250,0,479);
  int y=map(myTouch.TP_Y,280,3850,0,319);
  if (((abs(x-touchx)>5||abs(y-touchy)>5)||drag)&&myTouch.TP_X!=0&&myTouch.TP_Y!=4095) {
  //  tft.drawPixel(x,y,CYAN);
  //  Serial.println(x);
  //  Serial.println(y);
    touchx=x;
    touchy=y;
    if (solving) {
      if (BAction.IsPressed(x,y)) { //
        beep(100);
        solving=false;
        BAction.Show("stopping");
        BAction.Hide();
        return;
      }
    } else { //not solve
      if (BAction.IsPressed(x,y)) { //
       if (!choice) {
        delay(100);
        solving=true;
        BAction.Show();
        animate_step(cur_step-1,true);
        return;
       } else { //   USB
        delay(100);
        BAction.Hide();
        BSave.Hide();
        BBW.Hide();
        BLoad.Hide();
        BInit.Hide();
        BPlay.Hide();
        BEmpty.Hide();
        BDesc.Hide();
        show_steps();
        choice=0;
        if (!load_usb()) return;
        beep(200);
        kingpositions();
        clearstatus();
        initscreen();
       }
      } else if (BBW.IsPressed(x,y)) {   //-
       beep(100);
       if (cur_step==1) cur_step=2;
        else if (cur_step==2) cur_step=1;
         else if (cur_step%2==0) cur_step--; else cur_step++;
       BBW.Show(cur_step%2);
       if (choice) { load_choice(); show_choice(); }
       return;
      } else if (cur_step>1&&BBack.IsPressed(x,y)) {  //
       beep(100);
       cur_step--;
       animate_step(cur_step,true);
       lastscore=0;
       backstep(cur_step);
       steps[cur_step].fig1=0;
       show_board();
       show_steps();
       if (cur_step>1) BBack.Show(); else BBack.Hide();
       BBW.Show(cur_step%2);
       clearstatus();
       return;
      } else if (BLimit.IsPressed(x,y)) {    //
       beep(100);
       limit++; if (limit>7) limit=0;
       BLimit.Show(limit);
       return;
      } else if (BCM.IsPressed(x,y)) {   //
       beep(100);
       checkmatesearch=!checkmatesearch;
       BCM.Show(checkmatesearch);
       if (!checkmatesearch) steps[cur_step].fig1=0;
       lastscore=0;
       show_steps();
       return;
      } else if (BRotate.IsPressed(x,y)) {   //
       beep(100);
       rotate=!rotate;
       BRotate.Show(rotate);
       initboard();
       return;
      } else if (BSound.IsPressed(x,y)) {   //
       if (sound==1) { beep(100); sound=0; } else { sound=1; beep(200); }
       BSound.Show(sound);
       return;
      } else if (BDesc.IsPressed(x,y)) {  //
       beep(100);
       if (!choice) {
        choice=1;
        cur_choice=1;
        load_choice();
        show_choice();
        BAction.Show("USB(FEN)");
        BBack.Hide();
        BInit.Show();
        BSave.Show();
        BLimit.Hide();
        BEmpty.Show();
        BRotate.Hide();
        BPlay.Show();
        BCM.Hide();
        BSound.Hide();
        BSave.Show();
        BLoad.Show();
       } else {
        choice=0;
        lastscore=0;
        clearstatus();
        kingpositions();
        initscreen();
       }
       BDesc.Show(choice);
       return;
      } else if (BInit.IsPressed(x,y)) {  //
        beep(200);
        cur_step=1;
        steps[1].fig1=0;
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) pole[j][i]=(signed char)pgm_read_byte(&polestart[j][i]);
        choice=0;
        kingpositions();
        clearstatus();
        initscreen();
      } else if (BEmpty.IsPressed(x,y)) {  //
        beep(200);
        cur_step=1;
        clearstatus();
        steps[1].fig1=0; steps[2].fig1=0;
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) pole[j][i]=(signed char)pgm_read_byte(&polezero[j][i]);
        BEmpty.Show();
        show_board();
      } else if (BSave.IsPressed(x,y)) {
        beep(100);
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) dueFlashStorage.write(i*8+j,pole[j][i]);
        byte2.s=cur_step;
        dueFlashStorage.write(65,byte2.b[0]);
        dueFlashStorage.write(64,byte2.b[1]);
        byte2.s=limit;
        dueFlashStorage.write(67,byte2.b[0]);
        dueFlashStorage.write(66,byte2.b[1]);
        step_type st;
        for (int i=1;i<cur_step;i++) {
          st=steps[i];
          dueFlashStorage.write(68+i*sizeof(step_type), (byte *)&st, sizeof(step_type));
        }
        BSave.Show();
      } else if (BLoad.IsPressed(x,y)) {
        beep(200);
        for (int i=0;i<8;i++)
         for (int j=0;j<8;j++) pole[j][i]=dueFlashStorage.read(i*8+j);
        byte2.b[0]=dueFlashStorage.read(65);
        byte2.b[1]=dueFlashStorage.read(64);
        cur_step=byte2.s;
        if (cur_step<0||cur_step>400) cur_step=1;
        byte2.b[0]=dueFlashStorage.read(67);
        byte2.b[1]=dueFlashStorage.read(66);
        limit=byte2.s;
        if (limit<0||limit>7) limit=0;
        step_type st;
        for (int i=1;i<cur_step;i++) {
           memcpy(&st, dueFlashStorage.readAddress(68+i*sizeof(step_type)), sizeof(step_type));
           steps[i]=st;
        }
        steps[0].fig1=0;
        steps[cur_step].fig1=0;
        choice=0;
        kingpositions();
        clearstatus();
        initscreen();
      } else if (BPlay.IsPressed(x,y)) {    //
       beep(100);
       BPlay.Show();
       play();
       return;
      }
      if (!choice&&ntouch==0) {
       touchx0=touchx;
       touchy0=touchy;
       signed char x1=touchy0/37;
       signed char y1=(touchx0-10)/37;
       if (rotate) { x1=7-x1; y1=7-y1; }
       if (getpole(y1,x1)&&(cur_step%2==1&&pole[x1][y1]>0||cur_step%2==0&&pole[x1][y1]<0)) {
        signed char p=pole[x1][y1];
        movedfig=p;
        drag=true;
        pole[x1][y1]=0;
        show_fig(y1,x1);
        pole[x1][y1]=p;
       } else drag=false;
      }
      ntouch++;
      if (drag&&ntouch>1) {
          uint16_t buf[256];
          int x1=touchy0/37;
          int y1=(touchx0-10)/37;
          if (rotate) { x1=7-x1; y1=7-y1; }
          if (abs(pole[x1][y1])>0&&(cur_step%2==1&&pole[x1][y1]>0||cur_step%2==0&&pole[x1][y1]<0)) {
            int x2=touchy/37;
            int y2=(touchx-10)/37;
            if (getpole(x2,y2)) {
             signed char p=pole[x2][y2];
             pole[x2][y2]=movedfig;
             show_fig(y2,x2);
             delay(30);
             pole[x2][y2]=p;
             show_fig(y2,x2);
             if (x2==x1&&y2==y1) {
               pole[x2][y2]=0;
               show_fig(y2,x2);
               pole[x2][y2]=p;
             }
            }
       //   for (int i=0;i<16;i++)
       //     for (int j=0;j<16;j++) buf[i*16+j]=tft.readPixel(touchx-8+i,touchy-8+j);
          //buf[0]=tft.readPixel(touchx-8,touchy-8);
       //   uint16_t color,color_cont;
       //   color=BLACK; color_cont=GRAY;
       //   if (pole[x1][y1]>0) { color=WHITE; color_cont=BLACK; }
       //   tft.drawBitmap(touchx-8, touchy-8,&fig[abs(pole[x1][y1])-1][0], 16, 16,color);
       //   tft.drawBitmap(touchx-8, touchy-8,&fig_cont[abs(pole[x1][y1])-1][0], 16, 16,color_cont);
       //   delay(30);
       //   for (int i=0;i<16;i++)
       //     for (int j=0;j<16;j++) tft.drawPixel(touchx-8+i,touchy-8+j,buf[i*16+j]);
          }
      } else if (choice) {
        int x1=touchy/37;
        int y1=(touchx-10)/37;
        if (rotate) { x1=7-x1; y1=7-y1; }
        if (touchy+touchx!=0&&choice&&getpole(y1,x1)) {
         pole[x1][y1]=polechoice[cur_choice];
         show_board();
        }
        if (touchx>=416&&touchx<=441&&touchy>=35&&touchy<=210) {
         cur_choice=(touchy-35)/25;
         show_choice();
        }
      }
      lasttouch=millis();
    } //not solve
    if (!drag) { beep(10); ntouch=0; animate_step(cur_step-1,true); }
  } else { //touching
    if (!solving&&!choice&&drag!=0&&ntouch>0&&(myTouch.TP_X==0||myTouch.TP_Y==4095)&&millis()-lasttouch>300) { //drag
     signed char x1=touchy0/37;
     signed char y1=(touchx0-10)/37;
     signed char x2=touchy/37;
     signed char y2=(touchx-10)/37;
     if (rotate) { x1=7-x1; y1=7-y1; x2=7-x2; y2=7-y2; }
     if (getpole(y1,x1)) show_fig(y1,x1);
     if (getpole(y1,x1)&&getpole(y2,x2)) {
       start_var=cur_step+1;
       only_action=false;
       load_variants(cur_step);
       for (int i=cur_step+1;i<cur_step+cur_var+1;i++)
        if (steps[i].x1==x1&&steps[i].y1==y1&&steps[i].x2==x2&&steps[i].y2==y2) {
         steps[cur_step]=steps[i];
         movestep(cur_step); cur_step++; steps[cur_step].fig1=0;
         int len=100;
         if (!sound) len=2;
         for (int i=2;i>=1;i--) {
          tone(400+300*i,len);
          delay(100); }
         initscreen();
         animate_step(cur_step-1,false);
...

This file has been truncated, please download it to see its full contents.

Credits

Sergey_Urusov

Sergey_Urusov

0 projects • 24 followers

Comments
