Things used in this project

Hardware components:
Nodemcu
NodeMCU ESP8266 Breakout Board
×1
09590 01
LED (generic)
×1
12002 04
Breadboard (generic)
×1
Software apps and online services:
Ide web
Arduino IDE

Schematics

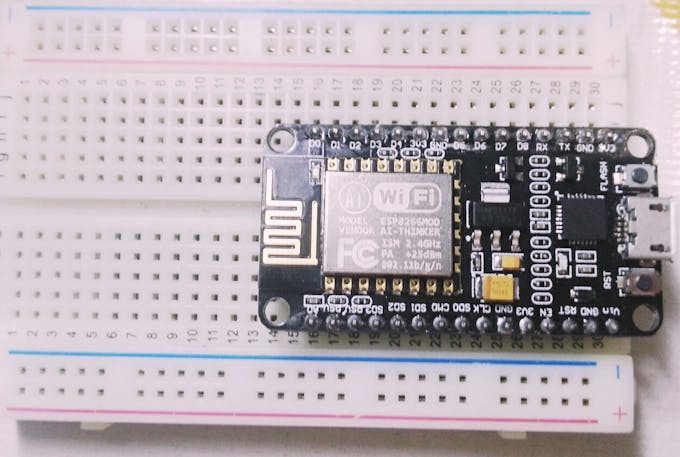

NodeMCU-Pin's
Nodemcu pins pvo2tvvk5j

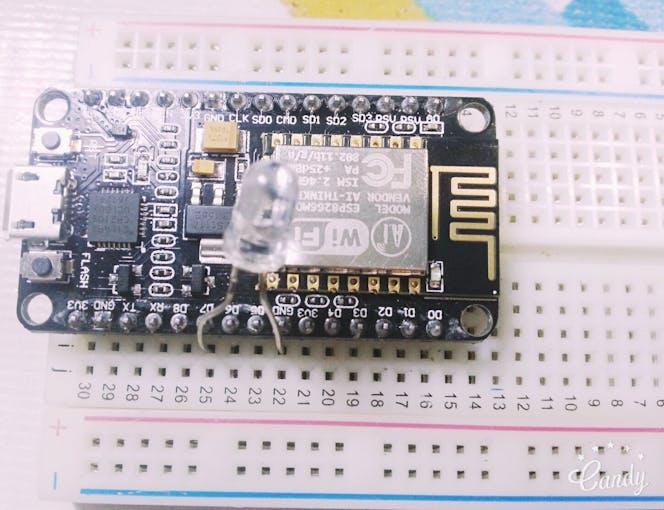

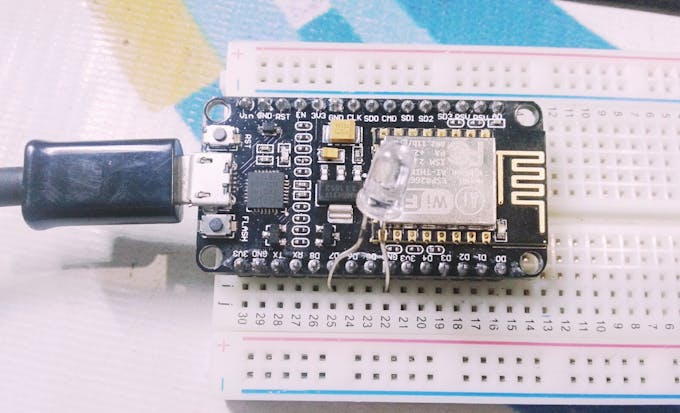

Conncection
Sehe 4eeidbsku6

Code

NodeMCU_WebServerArduino
Set SSID/wifi name and Password in Your Code

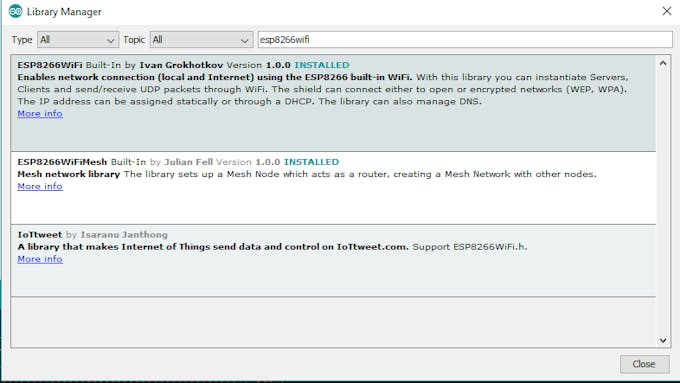

#include <ESP8266WiFi.h>
const char* ssid = ""; //wifi ssid / wifi name
const char* password = ""; //wifi password
int ledPin = 13; // GPIO13
WiFiServer server(80);
void setup() {
 Serial.begin(115200);
 delay(10);
 pinMode(ledPin, OUTPUT);
 digitalWrite(ledPin, LOW);
 // Connect to WiFi network
 Serial.println();
 Serial.println();
 Serial.print("Connecting to ");
 Serial.println(ssid);
 WiFi.begin(ssid, password);
 while (WiFi.status() != WL_CONNECTED) {
   delay(500);
   Serial.print(".");
 }
 Serial.println("");
 Serial.println("WiFi connected");
 // Start the server
 server.begin();
 Serial.println("Server started");

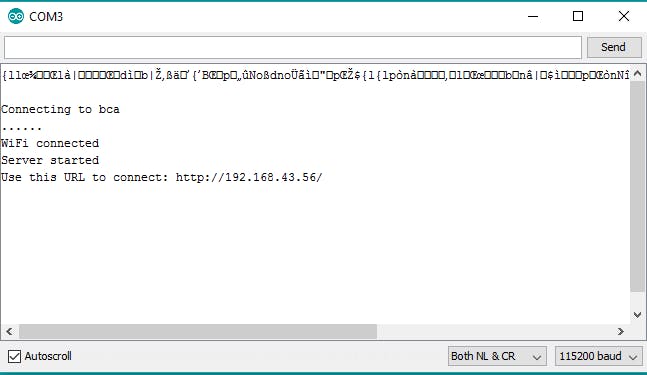

 // Print the IP address
 Serial.print("Use this URL to connect: ");
 Serial.print("http://");
 Serial.print(WiFi.localIP());
 Serial.println("/");
}
void loop() {
 // Check if a client has connected
 WiFiClient client = server.available();
 if (!client) {
   return;
 }
 // Wait until the client sends some data
 Serial.println("new client");
 while(!client.available()){
   delay(1);
 }
 // Read the first line of the request
 String request = client.readStringUntil('\r');
 Serial.println(request);
 client.flush();
 // Match the request
 int value = LOW;
 if (request.indexOf("/LED=ON") != -1)  {
   digitalWrite(ledPin, HIGH);
   value = HIGH;
 }
 if (request.indexOf("/LED=OFF") != -1)  {
   digitalWrite(ledPin, LOW);
   value = LOW;
 }
// Set ledPin according to the request
//digitalWrite(ledPin, value);

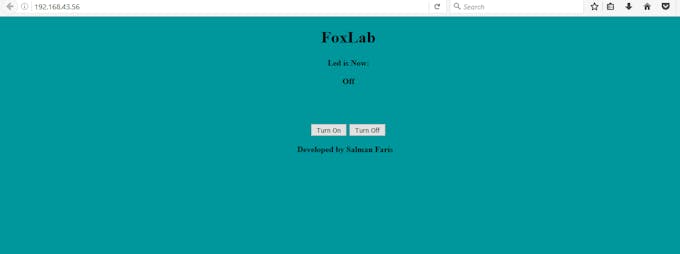

 // Return the response
 client.println("HTTP/1.1 200 OK");
 client.println("Content-Type: text/html");
 client.println(""); //  do not forget this one
 client.println("<!DOCTYPE HTML>");
 client.println("<html>");
 client.print("<body style='background: #00979C'>");
 client.println("<h1 align ='center'>");
 client.println("<font-color='red'>");
 client.println("FoxLab");
 client.println("</font>");
 client.println("</h1>");
 client.println("<bg color ='#00ff00'>");
 client.println("</bg>");
 client.println("<p align ='center'>");
 client.print("Led is Now: ");
 client.println("</p>");
 if(value == HIGH) {
   client.println("<p align ='center'>");
   client.print("On");
   client.println("</p>");
 } else {
   client.println("<p align ='center'>");
   client.print("Off");
   client.println("</p>");
 }
 client.println("<br><br>");
 client.println("<p align ='center'>");
 client.println("<a  href=\"/LED=ON\"\"><button>Turn On </button></a>");
 client.println("<a  href=\"/LED=OFF\"\"><button>Turn Off </button></a><br />");
 client.println("</p>");
 client.println("<p>");
 client.println("<marquee direction='right'>");
 client.println("Developed by Salman Faris ");
 client.println("</marquee>");
 client.println("</p>");
 client.println("</body>");
 client.println("</html>");
 delay(1);
 Serial.println("Client disonnected");
 Serial.println("");
}

Credits

Dsc05679 xxk38knz8i
Salman Faris

Learning By Doing.
