In this tutorial, you will learn how to connect your Raspberry Pi to a Bluetooth OBD-II adapter and display real-time engine data to your car's aftermarket head unit!

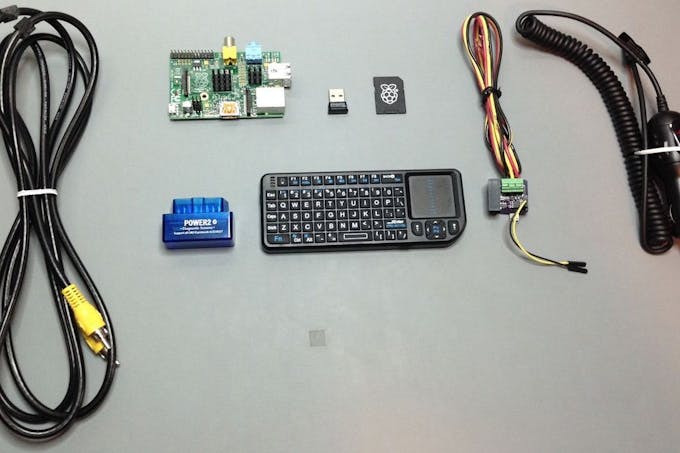

- Raspberry Pi Model B or B+
- Aftermarket head unit (Note: Must support Auxiliary input)
- Plugable USB Bluetooth 4.0 Low Energy Micro Adapter
- 2A Car Supply / Switch or Micro USB Car Charger
- ELM327 Bluetooth Adapter or ELM327 USB Cable
- RCA cable
- Keyboard (*optional)
OBD stands for On-Board Diagnostics, and this standard connector has been mandated in the US since 1996. Now you can think of OBD-II as an on-board computer system that is responsible for monitoring your vehicle’s engine, transmission, and emissions control components.

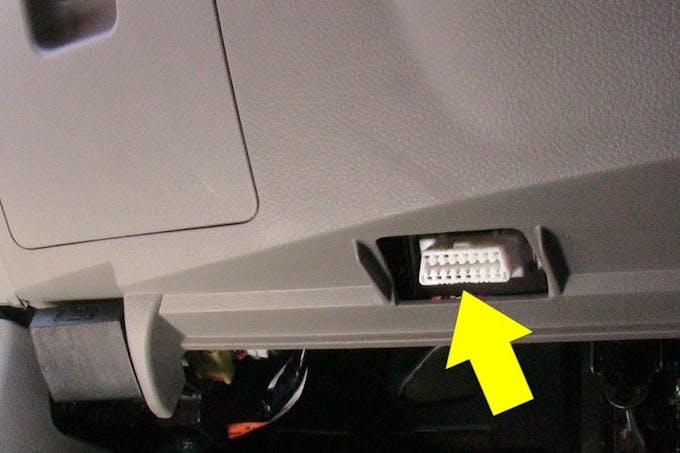

Vehicles that comply with the OBD-II standards will have a data connector within about 2 feet of the steering wheel. The OBD connector is officially called a SAE J1962 Diagnostic Connector, but is also known by DLC, OBD Port, or OBD connector. It has positions for 16 pins, and looks like this:
pyOBD (aka pyOBD-II or pyOBD2) is an open source OBD-II (SAE-J1979) compliant scantool software written entirely in Python. It is designed to interface with low-cost ELM 32x OBD-II diagnostic interfaces such as ELM-USB. It will basically allow you to talk to your car's ECU, display fault codes, display measured values, read status tests, etc.
I took a fork of pyOBD’s software from their GitHub repository, https://github.com/peterh/pyobd, and used this as the basis for my program.
The program will connect through the OBD-II interface, display the gauges available dependent on the particular vehicle and display real time engine data to the cars aftermarket head unit in an interactive GUI.
Before you start you will need a working install of Raspbian with network access.
We'll be doing this from a console cable connection, but you can just as easily do it from the direct HDMI/TV console or by SSH'ing in. Whatever gets you to a shell will work!
Note: For the following command line instructions, do not type the '#', that is only to indicate that it is a command to enter.
Before proceeding, run:
# sudo apt-get update # sudo apt-get upgrade # sudo apt-get autoremove # sudo reboot
Install these components using the command:
# sudo apt-get install python-serial # sudo apt-get install bluetooth bluez-utils blueman # sudo apt-get install python-wxgtk2.8 python-wxtools wx2.8-i18n libwxgtk2.8-dev # sudo apt-get install git-core # sudo reboot
The vehicle installation is quite simple.

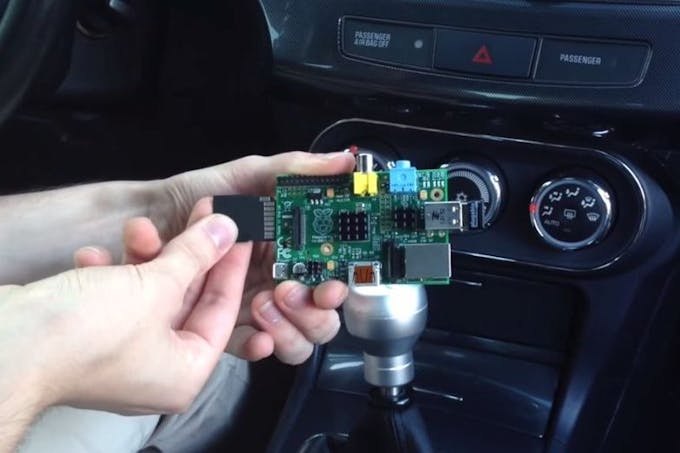

- 1. Insert the USB Bluetooth dongle into the Raspberry Pi along with the SD card.
- 2. Insert the OBD-II Bluetooth adapter into the SAE J196216 (OBD Port) connector.
- 3. Connect you RCA cable to the back of your aftermarket head unit and plug the other end into your Raspberry Pi.
- 4.Install your 2A Car Supply / Switch or Micro USB Car Charger.
- 5. Finally turn your key to the ON position and navigate your head unit to Auxiliary input.
- 6. Enter your login credentials and run:
- 7. Launch BlueZ, the Bluetooth stack for Linux. Pair + Trust your ELM327 Bluetooth Adapter and Connect To: SPP Dev. You should see the Notification "Serial port connected to /dev/rfcomm0"
Note: Click the Bluetooth icon, bottom right (Desktop) to configure your device. Right click on your Bluetooth device to bring up Connect To: SPP Dev.
- 8. Open up Terminal and run:
# cd pyobd-pi # sudo su # python obd_gui.py
Use the Left and Right arrow keys to cycle through the gauge display.To exit the program just press Control and C or Alt and Esc.

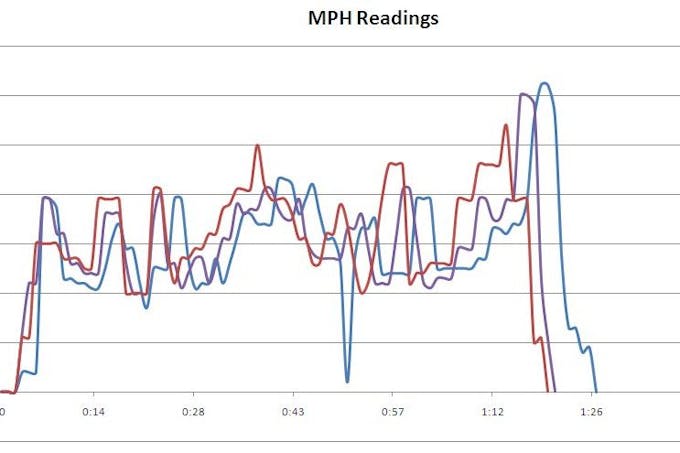

If you would like to log your data run:
# cd pyobd-pi # python obd_recorder.py
The logged data file will be saved under: /home/username/pyobd-pi/log/Enjoy and drive safe!
