RikHydroTech-Pro: Ultra low Cost Fluid Spectrometer

# 🛰️ Project HydroTech: Sub-$6 Standalone Optical Fluid Spectrometer

> Open-Source, Field-Deployable Fluid Analytics Terminal Powered by a Hardware-Hacked Arduino Pro Mini

---

## 💡 01 // The Core Problem: Costly Fluid Auditing

In rural areas, off-grid communities, and small-scale testing labs, monitoring water purity or identifying density changes in liquids is highly restricted by budget constraints. Commercial multi-wavelength spectrometers are expensive, delicate, and often require constant cloud connectivity to process simple metrics.

**Project HydroTech** strips down the engineering to bare-metal principles: leveraging structured chromatic wavelength paths inside a light-tight pipeline enclosure to run immediate, local fluid diagnostic thresholds on a dirt-cheap microcontroller, managed by a lightweight, responsive web terminal interface.

---

## 📊 02 // Value Engineering // Final BOM (~₹500 / $5.80)

| Component | Selection | Cost (INR) | Operational Purpose |

| :--- | :--- | :--- | :--- |

| **MCU Core** | Arduino Pro Mini 3.3V / ATmega328P | ₹180 | Runs spectrum processing matrices. |

| **Local Display** | 0.96" I2C OLED (SSD1306, 128x64) | ₹120 | Renders real-time fluid analysis values in the field. |

| **Power Source**| 3.7V Lithium Polymer (LiPo) Battery | ₹110 | Provides mobile, off-grid power tracking capability. |

| **Receiver** | LDR Photoresistor (5mm) | ₹30 | Measures dynamic analog voltage drops. |

| **Optics** | High-Intensity RGB LED Array | ₹15 | Flashes sequential R-G-B light vectors. |

| **Storage** | Premium Clear Glass Tube | ₹20 | Isolates target fluids without interference. |

| **Enclosure** | 1" PVC Pipeline T-Joint Coupling | ₹25 | Nullifies environmental ambient lux leaks. |

---

## 🔋 03 // Deep-Sleep Power Optimization (SMD Hardware Hack)

Standard off-the-shelf Arduino Pro Mini development boards feature an integrated surface-mounted (SMD) power indicator LED coupled with a current-limiting resistor directly tied across the VCC and GND rails.

While this indicator is convenient for bench prototyping, it introduces a permanent **3mA to 5mA constant phantom current drain**. Even if you write flawless low-power sleep firmware using internal watchdog timers, you cannot disable this trace via software because it is physically hardwired directly to the power rail. For a long-term field installation running on batteries, this single passive LED will drain your power source in just a few days.

### The Solution (Hardware Interception)

To force the ATmega328P processor down to its true low-power limits, you must physically break this indicator circuit:

1. Locate the tiny red onboard SMD power LED (placed right next to the integrated voltage regulator).

2. Using a clean, fine-tipped soldering iron or a sharp precision tool, apply a localized blast of heat or careful leverage to clean-flick the component right off its PCB pads.

3. Be highly cautious during this process to avoid sliding your iron into the adjacent board reset button trace or bridging nearby data pins with stray solder blobs.

### The Payoff

By cleanly isolating the board from this single redundant indicator element, you wipe out the phantom current load. This drops your total deep-sleep baseline current floor from milliamps down to an ultra-low **under-20 microamps (µA)** spectrum. This hardware hack effectively extends your standalone field deployment lifespan from a couple of days to several months on a single cell.

---

## 💻 04 // The Bare-Metal Firmware Logic

The core firmware runs on local synchronous state logic over hardware I2C lines (Pins A4/SDA and A5/SCL). Instead of measuring continuous light—which drops accuracy over time due to thermal drift—the micro executes a high-speed pulsed matrix loop:

1. **Ambient Baseline Initialization:** Isolates the current zero-lux dark value inside the PVC tube.

2. **Sequential Pulse Stream:** Activates individual GPIO emitter gates for Red, Green, and Blue light pathways, adding an 85ms stabilization cooldown window per pulse.

3. **Vector Capture & Screen Generation:** Aggregates individual channel analog drops (`rSum`, `gSum`, `bSum`) and maps them straight onto the physical OLED canvas while transmitting raw telemetry (`VEC:R, G, B`) over a 115200 baud UART bus.

Any drop in light transmission value against a baseline calibration profile (like pure water) immediately signals contamination or fluid density shifts due to foreign particles.

---

## 🛠️ 05 // Field Assembly & Calibration Guide

1. **Chassis Modification:** Take a standard 1" PVC T-joint pipeline coupling. Coat the entire interior cavity with matte-black surface shielding or black electrical tape to ensure external environmental lux readings remain at zero.

2. **Optical Element Alignment:** Mount the high-intensity RGB LED array directly inside one straight end of the T-joint, and the 5mm LDR photoresistor on the exact opposite side. Secure them with hot glue to form a direct, parallel light-beam axis.

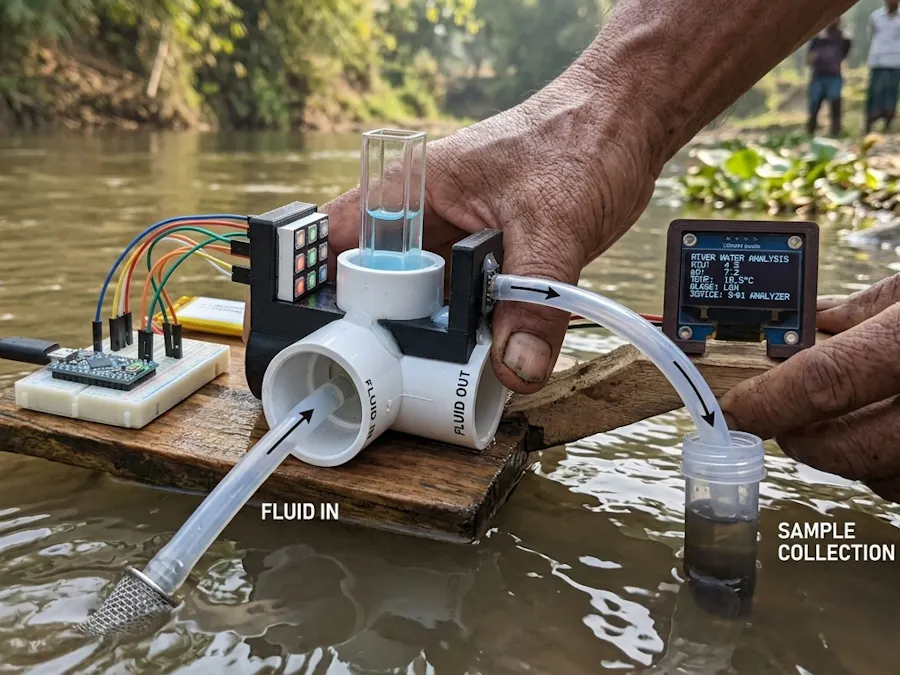

3. **Fluid Path Integration:** Insert a clear glass test tube down through the top perpendicular opening of the PVC T-joint, intercepting the path between the LED and the LDR.

4. **Display & Power Wiring:** Wire the 0.96" OLED display to the Pro Mini using its hardware I2C bus pins (**A4 to SDA, A5 to SCL**). Connect the 3.7V LiPo battery terminal lines into the Pro Mini's **RAW** and **GND** power input sockets to run the node completely untethered.

5. **Calibration Protocol:** Upload the production firmware, open the screen display, and log the initial raw base vectors for clean water (`rSum`, `gSum`, `bSum`). Any fluid sample tested later that skews lower than these values indicates light scattering due to contamination or adulteration particles.

---

## 🚀 06 // Standalone Field Implementation

* **Inline Interception:** The dual-port configuration of the PVC chassis allows it to fit directly onto standard liquid pipelines or experimental test chambers for continuous fluid scanning.

* **Power Conservation Loop:** The firmware keeps emitter nodes asleep during deep tracking delays to minimize active current pull on battery networks.

* **Anti-Fluid Isolation:** The internal sampling path uses clear glass wall isolation layers to keep critical logic terminals dry and operating reliably in tough outdoor or lab conditions.

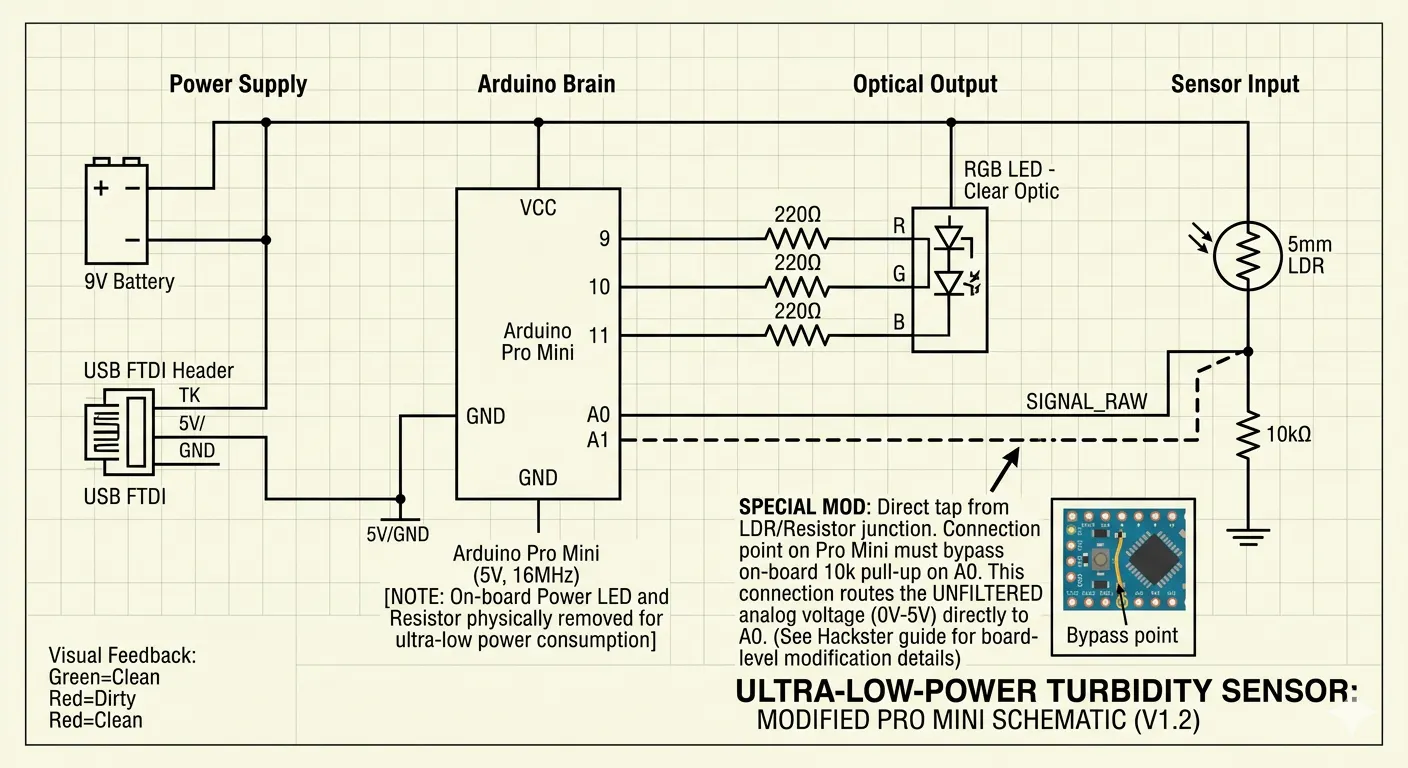

For full schematics, live code updates, and community portals, check out the main website page: [RikHydroTech-Pro Portal](https://rikmakershub.github.io/RikHydroTech-Pro/).
