🚀 Introduction & Overview
This project delivers a high-efficiency, remote telemetry logging system designed to track power generation and consumption profiles in off-grid solar deployments. By leveraging the ultra-low quiescent current properties of the Arduino Pro Mini 3.3V, this logger minimizes system overhead to ensure that the monitoring hardware itself does not deplete the battery reserve.
Using the INA219 current sensor, the firmware samples precise real-time voltage, current draw, and power calculations over an I2C bus, creating a reliable data stream perfect for remote environmental deployment.
Key performance features achieved in this build:
- Ultra-Low Standby Overhead: Optimized power management strategies to extend field lifespan on battery/solar setups.
- High-Side Precision Sensing: Reliable tracking of current fluctuations and solar panel output without introducing ground-loop voltage drops.
- Non-Blocking Telemetry Loops: Clean, lightweight logic cycles that handle sensor communication and data routing efficiently.
⚙️ System Architecture & Hardware Stack
The hardware layout is specifically isolated to separate high-current solar tracking paths from the sensitive logic rails of the microcontroller:
- Core Controller:Arduino Pro Mini (3.3V / 8MHz) executing optimized low-power firmware instructions.
- Telemetry Sensor:INA219 I2C Bi-directional Current/Power Monitor tracking high-side solar rail metrics.
- Power Subsystem: Integrated solar harvesting charger linked to a stable battery storage cell, driving the Pro Mini cleanly within its 3.3V threshold.
💻 Firmware Implementation & Logic Loop
The software architecture moves away from standard delay routines to ensure the microcontroller remains in a low-power state whenever data isn't being actively polled. The logic framework follows a strict sequence:
- I2C Initialization: Configures the INA219 internal registers for the optimal gain and resolution scales required by the solar panel's max wattage output.
- Synchronized Sampling: Polls bus voltage and shunt current sequentially to compute instantaneous power throughput.
- Data Serialization: Formats telemetry metrics cleanly for storage or transmission without blocking the central clock loop.
📂 Open Source Documentation & Schematics

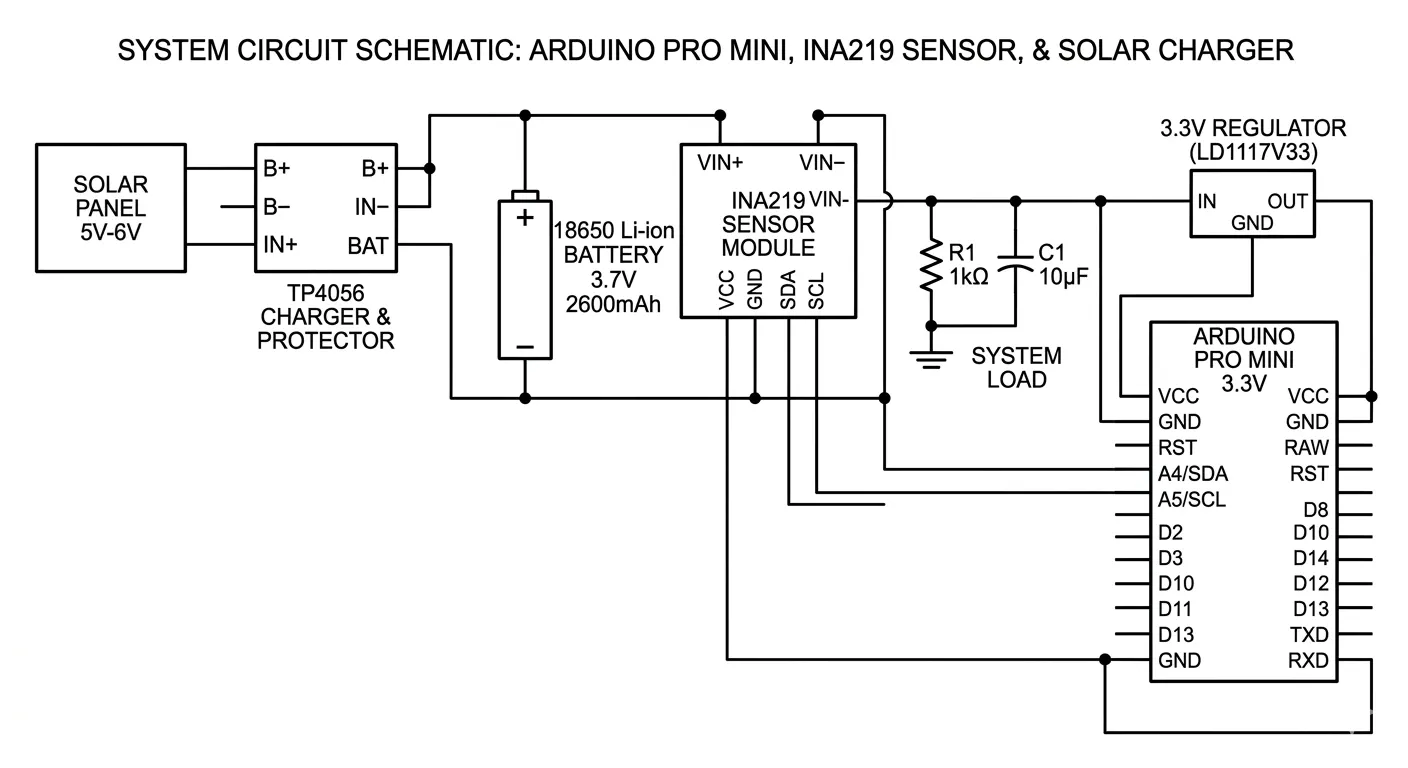

- Interactive Blueprints: For comprehensive wiring maps, pinout routing, and full electronic hardware schematics, explore my development ecosystems.
- Codebase Access: The complete, fully forkable source code and configuration files are live under my version control hub at RikMakersHub on GitHub.
- Advanced Expansions: Multi-node monitoring configurations and advanced power-grid logging systems can be tracked at the RikMakersHub Pro Portal.
- for the code and circuit wiring, Visit : https://rikmakershub.github.io/RikMakersHub-Pro/
