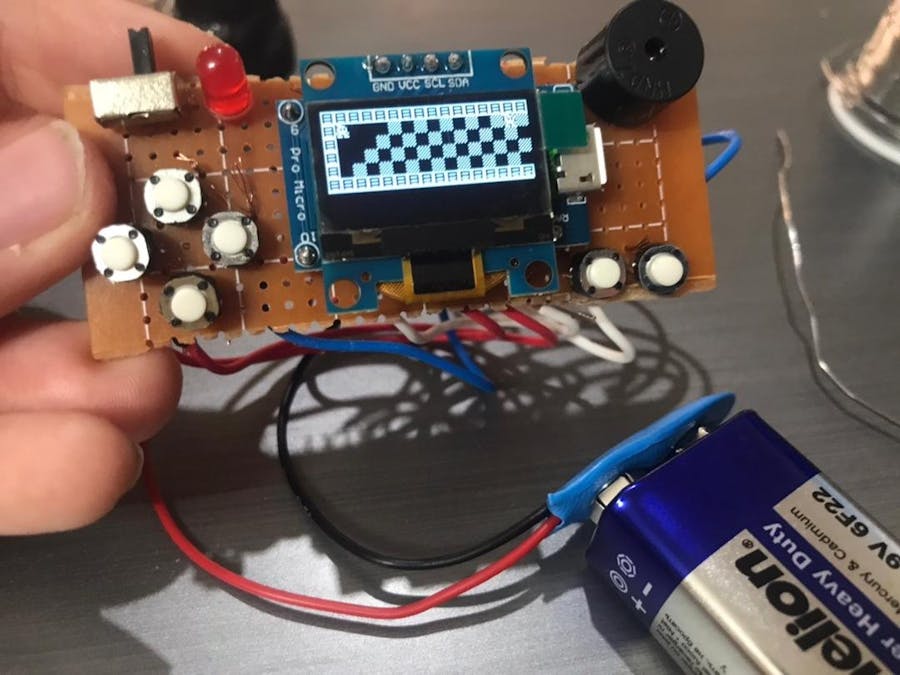

Diy ArduBoy Micro

  /*
  ArduBomber — Bomberman-inspired game for Pro Micro with Arduboy2
  Author: RetroSketch2025 (Mehrad) concept; implemented modularly for remixing

  Hardware: Pro Micro (ATmega32U4) + Arduboy-compatible 128x64 OLED & buttons
  Library: Arduboy2
*/

#include <Arduboy2.h>
#include <ArduboyTones.h>
#include <EEPROM.h>

Arduboy2 arduboy;
ArduboyTones tones(arduboy.audio.enabled);

// ------------------------ Constants ------------------------

enum GameState {
  STATE_BOOT,
  STATE_MENU,
  STATE_OPTIONS,
  STATE_LEVEL_INTRO,
  STATE_PLAY,
  STATE_GAMEOVER,
  STATE_SCORES
};

const uint8_t GRID_W = 18; // 18 columns (clips on 128px width)
const uint8_t GRID_H = 6;  // 6 rows
const uint8_t TILE = 8;    // 8x8 tiles

// Map codes
const uint8_t TILE_EMPTY = 0;
const uint8_t TILE_SOLID = 2;       // Non-destroyable (iron/main)
const uint8_t TILE_SOFT = 6;        // Destroyable
const uint8_t TILE_ENEMY = 3;       // Enemy marker in level layout

// Player tracked separately (code 4 reserved for reference)
const uint8_t PLAYER_CODE = 4;

// Bomb settings
const uint16_t BOMB_FUSE_MS = 4000; // 4 seconds fuse
const uint8_t BLAST_W = 4;          // 4x4 blast area width
const uint8_t BLAST_H = 4;          // 4x4 blast area height

// Levels
const uint8_t MAX_LEVELS = 8;
const uint8_t BASE_ENEMIES = 2;     // Level 1 has 2 enemies
// Level N has BASE_ENEMIES + (N-1) enemies

// EEPROM addresses (simple fixed layout)
const int EEPROM_ADDR_MAGIC = 0;
const int EEPROM_ADDR_SOUND = 1;
const int EEPROM_ADDR_SCORE_A = 2;
const int EEPROM_ADDR_SCORE_B = 6;
const int EEPROM_ADDR_SCORE_C = 10;
const int EEPROM_ADDR_SCORE_E = 14;

// Magic value for save validation
const uint8_t EEPROM_MAGIC = 0xA7;

// Auto-return to menu after scores timeout
const uint16_t SCORES_TIMEOUT_MS = 5000;

// ------------------------ Data structures ------------------------

struct Bomb {
  bool active = false;
  int8_t gx = 0;         // grid x
  int8_t gy = 0;         // grid y
  uint32_t placedMs = 0; // timestamp
};

struct Enemy {
  bool alive = false;
  int8_t gx = 0;
  int8_t gy = 0;
  int8_t dir = 0;        // 0=left,1=right,2=up,3=down
  uint32_t moveTickMs = 0;
};

struct Player {
  int8_t gx = 1;
  int8_t gy = 1;
};

// ------------------------ Globals ------------------------

GameState state = STATE_BOOT;
uint8_t currentLevel = 1;
bool soundOn = true;

// Scores categories as requested (A:, B:, C:, E:)
uint32_t scoreA = 0;
uint32_t scoreB = 0;
uint32_t scoreC = 0;
uint32_t scoreE = 0;

uint32_t stateEnterMs = 0;

// Map: 18x6 bytes
uint8_t mapGrid[GRID_W * GRID_H];

// Entities
Player player;
Bomb bomb;
const uint8_t MAX_ENEMIES = 12; // safety cap
Enemy enemies[MAX_ENEMIES];
uint8_t enemyCount = 0;

// ------------------------ Sprites (8x8) ------------------------
// Hand-coded bytes (1-bit per pixel, top-left origin)

const uint8_t PROGMEM SPR_PLAYER[8] = {
  0b01110000,
  0b00111100,
  0b01101010,
  0b01101010,
  0b01111110,
  0b10111101,
  0b01100110,
  0b01110111
};

const uint8_t PROGMEM SPR_ENEMY[8] = {
  0b11110010,
  0b01011101,
  0b01101011,
  0b01101010,
  0b01111110,
  0b10111101,
  0b01100110,
  0b01110111
};

const uint8_t PROGMEM SPR_BOMB[8] = {
  0b01000000,
  0b10100000,
  0b01011000,
  0b00100100,
  0b01011010,
  0b00100100,
  0b00011000,
  0b00000000
};

const uint8_t PROGMEM SPR_SOLID[8] = {
  0b11111111,
  0b10000001,
  0b10111101,
  0b10000001,
  0b10111101,
  0b10000001,
  0b10111101,
  0b11111111
};

const uint8_t PROGMEM SPR_SOFT[8] = {
  0b01010101,
  0b10101010,
  0b01010101,
  0b10101010,
  0b01010101,
  0b10101010,
  0b01010101,
  0b10101010
};

// ------------------------ Menu Aseprite placeholders ------------------------
// Replace with your exported 128x64 bitmaps from Aseprite.
// For now, we draw text over these dummy images.

const uint8_t PROGMEM BMP_MENU_PLAY[1024] = { /* 128x64 placeholder: all zero */ };
const uint8_t PROGMEM BMP_MENU_OPTIONS[1024] = { /* 128x64 placeholder: all zero */ };

bool menuOnPlay = true; // toggle between PLAY and OPTIONS with up/down or left/right

// ------------------------ Utility ------------------------

uint8_t clampU8(int v, uint8_t lo, uint8_t hi) {
  if (v < (int)lo) return lo;
  if (v > (int)hi) return hi;
  return (uint8_t)v;
}

uint8_t idx(int x, int y) {
  return (uint8_t)(y * GRID_W + x);
}

bool inBounds(int x, int y) {
  return x >= 0 && y >= 0 && x < GRID_W && y < GRID_H;
}

// ------------------------ EEPROM ------------------------

void saveEEPROM() {
  EEPROM.update(EEPROM_ADDR_MAGIC, EEPROM_MAGIC);
  EEPROM.put(EEPROM_ADDR_SOUND, soundOn);
  EEPROM.put(EEPROM_ADDR_SCORE_A, scoreA);
  EEPROM.put(EEPROM_ADDR_SCORE_B, scoreB);
  EEPROM.put(EEPROM_ADDR_SCORE_C, scoreC);
  EEPROM.put(EEPROM_ADDR_SCORE_E, scoreE);
}

void loadEEPROM() {
  uint8_t magic = EEPROM.read(EEPROM_ADDR_MAGIC);
  if (magic == EEPROM_MAGIC) {
    EEPROM.get(EEPROM_ADDR_SOUND, soundOn);
    EEPROM.get(EEPROM_ADDR_SCORE_A, scoreA);
    EEPROM.get(EEPROM_ADDR_SCORE_B, scoreB);
    EEPROM.get(EEPROM_ADDR_SCORE_C, scoreC);
    EEPROM.get(EEPROM_ADDR_SCORE_E, scoreE);
  } else {
    soundOn = true;
    scoreA = scoreB = scoreC = scoreE = 0;
    saveEEPROM();
  }
}

// ------------------------ Sound helpers ------------------------

void beepPlaceBomb() {
  if (!soundOn) return;
  tones.tone(600, 60);
}

void beepExplosion() {
  if (!soundOn) return;
  tones.tone(140, 120);
  tones.tone(90, 80);
}

void beepEnemyPop() {
  if (!soundOn) return;
  tones.tone(440, 60);
}

// ------------------------ Level generation ------------------------

void clearMap() {
  for (uint8_t y = 0; y < GRID_H; y++) {
    for (uint8_t x = 0; x < GRID_W; x++) {
      mapGrid[idx(x,y)] = TILE_EMPTY;
    }
  }
}

void addBorderSolids() {
  for (uint8_t x = 0; x < GRID_W; x++) {
    mapGrid[idx(x,0)] = TILE_SOLID;
    mapGrid[idx(x,GRID_H-1)] = TILE_SOLID;
  }
  for (uint8_t y = 0; y < GRID_H; y++) {
    mapGrid[idx(0,y)] = TILE_SOLID;
    mapGrid[idx(GRID_W-1,y)] = TILE_SOLID;
  }
}

// Simple pattern: checker soft blocks leaving player start free
void addSoftBlocksPattern() {
  for (uint8_t y = 1; y < GRID_H-1; y++) {
    for (uint8_t x = 1; x < GRID_W-1; x++) {
      if ((x + y) % 2 == 0) mapGrid[idx(x,y)] = TILE_SOFT;
    }
  }
  // Player start area clear
  mapGrid[idx(1,1)] = TILE_EMPTY;
  mapGrid[idx(2,1)] = TILE_EMPTY;
  mapGrid[idx(3,1)] = TILE_EMPTY;
  mapGrid[idx(1,2)] = TILE_EMPTY;
  mapGrid[idx(2,2)] = TILE_EMPTY;
  mapGrid[idx(1,3)] = TILE_EMPTY;
}

void spawnEnemiesForLevel(uint8_t level) {
  enemyCount = clampU8(BASE_ENEMIES + (int)(level - 1), 0, MAX_ENEMIES);
  uint8_t placed = 0;
  for (uint8_t i = 0; i < MAX_ENEMIES; i++) {
    enemies[i].alive = false;
  }
  // Place enemies in empty tiles away from player start
  for (uint8_t y = 1; y < GRID_H-1 && placed < enemyCount; y++) {
    for (uint8_t x = GRID_W-2; x >= 1 && placed < enemyCount; x--) {
      if (mapGrid[idx(x,y)] == TILE_EMPTY && !(x <= 2 && y <= 2)) {
        enemies[placed].alive = true;
        enemies[placed].gx = x;
        enemies[placed].gy = y;
        enemies[placed].dir = (placed % 4);
        enemies[placed].moveTickMs = millis();
        placed++;
      }
      if (x == 1) break; // avoid underflow for uint8_t loop
    }
  }
}

// ------------------------ State management ------------------------

void enterState(GameState s) {
  state = s;
  stateEnterMs = millis();
}

void startLevel(uint8_t level) {
  currentLevel = level;
  clearMap();
  addBorderSolids();
  addSoftBlocksPattern();
  player.gx = 1; player.gy = 1;
  bomb.active = false;
  spawnEnemiesForLevel(level);
  enterState(STATE_LEVEL_INTRO);
}

// ------------------------ Movement and collisions ------------------------

bool isWalkable(int gx, int gy) {
  if (!inBounds(gx, gy)) return false;
  uint8_t t = mapGrid[idx(gx,gy)];
  return (t == TILE_EMPTY || t == TILE_SOFT); // walking over soft block allowed? Typically no; set empty only if you want strict.
}

bool isSolidBlock(int gx, int gy) {
  if (!inBounds(gx, gy)) return true;
  return mapGrid[idx(gx,gy)] == TILE_SOLID;
}

// Enemies move stepwise at intervals
void updateEnemies() {
  const uint16_t MOVE_INTERVAL_MS = 300;
  for (uint8_t i = 0; i < enemyCount; i++) {
    if (!enemies[i].alive) continue;
    if (millis() - enemies[i].moveTickMs < MOVE_INTERVAL_MS) continue;
    enemies[i].moveTickMs = millis();

    int nx = enemies[i].gx;
    int ny = enemies[i].gy;
    switch (enemies[i].dir) {
      case 0: nx--; break;
      case 1: nx++; break;
      case 2: ny--; break;
      case 3: ny++; break;
    }
    // Bounce if blocked
    if (!inBounds(nx, ny) || mapGrid[idx(nx,ny)] == TILE_SOLID || mapGrid[idx(nx,ny)] == TILE_SOFT) {
      enemies[i].dir = (enemies[i].dir + 1) % 4;
    } else {
      enemies[i].gx = nx;
      enemies[i].gy = ny;
    }
  }
}

// If enemy touches player => game over
bool checkPlayerEnemyCollision() {
  for (uint8_t i = 0; i < enemyCount; i++) {
    if (!enemies[i].alive) continue;
    if (enemies[i].gx == player.gx && enemies[i].gy == player.gy) {
      return true;
    }
  }
  return false;
}

// ------------------------ Bomb and explosion ------------------------

void placeBomb() {
  if (bomb.active) return;
  bomb.active = true;
  bomb.gx = player.gx;
  bomb.gy = player.gy;
  bomb.placedMs = millis();
  beepPlaceBomb();
}

void explodeBomb() {
  if (!bomb.active) return;

  // Center blast — destroy the bomb tile itself
  uint8_t &centerTile = mapGrid[idx(bomb.gx, bomb.gy)];
  if (centerTile == TILE_SOFT) {
    centerTile = TILE_EMPTY;
    scoreB += 10;
  }

  // Check if player is on bomb tile
  if (player.gx == bomb.gx && player.gy == bomb.gy) {
    enterState(STATE_GAMEOVER);
    bomb.active = false;
    beepExplosion();
    return;
  }

  // Check if any enemy is on bomb tile
  for (uint8_t i = 0; i < enemyCount; i++) {
    if (enemies[i].alive && enemies[i].gx == bomb.gx && enemies[i].gy == bomb.gy) {
      enemies[i].alive = false;
      scoreE += 25;
    }
  }

  // Directions: left, right, up, down
  const int dirs[4][2] = { {-1,0}, {1,0}, {0,-1}, {0,1} };
  const uint8_t blastLength = 3; // blast range in each direction

  for (uint8_t d = 0; d < 4; d++) {
    int x = bomb.gx;
    int y = bomb.gy;
    int dx = dirs[d][0];
    int dy = dirs[d][1];

    for (uint8_t step = 0; step < blastLength; step++) {
      x += dx;
      y += dy;
      if (!inBounds(x, y)) break;

      uint8_t &tile = mapGrid[idx(x, y)];

      // Stop at iron wall
      if (tile == TILE_SOLID) break;

      // Destroy soft block
      if (tile == TILE_SOFT) {
        tile = TILE_EMPTY;
        scoreB += 10;
        break; // blast stops after destroying soft block
      }

      // Check for enemy
      for (uint8_t i = 0; i < enemyCount; i++) {
        if (enemies[i].alive && enemies[i].gx == x && enemies[i].gy == y) {
          enemies[i].alive = false;
          scoreE += 25;
        }
      }

      // Check for player
      if (player.gx == x && player.gy == y) {
        enterState(STATE_GAMEOVER);
        bomb.active = false;
        beepExplosion();
        return;
      }
    }
  }

  bomb.active = false;
  beepExplosion();

  // Check if all enemies are dead
  bool anyAlive = false;
  for (uint8_t i = 0; i < enemyCount; i++) {
    if (enemies[i].alive) {
      anyAlive = true;
      break;
    }
  }

  if (!anyAlive) {
    scoreA += 100;
    scoreC += 50;
    if (currentLevel < MAX_LEVELS) {
      startLevel(currentLevel + 1);
    } else {
      enterState(STATE_SCORES);
      saveEEPROM();
    }
  }
}

void updateBomb() {
  if (!bomb.active) return;
  if (millis() - bomb.placedMs >= BOMB_FUSE_MS) {
    explodeBomb();
  }
}

// ------------------------ Input ------------------------

void handlePlayInput() {
  if (arduboy.pressed(LEFT_BUTTON)) {
    int nx = player.gx - 1;
    if (nx >= 0 && mapGrid[idx(nx, player.gy)] == TILE_EMPTY) player.gx = nx;
  }
  if (arduboy.pressed(RIGHT_BUTTON)) {
    int nx = player.gx + 1;
    if (nx < GRID_W && mapGrid[idx(nx, player.gy)] == TILE_EMPTY) player.gx = nx;
  }
  if (arduboy.pressed(UP_BUTTON)) {
    int ny = player.gy - 1;
    if (ny >= 0 && mapGrid[idx(player.gx, ny)] == TILE_EMPTY) player.gy = ny;
  }
  if (arduboy.pressed(DOWN_BUTTON)) {
    int ny = player.gy + 1;
    if (ny < GRID_H && mapGrid[idx(player.gx, ny)] == TILE_EMPTY) player.gy = ny;
  }

  if (arduboy.justPressed(A_BUTTON)) {
    placeBomb();
  }
}

// ------------------------ Rendering ------------------------

void drawTile8(int x, int y, const uint8_t *spr) {
  // x,y in pixels
  for (uint8_t row = 0; row < 8; row++) {
    uint8_t bits = pgm_read_byte(spr + row);
    for (uint8_t col = 0; col < 8; col++) {
      if (bits & (0x80 >> col)) {
        arduboy.drawPixel(x + col, y + row, 1);
      }
    }
  }
}

void drawMap() {
  // Clip 18x6 to 128x64; only columns that fit
  uint8_t maxCols = min(GRID_W, (uint8_t)(WIDTH / TILE)); // 16 columns visible
  uint8_t maxRows = min(GRID_H, (uint8_t)(HEIGHT / TILE)); // 8 rows visible

  // Center horizontally if fewer than GRID_W draw
  int xOffsetTiles = 0;
  if (maxCols < GRID_W) {
    // We’ll show leftmost portion; could scroll or center. For simplicity: left aligned.
    xOffsetTiles = 0;
  }

  for (uint8_t gy = 0; gy < maxRows; gy++) {
    for (uint8_t gx = 0; gx < maxCols; gx++) {
      uint8_t t = mapGrid[idx(gx + xOffsetTiles, gy)];
      int px = gx * TILE;
      int py = gy * TILE;
      if (t == TILE_SOLID) {
        drawTile8(px, py, SPR_SOLID);
      } else if (t == TILE_SOFT) {
        drawTile8(px, py, SPR_SOFT);
      }
    }
  }

  // Draw enemies
  for (uint8_t i = 0; i < enemyCount; i++) {
    if (!enemies[i].alive) continue;
    int gx = enemies[i].gx - xOffsetTiles;
    if (gx < 0 || gx >= (int)maxCols) continue;
    drawTile8(gx * TILE, enemies[i].gy * TILE, SPR_ENEMY);
  }

  // Draw player
  int pgx = player.gx - xOffsetTiles;
  if (pgx >= 0 && pgx < (int)maxCols) {
    drawTile8(pgx * TILE, player.gy * TILE, SPR_PLAYER);
  }

  // Draw bomb
  if (bomb.active) {
    int bgx = bomb.gx - xOffsetTiles;
    if (bgx >= 0 && bgx < (int)maxCols) {
      drawTile8(bgx * TILE, bomb.gy * TILE, SPR_BOMB);
    }
  }
}

void drawLevelIntro() {
  arduboy.setCursor(30, 28);
  arduboy.print(F("LEVEL "));
  arduboy.print(currentLevel);
}

void drawMenu() {
  arduboy.setCursor(24, 16);
  arduboy.print(F("ARDUBOMBER"));
  arduboy.setCursor(40, 32);
  arduboy.print(menuOnPlay ? F("> PLAY") : F("  PLAY"));
  arduboy.setCursor(40, 42);
  arduboy.print(!menuOnPlay ? F("> OPTIONS") : F("  OPTIONS"));
}

void drawOptions() {
  arduboy.setCursor(36, 20);
  arduboy.print(F("OPTIONS"));
  arduboy.setCursor(24, 36);
  arduboy.print(F("SOUND: "));
  arduboy.print(soundOn ? F("ON") : F("OFF"));
  arduboy.setCursor(24, 48);
  arduboy.print(F("(B to Menu)"));
}

void drawGameOver() {
  arduboy.setCursor(32, 26);
  arduboy.print(F("GAME OVER"));
}

void drawScores() {
  arduboy.setCursor(6, 8);
  arduboy.print(F("SCORES:"));
  arduboy.setCursor(6, 22);
  arduboy.print(F("A: "));
  arduboy.print(scoreA);
  arduboy.setCursor(6, 32);
  arduboy.print(F("B: "));
  arduboy.print(scoreB);
  arduboy.setCursor(6, 42);
  arduboy.print(F("C: "));
  arduboy.print(scoreC);
  arduboy.setCursor(6, 52);
  arduboy.print(F("E: "));
  arduboy.print(scoreE);

  arduboy.setCursor(74, 54);
  arduboy.print(F("L+R reset"));
}

// ------------------------ State update ------------------------

void updateMenu() {
  // Toggle selection with up/down or left/right
  if (arduboy.justPressed(UP_BUTTON) || arduboy.justPressed(DOWN_BUTTON) ||
      arduboy.justPressed(LEFT_BUTTON) || arduboy.justPressed(RIGHT_BUTTON)) {
    menuOnPlay = !menuOnPlay;
  }
  if (arduboy.justPressed(A_BUTTON)) {
    if (menuOnPlay) {
      startLevel(1);
    } else {
      enterState(STATE_OPTIONS);
    }
  }
}

void updateOptions() {
  // Toggle sound with A
  if (arduboy.justPressed(A_BUTTON)) {
    soundOn = !soundOn;
    saveEEPROM();
  }
  // Back to menu with B
  if (arduboy.justPressed(B_BUTTON)) {
    enterState(STATE_MENU);
  }
}

void updateLevelIntro() {
  if (millis() - stateEnterMs > 1000) {
    enterState(STATE_PLAY);
  }
}

void updatePlay() {
  handlePlayInput();
  updateEnemies();
  updateBomb();

  if (checkPlayerEnemyCollision()) {
    enterState(STATE_GAMEOVER);
  }
}

void updateGameOver() {
  // Short pause then go to scores
  if (millis() - stateEnterMs > 1000) {
    enterState(STATE_SCORES);
    saveEEPROM();
  }
}

void updateScores() {
  // Reset scores if LEFT+RIGHT pressed simultaneously
  if (arduboy.pressed(LEFT_BUTTON) && arduboy.pressed(RIGHT_BUTTON)) {
    scoreA = scoreB = scoreC = scoreE = 0;
    saveEEPROM();
  }
  // Auto-return after timeout
  if (millis() - stateEnterMs > SCORES_TIMEOUT_MS) {
    enterState(STATE_MENU);
  }
}

// ------------------------ Setup & loop ------------------------

void setup() {
  arduboy.begin();
  arduboy.bootLogo();
  arduboy.setFrameRate(60);
  loadEEPROM();
  enterState(STATE_MENU);
}

void loop() {
  if (!arduboy.nextFrame()) return;
  arduboy.pollButtons();
  arduboy.clear();

  switch (state) {
    case STATE_MENU:
      updateMenu();
      drawMenu();
      break;
    case STATE_OPTIONS:
      updateOptions();
      drawOptions();
      break;
    case STATE_LEVEL_INTRO:
      updateLevelIntro();
      drawLevelIntro();
      break;
    case STATE_PLAY:
      updatePlay();
      drawMap();
      break;
    case STATE_GAMEOVER:
      updateGameOver();
      drawGameOver();
      break;
    case STATE_SCORES:
      updateScores();
      drawScores();
      break;
    default:
      enterState(STATE_MENU);
      break;
  }

  arduboy.display();
}
