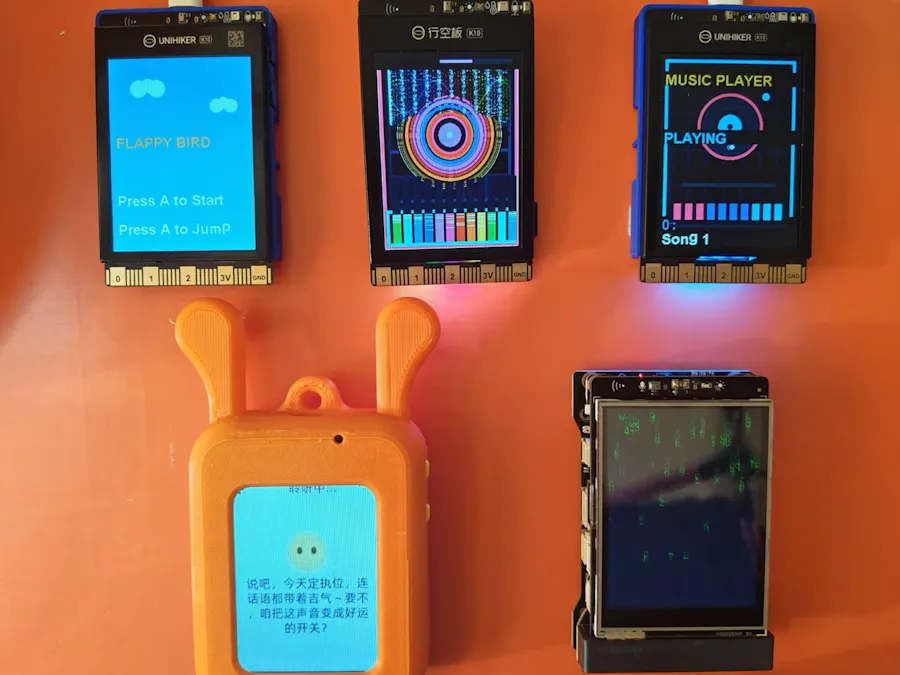

Getting Started with UNIHIKER K10 + PlatformIO + VS Code IDE

【Vibe Coding】A Complete Guide to Developing UNIHIKER K10 Projects with VS Code IDE and PlatformIO

IntermediateFull instructions provided2 hours30
Getting Started with UNIHIKER K10 + PlatformIO + VS Code IDE

Things used in this project

Hardware components

DFRobot UNIHIKER K10 AI Coding Board
×1
USB Cable, USB Type C Plug
USB Cable, USB Type C Plug
×1

Software apps and online services

Python environment
PlatformIO depends on a Python environment.
Git
Used for cloning projects and library management.
VS Code
Microsoft VS Code
VS Code is a free, open-source code editor developed by Microsoft with robust extension support.

Story

Read more

Code

example

C/C++
## **Display-Set Back Ground Color**
Setting the background color of the K10 screen<br/>
````c++ title="Screen Display"
#include "unihiker_k10.h"

UNIHIKER_K10 k10;
uint8_t screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
}
void loop() {
	k10.setScreenBackground(0xFFFFFF);
	delay(2000);
	k10.setScreenBackground(0xFF0000);
	delay(2000);
	k10.setScreenBackground(0x00FF00);
	delay(2000);
	k10.setScreenBackground(0x0000FF);
	delay(2000);
	k10.setScreenBackground(0x000000);
	delay(2000);
}
````
![image.gif](img/example_mindplus/exampleMindplus1.gif){: width="250px"}

## **Display-Electronic photo album**
Format the TF card to FAT32 and install it on K10. Press button A on the K10 to take a picture and button B to display it.<br/>

!!! Note
    TF card is need to run this programme

````c++ title="Electronic photo album"
#include "unihiker_k10.h"

void onButtonAPressed();
void onButtonBPressed();

UNIHIKER_K10 k10;
uint8_t      screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.initBgCamerImage();
	k10.setBgCamerImage(false);
	k10.creatCanvas();
	k10.buttonA->setPressedCallback(onButtonAPressed);
	k10.initSDFile();
	k10.buttonB->setPressedCallback(onButtonBPressed);
	k10.setBgCamerImage(true);
}
void loop() {
}

void onButtonAPressed() {
	k10.photoSaveToTFCard("S:/photo.bmp");
}
void onButtonBPressed() {
	k10.canvas->canvasDrawImage(0, 0, "S:/photo.bmp");
}
````
![image.gif](img/example_mindplus/exampleMindplus5.gif){: width="250px"}


## **Display-Showing text**
````c++ title="Showing text"
#include "unihiker_k10.h"

UNIHIKER_K10 k10;
uint8_t screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.setScreenBackground(0xFFFFFF);
	k10.canvas->canvasText("UNIHIKER", 1, 0x0000FF);
	k10.canvas->updateCanvas();
	delay(1000);
	k10.canvas->canvasText("UNIHIKER", 2, 0xFF0000);
	k10.canvas->updateCanvas();
	delay(1000);
	k10.canvas->canvasText("UNIHIKER", 3, 0x00FF00);
	k10.canvas->updateCanvas();
	delay(1000);
	k10.canvas->canvasText("UNIHIKER", 4, 0x000000);
	k10.canvas->updateCanvas();
	delay(1000);
}
void loop() {
}
````
![image.png](img/example_mindplus/exampleMindplus6.gif){: width="250px"}

## **Display-Draw Point**
````c++ title="Draw Point"
#include "unihiker_k10.h"

uint32_t rgbToColor(uint8_t r, uint8_t g, uint8_t b);

UNIHIKER_K10 k10;
uint8_t screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.setScreenBackground(0x000000);
}
void loop() {
	for (int index = 0; index < 50; index++) {
		k10.canvas->canvasPoint((random(0, 240+1)), (random(0, 320+1)), rgbToColor(round((random(128, 255+1))), round((random(128, 255+1))), round((random(128, 255+1)))));
		k10.canvas->updateCanvas();
	}
	k10.canvas->canvasClear();
}

uint32_t rgbToColor(uint8_t r, uint8_t g, uint8_t b)
{
  return (uint32_t)((((uint32_t)r<<16) | ((uint32_t)g<<8)) | (uint32_t)b);
}
````
![image.gif](img/example_mindplus/exampleMindplus11.gif){: width="300px"}

## **Display-Draw Line**
Drawing funnels on K10:<br/>
````c++ title="Draw funnel"
#include "unihiker_k10.h"

volatile float startX, endX;

UNIHIKER_K10 k10;
uint8_t screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.canvas->canvasSetLineWidth(1);
	startX = 0;
	endX = 240;
}
void loop() {
	while (!(startX==240)) {
		k10.canvas->canvasLine(startX, 0, endX, 320, 0xFF0000);
		k10.canvas->updateCanvas();
		startX += 3;
		endX -= 3;
	}
}
````
![image.gif](img/example_mindplus/exampleMindplus12.gif){: width="250px"}<br/>
Meteor shower on K10:<br/>
````c++ title="Meteor shower"
#include "unihiker_k10.h"

volatile float startX, startY, length, endX, endY;

uint32_t rgbToColor(uint8_t r, uint8_t g, uint8_t b);

UNIHIKER_K10 k10;
uint8_t      screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.setScreenBackground(0x000000);
	k10.canvas->canvasSetLineWidth(1);
}
void loop() {
	k10.canvas->canvasClear();
	for (int index = 0; index < 15; index++) {
		startX = (random(0, 240+1));
		startY = (random(0, 180+1));
		length = (random(0, 40+1));
		endX = (startX + length);
		endY = (startY + length);
		k10.canvas->canvasLine(startX, startY, endX, endY, rgbToColor(round((random(128, 255+1))), round((random(128, 255+1))), round((random(128, 255+1)))));
	}
	k10.canvas->updateCanvas();
	delay(500);
}

uint32_t rgbToColor(uint8_t r, uint8_t g, uint8_t b)
{
  return (uint32_t)((((uint32_t)r<<16) | ((uint32_t)g<<8)) | (uint32_t)b);
}
````
![image.gif](img/example_mindplus/exampleMindplus42.gif){: width="250px"}


## **Display-Draw Circle**
````c++ title="Draw Circle"
#include "unihiker_k10.h"

UNIHIKER_K10 k10;
uint8_t screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.canvas->canvasCircle(120, 120, 40, 0xFFCC33, 0xFFCC33, true);
	k10.canvas->canvasCircle(160, 160, 40, 0xFFCC33, 0xFFCC33, true);
	k10.canvas->canvasCircle(120, 200, 40, 0xFFCC33, 0xFFCC33, true);
	k10.canvas->canvasCircle(80, 160, 40, 0xFFCC33, 0xFFCC33, true);
	k10.canvas->canvasCircle(120, 160, 40, 0xFFFF00, 0xFFFF00, true);
	k10.canvas->updateCanvas();
}
void loop() {
}
````
![image.png](img/example_mindplus/exampleMindplus14.png){: width="250px"}

## **Display-Draw Rectangle**
````c++ title="Draw Rectangle"
#include "unihiker_k10.h"

volatile float offset, x, y, color;

uint32_t rgbToColor(uint8_t r, uint8_t g, uint8_t b);

UNIHIKER_K10 k10;
uint8_t      screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.setScreenBackground(0x000000);
}
void loop() {
	for (int index = 0; index < 8; index++) {
		x = (80 - (offset / 2));
		y = (100 - (offset / 2));
		color = rgbToColor(round((random(50, 255+1))), round((random(50, 255+1))), round((random(50, 255+1))));
		k10.canvas->canvasRectangle(x,y, (80 + offset), (100 + offset), color, 0x0000FF, false);
		k10.canvas->updateCanvas();
		delay(10);
		offset = (offset + 20);
	}
	k10.canvas->canvasClear();
	offset = 0;
}

uint32_t rgbToColor(uint8_t r, uint8_t g, uint8_t b)
{
  return (uint32_t)((((uint32_t)r<<16) | ((uint32_t)g<<8)) | (uint32_t)b);
}
````
![image.gif](img/example_mindplus/exampleMindplus16.gif){: width="250px"}

## **Display-QR Code**
````c++ title="QR Code"
#include "unihiker_k10.h"

UNIHIKER_K10 k10;
uint8_t screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.canvasDrawCode("https://www.unihiker.com");
	k10.canvas->updateCanvas();
}
void loop() {
}
````
![image.png](img/example_mindplus/exampleMindplus18.png)

## **On board sensor-Button**
Normal method:<br/>
````c++ title="Button"
#include "unihiker_k10.h"

UNIHIKER_K10 k10;
uint8_t screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
}
void loop() {
	if ((k10.buttonA->isPressed())) {
		k10.canvas->canvasRectangle(10, 100, 110, 100, 0xFF6666, 0x0000FF, true);
		k10.canvas->updateCanvas();
	}
	else if ((k10.buttonB->isPressed())) {
		k10.canvas->canvasCircle(180, 150, 50, 0xFF6666, 0x0000FF, true);
		k10.canvas->updateCanvas();
	}
	else if ((k10.buttonAB->isPressed())) {
		k10.canvas->canvasClear();
		k10.canvas->updateCanvas();
	}
}
````
Interrupt method:<br/>
````c++ title="Button"
#include "unihiker_k10.h"

void onButtonAPressed();
void onButtonBPressed();
void onButtonABPressed();

UNIHIKER_K10 k10;
uint8_t      screen_dir=2;

void onButtonAPressed() {
	k10.canvas->canvasRectangle(10, 100, 110, 100, 0xFF6666, 0x0000FF, true);
	k10.canvas->updateCanvas();
}
void onButtonBPressed() {
	k10.canvas->canvasCircle(180, 150, 50, 0xFF6666, 0x0000FF, true);
	k10.canvas->updateCanvas();
}
void onButtonABPressed() {
	k10.canvas->canvasClear();
	k10.canvas->updateCanvas();
}

void setup() {
	k10.begin();
	k10.buttonA->setPressedCallback(onButtonAPressed);
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.buttonB->setPressedCallback(onButtonBPressed);
	k10.buttonAB->setPressedCallback(onButtonABPressed);
}
void loop() {

}
````
![image.gifg](img/example_mindplus/exampleMindplus20.gif){: width="250px"}


## **On board sensor-Accelerate sensors**

Display screen tilt

!!! Note
    TF card is need to run this example, and the arrow pictures need to store in the TF card.


````c++ title="Accelerate sensors"
#include "unihiker_k10.h"
UNIHIKER_K10 k10;
uint8_t      screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.initSDFile();
}
void loop() {
	if ((k10.isGesture(TiltForward))) {
		k10.canvas->canvasDrawImage(0, 0, "S:/forward.png");
		k10.canvas->updateCanvas();
	}
	else if ((k10.isGesture(TiltBack))) {
		k10.canvas->canvasDrawImage(0, 0, "S:/back.png");
		k10.canvas->updateCanvas();
	}
	else if ((k10.isGesture(TiltLeft))) {
		k10.canvas->canvasDrawImage(0, 0, "S:/left.png");
		k10.canvas->updateCanvas();
	}
	else if ((k10.isGesture(TiltRight))) {
		k10.canvas->canvasDrawImage(0, 0, "S:/right.png");
		k10.canvas->updateCanvas();
	}
	k10.canvas->canvasRectangle(0, 0, 240, 320, 0xFFFFFF, 0xFFFFFF, true);
	k10.canvas->updateCanvas();
}
````
![image.gif](img/example_mindplus/exampleMindplus21.gif){: width="250px"}<br/>
Pedo meter:<br/>
````c++ title="Pedo meter"
#include "unihiker_k10.h"

volatile float step;

UNIHIKER_K10 k10;
uint8_t screen_dir=2;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	step = 0;
	k10.canvas->canvasText((String("Pedometer: ") + String(step)), 1, 0x0000FF);
	k10.canvas->updateCanvas();
}
void loop() {
	if (((k10.getStrength())>1050)) {
		step += 1;
		k10.canvas->canvasText((String("Pedometer: ") + String(step)), 1, 0x0000FF);
		k10.canvas->updateCanvas();
		delay(1000);
	}
}
````
![image.gif](img/example_mindplus/exampleMindplus43.gif){: width="250px"}

## **On board sensor-Accelerate ball**
````c++ title="Accelerate ball"
#include "unihiker_k10.h"

volatile float accx, accy, moveX, moveY;

UNIHIKER_K10 k10;
uint8_t screen_dir=2;

void setup() {
  k10.begin();
  k10.initScreen(screen_dir);
  k10.creatCanvas();
  k10.setScreenBackground(0xFFFFFF);
}
void loop() {
  accx = (k10.getAccelerometerX());
  accy = (k10.getAccelerometerY());
  moveX = (120 + (accx / 3));
  moveY = (160 + (accy / 3));
  k10.canvas->canvasCircle(moveX, moveY, 8, 0x00FF00, 0x00FF00, true);
  k10.canvas->updateCanvas();
  k10.canvas->canvasCircle(moveX, moveY, 9, 0xFFFFFF, 0xFFFFFF, true);
}
````
![image.gif](img/example_mindplus/exampleMindplus23.gif){: width="250px"}

## **On board sensor-RGB control**
````c++ title="RGB control"
#include "unihiker_k10.h"

volatile float mind_n_brightness;

UNIHIKER_K10 k10;

void setup() {
	k10.begin();
	mind_n_brightness = 0;
	k10.rgb->brightness(round(mind_n_brightness));
	k10.rgb->write(-1, 0x0000FF);
}
void loop() {
	while (!(mind_n_brightness==9)) {
		k10.rgb->brightness(round(mind_n_brightness));
		k10.rgb->write(-1, 0x0000FF);
		delay(200);
		mind_n_brightness += 1;
	}
	while (!(mind_n_brightness==0)) {
		k10.rgb->brightness(round(mind_n_brightness));
		k10.rgb->write(-1, 0x0000FF);
		delay(200);
		mind_n_brightness -= 1;
	}
}
````
![image.gif](img/example_mindplus/exampleMindplus24.gif){: width="250px"}

## **Audio-Play build-in music**
Press button A to play the music BIRTHDAY in the background; press button B to play the alphabet song (1155661)<br/>
````c++ title="Play build-in music"
#include "unihiker_k10.h"

void onButtonAPressed();
void onButtonBPressed();

UNIHIKER_K10 k10;
Music music;

void setup() {
	k10.begin();
	k10.buttonA->setPressedCallback(onButtonAPressed);
	k10.buttonB->setPressedCallback(onButtonBPressed);
}
void loop() {
}

void onButtonAPressed() {
	music.playMusic(DADADADUM);
}
void onButtonBPressed() {
	music.stopPlayTone();
	music.playTone(131,  8000);
	music.playTone(131,  8000);
	music.playTone(196,  8000);
	music.playTone(196,  8000);
	music.playTone(220,  8000);
	music.playTone(220,  8000);
	music.playTone(196,  8000);
}
````

## **Audio-Record and play**
Press button A to record 3 seconds of audio and store it to the TF card; press button B to play the recorded audio.<br/>
Note: TF card is need to run this example
````c++ title="Record and play"
#include "unihiker_k10.h"

UNIHIKER_K10 k10;
uint8_t screen_dir=2;
Music music;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	k10.initSDFile();
	k10.canvas->canvasText("Press A to record......", 5, 10, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
	k10.canvas->updateCanvas();
}
void loop() {
	if ((k10.buttonA->isPressed())) {
		k10.canvas->canvasText("Recording", 5, 10, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->updateCanvas();
		music.recordSaveToTFCard("S:/sound.wav", 3);
		k10.canvas->canvasText("Record complete", 5, 10, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->updateCanvas();
	}
	else if ((k10.buttonB->isPressed())) {
		k10.canvas->canvasText("Playing......", 5, 10, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->updateCanvas();
		music.playTFCardAudio("S:/sound.wav");
		delay(3000);
		k10.canvas->canvasText("Play complete", 0, 0, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->updateCanvas();
	}
}
````

## **AI-Face detection**
Turn on the camera, detect the face, and display the detected face length and width, as well as center point x and center point y coordinates, on the K10 screen<br/>
````c++ title="Face detection"
#include "unihiker_k10.h"
#include "AIRecognition.h"

UNIHIKER_K10  k10;
uint8_t screen_dir=2;
AIRecognition ai;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	ai.initAi();
	k10.initBgCamerImage();
	k10.setBgCamerImage(false);
	k10.creatCanvas();
	ai.switchAiMode(ai.NoMode);
	k10.setBgCamerImage(true);
	ai.switchAiMode(ai.Face);
}
void loop() {
	if (ai.isDetectContent(AIRecognition::Face)) {
		k10.canvas->canvasText((String("Face Length") + String(ai.getFaceData(AIRecognition::Length))), 0, 0, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->canvasText((String("Face Width ") + String(ai.getFaceData(AIRecognition::Length))), 0, 16, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->canvasText((String("Face Center X") + String(ai.getFaceData(AIRecognition::CenterX))), 0, 32, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->canvasText((String("Face Center Y") + String(ai.getFaceData(AIRecognition::CenterY))), 0, 32, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->updateCanvas();
	}
	delay(1000);
}
````
![image.gif](img/example_mindplus/exampleMindplus27.gif)

## **AI-Face recognition**
Press button A to learn the face and green LED on; press button B to recognize the face and blue LED on, and display the recognized face ID on the K10 screen<br/>
````c++ title="Face recognition"
#include "unihiker_k10.h"
#include "AIRecognition.h"

String ID;

void onButtonAPressed();
void onButtonBPressed();

UNIHIKER_K10  k10;
uint8_t screen_dir=2;
AIRecognition ai;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	ai.initAi();
	k10.initBgCamerImage();
	k10.setBgCamerImage(false);
	k10.creatCanvas();
	ai.switchAiMode(ai.NoMode);
	k10.buttonA->setPressedCallback(onButtonAPressed);
	k10.buttonB->setPressedCallback(onButtonBPressed);
	k10.setBgCamerImage(true);
	ai.switchAiMode(ai.Face);
}
void loop() {
	if (ai.isRecognized()) {
		ID = ai.getRecognitionID();
		k10.canvas->canvasText((String("Face ID: ") + String(ID)), 0, 0, 0x0000FF, k10.canvas->eCNAndENFont24, 50, true);
		k10.canvas->canvasText(ID, 0, 40, 0x0000FF, k10.canvas->eCNAndENFont24, 50, true);
		k10.canvas->updateCanvas();
	}
	delay(1000);
}

void onButtonAPressed() {
	k10.rgb->write(-1, 0x00FF00);
	ai.sendFaceCmd(ENROLL);
}
void onButtonBPressed() {
	k10.rgb->write(-1, 0x0000FF);
	ai.sendFaceCmd(RECOGNIZE);
}
````
![image.gif](img/example_mindplus/exampleMindplus28.gif){: width="250px"}

## **AI-Dog/Cat recognition**
Turn on the camera, when the camera detects the detection of the cat, the length and width of the cat's face, as well as the coordinates of the center point x and center point y, are displayed on the K10 screen.<br/>
````c++ title="AI-Dog/Cat recognition"
#include "unihiker_k10.h"
#include "AIRecognition.h"

UNIHIKER_K10  k10;
uint8_t screen_dir=2;
AIRecognition ai;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	ai.initAi();
	k10.initBgCamerImage();
	k10.setBgCamerImage(false);
	k10.creatCanvas();
	ai.switchAiMode(ai.NoMode);
	k10.setBgCamerImage(true);
	ai.switchAiMode(ai.Cat);
}
void loop() {
	if (ai.isDetectContent(AIRecognition::Cat)) {
		k10.canvas->canvasText((String("Face Length: ") + String(ai.getCatData(AIRecognition::Length))), 0, 0, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->canvasText((String("Face Width: ") + String(ai.getCatData(AIRecognition::Width))), 0, 20, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->canvasText((String("Face X: ") + String(ai.getCatData(AIRecognition::CenterX))), 0, 40, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->canvasText((String("Face Y:  ") + String(ai.getCatData(AIRecognition::CenterY))), 0, 60, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->updateCanvas();
	}
}
````
![image.gif](img/example_mindplus/exampleMindplus29.gif){: width="250px"}

## **AI-Movement Detection**
````c++ title="Movement Detection"
#include "unihiker_k10.h"
#include "AIRecognition.h"

UNIHIKER_K10  k10;
uint8_t screen_dir=2;
AIRecognition ai;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	ai.initAi();
	k10.initBgCamerImage();
	k10.setBgCamerImage(false);
	k10.creatCanvas();
	ai.switchAiMode(ai.NoMode);
	k10.setBgCamerImage(true);
	ai.switchAiMode(ai.Move);
	ai.setMotinoThreshold(50);
	k10.rgb->write(-1, 0x0000FF);
}
void loop() {
	if (ai.isDetectContent(AIRecognition::Move)) {
		k10.rgb->write(-1, 0xFF0000);
	}
	else {
		k10.rgb->write(-1, 0x0000FF);
	}
}
````
![image.gif](img/example_mindplus/exampleMindplus44.gif){: width="300px"}

## **AI-QR Code Scanner**
You can generate your own QR code through some free [QR code generation sites](https://www.qr-code-generator.com/). <br/>

!!! Note
     Note: TF card is need to run this example, and the Album Cover picture needs to be stored in TF card.


Below is the "Album cover" QR code we generated
````c++ title="QR Code Scanner"
#include "unihiker_k10.h"
#include "AIRecognition.h"

UNIHIKER_K10  k10;
uint8_t screen_dir=2;
AIRecognition ai;

void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	ai.initAi();
	k10.initBgCamerImage();
	k10.setBgCamerImage(false);
	k10.creatCanvas();
	ai.switchAiMode(ai.NoMode);
	k10.initSDFile();
	k10.setBgCamerImage(true);
	ai.switchAiMode(ai.Code);
}
void loop() {
	if (ai.isDetectContent(AIRecognition::Code)) {
		if ((ai.getQrCodeContent()==String("Album cover"))) {
			k10.canvas->canvasDrawImage(0, 0, "S:/AlbumCover.png");
			k10.canvas->updateCanvas();
		}
	}
}
````
![image.gif](img/example_mindplus/exampleMindplus30.gif){: width="300px"}
![image.png](img/example_mindplus/exampleMindplus45.png){: width="200px"}

## **AI-Speech recognition**
Wake up the voice recognition through the wake-up command "Hi,Telly", and then through the command word "Light on", "Light off" to control the on-board RGB ELD lights on K10 to turn on and off. <br/>
````c++ title="Speech recognition"
#include "asr.h"
#include "unihiker_k10.h"
// Create an object
UNIHIKER_K10 k10;
ASR          asr;
uint8_t      screen_dir=2;


// Main program start
void setup() {
	k10.begin();
	asr.asrInit(CONTINUOUS, CN_MODE, 6000);
	while(asr._asrState == 0){delay(100);}
	k10.initScreen(screen_dir);
	k10.creatCanvas();
	asr.addASRCommand(1, "kai deng");//
	asr.addASRCommand(2, "guan deng");
}
void loop() {
	if (asr.isWakeUp()) {
		k10.canvas->canvasText("Wake up mode", 0, 0, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->updateCanvas();
	}
	else {
		k10.canvas->canvasText("Sleep mode", 0, 0, 0x0000FF, k10.canvas->eCNAndENFont16, 50, true);
		k10.canvas->updateCanvas();
	}
	if (asr.isDetectCmdID(1)) {
		k10.rgb->brightness(round(9));
		k10.rgb->write(-1, 0xFF0000);
	}
	else if (asr.isDetectCmdID(2)) {
		k10.rgb->brightness(round(0));
		k10.rgb->write(-1, 0xFF0000);
	}
}
````
![image.gif](img/example_mindplus/exampleMindplus31.gif){: width="400px"}

## **GPIO**
Since the camera and display take up a lot of GPIOs on the ESP32 chip, we only left two full-function GPIOs (digital input/output, analogue input, PWM output) at P0,P1.
The GPIOs out of Edge Connector are all led from the on-board GPIO expansion chip, and only have digital input/output function.<br/>
````c++ title="Digital input/output"
void setup() {
	pinMode(P0, OUTPUT);
	pinMode(P1, INPUT);
	Serial.begin(9600);
	digitalWrite(P0, HIGH);
}
void loop() {
	Serial.println((digitalRead(P1)));
}
````

````c++ title="Analog input/ PWM output"
void setup() {
	Serial.begin(9600);
	analogWrite(P0, map(512, 0, 1023, 0, 255));
}
void loop() {
	Serial.println((analogRead(P1)));
}
````

````c++ title="Digital input/output(Extended GPIO)"
#include "unihiker_k10.h"

UNIHIKER_K10 k10;

void setup() {
	k10.begin();
	Serial.begin(9600);
	digital_write(eP2, HIGH);
}
void loop() {
	Serial.println((digital_read(eP3)));
}
````

````c++ title="x,y,z"
#include "unihiker_k10.h"
//
UNIHIKER_K10 k10;
AHT20        aht20;
uint8_t      screen_dir=2;


//
void setup() {
	k10.begin();
	k10.initScreen(screen_dir);
	k10.creatCanvas();
}
void loop() {
	k10.canvas->canvasText(aht20.getData(AHT20::eAHT20TempC), 1, 0x0000FF);
	k10.canvas->canvasText(aht20.getData(AHT20::eAHT20TempF), 2, 0x0000FF);
	k10.canvas->canvasText(aht20.getData(AHT20::eAHT20HumiRH), 3, 0x0000FF);
	k10.canvas->canvasText(k10.readALS(), 4, 0x0000FF);
	k10.canvas->canvasText((k10.getAccelerometerX()), 5, 0x0000FF);
	k10.canvas->canvasText((k10.getAccelerometerY()), 6, 0x0000FF);
	k10.canvas->canvasText((k10.getAccelerometerZ()), 7, 0x0000FF);
	k10.canvas->canvasText((k10.getStrength()), 8, 0x0000FF);
	k10.canvas->updateCanvas();//k10.canvas->canvasText()k10.canvas->updateCanvas()
	delay(1000);
	k10.canvas->canvasClear();//
}
````


````c++ title=""
#include "asr.h"
#include "unihiker_k10.h"
//
UNIHIKER_K10 k10;
ASR          asr;


//
void setup() {
	k10.begin();
	asr.setAsrSpeed(2);
}
void loop() {
	asr.speak("");
	delay(2000);
}
````

reference code

C/C++
## UNIHIKER_K10
The UNIHIKER K10 library is a library for controlling the K10 on-screen display, on-board sensors, SD card, and playing sound.
Note: The source code for this library will be made available on the DFRobot GitHub when the UNIHIKER K10 SDK is upgraded to the full version.
````c++ title="Init"
/**
 * @fn begin
 * @brief Initialize UNIHIKER K10 board
 */
void begin(void);
````

````c++ title="Display"
/**
 * @fn initScreen
 * @brief Initialize the screen
 * @param dir Screen orientation
 * @param frame Screen display frame rate
 */
void initScreen(int dir = 2, int frame = 0);

/**
 * @fn creatCanvas
 * @brief Create a canvas
 */
void creatCanvas(void);

/**
 * @fn initBgCamerImage
 * @brief Initialize the camera image
 */
void initBgCamerImage(void);

/**
 * @fn setBgCamerImage
 * @brief Set whether to display the camera image on the screen
 * @param sta Configuration status
 */
void setBgCamerImage(bool sta = true);

/**
 * @fn setScreenBackground
 * @brief Set the screen background color
 * @param color Background color
 */
void setScreenBackground(uint32_t color);

/**
 * @fn canvasText
 * @brief Display text on the canvas
 * @param text Text content
 * @param row Row to display
 * @param color Text color
 */
void canvasText(float text, uint8_t row, uint32_t color);
void canvasText(String text, uint8_t row, uint32_t color);
void canvasText(const char* text, uint8_t row, uint32_t color);

/**
 * @fn canvasPoint
 * @brief Draw a point on the canvas
 * @param x Display coordinate X
 * @param y Display coordinate Y
 * @param color Point color
 */
void canvasPoint(int16_t x, int16_t y, uint32_t color);

/**
 * @fn updateCanvas
 * @brief Update screen display (automatically updates when using camera)
 */
void updateCanvas(void);

/**
 * @fn canvasClear
 * @brief Clear canvas properties
 */
void canvasClear(void);

/**
 * @fn canvasSetLineWidth
 * @brief Set line width for drawing
 * @param w Line width
 */
void canvasSetLineWidth(uint8_t w = 10);

/**
 * @fn canvasLine
 * @brief Draw a line on the canvas
 * @param x1, y1 Starting coordinates
 * @param x2, y2 Ending coordinates
 * @param color Line color
 */
void canvasLine(int x1, int y1, int x2, int y2, uint32_t color);

/**
 * @fn canvasCircle
 * @brief Draw a circle on the canvas
 * @param x Display coordinate X
 * @param y Display coordinate Y
 * @param r Circle radius
 * @param color Border color
 * @param bg_color Background color
 * @param fill Whether to fill the circle
 */
void canvasCircle(int x, int y, int r, uint32_t color, uint32_t bg_color, bool fill);

/**
 * @fn canvasRectangle
 * @brief Draw a rectangle on the canvas
 * @param x Display coordinate X
 * @param y Display coordinate Y
 * @param w Rectangle width
 * @param h Rectangle height
 * @param color Border color
 * @param bg_color Background color
 * @param fill Whether to fill the rectangle
 */
void canvasRectangle(int x, int y, int w, int h, uint32_t color, uint32_t bg_color, bool fill);

/**
 * @fn canvasDrawCode
 * @brief Display QR code
 * @param code QR code to display
 */
void canvasDrawCode(String code);

/**
 * @fn clearCode
 * @brief Clear QR code from display
 */
void clearCode(void);
````

````c++ title="microSD card"
/**
 * @fn initSDFile
 * @brief Initialize the SD card file system
 */
void initSDFile(void);

/**
 * @fn photoSaveToTFCard
 * @brief Save a photo to the SD card
 * @param imagePath Path to save the photo
 */
void photoSaveToTFCard(const char *imagePath);
void photoSaveToTFCard(String imagePath);

/**
 * @fn playTFCardAudio
 * @brief Play music from SD card
 */
void playTFCardAudio(const char* path);
void playTFCardAudio(String path);

/**
 * @fn recordSaveToTFCard
 * @brief Record and save to SD card
 * @param path Storage path
 * @param time Recording duration
 */
void recordSaveToTFCard(const char* path, uint8_t time);
void recordSaveToTFCard(String path, uint8_t time);
````

````c++ title="on-board sensor"
/**
 * @brief Get the ambient light intensity
 * @return uint16_t Ambient light intensity
 */
uint16_t readALS(void);


/**
 * @fn getAccelerometerX
 * @brief Get accelerometer X-axis data
 */
int getAccelerometerX();

/**
 * @fn getAccelerometerY
 * @brief Get accelerometer Y-axis data
 */
int getAccelerometerY();

/**
 * @fn getAccelerometerZ
 * @brief Get accelerometer Z-axis data
 */
int getAccelerometerZ();

/**
 * @fn getStrength
 * @brief Get strength
 */
int getStrength();

/**
 * @fn isGesture
 * @brief Detect gesture
 * @param gesture Gesture state
 */
bool isGesture(Gesture gesture);

/**
 * @fn playMusic
 * @brief Background play of built-in music
 * @param melodies Music selection
 * @param options Playback options
 */
void playMusic(Melodies melodies, MelodyOptions options = Once);

/**
 * @brief Play a specified note
 * @param frequency Note frequency
 * @param samples Beat: 8000 for full beat, 4000 for half beat, others similarly
 */
void playTone(int freq, int beat);

/**
 * @fn stopPlayTone
 * @brief Stop playing tone
 */
void stopPlayTone(void);

/**
 * @fn stopPlayAudio
 * @brief Stop playing music from SD card
 */
void stopPlayAudio(void);

/**
 * @fn write
 * @brief Set RGB LED color
 * @param index LED index
 * @param r Red value
 * @param g Green value
 * @param b Blue value
 */
void write(int8_t index, uint8_t r, uint8_t g, uint8_t b);

/**
 * @fn setRangeColor
 * @brief Set range of RGB LED colors
 * @param start Start LED index
 * @param end End LED index
 * @param c Color
 */
void setRangeColor(int16_t start, int16_t end, uint32_t c);

/**
 * @fn brightness
 * @brief Set RGB LED brightness
 */
void brightness(uint8_t b);

/**
 * @fn isPressed
 * @brief Check if a button is pressed
 */
bool isPressed(void);

/**
 * @fn setPressedCallback
 * @brief Set callback function for button press
 * @param _cb Callback function
 */
void setPressedCallback(CBFunc _cb);

/**
 * @fn setUnPressedCallback
 * @brief Set callback function for button release
 * @param _cb Callback function
 */
void setUnPressedCallback(CBFunc _cb);

/**
 * @fn getData
 * @brief Get data from AHT20 sensor
 * @param type Data type to retrieve
 */
float getData(eAHT20Data_t type);
````

## AIRecognition
The AIRecognition library is the library used to pull data from the K10's built-in AI models.
Note: The source code for this library will be made available on the DFRobot GitHub when the UNIHIKER K10 SDK is upgraded to the full version.<br/>
````c++ title="Init"
/**
 * @fn init
 * @brief Initialize AI
*/
void initAi(void);

/**
 * @fn switchAiMode
 * @brief Select AI mode
 * @param mode Face, //Face Recognition
               Cat, //Cat/Dog Recognition
               Move, //<Movement Detection
               Code, //QRCode Recognition
 */
void switchAiMode(eAiType_t mode);
````

````c++ title="AI Detection"
/**
 * @fn getFaceData
 * @brief Get detected face data
 * @param type Length,Width,CenterX,CenterY,LeftEyeX,LeftEyeY,RightEyeX,RightEyeY,
 * NoseX,NoseY,LeftMouthX,LeftMouthY,RightMouthX,RightMouthY,
*/
int getFaceData(eFaceOrCatData_t type);

/**
* @fn getCatData
* @brief Get detected cat/dog face data
*  @param type Length,Width,CenterX,CenterY,LeftEyeX,LeftEyeY,RightEyeX,RightEyeY,
* NoseX,NoseY,LeftMouthX,LeftMouthY,RightMouthX,RightMouthY,
*/
int getCatData(eFaceOrCatData_t type);

/**
 * @fn isDetectContent
 * @brief Detect data
 * @param mode Specific data
 */
bool isDetectContent(eAiType_t mode);

/**
* @fn sendFaceCmd
* @brief Send face command
* @param recognizer_state_t ENROLL: Learn face
*        recognizer_state_t RECOGNIZE: Recognize face
*        recognizer_state_t DELETEALL: Delete all face ID
*        uint8_t cmd, DELETE: Delete certain face ID
 *       int id: ID: Face ID
*/
void sendFaceCmd(recognizer_state_t cmd);
void sendFaceCmd(uint8_t cmd, int id);

/**
 * @fn setMotinoThreshold
 * @brief Set motion sensitivity
 * @param threshold range 10~200
*/
void setMotinoThreshold(uint8_t threshold);

/**
 * @fn getQrCodeContent
 * @brief Get QR code data
 * @return Recognized QR code
*/
String getQrCodeContent(void);

/**
 * @fn getRecognitionID
 * @brief Get face recognition ID
 * @return Face recognition ID
*/
int getRecognitionID(void);

/**
 * @fn isRecognized
 * @brief Check if face recognition is complete
 * @return Recognition status
 */
bool isRecognized(void);
````

## ASR
ASR is a library for the speech recognition feature built into K10.<br/>
````c++ title="ASR"
/**
 * @brief Initialising speech recognition
 * @param mode  ONCE|CONTINUOUS
 * @param lang  EN_MODE|CN_MODE
 * @param wakeUpTime unit:ms
*/
void asrInit(uint8_t mode = 0, uint8_t lang = 0, uint16_t wakeUpTime = 6000);

/**
 * @fn addASRCommand
 * @brief Adding Voice Recognition Command Words
 * @param id Command Word ID
 * @param cmd Command word data
*/
void addASRCommand(uint8_t id, char* cmd);
void addASRCommand(uint8_t id, String cmd);

/**
 * @fn isWakeUp
 * @brief Get Wakeup Status
*/
bool isWakeUp(void);

/**
 * @fn isDetectCmdID
 * @brief Get command word ID
 */
bool isDetectCmdID(uint8_t id);
````

Credits

Rebecca Jiang
4 projects • 5 followers
Mushroom Cloud Maker Space Operation Manager

Comments

Related channels and tags
  • DFRobot
  • Microsoft
