Hardware components | ||||||
 |
| × | 1 | |||
_ztBMuBhMHo.jpg?auto=compress%2Cformat&w=48&h=48&fit=fill&bg=ffffff) |
| × | 1 | |||
| × | 1 | ||||
Software apps and online services | ||||||
| ||||||
| ||||||
 |
| |||||
| ||||||
| ||||||

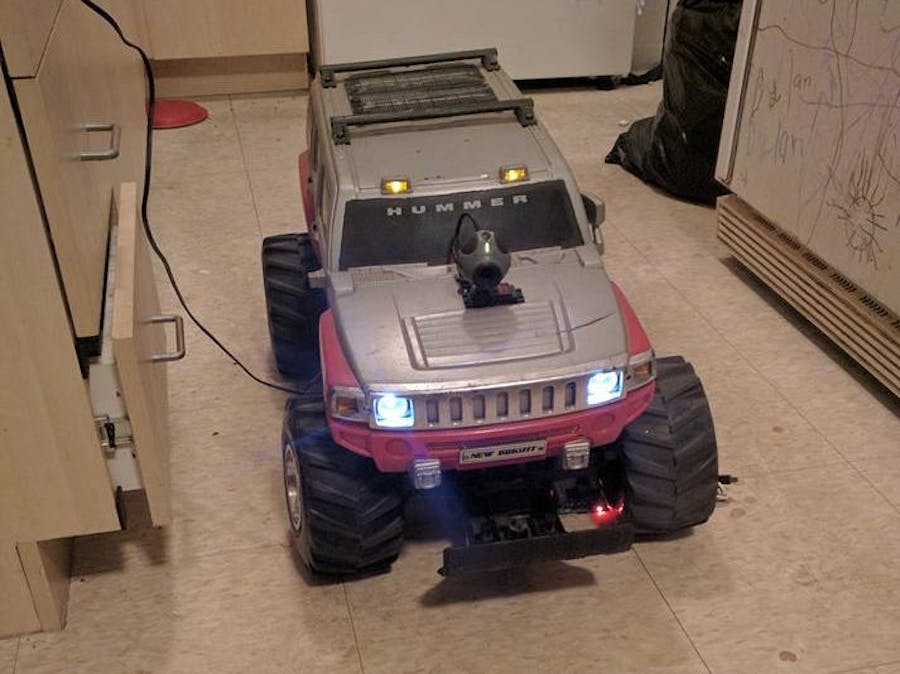

Used the Arduino as the controller for adding LEDs and servo control for camera, Raspberry Pi for pushing Arduino serial over the net with ser2net. Using motion or mjpg streamer to stream webcam over wifi, PC control software written with visual basic 6.
If you have any questions or needing help with mym'y project feel free to contact me via email or fbook at push28@gmail.com.
VERSION 5.00
Object = "{248DD890-BB45-11CF-9ABC-0080C7E7B78D}#1.0#0"; "MSWINSCK.OCX"
Object = "{DF2BBE39-40A8-433B-A279-073F48DA94B6}#1.0#0"; "axvlc.dll"
Begin VB.Form Form_v2
BackColor = &H00808080&
BorderStyle = 3 'Fixed Dialog
Caption = "push wifi hummer"
ClientHeight = 6390
ClientLeft = 840
ClientTop = 630
ClientWidth = 11790
FillColor = &H00FFFFFF&
Icon = "Form2.frx":0000
LinkTopic = "Form1"
MaxButton = 0 'False
MinButton = 0 'False
ScaleHeight = 16000
ScaleMode = 0 'User
ScaleWidth = 11790
ShowInTaskbar = 0 'False
WhatsThisHelp = -1 'True
Begin VB.Frame Frame3
BackColor = &H80000010&
Caption = "Video Stream Adress"
Height = 615
Left = 120
TabIndex = 24
Top = 3120
Width = 3015
Begin VB.TextBox Text3
Height = 285
Left = 120
TabIndex = 25
Text = "Text3"
Top = 240
Width = 2775
End
End
Begin VB.Frame Frame2
BackColor = &H80000010&
Caption = "Port"
Height = 615
Left = 1680
TabIndex = 22
Top = 2400
Width = 1455
Begin VB.TextBox Text2
Height = 285
Left = 120
TabIndex = 23
Text = "Text2"
Top = 240
Width = 1215
End
End
Begin VB.Frame Frame1
BackColor = &H80000010&
Caption = "Ip Address"
Height = 615
Left = 120
TabIndex = 20
Top = 2400
Width = 1455
Begin VB.TextBox Text1
Height = 285
Left = 120
TabIndex = 21
Text = "Text1"
Top = 240
Width = 1215
End
End
Begin AXVLCCtl.VLCPlugin VLCPlugin1
Height = 6375
Left = 3360
TabIndex = 19
Top = 0
Width = 8415
AutoLoop = 0 'False
AutoPlay = -1 'True
Toolbar = 0 'False
ExtentWidth = 14843
ExtentHeight = 11245
MRL = "http://192.168.2.174:8081"
Object.Visible = -1 'True
Volume = 0
StartTime = 0
BaseURL = ""
BackColor = 0
End
Begin VB.CommandButton Command6
Caption = "Command6"
Height = 495
Left = 2880
TabIndex = 17
Top = 5520
Visible = 0 'False
Width = 495
End
Begin VB.CommandButton Command5
Caption = "Command5"
Height = 495
Left = 2280
TabIndex = 16
Top = 5520
Visible = 0 'False
Width = 495
End
Begin VB.CommandButton Command4
Caption = "Command4"
Height = 495
Left = 1680
TabIndex = 15
Top = 5520
Visible = 0 'False
Width = 495
End
Begin VB.CommandButton Command3
Caption = "Command3"
Height = 495
Left = 1080
TabIndex = 14
Top = 5520
Visible = 0 'False
Width = 495
End
Begin VB.CommandButton Command2
Caption = "Command2"
Height = 495
Left = 480
TabIndex = 13
Top = 5520
Visible = 0 'False
Width = 495
End
Begin VB.Timer Tmrsend
Enabled = 0 'False
Interval = 150
Left = 2040
Top = 3000
End
Begin VB.Timer tmrcheck
Interval = 200
Left = 1560
Top = 3000
End
Begin VB.Timer tmrin
Enabled = 0 'False
Interval = 1
Left = 1560
Top = 2520
End
Begin VB.Timer tmrout
Enabled = 0 'False
Interval = 1
Left = 2040
Top = 4440
End
Begin VB.Timer tmrflashleft
Enabled = 0 'False
Interval = 500
Left = 1560
Top = 4440
End
Begin VB.Timer tmrfog
Enabled = 0 'False
Interval = 2
Left = 2040
Top = 2520
End
Begin VB.Timer tmrbeam
Enabled = 0 'False
Interval = 2
Left = 2040
Top = 3480
End
Begin VB.Timer call_timer
Left = 1560
Top = 3480
End
Begin VB.CommandButton Command1
Caption = "CON"
Height = 375
Left = 2400
TabIndex = 5
Top = 1800
Width = 735
End
Begin MSWinsockLib.Winsock sock
Left = 1560
Top = 3960
_ExtentX = 741
_ExtentY = 741
_Version = 393216
End
Begin VB.CommandButton cmd_right
Appearance = 0 'Flat
BackColor = &H00FFFFFF&
DownPicture = "Form2.frx":164A
Enabled = 0 'False
Height = 615
Left = 1440
MaskColor = &H00808080&
Picture = "Form2.frx":1D94
Style = 1 'Graphical
TabIndex = 3
Top = 600
UseMaskColor = -1 'True
Width = 735
End
Begin VB.CommandButton cmd_left
Appearance = 0 'Flat
BackColor = &H00FFFFFF&
DownPicture = "Form2.frx":24DE
Enabled = 0 'False
Height = 615
Left = 0
MaskColor = &H00808080&
Picture = "Form2.frx":2C28
Style = 1 'Graphical
TabIndex = 2
Top = 600
UseMaskColor = -1 'True
Width = 735
End
Begin VB.CommandButton cmd_up
Appearance = 0 'Flat
BackColor = &H00FFFFFF&
DownPicture = "Form2.frx":3372
Enabled = 0 'False
Height = 615
Left = 720
MaskColor = &H00808080&
Picture = "Form2.frx":3AD4
Style = 1 'Graphical
TabIndex = 1
Top = 0
UseMaskColor = -1 'True
Width = 735
End
Begin VB.CommandButton cmd_down
Appearance = 0 'Flat
BackColor = &H00FFFFFF&
Enabled = 0 'False
Height = 615
Left = 720
MaskColor = &H00808080&
Picture = "Form2.frx":4236
Style = 1 'Graphical
TabIndex = 0
Top = 1200
UseMaskColor = -1 'True
Width = 735
End
Begin VB.Timer tmrflashright
Enabled = 0 'False
Interval = 500
Left = 2040
Top = 3960
End
Begin VB.Label Label2
BackColor = &H80000010&
Caption = "Camera Key's ( J : <- ) ( U :\ ) ( I : | ) ( O : / ) ( L : -> )"
Height = 495
Left = 240
TabIndex = 26
Top = 4080
Width = 2895
End
Begin VB.Label Label1
Alignment = 2 'Center
Caption = "|"
Enabled = 0 'False
BeginProperty Font
Name = "MS Sans Serif"
Size = 24
Charset = 0
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
Height = 615
Left = 720
TabIndex = 18
Top = 600
Width = 735
End
Begin VB.Label Label8
Caption = "Label8"
Height = 375
Left = 2400
TabIndex = 12
Top = 1320
Width = 735
End
Begin VB.Label Label4
Caption = "Label4"
Height = 375
Left = 1560
TabIndex = 11
Top = 1800
Width = 735
End
Begin VB.Label Lblfog
BackColor = &H80000010&
Caption = "F: fog"
BeginProperty Font
Name = "MS Sans Serif"
Size = 9.75
Charset = 0
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H8000000E&
Height = 240
Left = 2280
TabIndex = 10
Top = 840
Width = 1095
End
Begin VB.Label Lblbeam
BackColor = &H80000010&
Caption = "B: beam"
BeginProperty Font
Name = "MS Sans Serif"
Size = 9.75
Charset = 0
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H8000000E&
Height = 240
Left = 2280
TabIndex = 9
Top = 600
Width = 1095
End
Begin VB.Label Label7
BackColor = &H80000010&
Caption = "T: connect"
BeginProperty Font
Name = "MS Sans Serif"
Size = 9.75
Charset = 0
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H8000000E&
Height = 240
Left = 2280
TabIndex = 8
Top = 360
Width = 1095
End
Begin VB.Label Label6
BackColor = &H80000010&
Caption = "H: horn"
BeginProperty Font
Name = "MS Sans Serif"
Size = 9.75
Charset = 0
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H8000000E&
Height = 240
Left = 2280
TabIndex = 7
Top = 120
Width = 1095
End
Begin VB.Label Label5
Caption = "Label5"
Height = 375
Left = 1560
TabIndex = 6
Top = 1320
Width = 735
End
Begin VB.Label Label3
BackColor = &H80000010&
Caption = "Esc = Exit"
BeginProperty Font
Name = "MS Sans Serif"
Size = 9.75
Charset = 0
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H8000000E&
Height = 360
Left = 0
TabIndex = 4
Top = 1920
Width = 1095
End
End
Attribute VB_Name = "Form_v2"
Attribute VB_GlobalNameSpace = False
Attribute VB_Creatable = False
Attribute VB_PredeclaredId = True
Attribute VB_Exposed = False
Option Explicit
Public direction As String
Public beam, fog, error As Integer
Dim datain As String
Public flashleft, flashright As Integer
Public ttime As Integer
Public address, port As String
Public upstatus, downstatus, leftstatus, rightstatus, hornstatus As Integer
Public output As Integer
Dim stream(6) As Integer
Private Sub call_timer_Timer()
Call motion("manual", upstatus + downstatus + rightstatus + leftstatus + hornstatus)
'Calls motion module. Lets it know manual driving and what value to output to the
'parallel port
End Sub
Private Sub Command1_Click()
If sock.State = sckClosed Then ' if the socket is closed
sock.RemoteHost = Text1.Text ' set server adress
sock.RemotePort = Text2.Text ' set server port
Label5.Caption = "Connected"
VLCPlugin1.MRL = Text3.Text
VLCPlugin1.Play
Form_v2.Enabled = False
Command1.Visible = False
Command1.Enabled = False
Form_v2.BorderStyle = "0"
sock.Connect ' start connection attempt
Else ' if the socket is open
sock.Close ' close it
Label5.Caption = "Not Connected"
Form_v2.Enabled = True
Command1.Enabled = True
Command1.Visible = True
VLCPlugin1.Stop
End If
End Sub
Private Sub Form_KeyDown(KeyCode As Integer, Shift As Integer)
'Detects if control keys are pressed
If KeyCode = vbKeyEscape Then End 'Exits
If KeyCode = vbKeyT Then Call Command1_Click
If KeyCode = vbKeyUp Or KeyCode = vbKeyW Then: cmd_up.BackColor = &HFF0000: cmd_up.Picture = cmd_up.DownPicture: upstatus = 1
'If up arrow is pressed or W then change pictures (make it blue) and change upstatus.
If KeyCode = vbKeyDown Or KeyCode = vbKeyS Then cmd_down.BackColor = &HFF0000: cmd_down.Picture = cmd_down.DownPicture: downstatus = 2
'If down arrow is pressed or S then change pictures (make it blue) and change downstatus.
If KeyCode = vbKeyLeft Or KeyCode = vbKeyA Then cmd_left.BackColor = &HFF0000: cmd_left.Picture = cmd_left.DownPicture: rightstatus = 4: tmrflashleft.Enabled = True
'If left arrow is pressed or A then change pictures (make it blue) and change rightstatus.
If KeyCode = vbKeyRight Or KeyCode = vbKeyD Then cmd_right.BackColor = &HFF0000: cmd_right.Picture = cmd_right.DownPicture: leftstatus = 8: tmrflashright.Enabled = True
'If right arrow is pressed or D then change pictures (make it blue) and change leftstatus.
If KeyCode = vbKeyH Then stream(3) = 1
If KeyCode = vbKeyB Then tmrbeam.Enabled = True
If KeyCode = vbKeyF Then tmrfog.Enabled = True
If KeyCode = vbKeyJ Then stream(1) = 3: Label1.Caption = "<-"
If KeyCode = vbKeyU Then stream(1) = 4: Label1.Caption = "\"
If KeyCode = vbKeyI Then stream(1) = 5: Label1.Caption = "|"
If KeyCode = vbKeyO Then stream(1) = 6: Label1.Caption = "/"
If KeyCode = vbKeyL Then stream(1) = 7: Label1.Caption = "->"
End Sub
Private Sub Form_KeyUp(KeyCode As Integer, Shift As Integer)
'Stops output to that direction when key is lifted.
'Changes pictures back to unactivated (none-blue).
If KeyCode = vbKeyUp Or KeyCode = vbKeyW Then cmd_up.BackColor = &HFFFFFF: cmd_up.Picture = cmd_up.DisabledPicture: upstatus = 0
If KeyCode = vbKeyDown Or KeyCode = vbKeyS Then cmd_down.BackColor = &HFFFFFF: cmd_down.Picture = cmd_down.DisabledPicture: downstatus = 0
If KeyCode = vbKeyLeft Or KeyCode = vbKeyA Then cmd_left.BackColor = &HFFFFFF: cmd_left.Picture = cmd_left.DisabledPicture: rightstatus = 0: tmrflashright.Enabled = False: stream(2) = 0
If KeyCode = vbKeyRight Or KeyCode = vbKeyD Then cmd_right.BackColor = &HFFFFFF: cmd_right.Picture = cmd_right.DisabledPicture: leftstatus = 0: tmrflashleft.Enabled = False: stream(2) = 0
If KeyCode = vbKeyH Then stream(3) = 9
End Sub
Private Sub Form_Load()
Text1.Text = "192.168.2.174"
Text2.Text = "2001"
Text3.Text = "http://192.168.2.174:8081"
fog = 0
beam = 0
flashleft = 0
flashright = 0
Dim line As String
Dim line2 As String
'Stores {Arrow with white} pic in .DisabledPicture for each button
cmd_up.DisabledPicture = cmd_up.Picture
cmd_down.DisabledPicture = cmd_down.Picture
cmd_left.DisabledPicture = cmd_left.Picture
cmd_right.DisabledPicture = cmd_right.Picture
'Following Opens Config.txt and collect Parallel Port Address and Refresh Rate
'Open CurDir & "\config.txt" For Input As #1
'Open CurDir & "\config.txt" For Input As #2
'Line Input #1, line
' Line Input #1, line
'Line Input #2, line2
line = "192.168.2.1"
line2 = "2001"
address = line 'sets the ip adress
port = line2 'Sets ip port
'lbladdress.Text = address 'displays address
'txtport.Text = port
call_timer.Interval = 5
stream(0) = 9
stream(1) = 9
stream(2) = 9
End Sub
Private Sub sock_Close()
sock.Close ' has to be
End Sub
Private Sub sock_Error(ByVal Number As Integer, Description As String, ByVal Scode As Long, ByVal Source As String, ByVal HelpFile As String, ByVal HelpContext As Long, CancelDisplay As Boolean)
MsgBox "Socket Error " & Number & ": " & Description
sock.Close ' close the erraneous connection
End Sub
'Motion Executor
Sub motion(direction As String, ttime As Integer)
address = Form_v2.address
Select Case direction
Case 1 To 10
Case "manual"
'If manual driving, parallel port output required for direction has already
'been calculated, so output value passed to ttime
output = ttime
Case "FF"
output = 1
stream(0) = 1
Case "BB"
output = 2
stream(0) = 5
Case "RR"
output = 8
stream(0) = 3
Case "LL"
output = 4
stream(0) = 7
Case "FR"
output = 9
stream(0) = 2
Case "FL"
output = 5
stream(0) = 8
Case "BR"
output = 10
stream(0) = 4
Case "BL"
output = 6
stream(0) = 6
Case "SS"
output = 0
stream(0) = 9
End Select
Rem vbOut address, output
'sock.SendData output & Chr(0)
If sock.State = sckConnected Then
'If output = &HC Or output = &H1C Then output = output - 8
'If output = &H3 Or output = &H13 Then output = output - 2
'sock.SendData (stream(0) & stream(1) & stream(2) & stream(3) & stream(4))
Label5.Caption = stream(0) & stream(1) & stream(2) & stream(3) & stream(4)
Label7.BackColor = &HFF0000
tmrin.Enabled = True
tmrout.Enabled = True
tmrcheck.Enabled = True
Else
tmrcheck.Enabled = False
tmrout.Enabled = False
Label5.Caption = "NOT sending data"
Label7.BackColor = &H80000010
End If
End Sub
Private Sub tmrbeam_Timer()
If beam = 1 Then
beam = 0
fog = 0
stream(1) = 9
Lblbeam.BackColor = &H80000010
Lblfog.BackColor = &H80000010
tmrbeam.Enabled = False
ElseIf beam = 0 Then
beam = 1
stream(1) = 1
Lblbeam.BackColor = &HFF0000
tmrbeam.Enabled = False
End If
End Sub
Private Sub tmrcheck_Timer()
Label8.Caption = error
If Label5.Caption = Label4.Caption Then
error = 0
End If
If Not Label5.Caption = Label4.Caption Then
error = 1
Tmrsend.Enabled = True
End If
End Sub
Private Sub tmrflashleft_Timer()
If flashleft = 0 Then
flashleft = 1
stream(2) = 1
tmrflashleft.Enabled = False
ElseIf flashleft = 1 Then
flashleft = 0
stream(2) = 9
tmrflashleft.Enabled = False
End If
End Sub
Private Sub tmrflashright_Timer()
If flashright = 0 Then
flashright = 1
stream(2) = 2
tmrflashright.Enabled = False
ElseIf flashright = 1 Then
flashright = 0
stream(2) = 9
tmrflashright.Enabled = False
End If
End Sub
Private Sub tmrfog_Timer()
If beam = 1 And fog = 0 Then
stream(1) = 2
fog = 1
Lblfog.BackColor = &HFF0000
tmrfog.Enabled = False
ElseIf beam = 1 And fog = 1 Then
stream(1) = 1
fog = 0
Lblfog.BackColor = &H80000010
tmrfog.Enabled = False
End If
End Sub
Private Sub tmrin_Timer()
Label4.Caption = datain
End Sub
Private Sub tmrout_Timer()
tmrcheck.Enabled = True
sock.GetData datain, vbString
If output = 1 Then
stream(0) = 1
tmrout.Enabled = False
End If
If output = 2 Then
stream(0) = 5
tmrout.Enabled = False
End If
If output = 8 Then
stream(0) = 3
tmrout.Enabled = False
End If
If output = 4 Then
stream(0) = 7
tmrout.Enabled = False
End If
If output = 9 Then
stream(0) = 2
tmrout.Enabled = False
End If
If output = 5 Then
stream(0) = 8
tmrout.Enabled = False
End If
If output = 10 Then
stream(0) = 4
tmrout.Enabled = False
End If
If output = 6 Then
stream(0) = 6
tmrout.Enabled = False
End If
If output = 0 Then
stream(0) = 9
tmrout.Enabled = False
End If
End Sub
Private Sub Tmrsend_Timer()
If error = 1 And Label7.BackColor = &HFF0000 Then
sock.SendData (stream(0) & stream(1) & stream(2) & stream(3) & stream(4))
'sock.SendData (stream)
End If
End Sub
// Controlling a servo position using a Serial port
// by luc Francoeur <http://maaxinfo.cfun.fr/>
// modified from Michal Rinott servo by potentiometer code <http://people.interaction-ivrea.it/m.rinott>
#include <Servo.h>
Servo myservo;
uint16_t led[8];
const byte fog = 4;
const byte beam = 2;
const byte flashleft = 8;
const byte flashright = 7;
const byte brakes = 3;
const byte turnleft = 12;
const byte turnright = 13;
const byte avance = 10;
const byte center = 5;
const byte horn = 6;
char buffer[25];
byte cam = 88;
void setup() {
pinMode(2, OUTPUT);
pinMode(3, OUTPUT);
pinMode(4, OUTPUT);
pinMode(5,OUTPUT);
pinMode(7, OUTPUT);
pinMode(8, OUTPUT);
pinMode(6, OUTPUT);
pinMode(10, OUTPUT);
pinMode(12, OUTPUT);
pinMode(13, OUTPUT);
myservo.attach(9); // attaches the servo on pin 11 to the servo object
Serial.begin(19200); // Speed of serial port
Serial.flush();
}
void loop() {
pan();
if (Serial.available() > 0) {
byte index=0;
delay(100); // let the buffer fill up
byte numChar=Serial.available();
if (numChar>20) {
numChar=20;
}
while (numChar--) {
buffer[index++] = Serial.read();
}
splitString(buffer);
}
}
void pan(){
myservo.write(cam);
delay(15);
}
void splitString(char* data) {
char * parameter;
parameter = strtok (data, " ,");
while (parameter != NULL) {
setLED(parameter);
parameter = strtok (NULL, " ,");
}// Clear the text and serial buffers
for (byte x=0; x<20; x++) {
buffer[x]='\0';
}
Serial.flush();
}
void setLED(char *data) {
Serial.println(data);
if (data[0]=='9') { //STALLED
digitalWrite(center,HIGH);
digitalWrite(avance,LOW);
digitalWrite(turnleft,LOW);
digitalWrite(turnright,LOW);
}
if (data[0]=='1') { //FORWARD
digitalWrite(center,HIGH);
digitalWrite(avance,HIGH);
digitalWrite(turnleft,LOW);
digitalWrite(turnright,LOW);
}
if (data[0]=='2') { //FORWARD-RIGHT
digitalWrite(center,LOW);
digitalWrite(avance,HIGH);
digitalWrite(turnleft,LOW);
digitalWrite(turnright,HIGH);
}
if (data[0]=='3') { //RIGHT STALLED
digitalWrite(center,LOW);
digitalWrite(avance,LOW);
digitalWrite(turnleft,LOW);
digitalWrite(turnright,HIGH);
}
if (data[0]=='4') { //REVERSE-RIGHT
digitalWrite(center,LOW);
digitalWrite(avance,LOW);
digitalWrite(turnleft,LOW);
digitalWrite(turnright,HIGH);
}
if (data[0]=='5') { //REVERSE
digitalWrite(center,HIGH);
digitalWrite(avance,LOW);
digitalWrite(turnleft,LOW);
digitalWrite(turnright,LOW);
}
if (data[0]=='6') { //REVERSE-LEFT
digitalWrite(center,LOW);
digitalWrite(avance,LOW);
digitalWrite(turnleft,HIGH);
digitalWrite(turnright,LOW);
}
if (data[0]=='7') { // LEFT-STALLED
digitalWrite(center,LOW);
digitalWrite(avance,LOW);
digitalWrite(turnleft,HIGH);
digitalWrite(turnright,LOW);
}
if (data[0]=='8') { // FORWARD-LEFT
digitalWrite(center,LOW);
digitalWrite(avance,HIGH);
digitalWrite(turnleft,HIGH);
digitalWrite(turnright,LOW);
}
if ((data[1]=='9')&&(data[0]=='9')) { //BEAM off w/o FOG w/o BRAKES
digitalWrite(beam,LOW);
analogWrite(brakes,0);
digitalWrite(fog,LOW);
}
if ((data[1]=='9')&&((data[0]=='4')||(data[0]=='5')||(data[0]=='6'))) { //BEAM off w/o FOG w BRAKES
digitalWrite(beam,LOW);
analogWrite(brakes,255);
digitalWrite(fog,LOW);
}
if ((data[1]=='1')&&((data[0]!='4')||(data[0]!='5')||(data[0]!='6'))) { //BEAM on w/o FOG w/o BRAKES
digitalWrite(beam,HIGH);
analogWrite(brakes,65);
digitalWrite(fog,LOW);
}
if ((data[1]=='1')&&((data[0]=='4')||(data[0]=='5')||(data[0]=='6'))) { //BEAM on w/o FOG w BRAKES
digitalWrite(beam,HIGH);
analogWrite(brakes,255);
digitalWrite(fog,LOW);
}
if ((data[1]=='2')&&((data[0]!='4')||(data[0]!='5')||(data[0]!='6'))) { //BEAM on w FOG w/o BRAKES
digitalWrite(beam,HIGH);
analogWrite(brakes,65);
digitalWrite(fog,HIGH);
}
if ((data[1]=='2')&&((data[0]=='4')||(data[0]=='5')||(data[0]=='6'))) { //BEAM on w FOG w/o BRAKES
digitalWrite(beam,HIGH);
analogWrite(brakes,255);
digitalWrite(fog,HIGH);
}
if (data[1]=='3') { //cam full left
cam = 0;
}
if (data[1]=='4') { //Cam front left
cam = 45;
}
if (data[1]=='5') { //Cam full front
cam = 88;
}
if (data[1]=='6') { //Cam front right
cam = 135;
}
if (data[1]=='7') { //cam full right
cam = 180;
}
if (data[2]=='9') { //ALL FLASHER off
digitalWrite(flashleft,LOW);
digitalWrite(flashright,LOW);
}
if (data[2]=='1') { //LEFT FLASHER on
digitalWrite(flashright,LOW);
digitalWrite(flashleft,HIGH);
}
if (data[2]=='2') { //RIGHT FLASHER on
digitalWrite(flashleft,LOW);
digitalWrite(flashright,HIGH);
}
if (data[3]=='9'){ //turn off horn
digitalWrite(horn,LOW);
}
if (data[3]=='1'){ //turn on horn
digitalWrite(horn,HIGH);
}
}
full souce and app for the project
BatchFilewinrar executable with source code and visual basic 6 installer and arduino installer
4shared download link : https://www.4shared.com/file/lv1vmTXOba/build_2016-08-08-19h25.html
4shared download link : https://www.4shared.com/file/lv1vmTXOba/build_2016-08-08-19h25.html
No preview (download only).
Comments
