Inside the HEX-VII VCDS Clone: A Full STM32F429 Memory Dump

Published April 1, 2026

Inside the HEX-VII VCDS Clone: A Full STM32F429 Memory Dump

Backup your HEX-VII VCDS clone! Learn to dump STM32F429 Flash, OTP & Option Bytes with ST-Link to recover from bricks & software locks.

BeginnerWork in progress76

Inside the HEX-VII VCDS Clone: A Full STM32F429 Memory Dump

Things used in this project

Hardware components

Ross Tech HEX-VII (clone STM32F429VET6)

Clone from China using STM32F429VET6 chip

Segger J-link V9-G

Software apps and online services

openocd

gdb-multiarch

Story

Inside the HEX-VII VCDS Clone: A Full STM32F429 Memory Dump

Long story short

I bought this cable to try to clear an error on my car but ended up opening it and exploring the hardware.

And after reading and searching for a while I acknowledged that the software should never be able to reach the internet nor we should try to update the firmware of the software, otherwise the cable would become a "brick", unusable! But in this area, we know that "bricked" or unusable may always mean some fun research and work.From the place I bought the cable, there are red warning to never use different software, turn on internet and keep antivirus software off, or the software could become unusable or the firmware on the cable to be updated and through some security measures, the update to "kill" the chip and turn the cable into a brick.So, before I try anything crazy, I tried to check if it was possible to make a backup of the chip so that if anything goes wrong, I could flash it back and revive the cable.So, after some research, digging through the datasheet and reference manual, I came to the conclusion I needed to dump at least 2 things:Complete FlashOption BytesAnd also check the RDP (Read Protection) state in FLASH_OPTCR register. It should be 0xaa in bits 08:15 (in RM0090, page 107) so that the chip can be read.

FLASH_OPTCR register

Descriptop of bits 08:15

Hands on job now

So, the first thing, connections to be made.

J-link device

J-link connected to the HEX-VII cable via Serial Wire Debug (SWD)

1 - Configure OpenOCD to start the server for this scenario. I use almost always the same options. Start openocd in a terminal, like this:

$ src/./openocd -s tcl -f interface/jlink.cfg -c "transport select swd; adapter speed 2000; reset_config srst_only srst_nogate" -f target/stm32f4x.cfg
Open On-Chip Debugger 0.12.0+dev-01390-gb4518ab78 (2026-02-09-18:02)
Licensed under GNU GPL v2
For bug reports, read
http://openocd.org/doc/doxygen/bugs.html
srst_only separate srst_nogate srst_open_drain connect_deassert_srst
Info : Listening on port 6666 for tcl connections
Info : Listening on port 4444 for telnet connections
Info : J-Link V9 compiled Sep  1 2016 18:29:50
Info : Hardware version: 9.60
Info : VTarget = 3.290 V
Info : clock speed 2000 kHz
Info : SWD DPIDR 0x2ba01477
Info : [stm32f4x.cpu] Cortex-M4 r0p1 processor detected
Info : [stm32f4x.cpu] target has 6 breakpoints, 4 watchpoints
Info : [stm32f4x.cpu] Examination succeed
Info : [stm32f4x.cpu] starting gdb server on 3333
Info : Listening on port 3333 for gdb connections

2 - In another terminal we start gdb.

$ gdb-multiarch -nx
GNU gdb (Debian 13.1-3) 13.1
Copyright (C) 2023 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.
Type "show copying" and "show warranty" for details.
This GDB was configured as "x86_64-linux-gnu".
Type "show configuration" for configuration details.
For bug reporting instructions, please see:
<https://www.gnu.org/software/gdb/bugs/>.
Find the GDB manual and other documentation resources online at:
<http://www.gnu.org/software/gdb/documentation/>.
For help, type "help".
Type "apropos word" to search for commands related to "word".
(gdb)

The -nx options are only to avoid gdb-multiarch to run any startup scripts (have have one from another project that was interfering with this one)

3 - Change the architecture in gdb to arm

(gdb) set architecture arm
The target architecture is set to "arm".
(gdb)

4 - Connect to the target

(gdb) target extended-remote :3333
Remote debugging using :3333
warning: No executable has been specified and target does not support
determining executable automatically.  Try using the "file" command.
0x08032ca8 in ?? ()
(gdb)

You'll see this in OpenOCD terminal:

Info : accepting 'gdb' connection on tcp/3333
[stm32f4x.cpu] halted due to debug-request, current mode: Thread
xPSR: 0x01000000 pc: 0x08032ca8 psp: 0x200067d0
Info : device id = 0x20016419
Info : flash size = 512 KiB
Info : Single Bank 512 kiB STM32F42x/43x/469/479 found
Info : flash size = 512 bytes

5 - Halt the cpu of STM32F429VET6

(gdb) monitor halt
(gdb)

6 - Dump the entire flash of the chip.From the RM0090, page 71, we check memory regions of interest to dump

Memory Mapping for STM32F429VET6

We know the chip has 512Kb

Flash Size register

(gdb) x/1uh 0x1FFF7A22
0x1fff7a22:	512
(gdb)

from 0x0800 000, adding 512Kb which is 524288 bytes, so in hex is 0x0808 0000. So these are the beginning and end of the flash memory we want to dump.

(gdb) dump binary memory hex_vii_full_flash.bin 0x08000000 0x08080000
(gdb)

and we get a hex_vii_full.bin file.

$ ls -lah hex_vii_full_flash.bin
-rw-r--r-- 1 user user 512K Apr  1 17:39 hex_vii_full_flash.bin

7 - Dump the Option bytes

To find the Option Bytes, it's always kind of a cat and mouse chase.First, let's look at the memory map, RM0090, page 65, we see that the base address starts at 0x4002 3c00

Memory map organization

then we find Flash Interface Registers, we click and we jump to page 99 and we scroll down until we find FLASH_OPTCR for STM32F429VET6

FLASH_OPTCR register

RDP protection bits

In the register information we see the offset is 0x14, so, in gdb we are going to read this piece of information at the base address + offset:

(gdb) x/1xw 0x40023C14
0x40023c14:	0x0fffaaed
(gdb)

We can confirm that bits 8:15 are 0xaa, which means the RDP is level 0, no read protection, which is great.While the critical data resides in the 8 bytes of FLASH_OPTCR and FLASH_OPTCR1, I performed a 28-byte dump starting from the base address 0x40023C00. This provides the full context of the Flash Interface, including the Status Register (SR), ensuring that we aren't reading the Option Bytes during a pending write operation.

(gdb) dump binary memory hex_vii_options.bin 0x40023C00 0x40023C1C
(gdb)

This command dumped 28 bytes of information as we can see:

$ ls -lah hex_vii_options.bin
-rw-r--r-- 1 user user 28 Apr  1 17:39 hex_vii_options.bin

8 - Dump the OTP area

Many clone manufacturers of these cables use the OTP area to write an Hardware ID or a Digital Signature. If this was the case we would have this information also saved.Where is the OTP area. Back to the RM0090, we search the term OTP and we cycle through the several occurrences until we find the memory address at page 75:

OTP memory address

So, we dump the memory from the start plus 28 bytes.

(gdb) dump binary memory hex_vii_otp.bin 0x1FFF7800 0x1FFF7A10
(gdb)

and we end up with another bin file:

$ ls -lah hex_vii_otp.bin
-rw-r--r-- 1 carlos carlos 528 Apr  1 17:39 hex_vii_otp.bin

So, we are done with the dumps.

From now on is only curiosity. We explore the contents of these files.3 files

hex_vii_full_flash.bin
hex_vii_options.bin
hex_vii_otp.bin

So, I ran a strings command on the full flash memory file, for curiosity:Of course, the output is enormous so I paste here the interesting strings I found:

Custom HID Config
Custom HID Interface
STMicroelectronics
Ross-Tech HEX-V2
0000001

For the OTP, I used hexdump to see the contents:

$ hexdump -C -v hex_vii_otp.bin
00000000  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000010  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000020  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000030  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000040  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000050  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000060  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000070  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000080  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000090  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000000a0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000000b0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000000c0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000000d0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000000e0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000000f0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000100  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000110  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000120  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000130  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000140  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000150  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000160  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000170  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000180  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000190  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000001a0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000001b0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000001c0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000001d0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000001e0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
000001f0  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000200  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000210

This means the area contains no data. If there was data here, contents would be different from 0xff all over the place.For Option Bytes, the expected:

$ hexdump -C -v hex_vii_options.bin
00000000  03 07 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00000010  00 00 00 80 ed aa ff 0f  00 00 ff 0f              |............|
0000001c

With these, if someone bricks his cable, with an accidental firmware update, chances are quite good to revive the cable with the full flash. That's all that can be done, at least form my level of knowledge!

Edited;

I have been looking into the binary file of the full dump, just to confirm things make sense when it comes to look to the RM0090 and looking into the file, for instance, printing the first 64 bytes, I can see the Initial Stack Pointer (0x2001 6fe0) and the Reset Vector (0x0800 019d), which are inside RAM and Flash, respectively.

$ hexdump -v -C -n 64 hex_vii_full_flash.bin
00000000  e0 6f 01 20 9d 01 00 08  cd 68 00 20 d7 4d 00 20  |.o. .....h. .M. |
00000010  ed 5f 00 20 71 15 00 20  1f 9d 00 20 0c d6 00 08  |._. q.. ... ....|
00000020  10 1e 00 00 d4 ff 00 00  60 d4 eb e7 9d 6f 00 20  |........`....o. |
00000030  79 1d 00 20 00 c0 01 20  bb 69 00 20 91 74 00 20  |y.. ... .i. .t. |
00000040

Then, with a little more digging with the command `strings`


$ strings -n 10 -t x hex_vii_full_flash.bin
52f7  !hHbS !hHb
543d  !hHbS !hHb
5557  !hHbS !hHb
6026 nHahHcmHahIkH`lHahIk
819b @../Src/main.c
8fa7  Custom HID Config
8ff3  Custom HID Interface
9033  STMicroelectronics
906f  Ross-Tech HEX-V2
95a7  ../Src/usbd_conf.c
bc93 =j&&LZ66lA??~
d1aa Dlexpand 32-byte kexpand 16-byte k
d24d 6i!Xfffffffffffffffffffffffffffffff
d3b0 cccbcccbcccbcccb
d600 0123456789
f47a 	001.00.03
fff0 !TEST CODE TEST!
10911 !00000000#(,
23ef9 p!hHa h@i
23f05 p!hHa h@i
23f11 `!hHa h@i
23f1d `!hHa h@i
23f6d p!hHa h@i
23f79 p!hHa h@i
23f85 `!hHa h@i
23f91 `!hHa h@i
2b3f2  h@h8C!hH`
2c277  !hHbS !hHb
2c395  !hHbS !hHb
2c4af  !hHbS !hHb
2f67f  ..\Src\hw_kline_layer.c
2f803  ..\Src\hw_kline_layer.c
30b75 H H H!H!H"H
328af  #H$H$H%H%H&H&H'H'H(H(H)H)H*H*H+H+H,H,H-H-H.H.H/H/H0H0H1H1H2H2H3H3H4H4H5H5H6H6H7H7H8H8H9H9H:H:H;H;H<H<H=H=H>H>H?H?H@H@HAHAHBHBHCHCHDHDHEHEHFH
32d30 uC/OS-III Idle Task
33c6c uC/OS-III Stat Task
33daf  44 a g`g``
345bc uC/OS-III Tick Task
34708 uC/OS-III Timer Task
353cf @../Src/main.c
37121 xE@ yE@ z@
371f9 x u(y`uhibk
3838f  Custom HID Config
383db  Custom HID Interface
3841b  STMicroelectronics
38457  Ross-Tech HEX-V2
389f7  ../Src/usbd_conf.c
3e397 =j&&LZ66lA??~
3f8ae Dlexpand 32-byte kexpand 16-byte k
3f951 6i!Xfffffffffffffffffffffffffffffff
3fab4 cccbcccbcccbcccb
3fc44 tLktMonitorTask
3fc5c tInteractCommTask
3fc74 tTxInteractCommTask
3fc90 tDxControllerTask
3fca8 tUdsControllerTask
3fcc0 tTp20ControllerTask
3fcd8 tKLineControllerTask
3ff48 59233FED922564F5
46cca UT*%/b<wuZ
6c56c |BC3j#G"f:;-
6d30f KafS`5gPT*
78db9 atm[(L#A.2
7aa0e ^'4>1u$bW]B

And we find multiple evidences of what this firmware is and/or do
For instance, from offset 0x0000 to 0xFFFF, is probably the bootloader where we find probably a leftover of developers "signature" - !TEST CODE TEST!. this marks the end of Sector 3 and the start of sector 4, the main application.

Operating system is uC/OS-III and its tasks

32d30 uC/OS-III Idle Task
33c6c uC/OS-III Stat Task

345bc uC/OS-III Tick Task
34708 uC/OS-III Timer Task

This seems to be cable specific tasks

3fc44 tLktMonitorTask
3fc5c tInteractCommTask
3fc74 tTxInteractCommTask
3fc90 tDxControllerTask
3fca8 tUdsControllerTask
3fcc0 tTp20ControllerTask
3fcd8 tKLineControllerTask

Some USB descriptors for update, inside the bootloader

8fa7  Custom HID Config
8ff3  Custom HID Interface
9033  STMicroelectronics
906f  Ross-Tech HEX-V2

and again USB descriptors for diagnostics, I guess. It suggests that the system treats the device identification separately, adding redundancy in case of OS failure we can still detect the device for reflash.

3838f  Custom HID Config
383db  Custom HID Interface
3841b  STMicroelectronics
38457  Ross-Tech HEX-V2

This seems to be the version either of the bootloader or the OS itself

f47a 	001.00.03

I think that's all

Thanks once more! I'll attach files later!

(FAFGF"F
SFZF
OF"F
	NA
HF1F*FCF
@pG *
!pG!
F+H``
`a&H
a%H b
9F@F
 p x
6 0q
 0q(Fp
AFHF
RF1FXF
9FXF
RFYF(F
")F1H
AF0F
6 8q
0 8q
aHa@
1$H@
H@h I
pGpG
`IhA`
  KiZ@G
  JaW
  [iZ@G
B`pG
B`pG
5eu@S
In@O
9fu@
In@O
cFdF
E$xE]Q
%E]Q
E$xE]Q
%E]Q
E$xE]Q
%E]Q
E$xE]Q
%E]Q
@D`\
%E]-
pGJi
%E]-
%E]-
f6xE
Bj0F
Fhpk
F=FDE
BQF8
HFCFR
H@]8
!F0F
IHUp
 pGp
Fhh@!
Ghxk
1zpz
0ziy
)ypy
D(q(y
@Fii
1ypy
\PE6
jyIFHF
 (r'
 `p1zpz
 `p0z`qpz
qy0y
G`a`i
\PEJ
byIFHF
  r z
p rpy q
G`a`iH
Fhpk
(y!y
)yhy
\HEZ
by9F8F
  r+
 pGp
`FpG
RF!F
Ehhk
`ixa
'Fdi
JFAF
SF:F1F
 ` h
D `(FH
JFAF
SF:F1F
 ` h
D `(FH
ahIk
RF!F
L#`#F
C#`#F
#`#F
L#`#F
I	xU)
	I	h!
L!`!F	hA
@q!`!F	hA
hh@k
hh@k
hh@k
hh@k
kF"F)F0F
T\`@I
Dh "
  q`q
 q y`q y
  p``-
```h
\S\@
F%Fh
0` h
 |ah
!|(F
n]L-
!F8F
"F+F8F
 	I	h
@0CP`
@N6hF
F>O>`>F6h
&N0h
 C!N0`6
60`6
60`I
`pG,
"!FP
F9F*F3F
!F@F
hBj!
1F h
1F h
!F(h
(p i
"|)F h
"|)F h
1F h
or h
(p i
"|)F h
"|)F h
F&hO
 h@i
!hHa h
)F F
 h@i
@!hHa h
 h@i
`!hHa h
`hXE
Q kp
or h
 h@i
P!hHa h
pP!h
qaa h
`@!aa
pP!h
`P!h
PP!h
@P!h
0P!h
 P!h
 h@i
P!hHa h
oq0F
 h@i
!hHa h
 h@i
!hHa h
 h@i
!hHa h
 h@i
@!hHa h
 h@h@
!hH`
Aa h
)F h
AH@0
P>I@1
.Hp0
(Hp0
`#Hp0
`@EI
`@!i@
P :I
	It1
wHl0
&pH80
lH80
PiI81
THh0
QIh1
NHh0
KIh1
GHh0
DIh1
8Hh0
-Hh0
)H80
P&I81
Caj@
 h@h
  q F
 `q h
I	hA
  w F
 !hHbS !hHb
 !hHb
`!i`h
 !hHb
 !hHb
 `wN
C(xC
C)x@
 !hHbS !hHb
 !hHb
H8@!hH` h
 !hHb
 !hHb
 !hHbS !hHb
 !hHb
H8@!h
 !hHb
 !hHb
!	iA
!	i!
apGpGp
F%Fh
pGpG
  v h
  v h
  v h
  v h
  v h
  v h
  v h
  v h
pGpG
`x!x@
` Fp
] D\
`pGp
F5F8H
aahHaah
azHah
cyHah
 ahHb  ah
sahHsah
srHah
`pHah
oHah
nHahHcmHahIkH`lHahIk
kHahIk
iHahIk
hHahIk
fHahIk
eHahIk
cHah
ccHah
_Hah
^Hah
\Hah
[Hah
YHah
XHah
VHah
UHah
SHahIk
`RHah
`QHah
PHah
OHah
ahIk
`h@k
 pGp
 ```x
`(p0p p
@>CC
 yiF@
 q F
hiFP
hExR
o]pEx
	\9T
>#P"(F
>#Q"
rBF9F
F@h+
`JhB`
>#PhP"
>#Q"
>#P"
p>#Q"
*H+I
 #IH`
ot&H&I
F@"!F
F`h@k
`h@k
`h@k
ahIk
`h@k
C`h@k
`h@k
ahIk
hEh*
hH`HF
]F_F
iFHF
0hkF
#F2F(F
!`(h
yBFA
`hCF
AFhF
`hCF
AFhF
)F`h
`hCF
 qFP
3FdE
 RFO
D8`d
#aF F
#F:FaF0F
	\8\H@
0!0
`pGp
*F1F
`a`i (
2F)F
BF9F
 H`*H
 H`$H
p!(F
@"(F
p"(F
`pGp
 ``2
puE`
puE`
h-hE
h-hE
bEhm
h-h%
h-h%
h-i%
h-hE
h5`p
+I	h
`'I	h	h!
hQb?
"I	h
I	h	h!
hQb*
I	h	h!
I	h	h!
1F8F
1F8F
9F0F
9F0F
1F8F
1F8F
FAFhF
ydE
@../Src/main.c
aHa@
1!H@
#CapG
G a2F i
  p`pf
1F i
G a2F i
1F i
 iET
G+.A
G aO
q!iH
"y!i
IF i
 yE@`yE@
E@ i
  p`p
q!iH
"y!i
IF i
 yE@`yE@
E@ i
"y#i
 yE@`yE@
 iET
"y#i
 yE@`yE@
 iET
  p`pp
q!iH
 yE@`yE@
 iET
  r!z
  r!z
G@#*F
G@#*F
 pG-
3F*F
"""""
x(d!
y)F0F
!F0F
F:FAF0F
)FBh F
)F F
F+F"F
F+F"F
Q+F2F
a+F2F
 Custom HID Config
 Custom HID Interface
 STMicroelectronics
 Ross-Tech HEX-V2
 0000001
)F F
)F F
cr |
!ipf
#+ |
JhiF
JiiF
AkhF
1F F
!ip
1F F
1F F
 )F F
)F F
:x0Fq
"0Fq
+0Fq
"0Fq
*T x
&p F
9F F
1FBi F
9F(F
Bh F
 ../Src/usbd_conf.c
 pG-
F+F2F9F
F;F2F)F
@!!b
Bh F
 pG-
 pG-
F;F2F)F
pJxBp
 pGp
)F F
a1F F
)F F
&0Fp
)F F
)F F
I	x`h
!y F
)F F
)F F
!F(F
!F(F
!F(F
!F(F
!F(F
!F(F
!F(F
!F(F
4y0x
!F(F
!F(F
1F(F
!F(F
!F(F
1F(F
!F(F
F!F(F
"9F(F
1F(F
)F F
)F F
`BP@
`@X@
`BP@
icL @
iLL @
iEaY
@ C@
"iBa
@Y"x
"x(F
#  @
@pG0
@pG-
h	jA
h	h!
apG-
"9FhF
)FXF
IFPF
"iF F
hp`m
hs n
:F1F
1F(F
@<@6@,
"F1F
D*D,
2D*D
5DXD(D
DCDcD
NZD3D
N]D2D*D
D3DcD
`D(D
[DsD
XDpD
ZDrD
[DsD
YDqD
XDpD
33YD
rRXD
D[DF
QZ^&
s#YD
1qZD
0@[D
1qZD
rRXD
0@[D
s#YD
DSD[D
s#YDc
aJDa
R`Db
p@cD`
#9Dc
Z@:D
K@;D
S@cD
{@)DcD
B@bD
HMZ@
>K+D
sCbDc
aDae
D f1
VQT;$E
4&C49
Ce?\
ef\;
6#jv2
T!47
vl#(
?**3NzC
SoAS
$2 X
c|w{
9JLX
~=d]
lpHP
P00`
}++V
=j&&LZ66lA??~
\44h
S11b?
e##F^
i''N
t,,X.
M;;va
}{))R>
q//^
`  @
gK99r
U33f
D<<x
!H88p
c!!B0
G==z
f""D~**T
V22dN::t
l$$H
Y77n
o%%Jr..\$
B>>|
_55j
x((Pz
)w--Z
QSeA~
!tX)i
XhHp
NrZl
='9-6d
:.6$
aiKwZ
;fD4~
[v)C
cB@"
_jbF~T
11#?*0
,4$8_@
I<(A
t\lHBW
'&&h#
 .!p*
)6(x-
lbm$o
kjj,h
brc4a
ezd<f
T"UdW
S*RlP
Z2[tY
]:\|^
@8`$
vRQ>
8STs
LwH'
D7q/;M
+Yo,
&\8!
* qW
LwH'
L*~e
Dlexpand 32-byte kexpand 16-byte k
ywy@
6i!Xfffffffffffffffffffffffffffffff
cccbcccbcccbcccb
li3W
bP5<k
AIfL
0hNt
0123456789
SY">
JcHx
Y8E1
h?M^#
={$]U/
05 J
f;cF`
g*G^
TY'S
#5_M
TpX*
y[$%
JeJD>5
$:$v
	y>rg
F=GZ
}Kej{
U\P.
_QW?
u/m;
@vvw'
FN$}T
iuFM
b]n!
;Sb"
8YAa
! (7
0~)kN\
i]Sh
R4'HJ])r
J uG
J!qs
*V_r
Td}dQvg
b'Gb
0e.3B
J>T"vF
%`]"
&iis
cPY?_{
X@I\H
Yu.P
Vfn:z
h}J
o|_I
q|GR=l
B0"b
iQJl
p =f
"'u~^
1K[
y2Cl
ru5`
./(
b{> S
s7tNdY
9?xz
.	\/
o-a2D
BOUY
h_{k
RnzV
_:^<
iyH~
wv(\Gr[
)$br
\v32
s{<8";C
v4	i
]!zu3
cBC0
TKkQm=
Rhj/
Ok37
4[;tB
CT!b
X/X(w
SfiP%6
,7s[
i!$7
o l?
BOHU
OlA(
N;MYjm
IQqK
HFHB
KY(]
{x<-
hCe'
.aQJ
gS?Y
8{Jz!
01)?
R6Xs
	001.00.03
$JMa
BL9Y
PSPR16
!TEST CODE TEST!
L#x3
 hah
hYh7F
3cE>F
;K;L]k
!h(F
)J)H
`$KO
kYHB
@q>H
*K[kK
!F(F
!F(F
$%F"F
hQhkF
hYh7F
3cE>F
hQh{
hYhrF
 C])
FFp2F
KED/D
yc`)F F
)F F
!00000000#(,
(F"z
01.00.02
+@r,/
BZdZl
pGpGpG
(F1F
 F1F
K[XCP
F)FO
`Gh'
Dp9NG
>@.C
>@.CV`
>@.C
>@.C
apG
VxQ_
01.00.02
 pGD
@pG *
!pG!
SFZF
FPFYFBF
 F9F
v,C7C
 d F
ZI	h!
@1YJ
hIh!
hIh!
hIhA
hIh!
hIh!
hAiB
  KiZ@G
  JaW
  [iZ@G
B`pG
B`pG
5eu@S
In@O
9fu@
In@O
cFdF
E$xE]Q
%E]Q
E$xE]Q
%E]Q
E$xE]Q
%E]Q
E$xE]Q
%E]Q
@D`\
%E]-
pGJi
%E]-
%E]-
f6xE
Bj0F
H@]8
!F0F
IHUp
 |x({
pp x
pp x
J hB
pp x
J hB
Ai8i
H``{
(x ((
(x&(
`"!FH
p`!CH
`!BH
"!AH
@!<H
zp7I
&`Wh
vhWh
Vh~`
!`Vz
u*N6x
w'N6
"N6x
w N6x
N6xv
[I\J
``{WIXJ
{TITJ
{PIQJ
s {MIMJ
]HHHJ
CHDI	x
-I	h
 H&J
%(F:
 (pSH
 (p1H
EIFJ
h@iH
I	hHa
h@iH
I	hHa
pn	6
`G'`
`G'`
SSSSS
#HSSSM
PPak
akH` h
`kAu h
`kAv h
` h@i
!hHa
a h@i
!hHa
 h@i
p!hHa h@i
p!hHa h@i
`!hHa h@i
`!hHa h@i
@!hHa
F h@i
!hHa
 h@i
p!hHa h@i
p!hHa h@i
`!hHa h@i
`!hHa h@i
@!hHa
IHhpG
F!iIk
 pGp
F(i@!
H! F
HFii
 hr~
\@EL
yQFPF
 hq$
yzx{
  qx{
G`a`i
\@Ef
yQFPF
G`a`iP
\@Eo
 `q`
9F8F
`i@x
&,4 H
h$h$
RF!F
"F)F
@h `
#Ph "
#Ph "
@h `
! !h
#Ph "
#Ph "
 Hp`{
FOJiFOH
IHII	x
E{GH
3 	I
THTI	x
PHPI	x
LHMI	x
#Ph "
+I	h
"H"J
#Ph "
$!.N
 pGpG
!#Ph "
FHhO
xC(A
'8F.
BFiF
"!F0H
&P!{
H` {
H` {
H`!{
H` {
H` {
H` {
`h	h
BF9F
hz.(
F)F F
GbjPh
FHhO
JFAF
SF:F1F
 ` h
D `(FH
JFAF
SF:F1F
 ` h
D `(FH
G i`
!i	k
G i`
 i@kH
 i@k
!iIk
tmr2
RF!F
L#`#F
C#`#F
#`#F
L#`#F
L#`#F
C#`#F
#`#F
	I	h!
L!`!F	hA
@q!`!F	hA
iF(F
!!aO
 `` F
...

This file has been truncated, please download it to see its full contents.

Credits

PsySc0rpi0n

3 projects • 0 followers

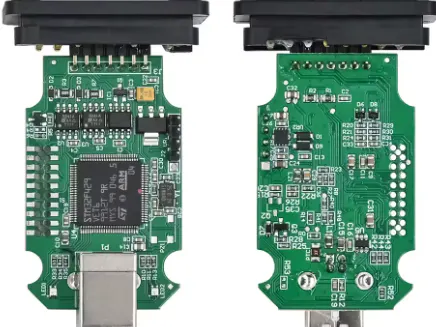

Inside the HEX-VII VCDS Clone: A Full STM32F429 Memory Dump

Things used in this project

Hardware components

Software apps and online services

Story

Inside the HEX-VII VCDS Clone: A Full STM32F429 Memory Dump

Code

Strings file

Full Flash binary

hex_vii_options.bin

hex_vii_otp.bin

Credits

PsySc0rpi0n

Comments

Embed the widget on your own site

Inside the HEX-VII VCDS Clone: A Full STM32F429 Memory Dump

Inside the HEX-VII VCDS Clone: A Full STM32F429 Memory Dump

Things used in this project

Hardware components

Software apps and online services

Story

Inside the HEX-VII VCDS Clone: A Full STM32F429 Memory Dump

Code

Strings file

Full Flash binary

hex_vii_options.bin

hex_vii_otp.bin

Credits

PsySc0rpi0n

Comments

Related channels and tags
