Watch :- https://youtu.be/G_yWAVpRx8o
PCB:-Therefore, case you want your own PCB, you can obtain through this link on PCBWay.com. You can also order good quality PCBS from PCBWay.com at low cost. In addition to the standard pcbs, we could also support advanced Pcbs, FPC/rigid -flex Pcbs, rapid-rpototyping and other related services that could meet your needs to the most extent.
PCB order steps on PCBWay:
- Visit the website: www.pcbway.com
- Click PCB Instant QuoteClick
- quick-order PCB Upload the gerber file by clicking "+Add Gerber File" and wait until the gerber file is finished
- uploading Set the PCB specifications as you wish, starting from the number of PCBs, the number of layers, thickness, color and others.
- After that, look at the left, it will display the estimated cost
- processing time and delivery service selected
- Click Save to cart
Connect the components to the PCB We are using capacitors here to get proper output.
INSERT L293D MOTOR DRIVER IC INTO IC SOCKET:-
The L293D is a popular 16-Pin Motor Driver IC.A single L293D IC is capable of running two DC motors at the same time; also the direction of these two motors can be controlled independently. We are using two IC for four motors. The IC works on the principle of Half H-Bridge...
UPLOAD CODE ON NodeMCU:-- Connect NodeMCU on PC
- Open Arduino IDE (Software)
- Then Go To Tools>Board>ESP8266 Boards> NodeMCU 1.0 (ESP-12E Module)
- Select Correct Port
- Then Upload Code Below
After uploading the code, set NodeMCU to PCB. With this, our PCB work is completed...
CHASSIS:-

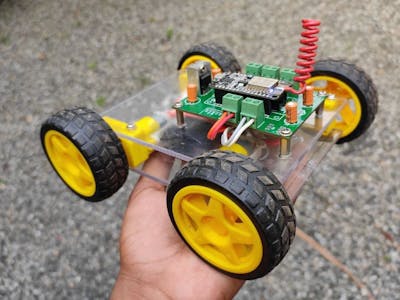

Here, I have made CHASSIS using acrylic sheet.If you need it, you can buy the CHASSIS kit from the online store...What I have done here is cut the acrylic sheet to 14CM x 8 CM size and set the 4 gear motor on the 4 side. There is a battery in the middle of the 2 acrylic sheets and a switch to turn it on and off.All gear motor wires have been taken out.
PLACE THE PCB ON TOP OFT HE ACRYLIC SHEET:-You can see it here, PCB board is set on an acrylic sheet using 4 screw..
WIRING:-Then set all the wires of the gear motor in the 2 pin connector on the PCB.The PCB has a total of five 2 pin connectors, One of them is the battery input and the rest is the output of the gear motor..
TURN ON THE SUPPLY WITH THE SWITCH:-
- Download ESP8266 WIFI ROBOT CAR
- Open WIFI
- Search and connect NodeMCU Car
- Open ESP8266 WIFI ROBOT CAR
Watch video (Click here)
With this, your WIFI car is ready.
THANK YOU!
