Controlling LED Using Blynk

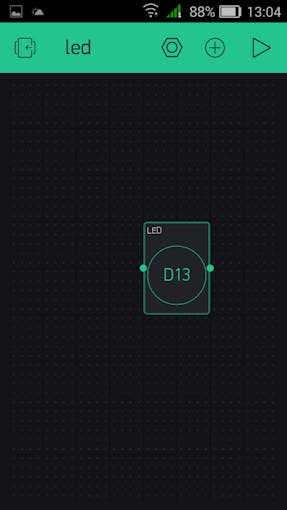

Control your LED on Arduino UNO using Blynk App.

EasyProtip1 hour3,522
Controlling LED Using Blynk

Things used in this project

Story

Read more

Code

Untitled file

C/C++
Download Blynk library at https://github.com/blynkkk/blynk-library/releases/tag/v0.4.8
/*************************************************************
  Download latest Blynk library here:
    https://github.com/blynkkk/blynk-library/releases/latest

  Blynk is a platform with iOS and Android apps to control
  Arduino, Raspberry Pi and the likes over the Internet.
  You can easily build graphic interfaces for all your
  projects by simply dragging and dropping widgets.

    Downloads, docs, tutorials: http://www.blynk.cc
    Sketch generator:           http://examples.blynk.cc
    Blynk community:            http://community.blynk.cc
    Follow us:                  http://www.fb.com/blynkapp
                                http://twitter.com/blynk_app

  Blynk library is licensed under MIT license
  This example code is in public domain.

 *************************************************************
  =>
  =>          USB HOWTO: http://tiny.cc/BlynkUSB
  =>

  You can send/receive any data using WidgetTerminal object.

  App project setup:
    Terminal widget attached to Virtual Pin V1
 *************************************************************/

/* Comment this out to disable prints and save space */
#define BLYNK_PRINT SwSerial


#include <SoftwareSerial.h>
SoftwareSerial SwSerial(10, 11); // RX, TX

#include <BlynkSimpleStream.h>

// You should get Auth Token in the Blynk App.
// Go to the Project Settings (nut icon).
char auth[] = "YourAuthToken";

// Attach virtual serial terminal to Virtual Pin V1
WidgetTerminal terminal(V1);

// You can send commands from Terminal to your hardware. Just use
// the same Virtual Pin as your Terminal Widget
BLYNK_WRITE(V1)
{

  // if you type "Marco" into Terminal Widget - it will respond: "Polo:"
  if (String("Marco") == param.asStr()) {
    terminal.println("You said: 'Marco'") ;
    terminal.println("I said: 'Polo'") ;
  } else {

    // Send it back
    terminal.print("You said:");
    terminal.write(param.getBuffer(), param.getLength());
    terminal.println();
  }

  // Ensure everything is sent
  terminal.flush();
}

void setup()
{
  // Debug console
  SwSerial.begin(9600);

  // Blynk will work through Serial
  // Do not read or write this serial manually in your sketch
  Serial.begin(9600);
  Blynk.begin(Serial, auth);

  // This will print Blynk Software version to the Terminal Widget when
  // your hardware gets connected to Blynk Server
  terminal.println(F("Blynk v" BLYNK_VERSION ": Device started"));
  terminal.println(F("-------------"));
  terminal.println(F("Type 'Marco' and get a reply, or type"));
  terminal.println(F("anything else and get it printed back."));
  terminal.flush();
}

void loop()
{
  Blynk.run();
}
