Steampunk, Moving Gear Bracelet

Want to kick up your steampunk style? With this Gear Bracelet, you will be able to do just that.

IntermediateFull instructions provided24 hours4,097

Things used in this project

Hardware components

SG90 Micro-servo motor
SG90 Micro-servo motor
I used a Continuous rotation servo.
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Adafruit Trinket - Mini Microcontroller - 5V Logic
×1
Adafruit Lithium Ion Battery - 3.7v 2000mAh
×1

Hand tools and fabrication machines

mini screwdriver
Hot glue gun (generic)
Hot glue gun (generic)
Dremel
3D Printer (generic)
3D Printer (generic)
Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Custom parts and enclosures

Gear Bracelet

I found this on thingaverse, please give credit to the creator and say Hi
https://www.thingiverse.com/thing:13263/files

Case for the Circuit

Just the case, its shaped to work well with the bracelet

Schematics

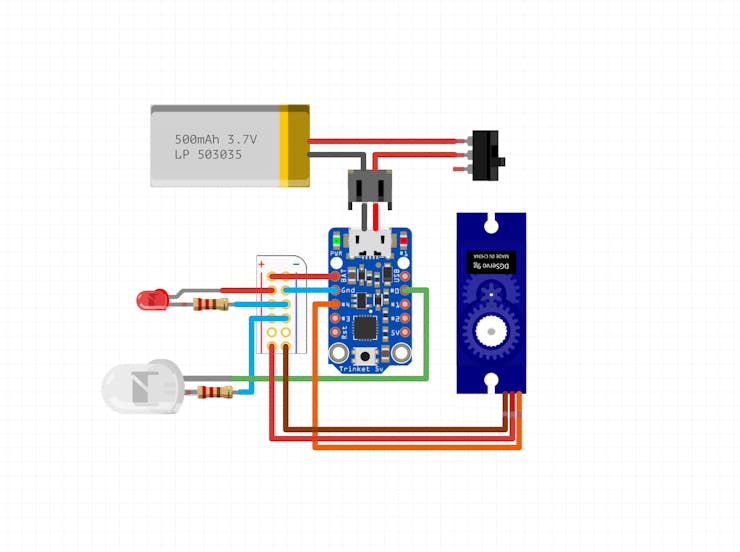

circuit diagrams,

this is pretty much the circuit I used,

Circuit Diagram

its pretty much the same, as the picture, just wire the servo straight to micro-controller.

Code

Gear Bracelet

Arduino
the code I used to make the bracelet work with the trinket. it is the same one for Adafruit Guardian robot.
// Trinket Servo Monster sketch
// Hardware: Adafruit Trinket (3V or 5V), micro servo, LED + resistor
// Libraries: uses Adafruit_TiCoServo library to manage servo pulses,
// even though NeoPixels are NOT being used here.

#if !defined(__AVR_ATtiny85__)
 #error "This code is for ATtiny boards"
#endif
#include <Adafruit_TiCoServo.h>
#include <avr/power.h>

// Servo parameters.  Pin MUST be 1 or 4 on a Trinket.  Servo position
// is specified in raw timer/counter ticks (1 tick = 0.128 milliseconds).
// Servo pulse timing is typically 1-2 ms, but can vary slightly among
// servos, so you may need to tweak these limits to match your reality.
#define SERVO_PIN  4 // Pins 1 or 4 are supported on Trinket
#define SERVO_MIN  4 // ~1 ms pulse
#define SERVO_MAX 26 // ~2 ms pulse

#define LED_PIN    0 // "Eye" LED is connected here

Adafruit_TiCoServo servo;

void setup(void) {
#if (F_CPU == 16000000L)
  // 16 MHz Trinket requires setting prescale for correct timing.
  // This MUST be done BEFORE servo.attach()!
  clock_prescale_set(clock_div_1);
#endif
  servo.attach(SERVO_PIN);
  pinMode(LED_PIN, OUTPUT);
  digitalWrite(LED_PIN, HIGH);
}

uint32_t lastLookTime = 0; // Time of last head-turn

void loop(void) {

  unsigned long t = millis(); // Current time

  // If more than 1/2 second has passed since last head turn...
  if((t - lastLookTime) > 500) {
    if(random(10) == 0) { // There's a 1-in-10 chance...
      // ...of randomly moving the head in a new direction:
      servo.write(random(SERVO_MIN, SERVO_MAX));
      lastLookTime = t;   // Save the head-turn time for future reference
    }
  }

  // Unrelated to head-turn check,
  if(random(10) == 0) { // there's a 1-in-10 chance...
    // ...of an "eye blink":
    digitalWrite(LED_PIN, LOW);  // The LED turns OFF
    delay(random(50, 250));      // for just a short random moment
    digitalWrite(LED_PIN, HIGH); // then back ON
  }

  delay(100); // Repeat loop() about 10 times/second
}
