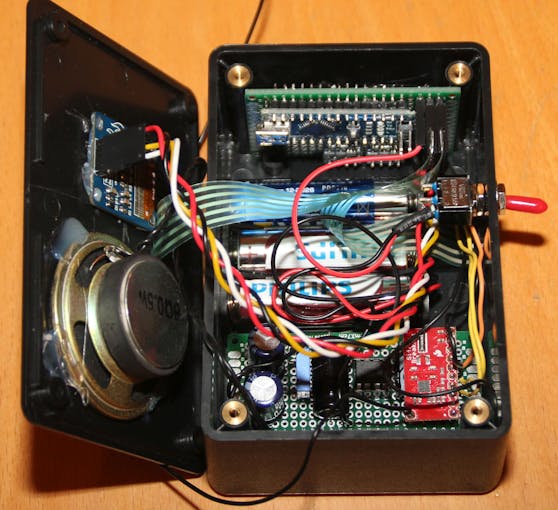

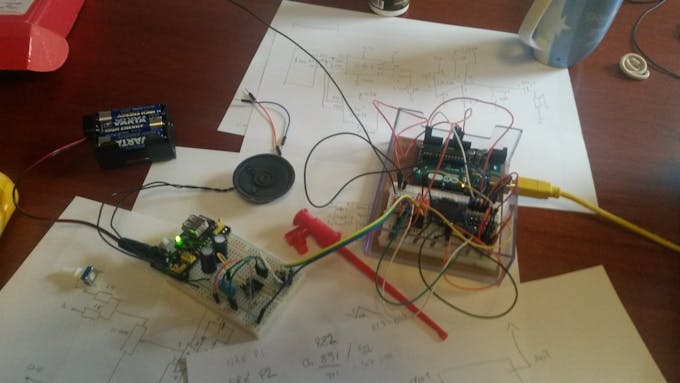

Things used in this project

Hardware components:
11083 02

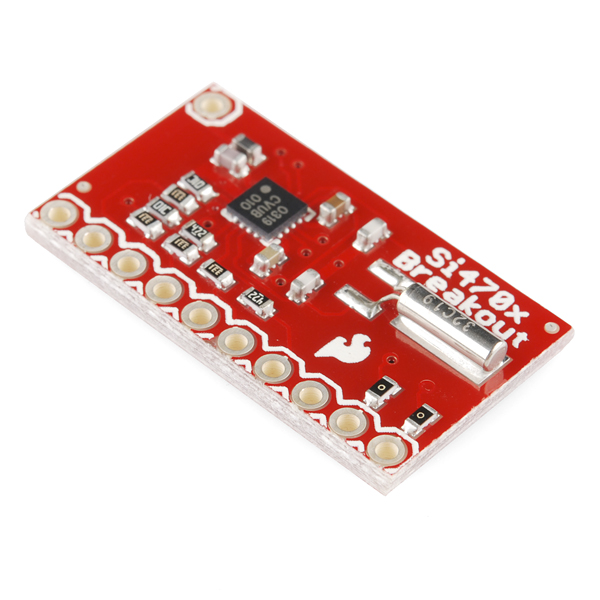

SparkFun SparkFun FM Tuner Basic Breakout - Si4703
×1
SparkFun Speaker - 0.5 Watt (8 Ohm)
A great sounding speaker for a little radio project
×1
Adafruit Monochrome 0.96" 128x64 OLED graphic display
A cool little display with very good contrast
×1

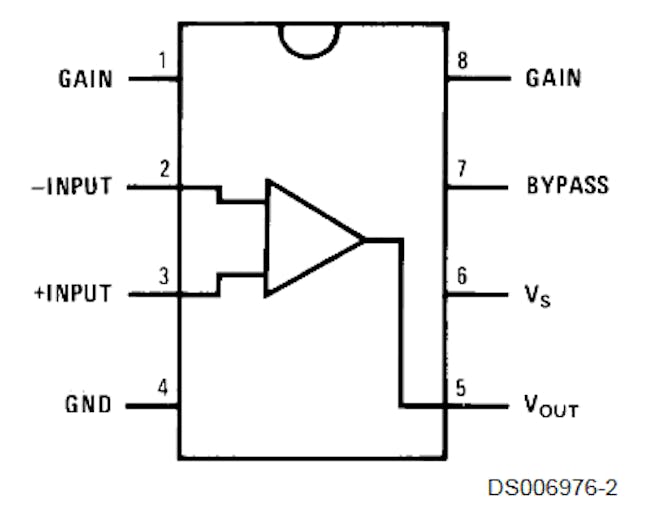

Texas Instruments LM386 - Audio Amplifier - DIP-8
Famous op-amp for small battery-driven audio projects
×1
Ard nano
Arduino Arduino Nano R3
×1
Adafruit Membrane 1x4 Keypad
×2
Adafruit 4-channel I2C bi-directional logic level converter
I havn't used that one but it should work
×1
Telescopic antenna FM for F connector
×1
kenable Panel mount F type screw
×1

Schematics

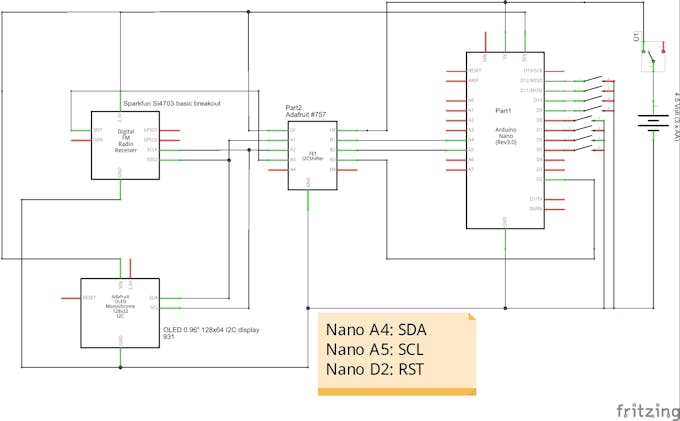

Fritzing diagrams FM radio
Both original Fritzing files and pictures / PDF

Code

FM-radio
Github repository with source code for Arduino Nano
