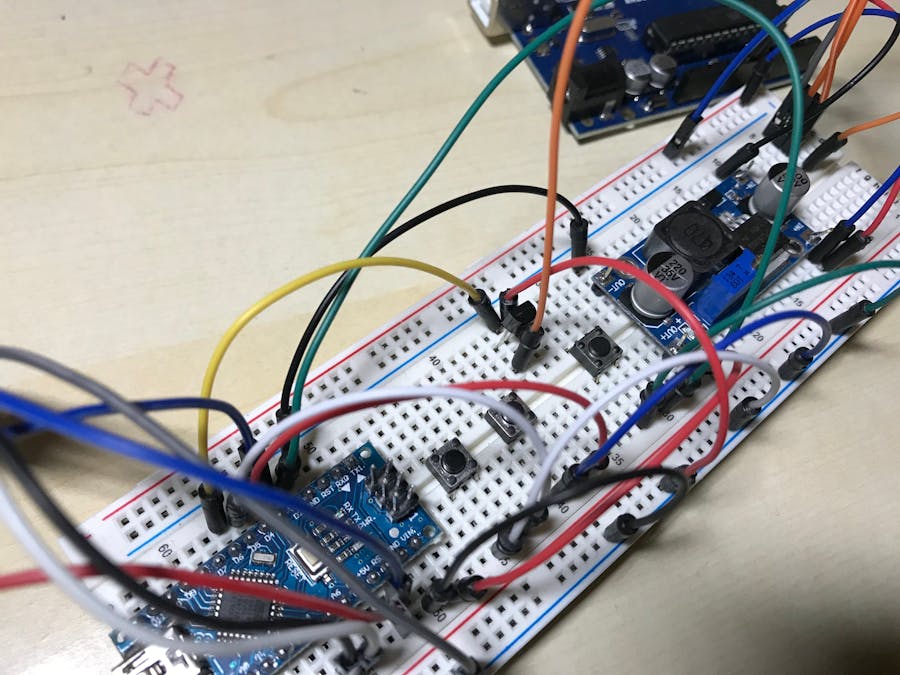

Arduino Giant LED Clock by PCB GOGO

A very huge LED clock made with an LED strip, an RTC module and other parts you will find in the project. Very, ver nice to see, believe me!

IntermediateFull instructions provided2 hours2,739
Arduino Giant LED Clock by PCB GOGO

Things used in this project

Hardware components

Arduino Nano R3
Arduino Nano R3
×1
BH1750FVI Digital Light Sensor Module
×1
DS3231 AT24C32 IIC RTC Module
×1
LM2596 DC-DC Step Down Module
×1
General Purpose Transistor NPN
General Purpose Transistor NPN
×1
UTSOURCE Electronic Parts
UTSOURCE Electronic Parts
×1

Hand tools and fabrication machines

Cardboard
Soldering iron (generic)
Soldering iron (generic)
LED Strip 5m

Story

Read more

Schematics

Schematic

Code

Code for the Arduino Nano

C/C++
This makes your led strip change by following the RTC module (so it will give you the exact time on LED Strip
#include <DS3232RTC.h>
#include <Time.h>
#include <Wire.h>
#include "FastLED.h"
#define NUM_LEDS 29 // Number of LED controles (remember I have 3 leds / controler
#define COLOR_ORDER BGR  // Define color order for your strip
#define DATA_PIN 6  // Data pin for led comunication

CRGB leds[NUM_LEDS]; // Define LEDs strip
byte digits[10][7] = {{0,1,1,1,1,1,1},  // Digit 0
                     {0,1,0,0,0,0,1},   // Digit 1
                     {1,1,1,0,1,1,0},   // Digit 2
                     {1,1,1,0,0,1,1},   // Digit 3
                     {1,1,0,1,0,0,1},   // Digit 4
                     {1,0,1,1,0,1,1},   // Digit 5
                     {1,0,1,1,1,1,1},   // Digit 6
                     {0,1,1,0,0,0,1},   // Digit 7
                     {1,1,1,1,1,1,1},   // Digit 8
                     {1,1,1,1,0,1,1}};  // Digit 9 | 2D Array for numbers on 7 segment
bool Dot = true;  //Dot state
bool DST = false; //DST state
int ledColor = 0x0000FF; // Color used (in hex)
void setup(){
//  Serial.begin(9600);
//  Wire.begin();
  LEDS.addLeds<WS2811, DATA_PIN, COLOR_ORDER>(leds, NUM_LEDS); // Set LED strip type
  LEDS.setBrightness(255); // Set initial brightness
  pinMode(2, INPUT_PULLUP); // Define DST adjust button pin
  pinMode(4, INPUT_PULLUP); // Define Minutes adjust button pin
  pinMode(5, INPUT_PULLUP); // Define Hours adjust button pin
}
// Get time in a single number, if hours will be a single digit then time will be displayed 155 instead of 0155
int GetTime(){
  tmElements_t Now;
  RTC.read(Now);
  //time_t Now = RTC.Now();// Getting the current Time and storing it into a DateTime object
  int hour=Now.Hour;
  int minutes=Now.Minute;
  int second =Now.Second;
  if (second % 2==0) {Dot = false;}
    else {Dot = true;};
  return (hour*100+minutes);
  };

// Check Light sensor and set brightness accordingly
void BrightnessCheck(){
  const byte sensorPin = 3; // light sensor pin
  const byte brightnessLow = 5; // Low brightness value
  const byte brightnessHigh = 255; // High brightness value
  int sensorValue = digitalRead(sensorPin); // Read sensor
  if (sensorValue == 0) {LEDS.setBrightness(brightnessHigh);}
  else {LEDS.setBrightness(brightnessLow);}
  };

// Convert time to array needet for display
void TimeToArray(){
  int Now = GetTime();  // Get time
  int cursor = 29;

//  Serial.print("Time is: ");Serial.println(Now);
  if (DST){   // if DST is true then add one hour
   Now+=100;
//   Serial.print("DST is ON, time set to : ");Serial.println(Now);
  };
  if (Dot){leds[14]=ledColor;}
    else {leds[14]=0x000000;
    };
  for(int i=1;i<=4;i++){
    int digit = Now % 10; // get last digit in time
    if (i==1){
//      Serial.print("Digit 4 is : ");Serial.print(digit);Serial.print(" ");
      cursor =22;
      for(int k=0; k<=6;k++){
//        Serial.print(digits[digit][k]);
        if (digits[digit][k]== 1){leds[cursor]=ledColor;}
         else if (digits[digit][k]==0){leds[cursor]=0x000000;};
         cursor ++;
        };
//      Serial.println();
      }
    else if (i==2){
//      Serial.print("Digit 3 is : ");Serial.print(digit);Serial.print(" ");
      cursor -=14;
      for(int k=0; k<=6;k++){
//        Serial.print(digits[digit][k]);
        if (digits[digit][k]== 1){leds[cursor]=ledColor;}
         else if (digits[digit][k]==0){leds[cursor]=0x000000;};
         cursor ++;
        };
//      Serial.println();
      }
    else if (i==3){
//      Serial.print("Digit 2 is : ");Serial.print(digit);Serial.print(" ");
      cursor =7;
      for(int k=0; k<=6;k++){
//        Serial.print(digits[digit][k]);
        if (digits[digit][k]== 1){leds[cursor]=ledColor;}
         else if (digits[digit][k]==0){leds[cursor]=0x000000;};
         cursor ++;
        };
//      Serial.println();
      }
    else if (i==4){
//      Serial.print("Digit1 is : ");Serial.print(digit);Serial.print(" ");
      cursor =0;
      for(int k=0; k<=6;k++){
//        Serial.print(digits[digit][k]);
        if (digits[digit][k]== 1){leds[cursor]=ledColor;}
         else if (digits[digit][k]==0){leds[cursor]=0x000000;};
         cursor ++;
        };
//      Serial.println();
      }
    Now /= 10;
  };
};
void DSTcheck(){
   int buttonDST = digitalRead(2);
//   Serial.print("DST is: ");Serial.println(DST);
   if (buttonDST == LOW){
    if (DST){
      DST=false;
//      Serial.print("Switching DST to: ");Serial.println(DST);
      }
      else if (!DST){
        DST=true;
//        Serial.print("Switching DST to: ");Serial.println(DST);
      };
   delay(500);
   };
  }

void TimeAdjust(){
  int buttonH = digitalRead(5);
  int buttonM = digitalRead(4);
  if (buttonH == LOW || buttonM == LOW){
    delay(500);
    tmElements_t Now;
    RTC.read(Now);
    int hour=Now.Hour;
    int minutes=Now.Minute;
    int second =Now.Second;
      if (buttonH == LOW){
        if (Now.Hour== 23){Now.Hour=0;}
          else {Now.Hour += 1;};
        }else {
          if (Now.Minute== 59){Now.Minute=0;}
          else {Now.Minute += 1;};
          };
    RTC.write(Now);
    }
  }
void loop()  // Main loop
{
  BrightnessCheck(); // Check brightness
  DSTcheck(); // Check DST
  TimeAdjust(); // Check to se if time is geting modified
  TimeToArray(); // Get leds array with required configuration
  FastLED.show(); // Display leds array
}

Credits

Gabriele Scordamaglia

Gabriele Scordamaglia

6 projects • 42 followers
23 YO, Automation Engineering student in Italy.
