Automatic watering system

It is a concept project. Use time to benefit. In agriculture To reduce the time spent with watering vegetables, garden, etc.

IntermediateProtip1,735

Things used in this project

Hardware components

Arduino UNO

10 unids KY-019 5 V Uno de 1 Canales Módulo de Relé Junta Escudo Para PIC AVR DSP DEL BRAZO para arduino Relay

SparkFun Soil Moisture Sensor (with Screw Terminals)

Resistor 100 ohm

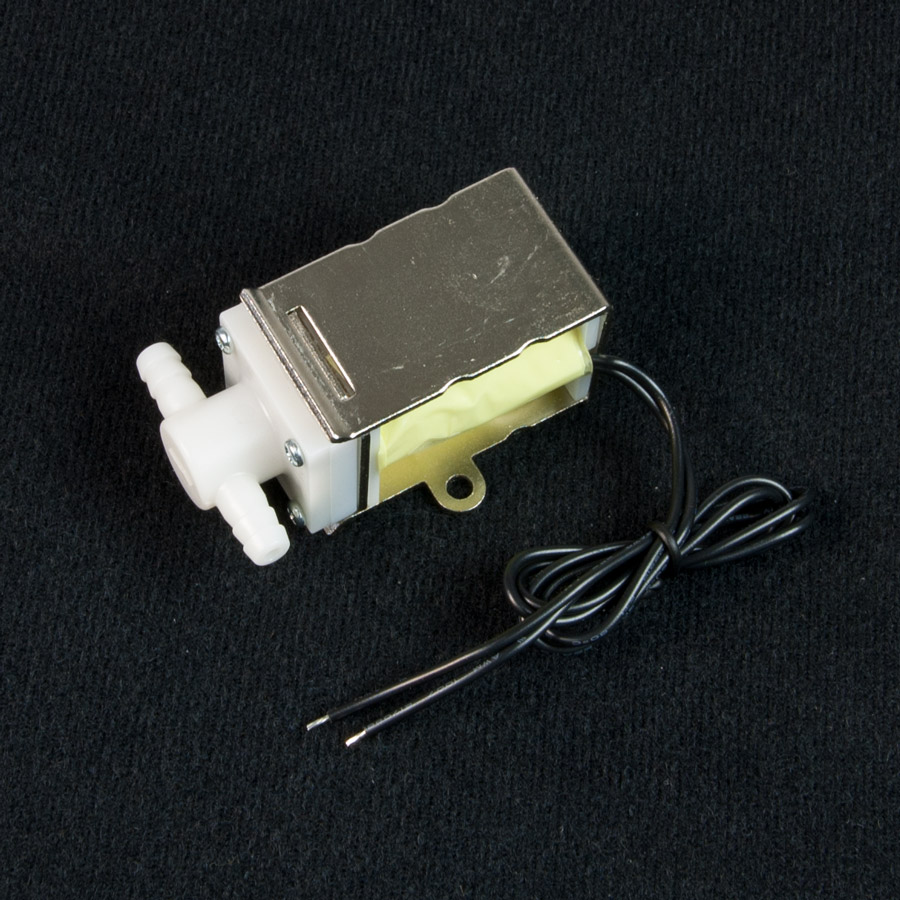

RobotGeek Solenoid Valve

LED (generic)

Hand tools and fabrication machines

Hot glue gun (generic)

Story

ABOUT THIS PROJECT

1 / 9

Automatic watering system

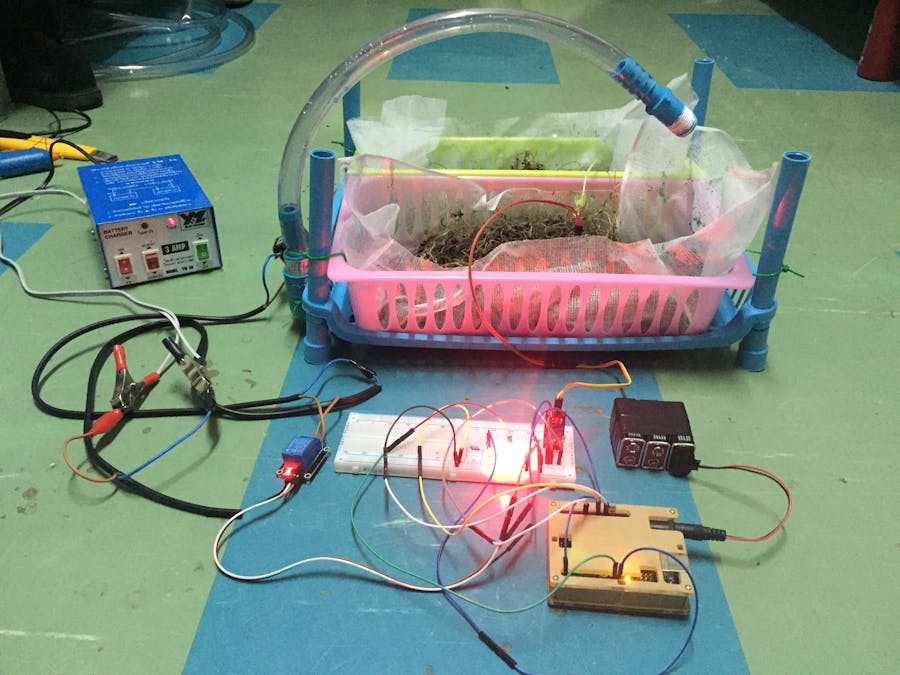

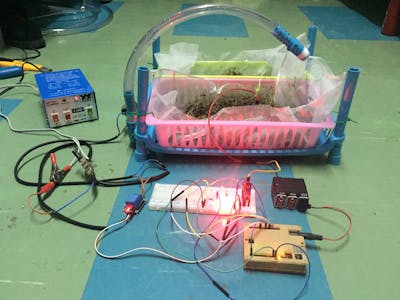

A device that helps. Reduce labor time in people watering trees. Morning and evening Using the temperature calibrator to determine the function.

Step

Step 1

- In order to use it, we have assembled the circuit we need to work in each part of the device.

Step 2

- Once assembled, we will put the code into the A-rduino program.

Step 3

- When Run Code The command is as follows:

3.1 When the value of the gauge is greater than the set value Red light will appear.

3.2 When the value of the gauge exceeds the set

Code

Automatic watering system

// Variable value : //                  //English//                            //Thai//
int sensorPin = A0 ;    //(Set the sensor at Pin A0)          //(  A0)
int sensorValue = 0;    //(Set the water valve to Pin 0)      //(  0)
int ledred = 10;        //(Set the RED LED on the Pin 10)     //( LED    10)
int ledgreen = 11;      //(Set the GERRN LED on the Pin 11)   //( LED    11)

void setup() {
  Serial.begin(9600);
  pinMode (ledred,OUTPUT);
  pinMode (ledgreen,OUTPUT);
  pinMode (sensorValue,OUTPUT);

}

void loop() {
Serial.print("sensor=");
sensorValue = analogRead(sensorPin);
Serial.println(sensorValue);
  if(sensorValue>300)
    digitalWrite(ledred,HIGH);
    digitalWrite(ledgreen,LOW);
    delay(500);
    digitalWrite(sensorValue,HIGH);

  if(sensorValue<170)
    digitalWrite(ledgreen,HIGH);
    digitalWrite(ledred,LOW);
    delay(500);
    digitalWrite(sensorValue,LOW);

   //if(sensorValue>175&&sensorValue<295)
    //digitalWrite(ledred,LOW);
    //digitalWrite(ledgreen,HIGH);
    //digitalWrite(sensorValue,LOW);
}

Credits

NatchaphonTah
