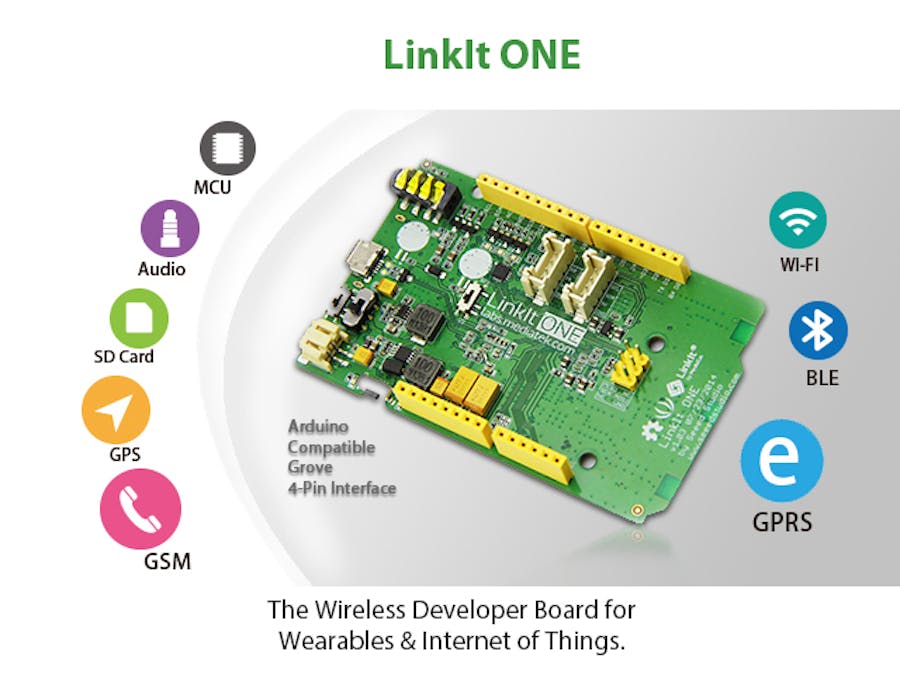

Online GPS datalogger with Linkit ONE

Take continusly your postion and store it on a remote server

BeginnerProtip2,034
Online GPS datalogger with Linkit ONE

Story

Read more

Code

Linkit ONE online GPS datalogger

C/C++
#include <LGPS.h>
#include <LGPRS.h>
#include <LGPRSClient.h>

gpsSentenceInfoStruct info; //needed to get GPS data

double latitude = 0.00;
double longitude = 0.00;
float altitude = 0.00;
float dop = 100.00; //dilution of precision
float geoid = 0.00;
float k_speed = 0.00, m_speed = 0.00; //speed in knots and speed in m/s
float track_angle = 0.00;
int fix = 0;
int hour = 0, minute = 0, second = 0;
int sat_num = 0; //number of visible satellites
int day = 0, month = 0, year = 0;
String time_format = "00:00:00", date_format = "00:00:0000";
String lat_format = "0.00000", lon_format = "0.00000";
char file[15] = "";
int pause = 3000; //time in milliseconds between two logs

char server[] = "yourserver.com";
int port = 80; // HTTP
LGPRSClient client;

void setup()
{
  Serial.begin(115200);
  LGPS.powerOn();
  Serial.println("GPS started.");
  Serial.print("Attaching GPRS...");
  while (!LGPRS.attachGPRS())delay(500);
  Serial.println("OK.");
}
void loop()
{
  if (getData(&info) > 3)
  {
    if (client.connect(server, port))
    {
      Serial.println("connected");
      String str = "GET /store_data.php?";
      str += "date=";
      str += date_format;
      str += "&time=";
      str += time_format;
      str += "&lat=";
      str += lat_format;
      str += "&lon=";
      str += lon_format;
      client.print(str);
      client.println(" HTTP/1.1");
      client.print("Host: ");
      client.println(server);
      client.println("Connection: close");
      client.println();
    }
    else Serial.println("Unable to connect");
  }
  else Serial.println("Less then 4 satelites.");
  delay(pause);
}
/**
*Converts degrees from (d)ddmm.mmmm to (d)dd.mmmmmm
*@param str the string rappresentation of the angle in (d)ddmm.mmmm format
*@param dir if true the direction is south, and the angle is negative.
*@return the given angle in dd.mmmmmm format.
*/
float convert(String str, boolean dir)
{
  double mm, dd;
  int point = str.indexOf('.');
  dd = str.substring(0, (point - 2)).toFloat();
  mm = str.substring(point - 2).toFloat() / 60.00;
  return (dir ? -1 : 1) * (dd + mm);
}
/**
*Gets gps informations
*@param info gpsSentenceInfoStruct is a struct containing NMEA sentence infomation
*@return the number of hooked satellites, or 0 if there was an error getting informations
*/
int getData(gpsSentenceInfoStruct* info)
{
  Serial.println("Collecting GPS data.");
  LGPS.getData(info);
  Serial.println((char*)info->GPGGA);
  if (info->GPGGA[0] == '$')
  {
    Serial.print("Parsing GGA data....");
    String str = (char*)(info->GPGGA);
    str = str.substring(str.indexOf(',') + 1);
    hour = str.substring(0, 2).toInt();
    minute = str.substring(2, 4).toInt();
    second = str.substring(4, 6).toInt();
    time_format = "";
    time_format += hour;
    time_format += ":";
    time_format += minute;
    time_format += ":";
    time_format += second;
    str = str.substring(str.indexOf(',') + 1);
    latitude = convert(str.substring(0, str.indexOf(',')), str.charAt(str.indexOf(',') + 1) == 'S');
    int val = latitude * 1000000;
    String s = String(val);
    lat_format = s.substring(0, (abs(latitude) < 100) ? 2 : 3);
    lat_format += '.';
    lat_format += s.substring((abs(latitude) < 100) ? 2 : 3);
    str = str.substring(str.indexOf(',') + 3);
    longitude = convert(str.substring(0, str.indexOf(',')), str.charAt(str.indexOf(',') + 1) == 'W');
    val = longitude * 1000000;
    s = String(val);
    lon_format = s.substring(0, (abs(longitude) < 100) ? 2 : 3);
    lon_format += '.';
    lon_format += s.substring((abs(longitude) < 100) ? 2 : 3);
    str = str.substring(str.indexOf(',') + 3);
    fix = str.charAt(0) - 48;
    str = str.substring(2);
    sat_num = str.substring(0, 2).toInt();
    str = str.substring(3);
    dop = str.substring(0, str.indexOf(',')).toFloat();
    str = str.substring(str.indexOf(',') + 1);
    altitude = str.substring(0, str.indexOf(',')).toFloat();
    str = str.substring(str.indexOf(',') + 3);
    geoid = str.substring(0, str.indexOf(',')).toFloat();
    Serial.println("done.");
    if (info->GPRMC[0] == '$')
    {
      Serial.print("Parsing RMC data....");
      str = (char*)(info->GPRMC);
      int comma = 0;
      for (int i = 0; i < 60; ++i)
      {
        if (info->GPRMC[i] == ',')
        {
          comma++;
          if (comma == 7)
          {
            comma = i + 1;
            break;
          }
        }
      }
      str = str.substring(comma);
      k_speed = str.substring(0, str.indexOf(',')).toFloat();
      m_speed = k_speed * 0.514;
      str = str.substring(str.indexOf(',') + 1);
      track_angle = str.substring(0, str.indexOf(',')).toFloat();
      str = str.substring(str.indexOf(',') + 1);
      day = str.substring(0, 2).toInt();
      month = str.substring(2, 4).toInt();
      year = str.substring(4, 6).toInt();
      date_format = "20";
      date_format += year;
      date_format += "-";
      date_format += month;
      date_format += "-";
      date_format += day;
      Serial.println("done.");
      return sat_num;
    }
  }
  else
  {
    Serial.println("No GGA data");
  }
  return 0;
}

store_data.php

PHP
This is the php file on your server, which will process requests from linkit ONE
<?php

		function getParameter($par, $default = null)
		{
            if (isset($_POST[$par]) && strlen($_POST[$par])) return $_POST[$par];
            if (isset($_GET[$par]) && strlen($_GET[$par])) return $_GET[$par];
            else return $default;
        }

        $param_names = array("date", "time","lat","lon");
        $file = getParameter("date").".txt";
        $line="";
        for($i=0; $i< count($param_names); $i++)
        {
        	$line = $line.getParameter($param_names[$i]);
            if($i<count($param_names)-1)$line = $line.",";
        }
        $line = $line."\n";
        file_put_contents($file, $line, FILE_APPEND | LOCK_EX);

?>
