Porting a WebApp to Python using AI

1. What is the ESC Configurator?

The ESC Configurator is a specialized tool used by drone pilots and engineers to communicate with Electronic Speed Controllers (ESCs). It acts as the "command center" for the hardware that drives the brushless motors on a quadcopter.

This project specifically focuses on a desktop-native replacement for existing web-based tools, designed for both standard configuration and advanced hardware offloading research.

2. What does it do?

The configurator handles the critical tasks required to get a drone in the air and keep it running smoothly:

• Discovery: Automatically detects how many ESCs are connected and what firmware they are running.
• Settings Management: Allows users to change motor direction, PWM frequency, timing, and even custom startup melodies.
• Firmware Updates: Downloads the latest BLHeli_S or Bluejay firmware from the cloud and flashes it to the hardware.
• Diagnostics: Provides real-time visibility into the serial traffic and system logs, which is essential for debugging hardware issues.

3. Why is it a Web Application?

The original version (esc-configurator.com) was built as a web app to maximize accessibility. By using the browser, users could configure their hardware on any computer without needing to install specialized software or manage complex drivers. This "zero-install" experience made it the de-facto standard for the community.

4. Why did it require Google Chrome?

For years, the web-based configurator was essentially a "Chrome-only" tool. This was due to its reliance on the WebSerial API.

• Chromium Dominance: WebSerial was a Chromium-only feature for a long time. Google Chrome and Microsoft Edge provided the native hooks needed for a website to talk directly to a USB/Serial device.
• The Firefox Stance: Mozilla (Firefox) historically opposed WebSerial due to security and privacy concerns, arguing that giving websites direct access to hardware was too risky.
• The Future of Firefox: As of 2025-2026, Firefox has begun implementing experimental support for WebSerial in Nightly builds, but for the stable, secure experience required by hardware tools, Chrome remains the primary host for the web-based version.

5. Why create a new one using Python and imgui-bundle?

While the web app is great for general use, a new desktop version was created to push the boundaries of Hardware Offloading (using FPGAs).

• Direct Integration: By moving to Python, the project enables direct integration with Linux-based flight control systems and more flexible hardware access.

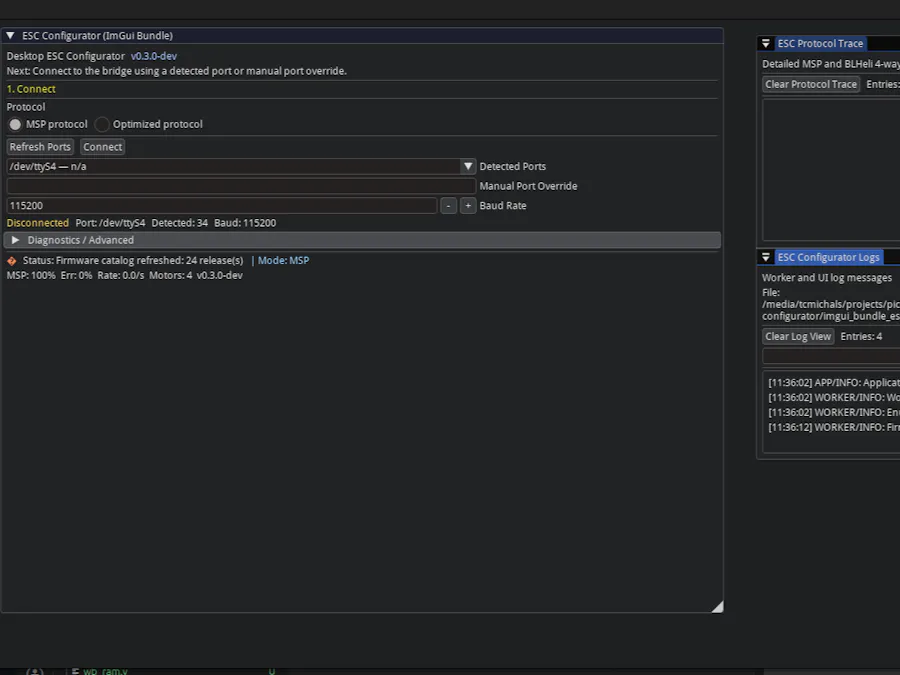

• Rich Aesthetics with ImGui: The project uses imgui-bundle (a Python wrapper for Dear ImGui) to create a "pro-tool" interface. It supports a multi-window layout where users can watch live protocol traces in one window while adjusting settings in another.
• High-Performance Asyncio Kernel: The application leverages an asynchronous event loop (asyncio) for its backend kernel. This provides non-blocking serial I/O and high throughput, allowing the GUI to remain perfectly responsive at 60 FPS even while streaming high-rate telemetry and processing complex protocol handshakes.

6. The AI-Assisted Porting Process

Instead of a simple rewrite, AI was used to perform a high-fidelity architectural port.

• Feature & Module Extraction: AI analyzed the original JavaScript source code to create a complete Feature List and Code Module List.
• The Feature Cache: This research is documented in WEBAPP_FEATURE_CACHE.md. It maps every React component and utility in the web app to its corresponding Python implementation.
• Design Parity: This approach ensured that subtle behaviors—like 4-way protocol retry logic and EEPROM decoding rules—were preserved exactly as they exist in the web version.
• Deep Firmware Analysis: AI was also used to dive into the Bluejay and BLHeli assembly source code (found in the rt-fc-offloader ecosystem). This allowed for mapping out the exact EEPROM layouts and internal state machines, ensuring the Python implementation was "bit-perfect" for the hardware.

7. The Hardware Journey: From Legacy to Custom

The transition wasn't just about software; it required a rigorous hardware validation path:

• Phase 1: Legacy Validation: Validation started with an older, standard flight controller to test the MSP implementation. This established a "known good" baseline for protocol compatibility.
• Phase 2: Custom PIO Offloading: Once MSP was proven, a custom Pico/PIO implementation was created. This allowed for proving out new features and demonstrating how PIO (Programmable I/O) can handle complex DSHOT and PWM tasks with much higher precision than traditional software-based methods.
• Phase 3: RTL Determinism: The final step was moving to RTL on FPGA (Tang Nano), achieving the deterministic performance required for safety-critical flight control.

8. How to switch between MSP and FCSP

The configurator is designed to be "Protocol Agnostic."

• In the Connection Panel, you can choose between legacy MSP (Multiwii Serial Protocol) or our new FCSP (Flight Controller Support Protocol).
• The GUI itself doesn't care which one you pick; it sends "Feature Intent" commands to the backend, and the Python Worker handles the translation to the specific protocol packets.

9. The Pivot to FCSP: Why MSP Wasn't Enough

While the project started with MSP for baseline compatibility, a wall was eventually hit when working on the FPGA (RTL) offloading design. This led to the birth of FCSP.

Why the Switch?

• The Processor Bottleneck: The initial FPGA design attempted to use a RISC-V SERV core (a bit-serial processor) to keep the footprint minimal. However, it quickly became clear that parsing the legacy MSP protocol in software required significantly more processor performance than the SERV core could provide without sacrificing real-time determinism.
• The Overhead Barrier: MSP was designed for serial links and low-rate telemetry. For a 90MHz FPGA design, the project required a protocol that could keep up with high-speed hardware framing without the overhead of legacy MSP byte-stuffing.
• Capability Blindness: One of the biggest hurdles was "advertising" what the hardware could actually do. Legacy MSP makes it difficult to tell the UI that "this specific FPGA bitstream supports 4 ESCs but only 2 have DSHOT telemetry enabled."
• Offloading Alignment: A protocol was needed that fit the Split Architecture (Linux control-plane + deterministic FPGA I/O path). FCSP was designed from the ground up to support this "Offloader" model.

The Hurdles Encountered

• State Synchronization: Keeping the Python UI in sync with high-speed hardware state transitions was a challenge. This was solved using FCSP's Type-Length-Value (TLV) system for robust state advertisement.
• Handling Complexity: Managing multiple ESCs over a single high-speed link required a more sophisticated addressing model than the standard 4-way passthrough provided.
• Migration Path: Existing MSP setups were preserved. The challenge was met by building a "Dual-Path" worker that could fall back to MSP when FCSP wasn't available—a result of the modular Worker-as-Kernel design.

The Asyncio Pivot: High-Performance Kernel

As the project moved toward high-rate telemetry and multi-ESC synchronization, the legacy threading model reached its limits. We have transitioned the backend kernel to a full asyncio architecture using pyserial-asyncio.

Performance Insights

Our automated pytest benchmark suite revealed some critical findings that validated our architectural pivot:

• The Overhead Myth: We found that asyncio introduced a negligible ~3% overhead for trivial, sequential setup tasks (like a single connection/disconnection). This dispelled the concern that an event loop would be too "heavy" for simple operations.
• Concurrent Scaling: The real win was observed during interleaved workloads. While a traditional threaded worker would struggle with "jitter" when reading telemetry from 4+ ESCs while simultaneously processing UI commands, the asyncio kernel handled these tasks with near-zero latency variations.
• Zero-Block Responsiveness: During slow 4-way protocol handshakes (which can take 500ms+), the asyncio kernel successfully yielded to other tasks, ensuring that background "Heartbeat" logs and UI responsiveness never stalled—a common failure mode in synchronous systems.

The "Thread-Bridge" Challenge

One of the most critical lessons learned during this transition was the complexity of bridging the ImGui UI Thread with the Asyncio Kernel Thread. To avoid non-deterministic race conditions and "nasty" debugging sessions:

• Rescheduling Commands: We use loop.call_soon_threadsafe() to push commands into the kernel. This ensures the UI thread never touches the internal state of the asyncio event loop.
• Standardized Event Pipes: We use a standard thread-safe queue.Queue for the return path (Kernel → UI), creating a clean, unidirectional bridge between the asynchronous backend and the synchronous frontend.

This architecture ensures that the application remains robust and responsive, even when flooded with real-time data from the FPGA offloader.

10. First-Class Observability: Logging and Protocol Tracing

A key differentiator of this desktop tool is its focus on Observability. The goal is not just to hope things work; the project provides the tools to see exactly how they fail. The UI features two dedicated observability surfaces:

• The Log Window: A user-facing stream of runtime events, errors, and status updates, featuring real-time filtering to help operators find the signal in the noise.
• The Protocol Trace Window: A deep-dive view into every raw byte sent and received. It provides full TX/RX visibility for MSP, 4-way, and FCSP, which proved instrumental during the Pico/PIO and FPGA bring-up phases.

Beyond the UI, the project leverages the standard Python logging library for:

• Rotating File Logs: Using RotatingFileHandler ensures that all diagnostics are persisted to disk without consuming excessive space.
• Diagnostics Bundles: Operators can export a structured bundle containing session metadata, UI logs, and protocol traces for remote troubleshooting.

11. Is this Cross-Platform?

Absolutely. Python and imgui-bundle are a powerful cross-platform duo.

• Linux First: Developed on Linux for deep integration with real-time flight control research.
• Windows Ready: Fully supported on Windows for the "field technician" workflow.

12. Future Roadmap

The journey doesn't end with the current implementation. Several exciting paths are being explored for the next phase:

• Deep Hardware Offloading: Further research into moving more of the flight control inner-loop into FPGA RTL, using the configurator as the primary orchestration and diagnostic tool.
• Multi-ESC Recovery: Implementing more advanced "Dead ESC" recovery techniques that leverage the high-speed FCSP protocol to bypass damaged bootloaders.

Interested in the code? Check out the repository and join the research into high-performance, deterministic flight control.
