Hand Tool Anemometer DIY for M5Dial

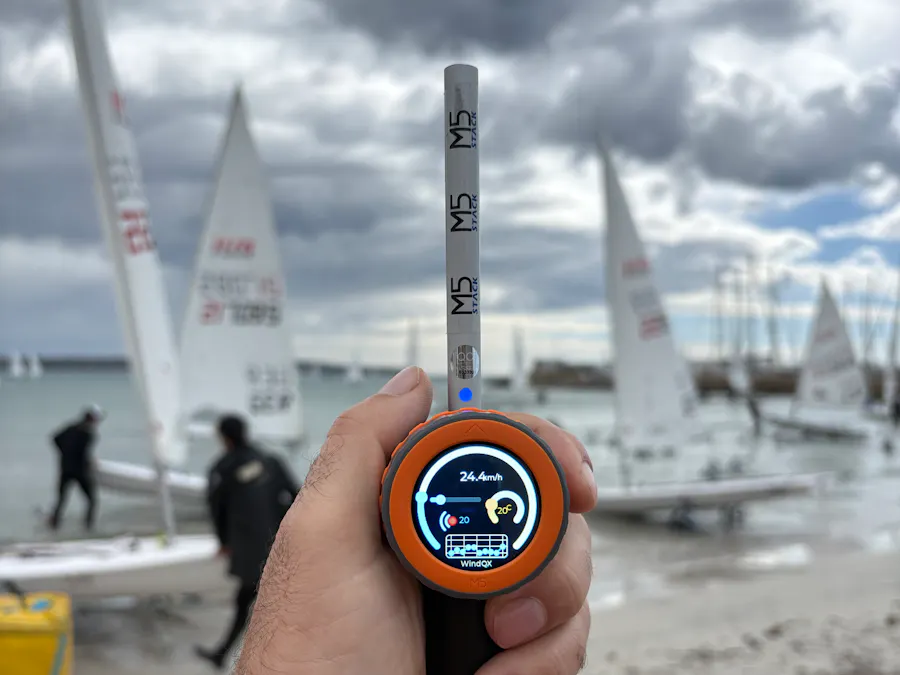

A portable handheld solid-state anemometer built with a M5Dial, a WindQX solid-state sensor, a 3D-printed case, and a rechargeable battery.

IntermediateFull instructions provided2 hours206

Things used in this project

Hardware components

M5Stack Dial v1.1 - ESP32-S3 Smart Rotary Knob with 1.28" Round Touch Screen

WindQX SA.01P Solid-State Anemometer

Battery 3.7v 3400mAh 18650 Li-ion with PH1.25mm 2P

Seeed Studio Grove - 4 pin Male Jumper to Grove 4 pin Conversion Cable

Software apps and online services

M5Stack UIFlow 2.0

Hand tools and fabrication machines

Soldering iron (generic)

3D Printer (generic)

Story

Overview

This project turns an M5Stack DIAL and a WindQX SA.01P solid-state anemometer into a compact, portable handheld wind-speed meter. Unlike traditional cup-anemometers, the WindQX sensor has no moving parts it measures wind speed and temperature using thermal technology, making it robust and maintenance-free.

The sensor SA.01p can be purchased at: https://tienda.bricogeek.com/otros-sensores/2106-anemometro-termico-profesional-sin-partes-moviles-sa01p.html

The M5Stack DIAL provides:

A round 1.28″ TFT display (240 × 240 px) for an analogue-gauge-style readout.
A rotary encoder (EC11) to switch between display units and modes.
An ESP32-S3 processor with built-in Wi-Fi and Bluetooth.
A USB-C port and built-in battery (or external battery pack via Grove).

The program is written entirely with visual blocks in the UIFlow 2.0 IDE, making it accessible without prior text-based coding experience.

Hardware Assembly

Step 1 — Prepare the M5Stack DIAL

Charge the Li-Po rechargeable battery before starting. You can use the M5Stack DIAL via USB-C as a charger.
Confirm the firmware version is UIFlow 2.x (hold the encoder button while powering on; the screen shows the current mode and firmware).
If needed, flash UIFlow 2.x firmware using the M5Burner tool.

Download the UIFlow firmware

Setup the firmware

Flash the firmaware

Step 2 — Connect the WindQX Sensor

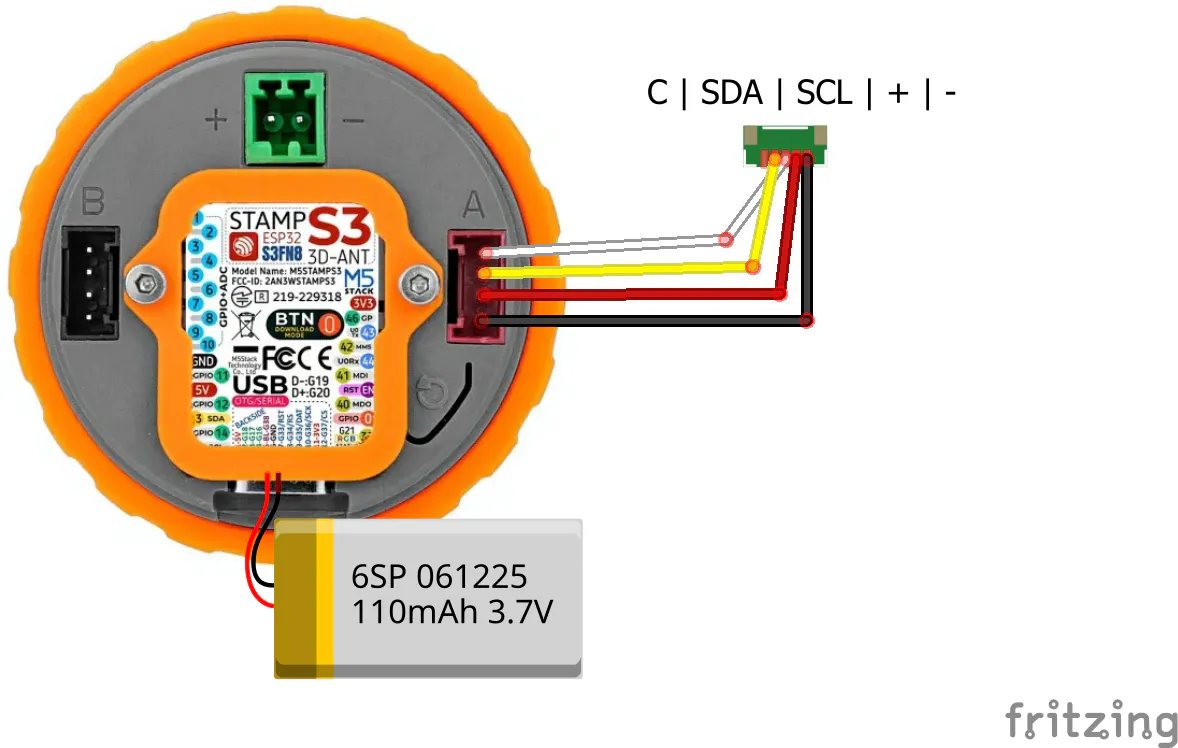

The WindQX sensor communicates over I2C at address id 54. Using the i2c0 login interface at 100 KHz. Connect it to the M5Stack DIAL Grove Port A (bottom right connector) using a standard Grove cable:📷

⚠️ The WindQX sensor requires 5 V. The M5Stack DIAL Grove port provides 5 V on pin 3. Do not exceed this voltage.

The WindQX sensors come with a connector that is not a Grove connector, so it will need to be replaced. The simplest way is to cut it off and solder the wires so that it looks like this:

Step 3 — Install the Battery

The M5Stack DIAL has an internal JST PH 1.25mm connector for a Li-Po battery and includes a charge regulator. Insert the 3.7 V 500 mAh battery and secure it with the provided adhesive pad if your enclosure requires it.

Result

Programming with UIFlow 2.0

The firmware is a UIFlow 2.0 block program located in https://uiflow2.m5stack.com/?pkey=32a581ab907343b1abb359c22d75539f

Loading the Program

Open UIFlow 2.0 in your browser (or the desktop app).
Connect the M5Stack DIAL via USB-C or Wi-Fi.
Import the project

Usage

Power on — Short-press the encoder button. The DIAL logo appears and the device boots (~3 s).
Read wind speed — The gauge needle and numeric value update every 250 ms. If the wind speed > 0, the LED color of sensor turns into red.
Set alarm threshold a. Rotating the encoder clockwise to increase the value or anti-clockwise to reduce the value. b. By dragging the dot on the slider with your finger to the desired alarm value.
Alarm — If the current wind speed is greater than the selected alert threshold, the device will emit beeps and the speed icon will display a red dot.
Power off — Long-press the encoder button.

Calibration

The WindQX sensor is factory-calibrated. For best results:

Point the sensor directly into the wind (0° incidence).
Hold the device at arm's length, away from body turbulence.
For field calibration against a reference anemometer, use the CALIBRATION_OFFSET constant at the top of the program (block: Set CALIBRATION_OFFSET to 0.0). A positive value adds to every reading; a negative value subtracts.

Schematics

Code

{"version":"V2.0","versionNumber":"V2.4.2","type":"dial","components":[{"name":"page0","type":"lvgl_page","layer":1,"screenId":"builtin","screenName":"","id":"mHCGGQKg=ar=93hc","createTime":1770624026273,"backgroundColor":"#000000","isLVGL":true,"isSelected":true},{"name":"Device","type":"lvgl_label","layer":2,"screenId":"builtin","screenName":"","id":"sTQQI%B@L&d3Doss","createTime":1770626552805,"x":89,"y":223,"color":"#d3bb9f","backgroundColor":"#ffffff","bg_opacity":0,"text":"WindQX","font":"lv.font_montserrat_14","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"dialWind","type":"lvgl_arc","layer":3,"screenId":"builtin","screenName":"","id":"z$uWD$xa^8=sP9dF","createTime":1770626878903,"x":5,"y":5,"width":230,"height":100,"minValue":0,"maxValue":120,"currentValue":50,"rotation":0,"knobColor":"#2193f3","indicatorColor":"#216ff3","backgroundColor":"#ffffff","mode":"NORMAL","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"History","type":"lvgl_chart","layer":13,"screenId":"builtin","screenName":"","id":"lEdWnO`OAwJe@Gdo","createTime":1770627098623,"x":60,"y":175,"width":120,"height":45,"mode":"LINE","modeOption":[{"label":"Line","value":"LINE"},{"label":"Bar","value":"BAR"}],"pointNum":10,"hdiv":3,"vdiv":5,"backgroundRadius":7,"backgroundColor":"#000000","borderColor":"#9b9393","borderWidth":2,"showXAxis":false,"showY1Axis":false,"showY2Axis":false,"xAxisMinValue":0,"xAxisMaxValue":100,"xAxisMajorTicks":4,"xAxisMajorTickLen":5,"xAxisMinorTicks":1,"xAxisMinorTickLen":5,"xAxisLabelShow":true,"y1AxisMinValue":0,"y1AxisMaxValue":100,"y1AxisMajorTicks":4,"y1AxisMajorTickLen":10,"y1AxisMinorTicks":1,"y1AxisMinorTickLen":5,"y1AxisLabelShow":true,"y2AxisMinValue":0,"y2AxisMaxValue":100,"y2AxisMajorTicks":4,"y2AxisMajorTickLen":10,"y2AxisMinorTicks":1,"y2AxisMinorTickLen":5,"y2AxisLabelShow":true,"pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"diallTemp","type":"lvgl_arc","layer":10,"screenId":"builtin","screenName":"","id":"rv%nhtV`BMC=1**1","createTime":1770628986509,"x":142,"y":91,"width":70,"height":100,"minValue":5,"maxValue":70,"currentValue":50,"rotation":0,"knobColor":"#f39b21","indicatorColor":"#f3cb21","backgroundColor":"#e7e3e7","mode":"NORMAL","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"lblWind","type":"lvgl_label","layer":4,"screenId":"builtin","screenName":"","id":"bYgAAI`OC=7WNAuA","createTime":1770632055970,"x":88,"y":49,"color":"#ffffff","backgroundColor":"#000000","bg_opacity":0,"text":"20","font":"lv.font_montserrat_24","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"kmh","type":"lvgl_label","layer":5,"screenId":"builtin","screenName":"","id":"u2v#BGHG1G$mpQNl","createTime":1770632159562,"x":132,"y":57,"color":"#ffffff","backgroundColor":"#000000","bg_opacity":0,"text":"km/h","font":"lv.font_montserrat_14","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"lblTemp","type":"lvgl_label","layer":11,"screenId":"builtin","screenName":"","id":"w+2JdSf5lrIF7oNH","createTime":1770632223375,"x":161,"y":120,"color":"#d5940e","backgroundColor":"#000000","bg_opacity":0,"text":"37","font":"lv.font_montserrat_16","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"celsius","type":"lvgl_label","layer":12,"screenId":"builtin","screenName":"","id":"rIw`DeXXK8pXVB^P","createTime":1770632223375,"x":178,"y":115,"color":"#d5940e","backgroundColor":"#000000","bg_opacity":0,"text":"C","font":"lv.font_montserrat_14","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"AlarmSelector","type":"lvgl_slider","layer":6,"screenId":"builtin","screenName":"","id":"dL_BgQILRISKWYF*","createTime":1770634695225,"x":29,"y":103,"width":100,"height":9,"minValue":0,"maxValue":140,"currentValue":50,"color":"#216ff3","backgroundColor":"#ffffff","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"AlarmNumber","type":"lvgl_label","layer":7,"screenId":"builtin","screenName":"","id":"x#7#fkKwl@XXhPXx","createTime":1770632223375,"x":86,"y":138,"color":"#216ff3","backgroundColor":"#000000","bg_opacity":0,"text":"50","font":"lv.font_montserrat_16","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"AlarmLED","type":"lvgl_led","layer":9,"screenId":"builtin","screenName":"","id":"og7D38dxjO4U+VHA","createTime":1770803911689,"x":68,"y":144,"width":1,"color":"#ff0000","state":true,"pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"isSelected":false},{"name":"AlarmICON","type":"lvgl_image","layer":8,"screenId":"builtin","screenName":"","id":"lO6lFqnHvl8CypVg","createTime":1770805720619,"x":47,"y":127,"imagePath":"iconAlarm.png","pageId":"mHCGGQKg=ar=93hc","isLVGL":true,"scaleX":1,"scaleY":1,"rotation":0,"isSelected":false}],"resources":[{"hardware":["hardware_button","hardware_pin_button","i2c","speaker","timer","touch","rotary"]}],"units":[],"hats":[],"caps":[],"chains":[],"bases":[],"plcmodules":[],"i2cs":[{"id":"i2c0","portType":"A","userPort":[15,13],"freq":"100000"}],"chainBus":[],"blockly":"<variables><variable id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</variable><variable id=\"T0s:OzB-Ryasf:oe[Cp;\">data</variable><variable id=\"/9!WMg:DjJ*xY1M1kY:F\">rawWind1</variable><variable id=\"t{KSk-V|lh[zMho$E,22\">SA01_ADDR</variable><variable id=\"Alf(A1wup;8.$m(1cTq)\">rawWind2</variable><variable id=\"0`hb=s0srh+3IK$9f1Oj\">wind_kmh</variable><variable id=\"jT`yQ0tE#i5ZFLQ27$^p\">rawTemp3</variable><variable id=\";;2((0-]VFW;d(zK4a`z\">rawTemp4</variable><variable id=\"@KP.n4]00IbHR+u`S/Ii\">temp_c</variable><variable id=\"+#F[avKdN?Wb8$5[H61N\">last_min_ms</variable><variable id=\"PIfb5!6R33_MLT:tvxq+\">now_ms</variable></variables><block type=\"basic_on_setup\" id=\"setup_block\" deletable=\"false\" x=\"-909\" y=\"-970\"><mutation isBegin=\"true\"></mutation><field name=\"UPDATEOP\">true</field><statement name=\"FUNC\"><block type=\"system_m5_begin\" id=\"Uu(Ec2ry%y4ZF!S#J5}s\"><next><block type=\"rotary_init\" id=\"9nn!??3b3f+_W#u[C2E*\"><mutation mode=\"builtin\"></mutation><field name=\"MODE\">builtin</field><next><block type=\"math_change\" id=\"}x7QiZX:tmp?L?3eJM1h\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field><value name=\"DELTA\"><shadow type=\"math_number\" id=\"l}[{N?vJ^HYdT=mQF,B+\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">20</field></shadow></value><next><block type=\"variables_set\" id=\"KPm#9ORIz-Q1?@izn*EH\"><field name=\"VAR\" id=\"t{KSk-V|lh[zMho$E,22\">SA01_ADDR</field><value name=\"VALUE\"><block type=\"math_number\" id=\"2xph`gw,rvX90R*cl-}6\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">54</field></block></value><next><block type=\"lvgl_page_screen_load\" id=\"Wan(9fv-uHna*|+;MTod\"><field name=\"NAME\">page0</field><next><block type=\"lvgl_chart_add_series\" id=\"@+fNGHFJf!p.E2/)CvEB\"><field name=\"NAME\">History</field><field name=\"VARNAME\">speed</field><field name=\"OPTION\">PRIMARY_Y</field><value name=\"COLOR\"><block type=\"color_rgb_palette\" id=\"Hp]b5ornhlO}(_Mn.WX4\"><mutation mode=\"palette\"></mutation><field name=\"MODE\">palette</field><field name=\"COLOR\">#3366ff</field></block></value><next><block type=\"lvgl_chart_set_update_mode\" id=\"a:CRBoLvvFE=S;#C}mBn\"><field name=\"NAME\">History</field><field name=\"OPTION\">SHIFT</field><next><block type=\"lvgl_chart_set_point_count\" id=\"tZ`a0*(*~UeE*@?QT,uI\"><field name=\"NAME\">History</field><value name=\"VALUE\"><shadow type=\"math_number\" id=\",:UQn7JSBp?![]{D}/q9\"><mutation max=\"Infinity\" min=\"2\" precision=\"0\"></mutation><field name=\"NUM\">10</field></shadow></value><next><block type=\"lvgl_chart_set_axis_range\" id=\")NxH7.nK+;V-k702f3sb\"><field name=\"NAME\">History</field><field name=\"OPTION\">PRIMARY_Y</field><value name=\"VALUE1\"><shadow type=\"math_number\" id=\"Q,LanqM:jg*1(3qsNy1V\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value><value name=\"VALUE2\"><shadow type=\"math_number\" id=\"~k^4-=uUA5@+fo9jZkL~\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">60</field></shadow></value><next><block type=\"lvgl_chart_set_point_size\" id=\"EV9r1v;5^|TMpr+FZVt9\"><field name=\"NAME\">History</field><value name=\"VALUE1\"><shadow type=\"math_number\" id=\";za]E_2e_(U=j_0l*[c:\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">10</field></shadow></value><value name=\"VALUE2\"><shadow type=\"math_number\" id=\"$#?MAC1)#O@.|GB?W%=W\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">10</field></shadow></value><next><block type=\"variables_set\" id=\";1L)A,vf}8}M]YHs}[Ht\"><field name=\"VAR\" id=\"+#F[avKdN?Wb8$5[H61N\">last_min_ms</field><value name=\"VALUE\"><block type=\"time_get_ticks_ms\" id=\"e2Gv^^R2e(cT1][BVRR;\"></block></value><next><block type=\"lvgl_label_set_text\" id=\"5|7g*R+Wm/%P:g;Gxizm\"><field name=\"NAME\">Device</field><value name=\"VALUE\"><shadow type=\"text\" id=\"w9{nz(Tir%@2CET8U$LE\"><field name=\"TEXT\">WindQX</field></shadow></value><next><block type=\"lvgl_arc_set_value\" id=\"S9hm^sEE2Ys]7ef[0Nnc\"><field name=\"NAME\">dialWind</field><value name=\"VALUE\"><shadow type=\"math_number\" id=\"+0):@K)!)qQi3Z-v}oN4\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">20</field></shadow></value><next><block type=\"lvgl_label_set_text\" id=\"xPLT1,6$8_%FXX_S{R5E\"><field name=\"NAME\">lblWind</field><value name=\"VALUE\"><shadow type=\"text\" id=\"UFA9@^%reJc71aascoXP\"><field name=\"TEXT\">20</field></shadow></value><next><block type=\"lvgl_label_set_text\" id=\"6|4?,G89l5mic%{E:5`3\"><field name=\"NAME\">kmh</field><value name=\"VALUE\"><shadow type=\"text\" id=\"TR$x/v@C0wBU=4Lp(rdu\"><field name=\"TEXT\">km/h</field></shadow></value><next><block type=\"lvgl_slider_set_range\" id=\"!,IRfq;@jc.3t8At0CYT\"><field name=\"NAME\">AlarmSelector</field><value name=\"MIN\"><shadow type=\"math_number\" id=\",o1vZQflUMd4Xq//%1Xk\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value><value name=\"MAX\"><shadow type=\"math_number\" id=\"Gy4gs`0SGUJS_j:*}~Fi\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">100</field></shadow></value><next><block type=\"lvgl_slider_set_value\" id=\":0fa0kV(*Vp_%tLlC}~_\"><field name=\"NAME\">AlarmSelector</field><value name=\"VALUE\"><shadow type=\"math_number\" id=\"l;z,loE/PW(8Q47]O(~t\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">50</field></shadow><block type=\"variables_get\" id=\"jcB]Xm;lZTxejZk$VIM3\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field></block></value><next><block type=\"lvgl_label_set_text\" id=\"N+,iv_U+eXzR1.!-j;F%\"><field name=\"NAME\">AlarmNumber</field><value name=\"VALUE\"><shadow type=\"text\" id=\"2QuM*36lJ;#y)L$/y[?q\"><field name=\"TEXT\">0</field></shadow><block type=\"variables_get\" id=\"8HG1u7(K8PhEw5TGcE?l\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field></block></value><next><block type=\"lvgl_led_set_state\" id=\"[FAp*Bjrnl]O1VmOH;8A\"><field name=\"NAME\">AlarmLED</field><field name=\"VALUE\">off</field><next><block type=\"lvgl_led_set_size\" id=\"+74kVj53~DH:m@)agvzY\"><field name=\"NAME\">AlarmLED</field><value name=\"WIDTH\"><shadow type=\"math_number\" id=\"j$^gOMT$B(M23z(qde)N\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value><value name=\"HEIGHT\"><shadow type=\"math_number\" id=\"1Z.^?Dg`c#M#dJosb4nn\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value><next><block type=\"lvgl_arc_set_value\" id=\"gJHT}!+UlnN)f4`Tmven\"><field name=\"NAME\">diallTemp</field><value name=\"VALUE\"><shadow type=\"math_number\" id=\"Wl(=i)v2XRz61_Rz~Fk!\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value><next><block type=\"lvgl_label_set_text\" id=\"Gx2fGI%D{}p7w*S5,:.M\"><field name=\"NAME\">lblTemp</field><value name=\"VALUE\"><shadow type=\"text\" id=\";0HRLC(t1cSzQ}+~]csY\"><field name=\"TEXT\">0</field></shadow></value><next><block type=\"lvgl_label_set_text\" id=\"qMU$.`sVS]o{+m`!)NS:\"><field name=\"NAME\">celsius</field><value name=\"VALUE\"><shadow type=\"text\" id=\"/oE(hq*HS,Q*j4o2TXV?\"><field name=\"TEXT\">C</field></shadow></value><next><block type=\"i2c_init\" id=\"Dx`0{!8AgNPDB-MY[+5C\"><field name=\"NAME\">0</field><field name=\"FREQ\">100000</field><value name=\"SCL\"><shadow type=\"math_number\" id=\"g_45;b}H}k!_{;Hie}9{\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">15</field></shadow></value><value name=\"SDA\"><shadow type=\"math_number\" id=\"QJ.L#lvFSxK:vZ+9;ICY\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">13</field></shadow></value></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block><block type=\"basic_on_loop\" id=\"loop_block\" deletable=\"false\" x=\"-170\" y=\"-890\"><mutation isUpdate=\"false\"></mutation><field name=\"UPDATEOP\">false</field><statement name=\"FUNC\"><block type=\"controls_if\" id=\"VF]W8(n+=rkNV@[`0tEB\"><value name=\"IF0\"><block type=\"button_get_status\" id=\"rzxMo1$lwXsQj8#Xmf%/\"><field name=\"NAME\">BtnA</field><field name=\"OPTION\">isHolding</field></block></value><statement name=\"DO0\"><block type=\"power_shut_down\" id=\"_d{d{Wo[@8l:Wl:CC(M^\"></block></statement><next><block type=\"variables_set\" id=\"ou8ffh.S1z}O4]1tU)xX\"><field name=\"VAR\" id=\"T0s:OzB-Ryasf:oe[Cp;\">data</field><value name=\"VALUE\"><block type=\"i2c_readfrom\" id=\"R1!:Ft4XOXS=hi^|SCl!\"><field name=\"NAME\">0</field><field name=\"STOP\">True</field><value name=\"ADDR\"><shadow type=\"math_number\" id=\"=S|FXj9EUe~gdlr(jhB9\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow><block type=\"variables_get\" id=\"sk%*Ac;evdmTt.Tin:Fe\"><field name=\"VAR\" id=\"t{KSk-V|lh[zMho$E,22\">SA01_ADDR</field></block></value><value name=\"NBYTES\"><shadow type=\"math_number\" id=\"nWXZjx6ff`vE)61GroX_\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">4</field></shadow></value></block></value><next><block type=\"variables_set\" id=\"yqjEo`iZke8:!B$+:p|h\"><field name=\"VAR\" id=\"/9!WMg:DjJ*xY1M1kY:F\">rawWind1</field><value name=\"VALUE\"><block type=\"lists_getIndex\" id=\")KEJk.ic-F]TpE(oTJE|\"><mutation statement=\"false\" at=\"true\"></mutation><field name=\"MODE\">GET</field><field name=\"WHERE\">FROM_START</field><value name=\"VALUE\"><block type=\"variables_get\" id=\"FQ0lgvA!J.41-E7U6DAK\"><field name=\"VAR\" id=\"T0s:OzB-Ryasf:oe[Cp;\">data</field></block></value><value name=\"AT\"><block type=\"math_number\" id=\"Og4SbMI}JoKvQFWk?83N\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></block></value></block></value><next><block type=\"variables_set\" id=\"k0~ZSAs[C*+-vE}A!sOq\"><field name=\"VAR\" id=\"Alf(A1wup;8.$m(1cTq)\">rawWind2</field><value name=\"VALUE\"><block type=\"lists_getIndex\" id=\"miBu%I62G*;dbXx#K,@X\"><mutation statement=\"false\" at=\"true\"></mutation><field name=\"MODE\">GET</field><field name=\"WHERE\">FROM_START</field><value name=\"VALUE\"><block type=\"variables_get\" id=\":Dz6Z.B^.uyR;/eWQVM2\"><field name=\"VAR\" id=\"T0s:OzB-Ryasf:oe[Cp;\">data</field></block></value><value name=\"AT\"><block type=\"math_number\" id=\"M6yf#17VJFpHdr%[JXqc\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">2</field></block></value></block></value><next><block type=\"variables_set\" id=\":`sIh/}b:f1o+Wr-,1d?\"><field name=\"VAR\" id=\"0`hb=s0srh+3IK$9f1Oj\">wind_kmh</field><value name=\"VALUE\"><block type=\"math_arithmetic\" id=\"cZ[MnVRNSPuiIv6de9qY\"><field name=\"OP\">DIVIDE</field><value name=\"A\"><shadow type=\"math_number\" id=\"P60AsT%eysMErf.VFcy=\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"math_arithmetic\" id=\"aAfw969vj#|VoJ=yltU?\"><field name=\"OP\">ADD</field><value name=\"A\"><shadow type=\"math_number\" id=\"nr5Vi|Aj`.}{iv0ogIRH\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"math_arithmetic\" id=\"G8Nix-x3q.iw*b7.b4%5\"><field name=\"OP\">MULTIPLY</field><value name=\"A\"><shadow type=\"math_number\" id=\"U^!~W!m=I7XCj{)OGJ~C\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"variables_get\" id=\"#Es*JOpm0Q48qw[iu%L;\"><field name=\"VAR\" id=\"/9!WMg:DjJ*xY1M1kY:F\">rawWind1</field></block></value><value name=\"B\"><shadow type=\"math_number\" id=\"[)aCh%$S*qIJ31x7QXVt\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">256</field></shadow></value></block></value><value name=\"B\"><shadow type=\"math_number\" id=\"YmI?P}c^fp,[xrw$RMsp\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"variables_get\" id=\"6wkpVy@hq@-HK=/{??Xf\"><field name=\"VAR\" id=\"Alf(A1wup;8.$m(1cTq)\">rawWind2</field></block></value></block></value><value name=\"B\"><shadow type=\"math_number\" id=\"=$yXMt}0V_g^Lk,B98m5\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">10</field></shadow></value></block></value><next><block type=\"lvgl_label_set_text\" id=\"z!1}/Pq^Wd04d!1WmRAb\"><field name=\"NAME\">lblWind</field><value name=\"VALUE\"><shadow type=\"text\" id=\"^ThFKGno=*O{Soj.%Sf~\"><field name=\"TEXT\">20</field></shadow><block type=\"variables_get\" id=\"m-ul0S7kT}qq|i%(ji0l\"><field name=\"VAR\" id=\"0`hb=s0srh+3IK$9f1Oj\">wind_kmh</field></block></value><next><block type=\"lvgl_arc_set_value\" id=\"Bk@-)QcKk+dMR{bP:cYw\"><field name=\"NAME\">dialWind</field><value name=\"VALUE\"><shadow type=\"math_number\" id=\"si,(2ni.W9Cvz?p5GPf~\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">20</field></shadow><block type=\"math_convent_int\" id=\"Xvu$]w~?aAa(LHCkXc]J\"><value name=\"VALUE\"><block type=\"math_round_decimal_place\" id=\"zL%zaIlRTjq?ce8T_obR\"><value name=\"VALUE\"><shadow type=\"math_number\" id=\"KA}N!%BvyP;4kPnEBZKL\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">3.14</field></shadow><block type=\"variables_get\" id=\"LJ$[pxO)7z2~q!m/IGPv\"><field name=\"VAR\" id=\"0`hb=s0srh+3IK$9f1Oj\">wind_kmh</field></block></value><value name=\"QWER\"><shadow type=\"math_number\" id=\"bxj{e]j7Xn)i0$$9xR(.\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value></block></value></block></value><next><block type=\"variables_set\" id=\"~12BUm.kEgyOf}e(#_`v\"><field name=\"VAR\" id=\"jT`yQ0tE#i5ZFLQ27$^p\">rawTemp3</field><value name=\"VALUE\"><block type=\"lists_getIndex\" id=\"iO:h{Uk,AZ~b7r{Zw(_$\"><mutation statement=\"false\" at=\"true\"></mutation><field name=\"MODE\">GET</field><field name=\"WHERE\">FROM_START</field><value name=\"VALUE\"><block type=\"variables_get\" id=\"0AZ?hD}1DrRwD#Kf$eCB\"><field name=\"VAR\" id=\"T0s:OzB-Ryasf:oe[Cp;\">data</field></block></value><value name=\"AT\"><block type=\"math_number\" id=\"36Na7gpSspTs9M2A:y1)\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">3</field></block></value></block></value><next><block type=\"variables_set\" id=\":0;yn]po*!?VogHr#Mj^\"><field name=\"VAR\" id=\";;2((0-]VFW;d(zK4a`z\">rawTemp4</field><value name=\"VALUE\"><block type=\"lists_getIndex\" id=\"RtoT~j5=K:KoHfGoBM5j\"><mutation statement=\"false\" at=\"true\"></mutation><field name=\"MODE\">GET</field><field name=\"WHERE\">FROM_START</field><value name=\"VALUE\"><block type=\"variables_get\" id=\"x6@LjcCYP.U}DJwizbpL\"><field name=\"VAR\" id=\"T0s:OzB-Ryasf:oe[Cp;\">data</field></block></value><value name=\"AT\"><block type=\"math_number\" id=\"L$Fy?nM_%*|D/N+V4@!o\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">4</field></block></value></block></value><next><block type=\"variables_set\" id=\"u+n];]Q*Tl5M@+f9u};E\"><field name=\"VAR\" id=\"@KP.n4]00IbHR+u`S/Ii\">temp_c</field><value name=\"VALUE\"><block type=\"math_arithmetic\" id=\"kuWg;1.M~NX!{1EtTtlc\"><field name=\"OP\">MINUS</field><value name=\"A\"><shadow type=\"math_number\" id=\"lV$8R=?|$kw,Hn14?Xbp\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"math_arithmetic\" id=\"6U9CO;uNP,x3wk@$Sd.K\"><field name=\"OP\">DIVIDE</field><value name=\"A\"><shadow type=\"math_number\" id=\"P60AsT%eysMErf.VFcy=\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"math_arithmetic\" id=\"U/3@:L_RAF0S{w!1!z%?\"><field name=\"OP\">ADD</field><value name=\"A\"><shadow type=\"math_number\" id=\"nr5Vi|Aj`.}{iv0ogIRH\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"math_arithmetic\" id=\"/ktim+ThZh!;]Zm!_k1s\"><field name=\"OP\">MULTIPLY</field><value name=\"A\"><shadow type=\"math_number\" id=\"U^!~W!m=I7XCj{)OGJ~C\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"variables_get\" id=\"t-,6=Gb0~zi:Cmiy%1;#\"><field name=\"VAR\" id=\"jT`yQ0tE#i5ZFLQ27$^p\">rawTemp3</field></block></value><value name=\"B\"><shadow type=\"math_number\" id=\"5:n,I}]nGs*t]LVK/%?9\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">256</field></shadow></value></block></value><value name=\"B\"><shadow type=\"math_number\" id=\"YmI?P}c^fp,[xrw$RMsp\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"variables_get\" id=\"!#UXz@TUhte/aW[mM0Xe\"><field name=\"VAR\" id=\";;2((0-]VFW;d(zK4a`z\">rawTemp4</field></block></value></block></value><value name=\"B\"><shadow type=\"math_number\" id=\"A2Is+E;.X2X14=x{KD^d\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">100</field></shadow></value></block></value><value name=\"B\"><shadow type=\"math_number\" id=\"jtBms}aX?YjFD0vLVg@~\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">40</field></shadow></value></block></value><next><block type=\"variables_set\" id=\"NY6Dq444ove13o_SlmdZ\"><field name=\"VAR\" id=\"@KP.n4]00IbHR+u`S/Ii\">temp_c</field><value name=\"VALUE\"><block type=\"math_convent_int\" id=\"=_8X%lPHZR/|V^LZgh81\"><value name=\"VALUE\"><block type=\"math_round_decimal_place\" id=\"UKs,WE/KFEsNQ+AXR~G2\"><value name=\"VALUE\"><shadow type=\"math_number\" id=\"KA}N!%BvyP;4kPnEBZKL\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">3.14</field></shadow><block type=\"variables_get\" id=\"a6rhqVw)*Ia7Aa0[)!:@\"><field name=\"VAR\" id=\"@KP.n4]00IbHR+u`S/Ii\">temp_c</field></block></value><value name=\"QWER\"><shadow type=\"math_number\" id=\"l|?T:qI/_}Su(3j$0e/l\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value></block></value></block></value><next><block type=\"lvgl_label_set_text\" id=\".LJ;(.32KG*X9]q_1,bm\"><field name=\"NAME\">lblTemp</field><value name=\"VALUE\"><shadow type=\"text\" id=\"^ThFKGno=*O{Soj.%Sf~\"><field name=\"TEXT\">20</field></shadow><block type=\"variables_get\" id=\"w+`4Ouby$[s~;Em67S*b\"><field name=\"VAR\" id=\"@KP.n4]00IbHR+u`S/Ii\">temp_c</field></block></value><next><block type=\"lvgl_arc_set_value\" id=\".iIV|f,A4(,p{fQXmLL*\"><field name=\"NAME\">diallTemp</field><value name=\"VALUE\"><shadow type=\"math_number\" id=\"v@)B{1qF}+USzzM#;J|S\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">20</field></shadow><block type=\"variables_get\" id=\"$a.H5xag}m!iXMbks36,\"><field name=\"VAR\" id=\"@KP.n4]00IbHR+u`S/Ii\">temp_c</field></block></value><next><block type=\"controls_if\" id=\"g#B`-8DxJZ2HYa#qC:}x\"><value name=\"IF0\"><block type=\"rotary_get_status\" id=\"/pukcbwpY[zD9pK3EL3q\"><field name=\"NAME\">rotary</field></block></value><statement name=\"DO0\"><block type=\"math_change\" id=\"xRMcY(SG}ECxG(*O#M_+\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field><value name=\"DELTA\"><shadow type=\"math_number\" id=\"Uiobis8i+u[xg!{m2#s`\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"rotary_get_increments\" id=\"J3fWbTDR9?{9UY3KmLbH\"><field name=\"NAME\">rotary</field></block></value><next><block type=\"controls_if\" id=\"AvUx|B|H|c7zodt3do3m\"><value name=\"IF0\"><block type=\"logic_compare\" id=\"$~8XQDnP4A:FcRIai1=+\"><field name=\"OP\">GT</field><value name=\"A\"><block type=\"variables_get\" id=\"_U?m2exSZa}/xi5#m}]~\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field></block></value><value name=\"B\"><block type=\"math_number\" id=\"sEI-_[/t2Y`d?/4F|4$g\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">100</field></block></value></block></value><statement name=\"DO0\"><block type=\"math_change\" id=\"a,prLe2@4]y!Y0fSELIx\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field><value name=\"DELTA\"><shadow type=\"math_number\" id=\"~$2bcfslI2VY^H27cAHt\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value></block></statement><next><block type=\"lvgl_slider_set_value\" id=\"*2j1qXjPh%9I2NsV[?SS\"><field name=\"NAME\">AlarmSelector</field><value name=\"VALUE\"><shadow type=\"math_number\" id=\"oipl0/SFO-?EelP2_AXI\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow><block type=\"variables_get\" id=\"l}G;1dd2zG,KpA5-_t=S\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field></block></value><next><block type=\"lvgl_label_set_text\" id=\"rHh#c}E5o4=A$9wU+F~z\"><field name=\"NAME\">AlarmNumber</field><value name=\"VALUE\"><shadow type=\"text\" id=\"Be2OGn:jsO+bK02X9baQ\"><field name=\"TEXT\">hello M5</field></shadow><block type=\"variables_get\" id=\"2yGIBM:K^KUT|DTRzzWL\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field></block></value></block></next></block></next></block></next></block></statement><next><block type=\"controls_ifelse\" id=\"p83fia:rO(_xj6,~B|S~\"><value name=\"IF0\"><block type=\"logic_compare\" id=\"a{KaSvj$*rGnL/=P-UN2\"><field name=\"OP\">GT</field><value name=\"A\"><block type=\"variables_get\" id=\"H;=dV~;}3aI%kR/WeS.B\"><field name=\"VAR\" id=\"0`hb=s0srh+3IK$9f1Oj\">wind_kmh</field></block></value><value name=\"B\"><block type=\"variables_get\" id=\"Jj]dO*Li2R[AfM:89`{L\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field></block></value></block></value><statement name=\"DO0\"><block type=\"lvgl_led_set_size\" id=\"0}t{GJdk%^f~R`KsD[+v\"><field name=\"NAME\">AlarmLED</field><value name=\"WIDTH\"><shadow type=\"math_number\" id=\"EQw~$V434+eM9SspnAOW\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">10</field></shadow></value><value name=\"HEIGHT\"><shadow type=\"math_number\" id=\"Hdb,o@(a03EXNI;FH(OC\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">10</field></shadow></value><next><block type=\"lvgl_led_set_state\" id=\"rN-|Yu.|AFl-g%ZL6*D,\"><field name=\"NAME\">AlarmLED</field><field name=\"VALUE\">on</field><next><block type=\"controls_repeat_ext\" id=\"KH[ir-b;6Y-^o),Uqf$(\"><value name=\"TIMES\"><shadow type=\"math_number\" id=\"ZowJxr~!4|8m9p3F?hvE\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">3</field></shadow></value><statement name=\"DO\"><block type=\"speaker_tone\" id=\"IgTqhzH-ml#r0w+nTmp:\"><value name=\"FREQ\"><shadow type=\"math_number\" id=\"h(9]#U|J0qBa)C+Ghm4w\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">5000</field></shadow></value><value name=\"MS\"><shadow type=\"math_number\" id=\"r8)9xb/-3z=*seB@l{,7\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">500</field></shadow></value><next><block type=\"speaker_tone\" id=\"ZEIBFX^AD8~LT9,wTxL7\"><value name=\"FREQ\"><shadow type=\"math_number\" id=\"GjPIBM9P~]-B$UOG5~xj\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">15000</field></shadow></value><value name=\"MS\"><shadow type=\"math_number\" id=\"g]ZYT`^O,{Wze1{DdRZ0\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">500</field></shadow></value></block></next></block></statement></block></next></block></next></block></statement><statement name=\"ELSE\"><block type=\"lvgl_led_set_state\" id=\"bJ2@n3S|W8htEk-bc3i8\"><field name=\"NAME\">AlarmLED</field><field name=\"VALUE\">off</field><next><block type=\"lvgl_led_set_size\" id=\"u{DtRNGZjz[7n_6R?3:f\"><field name=\"NAME\">AlarmLED</field><value name=\"WIDTH\"><shadow type=\"math_number\" id=\"{@RkL*OFa_$^mn~ba,*8\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value><value name=\"HEIGHT\"><shadow type=\"math_number\" id=\"*@|BdrA@5xgdpz.UnBqt\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow></value></block></next></block></statement><next><block type=\"variables_set\" id=\"zbOfb$1a}Dd{.cAlgb9|\"><field name=\"VAR\" id=\"PIfb5!6R33_MLT:tvxq+\">now_ms</field><value name=\"VALUE\"><block type=\"time_get_ticks_ms\" id=\"TYOL$2C@(rk^?Lvs.J$o\"></block></value><next><block type=\"controls_if\" id=\"PODAj%L!S?uUQU*hs?U`\"><value name=\"IF0\"><block type=\"logic_compare\" id=\"I*o)`U{b[Q:kz!Lj4D{z\"><field name=\"OP\">GT</field><value name=\"A\"><block type=\"math_arithmetic\" id=\"a3#w{)fa1,Ds~Y*q#Qxi\"><field name=\"OP\">MINUS</field><value name=\"A\"><shadow type=\"math_number\" id=\"Yx;U0Me9QkWPSS;O1HmG\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"variables_get\" id=\"cH+QF}ChB1DoK1%Xuk*6\"><field name=\"VAR\" id=\"PIfb5!6R33_MLT:tvxq+\">now_ms</field></block></value><value name=\"B\"><shadow type=\"math_number\" id=\"0)P;xrVt;O`c;x(K.)]@\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">1</field></shadow><block type=\"variables_get\" id=\"j=z_,1dPChIWgu13yT;+\"><field name=\"VAR\" id=\"+#F[avKdN?Wb8$5[H61N\">last_min_ms</field></block></value></block></value><value name=\"B\"><block type=\"math_number\" id=\"zfuC?`~o5mbJS6oys8Y6\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">10000</field></block></value></block></value><statement name=\"DO0\"><block type=\"variables_set\" id=\"J!/5q?Wp:9]x!?]Z(Jml\"><field name=\"VAR\" id=\"+#F[avKdN?Wb8$5[H61N\">last_min_ms</field><value name=\"VALUE\"><block type=\"time_get_ticks_ms\" id=\"*46x2!_f_b_H##$:1A]J\"></block></value><next><block type=\"lvgl_chart_set_series_next_value\" id=\"~/_$ENI=14{T6QE=I9W`\"><field name=\"NAME\">History</field><field name=\"SERIES\">speed</field><value name=\"VALUE\"><shadow type=\"math_number\" id=\"sJOH3Pb1knDu)].5Hqh`\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">0</field></shadow><block type=\"math_round\" id=\"7EP%GE,N,607OJu371Z*\"><field name=\"OP\">ROUND</field><value name=\"NUM\"><shadow type=\"math_number\" id=\"~{6Qnns|+SF,84?dQ,7a\" disabled=\"true\"><mutation max=\"Infinity\" min=\"-Infinity\" precision=\"0\"></mutation><field name=\"NUM\">3.1</field></shadow><block type=\"variables_get\" id=\"SSwW*7MIV75Ye{|Eg9z{\"><field name=\"VAR\" id=\"0`hb=s0srh+3IK$9f1Oj\">wind_kmh</field></block></value></block></value></block></next></block></statement><next><block type=\"time_sleep_millisecond\" id=\"[]@[b83q.^{@yO^~zgOH\"><value name=\"MS\"><shadow type=\"math_number\" id=\"oKygrm[$9||UguOz|Y?e\"><mutation max=\"Infinity\" min=\"0\" precision=\"0\"></mutation><field name=\"NUM\">250</field></shadow></value></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></next></block></statement></block><block type=\"lvgl_slider_event\" id=\"gw)BK/nV$^yJMeUXuLPP\" x=\"-909\" y=\"-50\"><field name=\"NAME\">AlarmSelector</field><field name=\"OPTION\">VALUE_CHANGED</field><statement name=\"FUNC\"><block type=\"lvgl_label_set_text\" id=\"G=/B-kK4tq!bj9vIEzT3\"><field name=\"NAME\">AlarmNumber</field><value name=\"VALUE\"><shadow type=\"text\" id=\"f5g@.-Z]CrrY:~R7Ju4y\"><field name=\"TEXT\">hello M5</field></shadow><block type=\"lvgl_slider_get_value\" id=\"{mbd%eNf:xGi;Yg|0Gd#\"><field name=\"NAME\">AlarmSelector</field></block></value><next><block type=\"variables_set\" id=\"vIi9v+1dZbW^exM+3y-L\"><field name=\"VAR\" id=\"2cCv{bbK=bqY_99?=3RN\">alarmHightSpeed</field><value name=\"VALUE\"><block type=\"lvgl_slider_get_value\" id=\"[o@ejU(|00t=~W3s^fZ%\"><field name=\"NAME\">AlarmSelector</field></block></value></block></next></block></statement></block>","screen":[{"simulationName":"Built-in","type":"builtin","width":240,"height":240,"scale":0.9,"screenName":"","blockId":"","screenColorType":0,"id":"builtin","createTime":1770624026272}],"logicWhenNum":0,"customList":[]}
