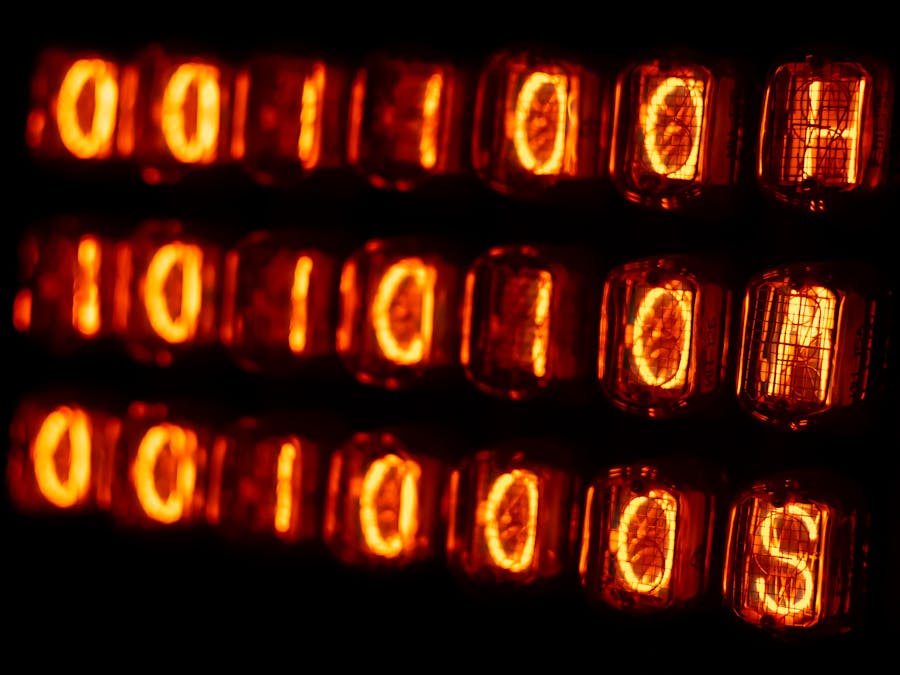

IN-12 IN-15 Big Binary Nixie Clock

Use your Arduino, IN-12 and IN-15 Nixie tubes and build BIG Binary Nixie Clock or Binary Thermometer & Hygrometer.

IntermediateFull instructions provided1.5 hours1,103
IN-12 IN-15 Big Binary Nixie Clock

Things used in this project

Hardware components

IN-12 IN-15 Big Binary Nixie Clock
×1
Arduino UNO
Arduino UNO
×1
Arduino Nano 33 IoT
Arduino Nano 33 IoT
×1
Arduino Nano Every
Arduino Nano Every
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Custom parts and enclosures

Assembly Instruction

How To Read Binary Nixie Clock

Schematics

Schematic - IN-12 IN-15 Big Binary Nixie Clock

Schematic - Nixie Tube Driver V2

Schematic - Nixie Module Power Supply

Code

01-Arduino-Classic-IN12-IN15-Binary-Nixie-Clock

Arduino
// IN-12 & IN-15 Binary Nixie Clock by Marcin Saj https://nixietester.com
// https://github.com/marcinsaj/IN12-IN15-Binary-Nixie-Clock
//
// Classic IN-12 & IN-15 Binary Nixie Clock Example
//
// This example demonstrates how to set the RTC time, read time from RTC and display on nixie tubes.
// Serial monitor is required to display basic options.
//
// Hardware:
// IN-12 & IN-15 Binary Nixie Clock - https://nixietester.com/project/in12-in15-binary-nixie-clock/
// Arduino Classic e.g. Uno, Leonardo, Zero
// Or Arduino Micro - https://store.arduino.cc/arduino-micro
// Or Arduino Nano - https://store.arduino.cc/arduino-nano
// Or Arduino Nano Every - https://store.arduino.cc/arduino-nano-every
// Or Arduino Nano IoT 33 - https://store.arduino.cc/arduino-nano-33-iot
// 2 x Nixie Power Supply Module, 2 x Nixie Tube Driver V2 & RTC DS3231 module
// Nixie clock require 12V, 1.5A power supply
// Schematic IN-12 & IN-15 Binary Nixie Clock - http://bit.ly/IN12-BNC-Schematic
// Schematic Nixie Tube Driver V2 - http://bit.ly/NTD-Schematic
// Schematic Nixie Power Supply Module - http://bit.ly/NPS-Schematic
// DS3231 RTC datasheet: https://datasheets.maximintegrated.com/en/ds/DS3231.pdf

#include <RTClib.h>          // https://github.com/adafruit/RTClib

#define EN_NPS    A0
#define DIN_PIN   6          // Nixie driver (shift register) serial data input pin
#define CLK_PIN   7          // Nixie driver clock input pin
#define EN_PIN    8          // Nixie driver enable input pin

// Choose Time Format
#define hourFormat    12     // 12 Hour Clock or 24 Hour Clock

// Bit numbers declaration for nixie tubes display
//            1   2   4   8  16  32
byte H1[] = {40, 42, 15, 17, 19, 21};     // "1" Hours
byte H0[] = {39, 41, 14, 16, 18, 20};     // "0" Hours
byte M1[] = {34, 30, 24, 11,  9,  7};     // "1" Minutes
byte M0[] = {35, 31, 25, 10,  8,  6};     // "0" Minutes
byte S1[] = {32, 28, 26,  5,  3,  1};     // "1" Seconds
byte S0[] = {33, 29, 27,  4,  2,  0};     // "0" Seconds

// 18 bits for "1", 18 bits for "0" - check clock schematic
// 3 bits for "H", "M", "S" symbols
// 5 bits for gaps - nixie drivers not connected outputs
// 2 bits for nixie driver gaps - check driver schematic

// Nixie Display bit array
boolean nixieBitArray[46];

byte H = 38; // Bit number "H" symbol IN-15B nixie tube
byte M = 37; // Bit number "M" symbol IN-15A nixie tube
byte S = 36; // Bit number "S" symbol IN-15B nixie tube

// Serial monitor state
boolean serialState = 0;

// Millis delay time variable
unsigned long previous_millis = 0;

// RTC library declaration
RTC_DS3231 rtc;


void setup()
{
  Serial.begin(9600);
  rtc.begin();
  delay(5000);

  pinMode(EN_NPS, OUTPUT);
  digitalWrite(EN_NPS, HIGH);   // Turn OFF nixie power supply module

  pinMode(DIN_PIN, OUTPUT);
  digitalWrite(DIN_PIN, LOW);

  pinMode(CLK_PIN, OUTPUT);
  digitalWrite(CLK_PIN, LOW);

  pinMode(EN_PIN, OUTPUT);
  digitalWrite(EN_PIN, LOW);

  Serial.println("#############################################################");
  Serial.println("-------------- IN-12 & IN15 Binary Nixie Clock --------------");
  Serial.println("---------------- If you want to set new Time ----------------");
  Serial.println("--------------- press ENTER within 10 seconds ---------------");

  // Millis time start
  unsigned long millis_time_now = millis();
  unsigned long millis_time_now_2 = millis();

  // Wait 5 seconds
  while((millis() < millis_time_now + 10000))
  {
    // Print progress bar
    if (millis() - millis_time_now_2 > 160)
    {
      Serial.print("#");
      millis_time_now_2 = millis();
    }

    // Set serialState flag if time settings have been selected
    if(Serial.available() > 0)
    {
      serialState = 1;
      break;
    }
  }

  Serial.println('\n');

  // Clear serial buffer
  while(Serial.available())
  Serial.read();

  if(serialState == 0)
  {
    // Turn on the nixie power module if settings have not been selected
    digitalWrite(EN_NPS, LOW);
  }
}

void loop ()
{
  // Set a new time if settings have been selected
  if(serialState == 1)
  {
    SetNewTime();
    serialState = 0;

    // Turn ON nixie power supply module
    digitalWrite(EN_NPS, LOW);
  }

  // Millis time start
  unsigned long current_millis = millis();

  // Wait 1 second
  if(current_millis - previous_millis >= 1000)
  {
    previous_millis = current_millis;

    // Get time from RTC and display on nixie tubes
    DisplayTime();
  }
}

void SetNewTime()
{
  Serial.println("------ Enter the TIME without spaces in the HHMM format ------");
  Serial.println("- and press enter when you are ready to send data to the RTC -");
  Serial.println('\n');

  // Clear serial buffer
  while(Serial.available())
  Serial.read();

  // Wait for the values
  while (!Serial.available()) {}

  // Read time as an integer value
  int hhmm_time = Serial.parseInt();

  // Extract minutes and hours
  byte timeSecond = 0;
  byte timeMinute = (hhmm_time / 1) % 100;
  byte timeHour   = (hhmm_time / 100) % 100;

  rtc.adjust(DateTime(0, 0, 0, timeHour, timeMinute, 0));
}

void DisplayTime()
{
  DateTime now = rtc.now();

  byte timeHour = now.hour();
  byte timeFormat = hourFormat;

  // Check time format and adjust
  if(timeFormat == 12 && timeHour > 12) timeHour = timeHour - 12;
  if(timeFormat == 12 && timeHour == 0) timeHour = 12;

  byte timeMinute = now.minute();
  byte timeSecond = now.second();

  Serial.print("Time: ");
  if(timeHour < 10)   Serial.print("0");
  Serial.print(timeHour);
  Serial.print(":");
  if(timeMinute < 10) Serial.print("0");
  Serial.print(timeMinute);
  Serial.print(":");
  if(timeSecond < 10) Serial.print("0");
  Serial.println(timeSecond);

  NixieDisplay(timeHour, timeMinute, timeSecond);
}

void NixieDisplay(byte hours, byte minutes, byte seconds)
{
  boolean bitTime = 0;

  for (int i = 0; i <= 45; i++)
  {
    // Clear bit array
    nixieBitArray[i] = 0;
  }

  nixieBitArray[H] = 1;                           // Turn ON "H" symbol IN-15B nixie tube
  nixieBitArray[M] = 1;                           // Turn ON "M" symbol IN-15A nixie tube
  nixieBitArray[S] = 1;                           // Turn ON "S" symbol IN-15B nixie tube

  for(int i = 0; i < 6; i++)
  {
    bitTime = hours & B00000001;                  // Extraction of individual bits 0/1
    hours = hours >> 1;                           // Bit shift

    if(bitTime == 1) nixieBitArray[H1[i]] = 1;    // Set corresponding bit
    else nixieBitArray[H0[i]] = 1;

    bitTime = minutes & B00000001;                // Extraction of individual bits 0/1
    minutes = minutes >> 1;                       // Bit shift

    if(bitTime == 1) nixieBitArray[M1[i]] = 1;    // Set corresponding bit
    else nixieBitArray[M0[i]] = 1;

    bitTime = seconds & B00000001;                // Extraction of individual bits 0/1
    seconds = seconds >> 1;                       // Bit shift

    if(bitTime == 1) nixieBitArray[S1[i]] = 1;    // Set corresponding bit
    else nixieBitArray[S0[i]] = 1;
  }

  ShiftOutData();
}

void ShiftOutData()
{
  // Ground EN pin and hold low for as long as you are transmitting
  digitalWrite(EN_PIN, 0);
  // Clear everything out just in case to
  // prepare shift register for bit shifting
  digitalWrite(DIN_PIN, 0);
  digitalWrite(CLK_PIN, 0);

  // Send data to the nixie drivers
  for (int i = 45; i >= 0; i--)
  {
    // Send current bit
    if(nixieBitArray[i] == 1) digitalWrite(DIN_PIN, HIGH);
    else digitalWrite(DIN_PIN, LOW);
    // Register shifts bits on upstroke of CLK pin
    digitalWrite(CLK_PIN, 1);
    // Set low the data pin after shift to prevent bleed through
    digitalWrite(CLK_PIN, 0);
  }

  // Return the EN pin high to signal chip that it
  // no longer needs to listen for data
  digitalWrite(EN_PIN, 1);

  // Stop shifting
  digitalWrite(CLK_PIN, 0);
}

02-Arduino-NTP-IN12-IN15-Binary-Nixie-Clock

Arduino
// IN-12 & IN-15 Binary Nixie Clock by Marcin Saj https://nixietester.com
// https://github.com/marcinsaj/IN12-IN15-Binary-Nixie-Clock
//
// NTP IN-12 & IN-15 Binary Nixie Clock Example
//
// This example demonstrates how to connect clock to WiFi and
// synchronizing (ones per day) RTC DS3231 time module with NTP time server
//
// Serial monitor is required to debug synchronization
//
// Hardware:
// WiFi signal
// IN-12 & IN-15 Binary Nixie Clock - https://nixietester.com/project/in12-in15-binary-nixie-clock/
// Arduino Nano IoT 33 - https://store.arduino.cc/arduino-nano-33-iot
// 2 X Nixie Power Supply Module, 2 x Nixie Tube Driver V2 & RTC DS3231 module
// Nixie clock require 12V, 1.5A power supply
// Schematic IN-12 & IN-15 Binary Nixie Clock - http://bit.ly/IN2-BNC-Schematic
// Schematic Nixie Tube Driver V2 - http://bit.ly/NTD-Schematic
// Schematic Nixie Power Supply Module - http://bit.ly/NPS-Schematic
// DS3231 RTC datasheet: https://datasheets.maximintegrated.com/en/ds/DS3231.pdf

#include <RTClib.h>                       // https://github.com/adafruit/RTClib
#include <WiFiNINA.h>
#include <WiFiUdp.h>
#include <RTCZero.h>
#include "arduino_secrets.h"              // Please enter your sensitive data in the Secret tab/arduino_secrets.h

const int timeZone = 1;                   // Change this to adapt it to your time zone
                                          // https://en.wikipedia.org/wiki/List_of_time_zones_by_country

char ssid[] = SECRET_SSID;                // Your network SSID (name)
char pass[] = SECRET_PASS;                // Your network password (use for WPA, or use as key for WEP)
int keyIndex = 0;                         // Your network key Index number (needed only for WEP)

int status = WL_IDLE_STATUS;

unsigned long epochTime;
int numberOfTries = 0, maxTries = 30;

#define timeToSynchronizeTime 3           // Each day at 3AM, the RTC DS3231 time will be synchronize with WIFI time
boolean timeToSynchronizeTimeFlag = 0;

int timeHour = 0;
int timeMinute = 0;
int timeSecond = 0;

RTC_DS3231 rtcModule;                     // RTC module library declaration
RTCZero rtc;                              // Arduino Nano Every and IoT 33 have built in RTC
                                          // this RTC is used by the WiFiNINA.h library
                                          // But for timekeeping we will use DS3231 RTC module because is more accurate

#define EN_NPS    A0
#define DIN_PIN   6          // Nixie driver (shift register) serial data input pin
#define CLK_PIN   7          // Nixie driver clock input pin
#define EN_PIN    8          // Nixie driver enable input pin

// Choose Time Format
#define hourFormat    12     // 12 Hour Clock or 24 Hour Clock

// Bit numbers declaration for nixie tubes display
//            1   2   4   8  16  32
byte H1[] = {40, 42, 15, 17, 19, 21};     // "1" Hours
byte H0[] = {39, 41, 14, 16, 18, 20};     // "0" Hours
byte M1[] = {34, 30, 24, 11,  9,  7};     // "1" Minutes
byte M0[] = {35, 31, 25, 10,  8,  6};     // "0" Minutes
byte S1[] = {32, 28, 26,  5,  3,  1};     // "1" Seconds
byte S0[] = {33, 29, 27,  4,  2,  0};     // "0" Seconds

// 18 bits for "1", 18 bits for "0" - check clock schematic
// 3 bits for "H", "M", "S" symbols
// 5 bits for gaps - nixie drivers not connected outputs
// 2 bits for nixie driver gaps - check driver schematic

// Nixie Display bit array
boolean nixieBitArray[46];

byte H = 38; // Bit number "H" symbol IN-15B nixie tube
byte M = 37; // Bit number "M" symbol IN-15A nixie tube
byte S = 36; // Bit number "S" symbol IN-15B nixie tube

// Serial monitor state
boolean serialState = 0;

// Millis delay time variable
unsigned long previous_millis = 0;
unsigned long current_millis = 0;


void setup()
{
  Serial.begin(9600);
  rtc.begin();
  rtcModule.begin();

  pinMode(EN_NPS, OUTPUT);
  digitalWrite(EN_NPS, HIGH);   // Turn OFF nixie power supply module

  pinMode(DIN_PIN, OUTPUT);
  digitalWrite(DIN_PIN, LOW);

  pinMode(CLK_PIN, OUTPUT);
  digitalWrite(CLK_PIN, LOW);

  pinMode(EN_PIN, OUTPUT);
  digitalWrite(EN_PIN, LOW);

  delay(5000);

  Serial.println("#############################################################");
  Serial.println("----------- IN-12 & IN-15 NTP Binary Nixie Clock ------------");
  Serial.println("#############################################################");
  Serial.println();

  SynchronizeTimeWiFi();        // Try to connect to WiFi and synchronize time

  digitalWrite(EN_NPS, LOW);    // Turn ON nixie power supply module
}


void loop()
{
  // Check if it's time to synchronize the time
  if(timeToSynchronizeTimeFlag == 1)
  {
    SynchronizeTimeWiFi();
  }

  // Millis time start
  current_millis = millis();

  // Wait 1 second
  if(current_millis - previous_millis >= 1000)
  {
    // Get time from RTC and display on nixie tubes
    DisplayTime();
    previous_millis = current_millis;
  }
}

void SynchronizeTimeWiFi()
{
  int i  = 0;

  // Try connecting to the WiFi up to 5 times
  while ((status != WL_CONNECTED) && i < 5)
  {
    Serial.println();
    Serial.print("Attempting to connect to SSID: ");
    Serial.println(ssid);

    // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
    status = WiFi.begin(ssid, pass);

    // Wait 10 seconds for connection, print progress bar
    int progressBar = 0;

    while(progressBar <= 60)
    {
      Serial.print("#");
      delay(165);
      progressBar++;
    }

    i++;
  }

  Serial.println();

  if(status == WL_CONNECTED)
  {
    Serial.println("You are connected to WiFi!");

    // Attempt to WiFi time synchronization
    GetTimeWiFi();
  }
  else if (status != WL_CONNECTED)
  {
    Serial.println("The WiFi connection failed");
    Serial.println("Check your WIFI connection and credentials");
    Serial.println("Next attempt to connect in 24 hours");
  }

  timeToSynchronizeTimeFlag = 0;
  PrintWiFiStatus();
}

void GetTimeWiFi()
{
  do
  {
    epochTime = WiFi.getTime();
    numberOfTries++;
  }
  while ((epochTime == 0) && (numberOfTries < maxTries));

  if (numberOfTries == maxTries)
  {
    Serial.println("Time synchronization is failed");
    Serial.println("Next attempt to synchronize time in 24 hours");
    Serial.println();
    delay(3000);
  }
  else
  {
    Serial.println("Time synchronization succeeded!");
    Serial.println();
    rtc.setEpoch(epochTime);

    timeHour = rtc.getHours() + timeZone;

    if(timeHour < 0)
    {
      timeHour = 24 + timeHour;
    }

    if(timeHour > 23)
    {
      timeHour = timeHour - 24;
    }

    timeMinute = rtc.getMinutes();
    timeSecond = rtc.getSeconds();

    // Update RTC DS3231 module
    rtcModule.adjust(DateTime(0, 0, 0, timeHour, timeMinute, timeSecond));
  }
}

void PrintWiFiStatus()
{
  // print the SSID of the network you're attached to:
  Serial.print("SSID: ");
  Serial.println(WiFi.SSID());

  // print your WiFi shield's IP address:
  IPAddress ip = WiFi.localIP();
  Serial.print("IP Address: ");
  Serial.println(ip);

  // print the received signal strength:
  long rssi = WiFi.RSSI();
  Serial.print("Signal strength (RSSI):");
  Serial.print(rssi);
  Serial.println(" dBm");
  Serial.println();
}

void DisplayTime()
{
  DateTime now = rtcModule.now();

  timeSecond = now.second();
  timeMinute = now.minute();
  timeHour = now.hour();

  if(timeHour == timeToSynchronizeTime && timeMinute == 0 && timeSecond == 0)
  {
    timeToSynchronizeTimeFlag = 1;
  }

  byte timeFormat = hourFormat;

  // Check time format and adjust
  if(timeFormat == 12 && timeHour > 12) timeHour = timeHour - 12;
  if(timeFormat == 12 && timeHour == 0) timeHour = 12;

  Serial.print("Time: ");
  if(timeHour < 10)   Serial.print("0");
  Serial.print(timeHour);
  Serial.print(":");
  if(timeMinute < 10) Serial.print("0");
  Serial.print(timeMinute);
  Serial.print(":");
  if(timeSecond < 10) Serial.print("0");
  Serial.println(timeSecond);

  NixieDisplay(timeHour, timeMinute, timeSecond);
}

void NixieDisplay(byte hours, byte minutes, byte seconds)
{
  boolean bitTime = 0;

  for (int i = 0; i <=45; i++)
  {
    // Clear bit array
    nixieBitArray[i] = 0;
  }

  nixieBitArray[H] = 1;                           // Turn ON "H" symbol IN-15B nixie tube
  nixieBitArray[M] = 1;                           // Turn ON "M" symbol IN-15A nixie tube
  nixieBitArray[S] = 1;                           // Turn ON "S" symbol IN-15B nixie tube

  for(int i = 0; i < 6; i++)
  {
    bitTime = hours & B00000001;                  // Extraction of individual bits 0/1
    hours = hours >> 1;                           // Bit shift

    if(bitTime == 1) nixieBitArray[H1[i]] = 1;    // Set corresponding bit
    else nixieBitArray[H0[i]] = 1;

    bitTime = minutes & B00000001;                // Extraction of individual bits 0/1
    minutes = minutes >> 1;                       // Bit shift

    if(bitTime == 1) nixieBitArray[M1[i]] = 1;    // Set corresponding bit
    else nixieBitArray[M0[i]] = 1;

    bitTime = seconds & B00000001;                // Extraction of individual bits 0/1
    seconds = seconds >> 1;                       // Bit shift

    if(bitTime == 1) nixieBitArray[S1[i]] = 1;    // Set corresponding bit
    else nixieBitArray[S0[i]] = 1;
  }

  ShiftOutData();
}

void ShiftOutData()
{
  // Ground EN pin and hold low for as long as you are transmitting
  digitalWrite(EN_PIN, 0);
  // Clear everything out just in case to
  // prepare shift register for bit shifting
  digitalWrite(DIN_PIN, 0);
  digitalWrite(CLK_PIN, 0);

  // Send data to the nixie drivers
  for (int i = 45; i >= 0; i--)
  {
    // Send current bit
    if(nixieBitArray[i] == 1) digitalWrite(DIN_PIN, HIGH);
    else digitalWrite(DIN_PIN, LOW);
    // Register shifts bits on upstroke of CLK pin
    digitalWrite(CLK_PIN, 1);
    // Set low the data pin after shift to prevent bleed through
    digitalWrite(CLK_PIN, 0);
  }

  // Return the EN pin high to signal chip that it
  // no longer needs to listen for data
  digitalWrite(EN_PIN, 1);

  // Stop shifting
  digitalWrite(CLK_PIN, 0);
}

arduino_secrets.h

Arduino
Credentials for wifi connection
#define SECRET_SSID "type here your wifi network name"
#define SECRET_PASS "type here your wifi password"

GitHub Repository

Credits

Marcin Saj
28 projects • 29 followers
I am currently involved in the development of the Flipo.io and NixieTester.com project.

Comments
