1、Login datacake or Create Account
2、Click “Add Device”
3、Select LoRaWAN and click “Next”
4、Select a Product based on your needs, take "Create new empty product" as an example.
5、Select “Datacake LNS”
6、Enter DEVEUI、APPEUI、APPKEY、FREQUENCY and DEVICE CLASS.
7、Choose the type according to your needs, and click “Add 1 device”.
8、Click to go to the device you just added.
9、Click “Configuration”, enter Decoder and click “Save”.
10、Follow the steps to add a field.
11、Press RST button, wait until the sensor connects to the gateway successfully, you will see the data the sensor is currently reading.

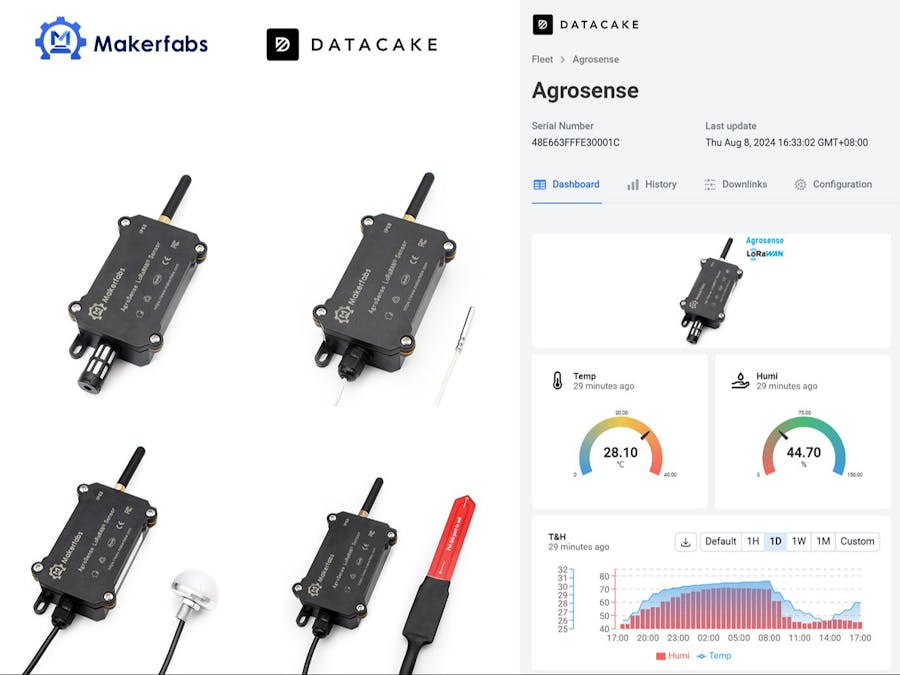

12、To get a better look at the data, we can add widget.
Click “Dashboard-->switch-->+ Add Widget”.
13、Select “Value” and set Title, Field and presentation form as well as the interval color
14、Select Chart and set Title, Field, Kind, Line Thickness and click “save”.
15、Select Device Fields, check “Fields” and click “Save”.
16、Click the switch to save, and you can see the data visually.
