A quick P-MOS MOSFET Driver Board

Introduction

A driver is needed to switch a P-Channel MOSFET because the gate of a P-Channel MOSFET needs to be driven to a voltage that is more negative than the source in order to turn it on. This can be difficult to do with low-voltage logic, such as 5V or 3.3V. A driver can provide the necessary voltage and current to turn on the P-Channel MOSFET, even when the logic voltage is low.

Here are some of the benefits of using a driver to switch a P-Channel MOSFET:

Increased switching speed: A driver can provide the necessary current to charge and discharge the gate capacitance of the P-Channel MOSFET quickly, which results in faster switching speeds.
Reduced power consumption: A driver can help to reduce power consumption by providing the necessary current in a short pulse, rather than a continuous stream of current.
Improved noise immunity: A driver can help to improve noise immunity by providing a clean and isolated signal to the gate of the P-Channel MOSFET.

If you are using a P-Channel MOSFET in your circuit, it is a good idea to use a driver to switch it. This will help to ensure that the MOSFET is switched quickly and efficiently and that it is protected from noise.

Here are some of the different types of drivers that can be used to switch P-Channel MOSFETs:

Logic level drivers: These drivers are designed to work with low-voltage logic, such as 5V or 3.3V. They typically have a high output voltage, which can be used to drive the gate of a P-Channel MOSFET.
High-side drivers: These drivers are designed to provide a high voltage to the gate of a P-Channel MOSFET. They are often used in circuits where the P-Channel MOSFET is used to switch a high-voltage rail.
Isolated drivers: These drivers provide an isolated signal to the gate of the P-Channel MOSFET. This is useful in circuits where it is important to prevent noise from entering the circuit.

Why did I decide to design this prototype?

The Story behind the prototype

This driver PCB is part of a solution for a project involving a set of 6v LED lights.Each of the LED lights requires +/- 300mA @ 6v to operate efficiently.I want to control these from a Microcontroller, either an ESP32 or even the XIAO RP2040 or similar. The current sink capability of an individual GPIO pin on these microcontrollers is limited, in the case of the RP2040 it is limited to 3mA per pin.

This prototype is an attempt to test out some basic driver ideas that might perform correctly for my particular needs, being

To stay within the limitations of the particular microcontroller GPIO current specifications
To be able to use any of the particular microcontrollers, without having to design a specific solution tailored to a specific device

The Schematic

I decided to keep things extremely simple to start with, using a very simple circuit consisting of only 4 components per channel. These are :– an S9013 NPN BJT Transistor, capable of switching up to 500mA of current– a SI2301 P-Channel Logic Level MOSFET, capable of switching up to 2.3A – 10k pullup-resitor– 1k resistor on the base of the BJT

The theory of operation is as follows:The pullup resistor, R8, keeps the gate of the MOSFET (Q4) positive, thus ensuring that Q4 stays turned off when T4 is turned off. A HIGH signal at B4 will turn on T4, which will in turn pull the gate of Q4 to ground, turning Q4 on in the process. That will in turn turn on the load ( connected at 4+ and 4- ).

It is important to note here that the value of R8, 10K at the moment, is not finalised, and may change to increase the performance of the circuit.

The PCB

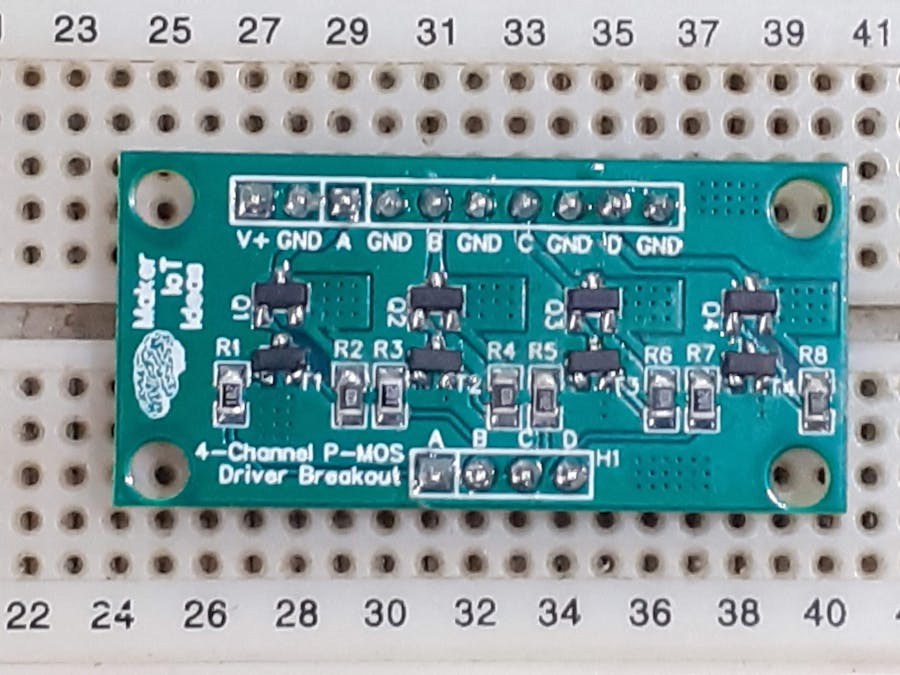

The board was made to fit on a standard breadboard or be used as a standalone module, depending on the position of the male header pins.

Manufacturing

I choose PCBWay for my PCB manufacturing.This month, PCBWay is also celebrating its 9th anniversary, and that means that there are quite a lot of very special offers available.

Why? What makes them different from the rest?PCBWay‘s business goal is to be the most professional PCB manufacturer for prototyping and low-volume production work in the world. With more than a decade in the business, they are committed to meeting the needs of their customers from different industries in terms of quality, delivery, cost-effectiveness and any other demanding requests. As one of the most experienced PCB manufacturers and SMT Assemblers in China, they pride themselves to be our (the Makers) best business partners, as well as good friends in every aspect of our PCB manufacturing needs. They strive to make our R&D work easy and hassle-free.How do they do that?PCBWay is NOT a broker. That means that they do all manufacturing and assembly themselves, cutting out all the middlemen, and saving us money.PCBWay’s online quoting system gives a very detailed and accurate picture of all costs upfront, including components and assembly costs. This saves a lot of time and hassle.

PCBWay gives you one-on-one customer support, that answers you in 5 minutes ( from the Website chat ), or by email within a few hours ( from your personal account manager). Issues are really resolved very quickly, not that there are many anyway, but, as we are all human, it is nice to know that when a gremlin rears its head, you have someone to talk to that will do his/her best to resolve your issue as soon as possible.

Find out more here

Assembly

The assembly of the PCB does not require any special tools, and can be done completely by hand if you choose. A very fine-tipped soldering iron should be perfect. I chose to go the hot-air and solder-paste route, as it is faster, and looks neater in the end. The use of a stencil was not required.The total assembly took about 5 minutes in total.

Testing

Testing the completed PCB module was performed with one of the LED light modules connected to each MOSFET Channel in turn, and then applying a voltage signal, or ground, to the control pin ( marked A to D on the picture above)

That was followed by connecting an Oscilloscope and Signal Generator to the control pins, as well as the outputs, and observing the waveforms during operation. A square wave output from the signal generator provided the switching signal.

Conclusion

The module works as expected, but the pullup resistor value needs to be fine-tuned to provide a better switching response on the MOSFET at high frequency.I am however happy with the initial performance, and can now move on to improving the circuit to perform to my specifications.

Code

No code Required - A general use description follows

NO Code Required
This is a hardware component.
Switching is done with applying a voltage signal ( 3.3v or 5v ) on PIN A to D
This can be done in a similar way as you would switch an LED

What follows is a description of how to connect and use this module

The LOAD is connected on the 10 way header, with 4 channels
A + GND
B + GND
C + GND
D + GND

With A,B,C,D being the positive lead of the load.
Vcc (3.3v up to 20v DC MAX) is connected to the VCC pin, and Ground to the GND pin

You can now switch the load by applying a voltage signal at the relevant control pin ( 4 pins on the bottom, marked A to D )

It is recommened that you add an external 10k pulldown resistor to ground on each of these, so as to prevent unwanted switching of the load.
