Open-Source Wax RepRap 3-D Printer for Rapid Prototyping Pap

Deutsch, español, français, Hausa, Igbo, Bahasa Indonesia, italiano, Kiswahili, Kreyòl ayisyen, Malagasy, Bahasa Melayu, português, русский, Soomaaliga, Tagalog, Việt, Türkçe, Yorùbá, தமிழ், नेपाली, 中文, اردو, 한국어, 日本語,العربية ,فارسی ,עִברִית हिन्दी, ไทย, বাংলা, తెలుగు, ગુજરાતી, ລາວ, ਪੰਜਾਬੀ, සිංහල

By Michigan Tech's Open Sustainability Technology Lab

The most up to date information can be found on this project's Appropedia page

Source

• J. M. Pearce, N. C. Anzalone, and C. L. Heldt. Open-source Wax RepRap 3-D Printer for Rapid Prototyping Paper-Based Microfluidics, Journal of Laboratory Automation21(4) 510–516 (2016). DOI: http://dx.doi.org/10.1177/2211068215624408 open access

• This project derived from: MOST Prusa RepRap Build it!

• STL files for 3D printing and OpenSCAD files for editing

• Open Source Software:Franklin

• Example clover print [1]

Abstract

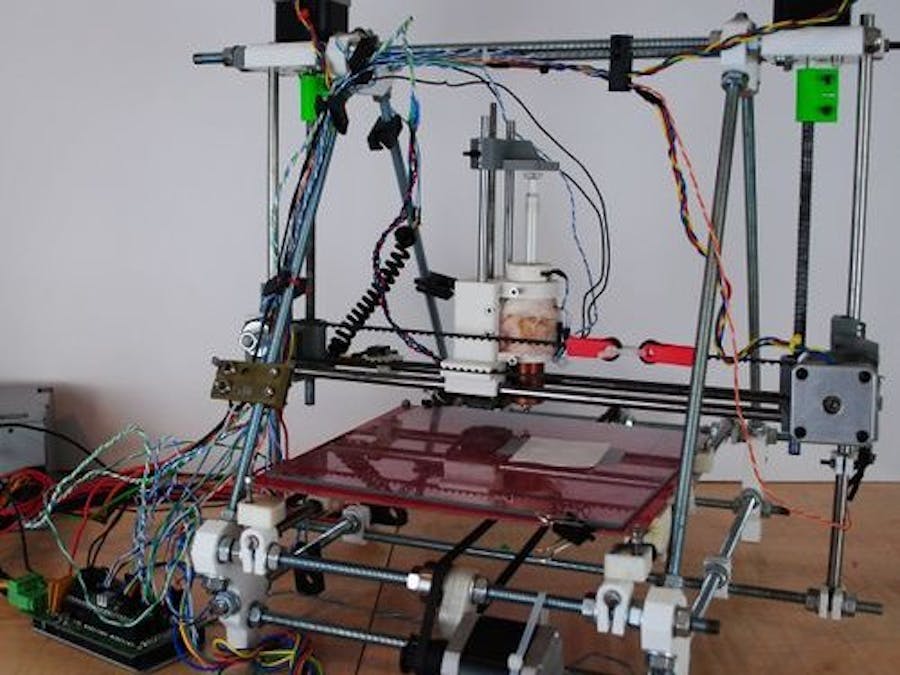

The open-source release of self-replicating rapid prototypers (RepRaps), has created a rich opportunity for low-cost distributed digital fabrication of complex three dimensional objects such as scientific equipment. For example, 3-D printable reactionware devices offer the opportunity to combine open hardware microfluidic handling with lab on a chip reactionware to radically reduce costs and increase the number and complexity of microfluidic applications. To further drive down the cost while improving the performance of lab-on-a-chip paper-based microfluidic prototyping this study reports on the development of a RepRap upgrade capable of converting a Prusa Mendel RepRap into a wax 3-D printer for paper-based microfluidic applications. An open-source hardware approach is used to demonstrate a 3-D printable upgrade for the 3-D printer, which combines a heated syringe pump with the RepRap/Arduino 3-D control. The bill of materials, designs, basic assembly and use instructions are provided along with a completely free and open source software tool chain. The open source hardware device described here accelerates the potential of the nascent field of electrochemical detection combined with paper-based microfluidics by dropping the marginal cost of prototyping to nearly zero while accelerating the turnover between paper-based microfluidic designs.

Keywords

3-D printing, wax,paper-based microfluidics,lab-on-a-chip,electrochemical detection

BOM

Assembly

Refer to paper for overall details.

Prepare components

• File:Prep syringe retainer.odt

• File:Prep carriage.odt

• File:Prep motor assembly.odt

• File:Prep syringe carriage.odt

Assemble

• File:Carriage.odt

• File:Threaded rod.odt

• File:Motor.odt

• File:Finish wax.odt

Use

To use follow more general instructions here: Open source syringe pump 3-D printer and use open-source Franklin software
