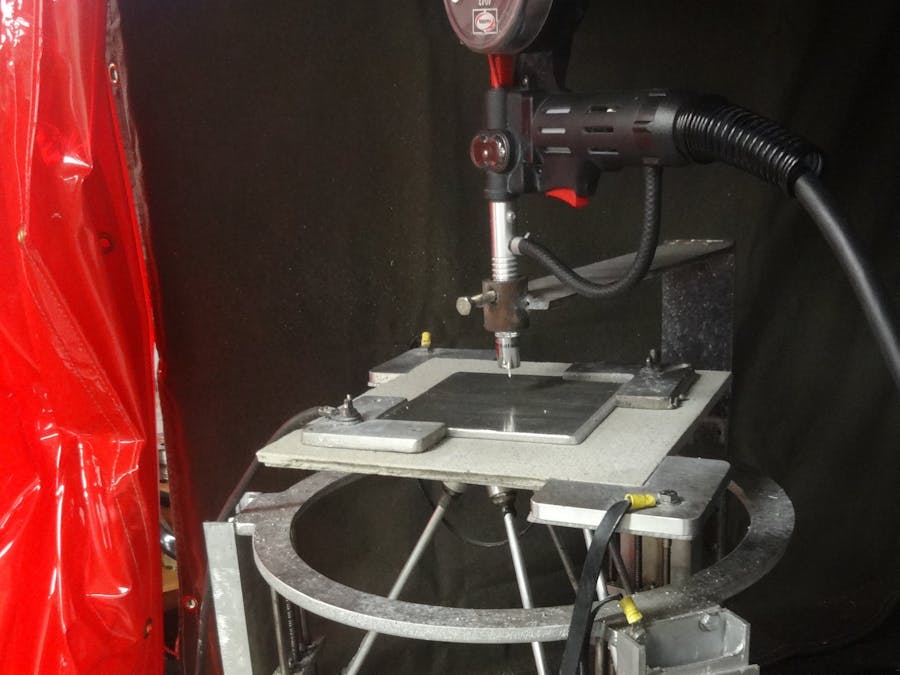

GMAW Magnetic Ball-Jointed Open Source 3-D Printer

Deutsch, español,français,Hausa,Igbo,Bahasa Indonesia,italiano,Kiswahili,Kreyòl ayisyen,Malagasy,Bahasa Melayu,português,русский,Soomaaliga,Tagalog,Việt,Türkçe,Yorùbá,தமிழ்,नेपाली,中文,اردو,한국어,日本語,العربية,فارسی,עִברִית,हिन्दी,ไทย,বাংলা,తెలుగు,ગુજરાતી,ລາວ,ਪੰਜਾਬੀ,සිංහල

By Michigan Tech's Open Sustainability Technology Lab

Themostuptodateinformationcanbefoundonthisproject'sAppropediapage

Source

• Yuenyong Nilsiam, Amberlee Haselhuhn, Bas Wijnen, Paul Sanders, & Joshua M. Pearce. Integrated Voltage - Current Monitoring and Control of Gas Metal Arc Weld Magnetic Ball-Jointed Open Source 3-D Printer.Machines3(4), 339-351 (2015). doi:10.3390/machines3040339 open access

• Full hardware source available at: https://osf.io/ytvgm/ (includes CADs, BOM and STls)

• Full source code for voltage and current data processing available at: MOST-Voltage-Current-Data-Processor (*.m for MATLAB or Octave)

• 3D Metal Printing Slicer Plugin

• Franklin firmware

• Slicer and process improvements for open-source GMAW-based metal 3-D printing

Abstract

To provide process optimization of metal fabricating self-replicating rapid prototyper (RepRap) 3-D printers requires a low-cost sensor and data logger system to measure current (I) and voltage (V) of the gas metal arc welders (GMAW). This paper builds on previous open-source hardware development to provide a real-time measurement of welder I-V where the measuring circuit is connected to two analog inputs of the Arduino that is used to control the 3-D printer itself. Franklin firmware accessed through a web interface that is used to control the printer allows storing the measured values and downloading those stored readings to the user’s computer. To test this custom current and voltage monitoring device this study reports on its use on an upgraded all metal RepRap during the printing of aluminum alloy (ER1100, ER4043, ER4943, ER4047, and ER5356). The voltage and current data were analyzed on a per alloy basis and also layer-by-layer in order to evaluate the device’s efficacy as a monitoring device for 3-D printing and the results of the integrated design are discussed.

Keywords

3-D printing,gas metal arc weld, GMAW, metal inert gas welding, MIG welding,power monitoring, additive manufacturing; data logging; metal printing; open-source hardware; quality control; RepRap; welder; welding
