AI-controlled GPIO — Talk to your Kode Dot

AI-controlled GPIO — Talk to your Kode Dot

What you get?

Thanks to kodeOS, you have two ways to try this:

• Install the ready-made app on your Kode Dot — no setup, just grab and go.
• Download the PlatformIO source and play with it: tweak prompts, add actions, or extend the UI.

Overview

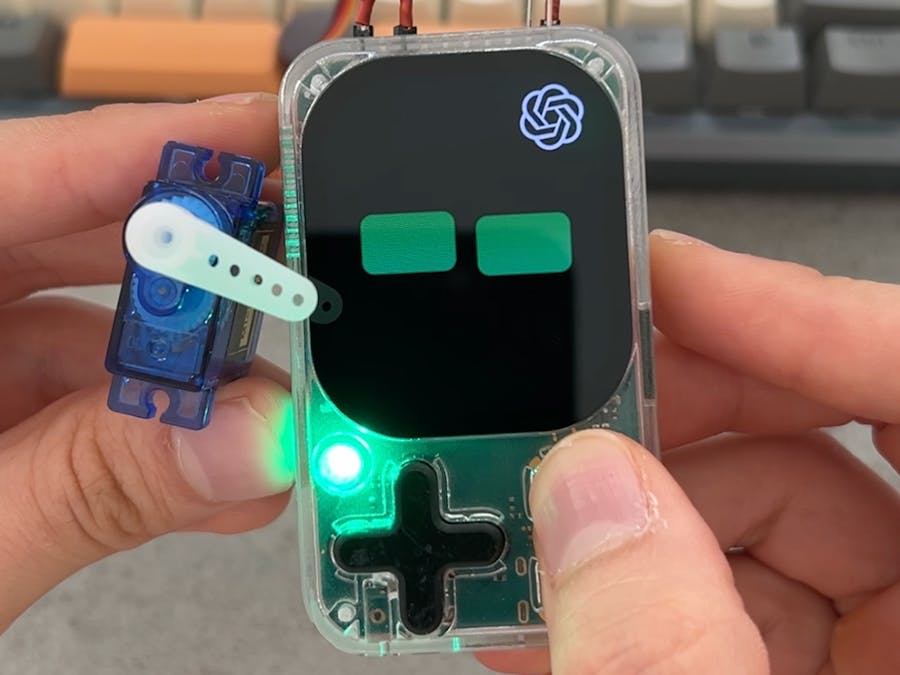

Press the front button (or touch), speak naturally, and watch the device think and then act: turn on an LED, sweep a servo, or trigger modules on the top 5 V connector. The AMOLED shows a friendly reply while, in parallel, a non-blocking state machine executes a sequence of GPIO/servo commands.

This project was built using the pre-production Kode Dot prototype, currently featured in our Kickstarter campaign.

How it works (deep dive)

• Audio in: the ESP32-S3 captures mono PCM at 32 kHz/16-bit (AudioManager), up to 30 s.
• Model call: a FreeRTOS task (openaiTask) sends the audio to OpenAI (model: gpt-4o-audio-preview) through a simple HTTP client (BasicGPTClient).
• Structured reply: the model is forced via a system prompt to return two lanes:
• Response: short, human-friendly text for the screen.
• Actions: a compact control block for the executor (machine-readable).
• Parallelism: the UI thread prints Response with a typewriter effect while the executor consumes Actions without blocking the UI (state = EXECUTING / WAITING with timestamps).
• 5 V power: the BQ25896 PMIC is initialized in OTG/Boost mode to feed the top connector with 5 V for servos and peripherals.
• Pins: user-safe GPIO set {1,2,3,11,12,13,39,40,41,42}.
• Memory: short conversation history (up to 6 messages) keeps the chat natural without blowing RAM.

The output contract (prompting)

The system prompt enforces a strict split between what the user reads and what the device executes. Your code expects exactly:

Response: <short friendly sentence for screen>
Actions: BEGIN; GPIO(<pin>,ON|OFF); SERVO(<pin>,<0..180>); DELAY(<ms>); END

Examples the model sees:

“Turn on pin 11”

Response: Sure! I've activated pin 11 for you.
Actions: BEGIN;GPIO(11,ON);END

“Sweep servo on pin 3”

Response: Watch this! I'll sweep the servo for you.
Actions: BEGIN;SERVO(3,0);DELAY(500);SERVO(3,90);DELAY(500);SERVO(3,180);END

This simple grammar makes parsing trivial on-device and keeps the LLM free to be conversational without risking unsafe free-form code.

Parser → State machine → Drivers

• Parser:parseGPTResponse() extracts the BEGIN … END block and the visible Response: text, tolerating formatting noise.
• Sequence builder:parseActionSequence() tokenizes GPIO(), SERVO(), and DELAY() into a commands[] vector.
• Executor: a non-blocking loop advances the sequence:
• GPIO_SET → pinMode(pin, OUTPUT) + digitalWrite
• SERVO_SET → lazy attach() + Servo.write(angle)
• DELAY → switch to WAITING until millis() >= waitUntil
• Parallel UI: while the executor runs, UIManager keeps animating the reply and status. No delay() locks the screen.

Tiny pseudocode

Plan p = parseJsonLike(raw);
ui.showText(p.response);        // visible immediately
executor.load(p.actions);       // runs in parallel

loop() {
  ui.update();                  // LVGL / gfx
  executor.tick(millis());      // one small step if due
}

Hardware & wiring

• Kode Dot (ESP32-S3) with AMOLED touch, mic, speaker.
• Top 5 V bus: enabled by initPMIC() → pmic.setOTG_CONFIG(true).
• Demo setup:
• LED on GPIO 12 (active HIGH).
• Micro-servo on GPIO 1 (signal), powered from the top 5 V connector.
• Button/Touch: either input starts/stops recording; simple debounce.

Networking & stability notes

The device connects to Wi-Fi in STA mode with auto-reconnect enabled and optimized PHY settings for reliability. Each request to the GPT API is bounded by a 20-second timeout to prevent blocking. If parsing fails or no valid audio is detected, the user interface immediately displays a clear error message and resets to the Ready state. Text shown on screen is pre-processed to normalize curly quotes, dashes, and ellipses for the built-in font, ensuring every response renders cleanly without crashes or encoding artifacts.

Why this approach?

LLMs are great at language, but hardware needs determinism. Here we force a tiny action grammar, keep the human-readable reply completely separate from the machine plan, and execute that plan with a non-blocking state machine. The result is reliable behavior under embedded constraints—no UI freezes, no ambiguous parsing—while preserving the “talk to your device” magic.
