More Bass Treble and Volume! With PT2313 DSP

pt2313 Digital signal processor with Arduino and compatible interface, Encoder to select between different channels and operations.

IntermediateFull instructions provided2 hours149

More Bass Treble and Volume! With PT2313 DSP

Things used in this project

Software apps and online services

Arduino IDE

PCBWAY

Story

When it comes to signal processing through a digital medium then DSPs are the one who comes into play. Basically here we are talking about audio signals and music. In the convention audio system there are analog systems consisting of a lot of opamp drives and knobs to adjust the different settings. A basic analog system may perform well but it is bulky and not realizable in certain places where we want a computer control. On the other hand these DSP units are cheap and easy to configure with a microcontroller.

I found the one, it is quite old “PT2313” from Princeton Taiwan. PT2313 is a four-channel digital audio processor utilizing CMOS Technology. Volume, Right/Left Bass and Treble Balance, Front/Rear Fader Processor are incorporated into a single chip. Loudness Function and Selectable Input Gain are also provided to build a highly effective electronic audio processor having the highest performance and reliability with the least external components. All functions are programmable using the Serial Bus. The pin assignments and application circuit are optimized for easy PCB layout and cost saving advantage for audio application.

This PCB is sponsored by PCBWAY. I have ordered the PCBs, because I have been using the services for a long time. PCBWAY is the only well known company which deals in PCB related products. Here you will get fulfilled all the prototyping requirements.

Features of PT2313:

Least External Components
Treble and Bass Control
Loudness Function
3 Stereo Inputs with Selectable Input Gain
Input/Output for External Noise Reduction System/Equalizer
Controls for Fader and Balance
Independent Mute Function
Volume Control in 1.25 dB/step
Controlled by Serial Bus Micro-Processor Interface

Circuit Diagram:

I am using this chip to feed to an amplifier circuit, this chip can be used as a standalone preamplifier circuit. Now because it has 3 inputs, but here I don’t need that much so I am using only one of them. But at the output I am using all 4, in which 2 will not work (reserved for later). So this will be a 2 channel system through which I can control Channel gain, volume, bass, table and balance. Because the system works with I2C we can directly connect a compatible microcontroller like UNO/NANO. Some required components are:

PT2313 DSP
16X2 LCD with I2C
5.6K, 10K, 2K2 Resistor
100n, 2.7n, 10u, 47u Capacitor
Encoder Module
Arduino Nano
Tactile Switches

The circuit diagram given here is fully tested and designed to minimize the noise, all the digital section is kept away from the signal conditioning part. To avoid noise issues. This has a 16x2 LCD, an Arduino Nano, an Encoder and some resistor for external configuration.

Code for DSP:

Basically we have pre-made libraries to implement different functions, all of which are designed based on the register information given in the datasheet. For example the one shared below is for a general register map. After programming the register map the location and data is sent through I2C which fills the resistor and changes the output characteristics of the IC. In the next few tutorials we will try to design our own PCBs and libraries but right now using an open source example from the web. Download the datasheet and library from here and code is given below for the same:

// Get the library: https://drive.google.com/file/d/1NmqZHj--yFQHnVIe1FuU4L_6juC5jjzR/view?usp=sharing

// Code shared below download from there

PCB Designs:

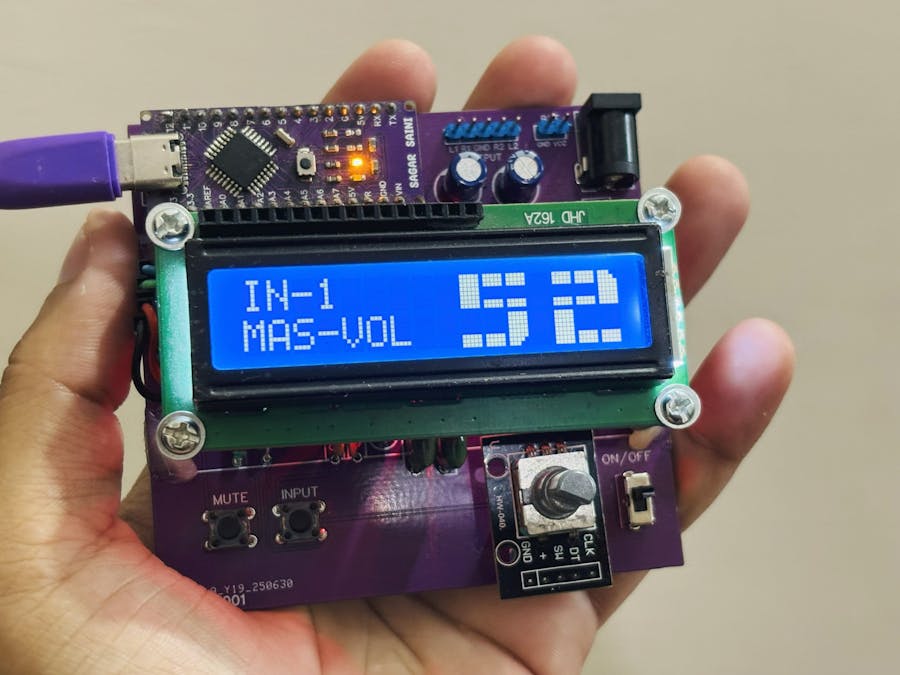

I have designed this PCB, in which I considered signal integrity. The PCB is designed to minimize the crosstalk and noise of the signal. I have put the IC in the middle and external components around it. Because here we are using a 16x2 I2C LCD. It is installed with screws at a little height, so all the DSP part is built under that. Moreover we have Arduino NANO on the top of the board and a DC barrel jack on the opposite side.

Coming to the control section instead of different potentiometer knobs like the analog system we have only an encoder to select the different values. Which is demonstrated in the next section below. Moreover we have input with a signal conditioning part and output 4 channels (2 reserved) on the top. You can attach any audio source and use the same. We have 2 user buttons, one for mute and other to select the input (currently we have only INPUT-1).

You can get all the files from PCBWAY HUB directly, I soldered all the components by hand. Another approach is to use a stencil or PCB assembly from PCBWAY. The files for all are shared already. PCBWAY is a China based company from where you can get hands on industry standard PCB boards at a really competitive pricing. Sign up now and get hands on first PCB, get the discount coupons for first order.

Assembly Instructions:

After getting the PCB done plug the programmed Arduino in place. The screen has only 4 wires (I2C), which can be connected to the onboard connector easily. Mount the screen away from the IC, at least 2cm away. I used M2 screws and plugged them into the screen holder and then some hot glue to fix the screen in place. I used a simple 3.0 BT module to give signal and output through the top of the PCB.

User Interface:

The user interface is smooth and works well with encoder. The menu screen has different options related to volume, treble, bass and gain. All of this can be switched using the encoder button and select the further operation by rotating. See all the screens here:

Testing and Working:

I tested the system for all aspects like noise analysis, channels working, gain and signal part. Everything is working very fine, the switching between different screens and selection is quite smooth. Arduino can handle it well. I have a small design tip, use a polyester film capacitor for the external DSP parts. They are not much noise sensitive and work well with high frequencies.

The power can be supplied through a 12V jack after plugging everything in place. Now because I am testing this in raw conditions I have a small amplifier and stereo speaker system for analysis. It is obvious that it is only to test the operation of the board. See the attached video for review and consider PCBWAY if you want this PCB.

Code

PT2313 CODE

// Get the library: https://drive.google.com/file/d/1NmqZHj--yFQHnVIe1FuU4L_6juC5jjzR/view?usp=sharing

#include <Wire.h>
#include <PT2313.h>
#include <LiquidCrystal_I2C.h>
#include <EEPROM.h>

LiquidCrystal_I2C lcd(0x27, 16, 2);//(Add, Total Col, Total Row)

PT2313 audioChip;

//Big Numbers Character
byte custom_num[8][8] = {
  { B00111, B01111, B11111, B11111, B11111, B11111, B11111, B11111 },
  { B11111, B11111, B11111, B00000, B00000, B00000, B00000, B00000 },
  { B11100, B11110, B11111, B11111, B11111, B11111, B11111, B11111 },
  { B11111, B11111, B11111, B11111, B11111, B11111, B01111, B00111 },
  { B00000, B00000, B00000, B00000, B00000, B11111, B11111, B11111 },
  { B11111, B11111, B11111, B11111, B11111, B11111, B11110, B11100 },
  { B11111, B11111, B11111, B00000, B00000, B00000, B11111, B11111 },
  { B11111, B11111, B11111, B11111, B11111, B11111, B11111, B11111 }
};

const int digit_width = 3;
const char custom_num_top[10][digit_width] = { 0, 1, 2, 1, 2, 32, 6, 6, 2, 6, 6, 2, 3, 4, 7,   7, 6, 6, 0, 6, 6, 1, 1, 2,   0, 6, 2, 0, 6, 2};
const char custom_num_bot[10][digit_width] = { 3, 4, 5, 4, 7, 4,  7, 4, 4, 4, 4, 5, 32, 32, 7, 4, 4, 5, 3, 4, 5, 32, 32, 7, 3, 4, 5, 4, 4, 5};

//Bar Character
byte a1[8]={0b00000,0b11011,0b11011,0b11011,0b11011,0b11011,0b11011,0b00000};
byte a2[8]={0b00000,0b11000,0b11000,0b11000,0b11000,0b11000,0b11000,0b00000};

//Mute Character
byte mute1[] = {
  B00000,
  B00000,
  B00000,
  B00000,
  B00000,
  B00111,
  B00111,
  B00111
};

byte mute2[] = {
  B00111,
  B00111,
  B00111,
  B00000,
  B00000,
  B00000,
  B00000,
  B00000
};

byte mute3[] = {
  B00000,
  B00011,
  B00011,
  B01111,
  B11111,
  B11111,
  B11111,
  B11111
};

byte mute4[] = {
  B11111,
  B11111,
  B11111,
  B11111,
  B01111,
  B00011,
  B00011,
  B00000
};

byte mutex1[] = {
  B00000,
  B00000,
  B00000,
  B00000,
  B01000,
  B00100,
  B00010,
  B00001
};

byte mutex2[] = {
  B10000,
  B01000,
  B00100,
  B00010,
  B00000,
  B00000,
  B00000,
  B00000
};

byte mutex3[] = {
  B00000,
  B00000,
  B00000,
  B00000,
  B00010,
  B00100,
  B01000,
  B10000
};

byte mutex4[] = {
  B00001,
  B00010,
  B00100,
  B01000,
  B00000,
  B00000,
  B00000,
  B00000
};


// usually the rotary encoders three pins have the ground pin in the middle
// tactileSwitch High Active with pulldown resistor
enum PinAssignments {
  dtPinA = 2,       // DT
  clkPinB = 3,      // CLK
  menuSwitch = 8,   // SW
  muteButton = 4,   // Tactile Switch1
  inButton   = 5    // Tactile Switch 2
};

static boolean rotating=false;      // debounce management

// interrupt service routine vars
boolean A_set = false;
boolean B_set = false;

boolean loud;

byte menu,in,w,save_eeprom;
int a,b,c,z,hit,menu_active,mute,vol,bassz,treb,balanz,gainz;

unsigned long time;

const int SHORT_PRESS_TIME = 500; // 1000 milliseconds
const int LONG_PRESS_TIME  = 500; // 1000 milliseconds

// Variables will change:
int lastState = HIGH;  // the previous state from the input pin
int currentState;     // the current reading from the input pin
unsigned long pressedTime  = 0;
unsigned long releasedTime = 0;


void setup(){

  Serial.begin(9600);
  Wire.begin();
  lcd.init();

  audioChip.initialize(0,true);

  pinMode(muteButton,INPUT);// Mute
  pinMode(inButton,INPUT);// Input

  pinMode(dtPinA, INPUT_PULLUP);
  pinMode(clkPinB, INPUT_PULLUP);
  pinMode(menuSwitch, INPUT_PULLUP); // Menu
  // encoder pin on interrupt 0 (pin 2)
  attachInterrupt(0, doEncoderA, CHANGE);
  // encoder pin on interrupt 1 (pin 3)
  attachInterrupt(1, doEncoderB, CHANGE);

  eepromRead();
  start_up();

}

void loop(){

   //InputSelector----------------------------------/
   if(digitalRead(inButton)==HIGH)
   {
      in++;
      time=millis();
      save_eeprom=1;
      audio();
      delay(200);
      if(in>2)
      {
        in=0;
        }
    }

   //rotaryMenu-------------------------/
   rotaryE();

  // read the state of the switch/button:
  // High Active
  currentState = digitalRead(muteButton);

  if (lastState == LOW && currentState == HIGH)       // button is pressed
    pressedTime = millis();
  else if (lastState == HIGH && currentState == LOW) { // button is released
    releasedTime = millis();

    long pressDuration = releasedTime - pressedTime;
/*
    if ( pressDuration < SHORT_PRESS_TIME ) {

       //Serial.println("A short press is detected");
    }
*/
    if ( pressDuration > LONG_PRESS_TIME ) {
      mute++;  // mute
      if ( mute>1 ) {
        mute = 0 ;
      }
      delay(200);
    }

    if(mute == 0) {
      menu_active=1;
      vol=0;
      lcd.clear();
      delay(300);
      lcd.setCursor(0, 1);
      lcd.print("MUTE ");
      lcd.createChar(0, mute1);
      lcd.createChar(1, mute2);
      lcd.createChar(2, mute3);
      lcd.createChar(3, mute4);

      lcd.createChar(4, mutex1);
      lcd.createChar(5, mutex2);
      lcd.createChar(6, mutex3);
      lcd.createChar(7, mutex4);
      lcd.setCursor(12, 0);
      lcd.write(0);
      lcd.setCursor(12, 1);
      lcd.write(1);
      lcd.setCursor(13, 0);
      lcd.write(2);
      lcd.setCursor(13, 1);
      lcd.write(3);
      lcd.setCursor(14, 0);
      lcd.write(4);
      lcd.setCursor(15, 1);
      lcd.write(5);
      lcd.setCursor(15, 0);
      lcd.write(6);
      lcd.setCursor(14, 1);
      lcd.write(7);
      menu = 99 ;
    }
    if (mute == 1 && menu_active==1) {
      vol = EEPROM.read(0);
      lcd.clear();
      menu_active=0;
      menu = 0 ;
      //Serial.println("A long press is detected");
    }
    audio();
  }

  // save the the last state
  lastState = currentState;


 //Save semua pengaturan ke EEPROM jika tombol + dan - tidak ditekan selama 10 detik
 if(millis()-time>10000 && save_eeprom==1)
  {
     eepromUpdate();
     menu=0;
     save_eeprom=0;
     cl();
  }

}

void eepromRead()
{
  vol = EEPROM.read(0);
  bassz = EEPROM.read(1)-7;
  treb = EEPROM.read(2)-7;
  balanz = EEPROM.read(3)-4;
  in = EEPROM.read(4);
  loud = EEPROM.read(5);
  gainz = EEPROM.read(6);
}

void eepromUpdate()
{
     EEPROM.update(0,vol);
     EEPROM.update(1,bassz+7);
     EEPROM.update(2,treb+7);
     EEPROM.update(3,balanz+4);
     EEPROM.update(4,in);
     EEPROM.update(5,loud);
     EEPROM.update(6,gainz);
}

void cl()
{
  delay(50);
  lcd.clear();
}

void audio(){
  audioChip.source(in);//select your source 0...3
  audioChip.volume(vol);//Vol 0...62 : 63 = muted
  audioChip.gain(gainz);//gain 0...3 db //11.27 db
  audioChip.bass(bassz);//bass -7...+7
  audioChip.treble(treb);//treble -7...+7
  audioChip.balance(balanz);//-31...+31
  audioChip.loudness(loud);//true or false
}

//startUp -----------------------------------------------------//
void start_up() {
  vol = 0;
  audio();
  lcd.setCursor(0, 1);
  lcd.print("  ...HELLO...  ");
  delay(1500);
  lcd.clear();
  lcd.setCursor(0, 1);
  lcd.print("LOADING   ");
    for(int x=6; x<15; x++)
    {
      lcd.setCursor(x+1, 1);
      lcd.print(".");
      delay(300);
    }
  delay(1000);
  lcd.clear();
  vol = EEPROM.read(0);
  menu=0;
}


//lcd_Update-----------------------------------------------------//
void lcd_update(){
  if(menu_active==0)
    {
      custom_num_shape();

      lcd.setCursor(0, 1);
      lcd.print("MAS-VOL");
      int y;
      if (c < 0) {
        lcd.setCursor(8, 1);
        lcd.print("-");
        y = 10 - (c + 10);
      }
      else if (c == -10) {
        lcd.setCursor(8, 1);
        lcd.print("-");
        y = 10;
      }
      else {
        lcd.setCursor(8, 1);
        lcd.print(" ");
        y = c;
      }
      a = y / 10;
      b = y - a * 10; // y%10

      lcd.setCursor(9, 0);
      for (int i = 0; i < digit_width; i++)
      lcd.print(custom_num_top[a][i]);

      lcd.setCursor(9, 1);
      for (int i = 0; i < digit_width; i++)
      lcd.print(custom_num_bot[a][i]);

      lcd.setCursor(13, 0);
      for (int i = 0; i < digit_width; i++)
      lcd.print(custom_num_top[b][i]);

      lcd.setCursor(13, 1);
      for (int i = 0; i < digit_width; i++)
      lcd.print(custom_num_bot[b][i]);
    }
    if(menu_active==1)
    {
      //...................../
    }

}

//custom shape ------------------------------------------------------//
void custom_num_shape() {
  for (int i = 0; i < 8; i++)
    lcd.createChar(i, custom_num[i]);
}

//rotary menu------------------------------------------------/
void rotaryE()
{
  rotating = true;  // reset the debouncer
  if(menu==0)
  {
     if(w==1)
      {
        audio();
        //cl();
        time=millis();
        save_eeprom=1;
        w=0;
       }
      c = vol;
      lcd.setCursor(0, 0);
      lcd.print("IN-");
      lcd.print(in+1);
      lcd_update();
  }



  if(menu==1)
  {
     if(w==1)
     {
      audio();
      cl();
      time=millis();
      save_eeprom=1;
      w=0;
     }

     lcd.setCursor(0,0);
     lcd.print("Bass");
     lcd.setCursor(12,0);
     lcd.print(bassz);
     lcd.setCursor(14,0);
     lcd.print("dB");
     lcd.createChar(0,a1);
     lcd.createChar(1,a2);

     if(bassz<0)
     {
      for(int x=-1; x>=bassz; x--)
      {
        lcd.setCursor(7,1);
        lcd.print("<");
        lcd.setCursor(8,1);
        lcd.print(">");
        lcd.setCursor(x+7,1);//8
        lcd.write((uint8_t)0);
      }
     }

     if(bassz>0)
     {
       for(int x=1; x<=bassz; x++)
      {
        lcd.setCursor(7,1);
        lcd.print("<");
        lcd.setCursor(8,1);
        lcd.print(">");
        lcd.setCursor(x+8,1);//7
        lcd.write((uint8_t)0);
      }
     }

     if(bassz==0)
     {
      lcd.setCursor(7,1);
      lcd.print("<");
      lcd.setCursor(8,1);
       lcd.print(">");
      }

  }

  if(menu==2)
  {
     if(w==1)
     {
      audio();
      cl();
      time=millis();
      save_eeprom=1;
      w=0;
     }

     lcd.setCursor(0,0);
     lcd.print("Trebble");
     lcd.setCursor(12,0);
     lcd.print(treb);
     lcd.setCursor(14,0);
     lcd.print("dB");
     lcd.createChar(0,a1);
     lcd.createChar(1,a2);

     if(treb<0)
     {
      for(int x=-1; x>=treb; x--)
      {
        lcd.setCursor(7,1);
        lcd.print("<");
        lcd.setCursor(8,1);
        lcd.print(">");
        lcd.setCursor(x+7,1);//8
        lcd.write((uint8_t)0);
      }
     }

     if(treb>0)
     {
       for(int x=1; x<=treb; x++)
      {
        lcd.setCursor(7,1);
         lcd.print("<");
        lcd.setCursor(8,1);
        lcd.print(">");
        lcd.setCursor(x+8,1);//7
        lcd.write((uint8_t)0);
      }
     }

     if(treb==0)
     {
      lcd.setCursor(7,1);
      lcd.print("<");
      //lcd.write((uint8_t)0);
      lcd.setCursor(8,1);
      //lcd.write((uint8_t)0);
      lcd.print(">");
      }
  }

  if(menu==3)
  {
     lcd.setCursor(0,0);

     if(balanz>=0)
     {
      lcd.print("-");
      }
      else
      {
        lcd.print("+");
        }

     lcd.print(abs(balanz*2));
     lcd.print(" dB ");
     lcd.print(" <>  ");

     if(balanz>=0)
     {
      lcd.print("+");
      }
      else
      {
        lcd.print("-");
        }

     lcd.print(abs(balanz*2));
     lcd.print(" dB ");
     lcd.setCursor(0,1);
     lcd.print("R");
     lcd.setCursor(15,1);
     lcd.print("L");

     if(balanz<0)
     {
      lcd.setCursor(balanz+7,1);
      lcd.write((uint8_t)0);
      }
     if(balanz>0)
     {
      lcd.setCursor(balanz+8,1);
      lcd.write((uint8_t)0);
      }
     if(balanz==0)
     {
      lcd.setCursor(7,1);
      lcd.write((uint8_t)0);
      lcd.setCursor(8,1);
      lcd.write((uint8_t)0);
      }

     if(w==1)
     {
      audio();
      cl();
      time=millis();
      save_eeprom=1;
      w=0;
     }
  }

  if(menu==4)
  {
    if(hit==1)
       {
        loud = true;
       }
       else
       {
        loud = false;

       }delay(300);


     lcd.setCursor(2, 0);
     lcd.print("- LOUDNESS -");

     if(loud==false)
     {

        lcd.setCursor(5,1);
        lcd.print(">>OFF");

     }
     else
     {
        lcd.setCursor(5,1);
        lcd.print(">>ON ");

     }

     if(w==1)
     {
      audio();
      //cl();
      time=millis();
      save_eeprom=1;
      w=0;
     }
  }

  if(menu==5)
  {
     if(w==1)
     {
      audio();
      cl();
      time=millis();
      save_eeprom=1;
      w=0;
     }

     lcd.setCursor(0,0);
     lcd.print("Gain");
     lcd.setCursor(12,0);
     lcd.print(gainz);
     lcd.setCursor(14,0);
     lcd.print("dB");
     lcd.createChar(0,a1);
     lcd.createChar(1,a2);
     for(z=0;z<=gainz;z++)
     {
      lcd.setCursor(z*3+2,1);
      lcd.write((uint8_t)0);
      lcd.write((uint8_t)0);
      lcd.write((uint8_t)0);
     }
  }


  if (digitalRead(menuSwitch) == LOW )  {
      menu++;
      time=millis();
      save_eeprom=1;
      w=1;
      cl();
      if(menu>5)
      {
        menu=0;
      }
  }

}

// Interrupt on A changing state ........................./
void doEncoderA(){
  // debounce
  if ( rotating ) delay (1);  // wait a little until the bouncing is done
  if( digitalRead(dtPinA) != A_set ) {
    A_set = !A_set;
    // adjust counter + if A leads B
    if ( A_set && !B_set )
    if(menu==0)
    {
       vol++;
       w=1;
       if(vol>62)
       {
        vol=62;
        }
    }
    else if(menu==1)
    {
      bassz++;
      w=1;
      if(bassz>7)
      {
        bassz=7;
        }

    }
    else if(menu==2)
    {
      treb++;
      w=1;
      if(treb>7)
      {
        treb=7;
        }
    }
    else if(menu==3)
    {
      balanz++;
      w=1;
      if(balanz>4)
      {
        balanz=4;
        }
    }
    else if(menu==4)
    {
      hit++;
      w=1;
      if(hit>1)
      {
        hit=0;
        }
    }
    else if(menu==5)
    {
      gainz++;
      w=1;
      if(gainz>3)
      {
        gainz=3;
        }
    }
    rotating = false;  // no more debouncing until loop() hits again
  }
}

// Interrupt on B changing state, same as A above........../
void doEncoderB(){
  if ( rotating ) delay (1);
  if( digitalRead(clkPinB) != B_set ) {
    B_set = !B_set;
    //  adjust counter + if B leads A
    if( B_set && !A_set )
    if(menu==0)
    {
        vol--;
        w=1;
        if(vol<0)
        {
          vol=0;
          }
    }

    else if(menu==1)
    {
      bassz--;
      w=1;
      if(bassz<-7)
      {
        bassz=-7;
        }

    }
    else if(menu==2)
    {
      treb--;
      w=1;
      if(treb<-7)
      {
        treb=-7;
        }
    }
    else if(menu==3)
    {
      balanz--;
      w=1;
      if(balanz<-4)
      {
        balanz=-4;
        }
    }
    else if(menu==4)
    {
      hit--;
      w=1;
      if(hit<0)
      {
        hit=1;
        }
    }
    else if(menu==5)
    {
      gainz--;
      w=1;
      if(gainz<0)
      {
        gainz=0;
        }
    }
    rotating = false;
  }
}

//-----------------------------------------------------/
/*
 * aktif LOW
void switchRotary()
{
    // read the state of the switch/button:
  currentState = digitalRead(swButton);

  if (lastState == HIGH && currentState == LOW)       // button is pressed
    pressedTime = millis();
  else if (lastState == LOW && currentState == HIGH) { // button is released
    releasedTime = millis();

    long pressDuration = releasedTime - pressedTime;

    if ( pressDuration < SHORT_PRESS_TIME ) {
      menu++;
      time=millis();
      save_eeprom=1;
      w=1;
      cl();
      if(menu>5)
      {
        menu=0;
      }
       //Serial.println("A short press is detected");
    }

    if ( pressDuration > LONG_PRESS_TIME ) {
      mute++;  // mute
      if ( mute>1 ) {
        mute = 0 ;
      }
      delay(200);
    }

    if(mute == 0) {
      menu_active=1;
      vol=0;
      lcd.clear();
      delay(300);
      lcd.setCursor(0, 1);
      lcd.print("MUTE ");
      lcd.createChar(0, mute1);
      lcd.createChar(1, mute2);
      lcd.createChar(2, mute3);
      lcd.createChar(3, mute4);

      lcd.createChar(4, mutex1);
      lcd.createChar(5, mutex2);
      lcd.createChar(6, mutex3);
      lcd.createChar(7, mutex4);
      lcd.setCursor(12, 0);
      lcd.write(0);
      lcd.setCursor(12, 1);
      lcd.write(1);
      lcd.setCursor(13, 0);
      lcd.write(2);
      lcd.setCursor(13, 1);
      lcd.write(3);
      lcd.setCursor(14, 0);
      lcd.write(4);
      lcd.setCursor(15, 1);
      lcd.write(5);
      lcd.setCursor(15, 0);
      lcd.write(6);
      lcd.setCursor(14, 1);
      lcd.write(7);
      menu = 99 ;
    }
    if (mute == 1) {
      vol = EEPROM.read(0);
      lcd.clear();
      menu_active=0;
      menu = 0 ;
      //Serial.println("A long press is detected");
    }
    audio();
  }
  // save the the last state
  lastState = currentState;
}
*/

/*
 *
  audioChip.initialize(1,true);//source 1,mute on
  audioChip.source(1);//select your source 0...3
  audioChip.volume(33);//Vol 0...62 : 63=muted
  audioChip.gain(3);//gain 0...11.27 db
  audioChip.loudness(true);//true or false
  audioChip.bass(0);//bass -7...+7
  audioChip.treble(0);//treble -7...+7
  audioChip.balance(0);//-31...+31
 */

Credits

Lithium ION

61 projects • 39 followers

A passionate electronics DIY boy. Currently improving in Embedded systems, soldering and programming.

More Bass Treble and Volume! With PT2313 DSP

Things used in this project

Software apps and online services

Story

Features of PT2313:

Circuit Diagram:

Code for DSP:

PCB Designs:

Assembly Instructions:

User Interface:

Testing and Working:

Schematics

Schematics

Code

PT2313 CODE

Credits

Lithium ION

Comments

Embed the widget on your own site

More Bass Treble and Volume! With PT2313 DSP

More Bass Treble and Volume! With PT2313 DSP

Things used in this project

Software apps and online services

Story

Features of PT2313:

Circuit Diagram:

Code for DSP:

PCB Designs:

Assembly Instructions:

User Interface:

Testing and Working:

Schematics

Schematics

Code

PT2313 CODE

Credits

Lithium ION

Comments

Related channels and tags
