Charlieplexing with Freescale

Charlieplexing uses the tri-state logic capabilities of microcontrollers in order to gain efficiency over traditional multiplexing.

BeginnerFull instructions provided1 hour1,002
Charlieplexing with Freescale

Things used in this project

Hardware components

FRDM Board
NXP FRDM Board
×1
LED (generic)
LED (generic)
×1
Resistor 221 ohm
Resistor 221 ohm
×1

Hand tools and fabrication machines

NXP CodeWarrior

Story

Read more

Schematics

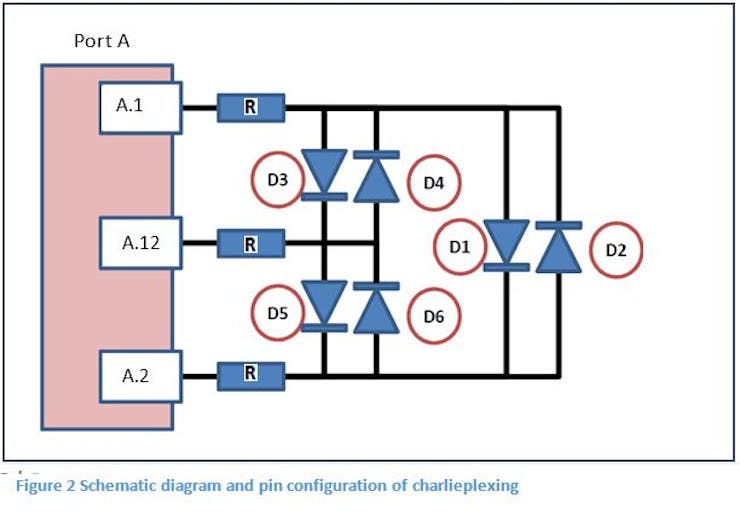

Circuit Diagram

Code

Charlieplexing Code

C/C++
#include "derivative.h"

#define pinA (1<<1) //PTA1
#define pinA(1<<12)	//PTA12
#define pinA (1<<2)	//PTD4

#define High (PORT_PCR_MUX(1) | PORT_PCR_DSE_MASK | PORT_PCR_PE_MASK | PORT_PCR_PS_MASK)
#define Low (PORT_PCR_MUX(1) &~PORT_PCR_DSE_MASK | PORT_PCR_PE_MASK &~PORT_PCR_PS_MASK)
#define Tristate (PORT_PCR_MUX(1) &~PORT_PCR_DSE_MASK &~PORT_PCR_PE_MASK &~PORT_PCR_PS_MASK)

void delay()
{
	int count;
	for(count=0; count < 1000000; count++)

	{
		asm("nop"); //no-operation // Do nothing
	}
}


}

/*

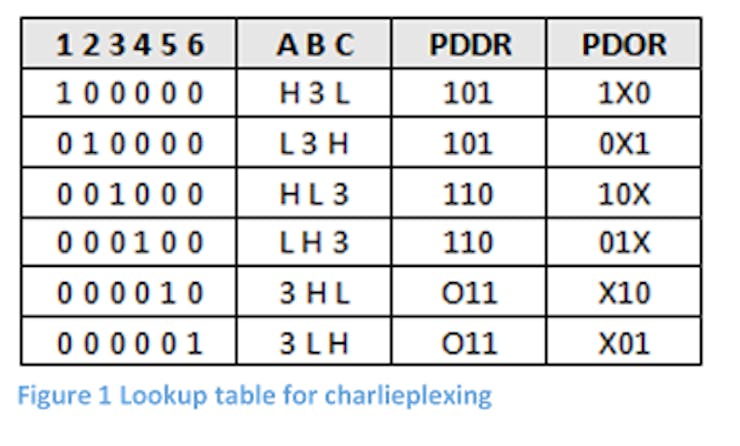

* Turn on the given LED
*
* @paramledNum LED to turn on (1..6)
*
*/
void setLED(int ledNum)
{
	if(ledNum == 1)
	{
		PORTA_PCR1 = High;  //high
		PORTC_PCR3 = Tristate; //4-state
		PORTD_PCR4 = Low;  //low
		GPIOA_PDDR |= pinA; //out
		GPIOC_PDDR &= ~pinB; //in
		GPIOD_PDDR |= pinC; //out
		GPIOA_PDOR |= pinA; //out
		GPIOC_PDOR &= ~pinB; //in
		GPIOD_PDOR &= ~pinC; //out
	}

	if(ledNum == 2)
	{
		PORTA_PCR1 = Low;
		PORTC_PCR3 = Tristate;
		PORTD_PCR4 = High;
		GPIOA_PDDR |= pinA; //out
		GPIOC_PDDR &= ~pinB; //in
		GPIOD_PDDR |= pinC; //out
		GPIOA_PDOR &= ~pinA;
		GPIOC_PDOR &= ~pinB;
		GPIOD_PDOR |= pinC;
	}

	if(ledNum == 3)
	{
		PORTA_PCR1 = High;
		PORTC_PCR3 = Low;
		PORTD_PCR4 = Tristate;
		GPIOA_PDDR |= pinA; //out
		GPIOC_PDDR |= pinB; //out
		GPIOD_PDDR &= ~pinC; //in
		GPIOA_PDOR |= pinA;
		GPIOC_PDOR &= ~pinB;
		GPIOD_PDOR &= ~pinC;
		}

	if(ledNum == 4)
	{
		PORTA_PCR1 = Low;
		PORTC_PCR3 = High;
		PORTD_PCR4 = Tristate;
		GPIOA_PDDR |= pinA; //out
		GPIOC_PDDR |= pinB; //out
		GPIOD_PDDR &= ~pinC; //in
		GPIOA_PDOR &= ~pinA;
		GPIOC_PDOR |= pinB;
		GPIOD_PDOR &= ~pinC;
	}

	if(ledNum == 5)
	{
		PORTA_PCR1 = Tristate; //Z
		PORTC_PCR3 = High; //H
		PORTD_PCR4 = Low; //L
		GPIOA_PDDR &= ~pinA; //in
		GPIOC_PDDR |= pinB; //out
		GPIOD_PDDR |= pinC; //out
		GPIOA_PDOR &= ~pinA;
		GPIOC_PDOR |= pinB;
		GPIOD_PDOR &= ~pinC;
	}

	if(ledNum == 6)
	{
		PORTA_PCR1 = Tristate; //Z
		PORTC_PCR3 = Low; //L
		PORTD_PCR4 = High; //H
		GPIOA_PDDR &= ~pinA; //in
		GPIOC_PDDR |= pinB; //out
		GPIOD_PDDR |= pinC; //out
		GPIOA_PDOR &= ~pinA;
		GPIOC_PDOR &= ~pinB;
		GPIOD_PDOR |= pinC;
	}
}

int main(void)
{
	// Enable clock to PORT A
	SIM_SCGC5 |= SIM_SCGC5_PORTD_MASK | SIM_SCGC5_PORTA_MASK | SIM_SCGC5_PORTC_MASK;

	for(;;)
	{
		setLED(1);
		delay();
		setLED(2);
		delay();
		setLED(3);
		delay();
		setLED(4);
		delay();
		setLED(5);
		delay();
		setLED(6);
		delay();
	}

	 	return 0;
}
