Simulate an Analog Voltmeter

When it comes to build a case for your project it turns out that analog meters require a deep box.

That is why I decided to use a small TFT display to replace it. And it can be programmed to adjust the range automatically.

Select whether you want to apply a maximum of 5 volts or 10 volts.

/*

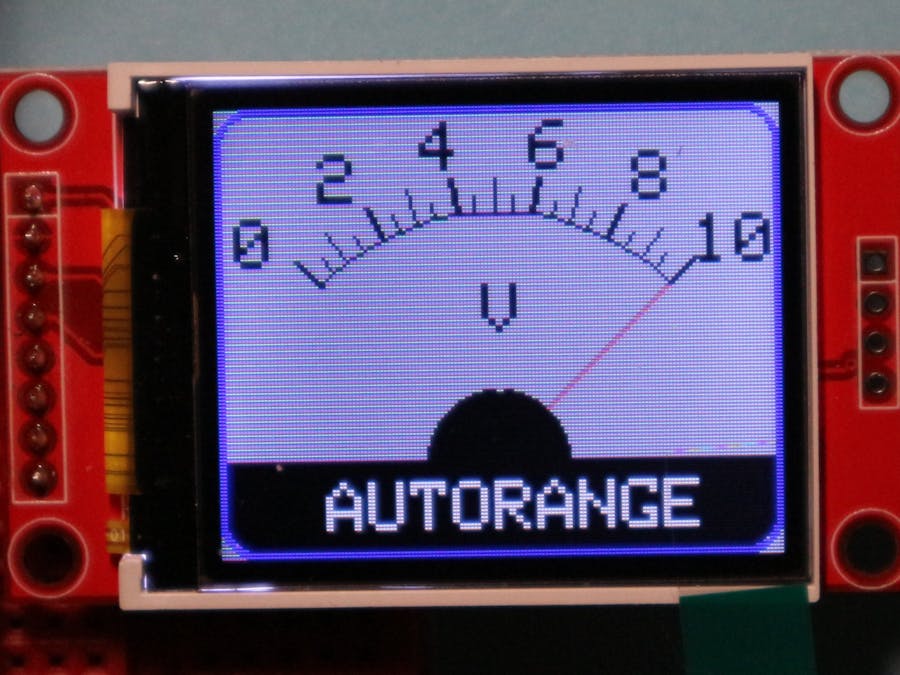

  simulate an analog voltmeter
  Define the range you want to use.
  If you are fine with 5 volts
  use #define R5 either don't.
  If you want to input 10 volts
  at A0 use two equal resistors
  to get a 2 to 1 voltage divider.
*/

#define R5

//#define DEMO // random values
//#define CONTROL // digital values shown
#include <TFT.h>
#define cs   10
#define dc   9
#define rst  8
const word WHITE = 0xFFFF;
const word BLACK = 0;
const word RED = 0xF800;
const word BLUE = 0x001F;
const word GREEN = 0x07E0;
const word GILB = 0x73EF; //
const word BLEU = 0x7BE0;
const word Color = 0x1234;
const float PI34 = PI * 3 / 4;
int w, h, mx, my, v, t1;
int x4, y4, x5, y5, r1, r3, r4, r5;

#ifdef R5
const int maxVolt = 5;
#else
const int maxVolt = 10;
#endif
float bereich;
float oldRange = maxVolt;

TFT tft = TFT(cs, dc, rst);

void setup() {
  Serial.begin(9600);
  Serial.println(__FILE__);
  tft.begin();
  w = tft.width();
  h = tft.height();

#ifdef R5
  mx = w / 2 + 5;
  my = 105;
  t1 = 4;
  //int bereich = 2 - 5 Volt
  r1 = 75;
  r3 = 102;
#else
  mx = w / 2 - 1;
  my = 100;
  t1 = 6;
  //int bereich = 2 - 5 - 10 Volt
  r1 = 70;
  r3 = 97;
#endif

  r4 = 20;
  x4 = mx;
  y4 = my;
  x5 = x4;
  y5 = y4;
  tft.setRotation(3);
  tft.setTextSize(2);
  frontplatte(maxVolt); // <--- Bereich 5/10 Volt
}

void loop() {
#ifdef DEMO
  v = random(1024);
#else
  v = analogRead(A0);
#endif
  bereich = range(v);
  if (bereich != oldRange) {
    frontplatte(bereich);
    oldRange = bereich;
  }
  zeiger(v);
  delay(10);
}

void skala(float bereich) {
  r5 = r1 - 2;
  float steps = 50; // <---
  float phi;
  // zeichne Skala im Uhrzeigersinn:
  int x0 = mx + r1 * cos(PI34);
  int y0 = my - r1 * sin(PI34);
  for (int v = 0; v <= 100; v = v + 5) {
    phi = PI34 * (1 - v / (3 * steps));
    int x1 = mx + r1 * cos(phi);
    int y1 = my - r1 * sin(phi);
    tft.drawLine(x0, y0, x1, y1, BLACK);
    x0 = x1;
    y0 = y1;
    int r2;
    // lang oder kurz?
    boolean tick = v % 10 == 0;
    if (tick) r2 = r1 + 10; else r2 = r1 + 5;
    int x2 = mx + r2 * cos(phi);
    int y2 = my - r2 * sin(phi);
    tft.drawLine(x1, y1, x2, y2, BLACK);
    if ((v % 20) != 0) continue;
    if ((bereich == 2.5) && (v % 40 != 0)) continue;
    // zeichne DICKE Linie:
    tft.drawLine(x1 + 1, y1, x2 + 1, y2, BLACK);
    int x3 = mx + r3 * cos(phi) - 5;
    int y3 = my - r3 * sin(phi);
    if (v < 100) tft.setCursor(x3, y3);
    else tft.setCursor(x3 - 7, y3);
    tft.stroke(BLACK);
    tft.print(v * bereich / 100, 0);
  }
}

void zeiger(int u) {
  // ----------------
#ifdef CONTROL
  tft.fillRect(6, 6, 24, 8, WHITE);
  tft.setCursor(6, 6);
  tft.setTextSize(1);
  tft.print(u);
  tft.setTextSize(2);
#endif
  //-----------------
  // alten Zeiger loeschen:
  for (int b = 0; b < 2; b++)
    tft.drawLine(x4 + b, y4, x5 + b, y5,  GILB);
  // neuen Zeiger zeichnen:
  float phi = PI34 - HALF_PI * u / 1024 * maxVolt / bereich;
  x4 = mx + r4 * cos(phi);
  y4 = my - r4 * sin(phi);
  x5 = mx + r5 * cos(phi);
  y5 = my - r5 * sin(phi);
  for (int b = 0; b < 2; b++)
    tft.drawLine(x4 + b, y4, x5 + b, y5, BLUE);
  tft.stroke(BLACK);
  tft.text("V", w / 2 - 5, 50); //  Volt
}

void frontplatte(float b) {
  tft.background(GILB);
  skala(b);
  int r = 10;
  tft.drawRoundRect(0, 0, w, h, r, RED);
  tft.drawRoundRect(0, 0, w, h, r + 1, RED);
  tft.drawRoundRect(1, 1, w - 2, h - 2, r - 1, RED);
  tft.fillRoundRect(2, my, w - 4, h - my - 2, r - 2, BLACK);
  tft.fillRect(2, my, w - 4, (h - my - 2) / 2, BLACK);
  tft.fillCircle(mx, my, r4, BLACK); // mx, my, r
  tft.stroke(WHITE);
  tft.text("AUTORANGE", 30, my + t1);
}

float range(int v) {
  switch (v) {
#ifdef R5
    case 0 ... 511: return 2.5;
#else
    case 0 ... 255: return 2.5;
    case 256 ... 511: return 5;
#endif
    case 512 ... 1023: return maxVolt;
  }
}
