Metronome with Authentic Sound

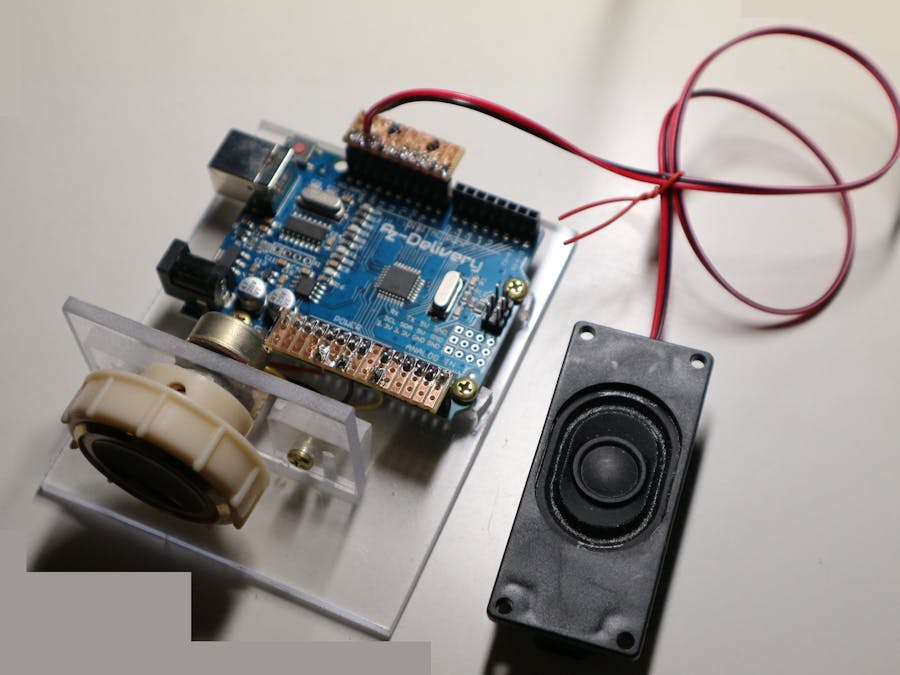

Once you have successfully uploaded blink.ino it is not a huge step to convert it into a metronome using a simple buzzer. It might be sufficient to keep your band in time but I hate the sound of buzzers. That is why I preferred real speakers and synthesize the sound which is not too complicated.

At the end it is nothing but a damped vibration. Some properties in my project can be configured: the speed (bpm), the pitch, the decay.The speed is controlled by a potentiometer. You can write marks on the knob to indicate the bpm values. There is an additional output pin where you get the bpm pulses to calibrate the instrument.

/*
  Metronome
*/
const byte speakerPin = 10; /* PWM pin OC1B */
const byte syncPin = 2;
const word sampleRate = 16000;
const int L = 360;
float sinTab[L];
/*
  c determines the pitch
  (how many values in the sine table
  will be skipped)
*/
byte c = 20;
long dt1 = 25; /* for decrease in volume */
long dt2 = 1000; /* for bpm */
/* steps when volume decreases */
long t1 = millis() + dt1; /* for decay */
/* time to start the next sound */
long t2 = millis() + 1000; /* for bpm */
float decay = 2.5;
float amp = 127;
int bpm = 60; /* range: 60 - 160 */

void setup() {
  Serial.begin(9600);
  Serial.println(__FILE__);
  for (int i = 0; i < L; i++)
    sinTab[i] = sin(TWO_PI * i / L);
  pinMode(speakerPin, OUTPUT);
  pinMode(syncPin, OUTPUT);
  setupTimer1();
  setupTimer2();
}

void loop() {
  long v = analogRead(A0);
  bpm = 60 + 100 * v / 1024;
  dt2 = 60000 / bpm;
  if (millis() < t1) return;
  t1 = t1 + dt1;
  amp = amp * decay / (decay + 1);
  if (millis() > t2) {
    /* new metronome hit */
    t2 = t2 + dt2;
    amp = 127;
    digitalWrite(syncPin, HIGH);
  }
  else digitalWrite(syncPin, LOW);
}

void setupTimer1() {
  /*
    Timer1 produces the sound
    COM1B1 = 1
    Clear OC1B on Compare Match
  */
  TCCR1A = B00100001;
  TCCR1B = 1;
}

void setupTimer2() {
  /*
    The Timer2-ISR  determines
    the PWM-value of Timer1
  */
  TCCR2A =   2; /* CTC mode */
  TCCR2B =   2; /* prescaler: 8 (do not use 1!!!) */
  byte PS = 8;
  OCR2A  = F_CPU / PS / sampleRate - 1; /* --> 32 kHz */
  TIMSK2 =   2; /* Output Compare A Match Interrupt Enable */
}

volatile int i;

ISR(TIMER2_COMPA_vect) {
  byte b = 0x80 + amp * sinTab[i];
  OCR1B = b;
  i = i + c;;
  if (i > L) i = i - L;
}
