Game of Life on a small TFT display

In 1970, John Conway developed the rules for what he called a game for zero players, and in theory you need a board of infinity size.

AdvancedFull instructions provided1 hour132

Things used in this project

Hardware components

Arduino UNO

TFT 1.8" display

Story

If you are not familiar with Conway's Game of Life, there are millions of web pages which tell you about. For this so-called game, in theory you need a board of infinite size which does not exist. But the more elements your board has the better. Unfortunately, Conway's rules don't tell you what should happen when neighbouring cells are located outside the border of your board. So, if a glider for instance approaches the border it will turn into a stabil square of 2x2 elements and rest there until eventually hit by another object.

Update 22. June 2025: added one initial configuration and ARDUINO DUE as target board.

Some preliminary considerations for how to present the board

Using the 12x8 LED matrix of the UNO R4 WiFi you have no fun, neither with the 5x5 matrix of the micro:bit or the Calliope. The smallest TFT display I got is the ST7735S 1.8 inch with 160 x 128 pixels.

Schematics - the hardware

The schematics is straight forward; see Adafruit instructions how to connect pins 8 to 13 to the display. As there are no shields available I designed my own one.

Strip board for the resistors (2.2k for the data lines and 47 ohms for the LED)

Strip board for resistors, bottom

Connecting power pins and d8-d13

The same, seen from the bottom. See the five wires form d8-d13

How to connect it all together

The software

At first you have to do the math: programming this game, you need to store the states of all pixels, giving 20480 pixels. Even if you store eight bits in one byte you still need 2560 bytes which a standard UNO R3 does not have. Further more, if you were displaying the elements so dense it would be hard to see them properly. So I decided to show a square of 2 x2 pixels to represent one element, and have a distance of one pixel to the next square. That leads to following calculation:

width: 160 / (2 + 1) = 53.3

height: 128 / (2 + 1) = 42.6

This still needs 53 x 42 = 2226 locations to store, but when you store eight bits in one byte, you only need 279 bytes. Actually, you need a little more, because Conway's rules tell you to calculate the new generation on base of the previous one, and you must not overwrite and destroy the previous one as long as you still need it. The problem is that access to a certain bit in byte can be very time-consuming, so you need to find a way to circumvent this. See second attachment.

If you want to see the maximum resolution just download the last attachment. And don't forget to grap a good looking glass.

Once you have finished it all you want to test your code with some more or less well-know patterns. I decided to select them by using jumpers connected to the pins A0... A5.

When using the ARDUINO DUE, please note that the SPI pins are not at pin-11 and 13. You easily find them at the 6-pin SPI connector. As the DUE is a 3.3 volts type you do not need any level shifters.

My TFT library

As calculating that many cells takes a lot of time, I wanted to use one of the still new ARDUINO UNO R4 boards. The problem was, the standard library <TFT.h> does not work for the R4. So I sat down and wrote my own one which works for both R3 and R4 (see first attachment). Guess on which of the boards the game runs faster? Anyway, as the R4 has much more memory the code can be simplified a lot as you do not have to compress bits in bytes. Compare with the third attachment.

Some screenshots show what is possible:

1 / 7

/*
  Game of Life

  for ARDUINO UNO R3 and R4
  -------------------------

  resolution: 53 x 42 cells

  r-Pentomino
  four Gliders
  Spaceship
  gliderGun
  selected by jumper on A0, A1, A2, A3, A4, A5
*/

#ifdef ARDUINO_UNOR4_MINIMA

// my library
#include <TFT18_R4.h>
#define cs 10
#define rst 8
#define dc 9

TFT18_R4 tft = TFT18_R4();  //cs, dc, rst);

#else
// UNO R3

// the standard library:
#include <TFT.h>
#define cs  10
#define rst  8
#define dc   9

TFT tft = TFT(cs, dc, rst);

#endif

word ST77XX_BLACK = 0;
word ST77XX_GRAY  = 0x4208;
word ST77XX_RED   = 0xF800;
word ST77XX_WHITE = 0xFFFF;
byte w, h, m, n, sq;
const byte s = 3;
const byte W = 7 * 8;

// space for x = 7 * 8 = 56, y = 42
byte the_Board[7][42];
byte anyChange[7][42];
const byte select0 = A0;
const byte select1 = A1;
const byte select2 = A2;
const byte select3 = A3;
const byte select4 = A4;
const byte select5 = A5;
const int DT = 200;

const int r_Pentomino[] = { 0b10, 0b111, 0b1,
                            -1
                          };
const int glider_NW[] = { 0b10, 0b11, 0b101,
                          -1
                        };
const int glider_SW[] = { 0b10, 0b110, 0b101,
                          -1
                        };
const int glider_NE[] = { 0b101, 0b11, 0b10,
                          -1
                        };
const int glider_SE[] = { 0b101, 0b110, 0b10,
                          -1
                        };
const int fourtyTWO[] = { 0b111, 0b100, 0b11111, 0, 0,
                          0b11101, 0b10101, 0b10111,
                          -1
                        };
const int LWSS[] = { 0b1010, 1, 1, 0b1001, 0b111,
                     -1
                   };
const int glider_Gun[] = { 0b000110000,
                           0b000110000,
                           0, 0, 0, 0, 0, 0, 0, 0,
                           0b001110000,
                           0b010001000,
                           0b100000100,
                           0b100000100,
                           0b000100000,
                           0b010001000,
                           0b001110000,
                           0b000100000,
                           0, 0,
                           0b000011100,
                           0b000011100,
                           0b000100010,
                           0b000000000,
                           0b001100011,
                           0, 0, 0, 0, 0, 0, 0, 0, 0,
                           0b000001100,
                           0b000001100,
                           -1
                         };

void setup(void) {
  Serial.begin(9600);
  Serial.println(F(__FILE__));

#ifdef ARDUINO_UNOR4_MINIMA
  tft.begin();
  tft.setRotation(1);
  w = 160;
  h = 128;
  sq = s - 2;
#else
  tft.initR(INITR_BLACKTAB);
  tft.setRotation(3);
  w = tft.width();
  h = tft.height();
  sq = s - 1;
#endif

  tft.fillScreen(ST77XX_GRAY);


  m = w / s;
  n = h / s;
  for (byte i = 0; i < m; i++)
    for (byte j = 0; j < n; j++)
      setBit(i, j, 0);
  pinMode(select0, INPUT_PULLUP);
  pinMode(select1, OUTPUT);
  pinMode(select2, INPUT_PULLUP);
  pinMode(select3, OUTPUT);
  pinMode(select4, INPUT_PULLUP);
  pinMode(select5, INPUT_PULLUP);
  if (digitalRead(select0) == 0)
    setObject(26, 21, r_Pentomino);
  else if (digitalRead(select2) == 0) {
    setObject(43, 37, glider_NW);
    setObject(42, 2, glider_SW);
    setObject(8, 36, glider_NE);
    setObject(9, 2, glider_SE);
  }
  else if (digitalRead(select4) == 0) {
    setObject(2, 14, LWSS);
    setObject(1, 20, LWSS);
    setObject(1, 26, LWSS);
  }
  else if (digitalRead(select5) == 0)
    setObject(10, 10, fourtyTWO);
  else setObject(2, 2, glider_Gun);
  setChanged(255); // force drawing:
  // show start configuration and wait:
  showBoard();
  delay(1000);
}

void loop() {
  long t = millis() + DT;
  byte line0[m], line1[m], line2[m];
  board2line(line0, 0);
  board2line(line1, 1);
  // set all elements to unchanged:
  setChanged(0);
  // ---------------------------------------
  for (byte y = 1; y < n; y++) {
    board2line(line2, y + 1);
    if (y < n - 1)
      for (byte x = 1; x < m - 1; x++) {
        // calculate line1[]:
        // --- add the 8 neighbours --- :
        byte c = -line1[x]; // <-- this element
        // this one plus eight neighbours:
        for (byte k = x - 1; k <= x + 1; k++) {
          c = c + line0[k];
          c = c + line1[k];
          c = c + line2[k];
        }
        // --- Auswertung --- :
        switch (c) {
          case 2: break; // remains
          case 3:
            setBit(x, y, 1); // newborn or remaining
            if (line1[x] == 0) markAsChanged(x, y); // newborn
            break;
          default:
            setBit(x, y, 0); // dies
            if (line1[x]) markAsChanged(x, y);

        }
      }
    // copy line 2 to the_Board, line1 to line0, line2 to line1
    for (byte j = 0; j < m; j++) {
      line0[j] = line1[j];
      line1[j] = line2[j];
    }
  }
  // ------------------------------------------
  showBoard();
  if (!changesDetected()) {
    delay(1000);
    // if nothing happens just restart:
#ifdef ARDUINO_UNOR4_MINIMA
    //
#else
    asm("jmp 0");
#endif
  }

  //while (millis() < t);
}

void setChanged(byte v) {
  for (byte x = 0; x < 7; x++)
    for (byte y = 0; y < 42; y++)
      anyChange[x][y] = v;
}

boolean changesDetected() {
  int b = 0;
  for (byte x = 0; x < 7; x++)
    for (byte y = 0; y < 42; y++)
      b = b + anyChange[x][y];
  if (b > 0) return 1;
  return 0;
}

void setObject(byte x, byte y, const int feld[]) {
  int i = 0;
  int c = feld[0];
  while (c != -1) {
    for (byte j = 0; c > 0; j++) {
      setBit(x + i, y + j, c & 1);
      c = c / 2;
    }
    c = feld[++i];
  }
}

//-------------------------------------
// time-consuming procedures:
void setBit(byte x, byte y, byte z) {
  byte xIdx = x / 8;
  byte mask = 1 << (x & 7);
  if (z) the_Board[xIdx][y] = the_Board[xIdx][y] | mask;
  else the_Board[xIdx][y] = the_Board[xIdx][y] & ~mask;
}

byte getBit(byte x, byte y) {
  byte xIdx = x / 8;
  byte mask = 1 << (x & 7);
  byte b = the_Board[xIdx][y] & mask;
  if (b)return 1;
  return 0;
}

void markAsChanged(byte x, byte y) {
  byte xIdx = x / 8;
  byte mask = 1 << (x & 7);
  anyChange[xIdx][y] = anyChange[xIdx][y] | mask;
}

boolean getChange(byte x, byte y) {
  byte xIdx = x / 8;
  byte mask = 1 << (x & 7);
  byte b = anyChange[xIdx][y] & mask;
  if (b) return 1;
  return 0;
}
//------------------------------------

void board2line(byte line[W], byte y) {
  for (byte i = 0; i < m; i++)
    line[i] = getBit(i, y);
}

void showBoard() {
  for (byte i = 0; i < m; i++)
    for (byte j = 0; j < n; j++)
      if (getChange(i, j))
        placeRect(i, j, getBit(i, j));
}

void placeRect(byte x, byte y, byte b) {
  word c = b ? ST77XX_RED : ST77XX_WHITE;
  tft.fillRect(s * x, s * y, sq, sq, c);
}

/*
  Game of Life, the best!!!
  due to memory requirements

  this version is only for UNO-R4
  -------------------------------

  r-Pentomino
  four Gliders
  Spaceship
  gliderGun
  selected by jumper on A0, A1, A2, A3, A4, A5

  Adafruit library cannot be used,
  it only shows an empty white screen
  the standard library does not work for R4
  (that lib unnecessarily includes <avr/io.h>)
  so I had to develop my own library TFT18_R4.
  difference to gameOfLife_TFT_R4only:
  array anyChange to avoid unnecessary draws
  draws 2x2px
  times:
  R4only  31831 ms
  R4only_a  7457 ms
  R$only_b  11079 ms
*/

#include <TFT18_R4.h>
#define cs 10
#define rst 8
#define dc 9
TFT18_R4 tft = TFT18_R4();  //cs, dc, rst);



word ST7735_GRAY = 0x4208;
const byte s = 3;
const byte W = 53;
const byte H = 42;

const byte sq = s - 1;
boolean theBoard[W][H];
boolean anyChange[W][H]; // <-----
const byte select0 = A0;
const byte select1 = A1;
const byte select2 = A2;
const byte select3 = A3;
const byte select4 = A4;
const byte select5 = A5;
const byte DT = 200;
int iter;
long t0;

const int r_Pentomino[] = { 0b10, 0b111, 0b1,
                            -1
                          };
const int glider_NW[] = { 0b10, 0b11, 0b101,
                          -1
                        };
const int glider_SW[] = { 0b10, 0b110, 0b101,
                          -1
                        };
const int glider_NE[] = { 0b101, 0b11, 0b10,
                          -1
                        };
const int glider_SE[] = { 0b101, 0b110, 0b10,
                          -1
                        };
const int fourtyTWO[] = { 0b111, 0b100, 0b11111, 0, 0,
                          0b11101, 0b10101, 0b10111,
                          -1
                        };
const int LWSS[] = { 0b1010, 1, 1, 0b1001, 0b111,
                     -1
                   };
const int glider_Gun[] = { 0b000110000,
                           0b000110000,
                           0, 0, 0, 0, 0, 0, 0, 0,
                           0b001110000,
                           0b010001000,
                           0b100000100,
                           0b100000100,
                           0b000100000,
                           0b010001000,
                           0b001110000,
                           0b000100000,
                           0, 0,
                           0b000011100,
                           0b000011100,
                           0b000100010,
                           0b000000000,
                           0b001100011,
                           0, 0, 0, 0, 0, 0, 0, 0, 0,
                           0b000001100,
                           0b000001100,
                           -1
                         };

void setup(void) {
  long t = millis() + 2000;
  Serial.begin(9600);
  while (!Serial & millis() < t)
    ;
  Serial.println(__FILE__);
  Serial.println(__TIME__);
  tft.begin();
  Serial.println("using my library <TFT18_R4.h>");
  tft.setRotation(3);
  tft.fillScreen(ST7735_GRAY);
  pinMode(select0, INPUT_PULLUP);
  pinMode(select1, OUTPUT);
  pinMode(select2, INPUT_PULLUP);
  pinMode(select3, OUTPUT);
  pinMode(select4, INPUT_PULLUP);
  pinMode(select5, INPUT_PULLUP);
  for (byte x = 0; x < W; x++)
    for (byte y = 0; y < H; y++) {
      theBoard[x][y] = false;
      anyChange[x][y] = true;
    }
  if (digitalRead(select0) == 0)
    setObject(26, 21, r_Pentomino);
  else if (digitalRead(select2) == 0) {
    setObject(43, 37, glider_NW);
    setObject(42, 2, glider_SW);
    setObject(8, 36, glider_NE);
    setObject(9, 2, glider_SE);
  }
  else if (digitalRead(select4) == 0) {
    setObject(2, 14, LWSS);
    setObject(1, 20, LWSS);
    setObject(1, 26, LWSS);
  }
  else if (digitalRead(select5) == 0)
    setObject(10, 10, fourtyTWO);
  else setObject(2, 2, glider_Gun);
  // show start configuration and wait:
  showBoard();
  delay(2000);
  pinMode(LED_RX, OUTPUT);
  t0 = millis();
}

void loop() {
  digitalWrite(LED_RX, ++iter & 1);
  long t = millis() + DT;
  byte previous[W][H];
  memcpy(previous, theBoard, (int)W * H);
  for (byte y = 1; y < H - 1; y++) {
    for (byte x = 1; x < W - 1; x++) {
      anyChange[x][y] = false;
      // --- add the 8 neighbours --- :
      byte c = previous[x - 1][y - 1] + previous[x - 1][y] + previous[x - 1][y + 1] + previous[x][y - 1] + previous[x][y + 1] + previous[x + 1][y - 1] + previous[x + 1][y] + previous[x + 1][y + 1];
      // --- apply Conway's rules: --- :
      switch (c) {
        case 2:
          break;  // nothing to be done
        // newborn or remaining
        case 3:
          theBoard[x][y] = true;
          anyChange[x][y] = true;
          break;
        // dies
        default:
          if (theBoard[x][y]) anyChange[x][y] = true;
          theBoard[x][y] = false;
      }
    }
  }
  // ------------------------------------------
  showBoard();
  // if you want a delay:
  //while (millis() < t)
  ;
  /*
    if (iter > 100) {
    Serial.println(millis() - t0);
    while (true);
    }
  */
}

void setObject(byte x, byte y, const int feld[]) {
  int i = 0;
  int c = feld[0];
  while (c != -1) {
    for (byte j = 0; c > 0; j++) {
      // setBit(x + i, y + j, c & 1);
      theBoard[x + i][y + j] = c & 1;
      c = c / 2;
    }
    c = feld[++i];
  }
}

void showBoard() {
  for (byte i = 0; i < W; i++)
    for (byte j = 0; j < H; j++)
      if (anyChange[i][j])
        placeRect(i, j, theBoard[i][j]);
}

void placeRect(byte x, byte y, byte b) {
  word c = b ? ST7735_RED : ST7735_WHITE;
  tft.fillRect(s * x, s * y, sq, sq, c);
}

/*
  Game of Life
  due to memory requirements

  this version is only for ARDUINO-DUE
  ------------------------------------

  maximum resolution 160 x 128 pixels

  r-Pentomino
  four Gliders
  Spaceship
  gliderGun
  selected by jumper on A0, A1, A2, A3, A4, A5
*/

// for ARDUINO UNO R3 and ARDUINO DUE R3
// you can use the standard TFT library.
// The ARDUINO DUE was introduced in 2012.
#include <TFT.h>
#define cs  10
#define rst  8
#define dc   9
TFT tft = TFT(cs, dc, rst);

word ST7735_GRAY = 0x4208;
const byte W = 160;
const byte H = 128;

boolean theBoard[W][H];
boolean anyChange[W][H];
const byte select0 = A0;
const byte select1 = A1;
const byte select2 = A2;
const byte select3 = A3;
const byte select4 = A4;
const byte select5 = A5;
const byte DT = 200;
int iter;

const int r_Pentomino[] = { 0b10, 0b111, 0b1,
                            -1
                          };
const int glider_NW[] = { 0b10, 0b11, 0b101,
                          -1
                        };
const int glider_SW[] = { 0b10, 0b110, 0b101,
                          -1
                        };
const int glider_NE[] = { 0b101, 0b11, 0b10,
                          -1
                        };
const int glider_SE[] = { 0b101, 0b110, 0b10,
                          -1
                        };
const int fourtyTWO[] = { 0b111, 0b100, 0b11111, 0, 0,
                          0b11101, 0b10101, 0b10111,
                          -1
                        };
const int LWSS[] = { 0b1010, 1, 1, 0b1001, 0b111,
                     -1
                   };
const int glider_Gun[] = { 0b000110000,
                           0b000110000,
                           0, 0, 0, 0, 0, 0, 0, 0,
                           0b001110000,
                           0b010001000,
                           0b100000100,
                           0b100000100,
                           0b000100000,
                           0b010001000,
                           0b001110000,
                           0b000100000,
                           0, 0,
                           0b000011100,
                           0b000011100,
                           0b000100010,
                           0b000000000,
                           0b001100011,
                           0, 0, 0, 0, 0, 0, 0, 0, 0,
                           0b000001100,
                           0b000001100,
                           -1
                         };

void setup(void) {
  Serial.begin(9600);
  Serial.println(__FILE__);
  Serial.println(__TIME__);
  tft.begin();
  tft.setRotation(3);
  tft.fillScreen(ST7735_GRAY);
  pinMode(select0, INPUT_PULLUP);
  pinMode(select1, OUTPUT);
  pinMode(select2, INPUT_PULLUP);
  pinMode(select3, OUTPUT);
  pinMode(select4, INPUT_PULLUP);
  pinMode(select5, INPUT_PULLUP);
  for (byte x = 0; x < W; x++)
    for (byte y = 0; y < H; y++) {
      theBoard[x][y] = false;
      anyChange[x][y] = true;
    }
  if (digitalRead(select0) == 0)
    setObject(80, 64, r_Pentomino);
  else if (digitalRead(select2) == 0) {
    setObject(144, 124, glider_NW);
    setObject(143, 2, glider_SW);
    setObject(29, 123, glider_NE);
    setObject(28, 2, glider_SE);
  }
  else if (digitalRead(select4) == 0) {
    setObject(2, 57, LWSS);
    setObject(1, 64, LWSS);
    setObject(1, 72, LWSS);
  }
  else if (digitalRead(select5) == 0)
    setObject(80, 30, fourtyTWO);
  else setObject(2, 2, glider_Gun);
  // show start configuration and wait:
  showBoard();
  delay(2000);
}

void loop() {
  long t = millis() + DT;
  byte previous[W][H];
  memcpy(previous, theBoard, (int)W * H);
  for (byte y = 1; y < H - 1; y++) {
    for (byte x = 1; x < W - 1; x++) {
      anyChange[x][y] = false;
      // --- add the 8 neighbours --- :
      byte c = previous[x - 1][y - 1] + previous[x - 1][y] + previous[x - 1][y + 1] + previous[x][y - 1] + previous[x][y + 1] + previous[x + 1][y - 1] + previous[x + 1][y] + previous[x + 1][y + 1];
      // --- apply Conway's rules: --- :
      switch (c) {
        case 2:
          break;  // nothing to be done
        // newborn or remaining
        case 3:
          theBoard[x][y] = true;
          anyChange[x][y] = true;
          break;
        // dies
        default:
          if (theBoard[x][y]) anyChange[x][y] = true;
          theBoard[x][y] = false;
      }
    }
  }
  // ------------------------------------------
  showBoard();
  // if you want a delay:
  //while (millis() < t)
  ;
}

void setObject(byte x, byte y, const int feld[]) {
  int i = 0;
  int c = feld[0];
  while (c != -1) {
    for (byte j = 0; c > 0; j++) {
      theBoard[x + i][y + j] = c & 1;
      c = c / 2;
    }
    c = feld[++i];
  }
}

void showBoard() {
  for (byte i = 0; i < W; i++)
    for (byte j = 0; j < H; j++)
      if (anyChange[i][j]) {
        byte b = theBoard[i][j];
        word c = b ? ST7735_RED : ST7735_WHITE;
        tft.drawPixel(i, j, c);
      }
}

Credits

Klausj

89 projects • 8 followers

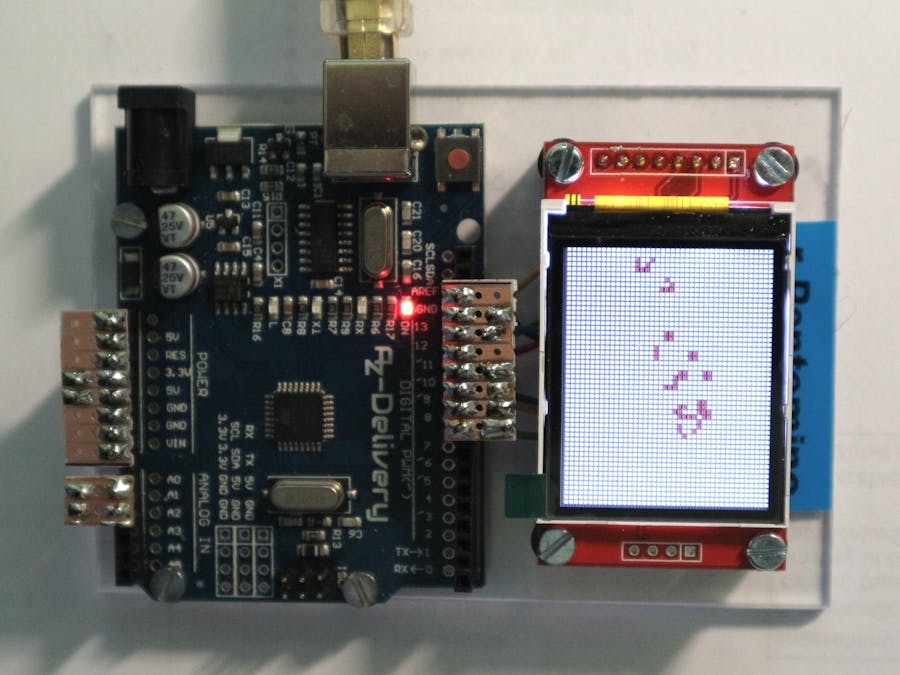

Game of Life on a small TFT display

Things used in this project

Hardware components

Story

Some preliminary considerations for how to present the board

Schematics - the hardware

The software

My TFT library

Some screenshots show what is possible:

Code

Library for using TFT-1.8" (ST7735) also for UNO R4

Game of Life on a small TFT for UNO R3 or R4

Game of Life only for UNO R4

Game of Life for good old ARDUINO DUE

Credits

Klausj

Comments

Embed the widget on your own site

Game of Life on a small TFT display

Game of Life on a small TFT display

Things used in this project

Hardware components

Story

Some preliminary considerations for how to present the board

Schematics - the hardware

The software

My TFT library

Some screenshots show what is possible:

Code

Library for using TFT-1.8" (ST7735) also for UNO R4

Game of Life on a small TFT for UNO R3 or R4

Game of Life only for UNO R4

Game of Life for good old ARDUINO DUE

Credits

Klausj

Comments

Related channels and tags
