nRF24L01 Windows 10 IoT Core Field Gateway Netduino client

Sample plug n play Netduino V2/V3 client for my nRF24L01 field gateway projects (see my profile for these). The design goal was a simple demo solution that students could use as a basis for their projects.

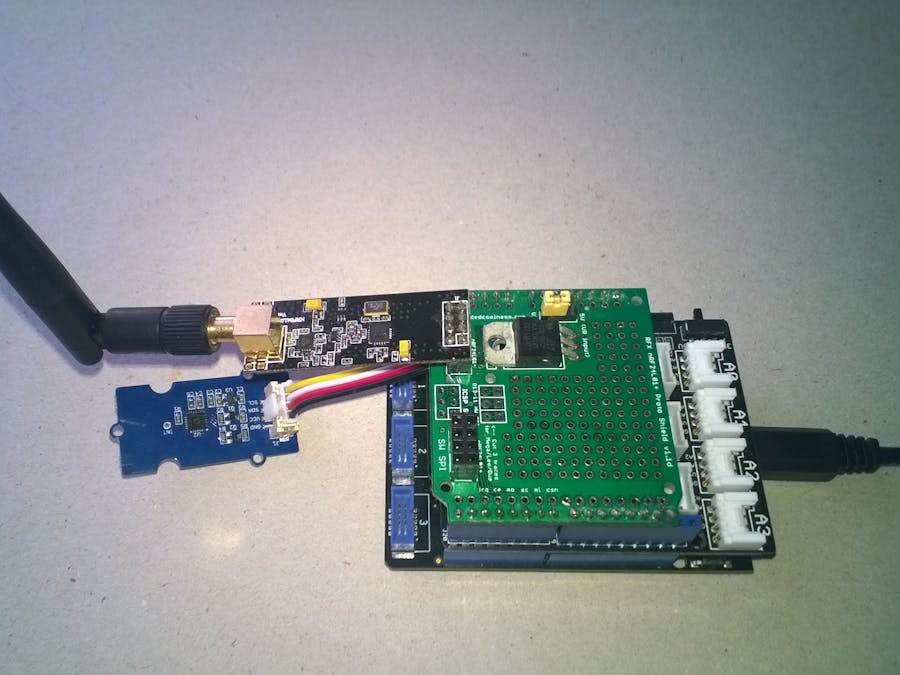

The Netduino client uses

• RFX Arduino shield

• SeeedStudio Grove-Temperature & Humidity Sensor

• SeeedStudio Grove-Universal 4 Pin Buckled 5cm Cable

• SeeedStudio Grove-Base Shield V2

Download the code, then build and deploy to Netduino device.

Ensure the case of your sensor identifiers is consistent with the IoT Cloud Service configuration .

Ensure the nRF24BaseStationAddress, nRF24Channel and nRF24DataRate match the configuration of your field gateway.

For devices without network connectivity (Netduino2/Netduino3) you will need to comment out/remove the MAC address lookup code and configure a unique device ID manually.

// Setup the device unique identifier, in this case the hardware MacAddress
deviceIdentifier = NetworkInterface.GetAllNetworkInterfaces()[0].PhysicalAddress;
Debug.Print(" Device Identifier : " + BytesToHexString(deviceIdentifier));
