Published November 14, 2019 © GPL3+

Icosahedron Sphere NeoPixel Device (No Plutonium Used)

So, every time a make a project, it ends up looking like a plutonium based device. And this is one of them.

IntermediateShowcase (no instructions)1,632

Icosahedron Sphere NeoPixel Device (No Plutonium Used)

Things used in this project

Hardware components

Arduino Mega 2560

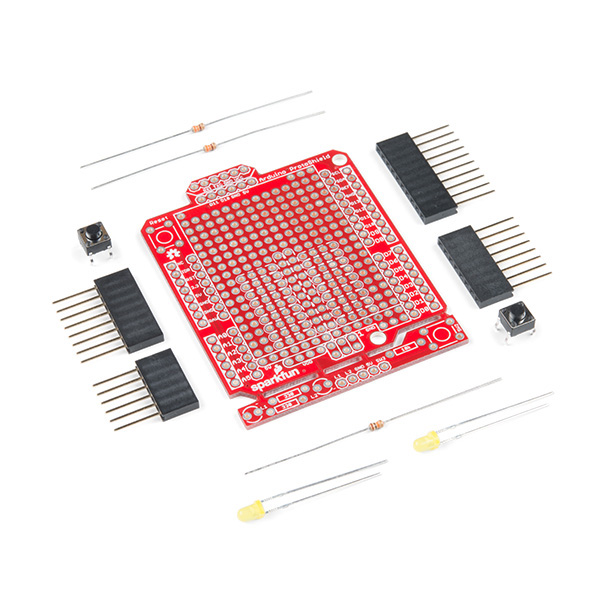

SparkFun ProtoShield Kit

LED Strip, NeoPixel Digital RGB

power supply 5V 60A

copper tape 2" wide

Software apps and online services

Arduino IDE

Microsoft Windows 10

Hand tools and fabrication machines

Laser cutter (generic)

3D Printer (generic)

Scissors, Free Fall

Wire Stripper & Cutter, 26-14 AWG Solid & Stranded Wires

Story

A common project among the members of the LVL1.org Hackerspace is a LED blinking thing. Some are just the Blinky sketch on an Arduino while others are a bit more involved. This is my LED blinking project.

Found at http://wiki.lvl1.org/Neopixel_Icosahedron is a full write up along with links to other projects.

Schematics

Code

Example Code Demo

#include <FastLED.h>

// How many leds in your strip?
#define NUM_LEDS 708
#define NUM_EDGE 30
#define EDGE_SIZE 18
#define NUM_VERTEX 12
#define VERTEX_SIZE 14 // 7 LEDs out to in then 7 LEDs in to out
# define VERTEX_OFFSET 540 // intial vertex LED

// Segment LED Sequence are calculated as:
// = Segment number * 18
// Vertex LED Sequence are calulated as:
// = 540 + (Vertex number * 14)

// For led chips like Neopixels, which have a data line, ground, and power, you just
// need to define DATA_PIN.
#define DATA_PIN 6
// #define CLOCK_PIN 13

// Define the array of leds
CRGB leds[NUM_LEDS];
// #define BRIGHTNESS 96

//int AdjacentVertex[12][5];
int AdjacentVertex[][5] = {{1,2,3,4,5}, {0,2,5,6,7}, {0,1,3,7,8}, {0,2,4,8,9},
                          {0,3,5,9,10}, {0,1,4,6,10}, {1,5,7,10,11}, {1,2,6,8,11},
                          {2,3,7,9,11}, {3,4,8,10,11}, {4,5,6,9,11}, {6,7,8,9,10}};

//int VertexStart[12];
int VertexStart[] = {694,666,652,638,624,680,596,582,568,554,610,540};

//int EdgeEnds[x][y][0]; 0=no linkage; -1=countdown; 1=countup
//int EdgeEnds[x][y][1]; intitial LED number for travel from x to y

int EdgeEnds[12][12][2];

void setup()
{
  	  FastLED.addLeds<NEOPIXEL, DATA_PIN>(leds, NUM_LEDS);
//      FastLED.setBrightness(BRIGHTNESS);
  preparestructures();
}

void preparestructures()
{
  int x,y;

// Zero out EdgeEnds Matrix

  for(x=0;x<NUM_VERTEX;++x)
    for(y=0;y<NUM_VERTEX;++y)
      {
         EdgeEnds[x][y][0]=0;
         EdgeEnds[x][y][1]=0;
      }


  EdgeEnds[6][7][0] = 1;
  EdgeEnds[6][7][1] = 0;
  EdgeEnds[7][6][0] = -1;
  EdgeEnds[7][6][1] = 17;

  EdgeEnds[7][1][0] = 1;
  EdgeEnds[7][1][1] = 18;
  EdgeEnds[1][7][0] = -1;
  EdgeEnds[1][7][1] = 35;

  EdgeEnds[1][2][0] = 1;
  EdgeEnds[1][2][1] = 36;
  EdgeEnds[2][1][0] = -1;
  EdgeEnds[2][1][1] = 53;

  EdgeEnds[2][8][0] = 1;
  EdgeEnds[2][8][1] = 54;
  EdgeEnds[8][2][0] = -1;
  EdgeEnds[8][2][1] = 71;

  EdgeEnds[8][9][0] = 1;
  EdgeEnds[8][9][1] = 72;
  EdgeEnds[9][8][0] = -1;
  EdgeEnds[9][8][1] = 89;

  EdgeEnds[9][3][0] = 1;
  EdgeEnds[9][3][1] = 90;
  EdgeEnds[3][9][0] = -1;
  EdgeEnds[3][9][1] = 107;

  EdgeEnds[3][4][0] = 1;
  EdgeEnds[3][4][1] = 108;
  EdgeEnds[4][3][0] = -1;
  EdgeEnds[4][3][1] = 125;

  EdgeEnds[4][10][0] = 1;
  EdgeEnds[4][10][1] = 126;
  EdgeEnds[10][4][0] = -1;
  EdgeEnds[10][4][1] = 143;

  EdgeEnds[10][6][0] = 1;
  EdgeEnds[10][6][1] = 144;
  EdgeEnds[6][10][0] = -1;
  EdgeEnds[6][10][1] = 161;

  EdgeEnds[6][5][0] = 1;
  EdgeEnds[6][5][1] = 162;
  EdgeEnds[5][6][0] = -1;
  EdgeEnds[5][6][1] = 179;

  EdgeEnds[5][1][0] = 1;
  EdgeEnds[5][1][1] = 180;
  EdgeEnds[1][5][0] = -1;
  EdgeEnds[1][5][1] = 197;

  EdgeEnds[7][8][0] = 1;
  EdgeEnds[7][8][1] = 198;
  EdgeEnds[8][7][0] = -1;
  EdgeEnds[8][7][1] = 215;

  EdgeEnds[2][3][0] = 1;
  EdgeEnds[2][3][1] = 216;
  EdgeEnds[3][2][0] = -1;
  EdgeEnds[3][2][1] = 233;

  EdgeEnds[9][10][0] = 1;
  EdgeEnds[9][10][1] = 234;
  EdgeEnds[10][9][0] = -1;
  EdgeEnds[10][9][1] = 251;

  EdgeEnds[4][5][0] = 1;
  EdgeEnds[4][5][1] = 252;
  EdgeEnds[5][4][0] = -1;
  EdgeEnds[5][4][1] = 269;

  EdgeEnds[0][5][0] = 1;
  EdgeEnds[0][5][1] = 270;
  EdgeEnds[5][0][0] = -1;
  EdgeEnds[5][0][1] = 287;

  EdgeEnds[5][10][0] = 1;
  EdgeEnds[5][10][1] = 288;
  EdgeEnds[10][5][0] = -1;
  EdgeEnds[10][5][1] = 305;

  EdgeEnds[10][11][0] = 1;
  EdgeEnds[10][11][1] = 306;
  EdgeEnds[11][10][0] = -1;
  EdgeEnds[11][10][1] = 323;

  EdgeEnds[11][9][0] = 1;
  EdgeEnds[11][9][1] = 324;
  EdgeEnds[9][11][0] = -1;
  EdgeEnds[9][11][1] = 341;

  EdgeEnds[9][4][0] = 1;
  EdgeEnds[9][4][1] = 342;
  EdgeEnds[4][9][0] = -1;
  EdgeEnds[4][9][1] = 359;

  EdgeEnds[4][0][0] = 1;
  EdgeEnds[4][0][1] = 360;
  EdgeEnds[0][4][0] = -1;
  EdgeEnds[0][4][1] = 377;

  EdgeEnds[0][3][0] = 1;
  EdgeEnds[0][3][1] = 378;
  EdgeEnds[3][0][0] = -1;
  EdgeEnds[3][0][1] = 395;

  EdgeEnds[3][8][0] = 1;
  EdgeEnds[3][8][1] = 396;
  EdgeEnds[8][3][0] = -1;
  EdgeEnds[8][3][1] = 413;

  EdgeEnds[8][11][0] = 1;
  EdgeEnds[8][11][1] = 414;
  EdgeEnds[11][8][0] = -1;
  EdgeEnds[11][8][1] = 431;

  EdgeEnds[11][7][0] = 1;
  EdgeEnds[11][7][1] = 432;
  EdgeEnds[7][11][0] = -1;
  EdgeEnds[7][11][1] = 449;

  EdgeEnds[7][2][0] = 1;
  EdgeEnds[7][2][1] = 450;
  EdgeEnds[2][7][0] = -1;
  EdgeEnds[2][7][1] = 467;

  EdgeEnds[2][0][0] = 1;
  EdgeEnds[2][0][1] = 468;
  EdgeEnds[0][2][0] = -1;
  EdgeEnds[0][2][1] = 485;

  EdgeEnds[0][1][0] = 1;
  EdgeEnds[0][1][1] = 486;
  EdgeEnds[1][0][0] = -1;
  EdgeEnds[1][0][1] = 503;

  EdgeEnds[1][6][0] = 1;
  EdgeEnds[1][6][1] = 504;
  EdgeEnds[6][1][0] = -1;
  EdgeEnds[6][1][1] = 521;

  EdgeEnds[6][11][0] = 1;
  EdgeEnds[6][11][1] = 522;
  EdgeEnds[11][6][0] = -1;
  EdgeEnds[11][6][1] = 539;

}
void loop()
{
  int x, y;
  int segment_offset;

  blackout();

  for(x = 10; x > 0; --x)
    {
      vertextimecycle(1,x*10,128,0,0);
      fullshell(0,0,(10-x)*20);
    }

  fullshell(200,200,200);
  delay(200);

  for(y=0;y<10;++y)
    {
      for(x=0;x<10;++x)
      {
        fullshell(0,x*10,0);
        delay(25);
      }
      for(x=10;x>0;--x)
      {
        fullshell(0,x*10,0);
        delay(25);
      }
    }

  for(x=0;x<10;++x)
    randomstuff();

// edgerollcall();
// vertexrollcall();
// edgeinsingle();
// edgeinall();
// vertexcycle(1);
// vertexcycle(-1);

}

void randomstuff()
{
   int x;
   for(x=0;x<NUM_EDGE;++x)
     {
       selectedge(x, int(random(16)*14), int(random(16)*14), int(random(16)*14));
     }

   for(x=0;x<NUM_VERTEX;++x)
     {
       selectvertex(x, int(random(16)*14), int(random(16)*14), int(random(16)*14));
     }
}

void selectedge(int edge, int red, int green, int blue)
{
  int y, segment_offset;

  segment_offset = edge * 18;
  for (y=0;y<EDGE_SIZE;++y)
  {
    leds[segment_offset + y] = CRGB(red,green,blue);
  }
  FastLED.show();
  delay(10);
}

void selectvertex(int vertex, int red, int green, int blue)
{
  int y, vertex_start;

  vertex_start = (vertex * VERTEX_SIZE) + VERTEX_OFFSET;
  for(y=0; y < VERTEX_SIZE; ++y)
    {
      leds[vertex_start + y] = CRGB(red,green,blue);
    }
  FastLED.show();
  delay(10);
}

void blackout()
{
  for(int x=0;x<NUM_LEDS;++x)
    leds[x] = CRGB::Black;
}

void edgerollcall(int red,int green, int blue)
{
  int x,y;
  int segment_offset;

  for(x=0;x<NUM_EDGE;++x)
    {
      segment_offset = x * 18;
      for (y=0;y<EDGE_SIZE;++y)
      {
        leds[segment_offset + y] = CRGB(red,green,blue);
      }
      FastLED.show();
      delay(500);
      for (y=0;y<EDGE_SIZE;++y)
      {
        leds[segment_offset + y] = CRGB::Black;
      }
      FastLED.show();
      delay(500);
    }

}

void vertexrollcall(int red,int green, int blue)
{
  int x,y;
  int vertex_start = VERTEX_OFFSET;
    for(x=0; x < NUM_VERTEX; ++x)
      {
        for(y=0; y < VERTEX_SIZE; ++y)
          {
            leds[vertex_start + (x*VERTEX_SIZE) + y] = CRGB(red,green,blue);
          }
        FastLED.show();
        delay(100);
        for(y=0; y < VERTEX_SIZE; ++y)
          {
            leds[vertex_start + (x*VERTEX_SIZE) + y] = CRGB::Black;
          }
        FastLED.show();
      }
}


void edgeinsingle(int red,int green, int blue)
{
  int x,y;
  int segment_offset;

  for(x=0;x<NUM_EDGE;++x)
    {
      segment_offset = x * 18;
      for (y=0;y<EDGE_SIZE/2;++y)
      {
        leds[segment_offset + y] = CRGB(red,green,blue);
        leds[segment_offset + EDGE_SIZE - y] = CRGB(red,green,blue);
        FastLED.show();
        delay(100);
        leds[segment_offset + y] = CRGB::Black;
        leds[segment_offset + EDGE_SIZE - y] = CRGB::Black;
        FastLED.show();
      }
    }

}

void edgeinall(int red,int green, int blue)
{
  int x,y;
  int segment_offset;

  for (y=0;y<EDGE_SIZE;++y)
    {
      for(x=0;x<NUM_EDGE;++x)
      {
        segment_offset = x * 18;
        leds[segment_offset + y] = CRGB(red,green,blue);
        leds[segment_offset + EDGE_SIZE - y] = CRGB(red,green,blue);
      }
      FastLED.show();
      delay(100);

      for(x=0;x<NUM_EDGE;++x)
      {
        segment_offset = x * 18;
        leds[segment_offset + y] = CRGB::Black;
        leds[segment_offset + EDGE_SIZE - y] = CRGB::Black;
        FastLED.show();
      }
    }
}

void vertexcycle(int flow,int red,int green,int blue)
{
  int x,y;
  int vertex_start = VERTEX_OFFSET;

// flow in
  if (flow > 0)
    {
        for(y=0; y < VERTEX_SIZE/2; ++y)
          {
            for(x=0; x < NUM_VERTEX; ++x)
              {
                leds[vertex_start + (x*VERTEX_SIZE) + y] = CRGB(red,green,blue);
                leds[vertex_start + ((x+1)*VERTEX_SIZE) -1 - y] = CRGB(red,green,blue);
              }
            FastLED.show();
            delay(500);
            for(x=0; x < NUM_VERTEX; ++x)
              {
                leds[vertex_start + (x*VERTEX_SIZE) + y] = CRGB::Black;
                leds[vertex_start + ((x+1)*VERTEX_SIZE) -1 - y] = CRGB::Black;
              }
            FastLED.show();
          }
    }
// flow out
  if (flow < 0)
    {
        for(y=0; y < VERTEX_SIZE/2; ++y)
          {
            for(x=0; x < NUM_VERTEX; ++x)
              {
                leds[vertex_start + (x*VERTEX_SIZE) + (NUM_VERTEX/2) - y] = CRGB(red,green,blue);
                leds[vertex_start + (x*VERTEX_SIZE) + (NUM_VERTEX/2) + y + 1] = CRGB(red,green,blue);
              }
            FastLED.show();
            delay(500);
            for(x=0; x < NUM_VERTEX; ++x)
              {
                leds[vertex_start + (x*VERTEX_SIZE) + (NUM_VERTEX/2) - y] = CRGB::Black;
                leds[vertex_start + (x*VERTEX_SIZE) + (NUM_VERTEX/2) + y + 1] = CRGB::Black;
              }
            FastLED.show();
          }
    }
}

void vertextimecycle(int flow, int timedelay, int red,int green, int blue)
{
  int x,y;
  int vertex_start = VERTEX_OFFSET;

// flow in
  if (flow > 0)
    {
        for(y=0; y < VERTEX_SIZE/2; ++y)
          {
            for(x=0; x < NUM_VERTEX; ++x)
              {
                leds[vertex_start + (x*VERTEX_SIZE) + y] = CRGB(red,green,blue);
                leds[vertex_start + ((x+1)*VERTEX_SIZE) -1 - y] = CRGB(red,green,blue);
              }
            FastLED.show();
            delay(timedelay);
            for(x=0; x < NUM_VERTEX; ++x)
              {
                leds[vertex_start + (x*VERTEX_SIZE) + y] = CRGB::Black;
                leds[vertex_start + ((x+1)*VERTEX_SIZE) -1 - y] = CRGB::Black;
              }
            FastLED.show();
          }
    }
// flow out
  if (flow < 0)
    {
        for(y=0; y < VERTEX_SIZE/2; ++y)
          {
            for(x=0; x < NUM_VERTEX; ++x)
              {
                leds[vertex_start + (x*VERTEX_SIZE) + (NUM_VERTEX/2) - y] = CRGB(red,green,blue);
                leds[vertex_start + (x*VERTEX_SIZE) + (NUM_VERTEX/2) + y + 1] = CRGB(red,green,blue);
              }
            FastLED.show();
            delay(timedelay);
            for(x=0; x < NUM_VERTEX; ++x)
              {
                leds[vertex_start + (x*VERTEX_SIZE) + (NUM_VERTEX/2) - y] = CRGB::Black;
                leds[vertex_start + (x*VERTEX_SIZE) + (NUM_VERTEX/2) + y + 1] = CRGB::Black;
              }
            FastLED.show();
          }
    }
}

void fullshell(int red,int green, int blue)
{
  int x;

  for(x=0;x<VERTEX_OFFSET;++x)
    leds[x] = CRGB(red,green,blue);
  FastLED.show();
}

Credits

Jose Cabrera

7 projects • 0 followers

Engineer

Icosahedron Sphere NeoPixel Device (No Plutonium Used)

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Custom parts and enclosures

Parts Listing

Schematics

Basic Measurements

Neopixel Signal Line Routing

Neopixel Signal Line Through Vertex

Vertex Construction

Vertices Wiring

LED Numbering

Code

Example Code Demo

Credits

Jose Cabrera

Comments

Embed the widget on your own site

Icosahedron Sphere NeoPixel Device (No Plutonium Used)

Icosahedron Sphere NeoPixel Device (No Plutonium Used)

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Custom parts and enclosures

Parts Listing

Schematics

Basic Measurements

Neopixel Signal Line Routing

Neopixel Signal Line Through Vertex

Vertex Construction

Vertices Wiring

LED Numbering

Code

Example Code Demo

Credits

Jose Cabrera

Comments

Related channels and tags
