I2C Scanner

Detect your I2C device's slave address using an LCD and a barebones MSP430 (M430G2553).

BeginnerFull instructions provided1.5 hours857

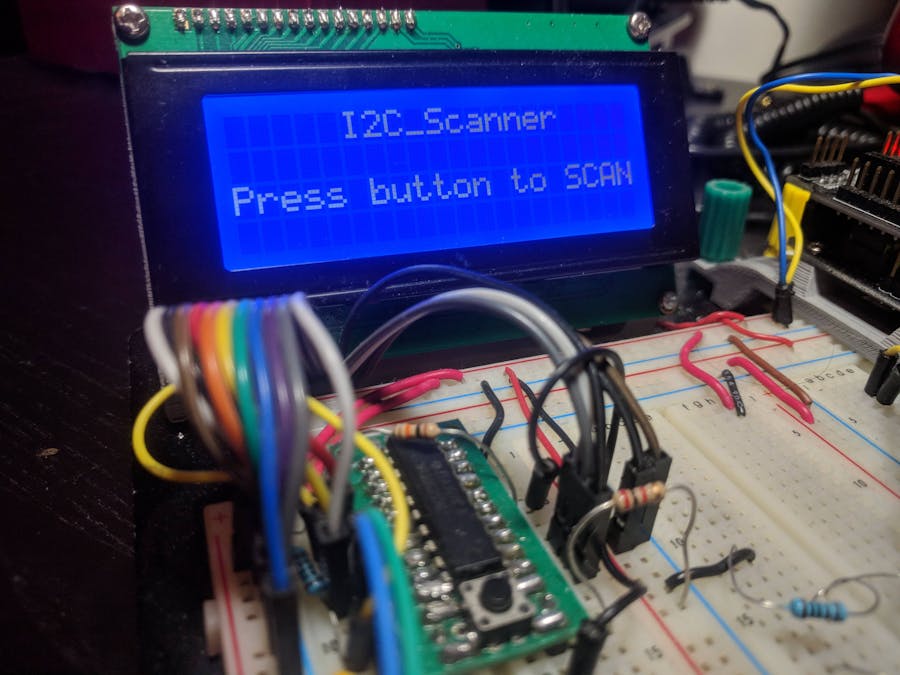

I2C Scanner

Things used in this project

Story

Read more

Custom parts and enclosures

LCD 20x4 Holder

Display stand by matt448 (thingiverse)

Matt448's CAD for 20x4 LCD Display Stand

Schematics

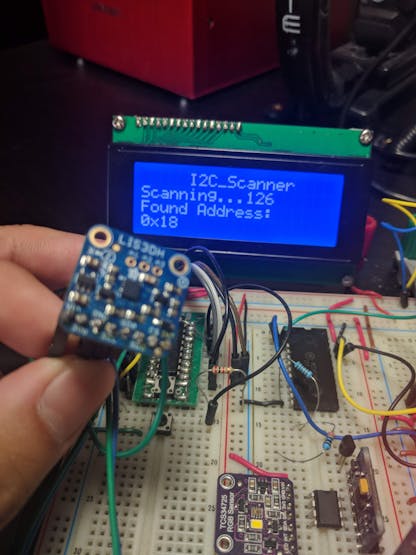

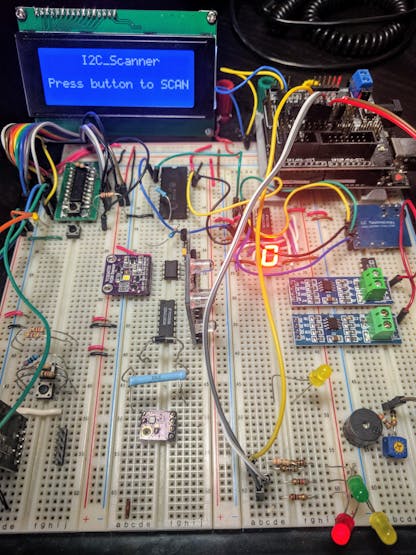

Circuit on breadboard

Circuit Schematic

Code

i2c_scanner

Arduino
/*
  This sketch scans for the i2c slave address of a device. This uses the LCD library by David A. Mellis which got modified by Limor Fried and Tim Igoe.

  Changed LCD connections to work with barebones MSP430(M430G2553)
  =================================
  LCD pin              Connect to
  ---------------------------------
  01 - GND             GND, pot
  02 - VCC             +5V, pot
  03 - Contrast        Pot wiper
  04 - RS              Pin6 (P1.4)
  05 - R/W             GND
  06 - EN              Pin7 (P1.5)
  07 - DB0             GND
  08 - DB1             GND
  09 - DB2             GND
  10 - DB3             GND
  11 - DB4             Pin8 (P2.0)
  12 - DB5             Pin11 (P2.3)
  13 - DB6             Pin12 (P2.4)
  14 - DB7             Pin13 (P2.5)
  15 - BL+             +5V
  16 - BL-             GND
  =================================

  Augmented by: HyperChiicken
*/

#include <LiquidCrystal.h>
#include <Wire.h>

uint8_t error, address;
const int buttonPin = PUSH2;     // the number of the pushbutton pin
const int ledPin =  RED_LED;      // the number of the LED pin
int buttonState = 0;         // variable for reading the pushbutton status

/* Initialize the library with the numbers of the interface pins */
LiquidCrystal lcd(P1_4, P1_5, P2_0, P2_3, P2_4, P2_5);

void setup() {
  Serial.begin(9600);

  pinMode(ledPin, OUTPUT);          // initialize the LED pin as an output
  pinMode(buttonPin, INPUT_PULLUP); // initialize the pushbutton pin as an input
  lcd.begin(20, 4);                 // set up the LCD's number of columns and rows
  Wire.begin(0);                    // start i2c communications

  /* Print an opening message to the LCD */
  lcd.print("     I2C_Scanner");
  lcd.setCursor(0, 2);
  lcd.print("Press button to SCAN");
}

void loop() {
  buttonState = digitalRead(buttonPin);

  if (buttonState == LOW) {
    startScan();                    // start scanning when the button is pressed
  }
}

/* Scans for the i2c slave address by iterating from 1 to 126 */
void startScan() {
  digitalWrite(ledPin, LOW);
  for (address = 1; address < 127; address++ )
  {
    lcd.setCursor(0, 1);
    lcd.print("Scanning...");
    lcd.print(address);

    Wire.beginTransmission(address);
    error = Wire.endTransmission();

    /* Display the slave address in HEX when found */
    if (error == 0) {
      lcd.setCursor(0, 2);
      lcd.print("Found Address:      ");
      lcd.setCursor(0, 3);
      lcd.print("0x");

      if (address < 15) lcd.print('0');
      lcd.print(address, HEX);
    }
  }
}

i2c_scanner @ github
