Gustavo Reynaga
Published © CC BY

Learns or Teaches Arduino without any Line of Code #1

Hello everyone, this is the first Arduino tutorial on how to program without writing any line of code, using Ardublock.

EasyProtip1 hour1,534
Learns or Teaches Arduino without any Line of Code #1

Things used in this project

Hardware components

SparkFun RedBoard
SparkFun RedBoard
×1
Breadboard (generic)
Breadboard (generic)
×1
5 mm LED: Green
5 mm LED: Green
×1
Resistor 330 ohm
Resistor 330 ohm
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Ardublock
Create by David Li and HE Qichen

Story

Read more

Schematics

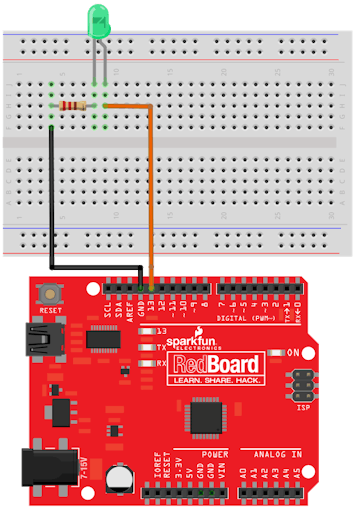

T1 Circuit for Hello World in Ardublock

Code

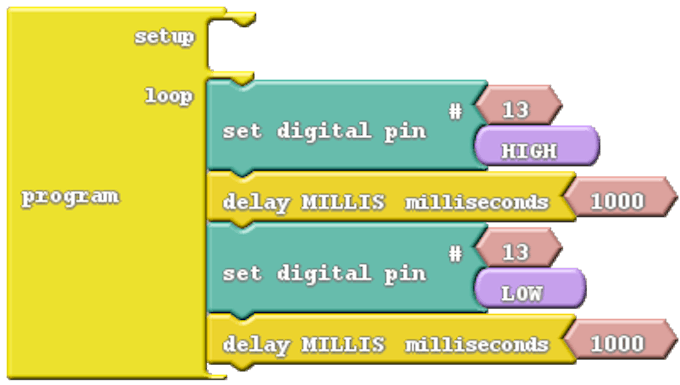

T1-Hello_World.abp

Arduino
Source code in Ardublock language.
<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<cb:CODEBLOCKS xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://education.mit.edu/openblocks/ns http://education.mit.edu/openblocks/codeblocks.xsd" xmlns:cb="http://education.mit.edu/openblocks/ns">
<Pages collapsible-pages="yes" drawer-with-page="yes">
<Page page-color="160 160 160" page-drawer="Main" page-infullview="yes" page-name="Main" page-width="1920">
<PageBlocks>
<Block genus-name="pin-write-digital" id="314">
<Location>
<X>126</X>
<Y>67</Y>
</Location>
<BeforeBlockId>312</BeforeBlockId>
<AfterBlockId>317</AfterBlockId>
<Sockets num-sockets="2">
<BlockConnector con-block-id="315" connector-kind="socket" connector-type="number" init-type="number" label="#" position-type="single"/>
<BlockConnector con-block-id="316" connector-kind="socket" connector-type="boolean" init-type="boolean" label="" position-type="single"/>
</Sockets>
</Block>
<Block genus-name="delay" id="317">
<Location>
<X>126</X>
<Y>121</Y>
</Location>
<BeforeBlockId>314</BeforeBlockId>
<AfterBlockId>319</AfterBlockId>
<Sockets num-sockets="1">
<BlockConnector con-block-id="318" connector-kind="socket" connector-type="number" init-type="number" label="milliseconds" position-type="single"/>
</Sockets>
</Block>
<Block genus-name="pin-write-digital" id="319">
<Location>
<X>126</X>
<Y>151</Y>
</Location>
<BeforeBlockId>317</BeforeBlockId>
<AfterBlockId>322</AfterBlockId>
<Sockets num-sockets="2">
<BlockConnector con-block-id="320" connector-kind="socket" connector-type="number" init-type="number" label="#" position-type="single"/>
<BlockConnector con-block-id="321" connector-kind="socket" connector-type="boolean" init-type="boolean" label="" position-type="single"/>
</Sockets>
</Block>
<Block genus-name="delay" id="322">
<Location>
<X>126</X>
<Y>205</Y>
</Location>
<BeforeBlockId>319</BeforeBlockId>
<Sockets num-sockets="1">
<BlockConnector con-block-id="323" connector-kind="socket" connector-type="number" init-type="number" label="milliseconds" position-type="single"/>
</Sockets>
</Block>
<Block genus-name="number" id="323">
<Label>1000</Label>
<Location>
<X>336</X>
<Y>208</Y>
</Location>
<Plug>
<BlockConnector con-block-id="322" connector-kind="plug" connector-type="number" init-type="number" label="" position-type="mirror"/>
</Plug>
</Block>
<Block genus-name="digital-low" id="321">
<Location>
<X>284</X>
<Y>178</Y>
</Location>
<Plug>
<BlockConnector con-block-id="319" connector-kind="plug" connector-type="boolean" init-type="boolean" label="" position-type="mirror"/>
</Plug>
</Block>
<Block genus-name="number" id="320">
<Label>13</Label>
<Location>
<X>284</X>
<Y>154</Y>
</Location>
<Plug>
<BlockConnector con-block-id="319" connector-kind="plug" connector-type="number" init-type="number" label="" position-type="mirror"/>
</Plug>
</Block>
<Block genus-name="number" id="318">
<Label>1000</Label>
<Location>
<X>336</X>
<Y>124</Y>
</Location>
<Plug>
<BlockConnector con-block-id="317" connector-kind="plug" connector-type="number" init-type="number" label="" position-type="mirror"/>
</Plug>
</Block>
<Block genus-name="digital-high" id="316">
<Location>
<X>284</X>
<Y>94</Y>
</Location>
<Plug>
<BlockConnector con-block-id="314" connector-kind="plug" connector-type="boolean" init-type="boolean" label="" position-type="mirror"/>
</Plug>
</Block>
<Block genus-name="number" id="315">
<Label>13</Label>
<Location>
<X>284</X>
<Y>70</Y>
</Location>
<Plug>
<BlockConnector con-block-id="314" connector-kind="plug" connector-type="number" init-type="number" label="" position-type="mirror"/>
</Plug>
</Block>
<Block genus-name="program" id="312">
<Location>
<X>8</X>
<Y>24</Y>
</Location>
<Sockets num-sockets="2">
<BlockConnector connector-kind="socket" connector-type="cmd" init-type="cmd" label="setup" position-type="single"/>
<BlockConnector con-block-id="314" connector-kind="socket" connector-type="cmd" init-type="cmd" label="loop" position-type="single"/>
</Sockets>
</Block>
</PageBlocks>
</Page>
</Pages>
</cb:CODEBLOCKS>

Credits

Gustavo Reynaga

Gustavo Reynaga

11 projects • 60 followers
Iam a teacher
Thanks to David Li, HE Qichen, and Sparkfun.
