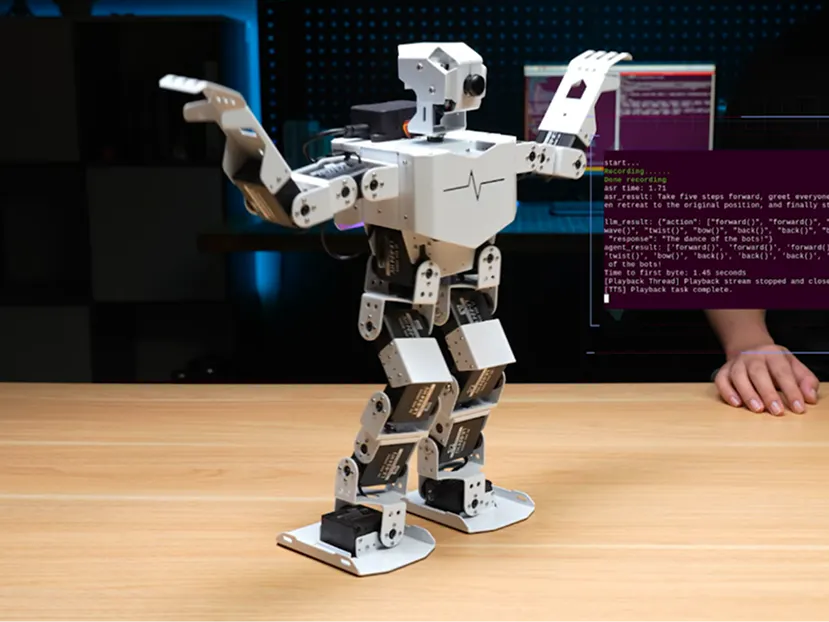

Watching a humanoid robot like TonyPi seamlessly shadow your every move—raising an arm when you do, tilting its head as you tilt yours—feels like magic. But the real trick isn't sorcery; it's the powerful combination of computer vision and robotic kinematics. This capability transforms TonyPi from a pre-programmed performer into an interactive partner, and it's all powered by accessible open-source technology.
The Vision: How TonyPi “Sees” YouThe first step is perception. TonyPi's “eyes” are an HD camera mounted on its 2-degree-of-freedom head. The magic happens when the video feed from this camera is processed by MediaPipe, a cross-platform framework developed by Google.
MediaPipe’s Pose solution acts as the robot's visual cortex. In real-time, it analyzes the image and identifies up to 33 key anatomical landmarks on a human body—from shoulders, elbows, and wrists down to hips, knees, and ankles. It doesn't just see a person; it extracts a precise, moving skeletal data stream, translating your physical form into digital coordinates TonyPi can understand.
Access TonyPi tutorials and learn various experimental cases now!The Translation: From Your Skeleton to Servo Commands
Getting coordinates is one thing; turning them into motion is another. This is where the real engineering begins. You cannot simply tell a robot's shoulder servo to "go to pixel (X, Y)." Servos understand angles, not screen positions.
This conversion is achieved through Inverse Kinematics (IK), a fundamental robotics algorithm. Think of it as the robot's brain solving a constant geometric puzzle: "Given the desired position of my end-effector (like its hand), what angles must every joint in the chain (shoulder, elbow) achieve to get there?"
For TonyPi to mirror you, a custom IK solver takes the 3D coordinates of your key points (like your wrist) from MediaPipe and calculates the exact angles required for its own 16 high-voltage bus servos to match that pose. This calculation happens dozens of times per second, creating the fluid, real-time mirroring effect.
Building this project is highly practical, thanks to the structured resources provided by Hiwonder. The official documentation offers a clear learning path:
Foundation (Vision & Control): Start with the AI Vision Course (Section 5), mastering how TonyPi captures and processes live video. Then, learn PC Software Action Control (Section 4) to understand how to program and command its servo movements.
Core Application: Dive into the specific lessons designed for this: “5.11 Gesture Control” and “5.12 Pose Control.” These tutorials guide you through the essential steps of integrating MediaPipe skeleton data and mapping it to TonyPi's servos, effectively teaching you to build your own “robot mirror” program.
Advanced Integration: Once the basic mirroring works, explore the AI Large Model Course (Section 12). Imagine combining this with ChatGPT—you could ask TonyPi, “Copy my dance moves, ” and have it understand the command naturally before executing the visual tracking routine.
🧐Get the complete TonyPi tutorials for free or check TonyPi GitHub.Beyond Imitation: The Future of Interactive Motion
This mirroring function is far more than a parlor trick. It's a gateway to Embodied AI, where intelligence is expressed through physical interaction.
Next-Level Control: It enables intuitive gesture-based remote control, where complex maneuvers can be directed with simple body language.
Interactive AI: Combine it with large language models for robots that can physically act out a story you tell them or follow natural language commands like, “Do what I’m doing.”
Research & Education: It provides a perfect, hands-on platform for studying human-robot interaction, motion planning, and real-time system integration.
By demystifying the process, we see that TonyPi’s ability to follow you is a brilliant demonstration of modern open-source tools. It takes the advanced, yet accessible, technologies of MediaPipe for perception and Inverse Kinematics for action, and merges them into a responsive, physical entity. The result is a captivating glimpse into a future where our robots can not only see our world but also move in harmony with us.
